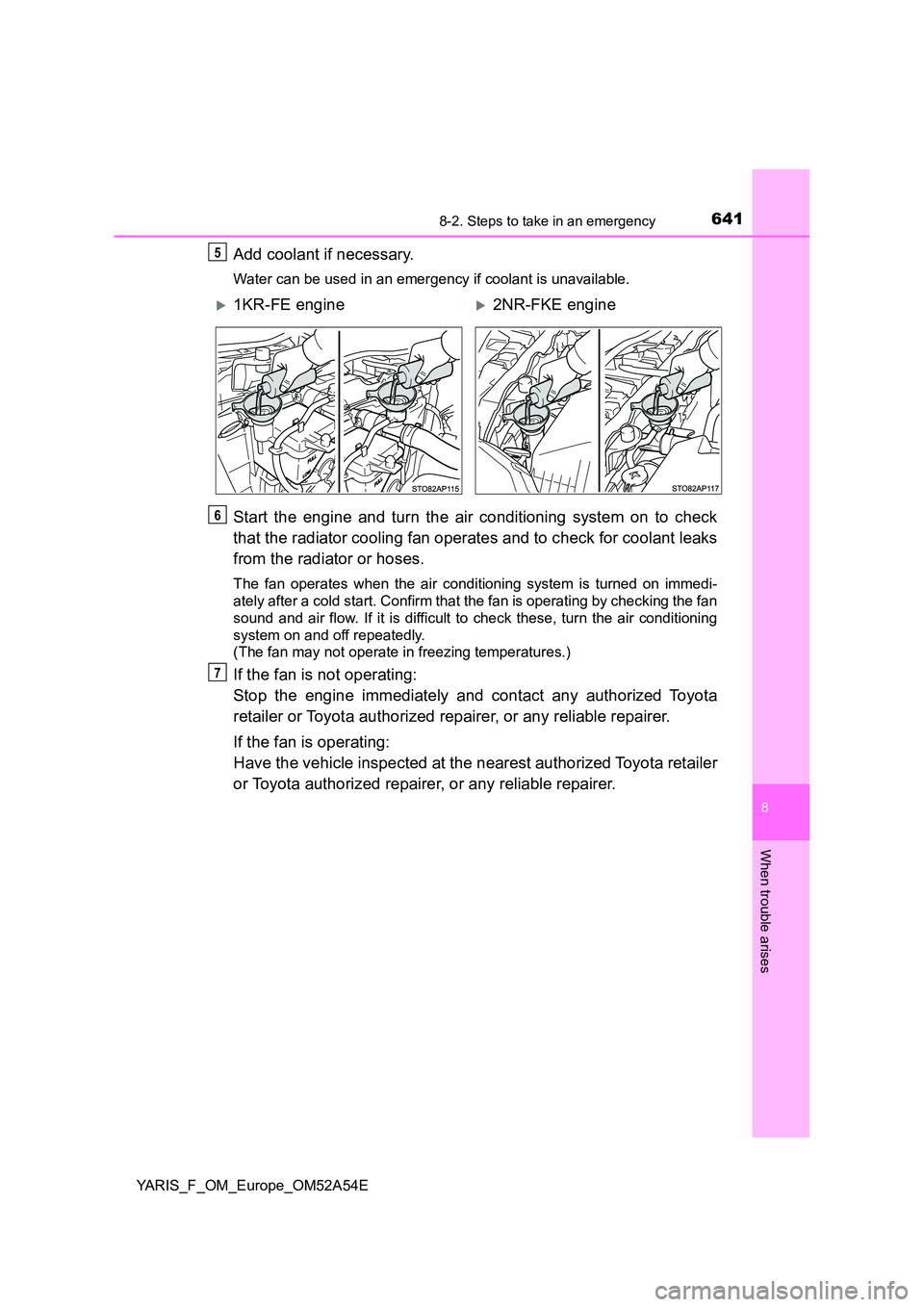

Add coolant if necessary.
Water can be used in an emergency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
5
1KR-FE engine2NR-FKE engine
6
7

6428-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52A54E

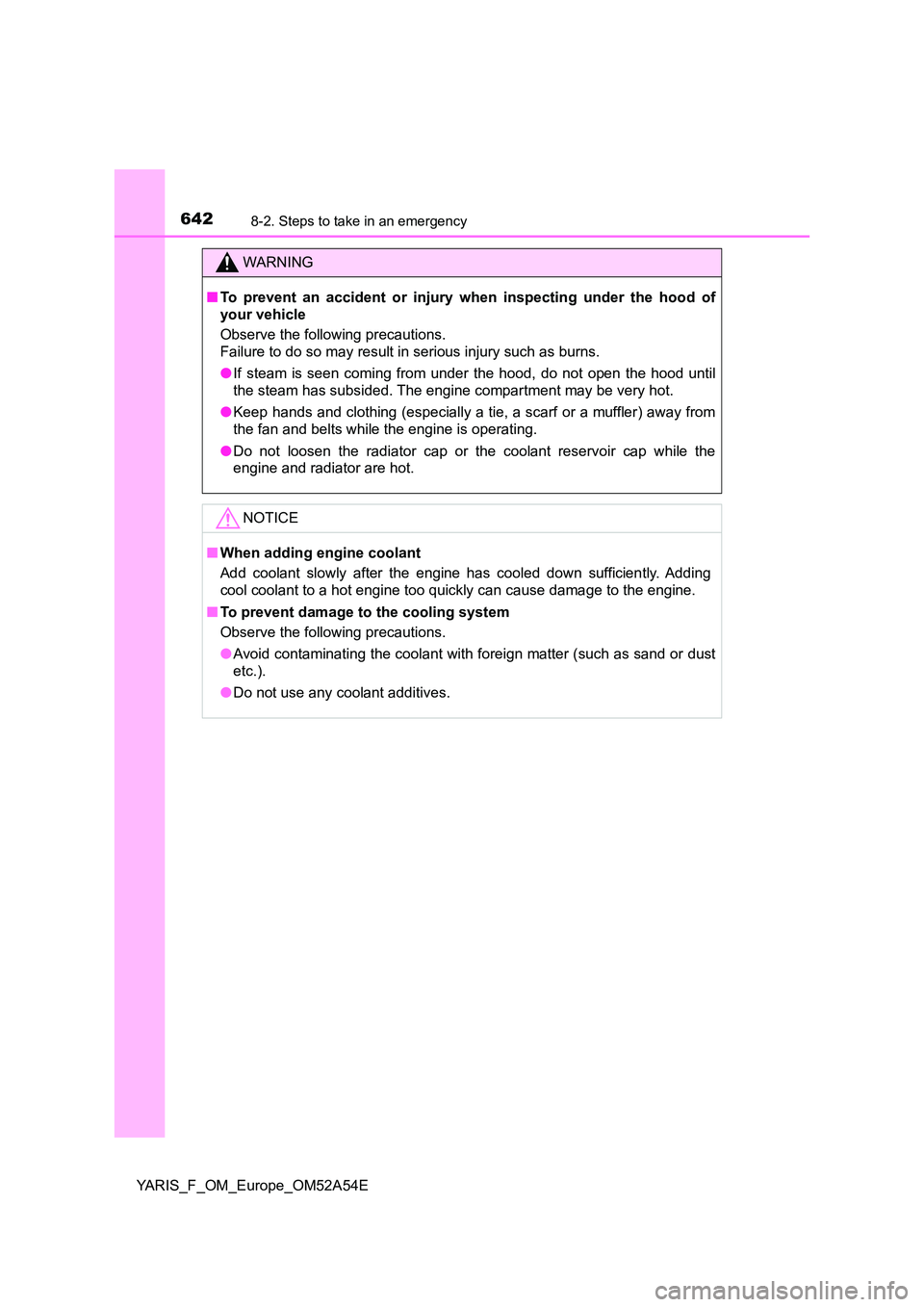

WARNING
■To prevent an accident or injury when inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
● If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts while the engine is operating.
● Do not loosen the radiator cap or the coolant reservoir cap while the
engine and radiator are hot.
NOTICE
■ When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions.
● Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additives.

6438-2. Steps to take in an emergency
8
When trouble arises
YARIS_F_OM_Europe_OM52A54E

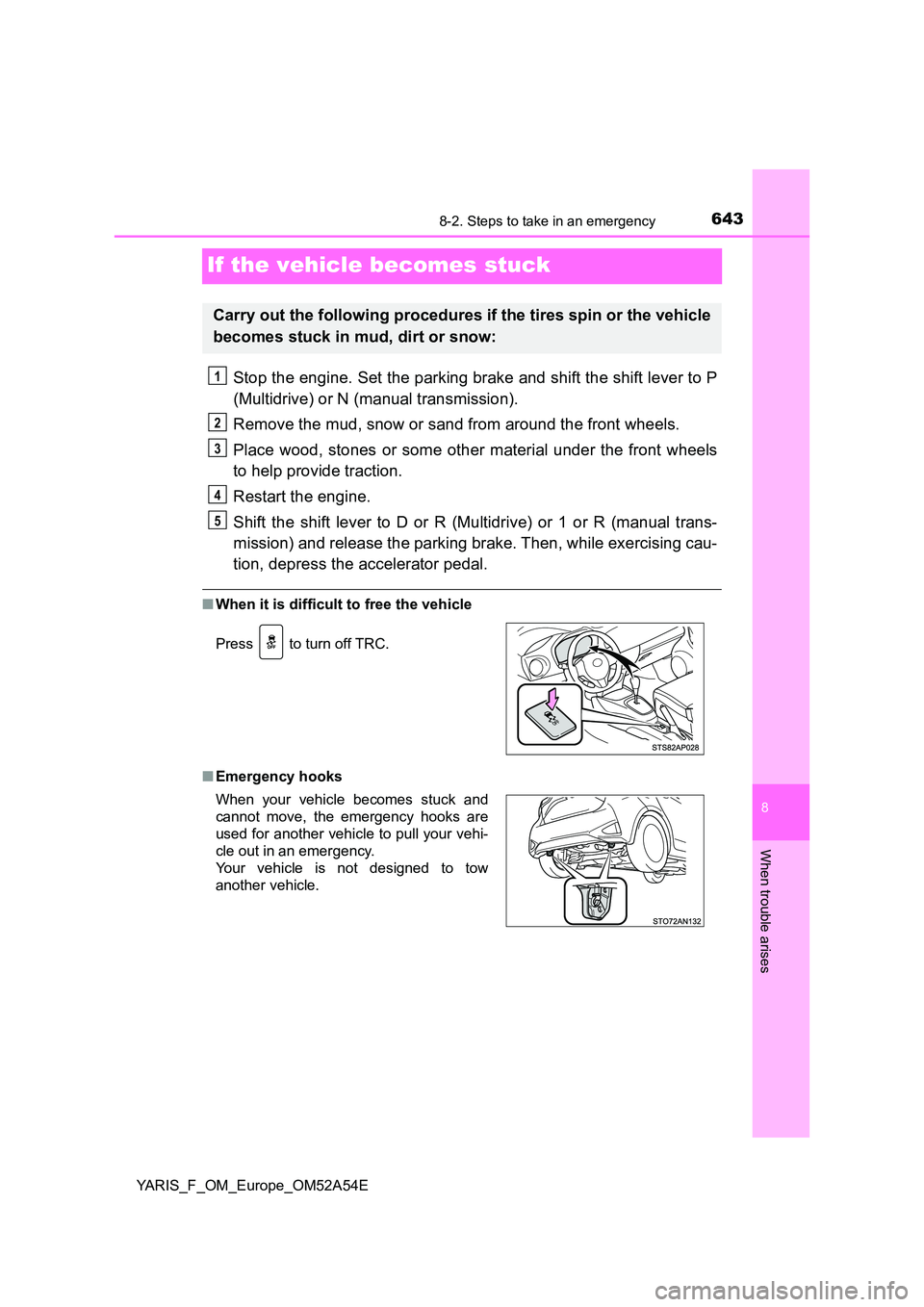

If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(Multidrive) or N (manual transmission).
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
■ When it is difficult to free the vehicle
■ Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5

6448-2. Steps to take in an emergency
YARIS_F_OM_Europe_OM52A54E

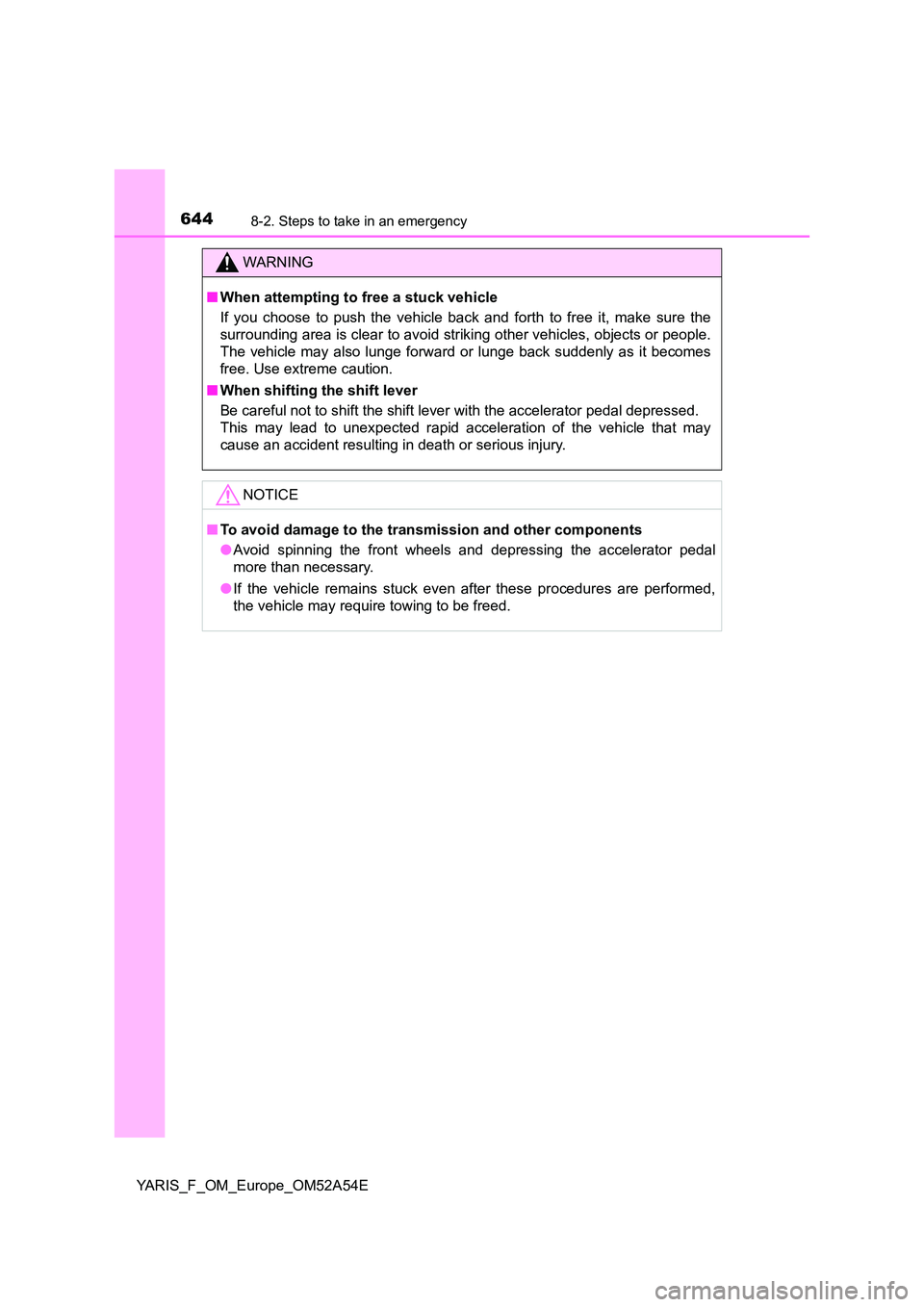

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■ To avoid damage to the transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

645

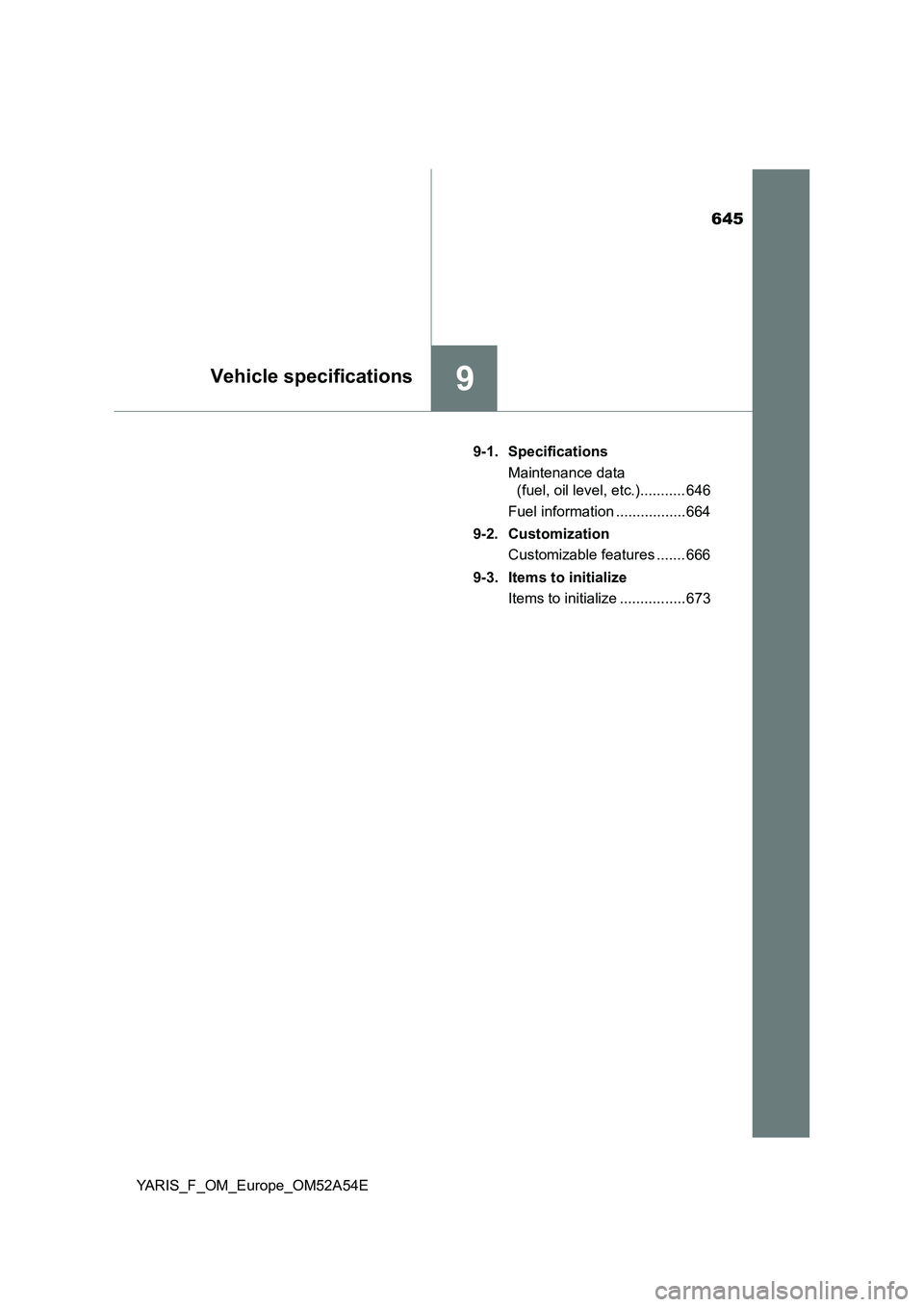

9Vehicle specifications
YARIS_F_OM_Europe_OM52A54E9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 646
Fuel information ................. 664
9-2. Customization
Customizable features ....... 666
9-3. Items to initialize
Items to initialize ................ 673

6469-1. Specifications
YARIS_F_OM_Europe_OM52A54E

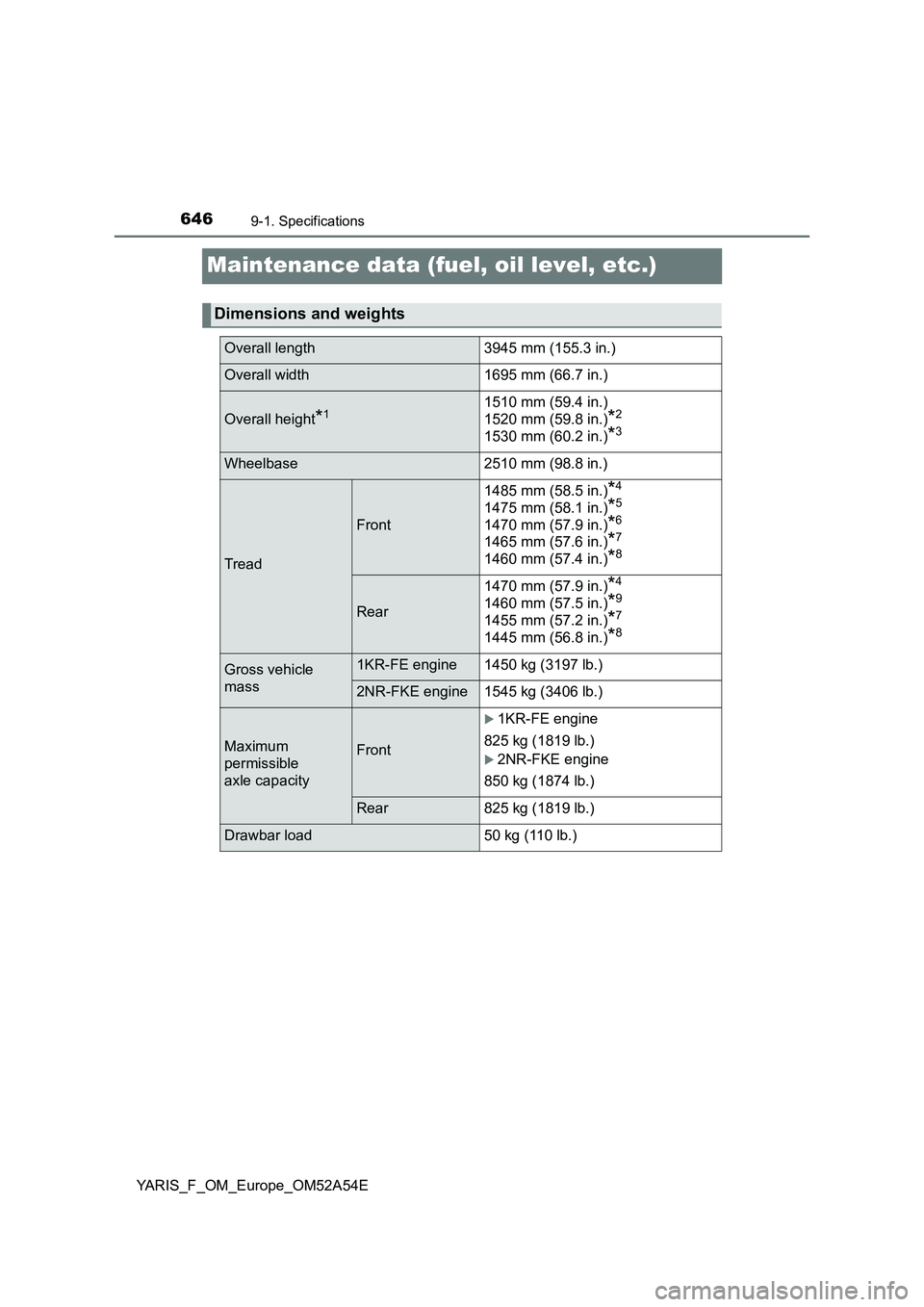

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 3945 mm (155.3 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)
*2
1530 mm (60.2 in.)*3
Wheelbase 2510 mm (98.8 in.)
Tread
Front1485 mm (58.5 in.)
*4
1475 mm (58.1 in.)*5
1470 mm (57.9 in.)*6
1465 mm (57.6 in.)*7
1460 mm (57.4 in.)*8
Rear1470 mm (57.9 in.)
*4
1460 mm (57.5 in.)*9
1455 mm (57.2 in.)*7
1445 mm (56.8 in.)*8
Gross vehicle
mass1KR-FE engine 1450 kg (3197 lb.)
2NR-FKE engine 1545 kg (3406 lb.)
Maximum
permissible
axle capacityFront
1KR-FE engine
825 kg (1819 lb.)
2NR-FKE engine
850 kg (1874 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)

6479-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

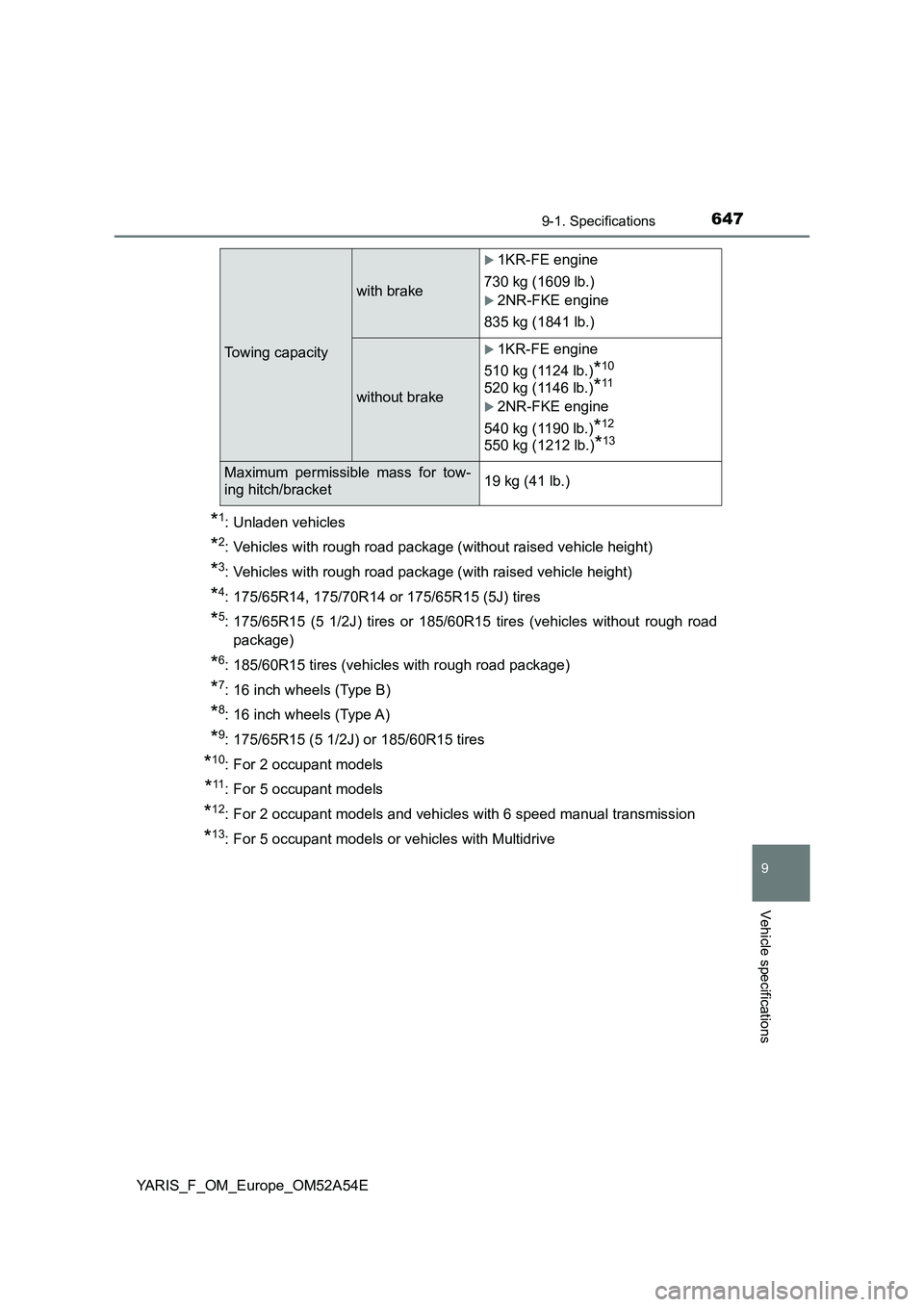

*1: Unladen vehicles
*2: Vehicles with rough road package (without raised vehicle height)
*3: Vehicles with rough road package (with raised vehicle height)
*4: 175/65R14, 175/70R14 or 175/65R15 (5J) tires
*5: 175/65R15 (5 1/2J) tires or 185/60R15 tires (vehicles without rough road
package)
*6: 185/60R15 tires (vehicles with rough road package)
*7: 16 inch wheels (Type B)
*8: 16 inch wheels (Type A)
*9: 175/65R15 (5 1/2J) or 185/60R15 tires
*10: For 2 occupant models
*11: For 5 occupant models
*12: For 2 occupant models and vehicles with 6 speed manual transmission
*13: For 5 occupant models or vehicles with Multidrive
Towing capacity
with brake
1KR-FE engine
730 kg (1609 lb.)
2NR-FKE engine
835 kg (1841 lb.)
without brake
1KR-FE engine
510 kg (1124 lb.)
*10
520 kg (1146 lb.)*11
2NR-FKE engine
540 kg (1190 lb.)
*12
550 kg (1212 lb.)*13
Maximum permissible mass for tow-
ing hitch/bracket19 kg (41 lb.)

6489-1. Specifications
YARIS_F_OM_Europe_OM52A54E■

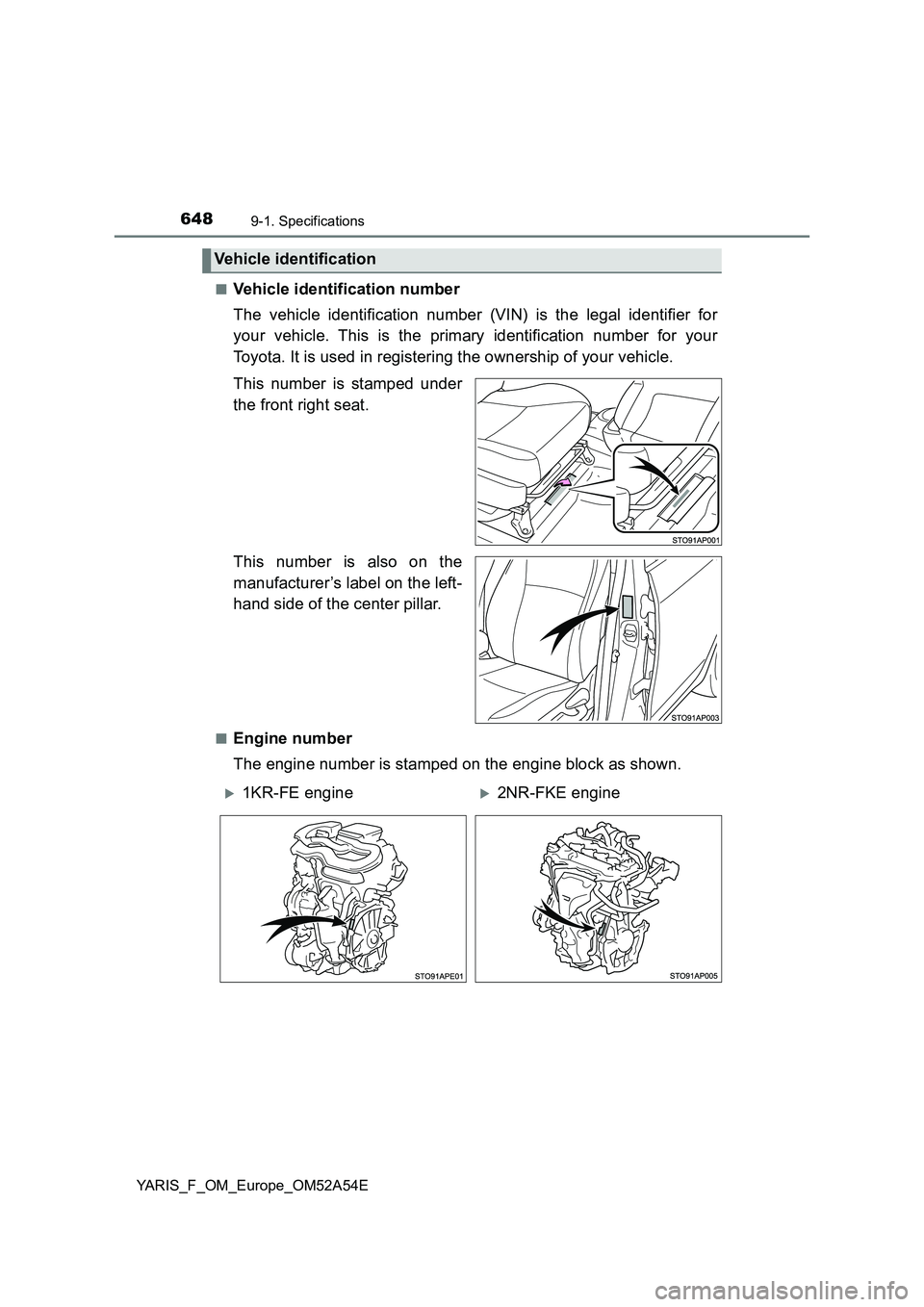

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
This number is also on the
manufacturer’s label on the left-
hand side of the center pillar.
■Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification
1KR-FE engine2NR-FKE engine

6499-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E
1KR-FE engine
2NR-FKE engine

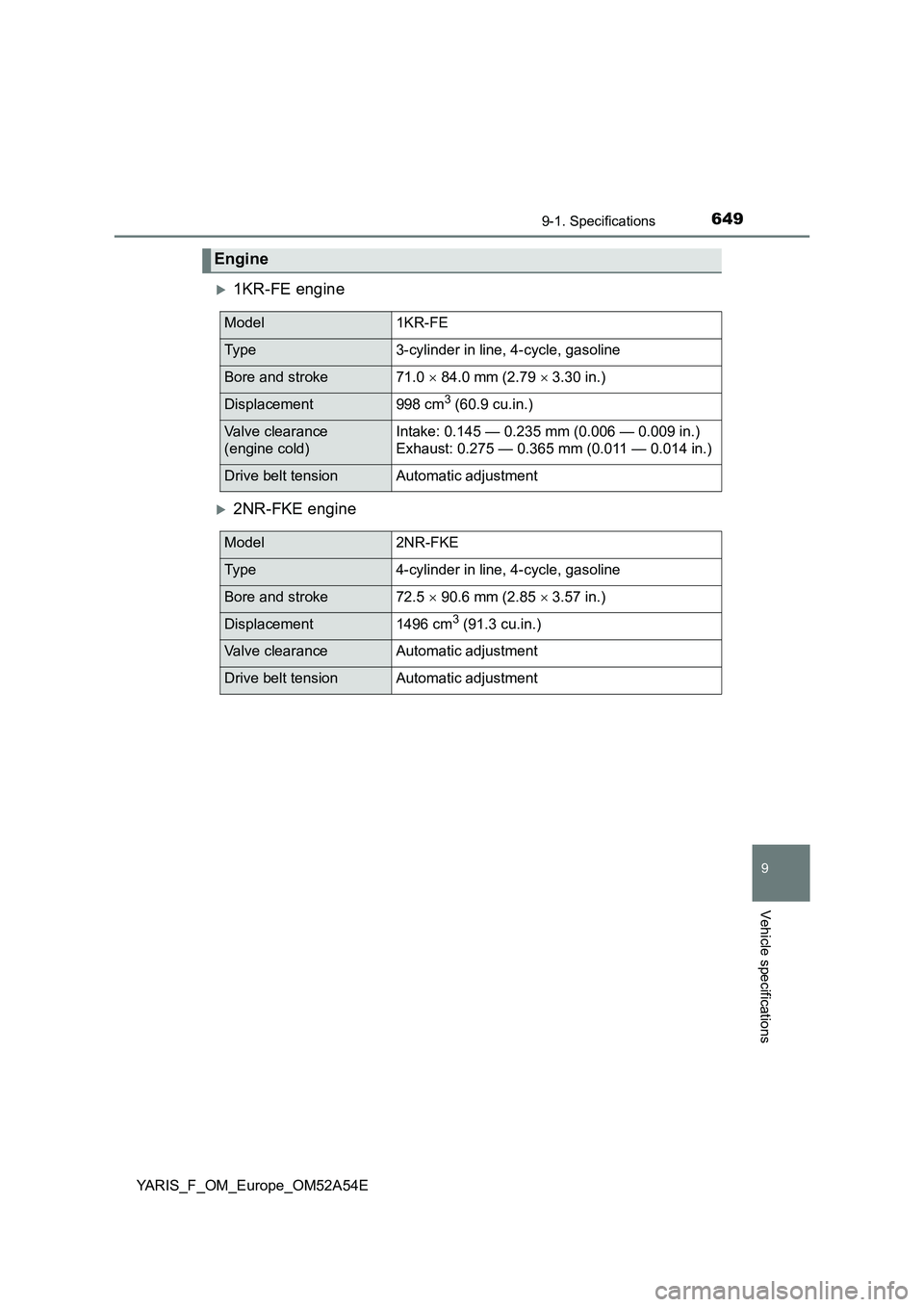

Engine
Model1KR-FE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke71.0  84.0 mm (2.79  3.30 in.)
Displacement998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Intake: 0.145 — 0.235 mm (0.006 — 0.009 in.)
Exhaust: 0.275 — 0.365 mm (0.011 — 0.014 in.)
Drive belt tensionAutomatic adjustment
Model2NR-FKE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke72.5  90.6 mm (2.85  3.57 in.)
Displacement1496 cm3 (91.3 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

6509-1. Specifications
YARIS_F_OM_Europe_OM52A54E■

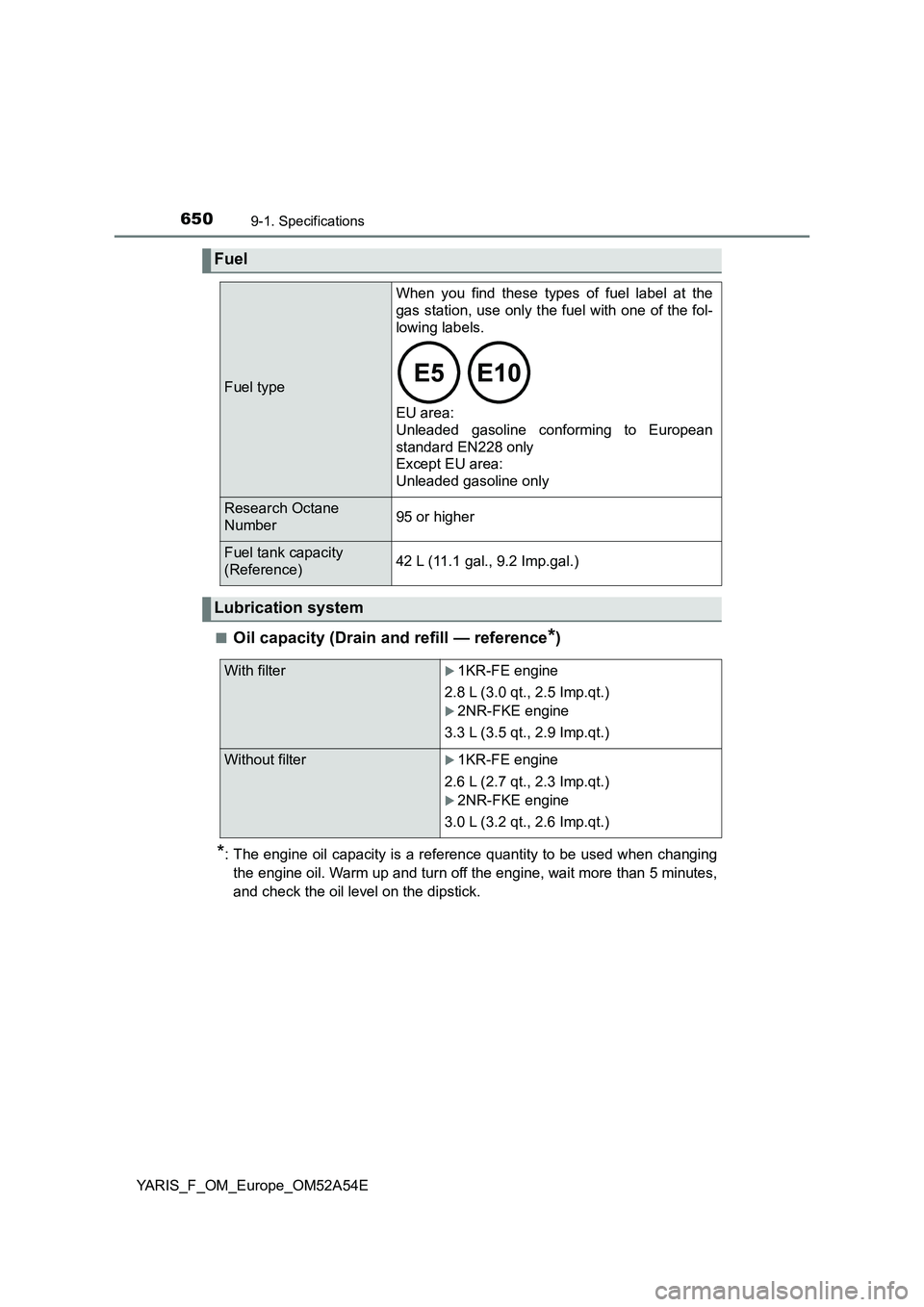

Oil capacity (Drain and refill — reference*)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Fuel
Fuel type
When you find these types of fuel label at the
gas station, use only the fuel with one of the fol-
lowing labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)42 L (11.1 gal., 9.2 Imp.gal.)
Lubrication system
With filter1KR-FE engine
2.8 L (3.0 qt., 2.5 Imp.qt.)
2NR-FKE engine
3.3 L (3.5 qt., 2.9 Imp.qt.)
Without filter1KR-FE engine
2.6 L (2.7 qt., 2.3 Imp.qt.)
2NR-FKE engine
3.0 L (3.2 qt., 2.6 Imp.qt.)
