TOYOTA YARIS 2020 Owners Manual

6519-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E■

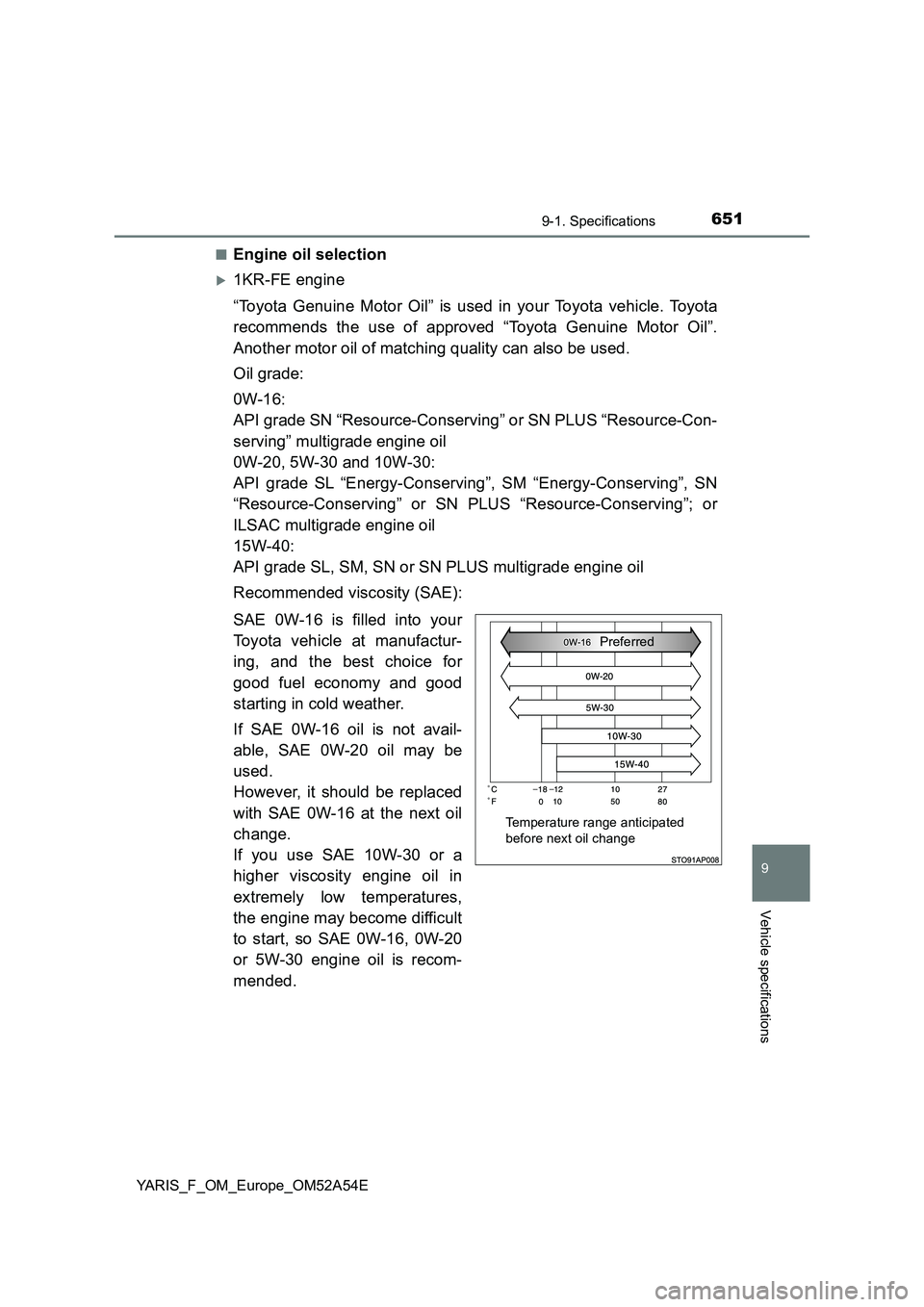

Engine oil selection
1KR-FE engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving” or SN PLUS “Resource-Con-
serving” multigrade engine oil
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used.
However, it should be replaced
with SAE 0W-16 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-16, 0W-20
or 5W-30 engine oil is recom-
mended.
Preferred
Temperature range anticipated
before next oil change

6529-1. Specifications
YARIS_F_OM_Europe_OM52A54E
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

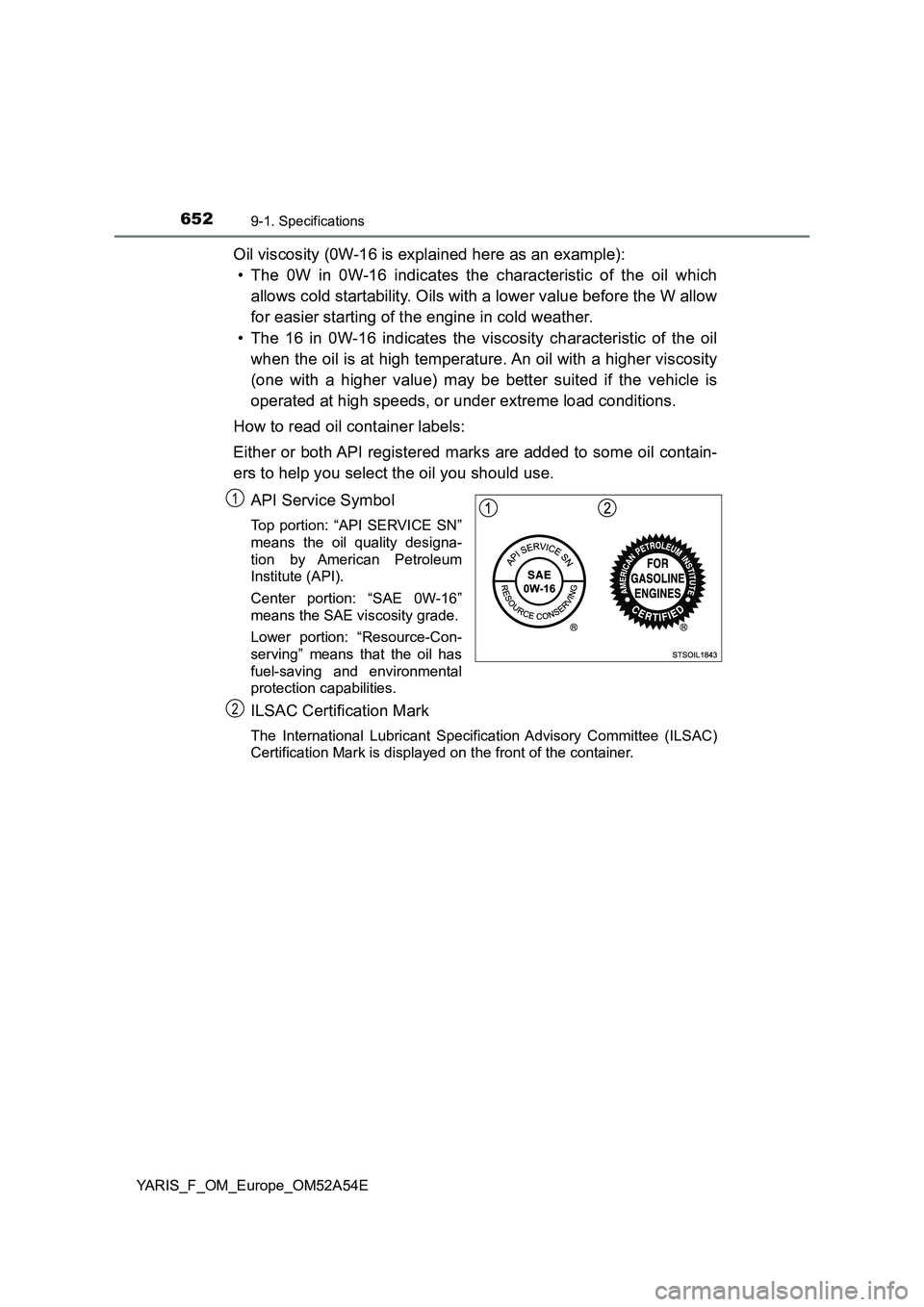

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6539-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

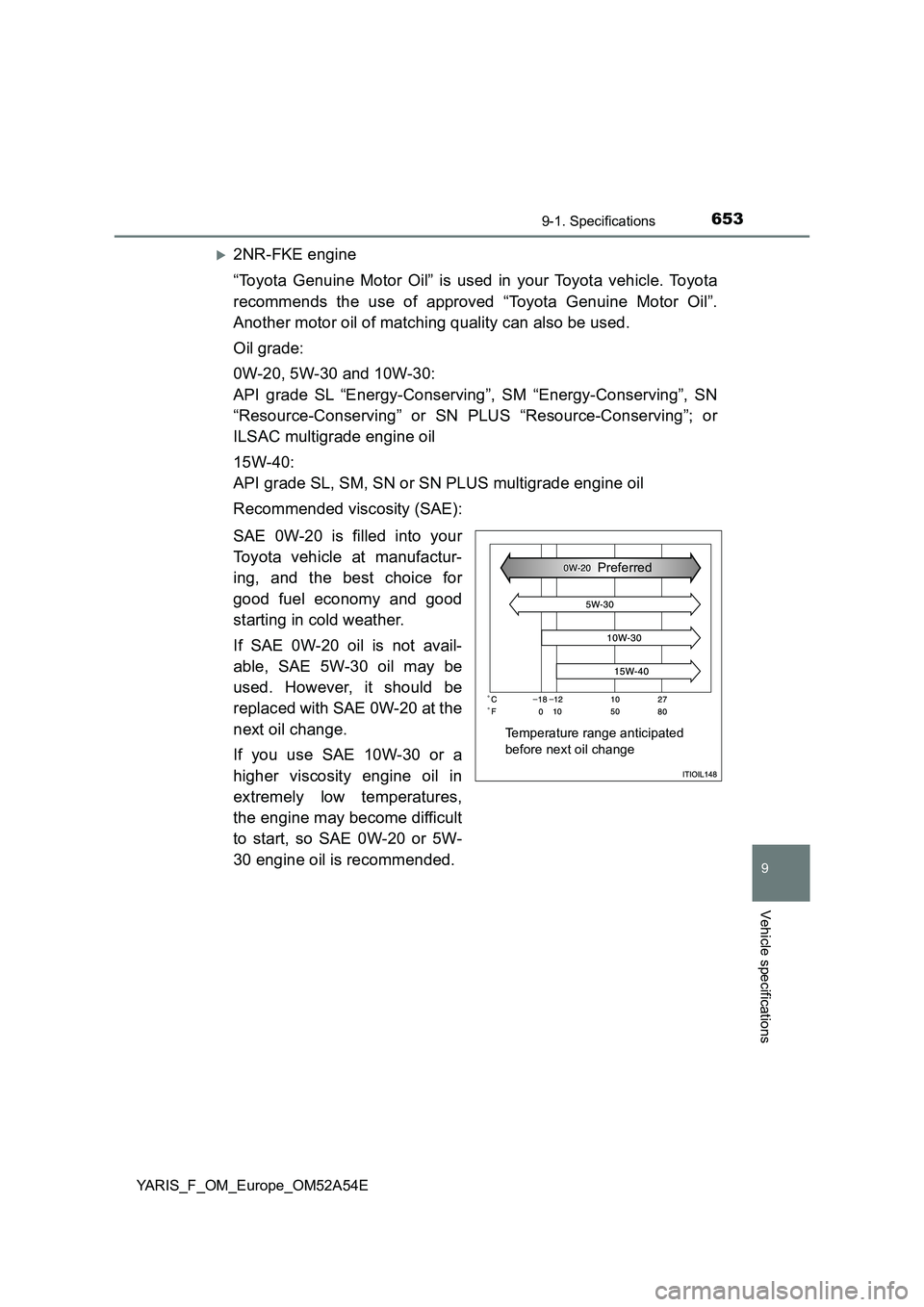

2NR-FKE engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or SN PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
15W-40:
API grade SL, SM, SN or SN PLUS multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Temperature range anticipated
before next oil changePreferred

6549-1. Specifications
YARIS_F_OM_Europe_OM52A54E
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

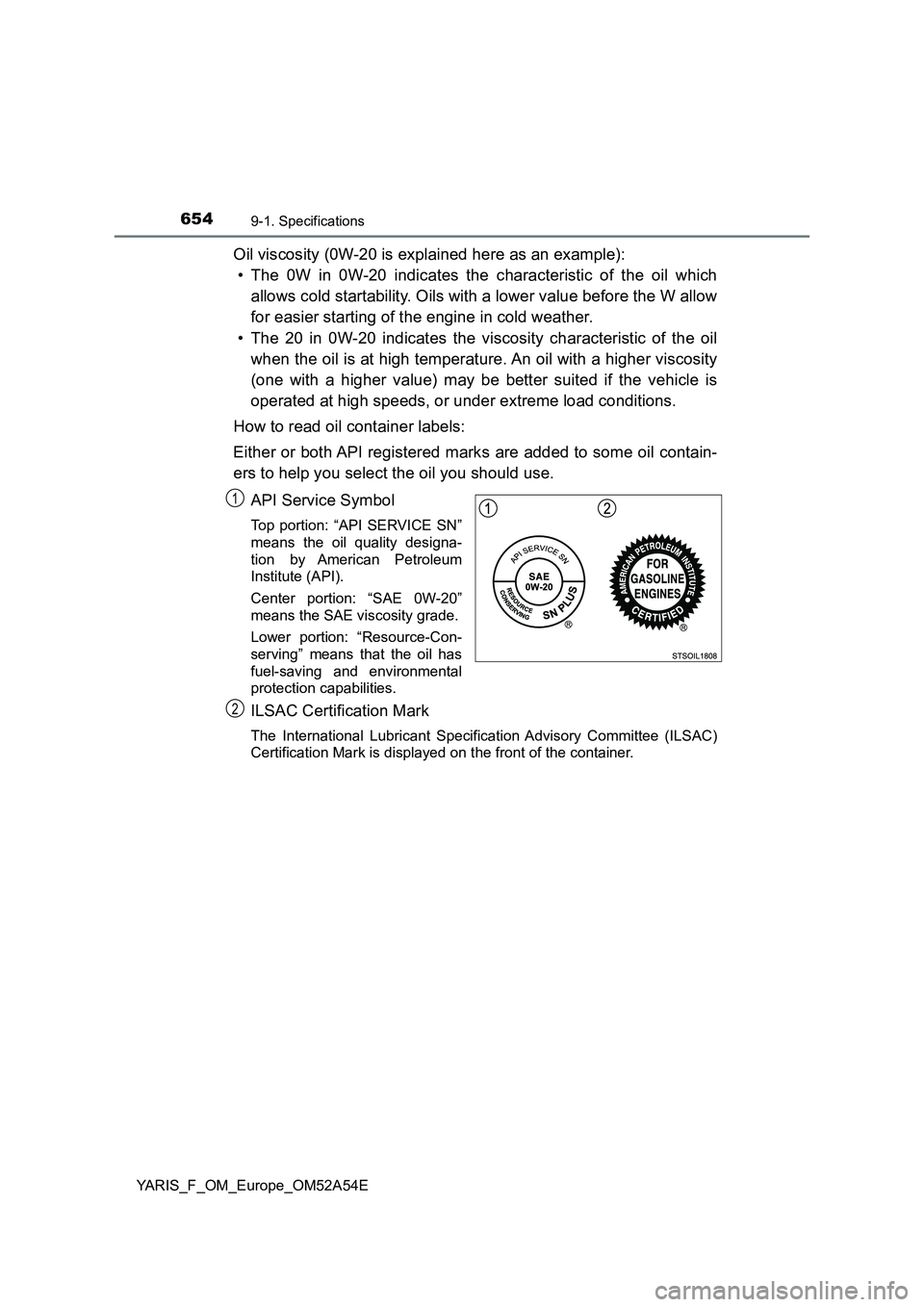

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
1
2

6559-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

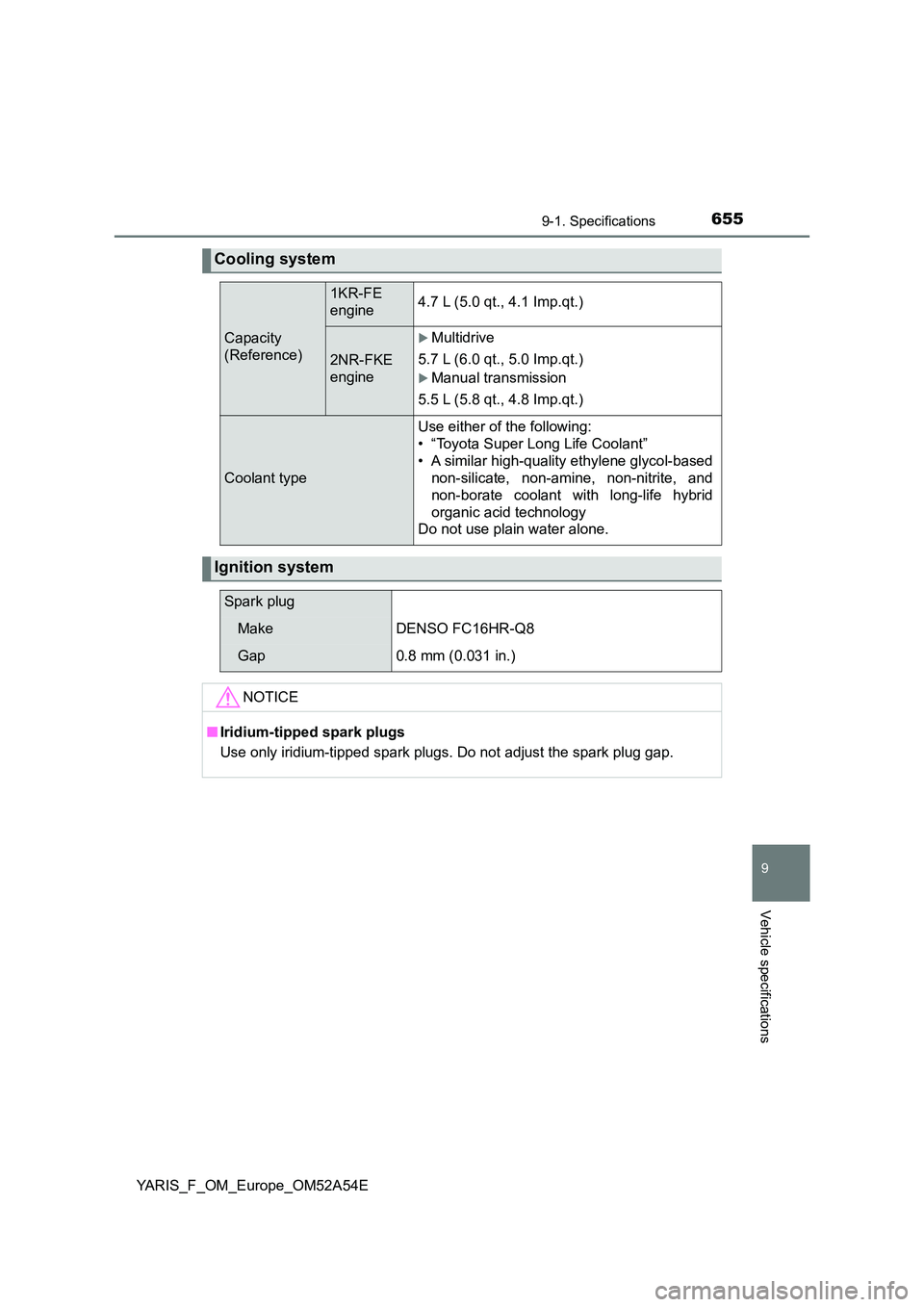

Cooling system
Capacity
(Reference)
1KR-FE
engine4.7 L (5.0 qt., 4.1 Imp.qt.)
2NR-FKE
engine
Multidrive
5.7 L (6.0 qt., 5.0 Imp.qt.)
Manual transmission
5.5 L (5.8 qt., 4.8 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FC16HR-Q8
Gap0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

6569-1. Specifications
YARIS_F_OM_Europe_OM52A54E
*: The fluid capacity is the reference quantity. If replacement is necessary,
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

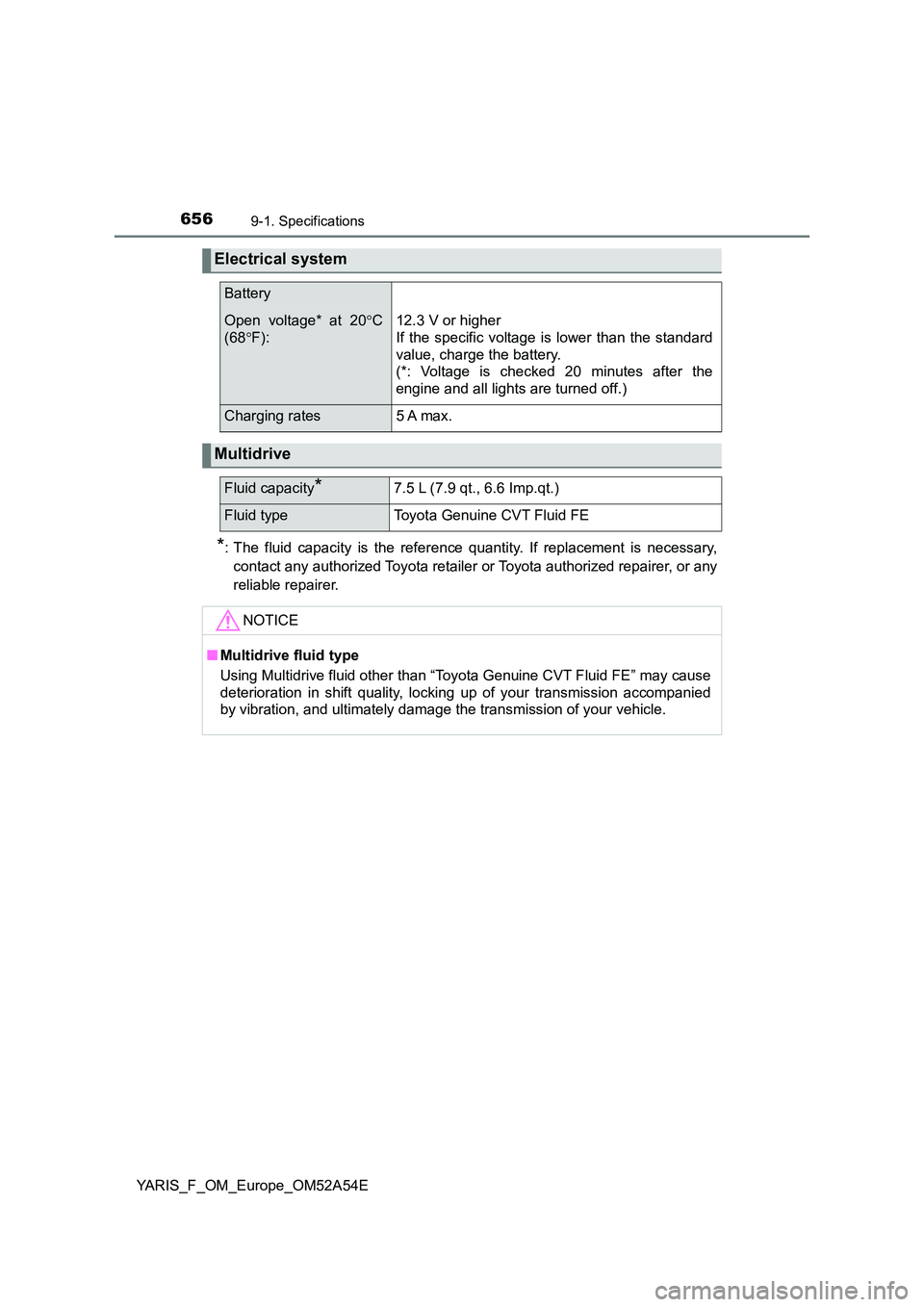

Electrical system
Battery
Open voltage* at 20 C
(68 F):
12.3 V or higher
If the specific voltage is lower than the standard
value, charge the battery.
(*: Voltage is checked 20 minutes after the
engine and all lights are turned off.)
Charging rates 5 A max.
Multidrive
Fluid capacity*7.5 L (7.9 qt., 6.6 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using Multidrive fluid other than “T oyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

6579-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E
Manual transmission
Gear oil capacity
(Reference)
1KR-FE engine
1.7 L (1.8 qt., 1.5 Imp.qt.)
2NR-FKE engine
2.4 L (2.5 qt., 2.1 Imp.qt.)
Gear oil type“TOYOTA Genuine Manual Transmission Gear
Oil LV GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil
• Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” to achieve optimal performance.
• Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil
LV GL-4 75W” or an equivalent oil of matching quality that satisfies the
above specifications.
Please contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for further details.
Clutch
Pedal free play5 — 15 mm (0.2 — 0.6 in.)
Fluid typeSAE J1704 or FMVSS No. 116 DOT 4

6589-1. Specifications
YARIS_F_OM_Europe_OM52A54E
*1: Minimum pedal clearance when depressed with a force of 300 N (31.0 kgf,
67.4 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)

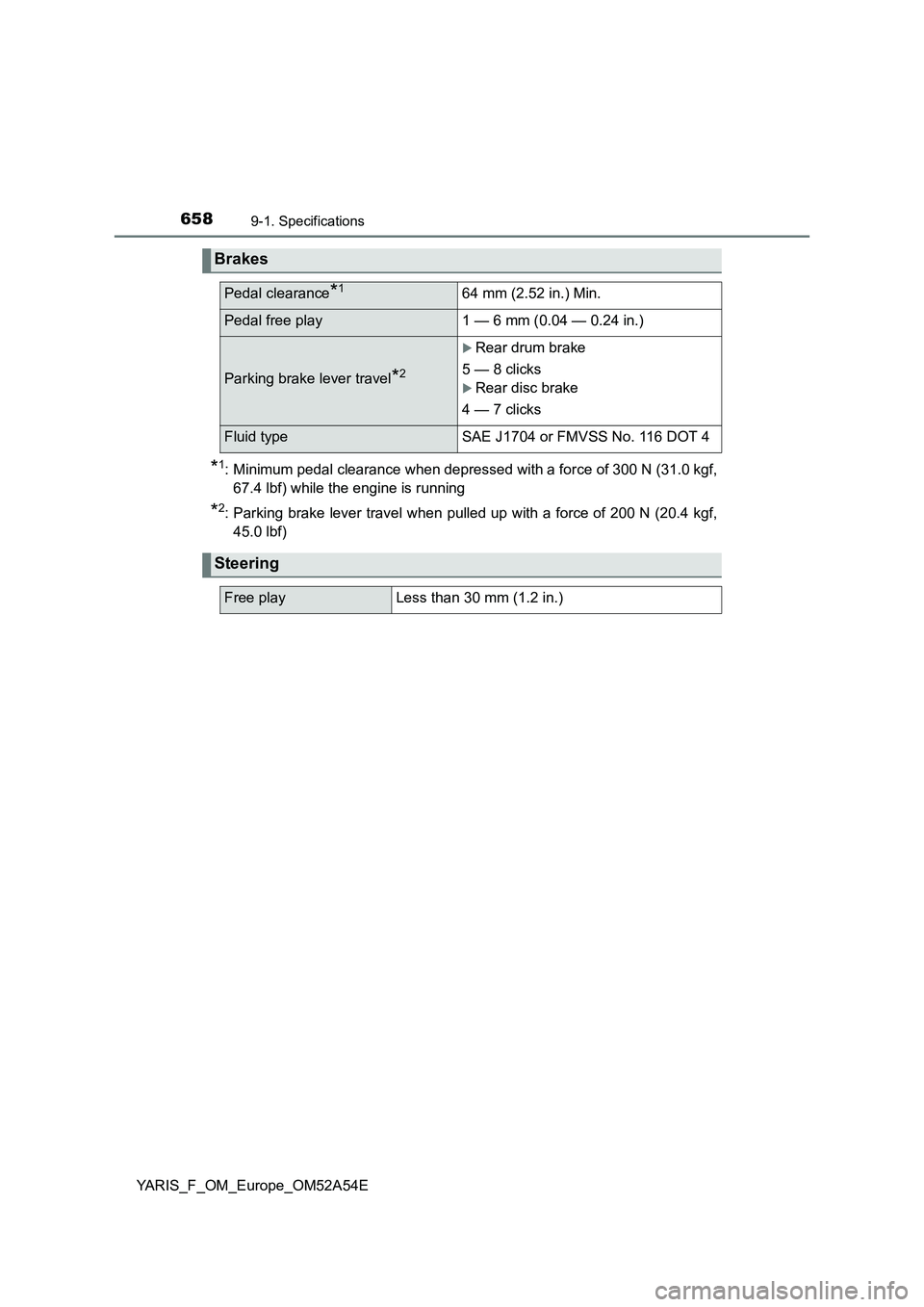

Brakes
Pedal clearance*164 mm (2.52 in.) Min.
Pedal free play1 — 6 mm (0.04 — 0.24 in.)
Parking brake lever travel*2
Rear drum brake
5 — 8 clicks
Rear disc brake
4 — 7 clicks
Fluid typeSAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

6599-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

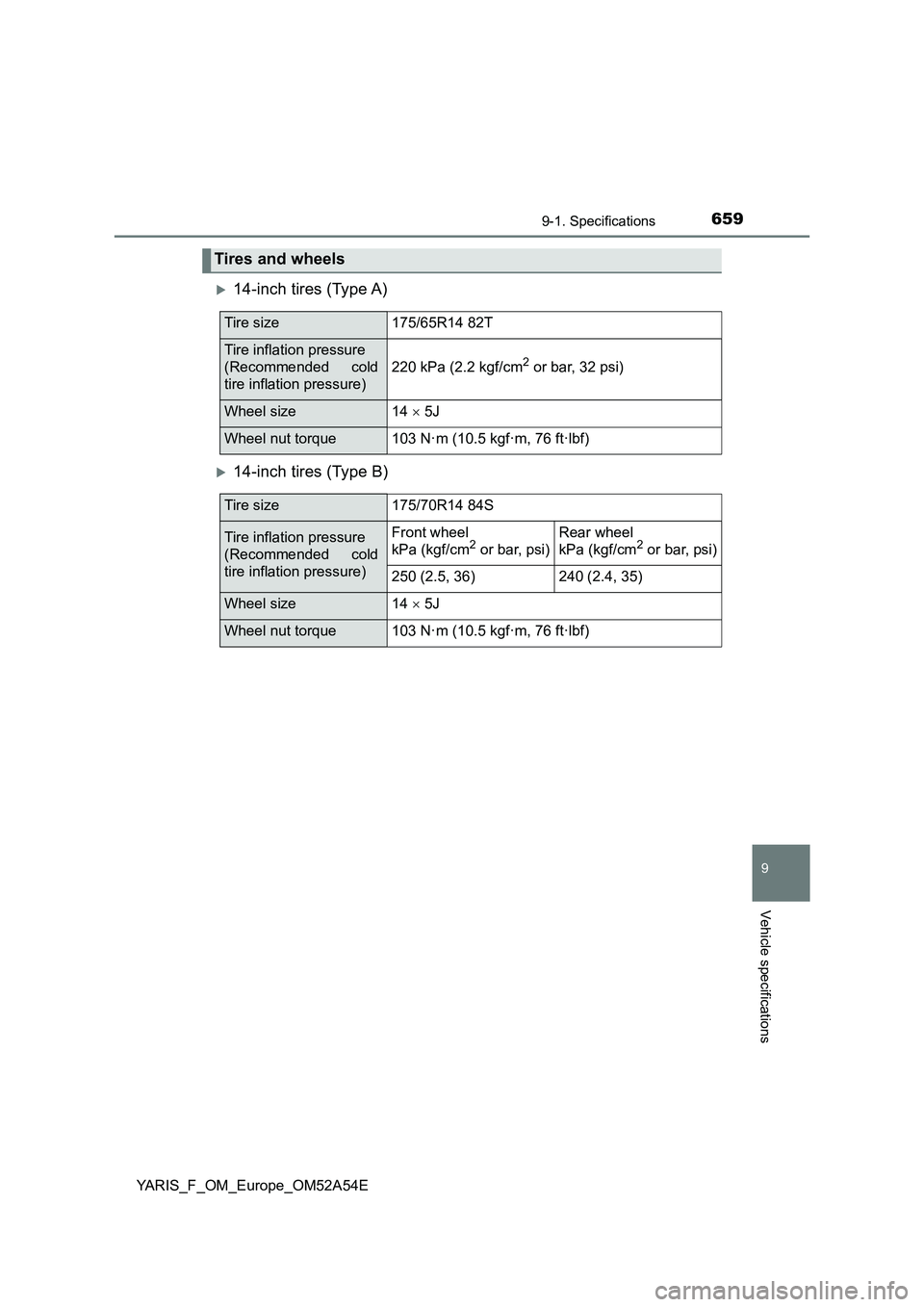

14-inch tires (Type A)
14-inch tires (Type B)
Tires and wheels
Tire size175/65R14 82T
Tire inflation pressure
(Recommended cold
tire inflation pressure)
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size14  5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size175/70R14 84S
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
250 (2.5, 36)240 (2.4, 35)
Wheel size14  5J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

6609-1. Specifications
YARIS_F_OM_Europe_OM52A54E

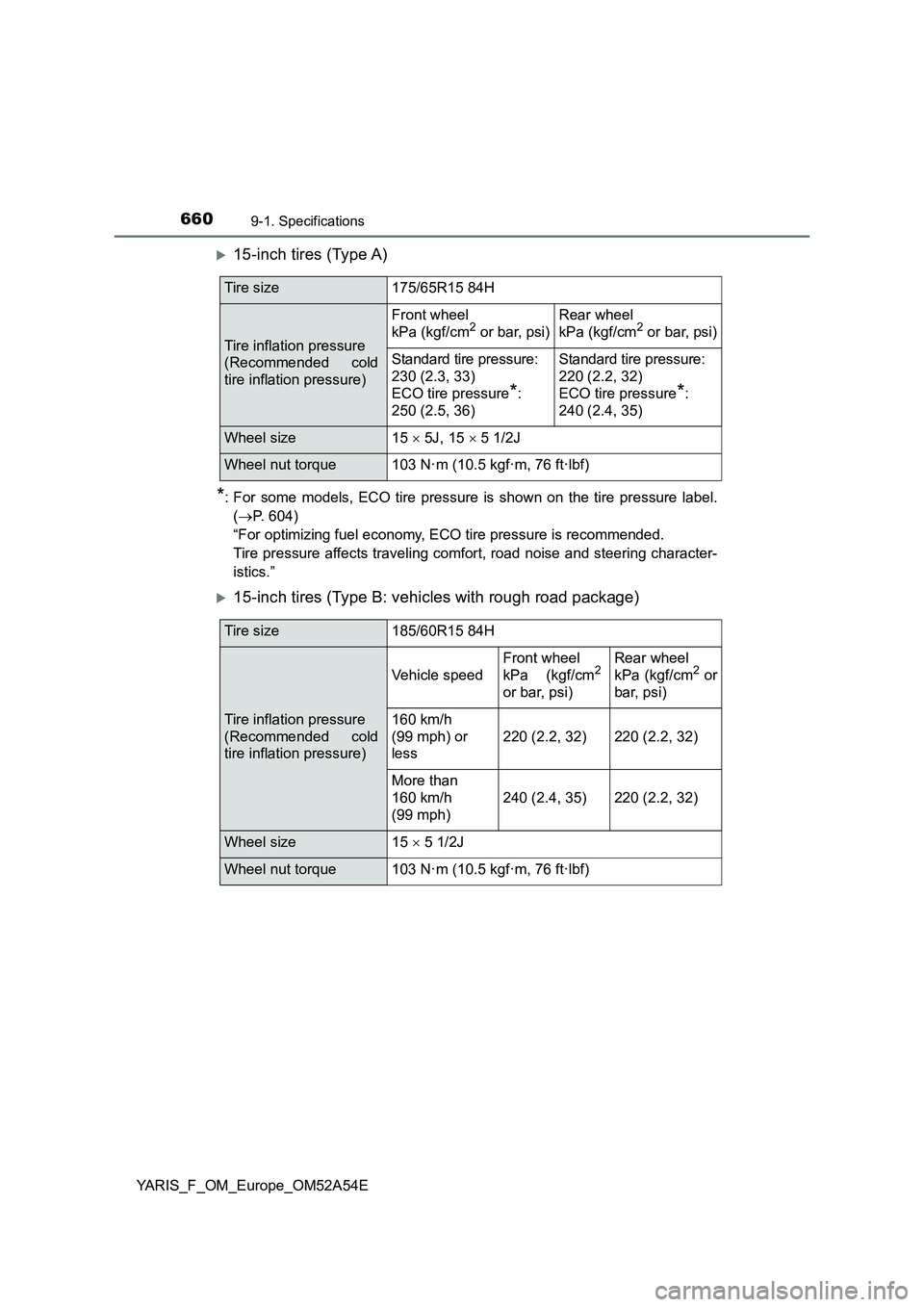

15-inch tires (Type A)
*: For some models, ECO tire pressure is shown on the tire pressure label.
(P. 604)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
15-inch tires (Type B: vehicles with rough road package)
Tire size175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure
*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure
*:
240 (2.4, 35)
Wheel size15  5J, 15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)220 (2.2, 32)
More than
160 km/h
(99 mph)
240 (2.4, 35)220 (2.2, 32)
Wheel size15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
