TOYOTA YARIS 2020 Owners Manual

6619-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

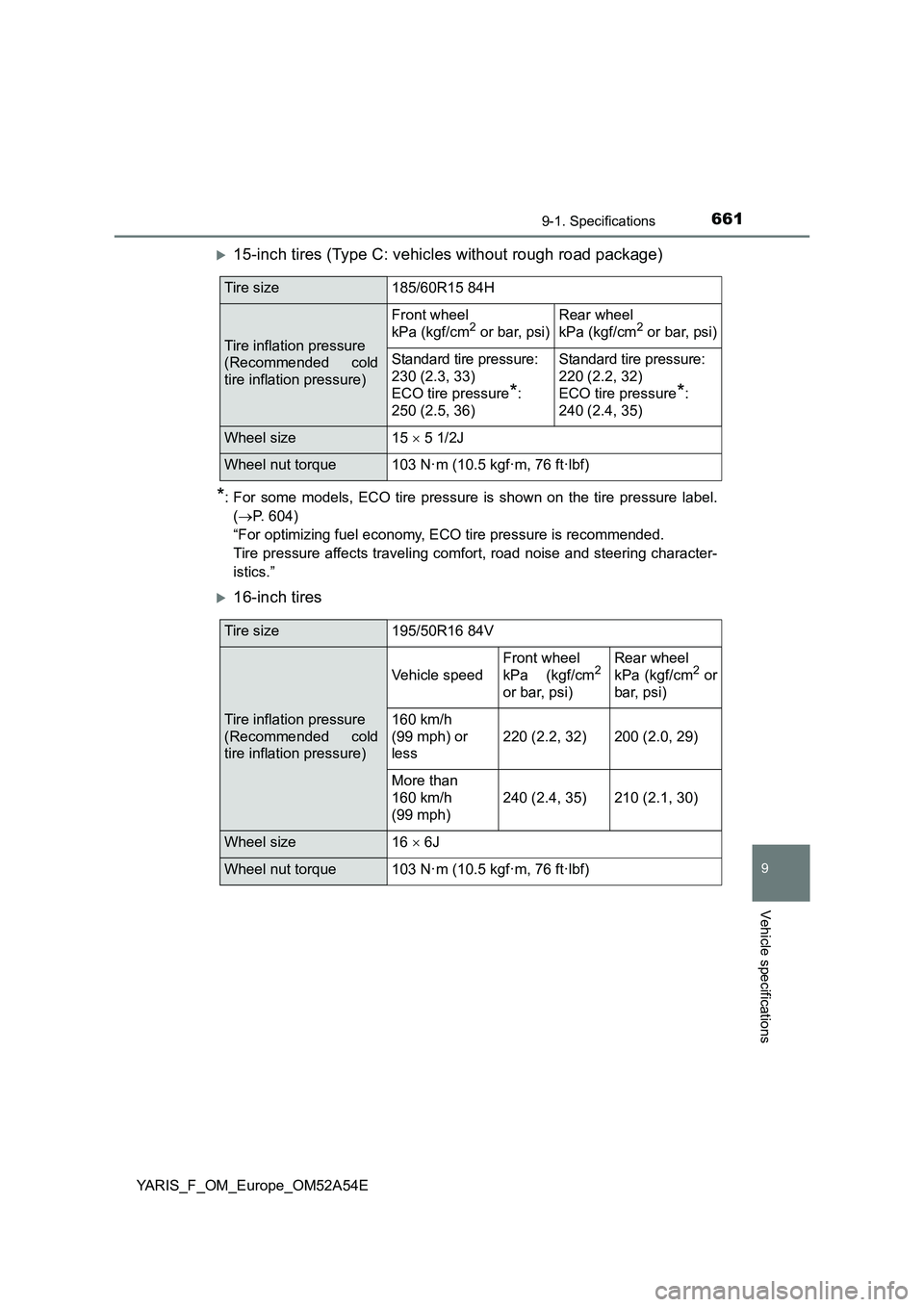

15-inch tires (Type C: vehicles without rough road package)
*: For some models, ECO tire pressure is shown on the tire pressure label.
(P. 604)
“For optimizing fuel economy, ECO tire pressure is recommended.
Tire pressure affects traveling comfort, road noise and steering character-
istics.”
16-inch tires
Tire size185/60R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
Standard tire pressure:
230 (2.3, 33)
ECO tire pressure
*:
250 (2.5, 36)
Standard tire pressure:
220 (2.2, 32)
ECO tire pressure
*:
240 (2.4, 35)
Wheel size15  5 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size195/50R16 84V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2 or
bar, psi)
160 km/h
(99 mph) or
less
220 (2.2, 32)200 (2.0, 29)
More than
160 km/h
(99 mph)
240 (2.4, 35)210 (2.1, 30)
Wheel size16  6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

6629-1. Specifications
YARIS_F_OM_Europe_OM52A54E
Compact spare tires
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure, and drive at speeds below 100 km/h (62 mph).
Tire sizeT125/70D15 95M, T125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size15  4B, 16  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

6639-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

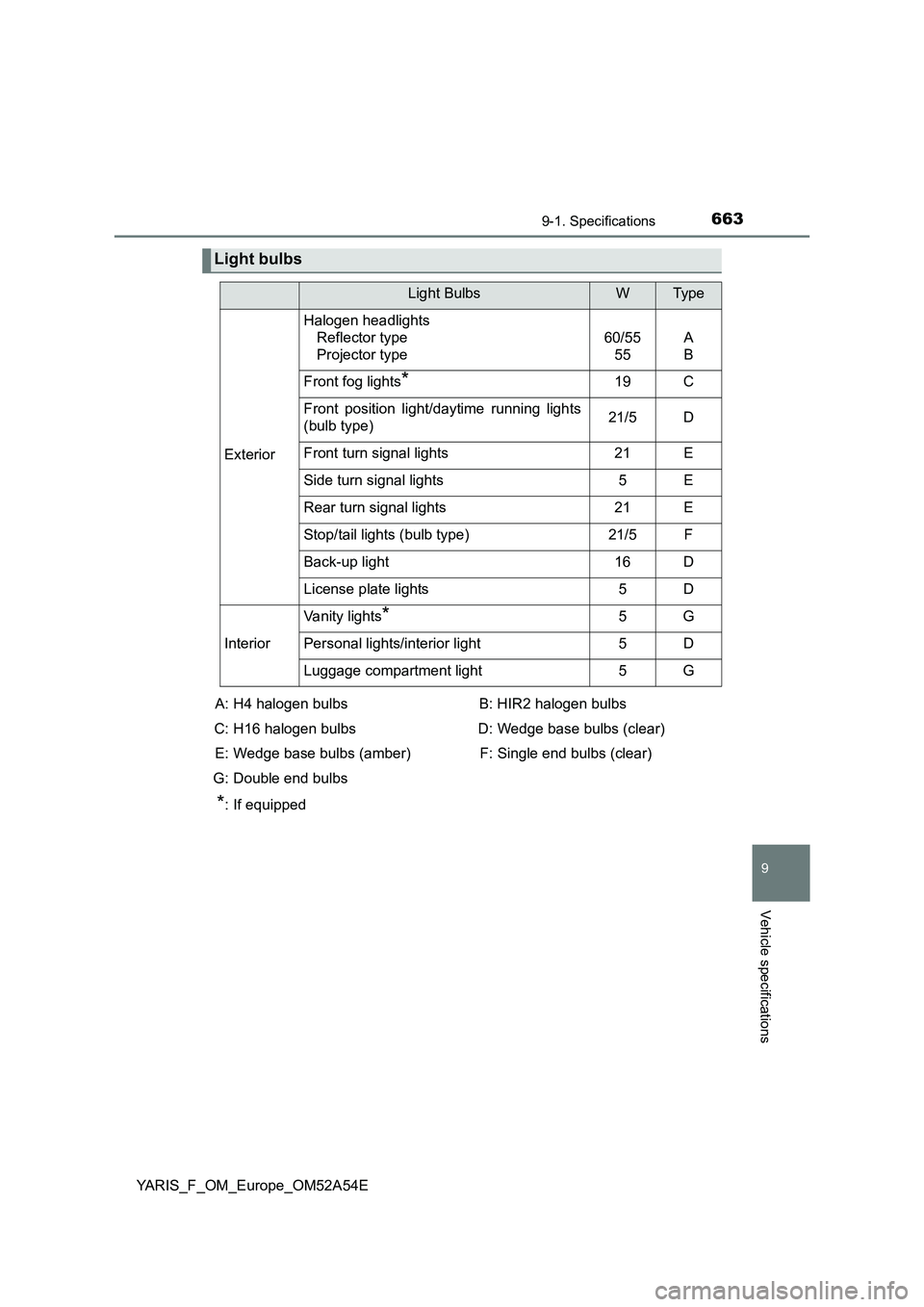

Light bulbs
Light BulbsWTyp e
Exterior
Halogen headlights
Reflector type
Projector type
60/55
55A
B
Front fog lights*19C
Front position light/daytime running lights
(bulb type)21/5D
Front turn signal lights21E
Side turn signal lights5E
Rear turn signal lights21E
Stop/tail lights (bulb type)21/5F
Back-up light16D
License plate lights5D
Interior
Vanity lights*5G
Personal lights/interior light5D
Luggage compartment light5G
A: H4 halogen bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Double end bulbsB: HIR2 halogen bulbs
D: Wedge base bulbs (clear)
F: Single end bulbs (clear)
*: If equipped

6649-1. Specifications
YARIS_F_OM_Europe_OM52A54E

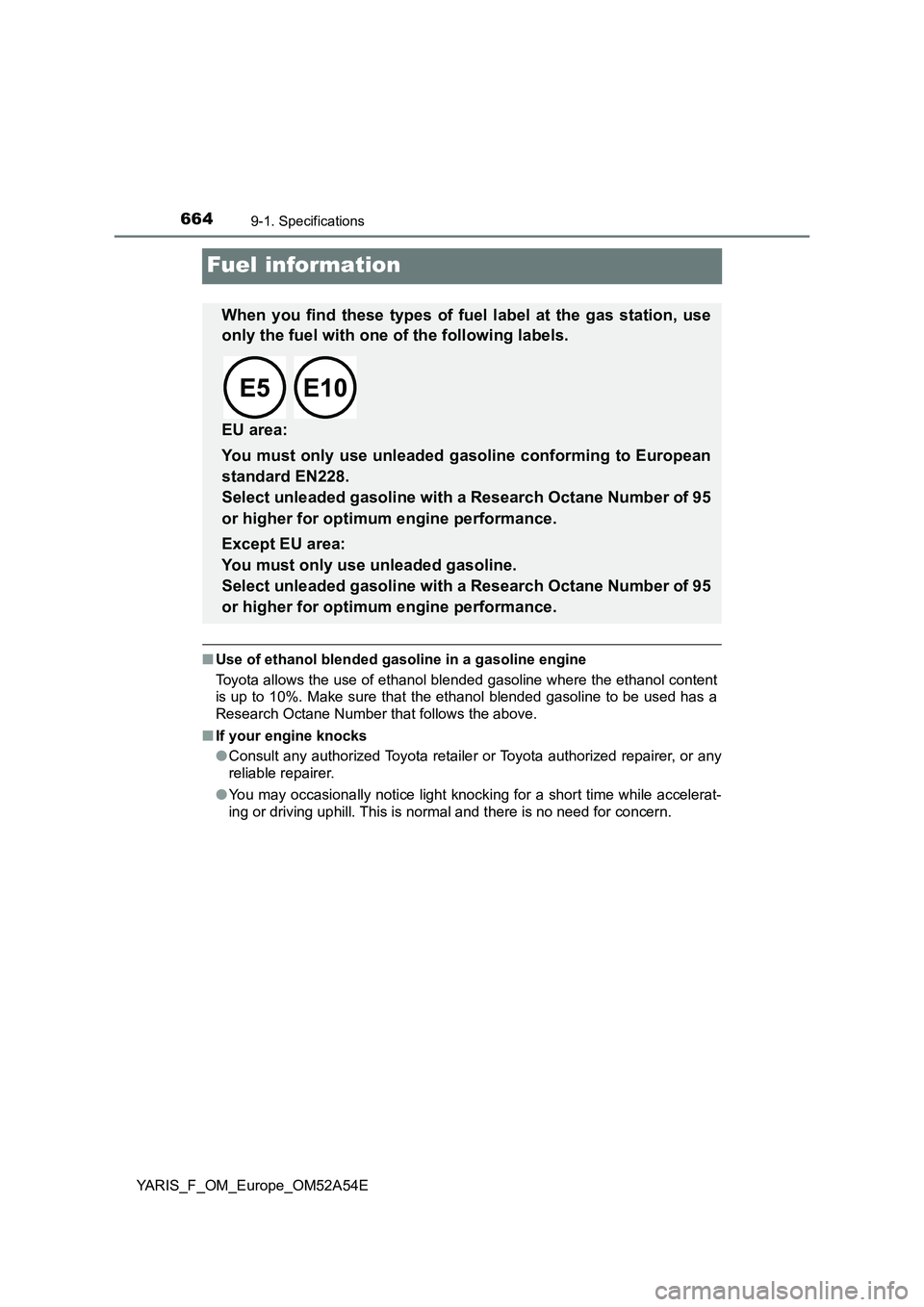

Fuel information
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
●You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

6659-1. Specifications
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

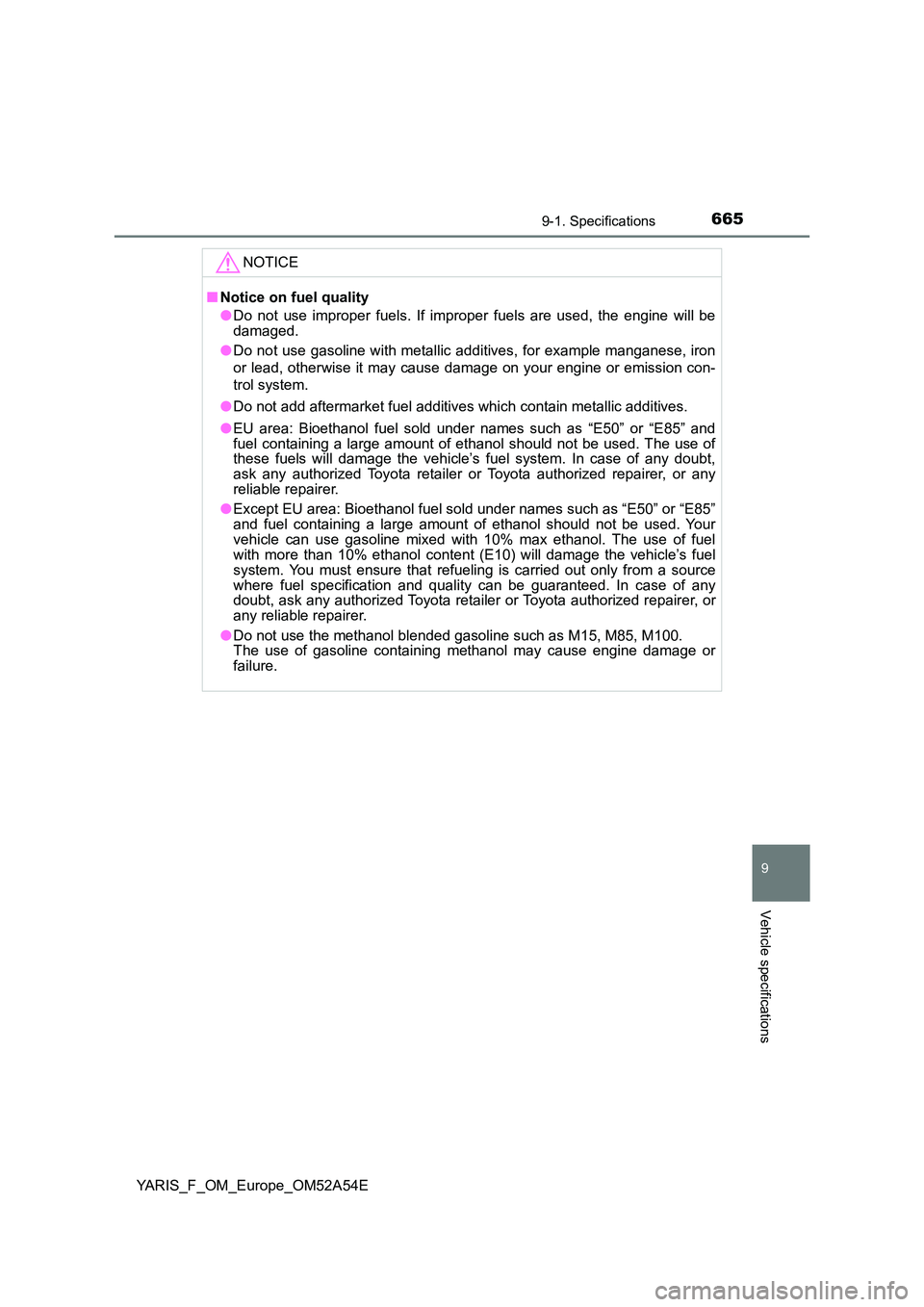

NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emission con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. The use of these fuels will damage the vehicle’s fuel system. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of ethanol should not be used. Yourvehicle can use gasoline mixed with 10% max ethanol. The use of fuel with more than 10% ethanol content (E10) will damage the vehicle’s fuel system. You must ensure that refueling is carried out only from a sourcewhere fuel specification and quality can be guaranteed. In case of any doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing methanol may cause engine damage or failure.

6669-2. Customization
YARIS_F_OM_Europe_OM52A54E

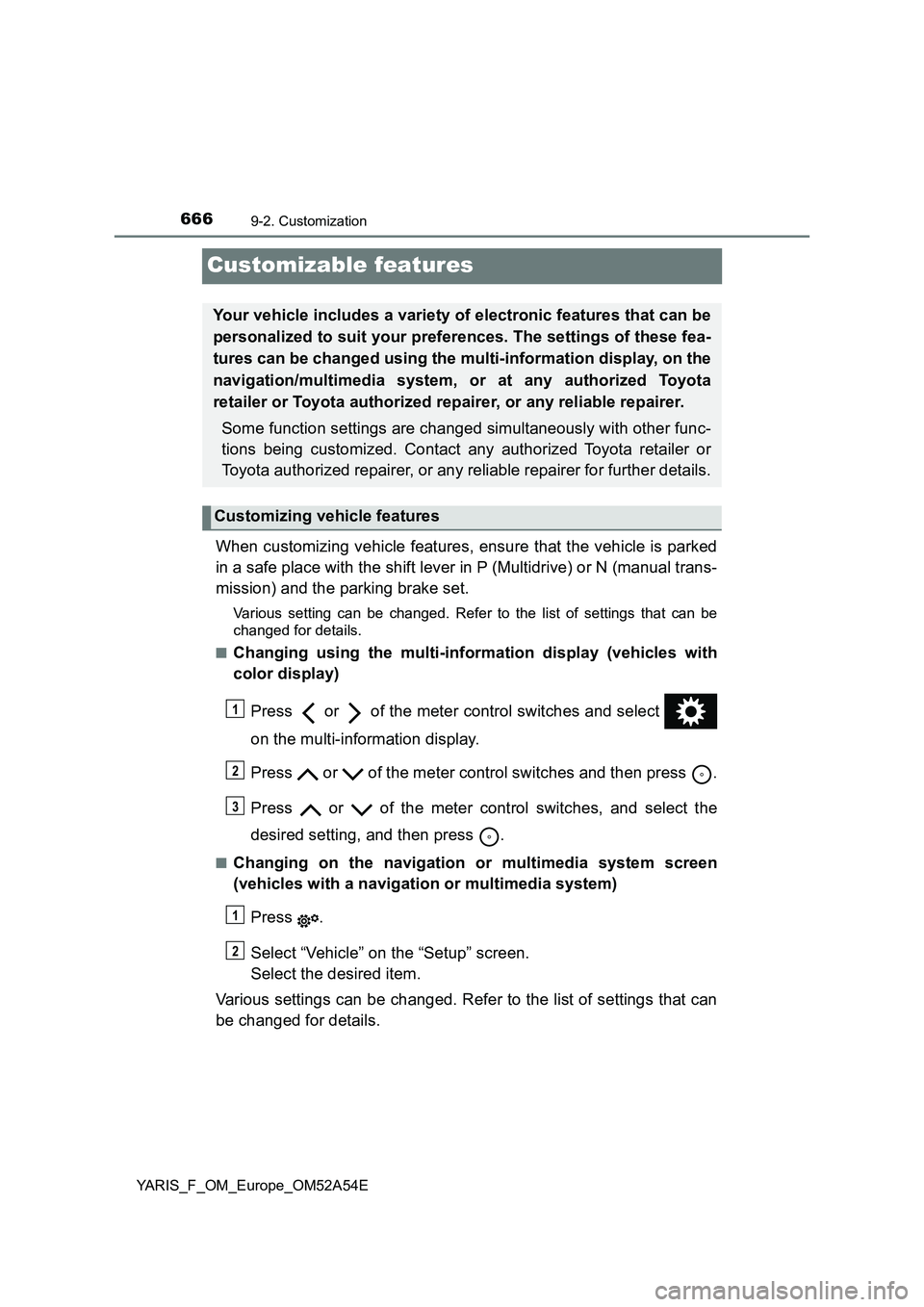

Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift lever in P (Multidrive) or N (manual trans-
mission) and the parking brake set.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■
Changing using the multi-information display (vehicles with
color display)
Press or of the meter control switches and select
on the multi-information display.
Press or of the meter control switches and then press .
Press or of the meter control switches, and select the
desired setting, and then press .
■Changing on the navigation or multimedia system screen
(vehicles with a navigation or multimedia system)
Press .
Select “Vehicle” on the “Setup” screen.
Select the desired item.
Various settings can be changed. Refer to the list of settings that can
be changed for details.
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fea-
tures can be changed using the multi-information display, on the
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for further details.
Customizing vehicle features
1
2
3
1
2

6679-2. Customization
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E

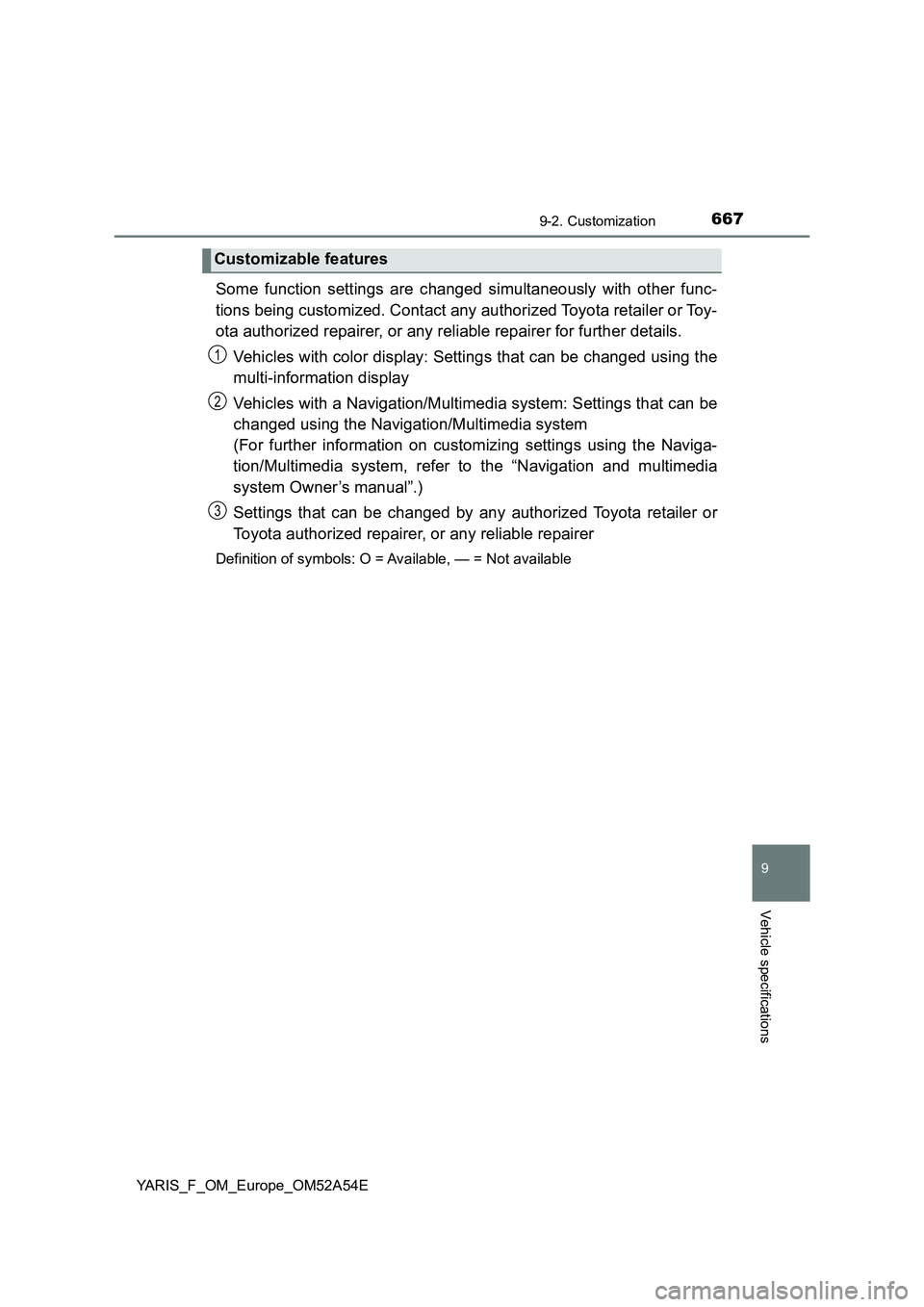

Some function settings are changed simultaneously with other func-
tions being customized. Contact any authorized Toyota retailer or Toy-
ota authorized repairer, or any reliable repairer for further details.
Vehicles with color display: Settings that can be changed using the
multi-information display
Vehicles with a Navigation/Multimedia system: Settings that can be
changed using the Navigation/Multimedia system
(For further information on customizing settings using the Naviga-
tion/Multimedia system, refer to the “Navigation and multimedia
system Owner’s manual”.)
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3

6689-2. Customization
YARIS_F_OM_Europe_OM52A54E■

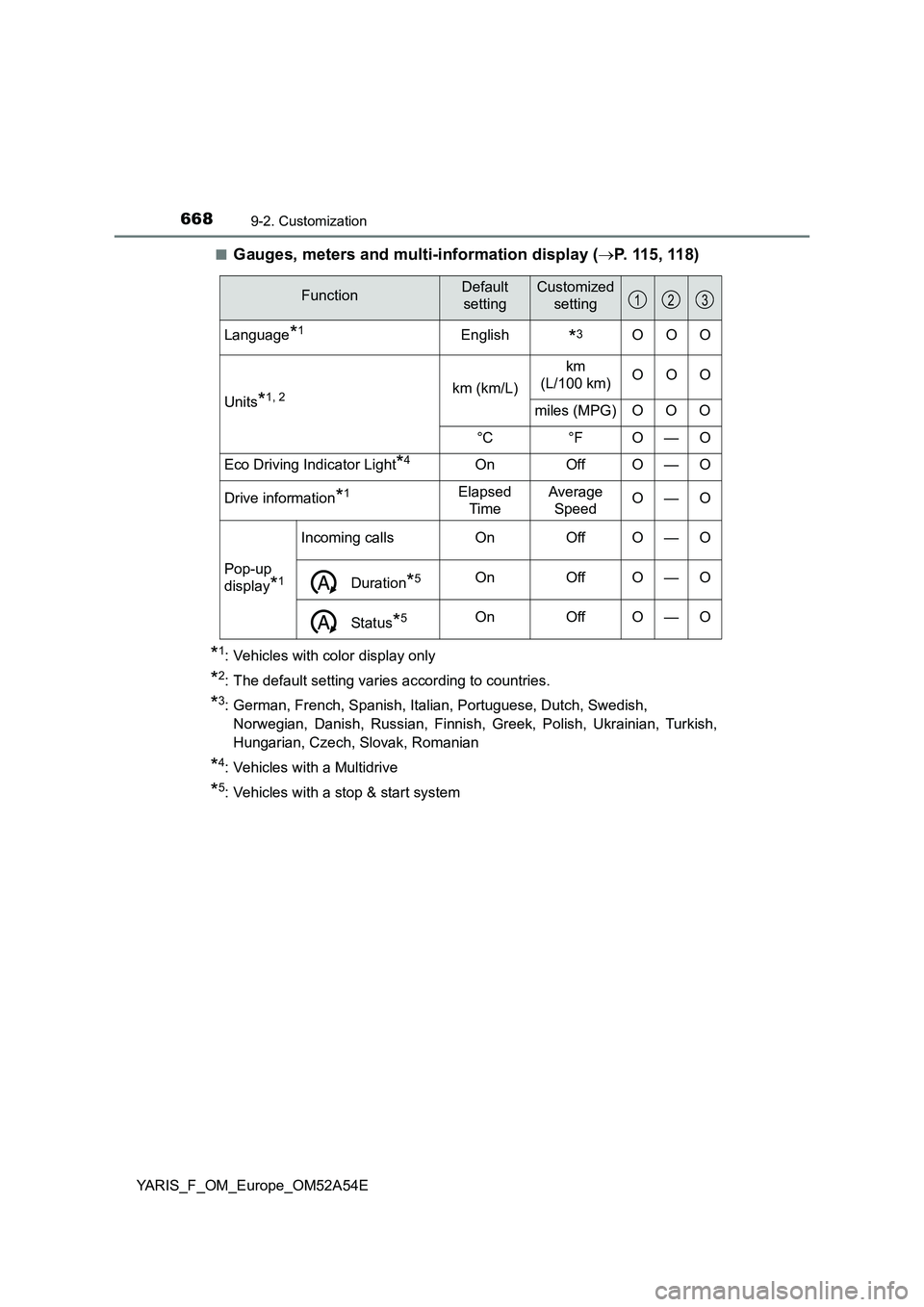

Gauges, meters and multi-information display (P. 115 , 11 8)
*1: Vehicles with color display only
*2: The default setting varies according to countries.
*3: German, French, Spanish, Italian, Portuguese, Dutch, Swedish,
Norwegian, Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish,
Hungarian, Czech, Slovak, Romanian
*4: Vehicles with a Multidrive
*5: Vehicles with a stop & start system
FunctionDefault
settingCustomized
setting
Language*1English*3OOO
Units
*1, 2km (km/L)km
(L/100 km)OOO
miles (MPG) O O O
°C °F O — O
Eco Driving Indicator Light
*4On Off O — O
Drive information
*1Elapsed
TimeAverage
SpeedO—O
Pop-up
display
*1
Incoming callsOnOffO—O
Duration*5OnOffO—O
Status*5OnOffO—O
123

6699-2. Customization
9
Vehicle specifications
YARIS_F_OM_Europe_OM52A54E■

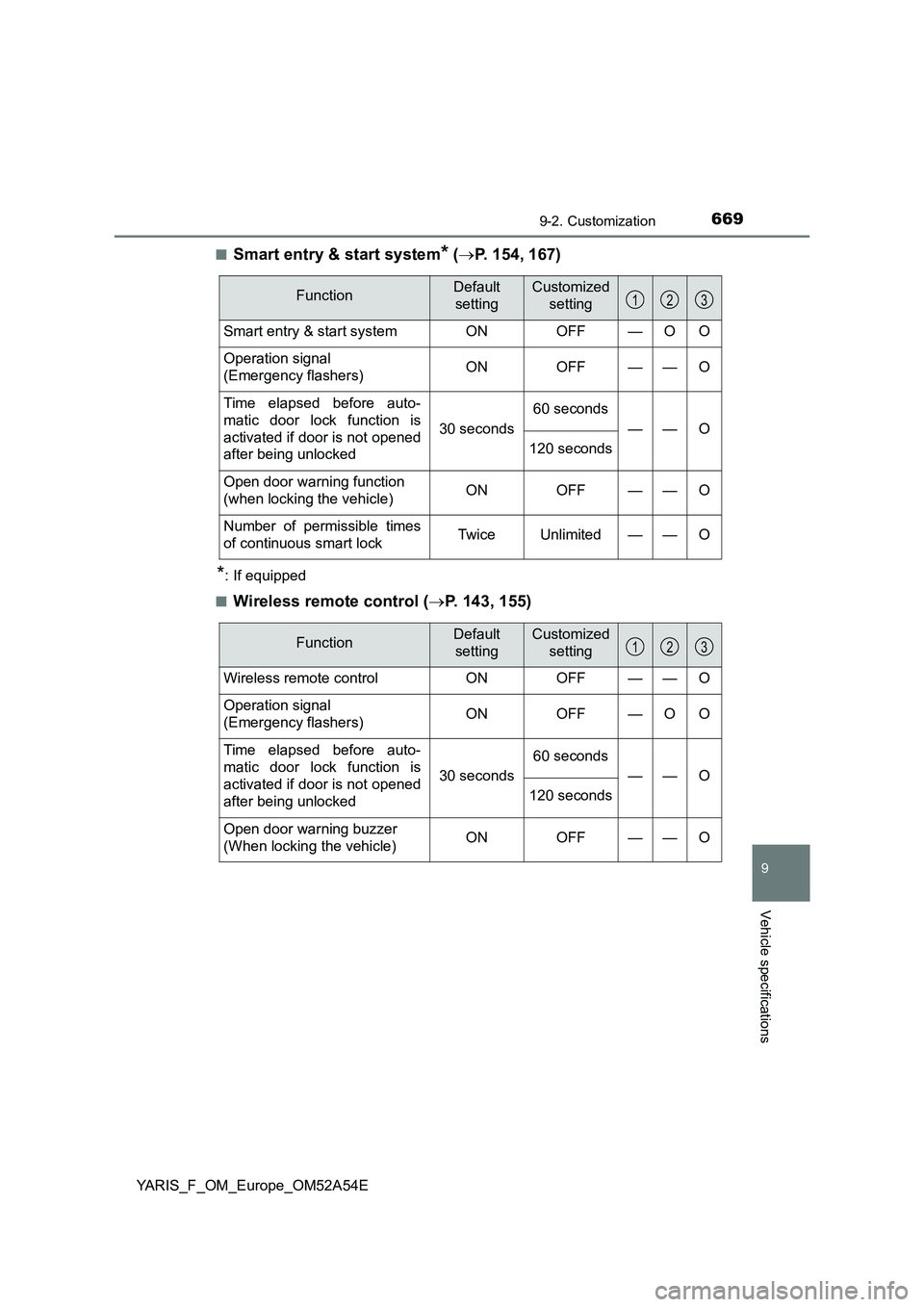

Smart entry & start system* (P. 154, 167)
*: If equipped
■
Wireless remote control (P. 143, 155)
FunctionDefault
settingCustomized
setting
Smart entry & start system ON OFF — O O
Operation signal
(Emergency flashers)ON OFF — — O
Time elapsed before auto-
matic door lock function is
activated if door is not opened
after being unlocked
30 seconds
60 seconds
——O
120 seconds
Open door warning function
(when locking the vehicle) ON OFF — — O
Number of permissible times
of continuous smart lockTwice Unlimited — — O
123
FunctionDefault
settingCustomized
setting
Wireless remote control ON OFF — — O
Operation signal
(Emergency flashers)ON OFF — O O
Time elapsed before auto-
matic door lock function is
activated if door is not opened
after being unlocked
30 seconds
60 seconds
——O
120 seconds
Open door warning buzzer
(When locking the vehicle)ON OFF — — O
123

6709-2. Customization
YARIS_F_OM_Europe_OM52A54E■
Follow me home system* (P. 267)
*: If equipped
■
Automatic light control system (P. 266)
■PCS (Pre-Crash Safety system)* (P. 290)
*: If equipped
FunctionDefault
settingCustomized
setting
Time elapsed before headlights
automatically turn off30 seconds
60 seconds
—— O
90 seconds
120
seconds
123
FunctionDefault
settingCustomized
setting
Light sensor sensitivity Level 3 Level 1 to 5 — O O
123
FunctionDefault
settingCustomized
setting
Pre-Crash Safety systemOnOffO—O
Warning timing
MiddleFarO—ONear
123
