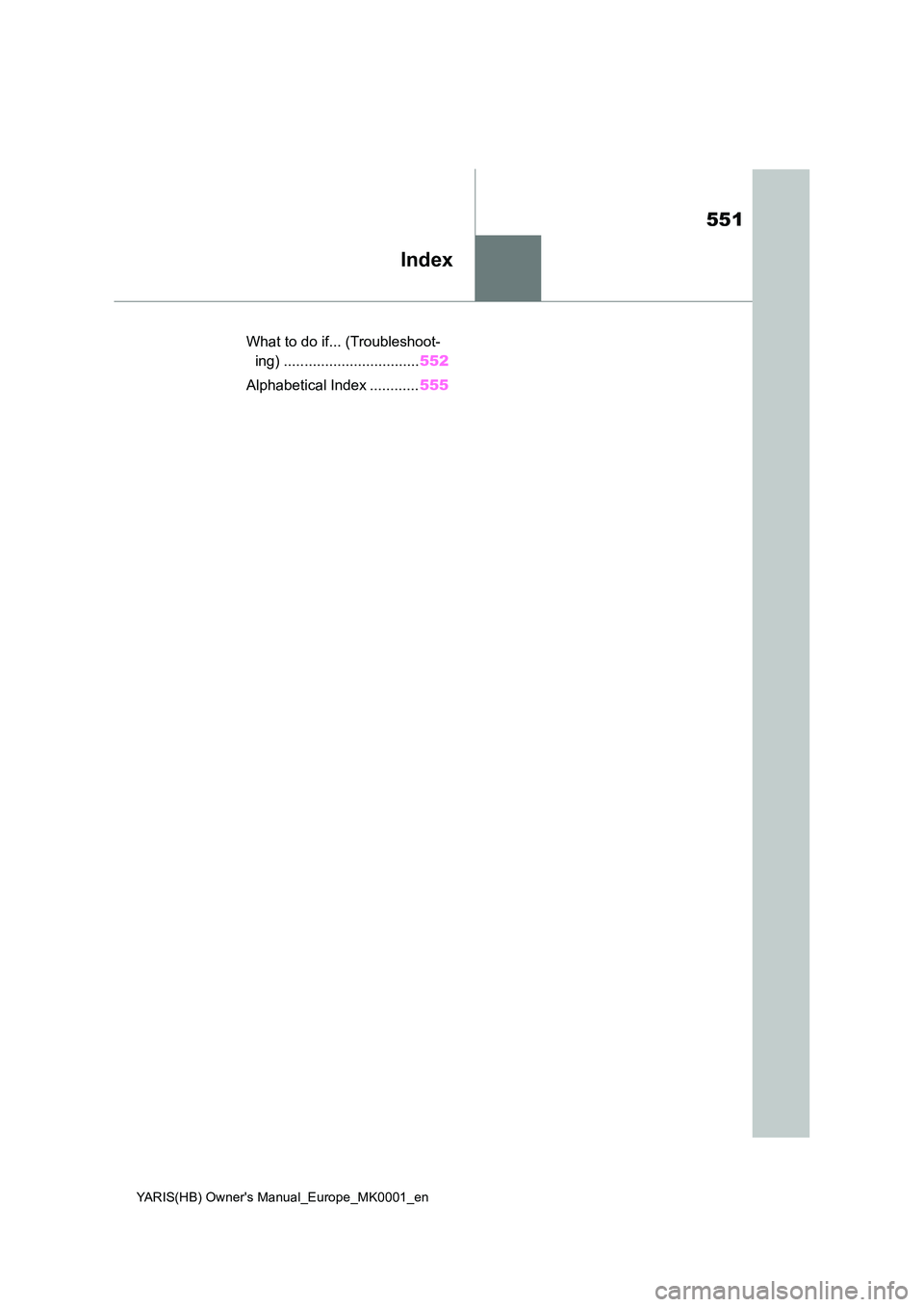

Index
What to do if... (Troubleshoot-
ing) ................................. 552
Alphabetical Index ............ 555

552
YARIS(HB) Owner's Manual_Europe_MK0001_en

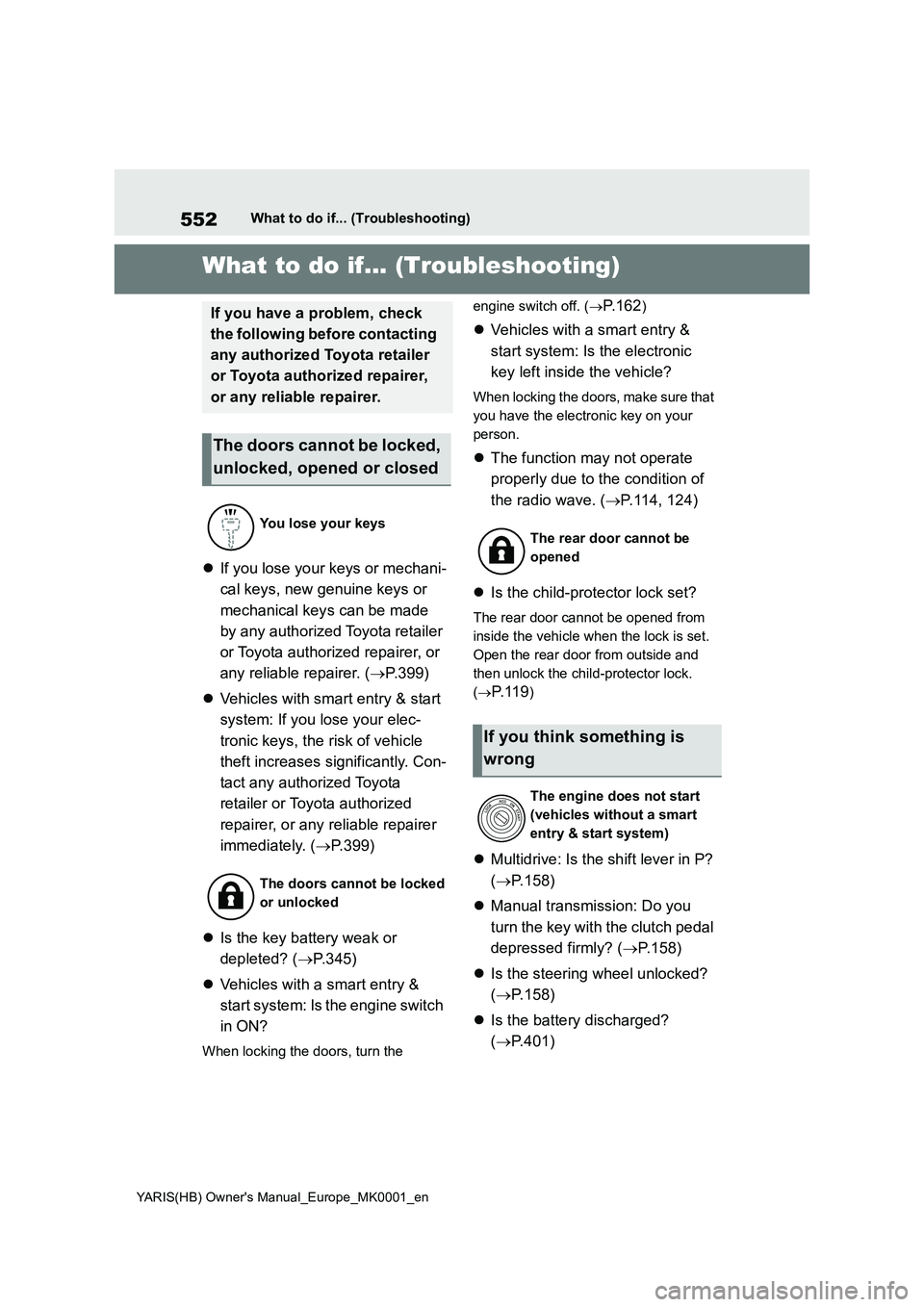

What to do if... (Troubleshooting)
1-1.What to d o if... (Tro ublesho oting)What to do if... (Troubleshooting)
zIf you lose your keys or mechani-
cal keys, new genuine keys or
mechanical keys can be made
by any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer. (→P.399)
zVehicles with smart entry & start
system: If you lose your elec-
tronic keys, the risk of vehicle
theft increases significantly. Con-
tact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer
immediately. (→P.399)
zIs the key battery weak or
depleted? (→P.345)
zVehicles with a smart entry &
start system: Is the engine switch
in ON?
When locking the doors, turn the engine switch off. (→
P.162)
zVehicles with a smart entry &
start system: Is the electronic
key left inside the vehicle?
When locking the doors, make sure that
you have the electronic key on your
person.
zThe function may not operate
properly due to the condition of
the radio wave. (→P.114, 124)
zIs the child-protector lock set?
The rear door cannot be opened from
inside the vehicle when the lock is set.
Open the rear door from outside and
then unlock the child-protector lock.
(→
P. 1 1 9)
zMultidrive: Is the shift lever in P?
(→P.158)
zManual transmission: Do you
turn the key with the clutch pedal
depressed firmly? (→P.158)
zIs the steering wheel unlocked?
(→P.158)
zIs the battery discharged?
(→P.401)
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlockedThe rear door cannot be
opened
If you think something is
wrong
The engine does not start
(vehicles without a smart
entry & start system)

553
YARIS(HB) Owner's Manual_Europe_MK0001_en
What to do if... (Troubleshooting)

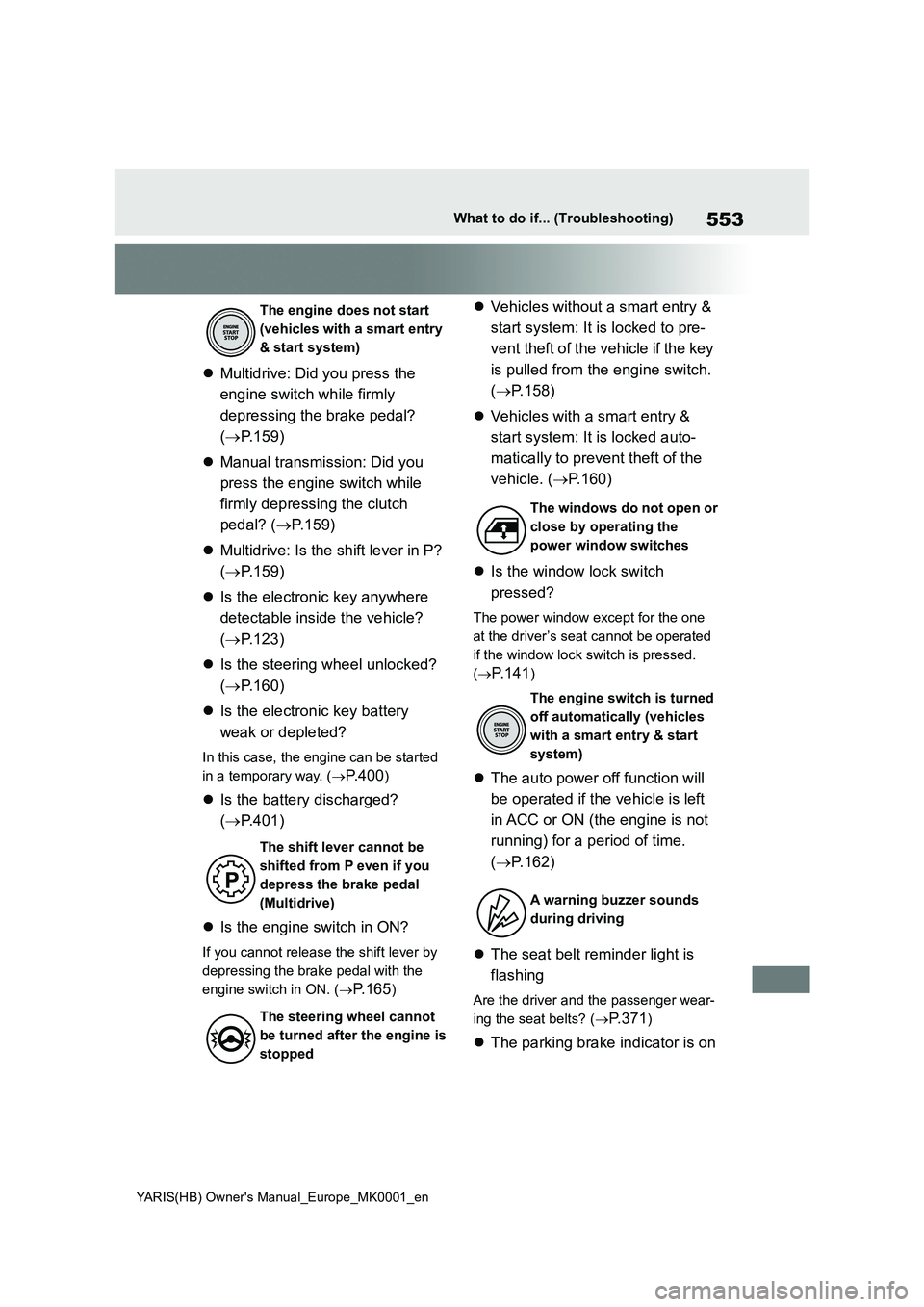

zMultidrive: Did you press the
engine switch while firmly
depressing the brake pedal?
(→P.159)
zManual transmission: Did you
press the engine switch while
firmly depressing the clutch
pedal? (→P.159)
zMultidrive: Is the shift lever in P?
(→P.159)
zIs the electronic key anywhere
detectable inside the vehicle?
(→P.123)
zIs the steering wheel unlocked?
(→P.160)
zIs the electronic key battery
weak or depleted?
In this case, the engine can be started
in a temporary way. (→
P.400)
zIs the battery discharged?
(→P.401)
zIs the engine switch in ON?
If you cannot release the shift lever by
depressing the brake pedal with the
engine switch in ON. (→
P.165)
zVehicles without a smart entry &
start system: It is locked to pre-
vent theft of the vehicle if the key
is pulled from the engine switch.
(→P.158)
zVehicles with a smart entry &
start system: It is locked auto-
matically to prevent theft of the
vehicle. (→P.160)
zIs the window lock switch
pressed?
The power window except for the one
at the driver’s seat cannot be operated
if the window lock switch is pressed.
(→
P.141)
zThe auto power off function will
be operated if the vehicle is left
in ACC or ON (the engine is not
running) for a period of time.
(→P.162)
zThe seat belt reminder light is
flashing
Are the driver and the passenger wear-
ing the seat belts? (→
P. 3 7 1)
zThe parking brake indicator is on
The engine does not start
(vehicles with a smart entry
& start system)
The shift lever cannot be
shifted from P even if you
depress the brake pedal
(Multidrive)
The steering wheel cannot
be turned after the engine is
stopped
The windows do not open or
close by operating the
power window switches
The engine switch is turned
off automatically (vehicles
with a smart entry & start
system)
A warning buzzer sounds
during driving

554
YARIS(HB) Owner's Manual_Europe_MK0001_en
What to do if... (Troubleshooting)
Is the parking brake released?
(→
P. 1 7 1)
Depending on the situation, other
types of warning buzzer may also
sound. (→P.368, 377)
zDid anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. (→
P. 7 8)
Do one of the following to deacti-
vate or stop the alarms:
zUnlock the doors using the entry
function (if equipped) or wireless
remote control.
zStarting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
zIs the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. (→
P.377)
zWhen a warning light turns on or
a warning message is displayed,
refer to P.368, 377.zVehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. (→P.379)
zVehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. (→P.389)
zTry the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. (→P.408)
An alarm is activated and the
horn sounds (vehicles with
an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

555
YARIS(HB) Owner's Manual_Europe_MK0001_en

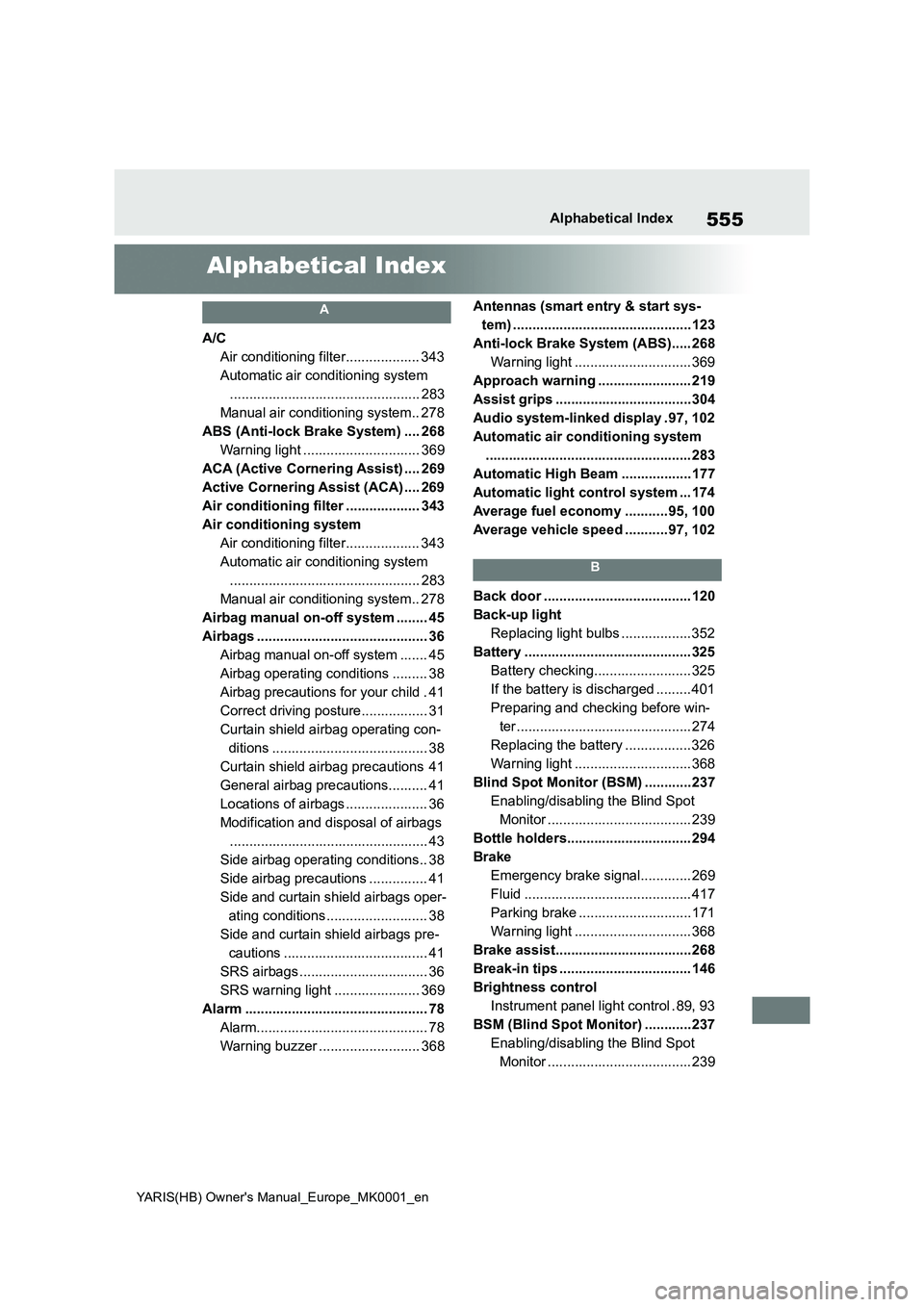

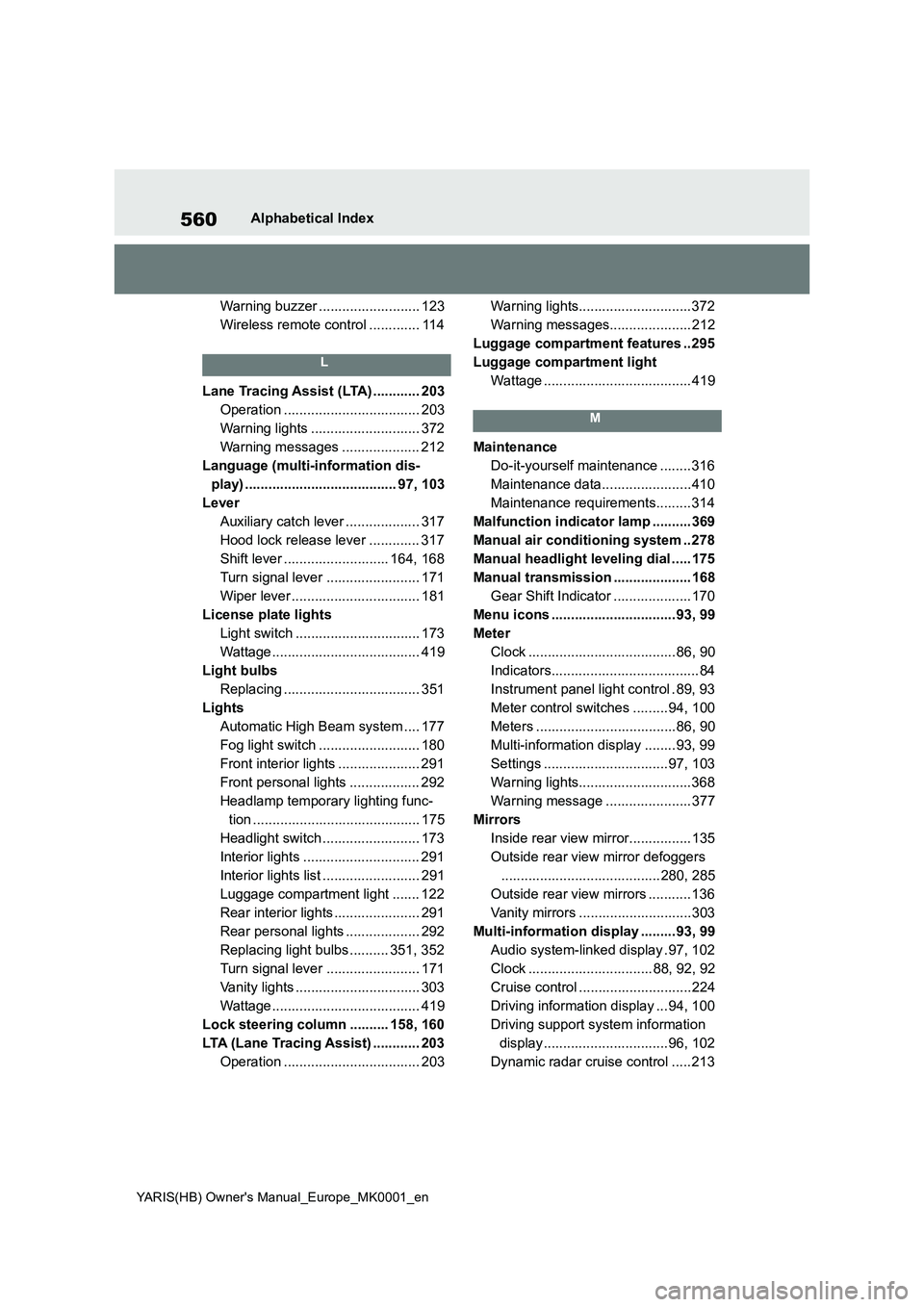

Alphabetical Index
