6-3. Do-it-yourself maintenance
Maintenance and care

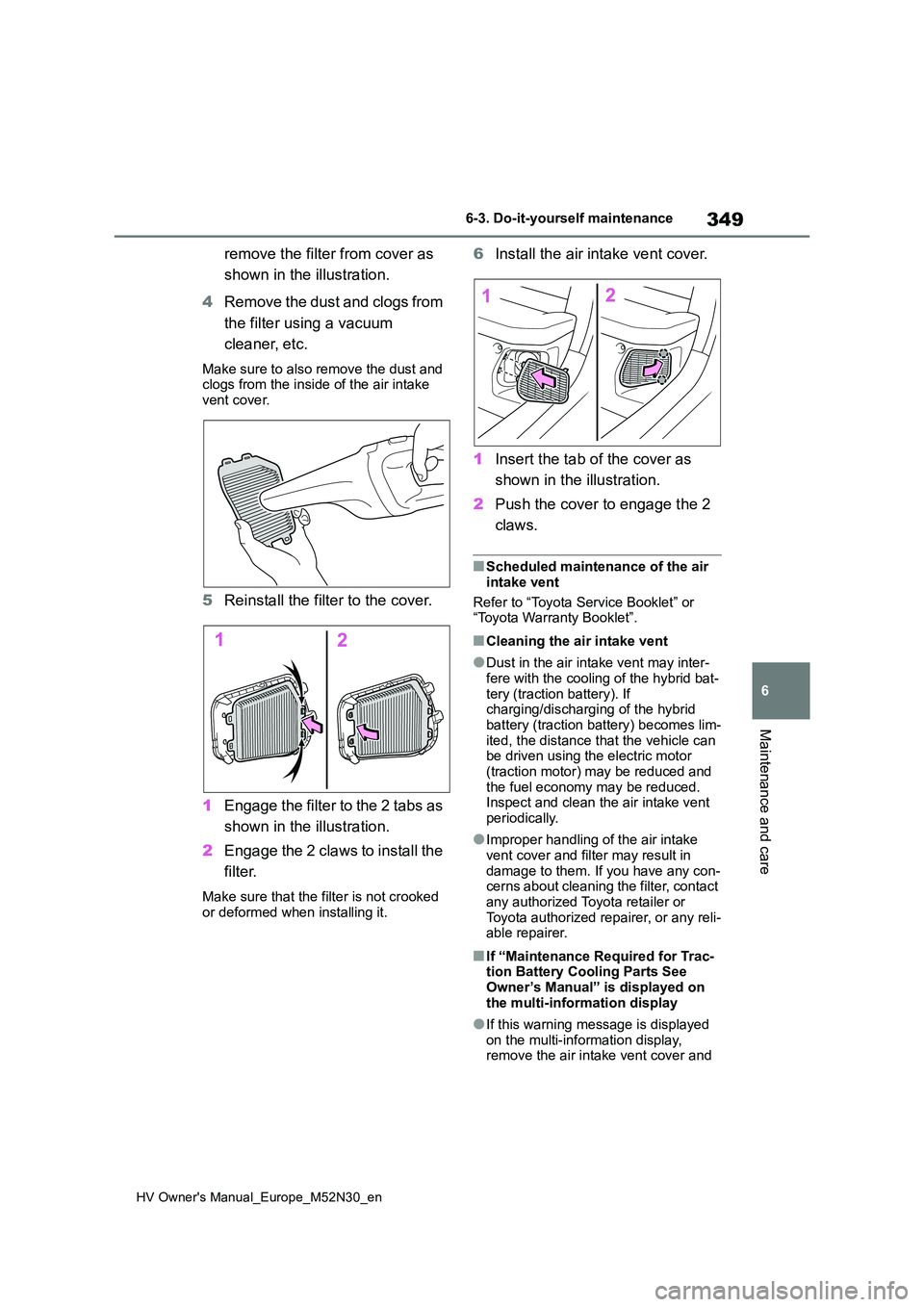

remove the filter from cover as
shown in the illustration.
4 Remove the dust and clogs from
the filter using a vacuum
cleaner, etc.
Make sure to also remove the dust and clogs from the inside of the air intake
vent cover.
5 Reinstall the filter to the cover.
1 Engage the filter to the 2 tabs as
shown in the illustration.
2 Engage the 2 claws to install the
filter.
Make sure that the filter is not crooked or deformed when installing it.
6 Install the air intake vent cover.
1 Insert the tab of the cover as
shown in the illustration.
2 Push the cover to engage the 2
claws.
■Scheduled maintenance of the air
intake vent
Refer to “Toyota Service Booklet” or “Toyota Warranty Booklet”.
■Cleaning the air intake vent
●Dust in the air intake vent may inter-fere with the cooling of the hybrid bat-
tery (traction battery). If charging/discharging of the hybrid battery (traction battery) becomes lim-
ited, the distance that the vehicle can be driven using the electric motor (traction motor) may be reduced and
the fuel economy may be reduced. Inspect and clean the air intake vent periodically.
●Improper handling of the air intake vent cover and filter may result in
damage to them. If you have any con- cerns about cleaning the filter, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.

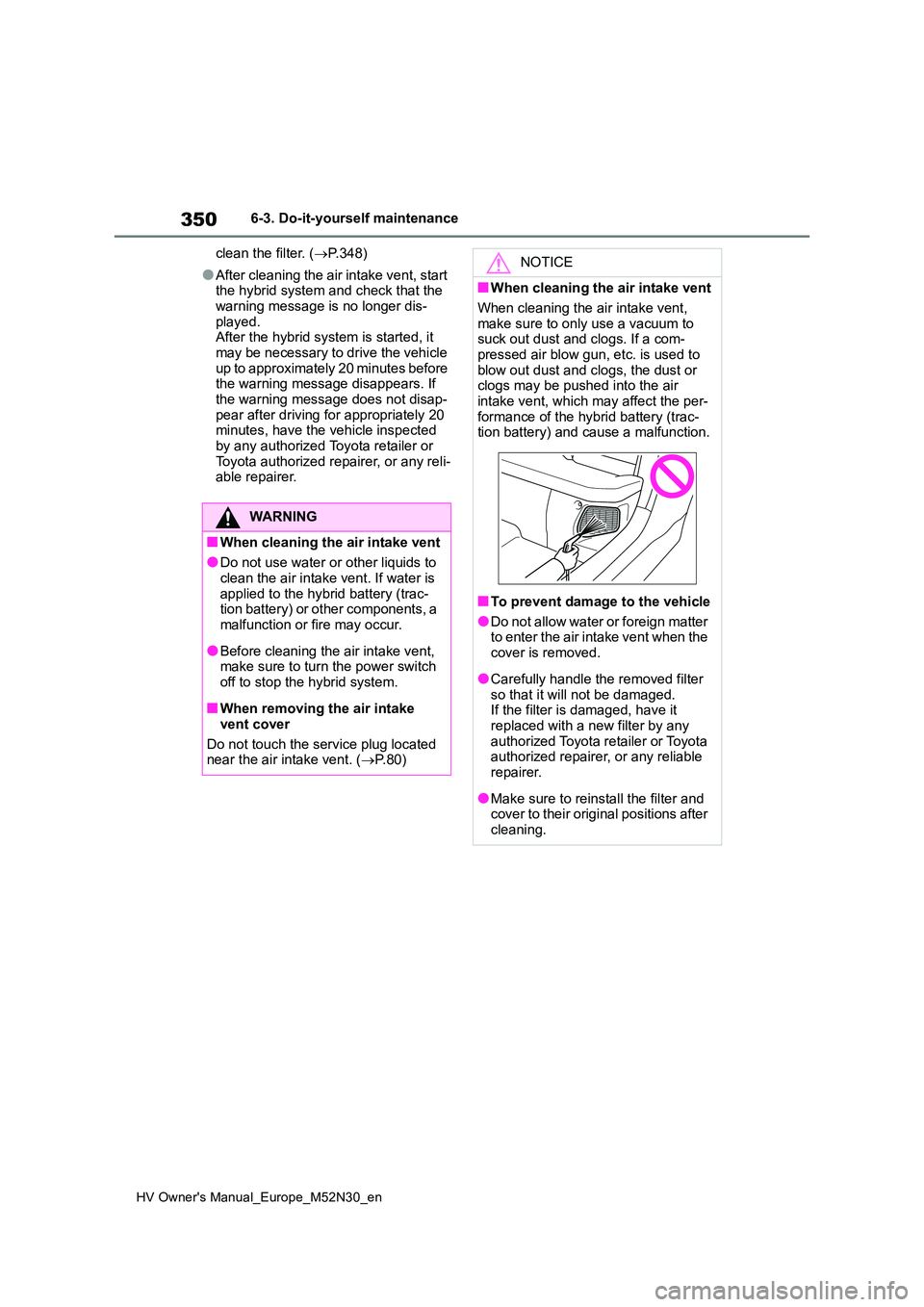

■If “Maintenance Required for Trac-tion Battery Cooling Parts See
Owner’s Manual” is displayed on the multi-information display
●If this warning message is displayed on the multi-information display, remove the air intake vent cover and

350
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
clean the filter. ( P.348)
●After cleaning the air intake vent, start the hybrid system and check that the
warning message is no longer dis- played.After the hybrid system is started, it
may be necessary to drive the vehicle up to approximately 20 minutes before the warning message disappears. If
the warning message does not disap- pear after driving for appropriately 20 minutes, have the vehicle inspected
by any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer.
WARNING
■When cleaning the air intake vent
●Do not use water or other liquids to clean the air intake vent. If water is
applied to the hybrid battery (trac- tion battery) or other components, a malfunction or fire may occur.
●Before cleaning the air intake vent, make sure to turn the power switch
off to stop the hybrid system.
■When removing the air intake
vent cover
Do not touch the service plug located near the air intake vent. ( P.80)
NOTICE
■When cleaning the air intake vent
When cleaning the air intake vent,
make sure to only use a vacuum to suck out dust and clogs. If a com-pressed air blow gun, etc. is used to
blow out dust and clogs, the dust or clogs may be pushed into the air intake vent, which may affect the per-
formance of the hybrid battery (trac- tion battery) and cause a malfunction.
■To prevent damage to the vehicle
●Do not allow water or foreign matter to enter the air intake vent when the
cover is removed.
●Carefully handle the removed filter
so that it will not be damaged. If the filter is damaged, have it replaced with a new filter by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Make sure to reinstall the filter and cover to their original positions after
cleaning.

351
6
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
Maintenance and care

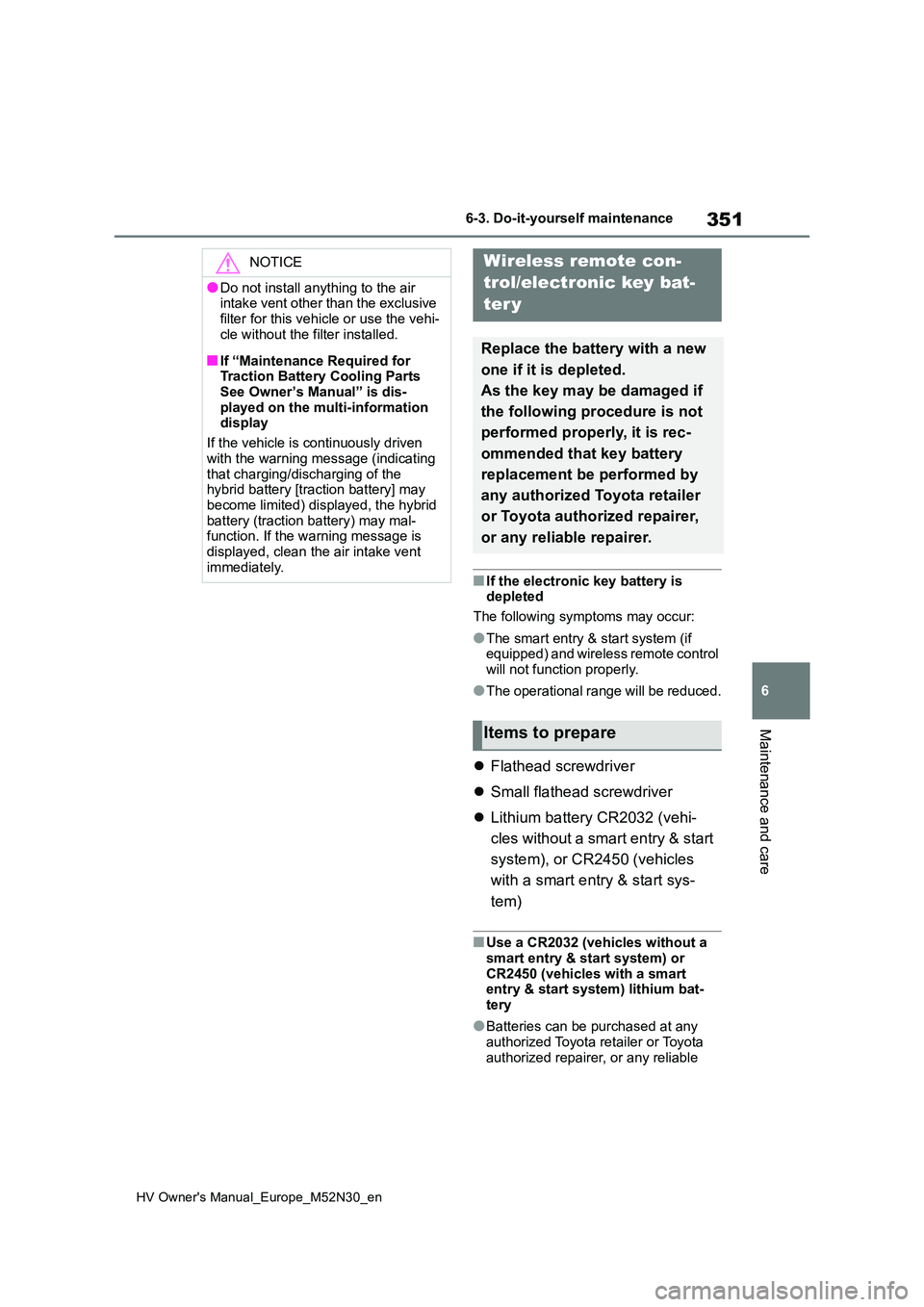

■If the electronic key battery is depleted
The following symptoms may occur:
●The smart entry & start system (if equipped) and wireless remote control
will not function properly.
●The operational range will be reduced.
 Flathead screwdriver
 Small flathead screwdriver
 Lithium battery CR2032 (vehi-
cles without a smart entry & start
system), or CR2450 (vehicles
with a smart entry & start sys-
tem)
■Use a CR2032 (vehicles without a
smart entry & start system) or CR2450 (vehicles with a smart entry & start system) lithium bat-
tery
●Batteries can be purchased at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
NOTICE
●Do not install anything to the air intake vent other than the exclusive
filter for this vehicle or use the vehi- cle without the filter installed.
■If “Maintenance Required for Traction Battery Cooling Parts See Owner’s Manual” is dis-
played on the multi-information display
If the vehicle is continuously driven
with the warning message (indicating that charging/discharging of the hybrid battery [traction battery] may
become limited) displayed, the hybrid battery (traction battery) may mal-function. If the warning message is
displayed, clean the air intake vent immediately.
Wireless remote con-
trol/electronic key bat-
ter y
Replace the battery with a new
one if it is depleted.
As the key may be damaged if
the following procedure is not
performed properly, it is rec-
ommended that key battery
replacement be performed by
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
Items to prepare

352
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
repairer, local electrical appliance
shops or camera stores.
●Replace only with the same or equiva-
lent type recommended by the manu- facturer.
●Dispose of used batteries according to local laws.
Vehicles without a smart entry &
start system

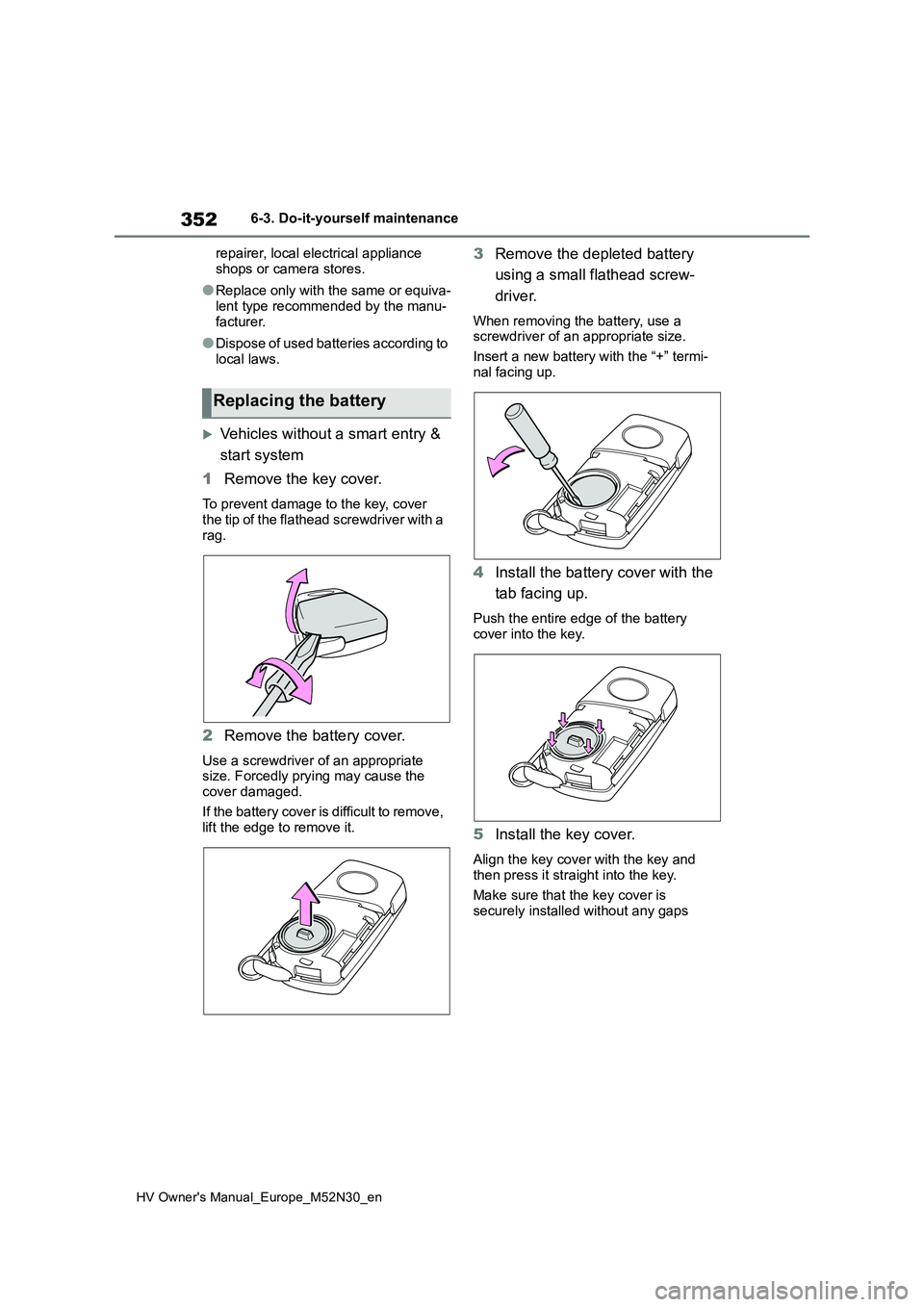

1 Remove the key cover.
To prevent damage to the key, cover the tip of the flathead screwdriver with a
rag.
2 Remove the battery cover.
Use a screwdriver of an appropriate size. Forcedly prying may cause the
cover damaged.
If the battery cover is difficult to remove, lift the edge to remove it.
3 Remove the depleted battery
using a small flathead screw-
driver.
When removing the battery, use a screwdriver of an appropriate size.
Insert a new battery with the “+” termi-
nal facing up.
4 Install the battery cover with the
tab facing up.
Push the entire edge of the battery
cover into the key.
5 Install the key cover.
Align the key cover with the key and then press it straight into the key.
Make sure that the key cover is securely installed without any gaps
Replacing the battery

353
6
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
Maintenance and care
between it and the key.
6Operate the or switch
and check that the doors can be
locked/unlocked.
Vehicles with a smart entry &
start system

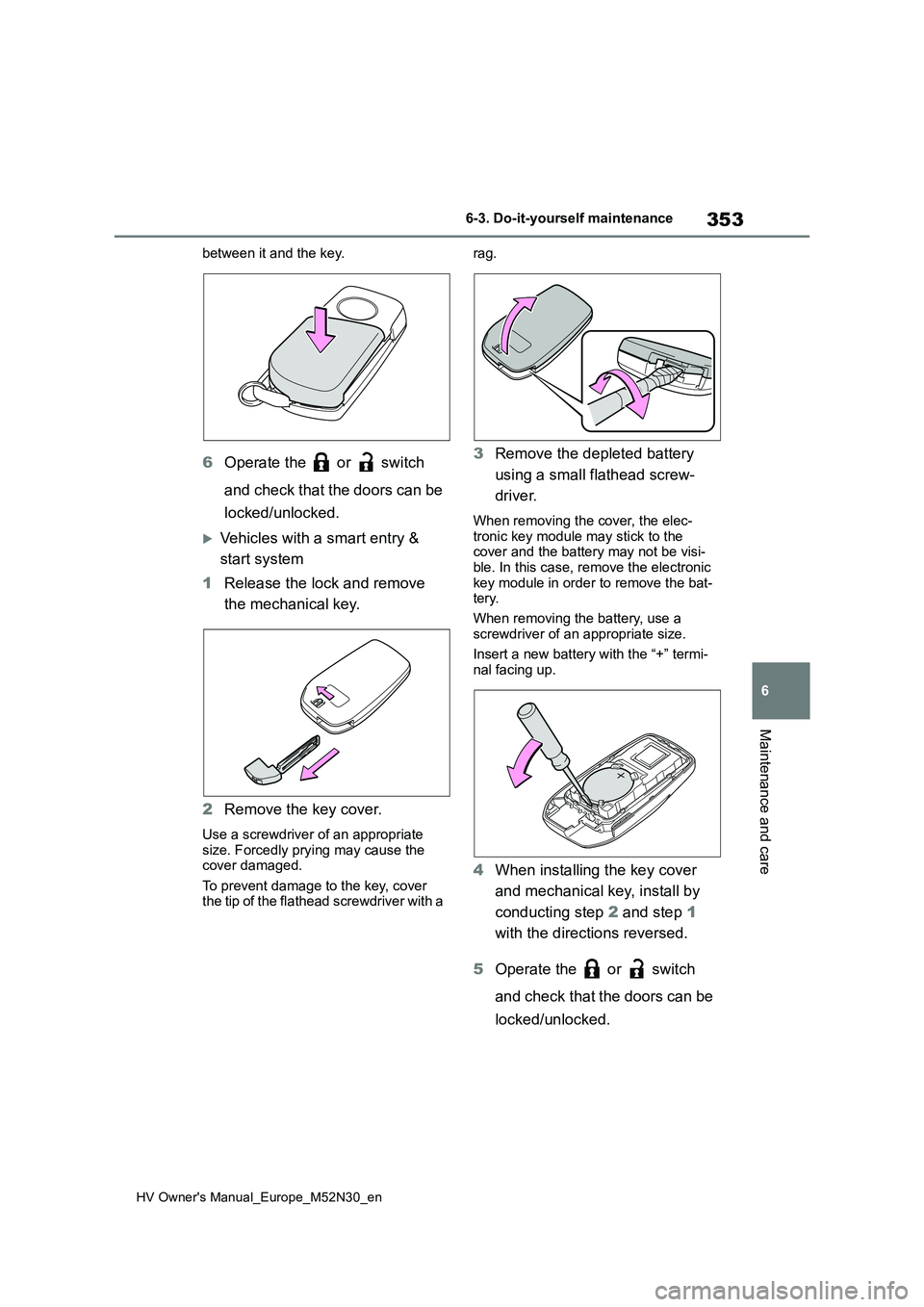

1 Release the lock and remove
the mechanical key.
2 Remove the key cover.
Use a screwdriver of an appropriate size. Forcedly prying may cause the cover damaged.
To prevent damage to the key, cover the tip of the flathead screwdriver with a
rag.
3 Remove the depleted battery
using a small flathead screw-
driver.
When removing the cover, the elec-
tronic key module may stick to the cover and the battery may not be visi-ble. In this case, remove the electronic
key module in order to remove the bat- tery.
When removing the battery, use a
screwdriver of an appropriate size.
Insert a new battery with the “+” termi- nal facing up.
4 When installing the key cover
and mechanical key, install by
conducting step 2 and step 1
with the directions reversed.
5 Operate the or switch
and check that the doors can be
locked/unlocked.

354
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance

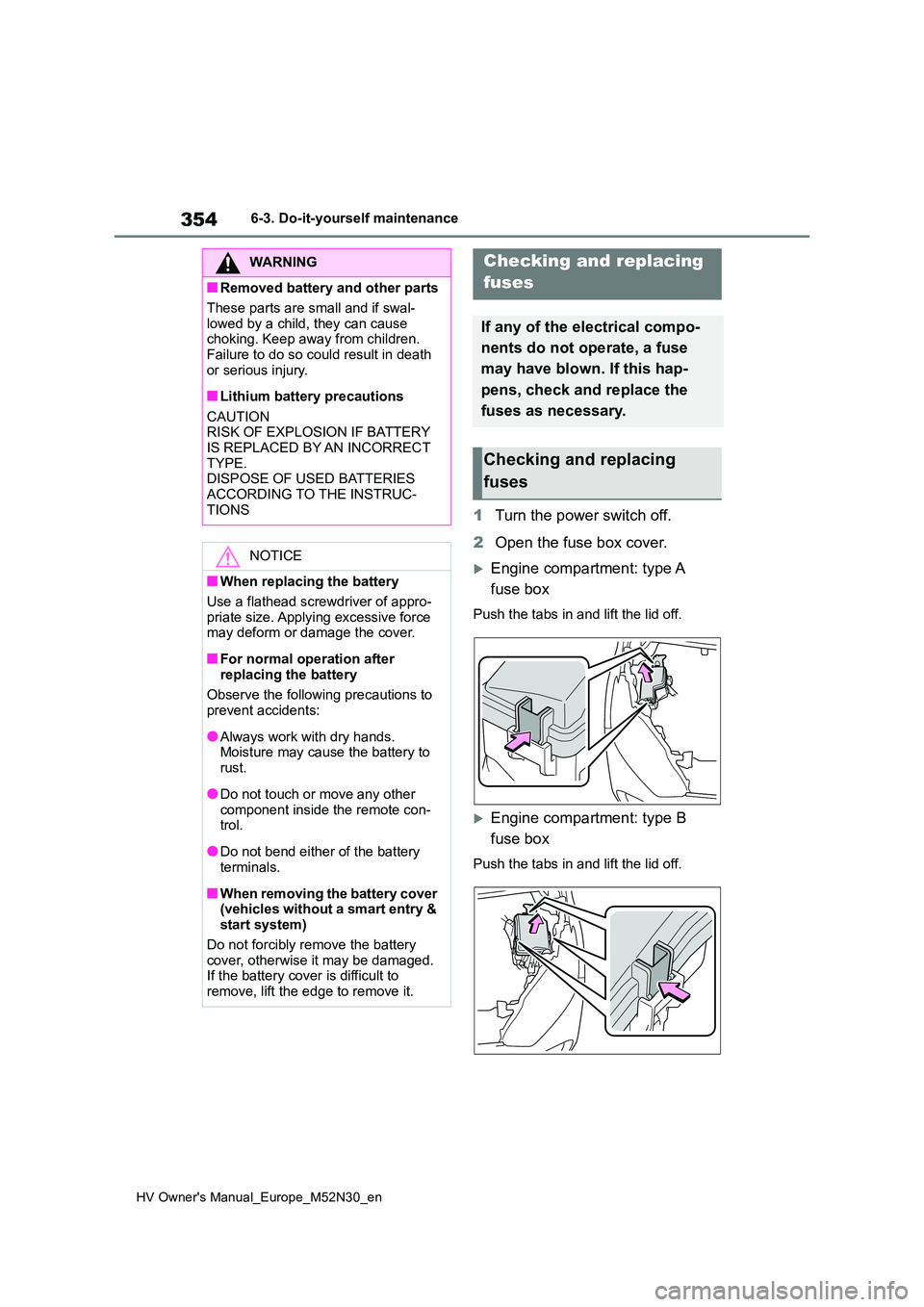

1Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: type A
fuse box
Push the tabs in and lift the lid off.
Engine compartment: type B
fuse box
Push the tabs in and lift the lid off.
WARNING
■Removed battery and other parts
These parts are small and if swal-
lowed by a child, they can cause choking. Keep away from children. Failure to do so could result in death
or serious injury.
■Lithium battery precautions
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS
NOTICE
■When replacing the battery
Use a flathead screwdriver of appro- priate size. Applying excessive force may deform or damage the cover.
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.Moisture may cause the battery to
rust.
●Do not touch or move any other
component inside the remote con- trol.
●Do not bend either of the battery terminals.
■When removing the battery cover (vehicles without a smart entry & start system)
Do not forcibly remove the battery cover, otherwise it may be damaged. If the battery cover is difficult to
remove, lift the edge to remove it.
Checking and replacing
fuses
If any of the electrical compo-
nents do not operate, a fuse
may have blown. If this hap-
pens, check and replace the
fuses as necessary.
Checking and replacing
fuses

355
6
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
Maintenance and care

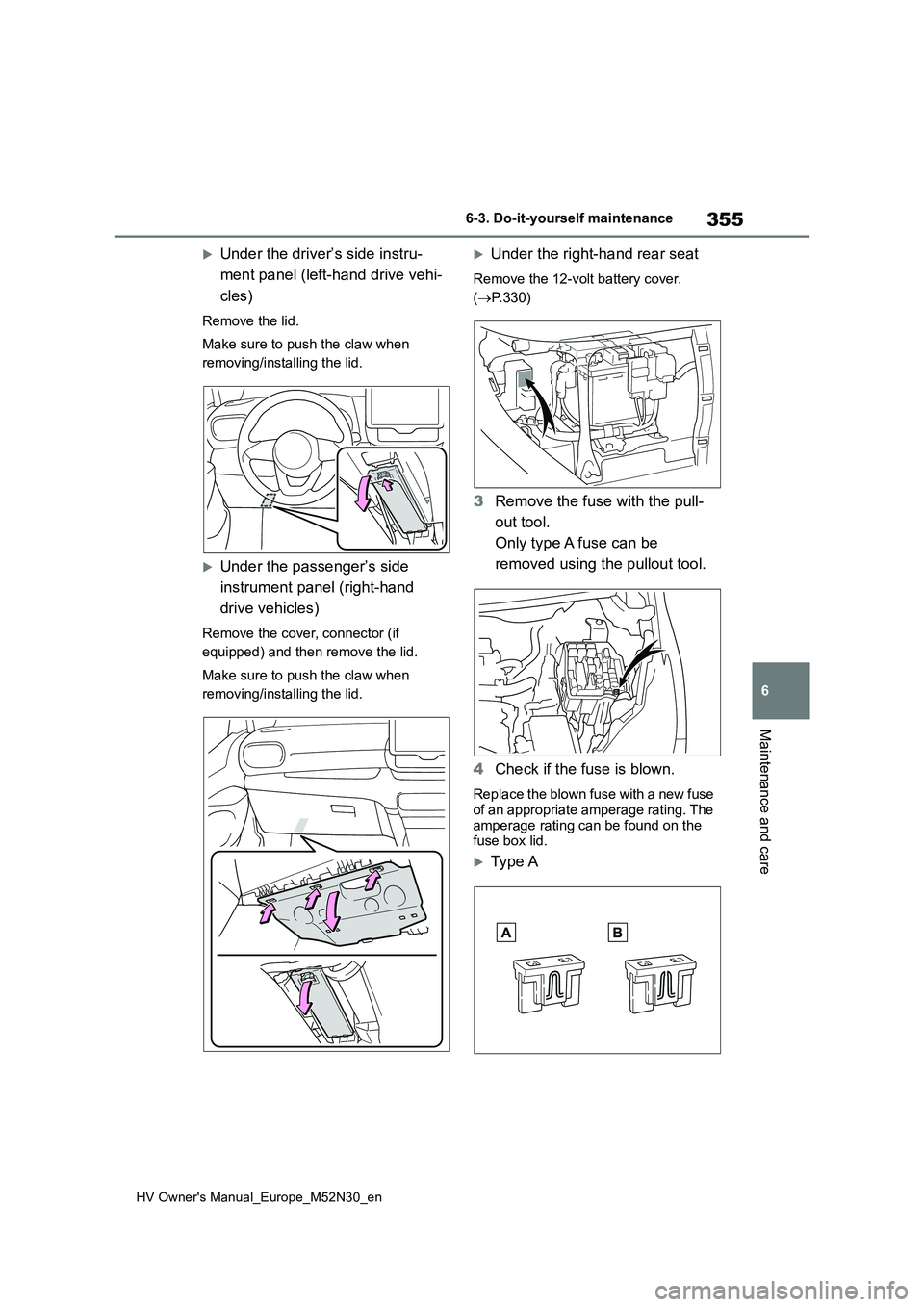

Under the driver’s side instru-
ment panel (left-hand drive vehi-
cles)
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Under the passenger’s side
instrument panel (right-hand
drive vehicles)
Remove the cover, connector (if
equipped) and then remove the lid.
Make sure to push the claw when
removing/installing the lid.
Under the right-hand rear seat
Remove the 12-volt battery cover.
( P.330)
3Remove the fuse with the pull-
out tool.
Only type A fuse can be
removed using the pullout tool.
4 Check if the fuse is blown.
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Typ e A

356
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance

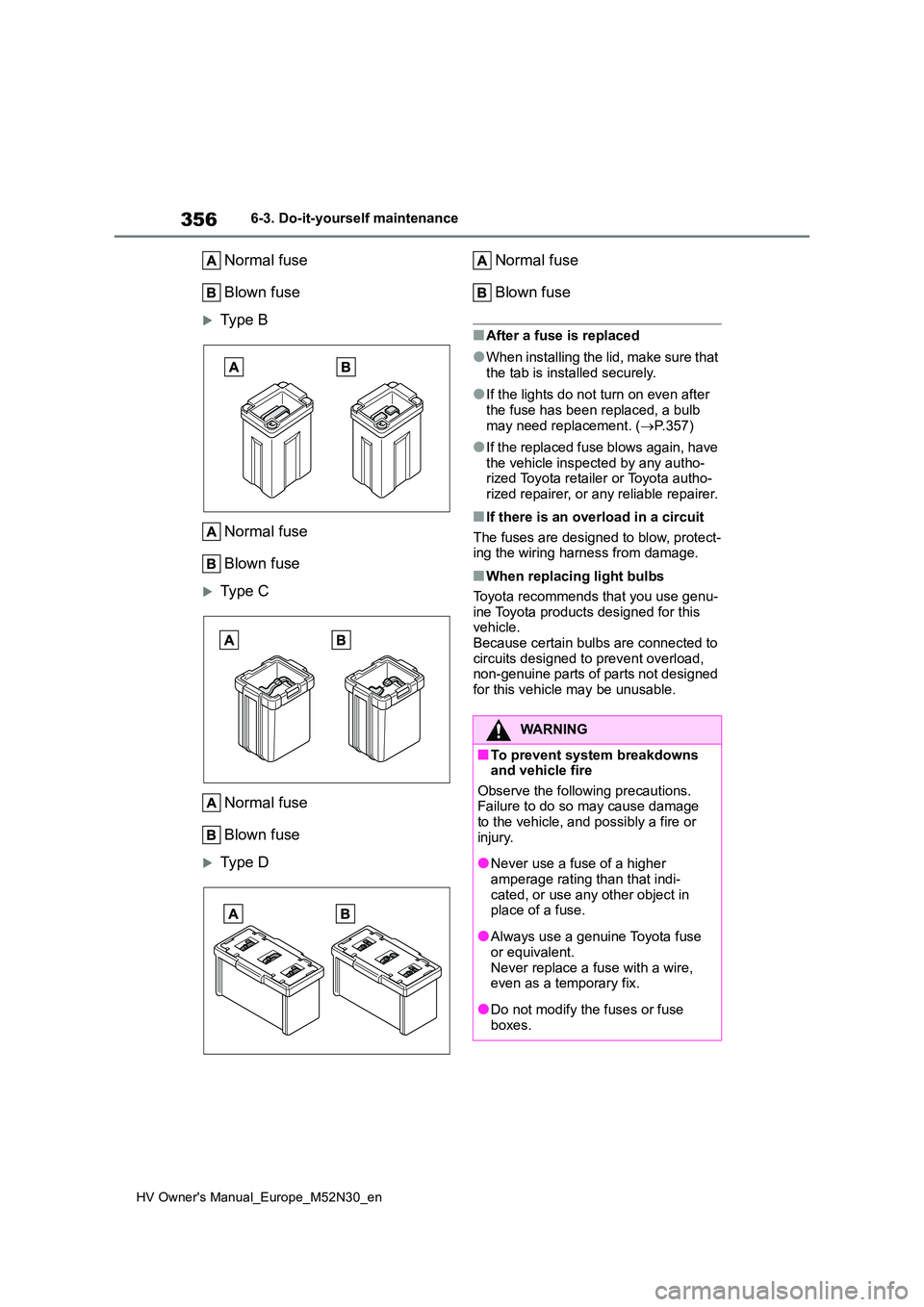

Normal fuse
Blown fuse
Type B
Normal fuse
Blown fuse
Type C
Normal fuse
Blown fuse
Type D
Normal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure that the tab is installed securely.
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P.357)
●If the replaced fuse blows again, have
the vehicle inspected by any autho- rized Toyota retailer or Toyota autho-rized repairer, or any reliable repairer.
■If there is an overload in a circuit
The fuses are designed to blow, protect- ing the wiring harness from damage.
■When replacing light bulbs
Toyota recommends that you use genu-
ine Toyota products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-genuine parts of parts not designed
for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher
amperage rating than that indi- cated, or use any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.

357
6
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
Maintenance and care
Check the wattage of the light bulb
to be replaced. ( P.428)
Front
Front position lights (bulb type)
Front turn signal lights (bulb
type)
Front fog lights (bulb type)
Headlights (bulb type)
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
■When installing the fuse box
cover (Engine compartment: type A and type B fuse boxes)
Press the fuse box cover, when
installing, after aligning all of the claw positions. Otherwise, the claws may be damaged.
Light bulbs
You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Preparing for light bulb
replacement
Bulb locations

358
HV Owner's Manual_Europe_M52N30_en
6-3. Do-it-yourself maintenance
Rear
License plate light
Rear turn signal lights (bulb
type)
■Lights that need to be
replaced by any authorized
Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer
 Headlights (LED type)
 Front fog lights (LED type)
 Front position lights (LED type)
 Front turn signal lights (LED
type)
 Daytime running lights
 Side turn signal lights
 Tail lights
 Stop lights
 Back-up light
 Rear fog light
 Rear turn signal lights (LED type)
 High mounted stoplight
■LED light bulbs
The lights other than the following lights
each consist of a number of LEDs. If any of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer to have the light replaced.
●Headlights (bulb type)
●Front position lights (bulb type)
●Front turn signal lights (bulb type)
●Front fog lights (bulb type)
●Rear turn signal lights (bulb type)
●License plate light
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a malfunction. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the head-
light.
■When replacing light bulbs
 P. 3 5 6
■Headlights (bulb type)
1 Unplug the connector.
Replacing light bulbs
