TOYOTA YARIS 2022 Owners Manual

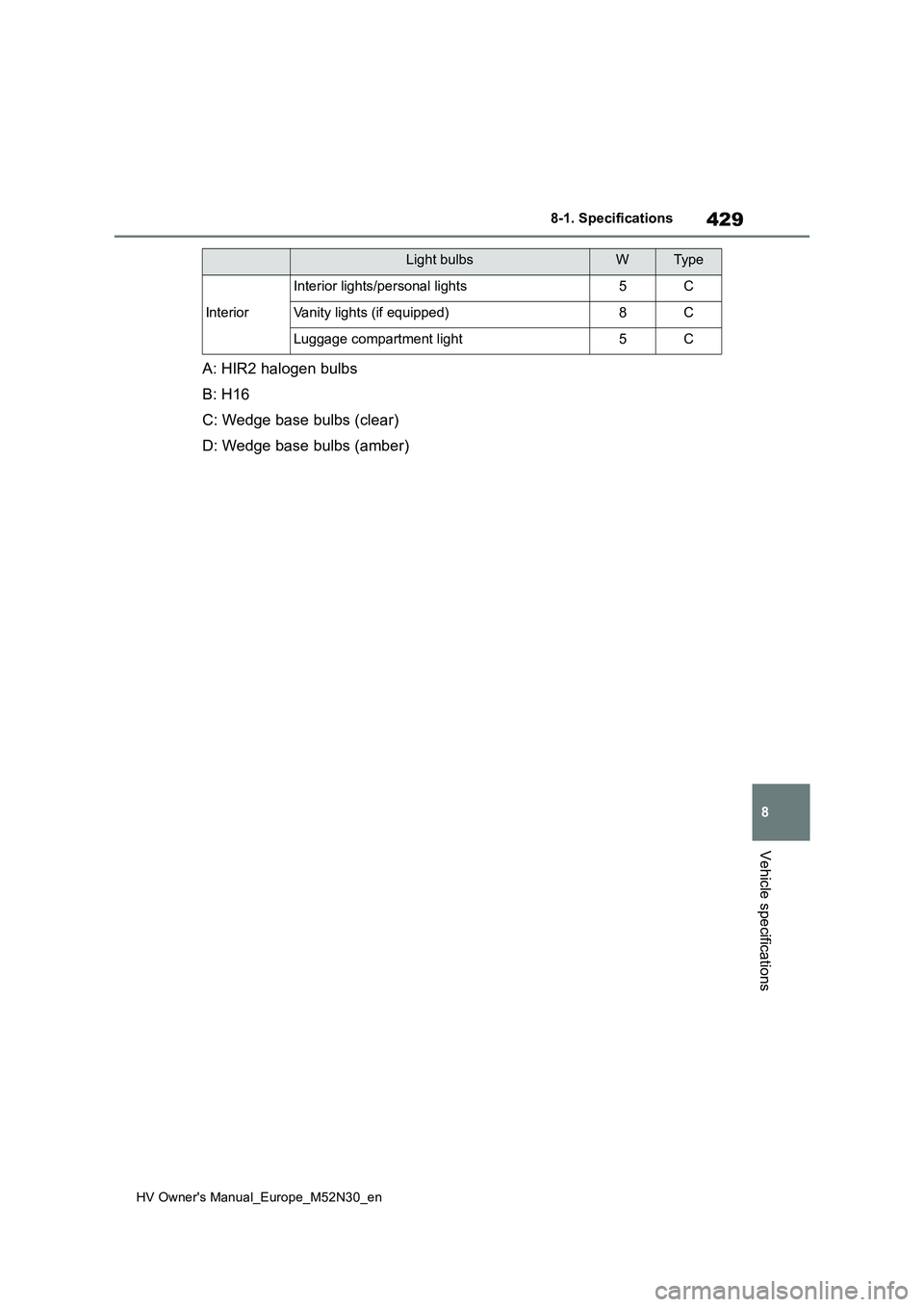

429
8
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
Vehicle specifications
A: HIR2 halogen bulbs
B: H16
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
Interior
Interior lights/personal lights5C
Vanity lights (if equipped)8C
Luggage compartment light5C
Light bulbsWTyp e

430
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol
blended gasoline where the ethanol content is up to 10%. Make sure that the ethanol blended gasoline to be used has
a Research Octane Number that follows the above.
■If your engine knocks
●Consult any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal
and there is no need for concern.Fuel information
When you find these types of
fuel label at the gas station,
use only the fuel with one of
the following labels.
EU area:
You must only use unleaded
gasoline conforming to Euro-
pean standard EN228.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
Except EU area:
You must only use unleaded
gasoline.
Select unleaded gasoline with
a Research Octane Number of
95 or higher for optimum
engine performance.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine
will be damaged.
●Do not use gasoline with metallic
additives, for example manganese, iron or lead, otherwise it may cause damage on your engine or emission
control system.
●Do not add aftermarket fuel addi-
tives which contain metallic addi- tives.
●EU area: Bioethanol fuel sold under names such as “E50” or “E85” and fuel containing a large amount of
ethanol should not be used. The use of these fuels will damage the vehicle’s fuel system. In case of any
doubt, ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The use of fuel with more than 10% eth-anol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel spec-
ification and quality can be guaran- teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam- age or failure.

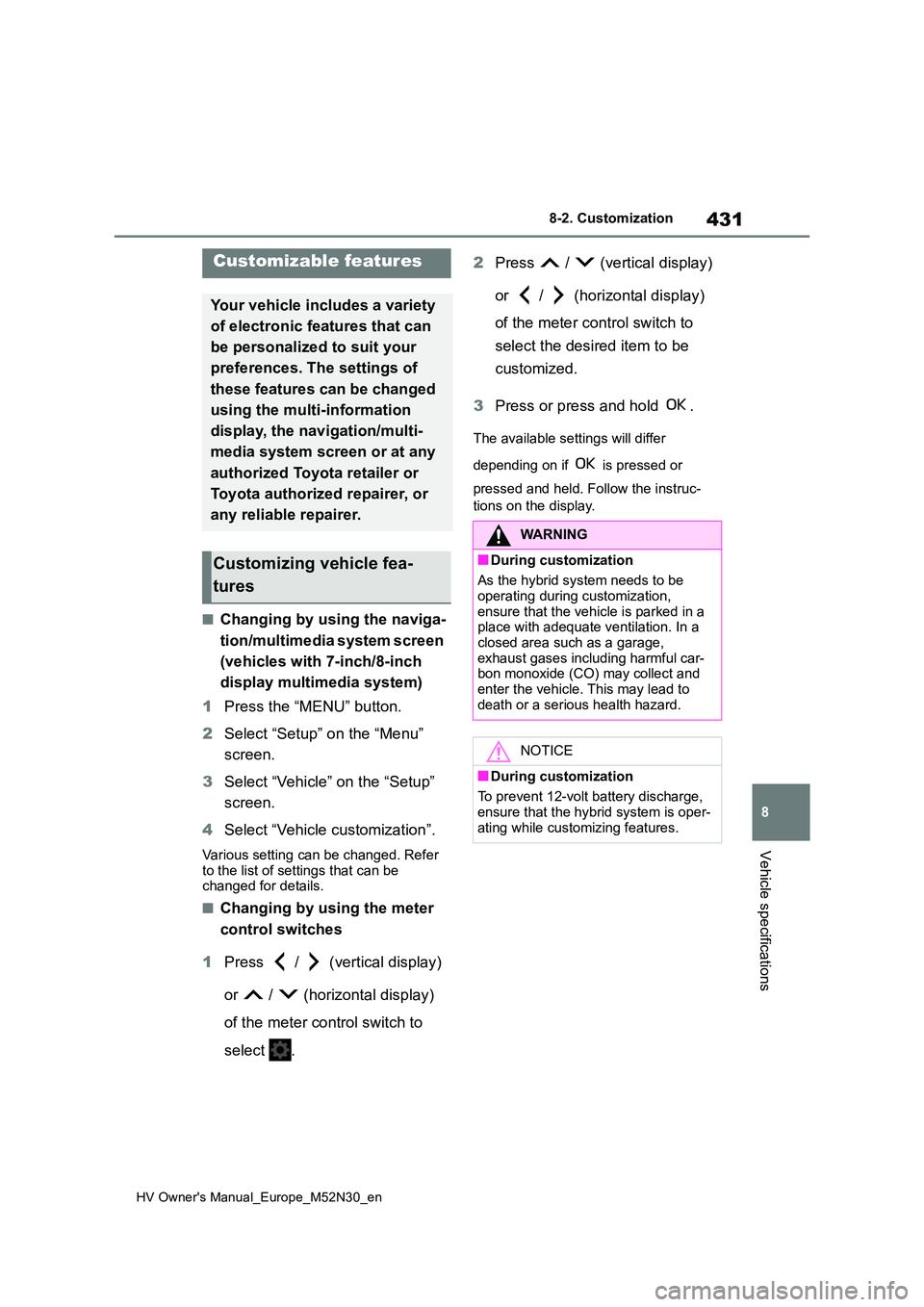

431
8
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
Vehicle specifications
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with 7-inch/8-inch
display multimedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 Select “Vehicle customization”.
Various setting can be changed. Refer
to the list of settings that can be changed for details.
■Changing by using the meter
control switches
1 Press / (vertical display)
or / (horizontal display)
of the meter control switch to
select .
2 Press / (vertical display)
or / (horizontal display)
of the meter control switch to
select the desired item to be
customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the nav igation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
tures
WARNING
■During customization
As the hybrid system needs to be operating during customization,
ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful car- bon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

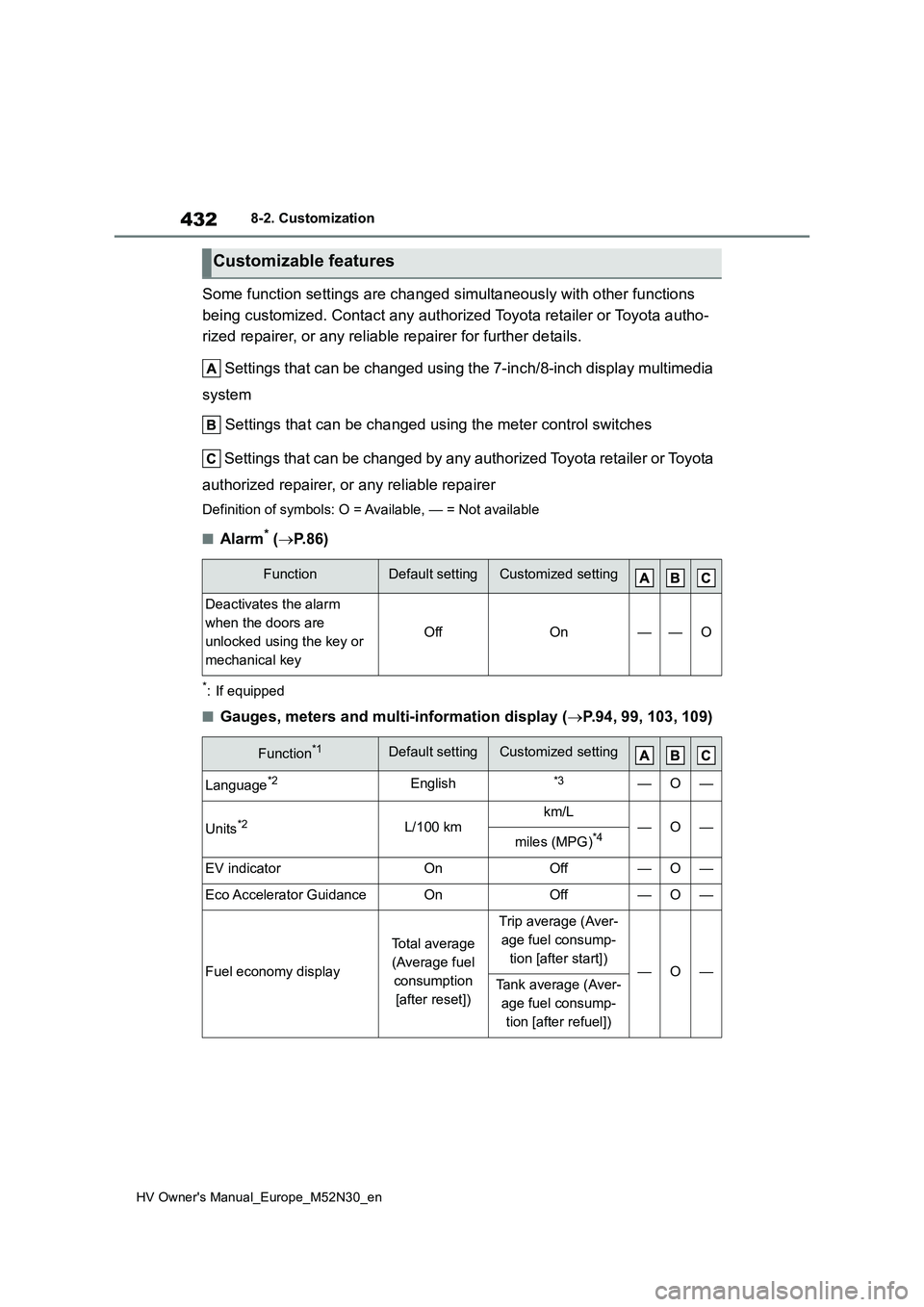

432
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toy ota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the 7-inch/8-inch display m ultimedia
system
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toy ota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* ( P.86)
*: If equipped
■Gauges, meters and multi-information display (P.94, 99, 103, 109)
Customizable features
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
EV indicatorOnOff—O—
Eco Accelerator GuidanceOnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])

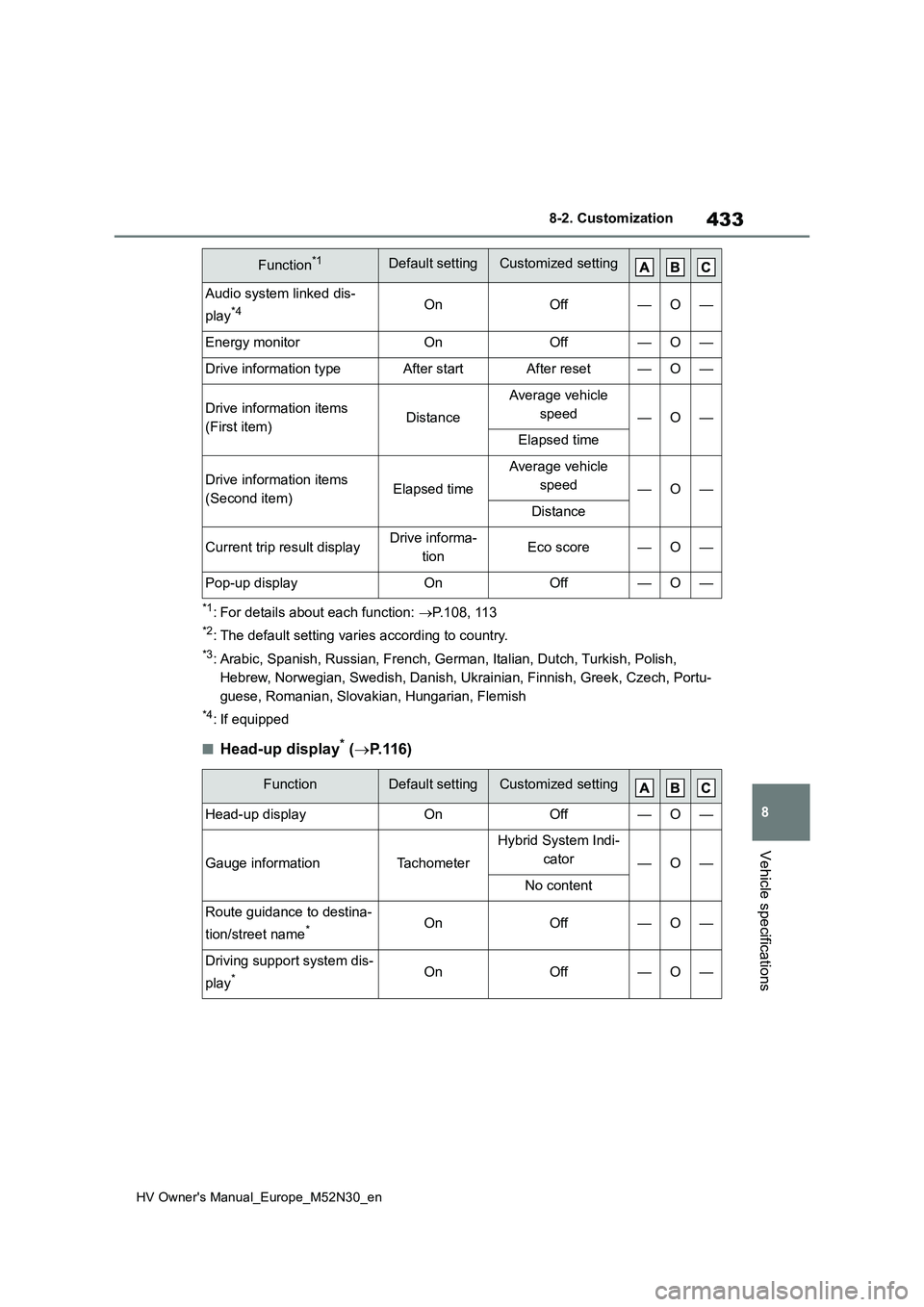

433
8
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
Vehicle specifications
*1: For details about each function: P.108, 113
*2: The default setting varies according to country.
*3: Arabic, Spanish, Russian, French, German, Italian, Dutch, Turkish, Polish,
Hebrew, Norwegian, Swedish, Danish, Ukrainian, Finnish, Greek, Czech, Portu-
guese, Romanian, Slovakian, Hungarian, Flemish
*4: If equipped
■Head-up display* ( P.116)
Audio system linked dis-
play*4OnOff—O—
Energy monitorOnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Current trip result displayDrive informa-
tionEco score—O—
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometer
Hybrid System Indi-
cator—O—
No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
play*OnOff—O—
Function*1Default settingCustomized setting

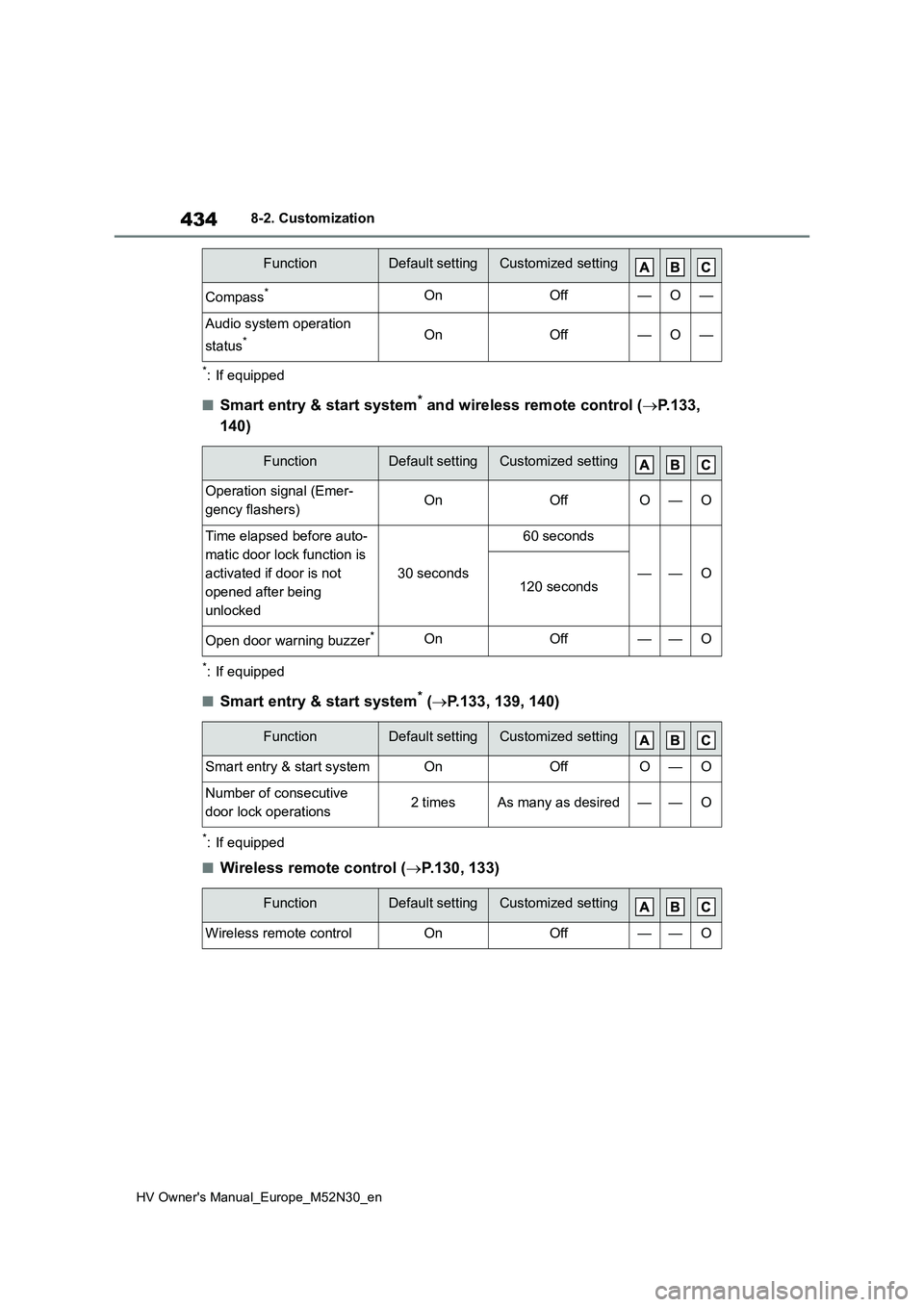

434
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
*: If equipped
■Smart entry & start system* and wireless remote control (P.133,
140)
*: If equipped
■Smart entry & start system* ( P.133, 139, 140)
*: If equipped
■Wireless remote control (P.130, 133)
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzer*OnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting

435
8
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
Vehicle specifications
■Outside rear view mirrors (P.153)
*: If equipped
■Power windows (P.156)
*: If equipped
■Automatic light control system (P.190)
■Lights (P.191)
*: If equipped
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the power switch
FunctionDefault settingCustomized setting
Key (include mechanical
key*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)*OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Headlamp temporary light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lamp*OnOff——O

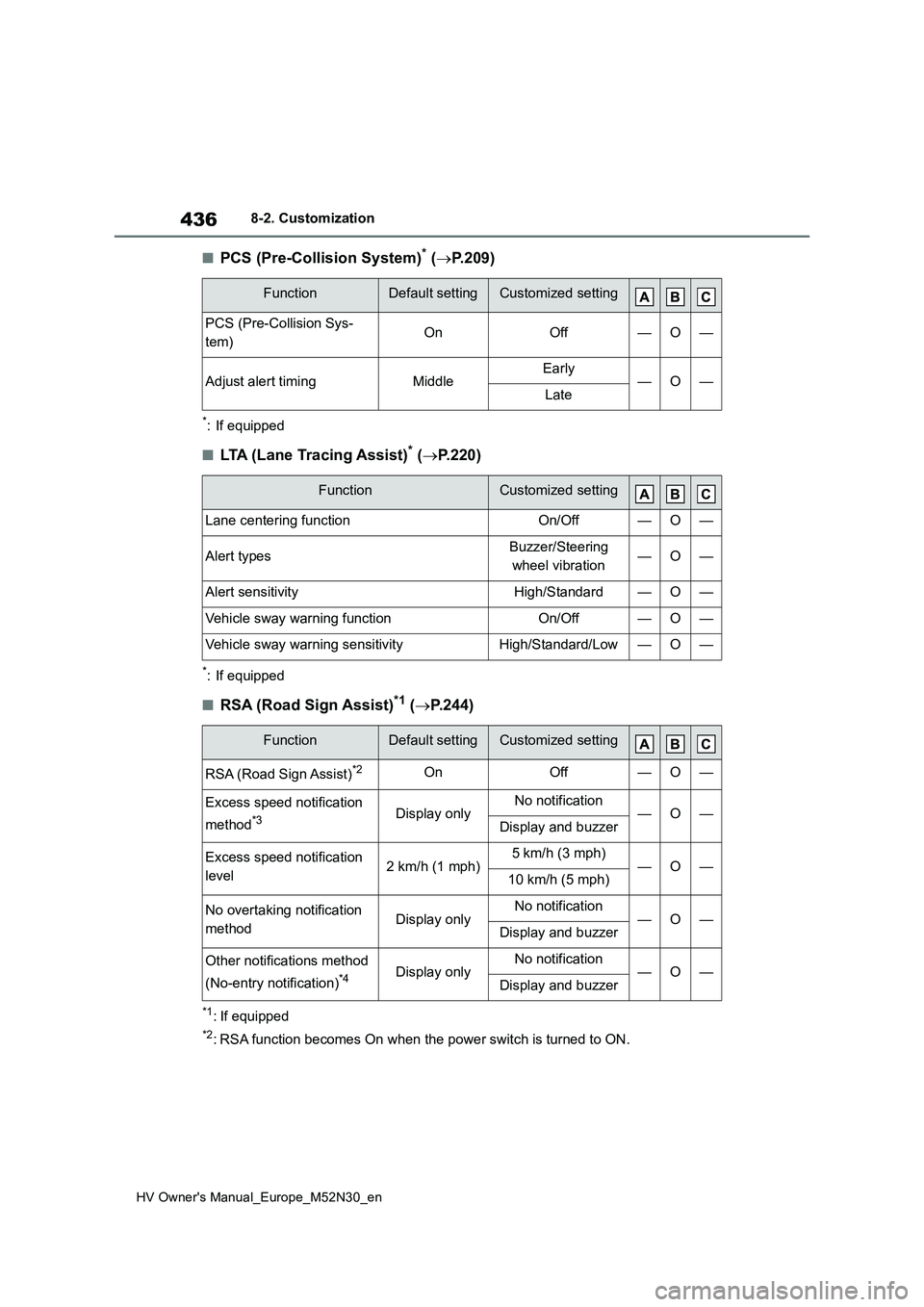

436
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
■PCS (Pre-Collision System)* (P.209)
*: If equipped
■LTA (Lane Tracing Assist)* (P.220)
*: If equipped
■RSA (Road Sign Assist)*1 (P.244)
*1: If equipped
*2: RSA function becomes On when the power switch is turned to ON.
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
FunctionCustomized setting
Lane centering functionOn/Off—O—
Alert typesBuzzer/Steering
wheel vibration—O—
Alert sensitivityHigh/Standard—O—
Vehicle sway warning functionOn/Off—O—
Vehicle sway warning sensitivityHigh/Standard/Low—O—
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)*2OnOff—O—
Excess speed notification
method*3Display onlyNo notification—O—Display and buzzer
Excess speed notification
level2 km/h (1 mph)5 km/h (3 mph)—O—10 km/h (5 mph)
No overtaking notification
methodDisplay onlyNo notification—O—Display and buzzer
Other notifications method
(No-entry notification)*4Display onlyNo notification—O—Display and buzzer

437
8
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
Vehicle specifications
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with 7-inch/8-inch display navigation system
■Dynamic radar cruise control with full-speed range* ( P. 2 3 0 )
*: If equipped
■BSM (Blind Spot Monitor)* (P.248)
*: If equipped
■Toyota parking assist-sensor* (P.253)
*: If equipped
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
Detection distance of the
front center sensorFarNear——O
Detection distance of the
rear center sensorFarNear——O
Detection distance of the
corner sensorFarNear——O

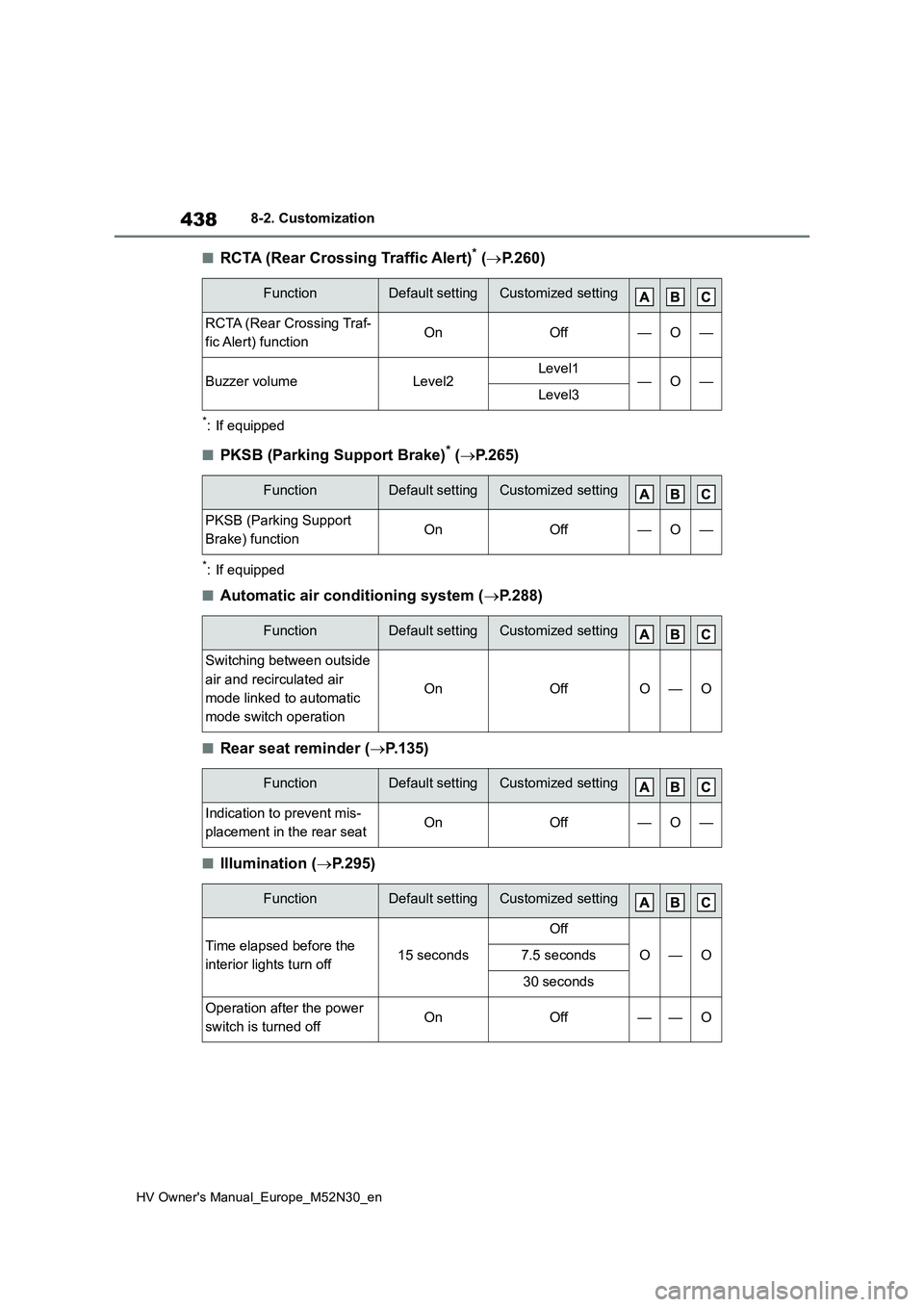

438
HV Owner's Manual_Europe_M52N30_en
8-2. Customization
■RCTA (Rear Crossing Traffic Alert)* (P.260)
*: If equipped
■PKSB (Parking Support Brake)* (P.265)
*: If equipped
■Automatic air conditioning system (P.288)
■Rear seat reminder (P.135)
■Illumination (P.295)
FunctionDefault settingCustomized setting
RCTA (Rear Crossing Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O
