Vehicle specifications
Vehicle specifications

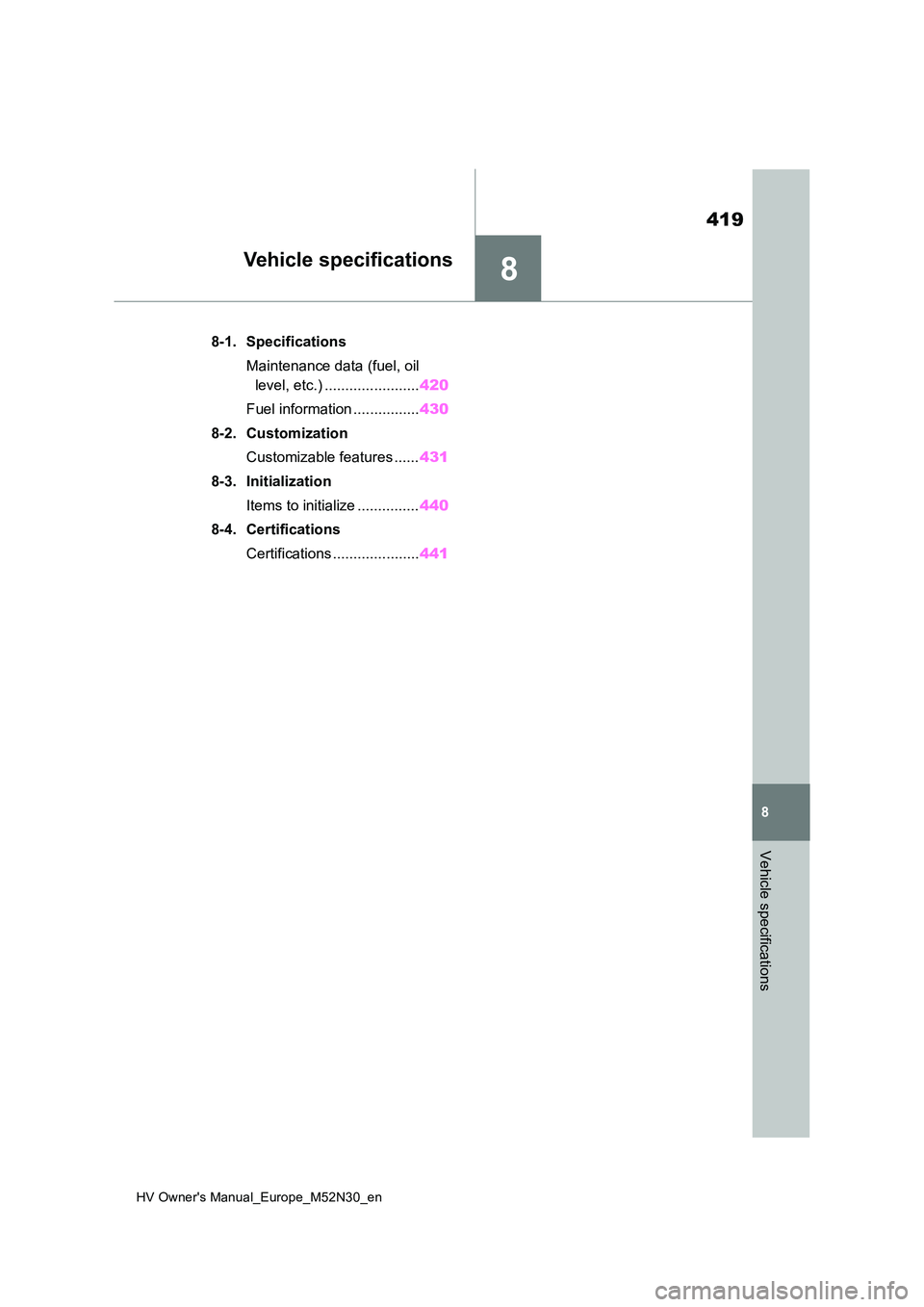

8-1. Specifications
Maintenance data (fuel, oil
level, etc.) ....................... 420
Fuel information ................ 430
8-2. Customization
Customizable features ...... 431
8-3. Initialization
Items to initialize ............... 440
8-4. Certifications
Certifications ..................... 441

420
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
8-1.Spec ific ations
*1: Unladen vehicles
*2: Vehicles with panoramic roof shade
*3: Vehicles with 16-inch tires or 17-inch tires
*4: Vehicles with 15-inch tires
*5: Vehicles with towing packages
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi-
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
This number is stamped under the
right-hand front seat.

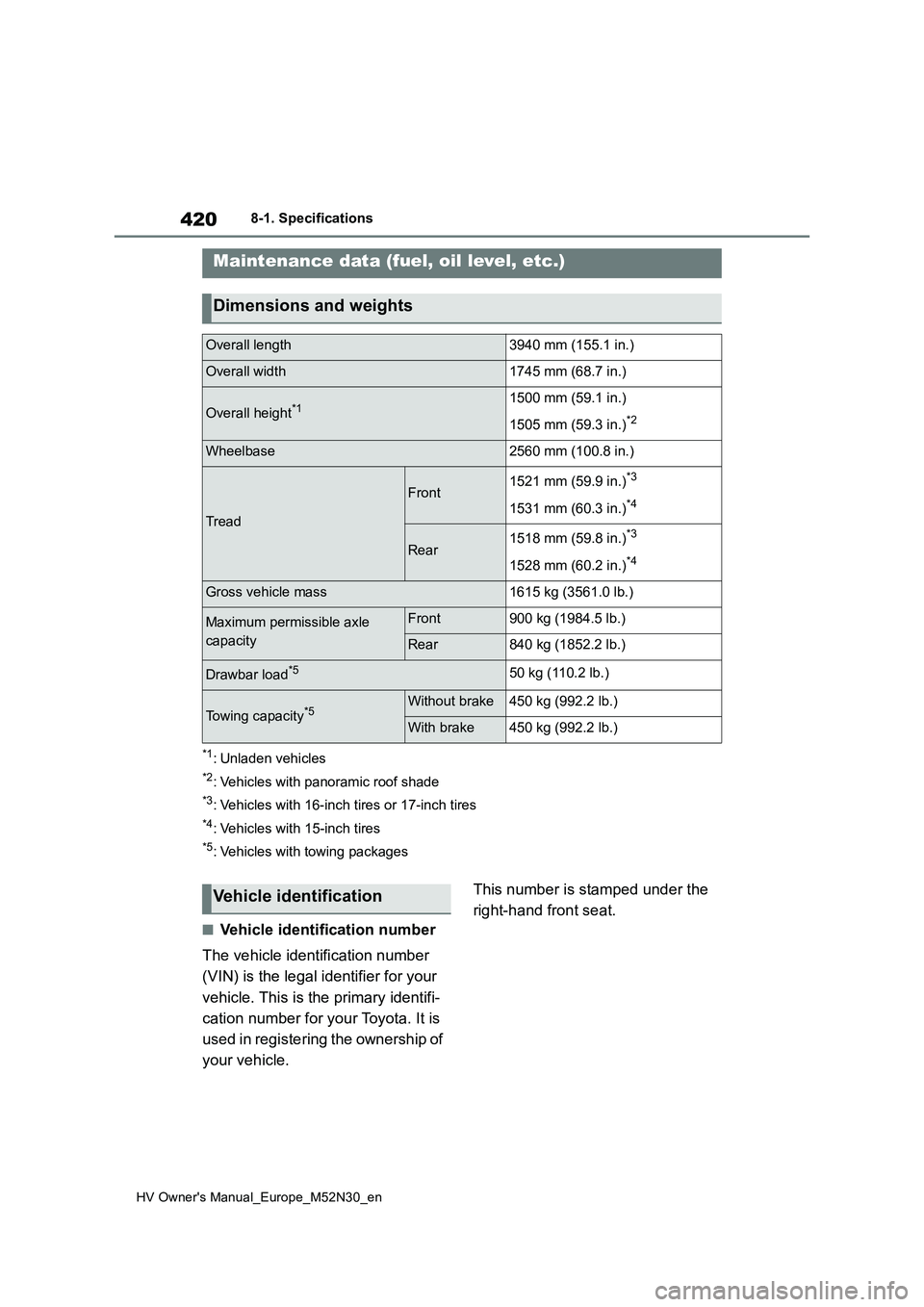

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length3940 mm (155.1 in.)
Overall width1745 mm (68.7 in.)
Overall height*11500 mm (59.1 in.)
1505 mm (59.3 in.)*2
Wheelbase2560 mm (100.8 in.)
Tread
Front1521 mm (59.9 in.)*3
1531 mm (60.3 in.)*4
Rear1518 mm (59.8 in.)*3
1528 mm (60.2 in.)*4
Gross vehicle mass1615 kg (3561.0 lb.)
Maximum permissible axle
capacity
Front900 kg (1984.5 lb.)
Rear840 kg (1852.2 lb.)
Drawbar load*550 kg (110.2 lb.)
Towing capacity*5Without brake450 kg (992.2 lb.)
With brake450 kg (992.2 lb.)
Vehicle identification

421
8
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
Vehicle specifications

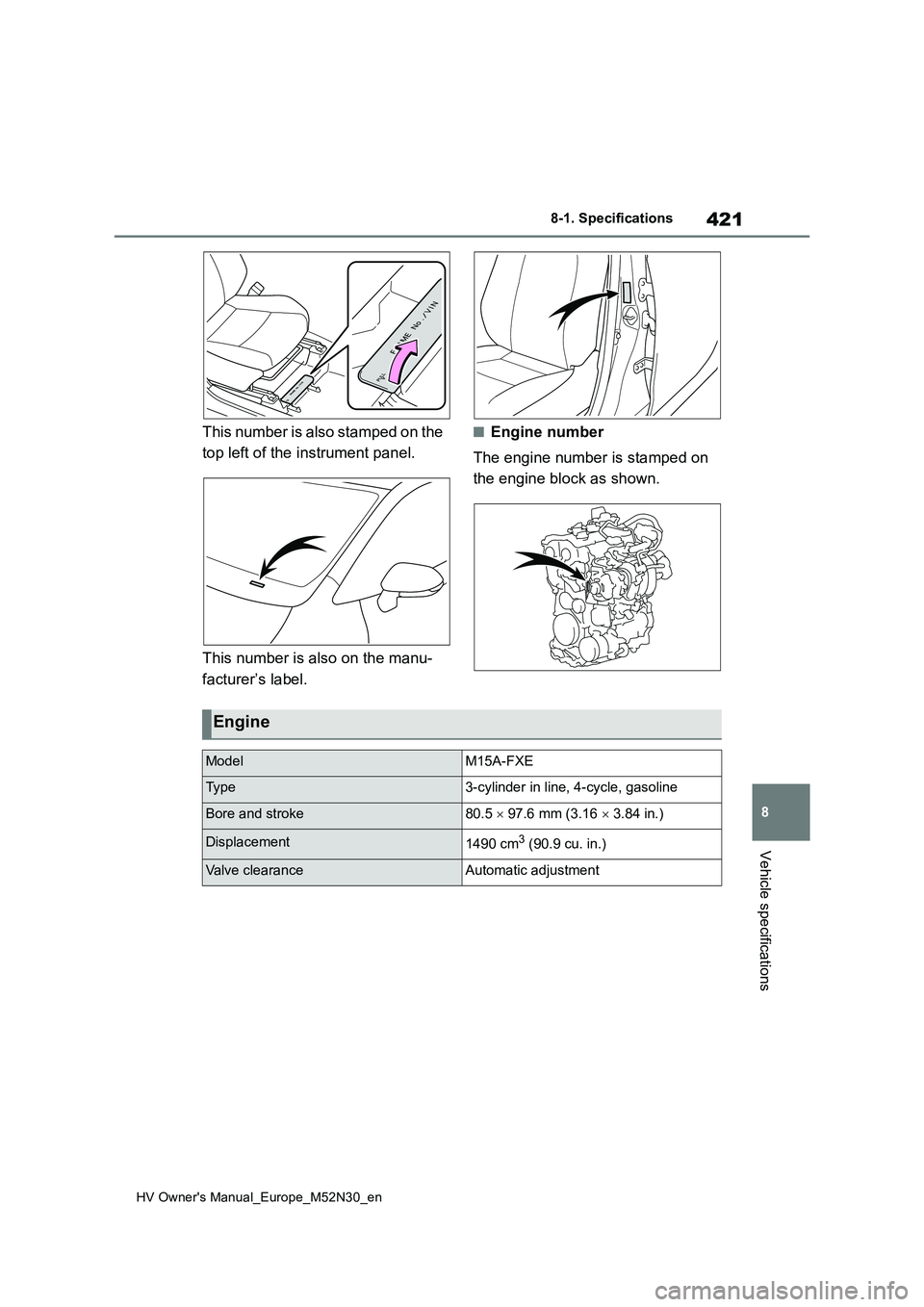

This number is also stamped on the
top left of the instrument panel.
This number is also on the manu-
facturer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Engine
ModelM15A-FXE
Ty p e3-cylinder in line, 4-cycle, gasoline
Bore and stroke80.5  97.6 mm (3.16  3.84 in.)
Displacement1490 cm3 (90.9 cu. in.)
Valve clearanceAutomatic adjustment

422
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications

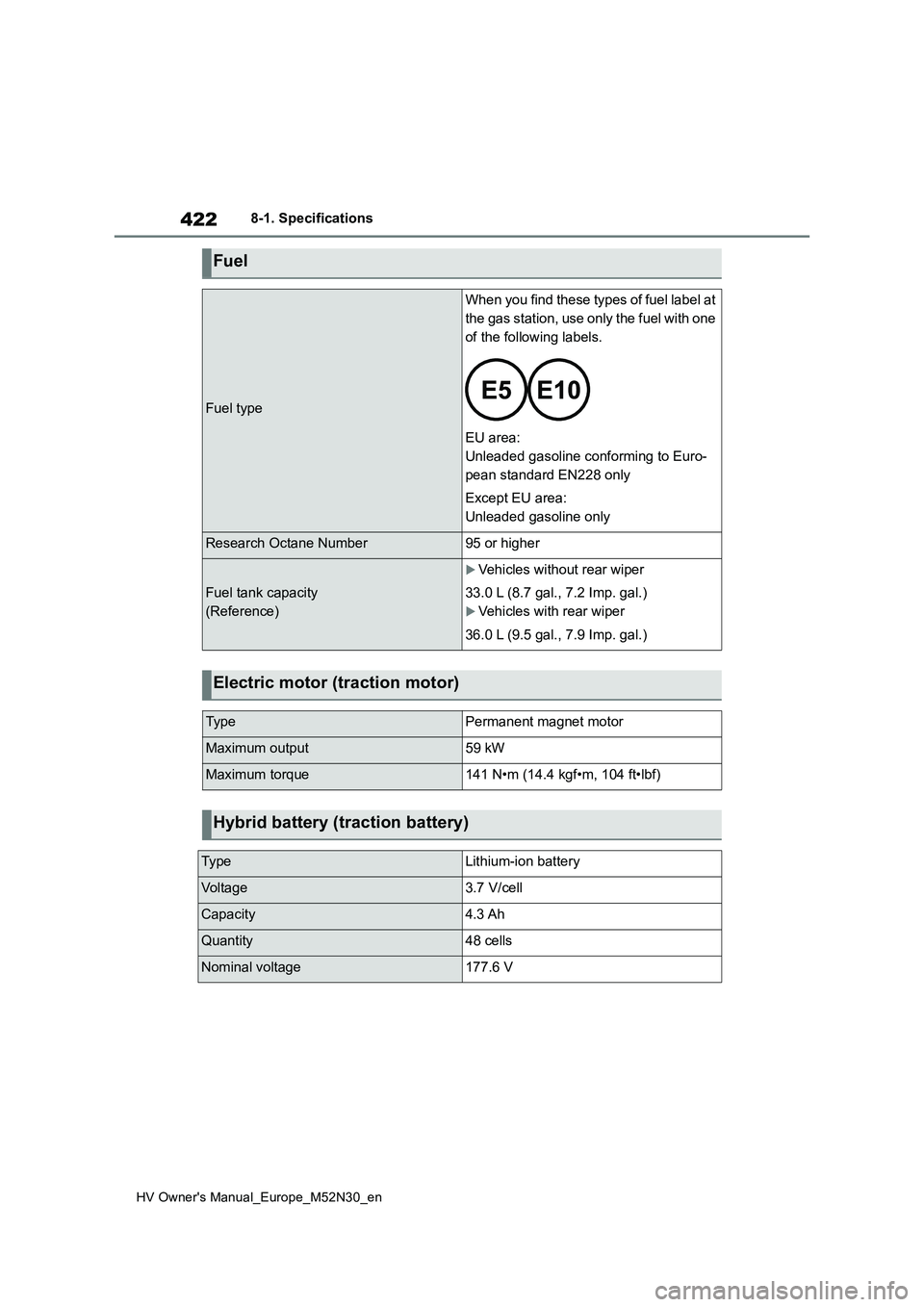

Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)
Vehicles without rear wiper
33.0 L (8.7 gal., 7.2 Imp. gal.)
Vehicles with rear wiper
36.0 L (9.5 gal., 7.9 Imp. gal.)
Electric motor (traction motor)
Typ ePermanent magnet motor
Maximum output59 kW
Maximum torque141 N•m (14.4 kgf•m, 104 ft•lbf)
Hybrid battery (traction battery)
Ty p eLithium-ion battery
Vol t ag e3.7 V/cell
Capacity4.3 Ah
Quantity48 cells
Nominal voltage177.6 V

423
8
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
Vehicle specifications

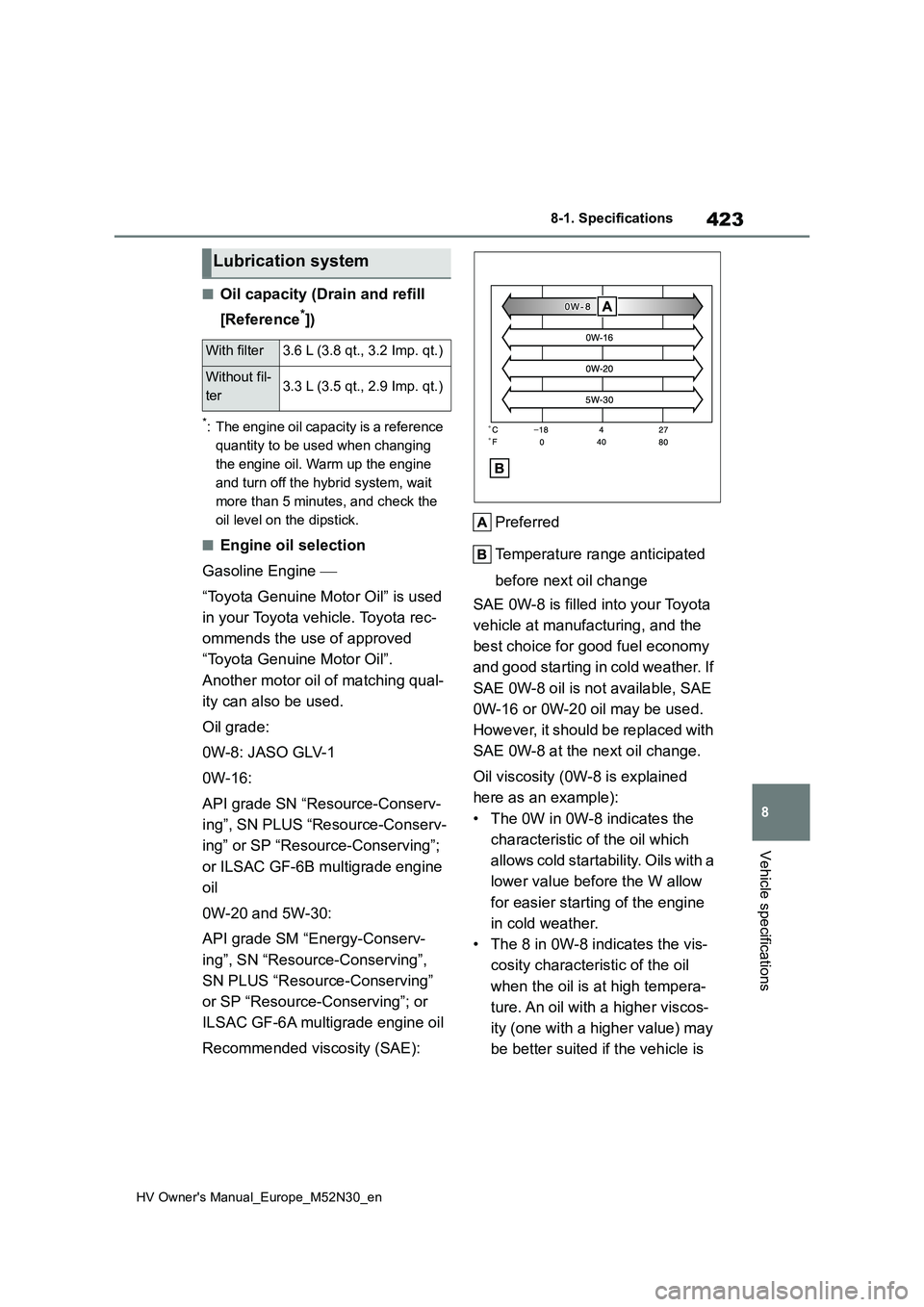

■Oil capacity (Drain and refill
[Reference*])
*: The engine oil capacity is a reference
quantity to be used when changing
the engine oil. Warm up the engine
and turn off the hybrid system, wait
more than 5 minutes, and check the
oil level on the dipstick.
■Engine oil selection
Gasoline Engine 
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual-
ity can also be used.
Oil grade:
0W-8: JASO GLV-1
0W-16:
API grade SN “Resource-Conserv-
ing”, SN PLUS “Resource-Conserv-
ing” or SP “Resource-Conserving”;
or ILSAC GF-6B multigrade engine
oil
0W-20 and 5W-30:
API grade SM “Energy-Conserv-
ing”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving”
or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
Preferred
Temperature range anticipated
before next oil change
SAE 0W-8 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather. If
SAE 0W-8 oil is not available, SAE
0W-16 or 0W-20 oil may be used.
However, it should be replaced with
SAE 0W-8 at the next oil change.
Oil viscosity (0W-8 is explained
here as an example):
• The 0W in 0W-8 indicates the
characteristic of the oil which
allows cold startability. Oils with a
lower value before the W allow
for easier starting of the engine
in cold weather.
• The 8 in 0W-8 indicates the vis-
cosity characteristic of the oil
when the oil is at high tempera-
ture. An oil with a higher viscos-
ity (one with a higher value) may
be better suited if the vehicle is
Lubrication system
With filter3.6 L (3.8 qt., 3.2 Imp. qt.)
Without fil-
ter3.3 L (3.5 qt., 2.9 Imp. qt.)

424
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
operated at high speeds, or
under extreme load conditions.

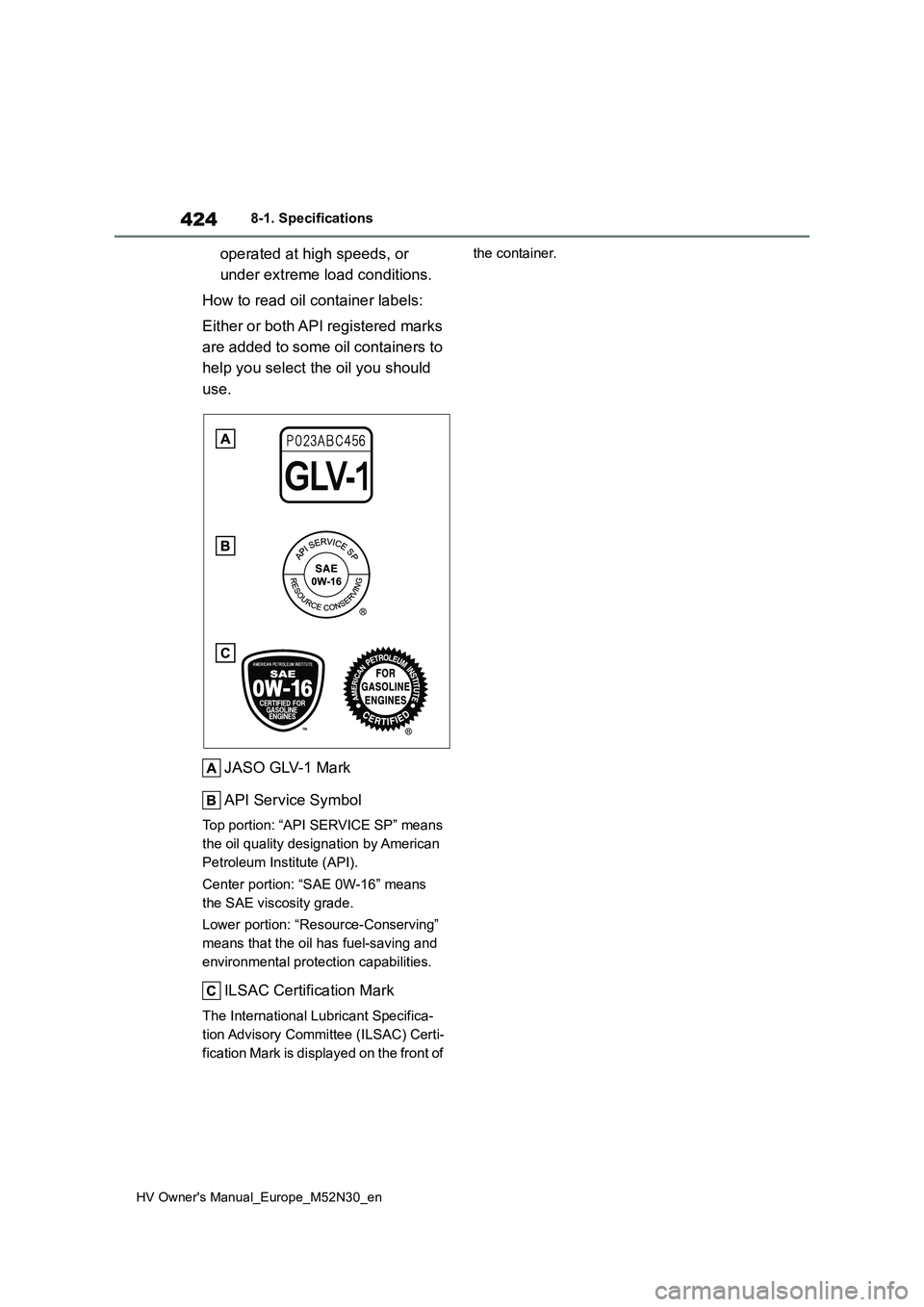

How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
JASO GLV-1 Mark
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.

425
8
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
Vehicle specifications

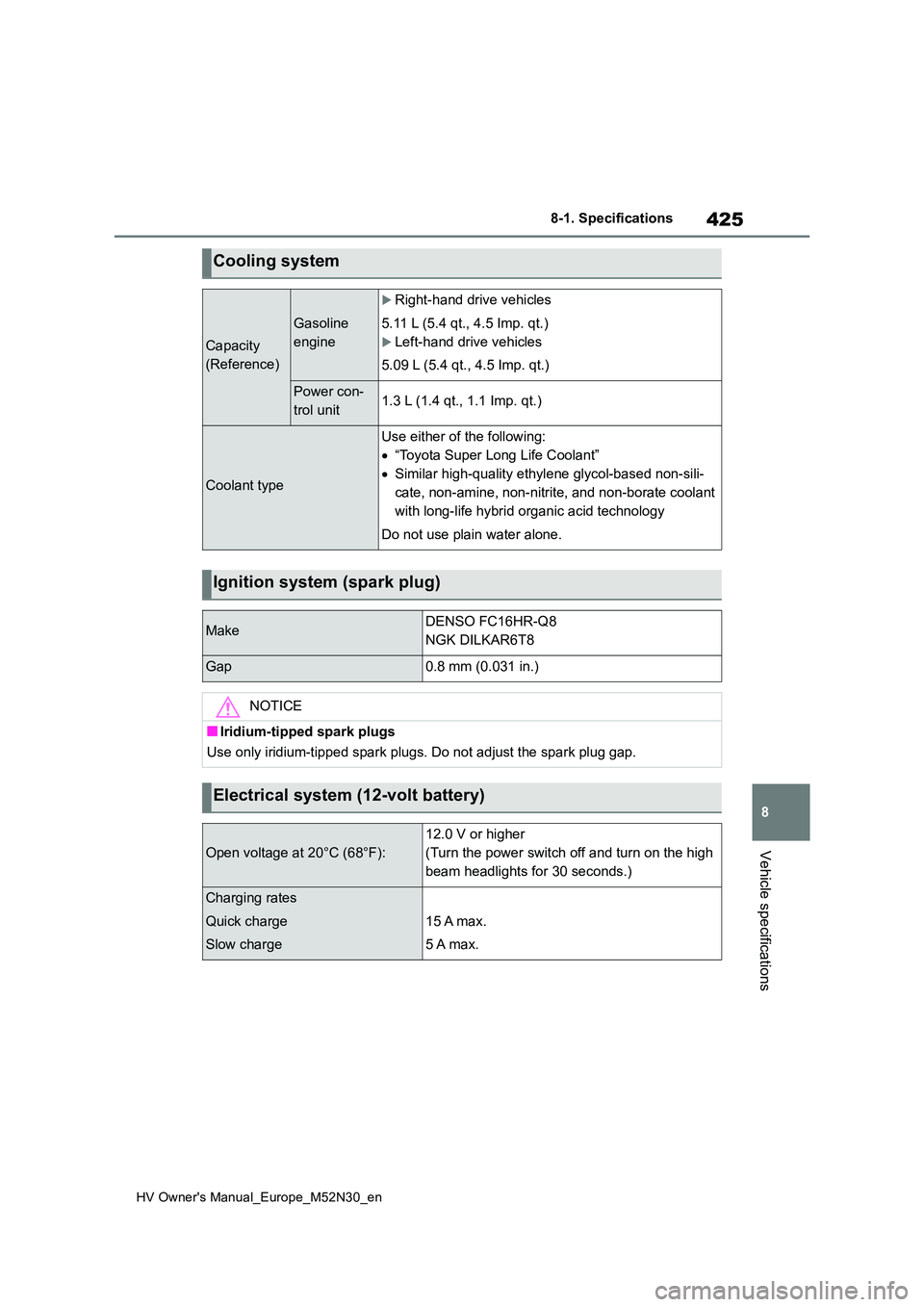

Cooling system
Capacity
(Reference)
Gasoline
engine
Right-hand drive vehicles
5.11 L (5.4 qt., 4.5 Imp. qt.)
Left-hand drive vehicles
5.09 L (5.4 qt., 4.5 Imp. qt.)
Power con-
trol unit1.3 L (1.4 qt., 1.1 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-Q8
NGK DILKAR6T8
Gap0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.
Electrical system (12-volt battery)
Open voltage at 20°C (68°F):
12.0 V or higher
(Turn the power switch off and turn on the high
beam headlights for 30 seconds.)
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.

426
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota reta iler or Toyota
authorized repairer, or any reliable repairer.
*1: Minimum pedal clearance when depressed with a force of 300 N ( 31.0 kgf, 67.4
lbf) while the hybrid system is operating.
*2: Make sure to confirm that the brake warning light (yellow) doe s not illuminate. (If
the brake warning light illuminates, refer to P.91, 374.)

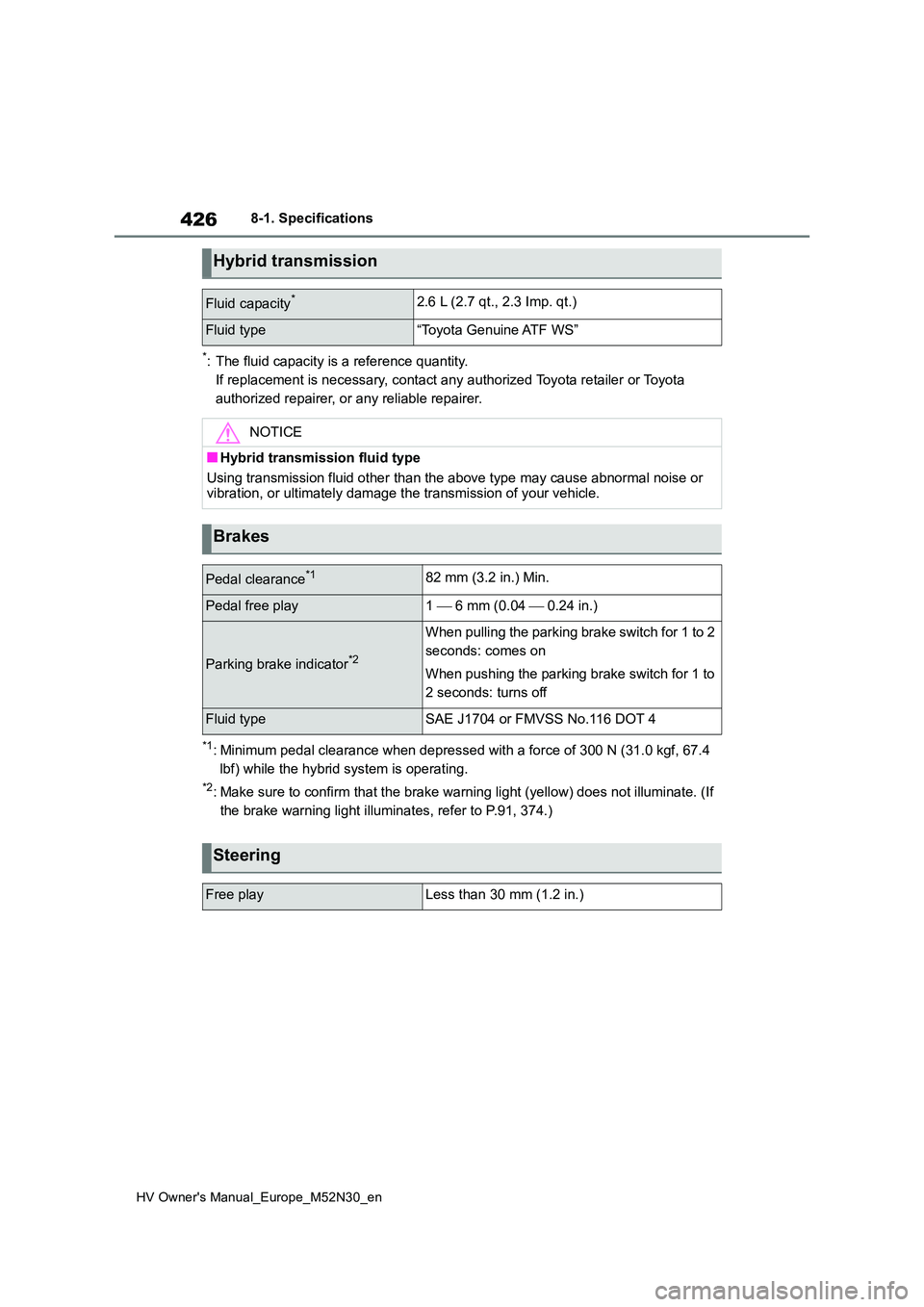

Hybrid transmission
Fluid capacity*2.6 L (2.7 qt., 2.3 Imp. qt.)
Fluid type“Toyota Genuine ATF WS”
NOTICE
■Hybrid transmission fluid type
Using transmission fluid other than the above type may cause ab normal noise or vibration, or ultimately damage the transmission of your vehicl e.
Brakes
Pedal clearance*182 mm (3.2 in.) Min.
Pedal free play1  6 mm (0.04  0.24 in.)
Parking brake indicator*2
When pulling the parking brake switch for 1 to 2
seconds: comes on
When pushing the parking brake switch for 1 to
2 seconds: turns off
Fluid typeSAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

427
8
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
Vehicle specifications

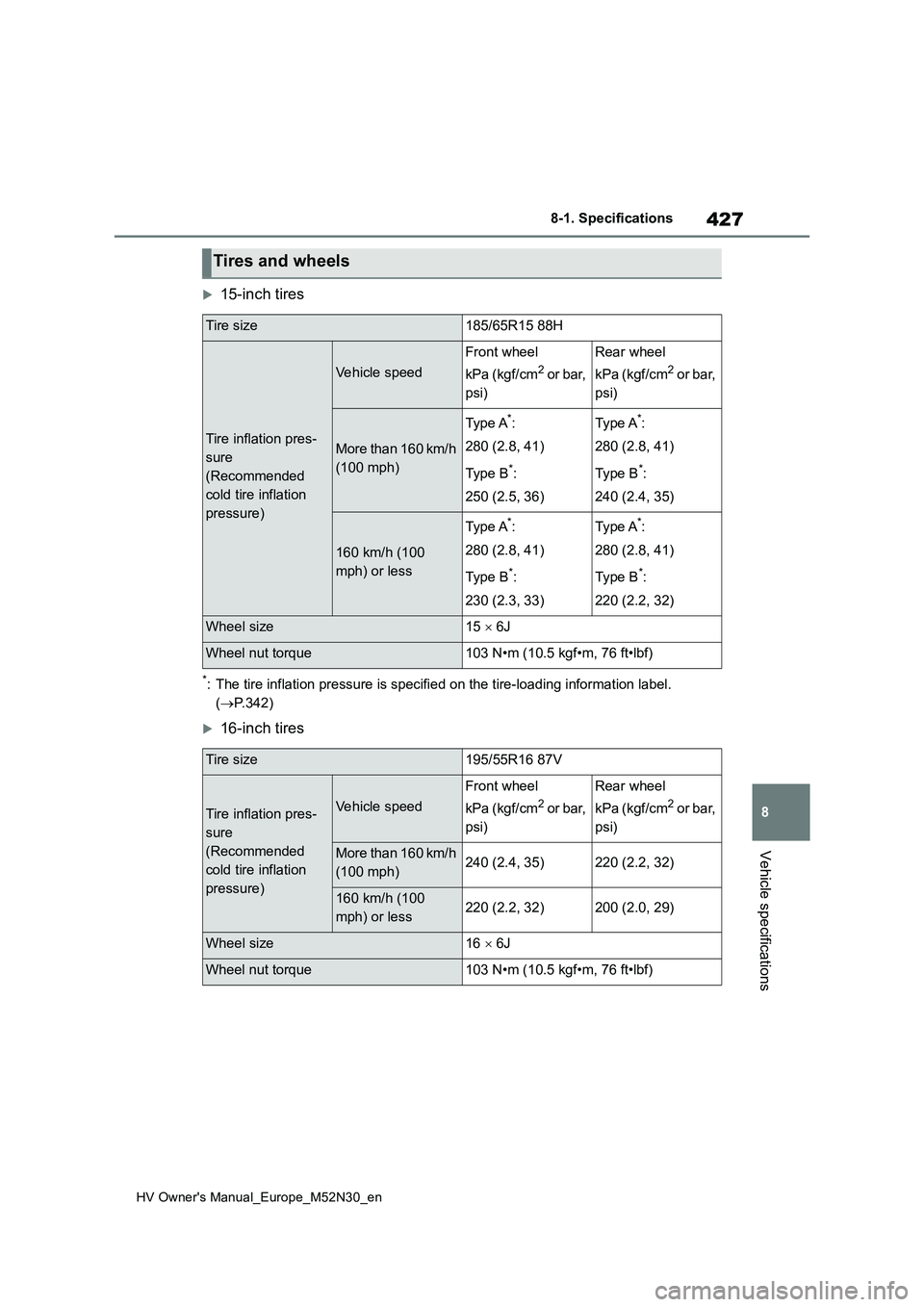

15-inch tires
*: The tire inflation pressure is specified on the tire-loading information label.
( P.342)
16-inch tires
Tires and wheels
Tire size185/65R15 88H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 o r b a r,
psi)
More than 160 km/h
(100 mph)
Typ e A*:
280 (2.8, 41)
Typ e B*:
250 (2.5, 36)
Ty p e A*:
280 (2.8, 41)
Ty p e B*:
240 (2.4, 35)
160 km/h (100
mph) or less
Typ e A*:
280 (2.8, 41)
Typ e B*:
230 (2.3, 33)
Ty p e A*:
280 (2.8, 41)
Ty p e B*:
220 (2.2, 32)
Wheel size15  6J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size195/55R16 87V
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front wheel
kPa (kgf/cm2 or bar,
psi)
Rear wheel
kPa (kgf/cm2 o r b a r,
psi)
More than 160 km/h
(100 mph)240 (2.4, 35)220 (2.2, 32)
160 km/h (100
mph) or less220 (2.2, 32)200 (2.0, 29)
Wheel size16  6J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

428
HV Owner's Manual_Europe_M52N30_en
8-1. Specifications
17-inch tires
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation pressure,
and drive at speeds below 100 km/h (62 mph).
Tire size205/45R17 84W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
Front wheel
kPa (kgf/cm2 or bar, psi)
Rear wheel
kPa (kgf/cm2 or bar, psi)
220 (2.2, 32)200 (2.0, 29)
Wheel size17  6 1/2J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D16 96M
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Light bulbs
Light bulbsWTyp e
Exterior
Halogen headlights (bulb type)55A
Front fog lights (bulb type)19B
Front position lights (bulb type)5C
Front turn signal lights (bulb type)21D
Rear turn signal lights (bulb type)21D
License plate light5C
