7-2. Steps to take in an emergency
When trouble arises
■Warning messages
The warning messages explained below
may differ from the actual messages according to operation conditions and vehicle specifications.
■Warning buzzer
A buzzer may sound when a message is displayed. The buzzer may not be audible if the
vehicle is in a noisy location or if the audio system volume is high.
■If “Engine Oil Level Low Add or Replace” is displayed
The engine oil level is low. Check the
level of the engine oil, and add if neces-
sary.
This message may appear if the vehicle is stopped on a slope. Move the vehicle
to a level surface and check to see if the message disappears.
■If “Hybrid System Stopped Steering Power Low” is displayed
This message is displayed if the hybrid system is stopped while driving.
When steering wheel operations are
heavier than usual, grip the steering wheel firmly and operate it using more force than usual.
■If “Hybrid System Overheated Out-
put Power Reduced” is displayed
This message may be displayed when driving under severe operating condi-
tions. (For example, when driving up a long steep hill.) Handling method: P. 4 8 1
■If “Traction Battery Needs to be
Protected Refrain from the Use of N Position” is displayed
This message may be displayed when
the shift lever is in N.
As the hybrid battery (traction battery) cannot be charged when the shift lever
is in N, shift the shift lever to P when the vehicle is stopped.
■If “Traction Battery Needs to be Protected Shift into P to Restart” is
displayed
This message is displayed when the hybrid battery (traction battery) charge
has become extremely low because the shift lever has been left in N for a certain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
■If “Shift to P Before Exiting Vehicle” is shown
Message is displayed when the driver’s door is opened without turning the power switch to OFF with the shift lever
in any position other than P. Shift the shift lever to P.
If a warning message is
displayed
The multi-information display
shows warnings for system
malfunctions and incorrectly
performed operations, and
messages that indicate a need
for maintenance. When a mes-
sage is displayed, perform the
appropriate corrective action
for the message.
If a warning message is dis-
played again after the appro-
priate actions have been
performed, contact any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Additionally, if a warning light
comes on or flashes at the
same time that a warning mes-
sage is displayed, take the
appropriate corrective action
for the warning light. ( P.439)

450
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
■If “Shift Out of N Release Accelera-
tor Before Shifting” is displayed
The accelerator pedal has been depressed when the shift lever is in N.
Release the accelerator pedal and shift the shift lever to D or R.
■If “Press Brake when Vehicle is Stopped Hybrid System may Over-
heat” is displayed
The message may be displayed when the accelerator pedal is depressed to
hold the vehicle while the vehicle is stopped on an incline, etc. The hybrid system may overheat. Release the
accelerator pedal and depress the brake pedal.
■If “Auto Power OFF to Conserve Battery” is displayed
Power was cut off due to the automatic power off function. Next time when start-ing the hybrid system, operate the
hybrid system for approximately 5 min- utes to recharge the 12-volt battery.
■If “Headlight System Malfunction Visit Your Dealer” is displayed
The following systems may be malfunc- tioning. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.
●The LED headlight system (if equipped)
●AHS (Adaptive High-beam System) (if equipped)
●Automatic High Beam (if equipped)
■If a message that indicates the mal-function of front camera is dis-played
The following systems may be sus- pended until the problem shown in the message is resolved. ( P.229, 439)
●PCS (Pre-Collision System) (if equipped)
●LTA (Lane Tracing Assist) (if equipped)
●AHS (Adaptive High-beam System) (if
equipped)
●Automatic High Beam (if equipped)
●RSA (Road Sign Assist) (if equipped)
●Dynamic radar cruise control with full-
speed range (if equipped)
■If a message that indicates the mal- function of radar sensor is dis-played
The following systems may be sus- pended until the problem shown in the message is resolved. ( P.229, 439)
●PCS (Pre-Collision System) (if equipped)
●LTA (Lane Tracing Assist) (if equipped)
●Dynamic radar cruise control with full-speed range (if equipped)
■If “Oil Maintenance Required Soon”
is displayed
Indicates that the engine oil should be scheduled to be changed.
Check the engine oil and change it if necessary.
After changing the engine oil, make sure
to reset the message. ( P.391)
■If “Oil Maintenance Required Visit Your Dealer” is displayed
Indicates that the engine oil should be
changed.
Check and change the engine oil, and oil filter by any authorized Toyota retailer
or Toyota authorized repairer, or any reli- able repairer. After changing the engine oil, make sure to reset the message.
( P.391)
■If “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-ual” is displayed (if equipped)
The dynamic radar cruise control with full-speed range system is suspended temporarily or until the problem shown
in the message is resolved. (causes and coping methods: P.229)

451
7
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
When trouble arises

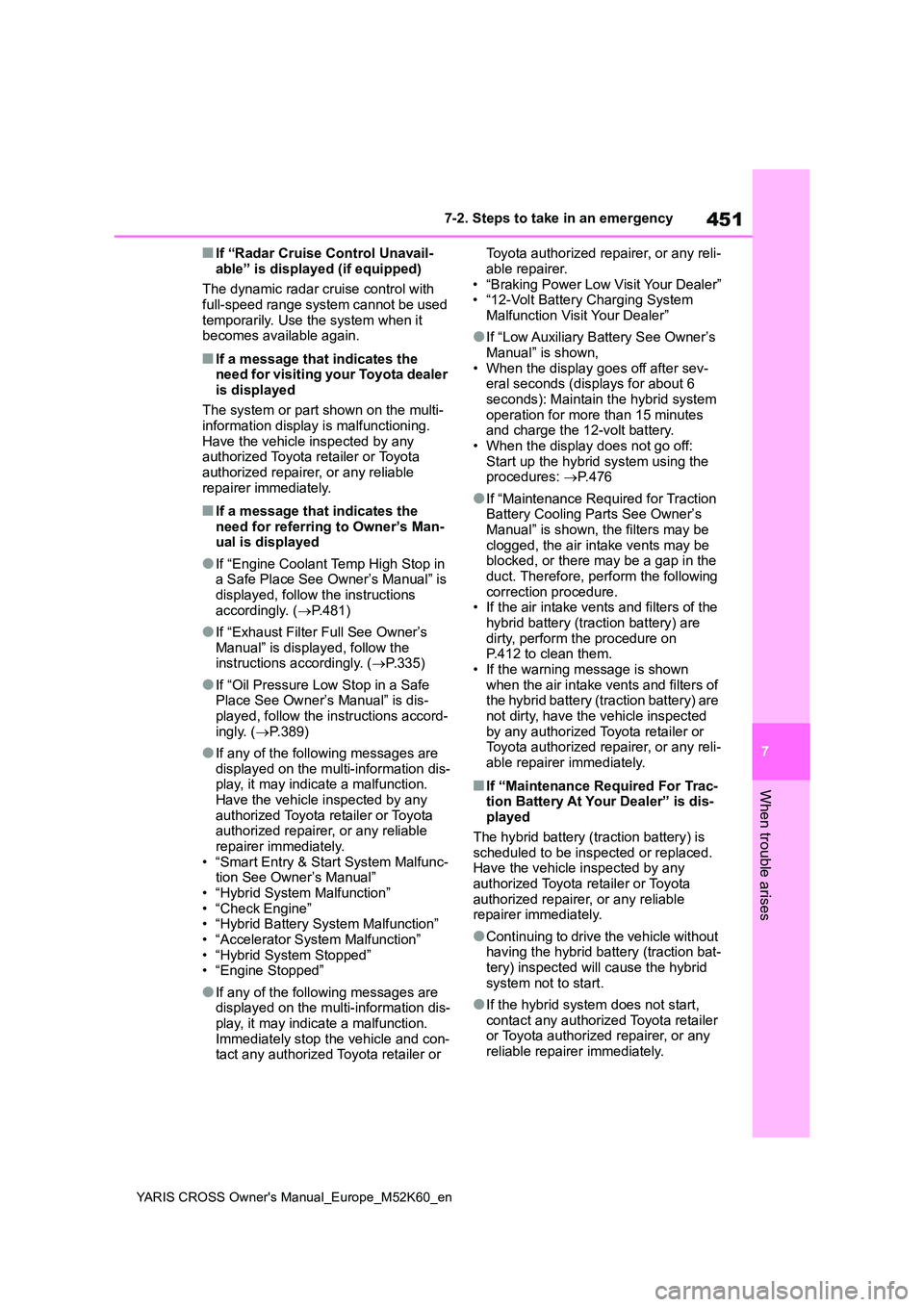

■If “Radar Cruise Control Unavail-
able” is displayed (if equipped)
The dynamic radar cruise control with full-speed range system cannot be used
temporarily. Use the system when it becomes available again.
■If a message that indicates the need for visiting your Toyota dealer
is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
■If a message that indicates the need for referring to Owner’s Man-ual is displayed
●If “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
displayed, follow the instructions accordingly. ( P.481)
●If “Exhaust Filter Full See Owner’s Manual” is displayed, follow the instructions accordingly. ( P.335)
●If “Oil Pressure Low Stop in a Safe Place See Owner’s Manual” is dis-
played, follow the instructions accord- ingly. ( P.389)
●If any of the following messages are displayed on the multi-information dis-play, it may indicate a malfunction.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately. • “Smart Entry & Start System Malfunc-tion See Owner’s Manual”
• “Hybrid System Malfunction” • “Check Engine”• “Hybrid Battery System Malfunction”
• “Accelerator System Malfunction” • “Hybrid System Stopped”• “Engine Stopped”
●If any of the following messages are displayed on the multi-information dis-
play, it may indicate a malfunction. Immediately stop the vehicle and con-tact any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer. • “Braking Power Low Visit Your Dealer”• “12-Volt Battery Charging System
Malfunction Visit Your Dealer”
●If “Low Auxiliary Battery See Owner’s
Manual” is shown, • When the display goes off after sev-eral seconds (displays for about 6
seconds): Maintain the hybrid system operation for more than 15 minutes and charge the 12-volt battery.
• When the display does not go off: Start up the hybrid system using the procedures: P. 4 7 6
●If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is shown, the filters may be clogged, the air intake vents may be blocked, or there may be a gap in the
duct. Therefore, perform the following correction procedure.• If the air intake vents and filters of the
hybrid battery (traction battery) are dirty, perform the procedure on P.412 to clean them.
• If the warning message is shown when the air intake vents and filters of the hybrid battery (traction battery) are
not dirty, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer immediately.
■If “Maintenance Required For Trac- tion Battery At Your Dealer” is dis-played
The hybrid battery (traction battery) is scheduled to be inspected or replaced. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer immediately.
●Continuing to drive the vehicle without having the hybrid battery (traction bat-
tery) inspected will cause the hybrid system not to start.
●If the hybrid system does not start, contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.

452
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
Stop the vehicle in a safe place
on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Stop the hybrid system.
 Turn on the emergency flashers.
( P.430)
 For vehicles with power back
door: Turn off the power back
door system. ( P.151)
 Check the degree of the tire
damage.
Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and make
emergency repair with the repair kit
impossible.
• A tire should only be repaired
with the emergency tire puncture
repair kit if the damage is caused
by a nail or screw passing
through the tire tread.
• To avoid sealant leakage, move
the vehicle until the area of the
puncture, if known, is positioned
at the top of the tire.

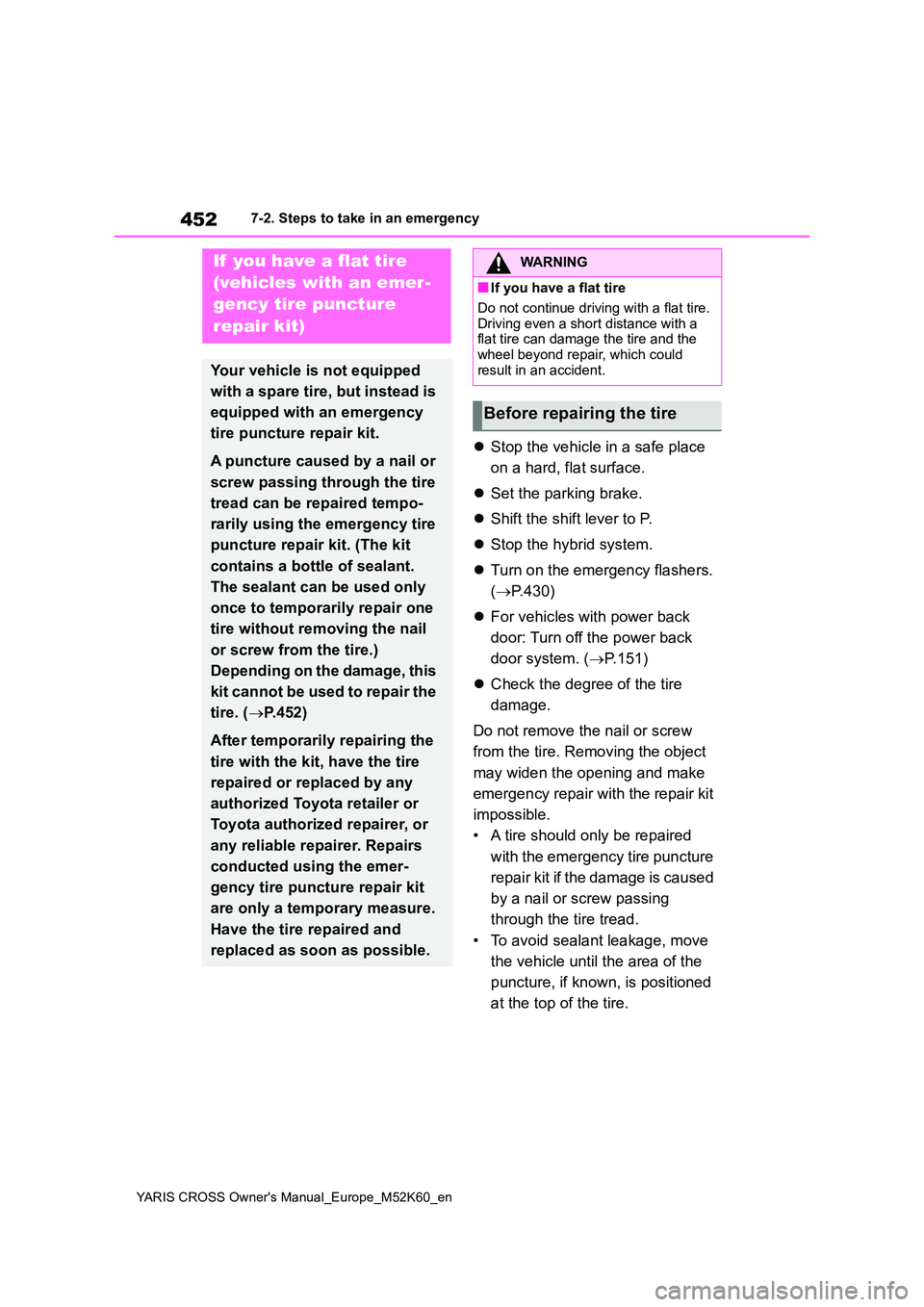

If you have a flat tire
(vehicles with an emer-
gency tire puncture
repair kit)
Your vehicle is not equipped
with a spare tire, but instead is
equipped with an emergency
tire puncture repair kit.
A puncture caused by a nail or
screw passing through the tire
tread can be repaired tempo-
rarily using the emergency tire
puncture repair kit. (The kit
contains a bottle of sealant.
The sealant can be used only
once to temporarily repair one
tire without removing the nail
or screw from the tire.)
Depending on the damage, this
kit cannot be used to repair the
tire. ( P.452)
After temporarily repairing the
tire with the kit, have the tire
repaired or replaced by any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer. Repairs
conducted using the emer-
gency tire puncture repair kit
are only a temporary measure.
Have the tire repaired and
replaced as soon as possible.
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair, which could
result in an accident.
Before repairing the tire

453
7
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
When trouble arises

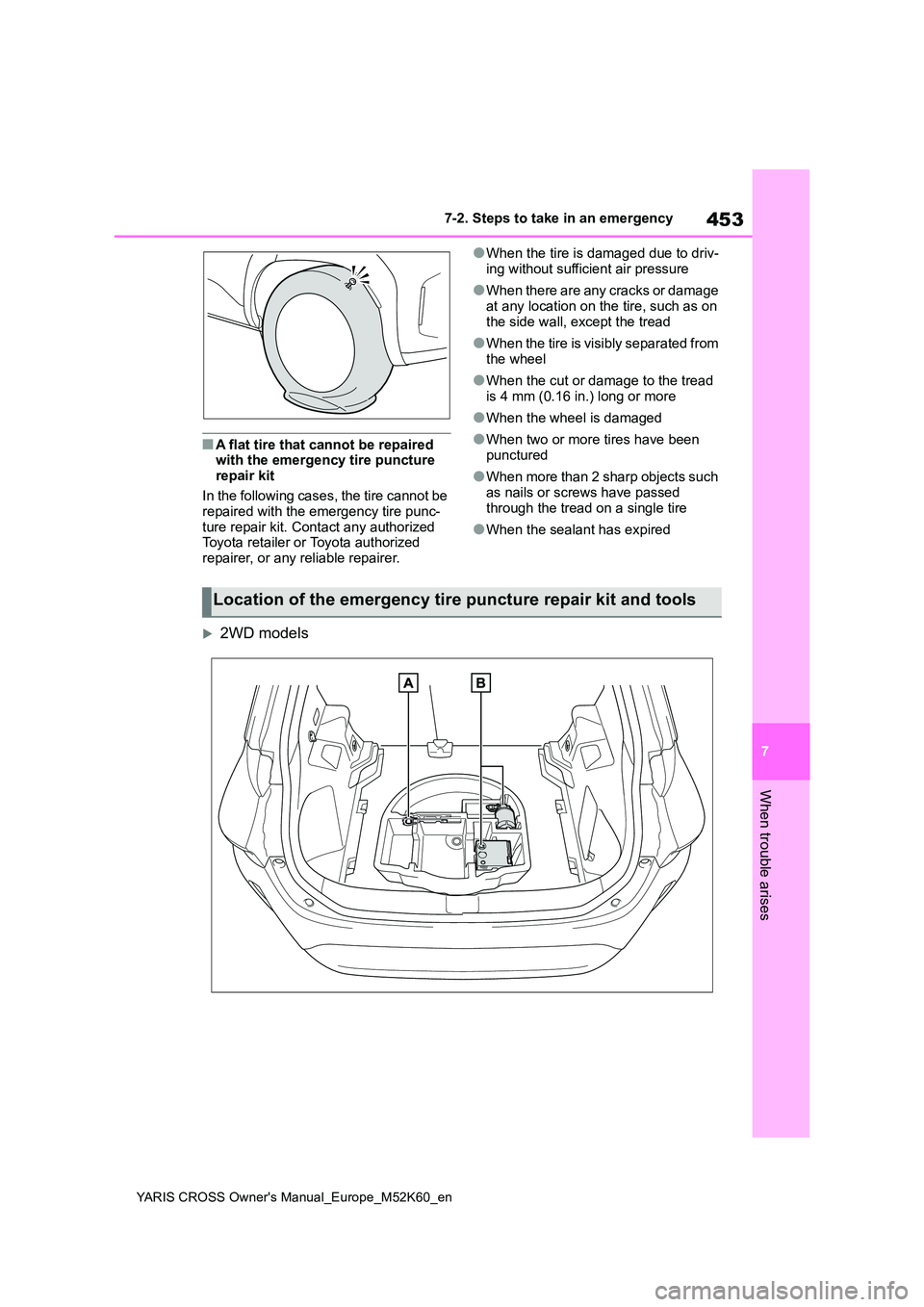

■A flat tire that cannot be repaired with the emergency tire puncture
repair kit
In the following cases, the tire cannot be repaired with the emergency tire punc-
ture repair kit. Contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
●When the tire is damaged due to driv-
ing without sufficient air pressure
●Wh e n t he r e a r e an y cr a ck s or da ma g e
at any location on the tire, such as on the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been
punctured
●When more than 2 sharp objects such
as nails or screws have passed through the tread on a single tire
●When the sealant has expired
2WD models
Location of the emergency tire puncture repair kit and tools

454
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency

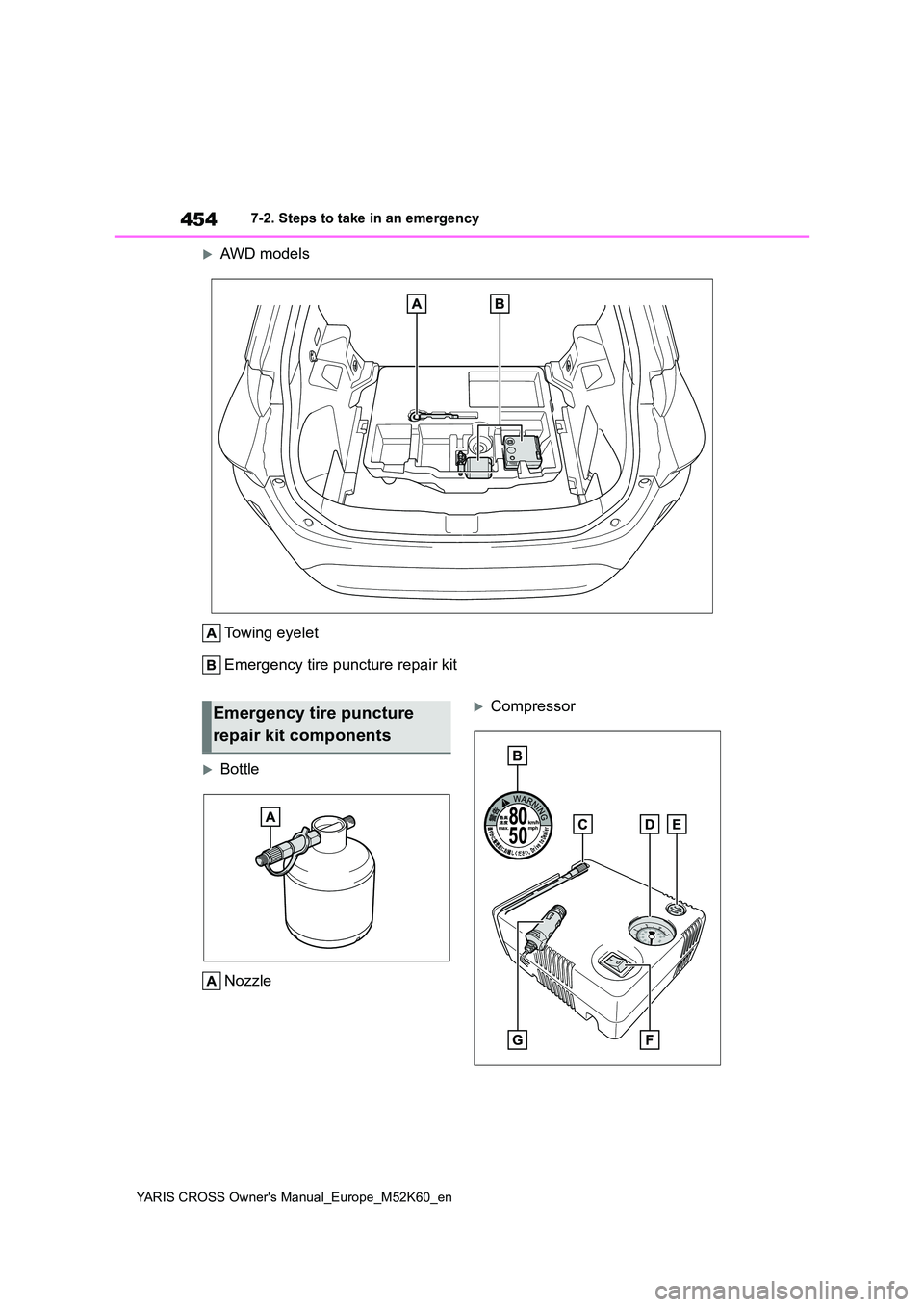

AWD models
Towing eyelet
Emergency tire puncture repair kit
Bottle
Nozzle
CompressorEmergency tire puncture
repair kit components

455
7
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
When trouble arises
Sticker
Hose
Air pressure gauge
Pressure release button
Compressor switch
Power plug
■Note for checking the emergency
tire puncture repair kit
Check the sealant expiry date occasion- ally.
The expiry date is shown on the bottle. Do not use sealant whose expiry date has already passed. Otherwise, repairs
conducted using the emergency tire puncture repair kit may not be per-formed properly.
■Emergency tire puncture repair kit
●The emergency tire puncture repair kit is for filling the car tire with air.
●The sealant has a limited life span. The expiry date is marked on the bot-
tle. The sealant should be replaced before the expiry date. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer for replacement.
●The sealant stored in the emergency tire puncture repair kit can be used only once to temporarily repair a sin-
gle tire. If the sealant has been used and needs to be replaced, purchase a new bottle at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer. The compres-sor is reusable.
●The sealant can be used when the outside temperature is from -30°C (-
22°F) to 60°C (140°F).
●The kit is exclusively designed for size
and type of tires originally installed on yo u r ve hi cl e . Do n ot u se it f o r ti r e s t ha t a different size than the original ones,
or for any other purposes.
●If the sealant gets on your clothes, it may stain.
●If the sealant adheres to a wheel or the surface of the vehicle body, the
stain may not be removable if it is not cleaned at once. Immediately wipe away the sealant with a wet cloth.
●During operation of the repair kit, a loud operation noise is produced. This
does not indicate a malfunction.
●Do not use to check or to adjust the
tire pressure.
WARNING
■Caution while driving
●Store the repair kit in the luggage
compartment. Injuries may result in the event of an accident or sudden braking.
●The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehi- cles, which could lead to an acci-dent causing death or serious
injury.
●Do not use repair kit for tires that
are different size than the original ones, or for any other purpose. If the tires have not been completely
repaired, it could lead to an acci- dent causing death or serious injury.
■Precautions for use of the seal-ant
●Ingesting the sealant is hazardous to your health. If you ingest sealant, consume as much water as possi-
ble, and then immediately consult a doctor.
●If sealant gets in eyes or adheres to skin, immediately wash it off with water. If discomfort persists, consult
a doctor.

456
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency

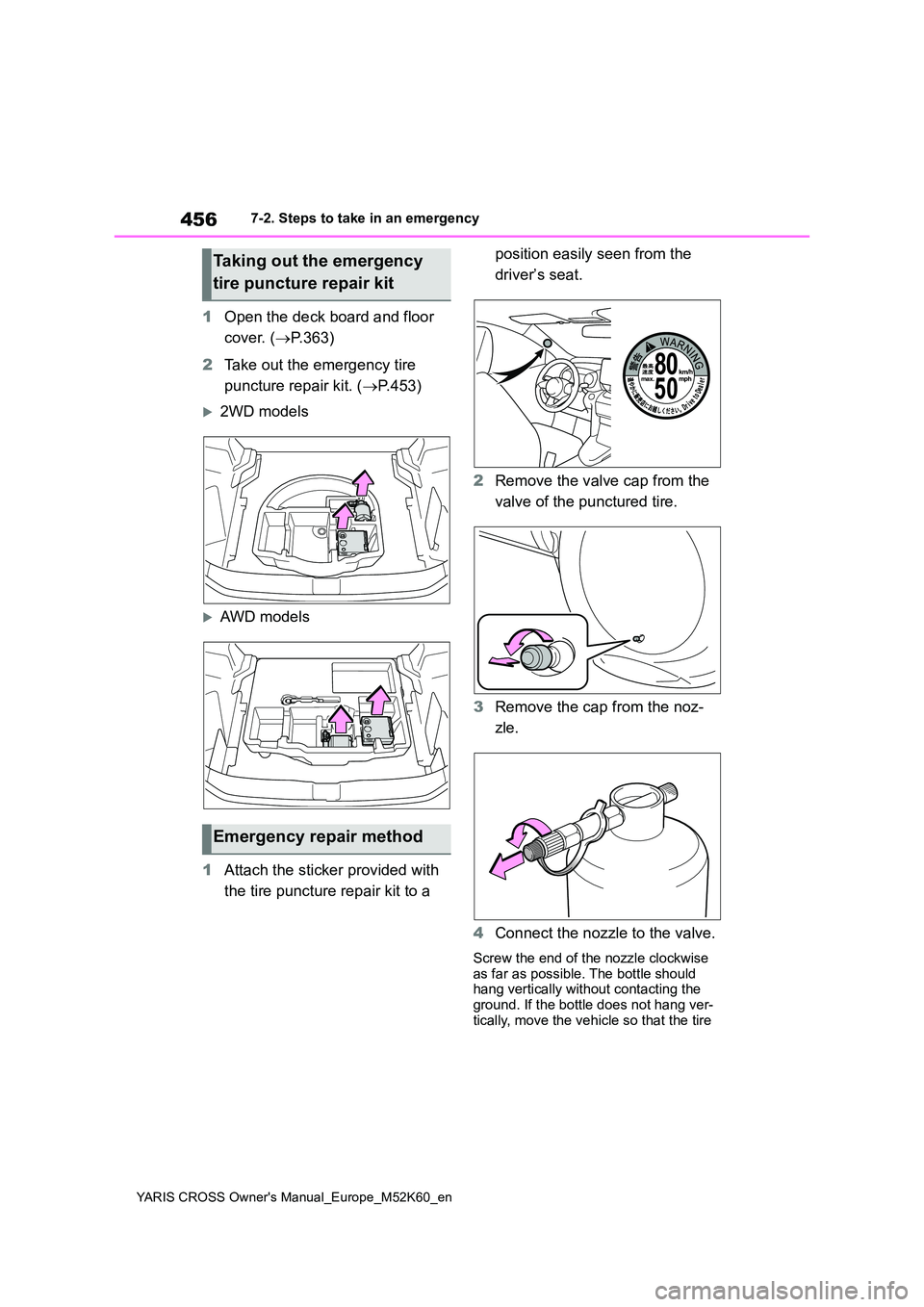

1Open the deck board and floor
cover. ( P.363)
2 Take out the emergency tire
puncture repair kit. ( P.453)
2WD models
AWD models
1 Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
2 Remove the valve cap from the
valve of the punctured tire.
3 Remove the cap from the noz-
zle.
4 Connect the nozzle to the valve.
Screw the end of the nozzle clockwise
as far as possible. The bottle should hang vertically without contacting the ground. If the bottle does not hang ver-
tically, move the vehicle so that the tire
Taking out the emergency
tire puncture repair kit
Emergency repair method

457
7
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
When trouble arises
valve is located properly.

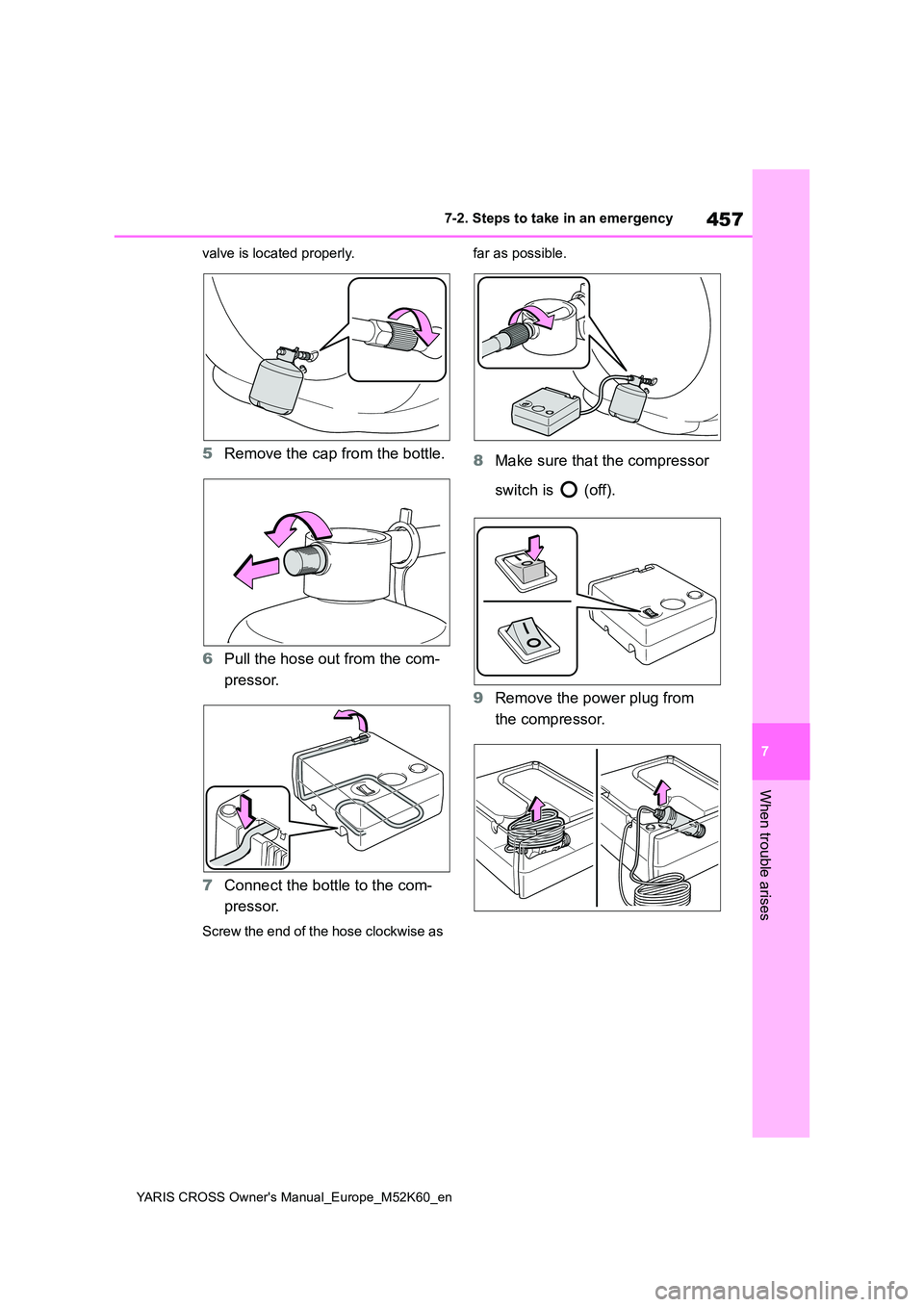

5Remove the cap from the bottle.
6 Pull the hose out from the com-
pressor.
7 Connect the bottle to the com-
pressor.
Screw the end of the hose clockwise as
far as possible.
8 Make sure that the compressor
switch is (off).
9 Remove the power plug from
the compressor.

458
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency

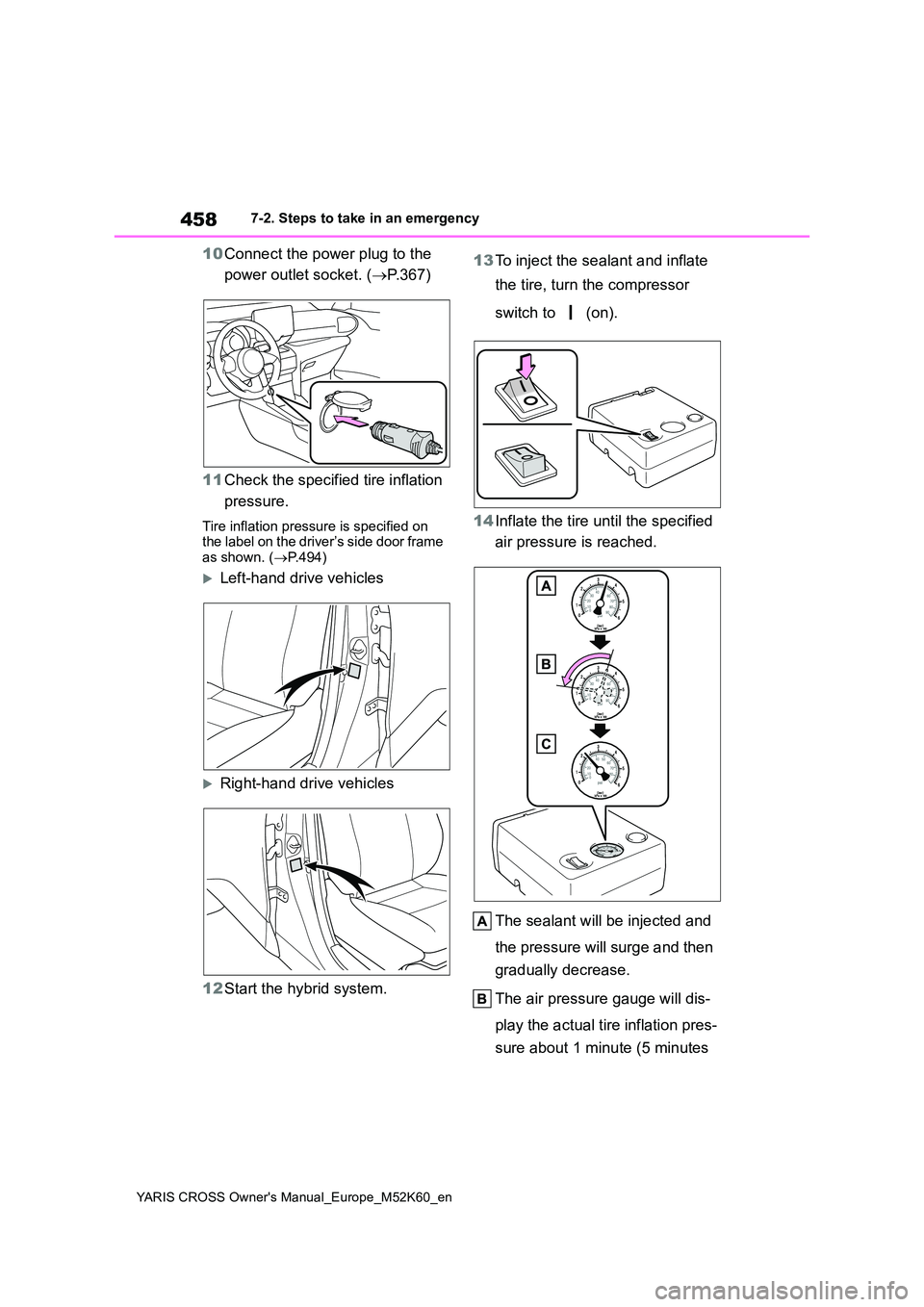

10Connect the power plug to the
power outlet socket. ( P.367)
11 Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the label on the driver’s side door frame as shown. ( P.494)
Left-hand drive vehicles
Right-hand drive vehicles
12 Start the hybrid system.
13 To inject the sealant and inflate
the tire, turn the compressor
switch to (on).
14 Inflate the tire until the specified
air pressure is reached.
The sealant will be injected and
the pressure will surge and then
gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 minute (5 minutes
