Button TOYOTA YARIS CROSS 2021 Workshop Manual

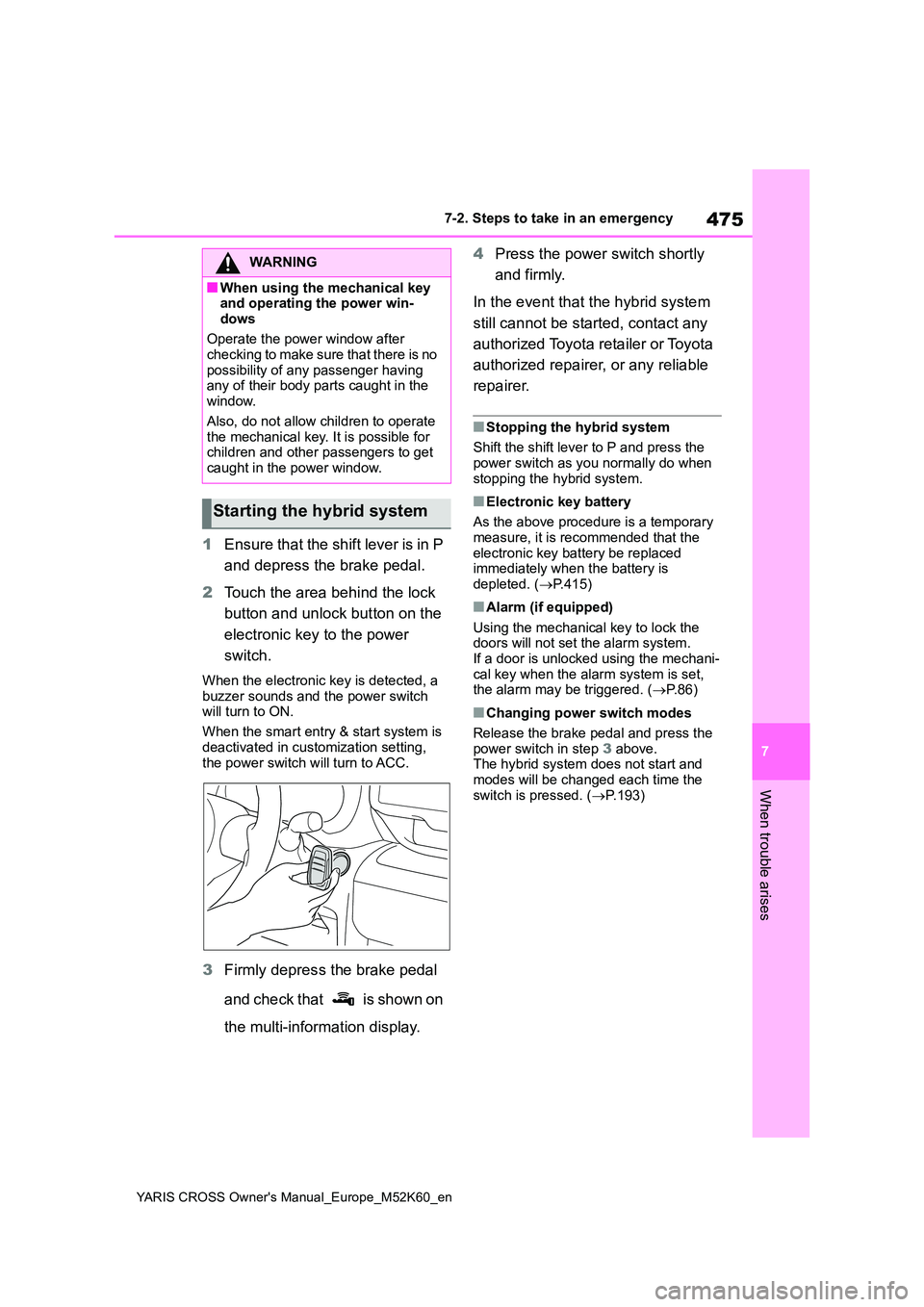

475
7
YARIS CROSS Owner's Manual_Europe_M52K60_en
7-2. Steps to take in an emergency
When trouble arises
1Ensure that the shift lever is in P
and depress the brake pedal.
2 Touch the area behind the lock
button and unlock button on the
electronic key to the power
switch.
When the electronic key is detected, a
buzzer sounds and the power switch will turn to ON.
When the smart entry & start system is
deactivated in customization setting, the power switch will turn to ACC.
3 Firmly depress the brake pedal
and check that is shown on
the multi-information display.
4 Press the power switch shortly
and firmly.
In the event that the hybrid system
still cannot be started, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when
stopping the hybrid system.
■Electronic key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted. ( P.415)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.If a door is unlocked using the mechani-
cal key when the alarm system is set, the alarm may be triggered. ( P. 8 6 )
■Changing power switch modes
Release the brake pedal and press the
power switch in step 3 above. The hybrid system does not start and modes will be changed each time the
switch is pressed. ( P.193)
WARNING
■When using the mechanical key and operating the power win-
dows
Operate the power window after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the window.
Also, do not allow children to operate the mechanical key. It is possible for children and other passengers to get
caught in the power window.
Starting the hybrid system

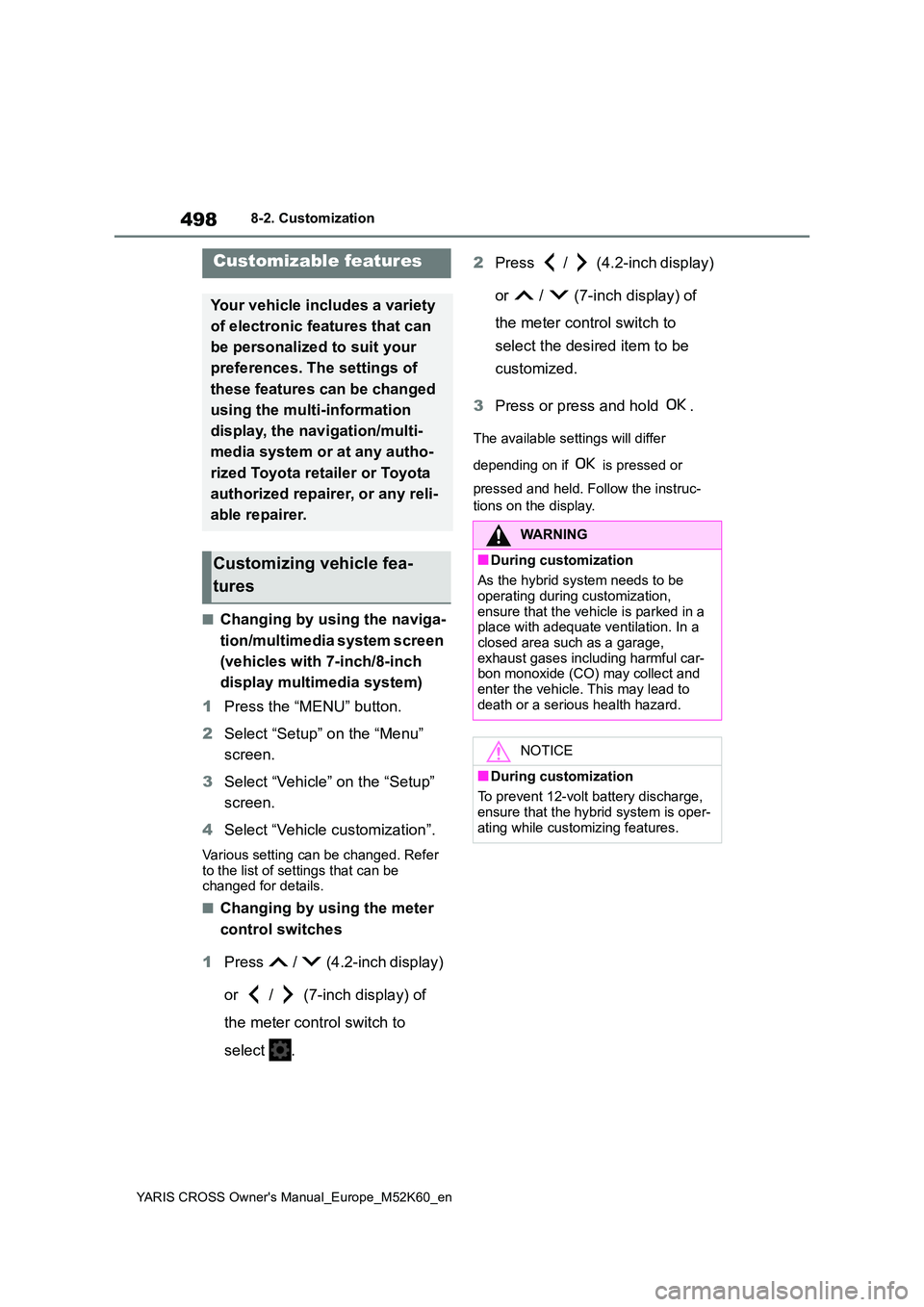

498
YARIS CROSS Owner's Manual_Europe_M52K60_en
8-2. Customization
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with 7-inch/8-inch
display multimedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 Select “Vehicle customization”.
Various setting can be changed. Refer
to the list of settings that can be changed for details.
■Changing by using the meter
control switches
1 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select .
2 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select the desired item to be
customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the nav igation/multi-
media system or at any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Customizing vehicle fea-
tures
WARNING
■During customization
As the hybrid system needs to be operating during customization,
ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful car- bon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

517
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
D
Daytime running light system ..... 206
Deck board .................................... 363
Defogger
Outside rear view mirrors ........... 352
Rear window .............................. 352
Windshield ................................. 352
Dimensions ................................... 488
Display
Dynamic radar cruise control with
full-speed range ....................... 252
Energy monitor........................... 123
Fuel consumption....................... 123
Head-up display ......................... 119
LTA (Lane-Tracing Assist) .......... 248
Multi-information display .... 106, 112
Speed limiter .............................. 264
Toyota parking assist-sensor ..... 276
Toyota Teammate Advanced Park
................................................. 304
Warning message ...................... 449
Display change button ........... 97, 104
Distance until next engine oil change
............................................... 98, 104
Do-it-yourself maintenance ......... 382
Door
Double locking system ................. 85
Door lock
Back door ................................... 139
Side doors .................................. 135
Smart entry & start system......... 152
Wireless remote control ............. 132
Doors
Back door ...................................139
Door glasses .............................. 169
Door lock ............................ 135, 139
Open door warning buzzer . 137, 138
Outside rear view mirrors ........... 166
Rear door child-protectors.......... 139
Side doors .................................. 135
Double locking system................... 85
Downhill assist control system ... 333
Drive distance ....................... 110, 116
Drive information .................. 110, 116
Driving ........................................... 175
Break-in tips ............................... 176
Correct driving posture ................. 33
Driving mode select switch......... 330
Hybrid vehicle driving tips .......... 343
Procedures ................................. 175
Winter drive tips ......................... 345
Driving information display . 107, 114
Driving range......................... 107, 114
Driving support system information
display ................................. 109, 116
Dynamic radar cruise control with
full-speed range.......................... 252
Road Sign Assist (RSA) ............. 260
Warning message ...................... 262

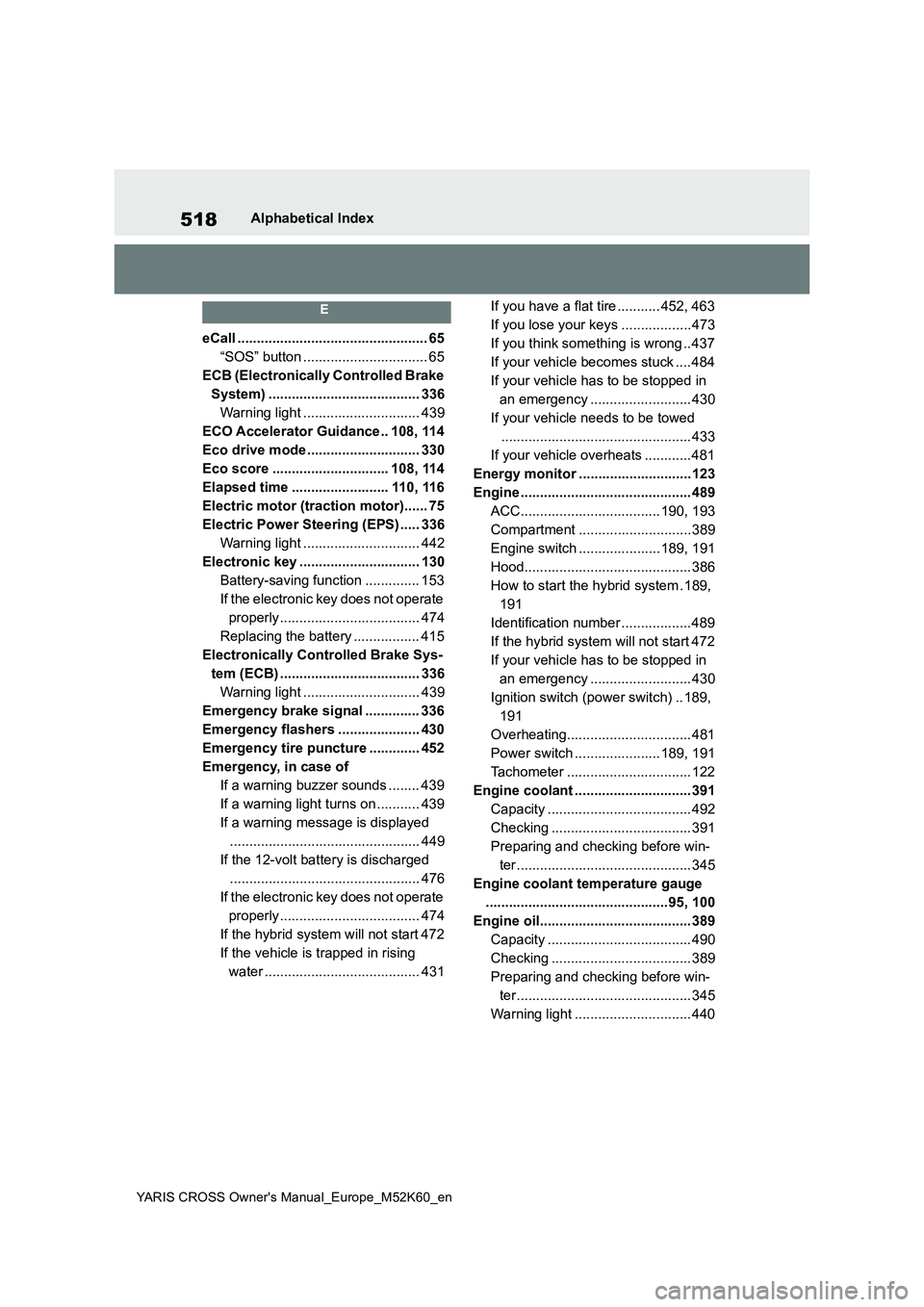

518
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
E
eCall ................................................. 65
“SOS” button ................................ 65
ECB (Electronically Controlled Brake
System) ....................................... 336
Warning light .............................. 439
ECO Accelerator Guidance.. 108, 114
Eco drive mode ............................. 330
Eco score .............................. 108, 114
Elapsed time ......................... 110, 116
Electric motor (traction motor)...... 75
Electric Power Steering (EPS) ..... 336
Warning light .............................. 442
Electronic key ............................... 130
Battery-saving function .............. 153
If the electronic key does not operate
properly.................................... 474
Replacing the battery ................. 415
Electronically Controlled Brake Sys-
tem (ECB) .................................... 336
Warning light .............................. 439
Emergency brake signal .............. 336
Emergency flashers ..................... 430
Emergency tire puncture ............. 452
Emergency, in case of
If a warning buzzer sounds ........ 439
If a warning light turns on ........... 439
If a warning message is displayed
................................................. 449
If the 12-volt battery is discharged
................................................. 476
If the electronic key does not operate
properly.................................... 474
If the hybrid system will not start 472
If the vehicle is trapped in rising
water ........................................ 431
If you have a flat tire ........... 452, 463
If you lose your keys ..................473
If you think something is wrong .. 437
If your vehicle becomes stuck .... 484
If your vehicle has to be stopped in
an emergency .......................... 430
If your vehicle needs to be towed
................................................. 433
If your vehicle overheats ............481
Energy monitor .............................123
Engine ............................................ 489
ACC.................................... 190, 193
Compartment .............................389
Engine switch .....................189, 191
Hood........................................... 386
How to start the hybrid system . 189,
191
Identification number ..................489
If the hybrid system will not start 472
If your vehicle has to be stopped in
an emergency .......................... 430
Ignition switch (power switch) .. 189,
191
Overheating................................ 481
Power switch ...................... 189, 191
Tachometer ................................ 122
Engine coolant .............................. 391
Capacity ..................................... 492
Checking .................................... 391
Preparing and checking before win-
ter ............................................. 345
Engine coolant temperature gauge
...............................................95, 100
Engine oil....................................... 389
Capacity ..................................... 490
Checking .................................... 389
Preparing and checking before win-
ter ............................................. 345
Warning light .............................. 440

523
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
N
Navigation system-linked display
..................................... 109, 116, 119
O
Odometer ................................ 97, 104
Odometer and trip meter display
Display change button ......... 97, 104
Display items........................ 98, 104
Oil
Engine oil ................................... 490
Opener
Back door ........................... 141, 143
Fuel filler door ............................ 224
Hood .......................................... 386
Outside rear view mirrors
Adjustment ................................. 166
BSM (Blind Spot Monitor) .......... 270
Folding ....................................... 167
Outside rear view mirror defoggers
................................................. 352
RCTA (Rear Crossing Traffic Alert)
................................................. 285
Outside temperature ...... 95, 100, 122
Overheating .................................. 481
P
Panoramic roof shade .................. 373
Parking assist ............................... 301
Parking assist sensors (Toyota park-
ing assist-sensor) ...................... 275
Parking brake ................................ 200
Operation ................................... 200
Parking brake engaged warning
buzzer ...................................... 202
Warning light .............................. 446
Warning message ...................... 202
Parking Support Brake (PKSB) ... 291
Enabling/disabling the Parking Sup-
port Brake ................................ 292
Parking Support Brake function
(rear-crossing vehicles)............299
Parking Support Brake function
(static objects) .......................... 296
Warning lights.............................445
Warning message ...................... 295
PCS (Pre-Collision System) ......... 231
Enabling/disabling the pre-collision
system...................................... 235
Function ..................................... 231
Warning light .............................. 445
Personal lights .............................. 358
Wattage ...................................... 495
PKSB (Parking Support Brake) ... 291
Enabling/disabling the Parking Sup-
port Brake ................................ 292
Parking Support Brake function
(rear-crossing vehicles)............299
Parking Support Brake function
(static objects) .......................... 296
Warning lights.............................445
Warning message ...................... 295
Power back door opener switch.. 143
Power control unit .......................... 79
Power control unit coolant .......... 391
Capacity ..................................... 492
Checking .................................... 391
Preparing and checking before win-
ter ............................................. 345
Power mode .................................. 330
Power outlet .................................. 367
Power steering (Electric power
steering system) ......................... 336
Warning light .............................. 442

526
YARIS CROSS Owner's Manual_Europe_M52K60_en
Alphabetical Index
Steering wheel
Adjustment ................................. 164
Audio switches ........................... 372
Heated steering wheel ............... 356
Meter control switches ....... 107, 113
Stop lights
Emergency brake signal ............ 336
Replacing light bulbs .................. 424
Storage features ........................... 360
Stuck
If the vehicle becomes stuck ...... 484
Sun visors ..................................... 371
Switches
Activating the Adaptive High-beam
System..................................... 212
Advanced Park main switch ....... 302
Airbag manual on-off switch......... 47
Audio remote control switches ... 372
Automatic High Beam system .... 215
Brake Hold switch ...................... 203
DAC switch ................................ 333
Display change button ......... 97, 104
Door lock switches ..................... 138
Driving mode select switch ........ 330
Dynamic radar cruise control with
full-speed range switch ............ 252
Emergency flashers switch ........ 430
EV drive mode switch ................ 195
Heated steering wheel switch .... 356
Ignition switch .................... 189, 191
Light switches ............................ 206
LTA (Lane-Tracing Assist) switch247
Meter control switches ....... 107, 113
Outside rear view mirror switches
................................................. 166
Parking brake switch ..................200
Power back door opener switch .143
Power door lock switch .............. 138
Power switch ...................... 189, 191
Power window switches ............. 169
Rear window and outside rear view
mirror defoggers switch............350
Seat heater switches ..................356
Snow mode switch ..................... 332
“SOS” button ................................ 65
Speed limiter switch ................... 264
Trail Mode switch .......................331
Vehicle-to-vehicle distance switch
................................................. 252
VSC OFF switch......................... 337
Window lock switch .................... 171
Windshield wiper and washer switch
................................................. 219
Windshield wiper de-icer switch .354
T
Tail lights
Light switch ................................ 206
Replacing light bulbs ..................424
Theft deterrent system
Alarm ............................................ 86
Double locking system ................. 85
Immobilizer system ...................... 84
Tire inflation pressure ..................406
Maintenance data.......................494
Warning buzzers ........................ 443
Warning light .............................. 443
