TOYOTA YARIS CROSS 2022 Owners Manual

179
4
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Driving
*: If equipped
*: To improve fuel efficiency and reduce
noise, shift the shift lever to D for nor-
mal driving.
■To protect the Multidrive
If the Multidrive fluid temperature is
high, “Transmission Oil Temp. High Stop in a Safe Place and See Owner’s Man-ual” will be displayed on the multi-infor-
mation display and the vehicle will go into transmission protection mode auto-matically. Have the vehicle inspected by
any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■When driving with dynamic radar
cruise control or dynamic radar cruise control with full-speed range (if equipped)
Even when switching the driving mode to power mode with the intent of enabling engine braking, engine braking
will not occur because dynamic radar cruise control or dynamic radar cruise control with full-speed range will not be
canceled. ( P.299)
■Restraining sudden start (Drive- Start Control)
 P. 1 6 5
■G AI-SHIFT
G AI-SHIFT automatically selects a suit- able gear for sporty driving according to driver’s input and driving conditions. G
AI-SHIFT operates automatically when the shift lever is in D and power mode is selected for the driving mode. (Selecting
other than power mode or shifting the shift lever to the other position cancels this function)
■After recharging/reconnecting the
battery
 P. 4 4 0
Multidrive*
Select the shift position
depending on your purpose
and situation.
Shift position purpose and
functions
Shift posi-
tionObjective or function
PParking the vehicle/start-
ing the engine
RReversing
N
Neutral
(Condition in which the
power is not transmitted)
DNormal driving*
M
10-speed sport sequen-
tial shiftmatic mode driving
( P.182)WARNING
■When driving on slippery road
surfaces
Do not accelerate or shift the shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an accident.

180
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
: While the engine switch is in
ON and the brake pedal
depressed*, shift the shift lever
while pushing the shift release but-
ton on the shift knob.
: Shift the shift lever while push-
ing the shift release button on the
shift knob.
: Shift the shift lever normally.
When shifting the shift lever between P
and D, make sure that the vehicle is
completely stopped and the brake
pedal is depressed.
*: For the vehicle be able to be shifted
from P, the brake pedal must be
depressed before the shift release
button is pushed. If the shift release
button is pushed first, the shift lock
will not be released.
■Shift lock system
The shift lock system is a system to pre- vent accidental operation of the shift
lever in starting. The shift lever can be shifted from P only when the engine switch is in ON
and the brake pedal is being depressed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is
being depressed. If the shift lever cannot be shifted with your foot on the brake pedal, there may
be a problem with the shift lock system. Have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer immediately.The following steps may be used as an
emergency measure to ensure that the shift lever can be shifted.Releasing the shift lock:
1 Set the parking brake.
2 Turn the engine switch off.
3 Depress the brake pedal.
4 Ply the cover up with a flathead
screwdriver or equivalent tool. To prevent damaging the cover, wrap the tip of the flathead screw-
driver with a tape.
5 Press and hold the shift lock override button and then push the button on the shift knob.
The shift lever can be shifted while the both buttons are pressed.
Shifting the shift lever

181
4
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Driving
P. 2 9 9
To drive using temporary shift
range selection, operate the “-” or
“+” paddle shift switch.
When the “-” paddle shift switch is
operated, the gear step switches to
a range that enables engine brak-
ing force that is suitable to driving
conditions. When the “+” paddle
shift switch is operated, the gear
step switches to a step that is one
step higher than the current step.
Changing the gear step allows
restriction of the highest gear step,
preventing unnecessary upshifting
and enabling the level of engine
braking force to be selected.
1 Upshifting
2 Downshifting
The selected gear step, from D1 to
D10, will be displayed on the multi-
information display.
■Gear step functions
●10 levels of accelerating force and engine braking can be selected.
●A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
■Deactivation of temporary 10-speed Sport Sequential Shiftmatic mode
In the following situations, temporary 10- speed Sport Sequential Shiftmatic mode will be deactivated:
●When the vehicle is stopped
●If the accelerator pedal is depressed continuously for more than a certain amount of time while in one gear step
●If the accelerator pedal is depressed
abruptly and heavily
●When the shift lever is shifted to a
position other than D
●When the “+” paddle shift switch is
operated for a certain amount of time continuously
■Downshifting restriction warning buzzer
To help ensure safety and driving perfor-
WARNING
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal when the shift lock override button is
pressed and the shift lever is shifted out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
Selecting the driving mode
Selecting gear steps in the D
position

182
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
mance, downshifting operation may
sometimes be restricted. In some cir- cumstances, downshifting may not be possible even when the paddle shift
switch is operated. (A buzzer will sound twice.)
To enter 10-speed sport sequential
shiftmatic mode, shift the shift lever
to M position. Gear steps can then
be selected by operating the shift
lever or paddle shift switches (if
equipped), allowing you to drive in
the gear step of your choosing.
1 Upshifting
2 Downshifting
The gear step changes once every time
the shift lever or paddle shift switches (if
equipped) is operated.
The selected gear step, from M1 to
M10, will be displayed on the multi-
information display.
However, even when in the M posi-
tion, the gear steps will be automat-
ically changed if the engine speed
is too high, or too low.
■Gear step functions
●10 levels of accelerating force and engine braking can be selected.
●A lower gear step will provide greater engine braking force than a higher
gear step, and the engine speed will also increase.
■When the vehicle comes to a stop with the shift lever in the M position
●The transmission will automatically downshift to M1 once the vehicle is
stopped.
●After a stop, the vehicle will start off in
M1.
●When the vehicle is stopped, the
transmission is set at M1.
■Downshifting restriction warning buzzer
To help ensure safety and driving perfor-
mance, downshifting operation may sometimes be restricted. In some cir-cumstances, downshifting may not be
possible even when the shift lever or paddle shift switch is operated. (A buzzer will sound twice.)
■If the 10-speed sport sequential
shiftmatic mode indicator does not come on even after shifting the shift lever to M
This may indicate a malfunction in the Multidrive system. Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer immediately.(In this situation, the transmission will
operate in the same manner as when the shift lever is in D.)
Changing gear steps in the
M position

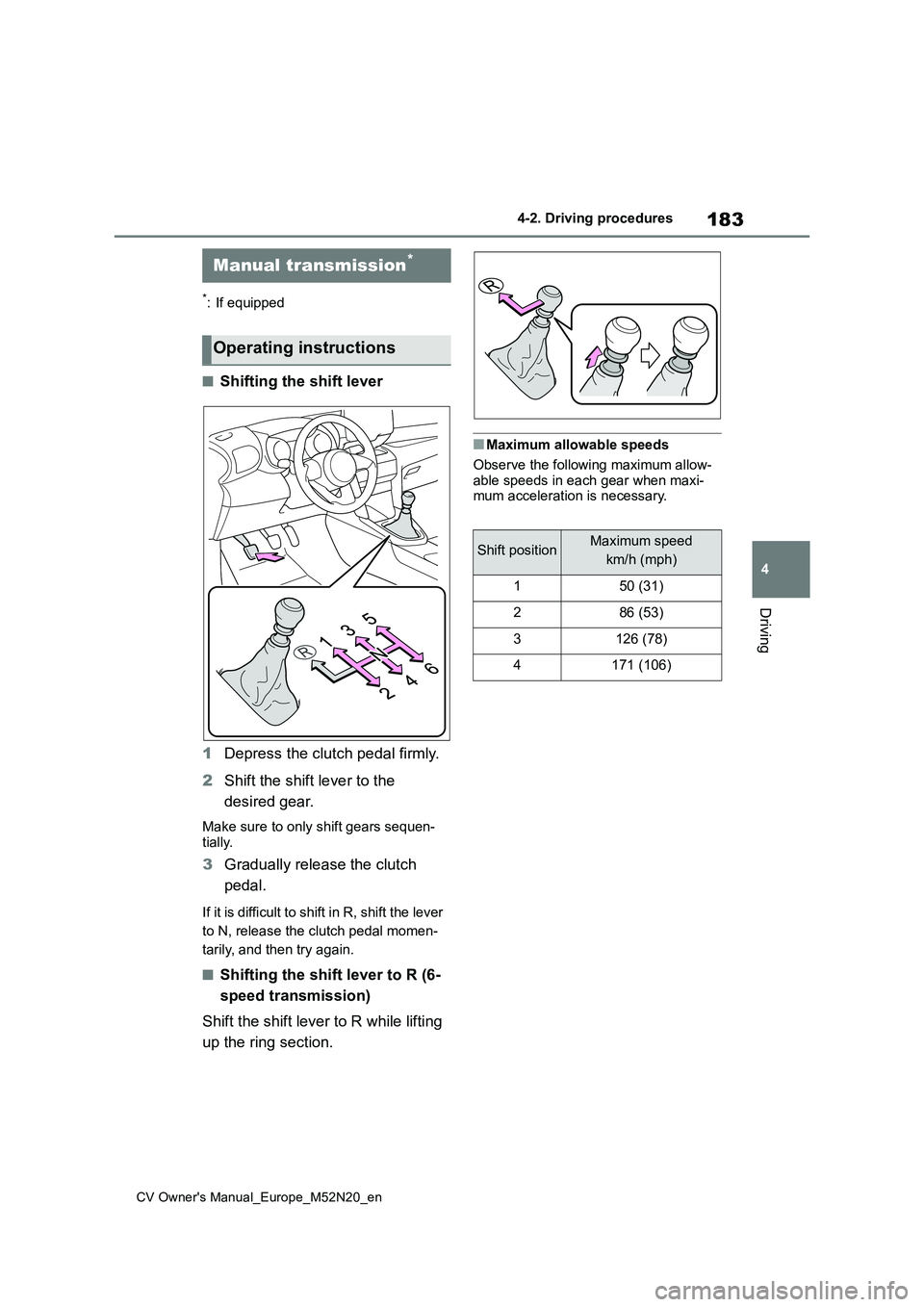

183
4
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Driving
*: If equipped
■Shifting the shift lever
1 Depress the clutch pedal firmly.
2 Shift the shift lever to the
desired gear.
Make sure to only shift gears sequen-
tially.
3 Gradually release the clutch
pedal.
If it is difficult to shift in R, shift the lever
to N, release the clutch pedal momen-
tarily, and then try again.
■Shifting the shift lever to R (6-
speed transmission)
Shift the shift lever to R while lifting
up the ring section.
■Maximum allowable speeds
Observe the following maximum allow-
able speeds in each gear when maxi- mum acceleration is necessary.
Manual transmission*
Operating instructions
Shift positionMaximum speed
km/h (mph)
150 (31)
286 (53)
3126 (78)
4171 (106)

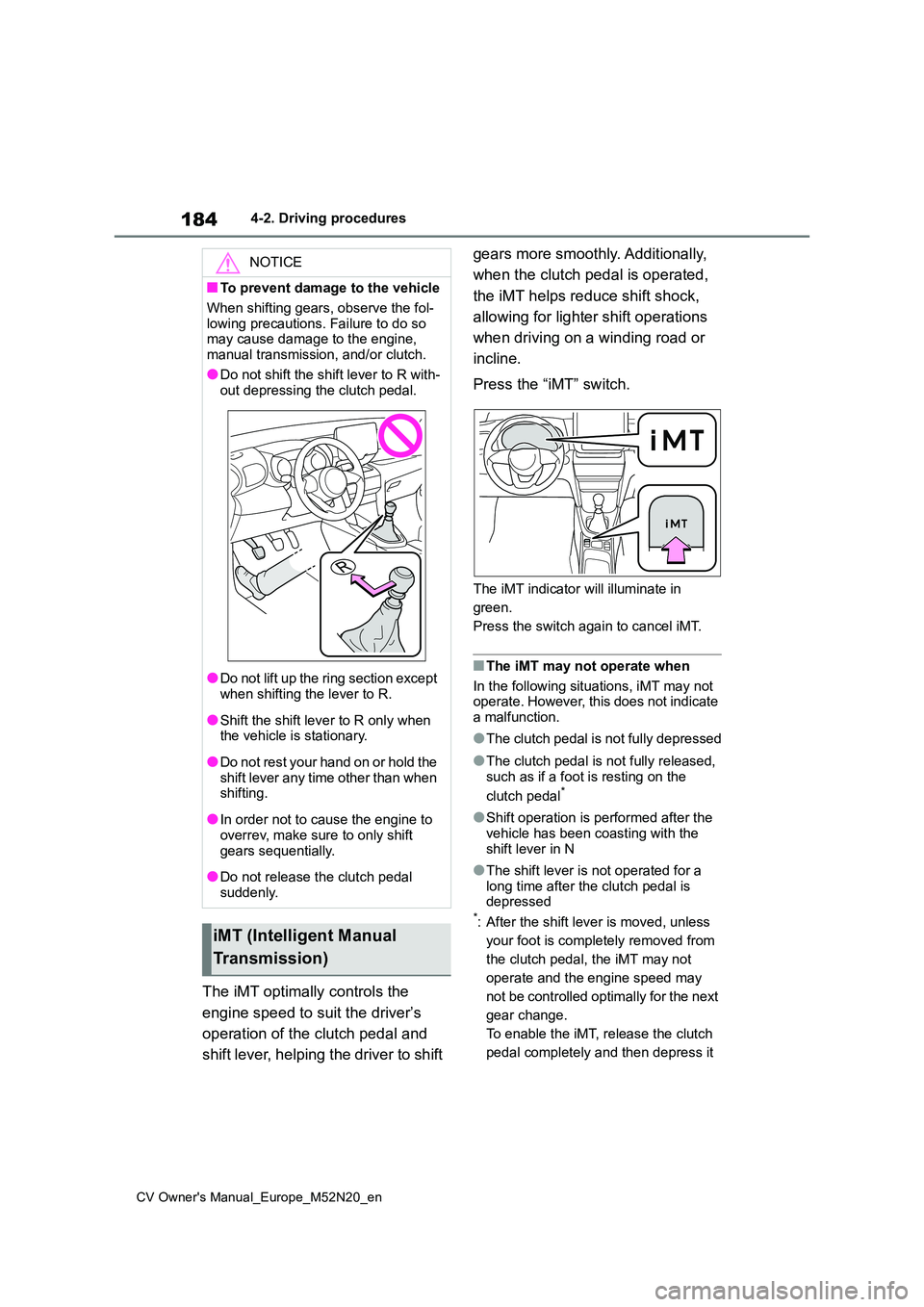

184
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
The iMT optimally controls the
engine speed to suit the driver’s
operation of the clutch pedal and
shift lever, helping the driver to shift
gears more smoothly. Additionally,
when the clutch pedal is operated,
the iMT helps reduce shift shock,
allowing for lighter shift operations
when driving on a winding road or
incline.
Press the “iMT” switch.
The iMT indicator will illuminate in
green.
Press the switch again to cancel iMT.
■The iMT may not operate when
In the following situations, iMT may not operate. However, this does not indicate
a malfunction.
●The clutch pedal is not fully depressed
●The clutch pedal is not fully released,
such as if a foot is resting on the
clutch pedal*
●Shift operation is performed after the
vehicle has been coasting with the shift lever in N
●The shift lever is not operated for a long time after the clutch pedal is depressed*: After the shift lever is moved, unless
your foot is completely removed from
the clutch pedal, the iMT may not
operate and the engine speed may
not be controlled optimally for the next
gear change.
To enable the iMT, release the clutch
pedal completely and then depress it
NOTICE
■To prevent damage to the vehicle
When shifting gears, observe the fol-
lowing precautions. Failure to do so may cause damage to the engine, manual transmission, and/or clutch.
●Do not shift the shift lever to R with-out depressing the clutch pedal.
●Do not lift up the ring section except when shifting the lever to R.
●Shift the shift lever to R only when the vehicle is stationary.
●Do not rest your hand on or hold the shift lever any time other than when shifting.
●In order not to cause the engine to overrev, make sure to only shift
gears sequentially.
●Do not release the clutch pedal
suddenly.
iMT (Intelligent Manual
Transmission)

185
4
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Driving
again before operating the shift lever.
■If the warning message for iMT is shown on the multi-information
display
The iMT may be temporarily unavailable or malfunctioning. Have the vehicle
inspected at any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
The Gear Shift Indicator is a guide
to help the driver achieve improved
fuel economy and reduced exhaust
emissions within limits of engine
performance.
Shift-up indicator
Shift-down indicator
■Gear Shift Indicator display
Gear Shift Indicator may not be dis-
played when your foot is placed on the
clutch pedal.
WARNING
■Limitations of the iMT
iMT is not a system that prevents shift lever operation error or engine over-
revving. Depending on the situation, iMT may not operate normally and the shift
position may not be changed smoothly. Overly relying on iMT may cause an unexpected accident.
Gear Shift Indicator
WARNING
■Gear Shift Indicator display
For safety, the driver should not look
only at the display. Refer to the dis- play when it is safe to do so while considering actual traffic and road
conditions. Failure to do so may lead to an acci-dent.

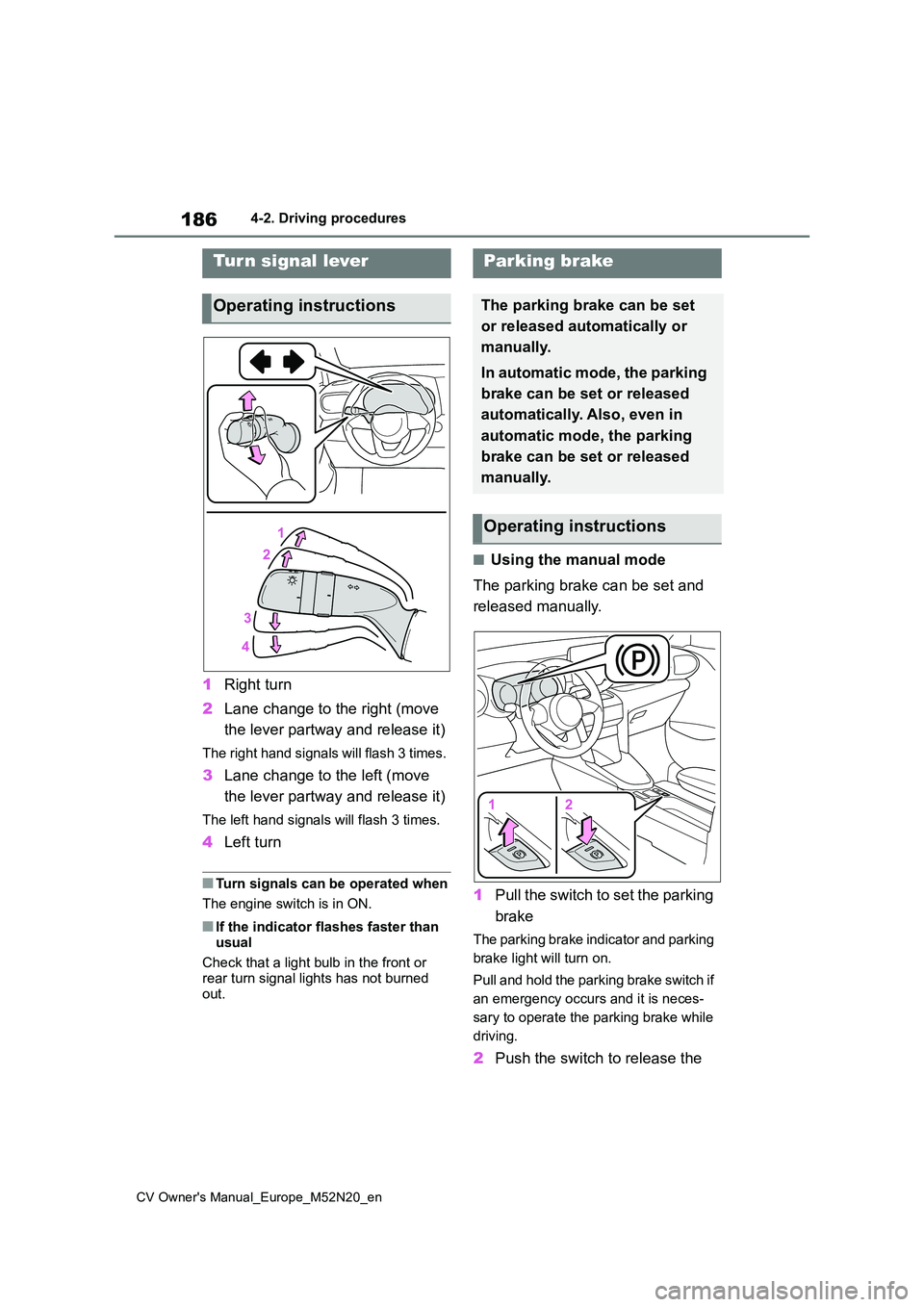

186
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
1Right turn
2 Lane change to the right (move
the lever partway and release it)
The right hand signals will flash 3 times.
3 Lane change to the left (move
the lever partway and release it)
The left hand signals will flash 3 times.
4 Left turn
■Turn signals can be operated when
The engine switch is in ON.
■If the indicator flashes faster than
usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
■Using the manual mode
The parking brake can be set and
released manually.
1 Pull the switch to set the parking
brake
The parking brake indicator and parking
brake light will turn on.
Pull and hold the parking brake switch if
an emergency occurs and it is neces-
sary to operate the parking brake while
driving.
2 Push the switch to release the
Tur n signal lever
Operating instructions
Parking brake
The parking brake can be set
or released automatically or
manually.
In automatic mode, the parking
brake can be set or released
automatically. Also, even in
automatic mode, the parking
brake can be set or released
manually.
Operating instructions

187
4
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
Driving
parking brake
• Operate the parking brake switch
while depressing the brake pedal.
• Using the parking brake automatic
release function, the parking brake
can be released by depressing the
accelerator pedal. When using this
function, slowly depress the acceler-
ator pedal.
Make sure that the parking brake indi-
cator and parking brake light turn off.
■Turning automatic mode on
While the vehicle is stopped, pull
and hold the parking brake switch
until “EPB Shift Interlock Func-
tion Activated” is shown on the
multi-information display (vehicles
with a Multidrive) or auto EPB OFF
indicator turn off (vehicles with a
manual transmission)
When the automatic mode is turned
on, the parking brake operates as
follows.
Vehicles with a Multidrive
 When the shift lever is moved out
of P, the parking brake will be
released, and the parking brake
indicator and parking brake light
will turn off.
 When the shift lever is moved
into P, the parking brake will be
set, and the parking brake indi-
cator and parking brake light will
turn on.
Operate the shift lever with the
vehicle stopped and the brake
pedal depressed.
The parking brake may not operate
automatically if the shift lever is moved
quickly.
In this case, it is necessary to operate
the parking brake switch. ( P.186)
Vehicles with a manual transmis-
sion
When the engine is off, the parking
brake will be set, and the parking
brake indicator and parking brake
light turn on.
■Turning automatic mode off
While the vehicle is stopped and
depressing the brake pedal, press
and hold the parking brake switch
until “EPB Shift Interlock Func-
tion Deactivated” is shown on the
multi-information display (vehicles
with a Multidrive) or auto EPB OFF
indicator comes on (vehicles
with a manual transmission)

188
CV Owner's Manual_Europe_M52N20_en
4-2. Driving procedures
■Parking brake operation
●When the engine switch is not in ON, the parking brake cannot be released using the parking brake switch.
●When the engine switch is not in ON, automatic mode (automatic brake set-
ting and releasing [vehicles with a Multidrive]) is not available.
■Parking brake automatic release function
The parking brake is automatically released when slowly depress the accel-erator pedal.
The parking brake will be released auto- matically under the following conditions:
●The driver’s door is closed
●The driver is wearing the seat belt
●The shift lever is a forward or reverse position.
●The malfunction indicator lamp or brake system warning light is not illu-
minated.
If the automatic release function does not operate, manually release the park-
ing brake.
■Parking brake automatic lock func- tion
The parking brake will be set automati- cally under the following conditions:
●The driver does not operate the brake pedal.
●The driver’s door is not closed.
●The driver is not wearing the seat belt.
●The shift lever position is not in P or N.
●The malfunction indicator lamp or
brake system warning light is not illu- minated.
■If “Parking Brake Temporarily Unavailable” is displayed on the
multi-information display
If the parking brake is operated repeat- edly over a short period of time, the sys-
tem may restrict operation to prevent overheating. If this happens, refrain from operating the parking brake. Normal
operation will return after about 1 min- ute.
■If “Parking Brake Unavailable” is displayed on the multi-information
display
Operate the parking brake switch. If the message does not disappear after oper-
ating the switch several times, the sys- tem may be malfunctioning. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
■Parking brake operation sound
When the parking brake operates, a
motor sound (whirring sound) may be heard. This does not indicate a malfunc-tion.
■Parking brake operation
●Depending on the engine switch mode, the parking brake indicator and
parking brake light will turn on and stay on as described below:ON: Comes on until the parking brake
is released. Not in ON: Stays on for approximately 15 seconds.
●When the engine switch is turned off with the parking brake set, the parking
brake indicator and parking brake light will stay on for about 15 seconds. This does not indicate a malfunction.
■When the parking brake switch
malfunctions
Automatic mode (automatic brake set- ting and releasing) will be turned on
automatically.
