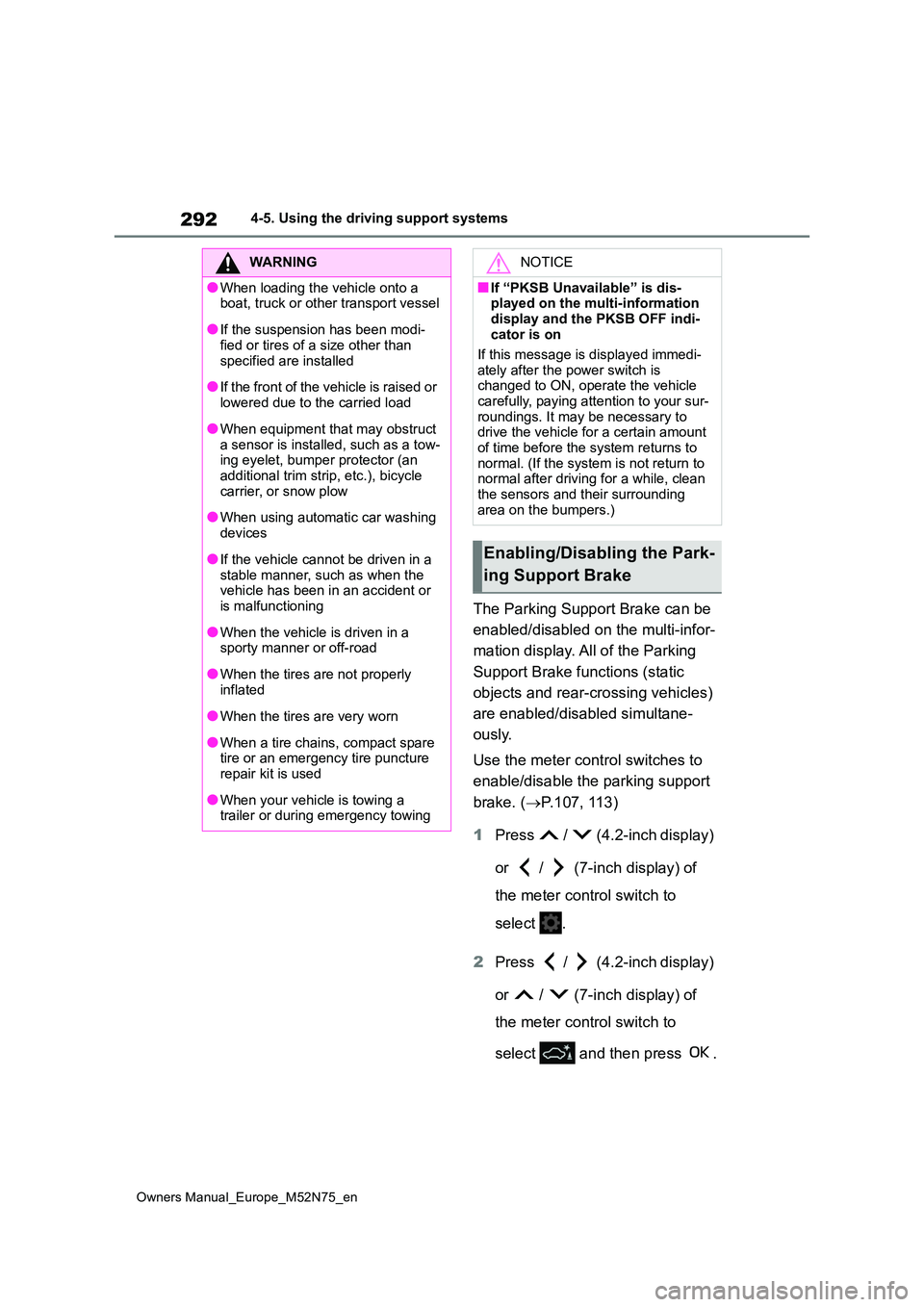

sensor TOYOTA YARIS CROSS 2023 Repair Manual

292
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
The Parking Support Brake can be
enabled/disabled on the multi-infor-
mation display. All of the Parking
Support Brake functions (static
objects and rear-crossing vehicles)
are enabled/disabled simultane-
ously.
Use the meter control switches to
enable/disable the parking support
brake. ( P.107, 113)
1 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select .
2 Press / (4.2-inch display)
or / (7-inch display) of
the meter control switch to
select and then press .
WARNING
●When loading the vehicle onto a boat, truck or other transport vessel
●If the suspension has been modi-fied or tires of a size other than
specified are installed
●If the front of the vehicle is raised or
lowered due to the carried load
●When equipment that may obstruct
a sensor is installed, such as a tow- ing eyelet, bumper protector (an additional trim strip, etc.), bicycle
carrier, or snow plow
●When using automatic car washing
devices
●If the vehicle cannot be driven in a
stable manner, such as when the vehicle has been in an accident or is malfunctioning
●When the vehicle is driven in a sporty manner or off-road
●When the tires are not properly inflated
●When the tires are very worn
●When a tire chains, compact spare tire or an emergency tire puncture repair kit is used
●When your vehicle is towing a trailer or during emergency towing
NOTICE
■If “PKSB Unavailable” is dis-played on the multi-information
display and the PKSB OFF indi- cator is on
If this message is displayed immedi-
ately after the power switch is changed to ON, operate the vehicle carefully, paying attention to your sur-
roundings. It may be necessary to drive the vehicle for a certain amount of time before the system returns to
normal. (If the system is not return to normal after driving for a while, clean the sensors and their surrounding
area on the bumpers.)
Enabling/Disabling the Park-
ing Support Brake

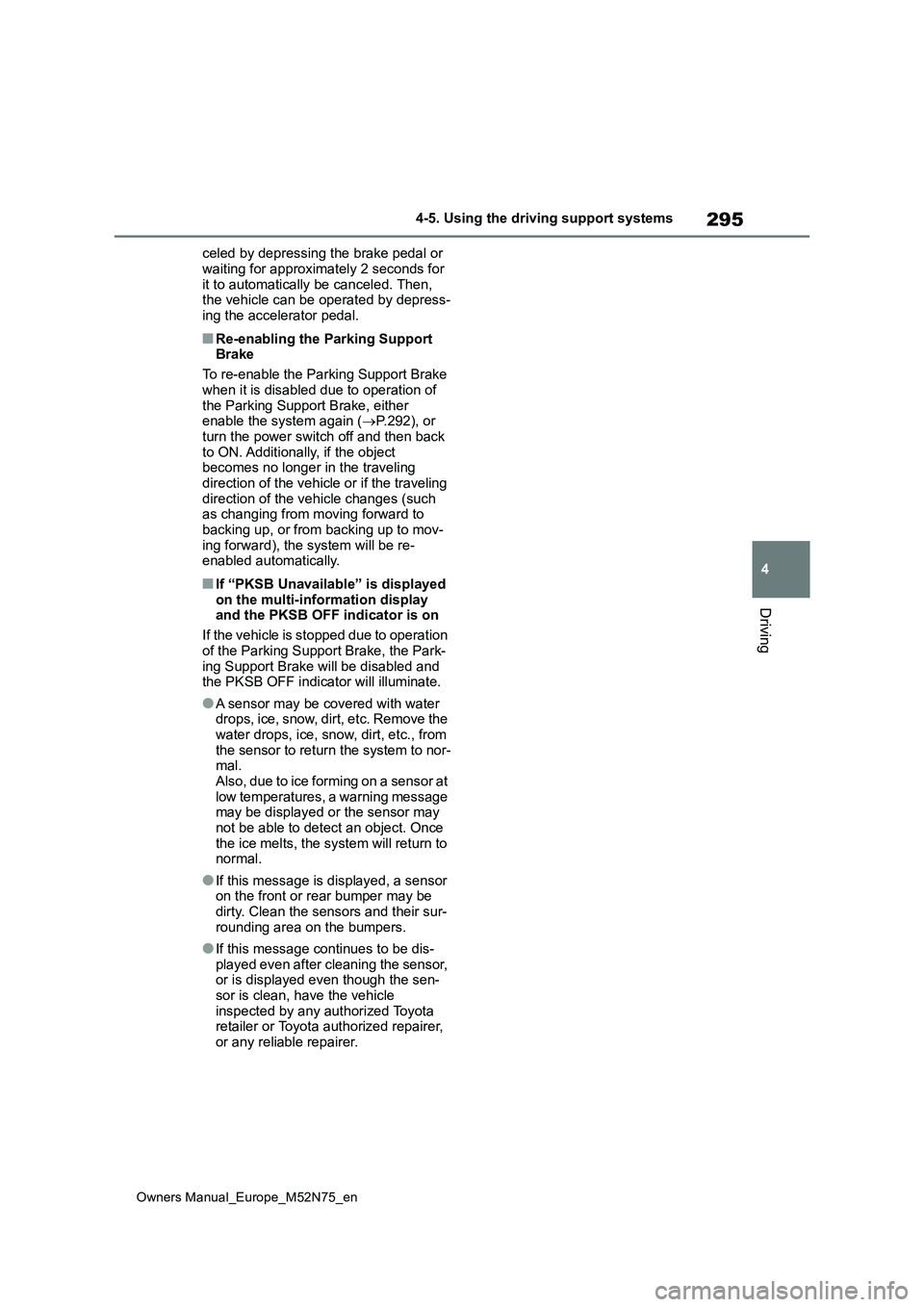

295
4
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Driving
celed by depressing the brake pedal or
waiting for approximately 2 seconds for it to automatically be canceled. Then, the vehicle can be operated by depress-
ing the accelerator pedal.
■Re-enabling the Parking Support Brake
To re-enable the Parking Support Brake
when it is disabled due to operation of the Parking Support Brake, either enable the system again ( P.292), or
turn the power switch off and then back to ON. Additionally, if the object becomes no longer in the traveling
direction of the vehicle or if the traveling direction of the vehicle changes (such as changing from moving forward to
backing up, or from backing up to mov- ing forward), the system will be re-enabled automatically.
■If “PKSB Unavailable” is displayed
on the multi-information display and the PKSB OFF indicator is on
If the vehicle is stopped due to operation
of the Parking Support Brake, the Park- ing Support Brake will be disabled and the PKSB OFF indicator will illuminate.
●A sensor may be covered with water drops, ice, snow, dirt, etc. Remove the
water drops, ice, snow, dirt, etc., from the sensor to return the system to nor-mal.
Also, due to ice forming on a sensor at low temperatures, a warning message may be displayed or the sensor may
not be able to detect an object. Once the ice melts, the system will return to normal.
●If this message is displayed, a sensor on the front or rear bumper may be
dirty. Clean the sensors and their sur- rounding area on the bumpers.
●If this message continues to be dis-played even after cleaning the sensor, or is displayed even though the sen-
sor is clean, have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer.

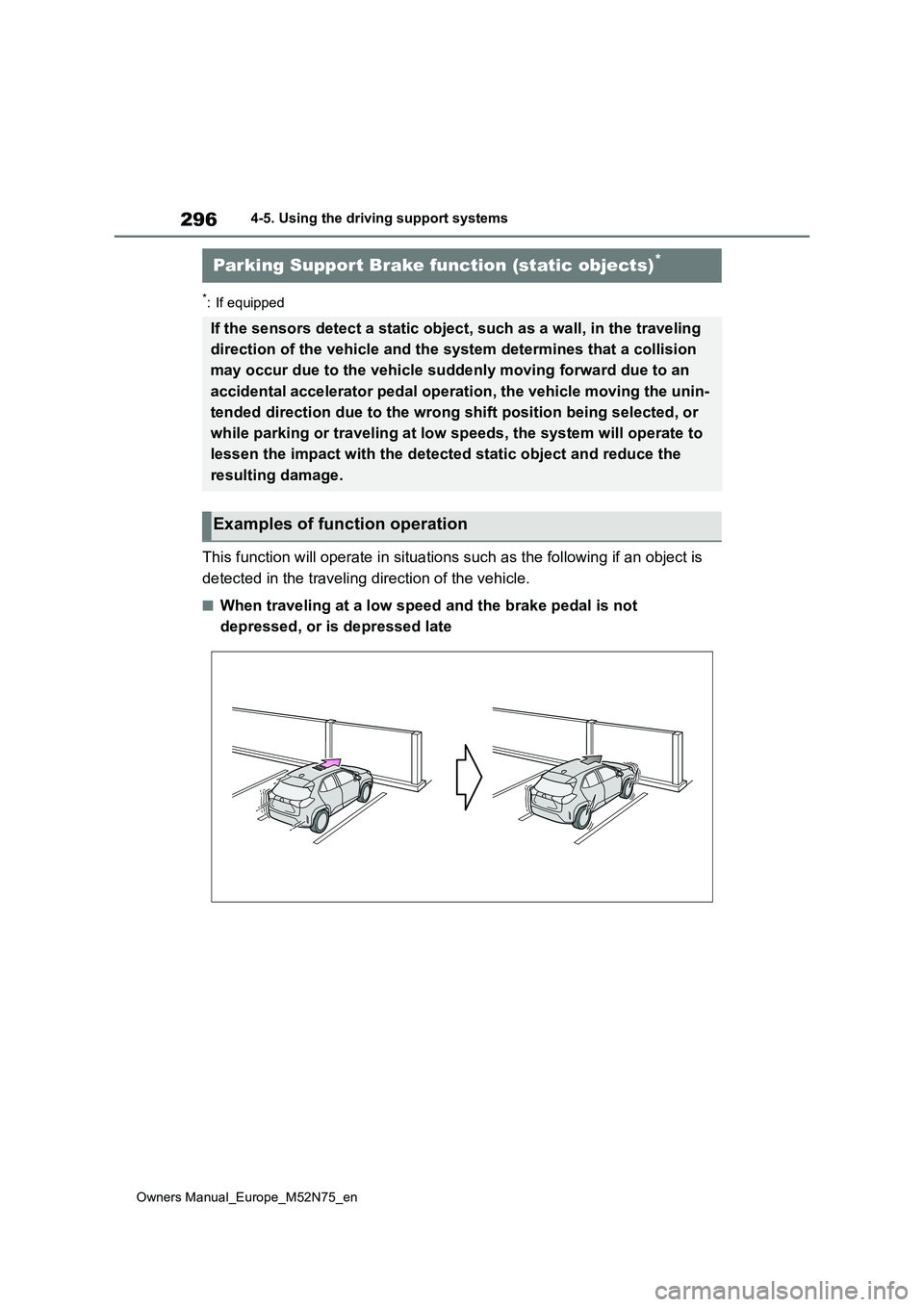

296
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
*: If equipped
This function will operate in situations such as the following if an object is
detected in the traveling direction of the vehicle.
■When traveling at a low speed and the brake pedal is not
depressed, or is depressed late
Parking Support Brake function (static objects)*
If the sensors detect a static object, such as a wall, in the traveling
direction of the vehicle and the system determines that a colli sion
may occur due to the vehicle suddenly moving forward due to an
accidental accelerator pedal operation, the vehicle moving the unin-
tended direction due to the wrong shift position being selected, or
while parking or traveling at low speeds, the system will opera te to
lessen the impact with the detected static object and reduce th e
resulting damage.
Examples of function operation

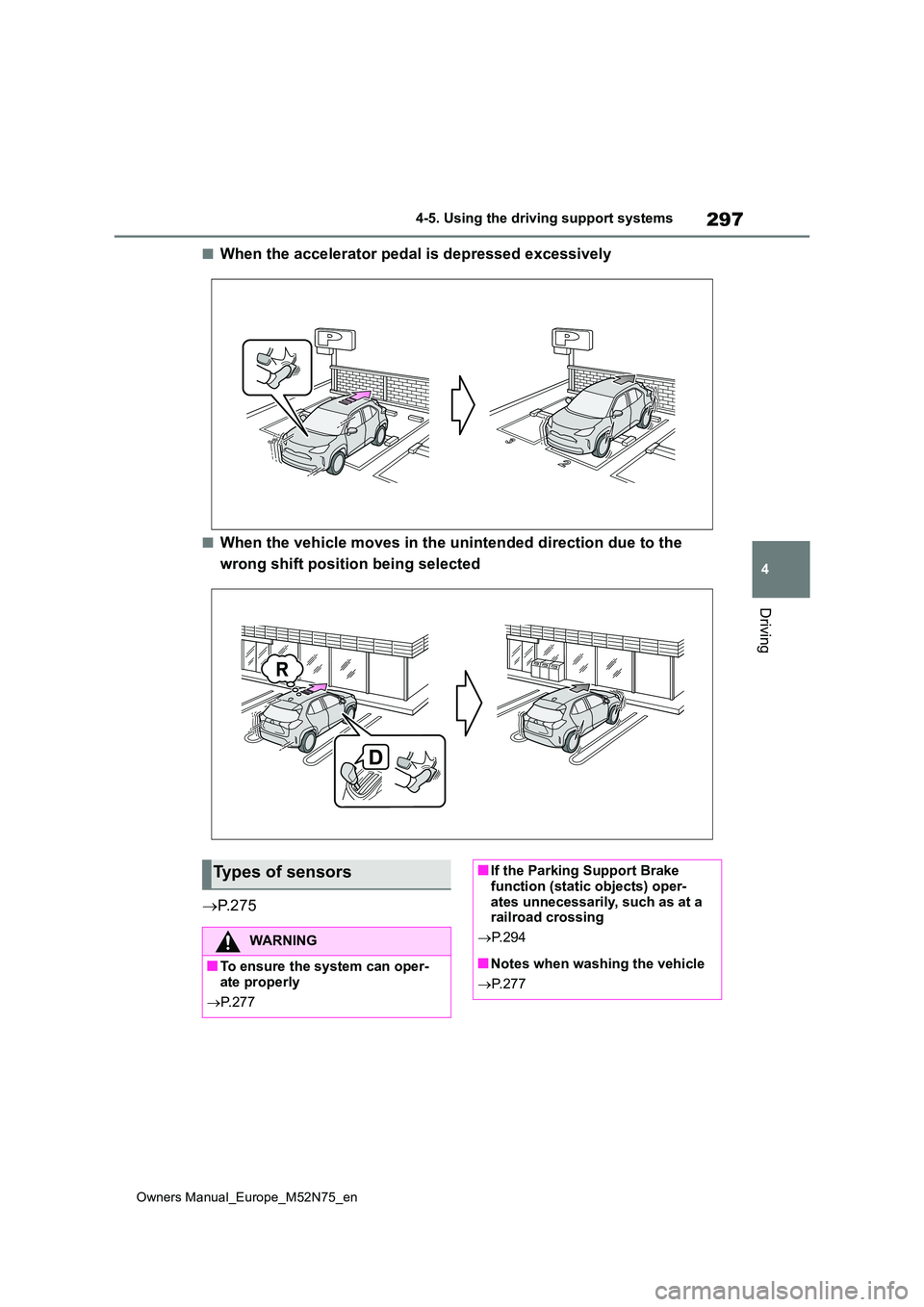

297
4
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Driving
■When the accelerator pedal is depressed excessively
■When the vehicle moves in the unintended direction due to the
wrong shift position being selected
 P. 2 7 5
Types of sensors
WARNING
■To ensure the system can oper- ate properly
 P. 2 7 7
■If the Parking Support Brake function (static objects) oper-
ates unnecessarily, such as at a railroad crossing
 P. 2 9 4
■Notes when washing the vehicle
 P. 2 7 7

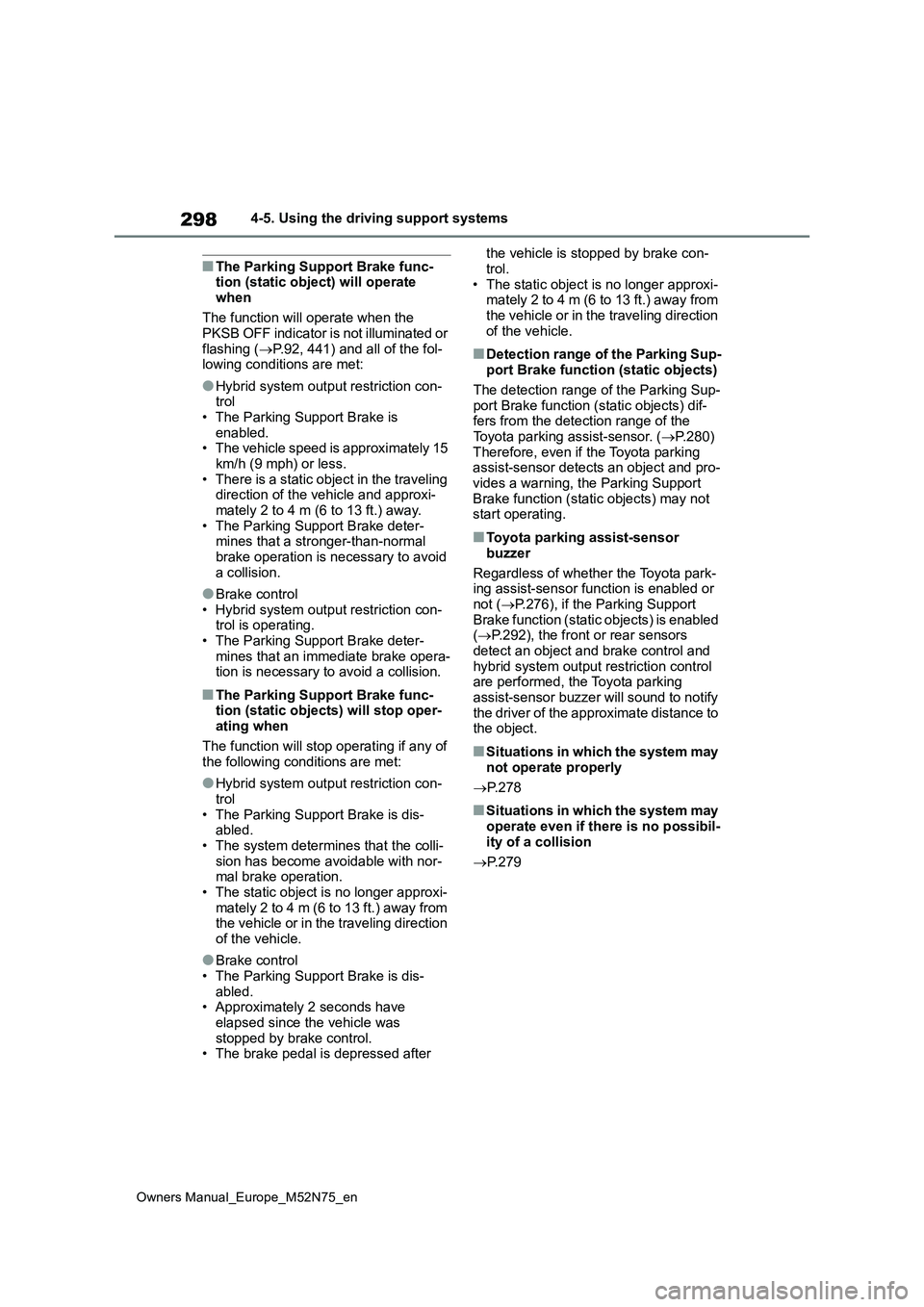

298
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
■The Parking Support Brake func- tion (static object) will operate
when
The function will operate when the PKSB OFF indicator is not illuminated or
flashing ( P.92, 441) and all of the fol- lowing conditions are met:
●Hybrid system output restriction con-trol• The Parking Support Brake is
enabled. • The vehicle speed is approximately 15 km/h (9 mph) or less.
• There is a static object in the traveling direction of the vehicle and approxi-mately 2 to 4 m (6 to 13 ft.) away.
• The Parking Support Brake deter- mines that a stronger-than-normal brake operation is necessary to avoid
a collision.
●Brake control
• Hybrid system output restriction con- trol is operating.• The Parking Support Brake deter-
mines that an immediate brake opera- tion is necessary to avoid a collision.
■The Parking Support Brake func-tion (static objects) will stop oper-
ating when
The function will stop operating if any of the following conditions are met:
●Hybrid system output restriction con-
trol • The Parking Support Brake is dis-abled.
• The system determines that the colli- sion has become avoidable with nor-mal brake operation.
• The static object is no longer approxi- mately 2 to 4 m (6 to 13 ft.) away from the vehicle or in the traveling direction
of the vehicle.
●Brake control
• The Parking Support Brake is dis- abled.• Approximately 2 seconds have
elapsed since the vehicle was stopped by brake control.• The brake pedal is depressed after
the vehicle is stopped by brake con-
trol. • The static object is no longer approxi-mately 2 to 4 m (6 to 13 ft.) away from
the vehicle or in the traveling direction of the vehicle.
■Detection range of the Parking Sup-port Brake function (static objects)
The detection range of the Parking Sup- port Brake function (static objects) dif-fers from the detection range of the
Toyota parking assist-sensor. ( P.280) Therefore, even if the Toyota parking assist-sensor detects an object and pro-
vides a warning, the Parking Support Brake function (static objects) may not start operating.
■Toyota parking assist-sensor
buzzer
Regardless of whether the Toyota park- ing assist-sensor function is enabled or
not ( P.276), if the Parking Support Brake function (static objects) is enabled ( P.292), the front or rear sensors
detect an object and brake control and hybrid system output restriction control are performed, the Toyota parking
assist-sensor buzzer will sound to notify the driver of the approximate distance to the object.
■Situations in which the system may
not operate properly
 P. 2 7 8
■Situations in which the system may operate even if there is no possibil-
ity of a collision
 P. 2 7 9

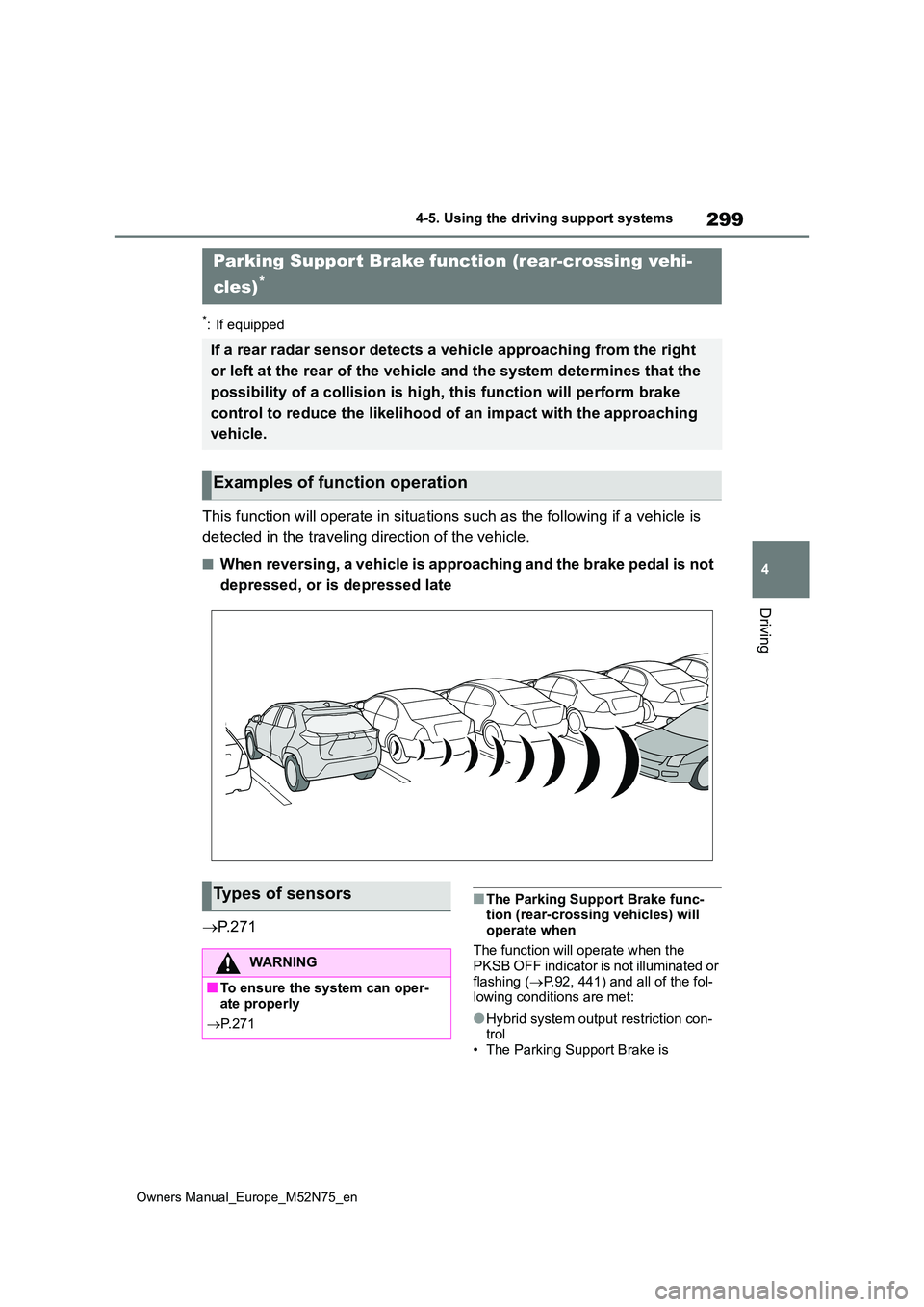

299
4
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Driving
*: If equipped
This function will operate in situations such as the following if a vehicle is
detected in the traveling direction of the vehicle.
■When reversing, a vehicle is approaching and the brake pedal is not
depressed, or is depressed late
 P. 2 7 1
■The Parking Support Brake func- tion (rear-crossing vehicles) will
operate when
The function will operate when the PKSB OFF indicator is not illuminated or
flashing ( P.92, 441) and all of the fol- lowing conditions are met:
●Hybrid system output restriction con-trol• The Parking Support Brake is
Parking Support Brake function (rear-crossing vehi-
cles)*
If a rear radar sensor detects a vehicle approaching from the r ight
or left at the rear of the vehicle and the system determines th at the
possibility of a collision is h igh, this function will perform brake
control to reduce the likelihood of an impact with the approach ing
vehicle.
Examples of function operation
Types of sensors
WARNING
■To ensure the system can oper- ate properly
 P. 2 7 1

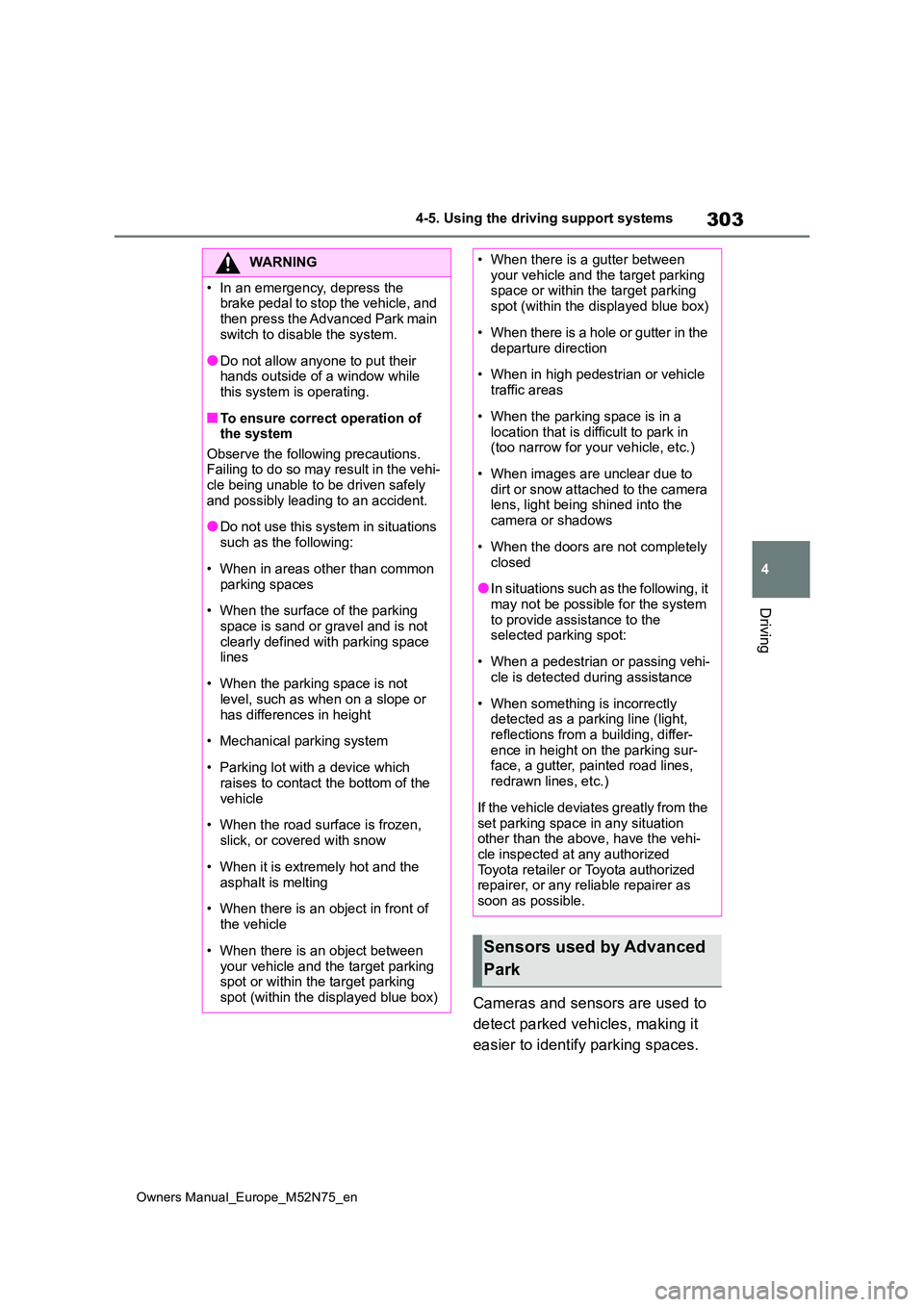

303
4
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Driving
Cameras and sensors are used to
detect parked vehicles, making it
easier to identify parking spaces.
WARNING

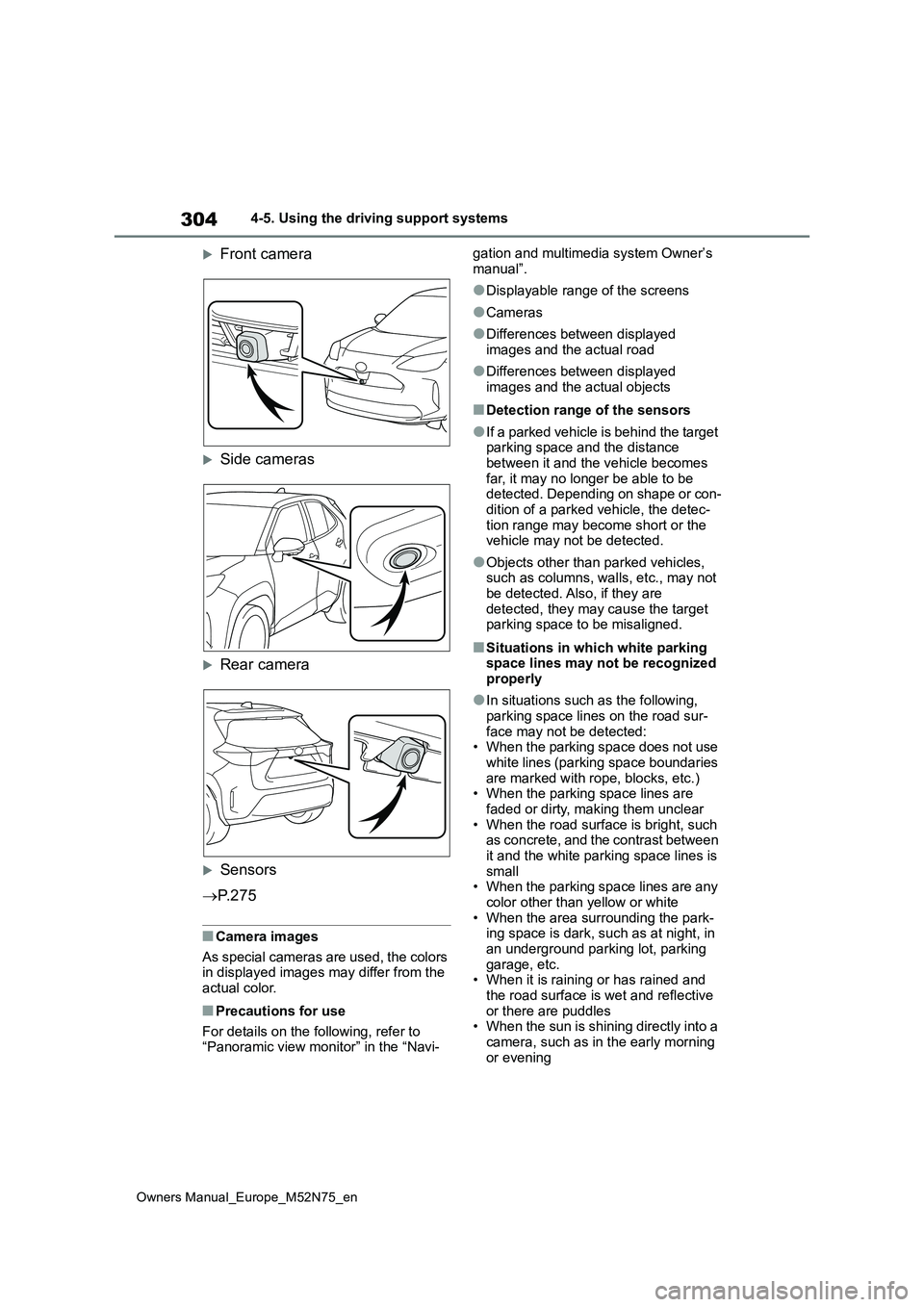

304
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Front camera
Side cameras
Rear camera
Sensors
 P. 2 7 5
■Camera images
As special cameras are used, the colors in displayed images may differ from the actual color.
■Precautions for use
For details on the following, refer to “Panoramic view monitor” in the “Navi-
gation and multimedia system Owner’s
manual”.
●Displayable range of the screens
●Cameras
●Differences between displayed images and the actual road
●Differences between displayed images and the actual objects
■Detection range of the sensors
●If a parked vehicle is behind the target parking space and the distance between it and the vehicle becomes
far, it may no longer be able to be detected. Depending on shape or con-dition of a parked vehicle, the detec-
tion range may become short or the vehicle may not be detected.
●Objects other than parked vehicles, such as columns, walls, etc., may not be detected. Also, if they are
detected, they may cause the target parking space to be misaligned.
■Situations in which white parking space lines may not be recognized
properly
●In situations such as the following,
parking space lines on the road sur- face may not be detected:• When the parking space does not use
white lines (parking space boundaries are marked with rope, blocks, etc.)• When the parking space lines are
faded or dirty, making them unclear • When the road surface is bright, such as concrete, and the contrast between
it and the white parking space lines is small• When the parking space lines are any
color other than yellow or white • When the area surrounding the park-ing space is dark, such as at night, in
an underground parking lot, parking garage, etc.• When it is raining or has rained and
the road surface is wet and reflective or there are puddles• When the sun is shining directly into a
camera, such as in the early morning or evening

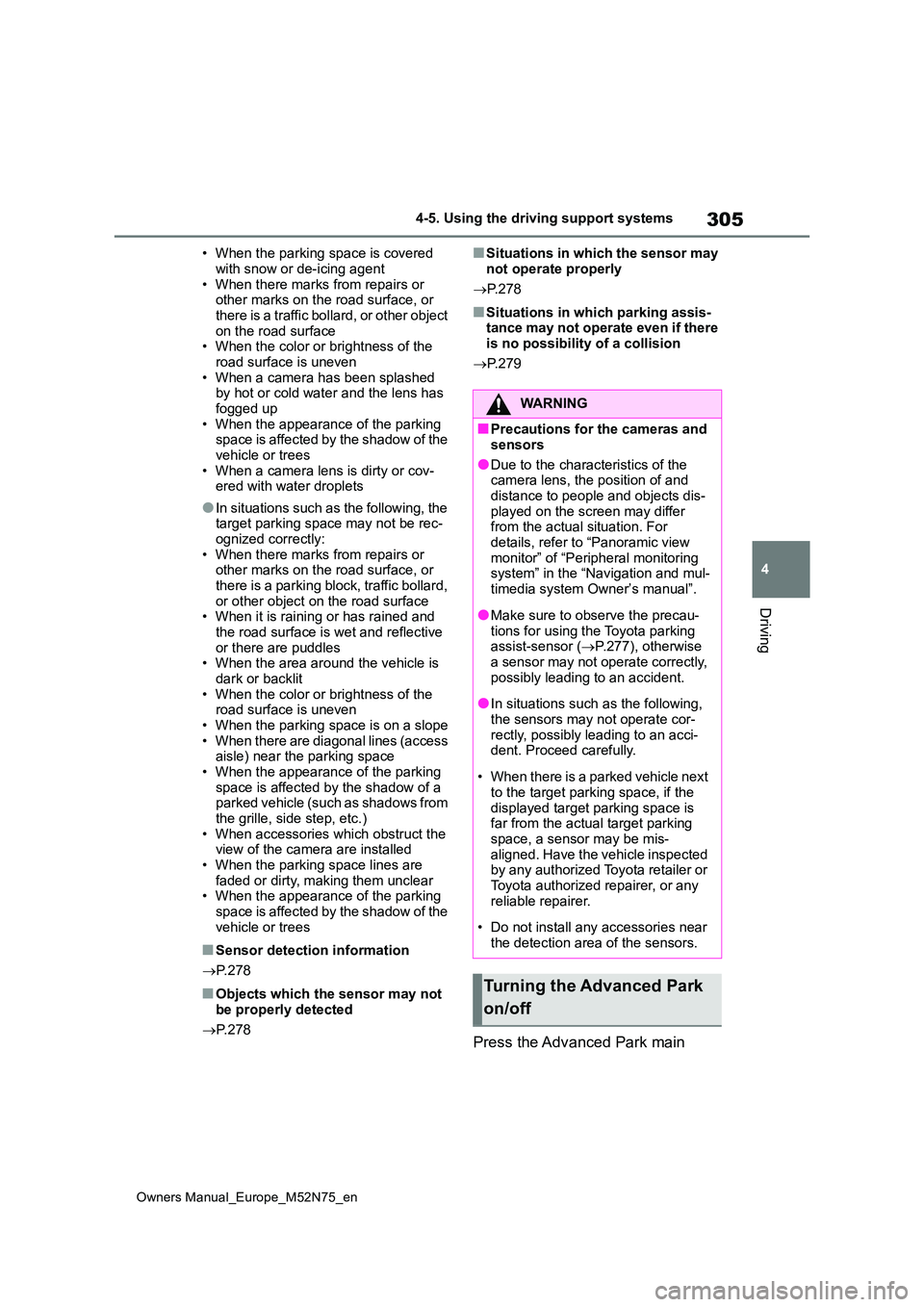

305
4
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Driving
• When the parking space is covered
with snow or de-icing agent • When there marks from repairs or other marks on the road surface, or
there is a traffic bollard, or other object on the road surface• When the color or brightness of the
road surface is uneven • When a camera has been splashed by hot or cold water and the lens has
fogged up • When the appearance of the parking space is affected by the shadow of the
vehicle or trees • When a camera lens is dirty or cov-ered with water droplets
●In situations such as the following, the target parking space may not be rec-
ognized correctly: • When there marks from repairs or other marks on the road surface, or
there is a parking block, traffic bollard, or other object on the road surface• When it is raining or has rained and
the road surface is wet and reflective or there are puddles• When the area around the vehicle is
dark or backlit • When the color or brightness of the road surface is uneven
• When the parking space is on a slope • When there are diagonal lines (access aisle) near the parking space
• When the appearance of the parking space is affected by the shadow of a parked vehicle (such as shadows from
the grille, side step, etc.) • When accessories which obstruct the view of the camera are installed
• When the parking space lines are faded or dirty, making them unclear• When the appearance of the parking
space is affected by the shadow of the vehicle or trees
■Sensor detection information
 P. 2 7 8
■Objects which the sensor may not
be properly detected
 P. 2 7 8
■Situations in which the sensor may
not operate properly
 P. 2 7 8
■Situations in which parking assis- tance may not operate even if there
is no possibility of a collision
 P. 2 7 9
Press the Advanced Park main
WARNING
■Precautions for the cameras and
sensors
●Due to the characteristics of the camera lens, the position of and
distance to people and objects dis- played on the screen may differ from the actual situation. For
details, refer to “Panoramic view monitor” of “Peripheral monitoring system” in the “Navigation and mul-
timedia system Owner’s manual”.
●Make sure to observe the precau-
tions for using the Toyota parking assist-sensor ( P.277), otherwise a sensor may not operate correctly,
possibly leading to an accident.
●In situations such as the following,
the sensors may not operate cor- rectly, possibly leading to an acci-dent. Proceed carefully.
• When there is a parked vehicle next to the target parking space, if the
displayed target parking space is far from the actual target parking space, a sensor may be mis-
aligned. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
• Do not install any accessories near
the detection area of the sensors.
Turning the Advanced Park
on/off

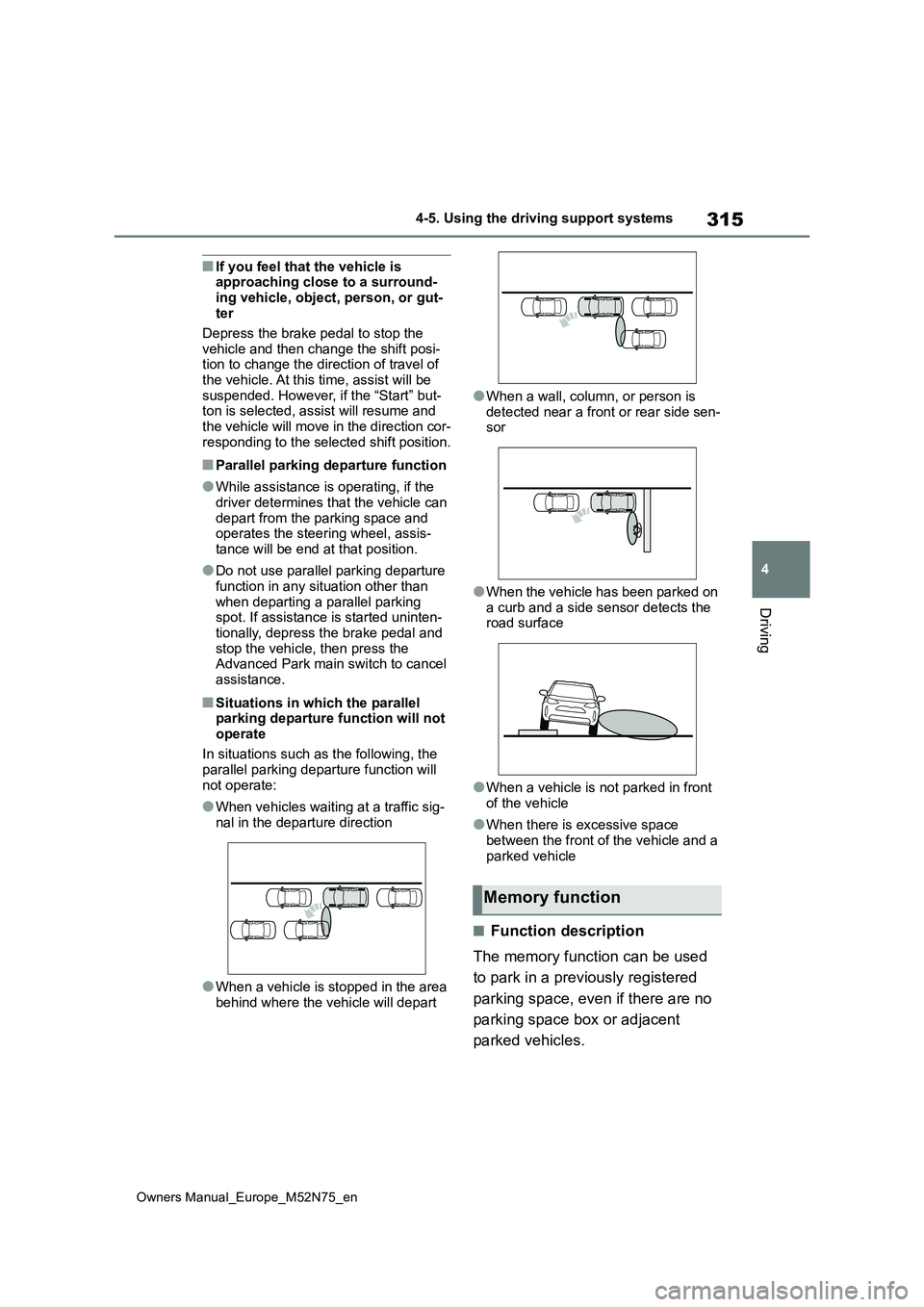

315
4
Owners Manual_Europe_M52N75_en
4-5. Using the driving support systems
Driving
■If you feel that the vehicle is approaching close to a surround-
ing vehicle, object, person, or gut- ter
Depress the brake pedal to stop the
vehicle and then change the shift posi- tion to change the direction of travel of the vehicle. At this time, assist will be
suspended. However, if the “Start” but- ton is selected, assist will resume and the vehicle will move in the direction cor-
responding to the selected shift position.
■Parallel parking departure function
●While assistance is operating, if the
driver determines that the vehicle can depart from the parking space and operates the steering wheel, assis-
tance will be end at that position.
●Do not use parallel parking departure
function in any situation other than when departing a parallel parking spot. If assistance is started uninten-
tionally, depress the brake pedal and stop the vehicle, then press the Advanced Park main switch to cancel
assistance.
■Situations in which the parallel parking departure function will not operate
In situations such as the following, the parallel parking departure function will
not operate:
●When vehicles waiting at a traffic sig-
nal in the departure direction
●When a vehicle is stopped in the area
behind where the vehicle will depart
●When a wall, column, or person is
detected near a front or rear side sen- sor
●When the vehicle has been parked on a curb and a side sensor detects the road surface
●When a vehicle is not parked in front of the vehicle
●When there is excessive space between the front of the vehicle and a
parked vehicle
■Function description
The memory function can be used
to park in a previously registered
parking space, even if there are no
parking space box or adjacent
parked vehicles.
Memory function
