13Pictorial index
YARIS_GRMN_OM_Europe_OM52J40E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
If a warning message or indicator is displayed . . . . . . . . P. 327, 332
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 217
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Headlight switch
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Front fog lights/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 202
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 205
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202, 205
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 256
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 162
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Navigation/Multimedia system*
*: Refer to “Navigation and multimedia system Owner’s manual”.

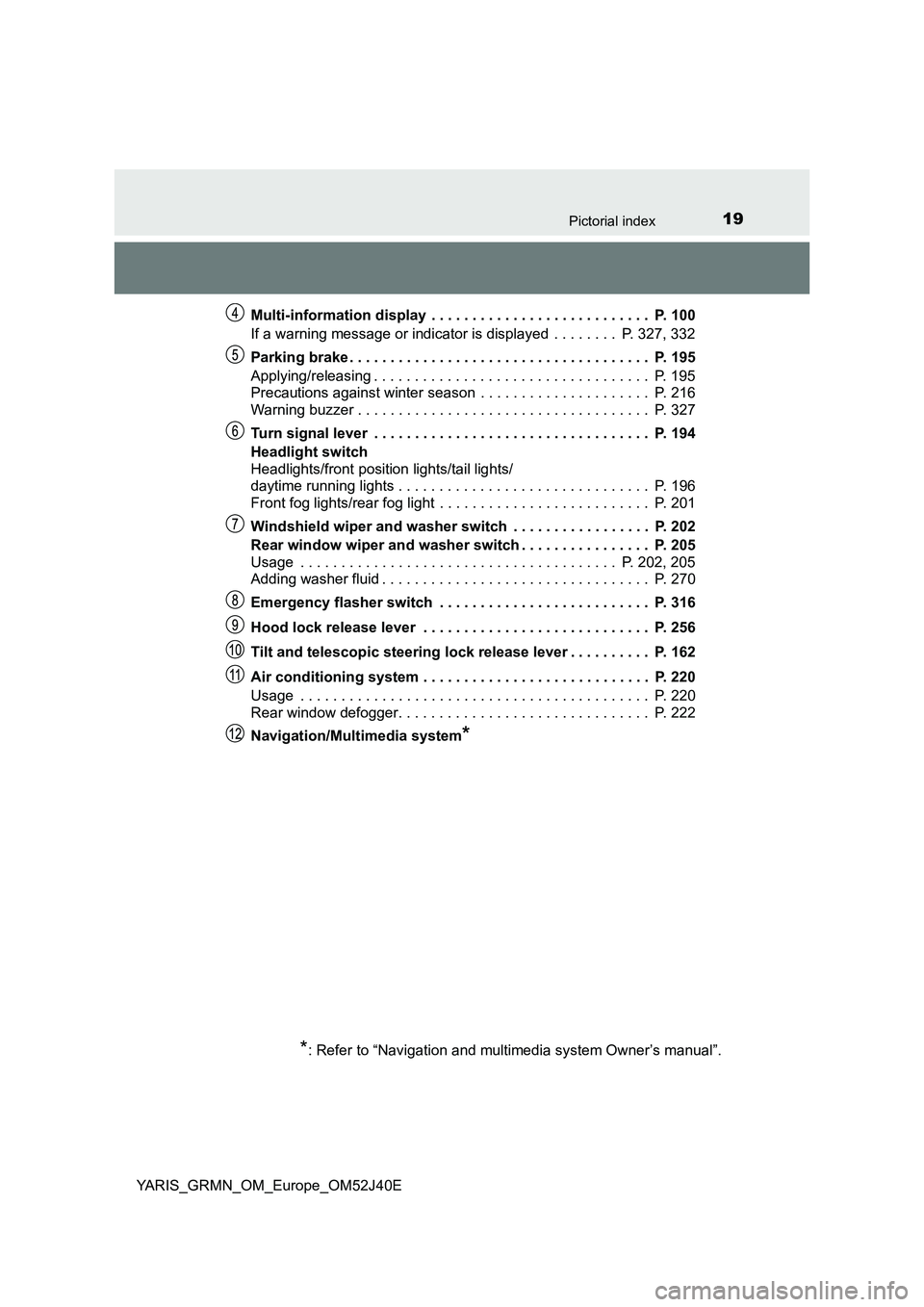

19Pictorial index
YARIS_GRMN_OM_Europe_OM52J40E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
If a warning message or indicator is displayed . . . . . . . . P. 327, 332
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 216
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Headlight switch
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Front fog lights/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 202
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 205
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202, 205
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 270
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 316
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 256
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 162
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 220
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Navigation/Multimedia system*
*: Refer to “Navigation and multimedia system Owner’s manual”.

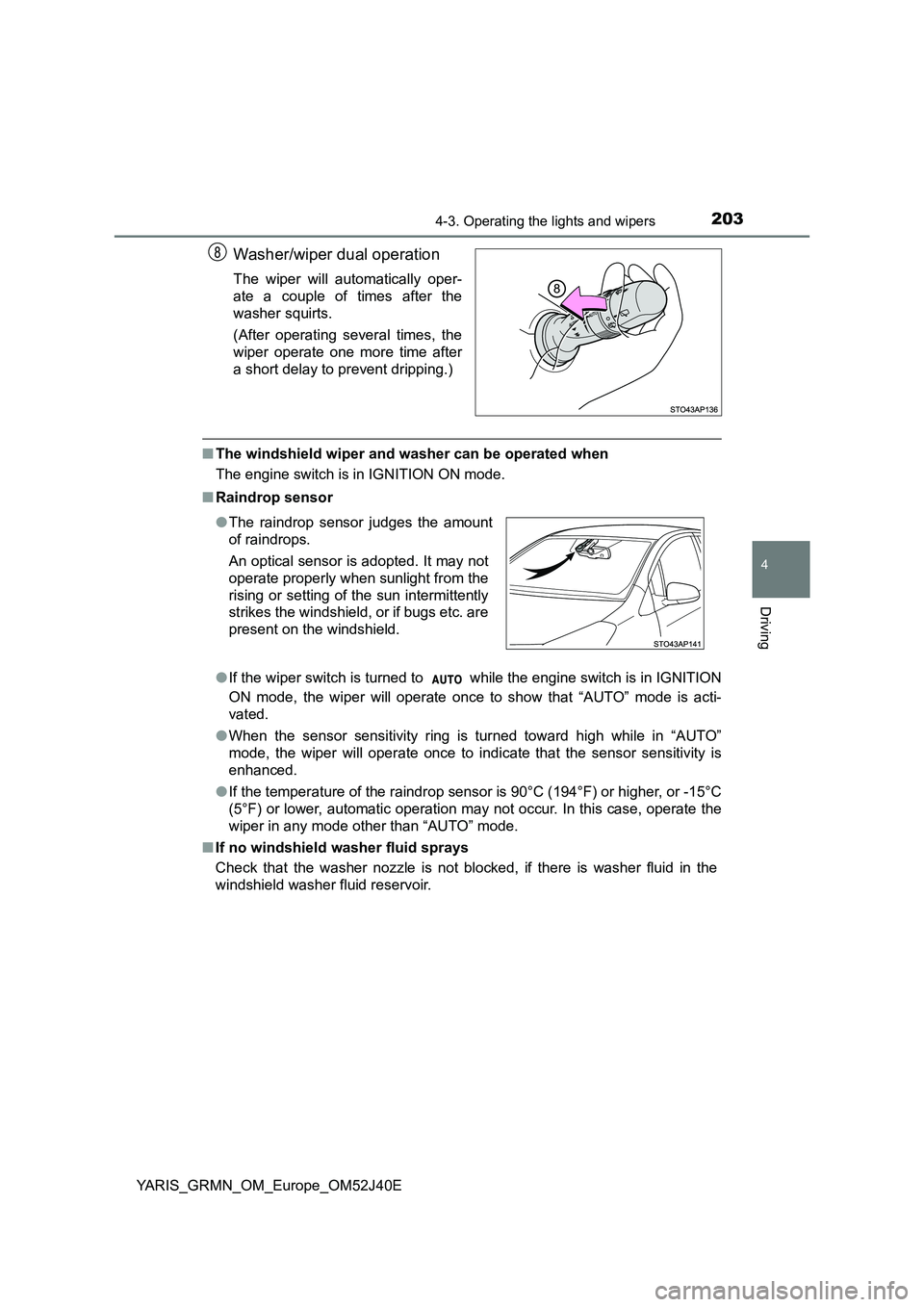

2034-3. Operating the lights and wipers
4
Driving
YARIS_GRMN_OM_Europe_OM52J40E
Washer/wiper dual operation
The wiper will automatically oper-
ate a couple of times after the
washer squirts.
(After operating several times, the
wiper operate one more time after
a short delay to prevent dripping.)
■ The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■ Raindrop sensor
● If the wiper switch is turned to while the engine switch is in IGNITION
ON mode, the wiper will operate once to show that “AUTO” mode is acti-
vated.
● When the sensor sensitivity ring is turned toward high while in “AUTO”
mode, the wiper will operate once to indicate that the sensor sensitivity is
enhanced.
● If the temperature of the raindrop sensor is 90°C (194°F) or higher, or -15°C
(5°F) or lower, automatic operation may not occur. In this case, operate the
wiper in any mode other than “AUTO” mode.
■ If no windshield washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
windshield washer fluid reservoir.
● The raindrop sensor judges the amount
of raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.

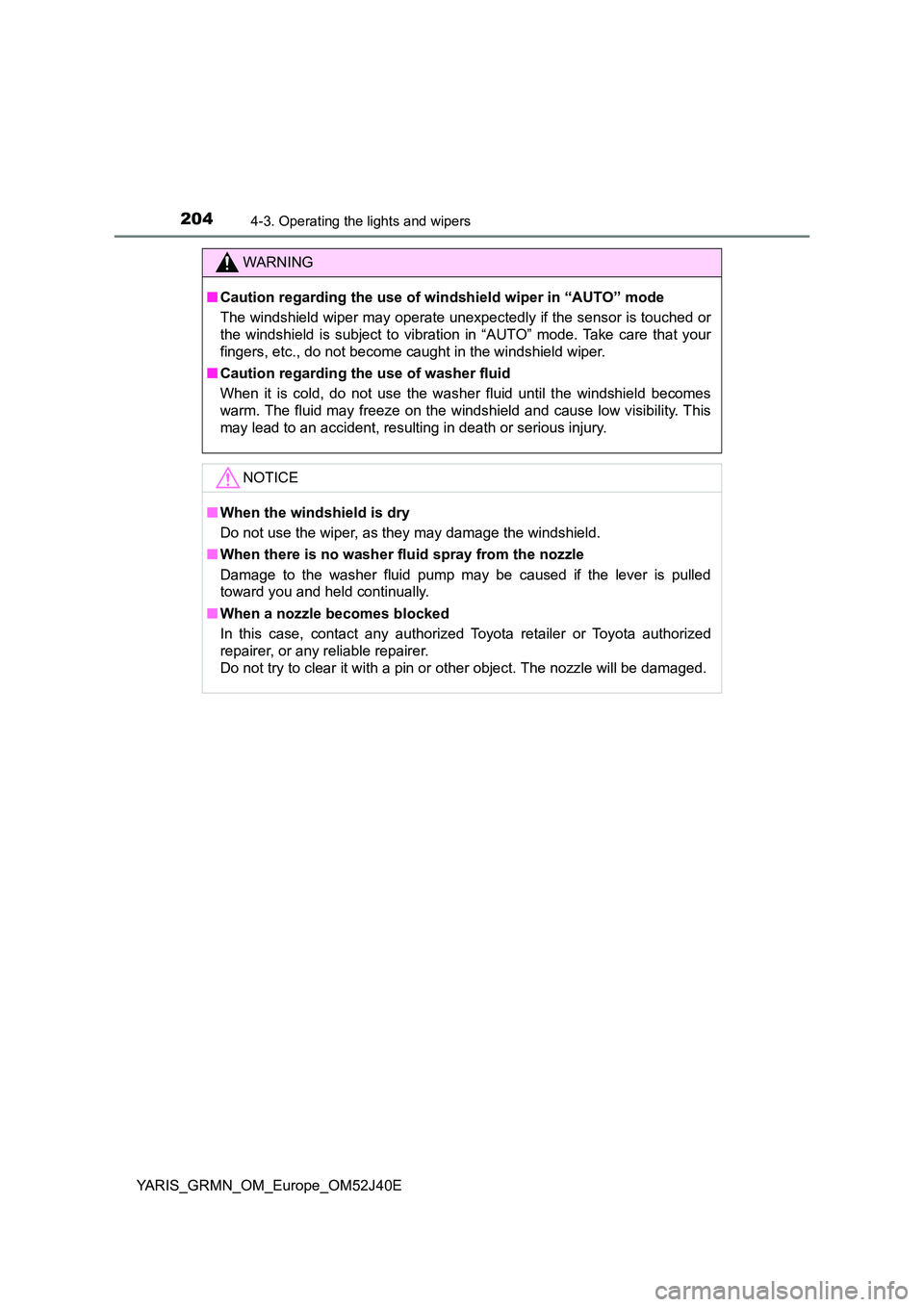

2044-3. Operating the lights and wipers
YARIS_GRMN_OM_Europe_OM52J40E
WARNING
■Caution regarding the use of windshield wiper in “AUTO” mode
The windshield wiper may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers, etc., do not become caught in the windshield wiper.
■ Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■ When the windshield is dry
Do not use the wiper, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

205
4

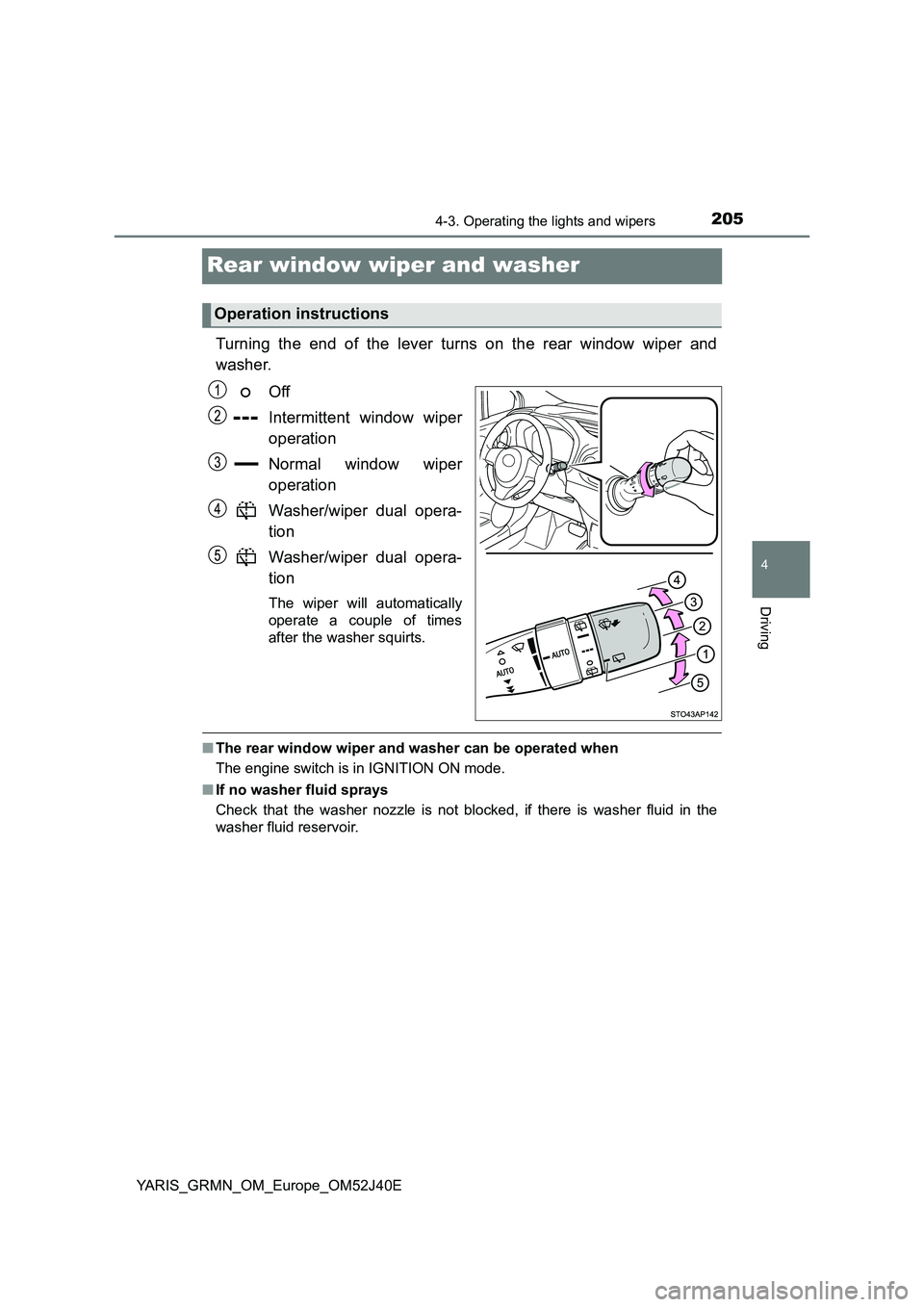

4-3. Operating the lights and wipers
Driving
YARIS_GRMN_OM_Europe_OM52J40E
Rear window wiper and washer
Turning the end of the lever turns on the rear window wiper and
washer.
Off
Intermittent window wiper
operation
Normal window wiper
operation
Washer/wiper dual opera-
tion
Washer/wiper dual opera-
tion
The wiper will automatically
operate a couple of times
after the washer squirts.
■ The rear window wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■ If no washer fluid sprays
Check that the washer nozzle is not blocked, if there is washer fluid in the
washer fluid reservoir.
Operation instructions

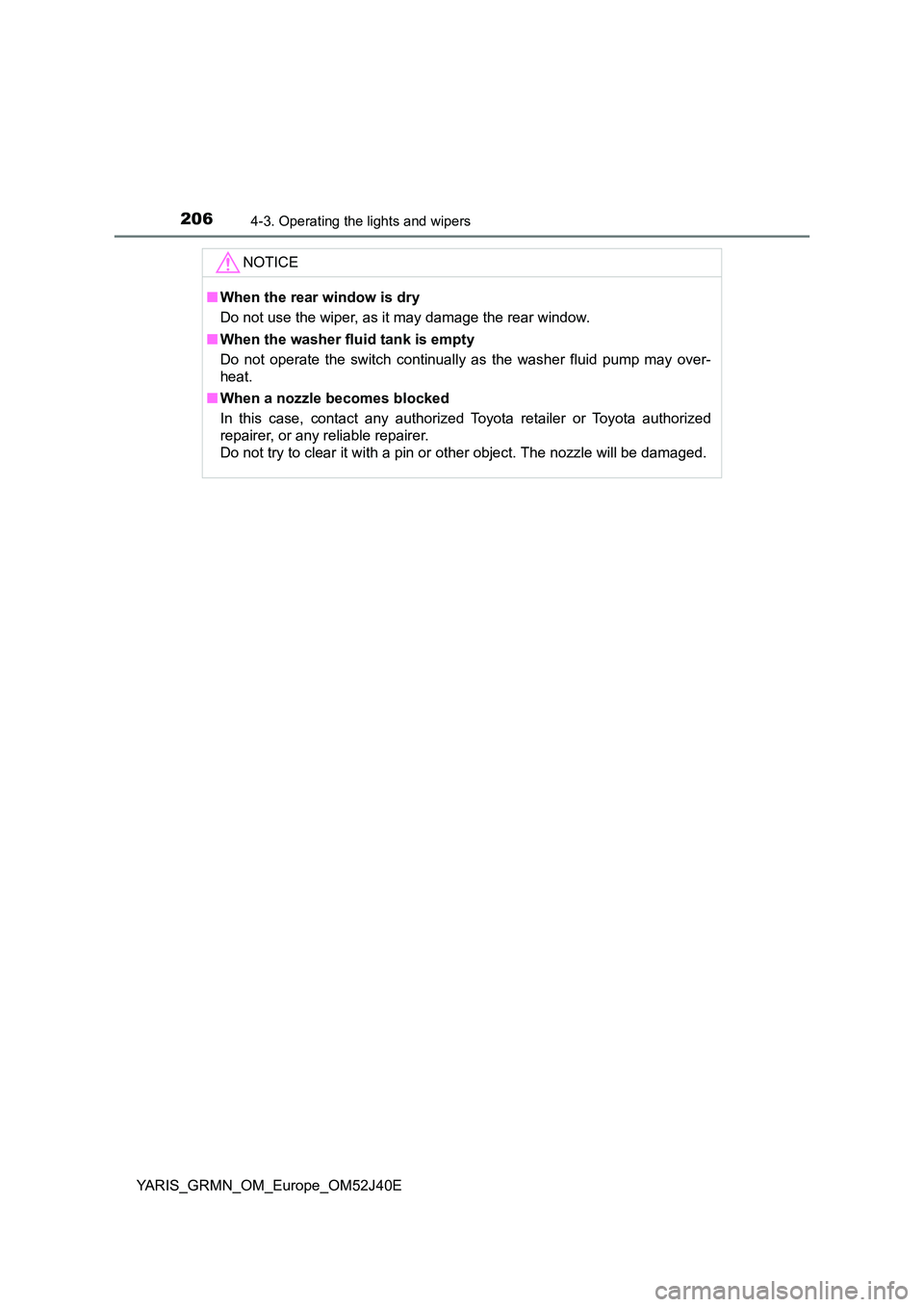

2064-3. Operating the lights and wipers
YARIS_GRMN_OM_Europe_OM52J40E
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■ When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
■ When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

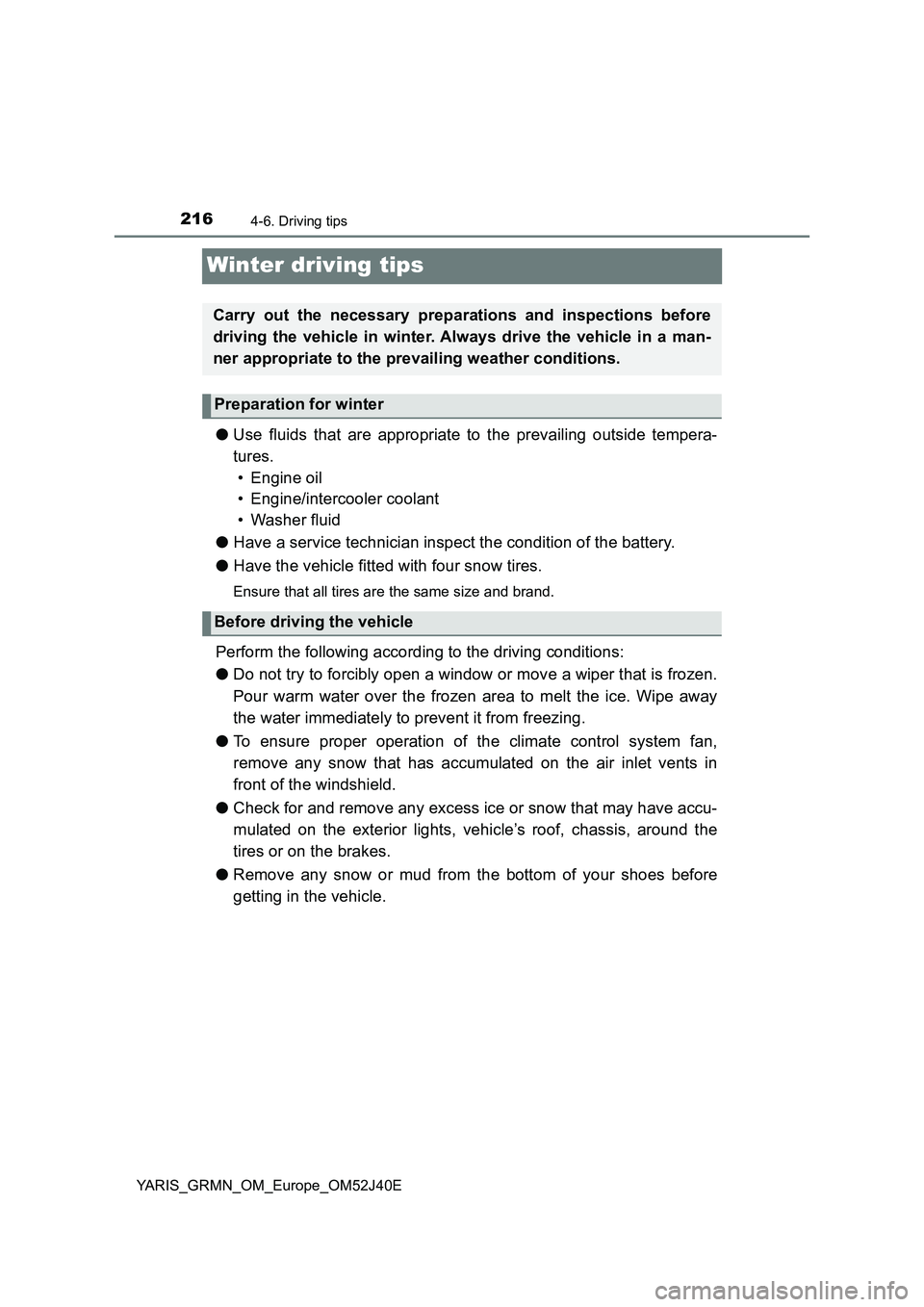

2164-6. Driving tips
YARIS_GRMN_OM_Europe_OM52J40E
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine/intercooler coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires.
Ensure that all tires are the same size and brand.
Perform the following according to the driving conditions:
● Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle

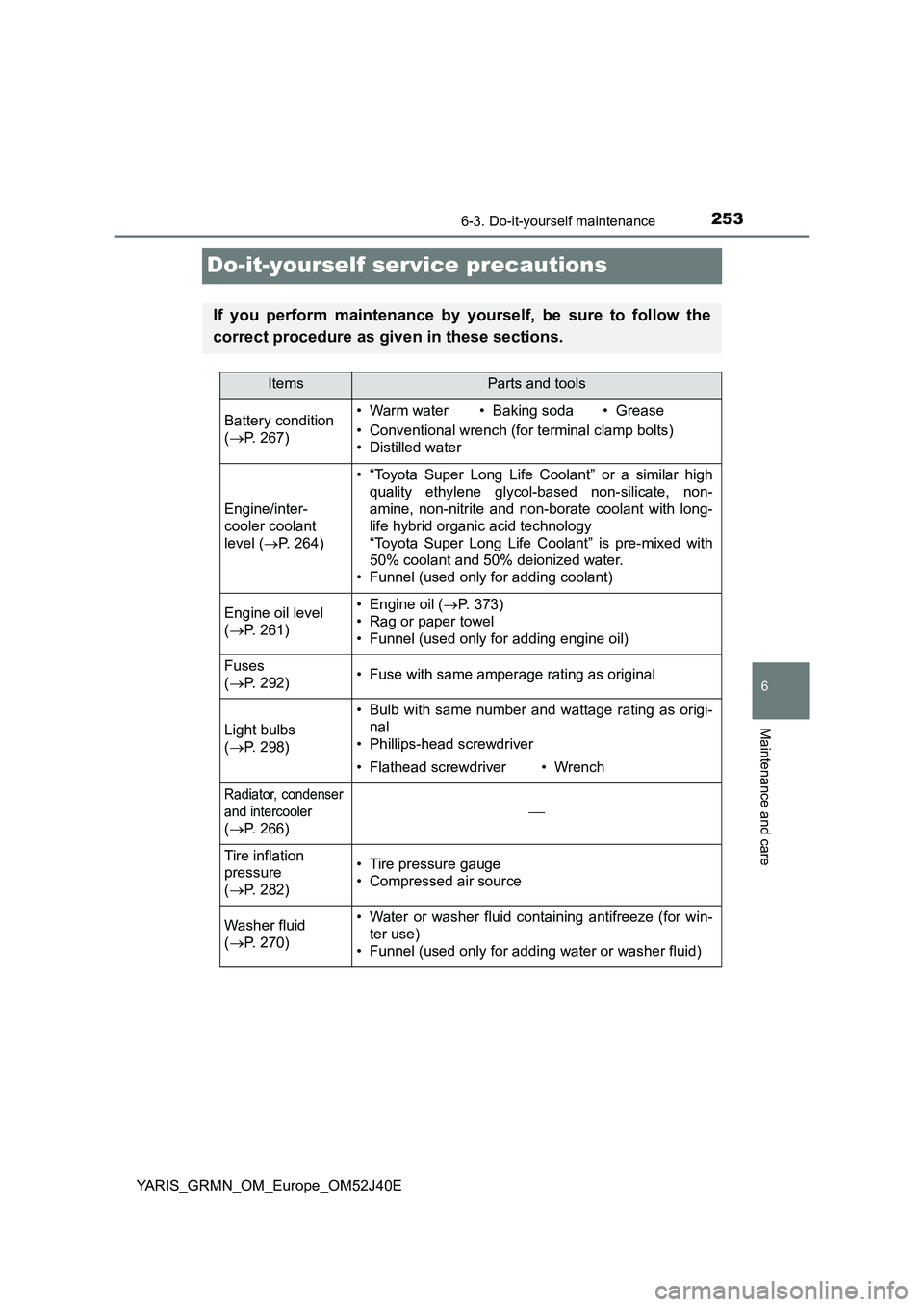

2536-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
6
Maintenance and care
Do-it-yourself service precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
( P. 267)
•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine/inter-
cooler coolant
level ( P. 264)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 261)
• Engine oil (P. 373)
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses
( P. 292)• Fuse with same amperage rating as original
Light bulbs
( P. 298)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator, condenser
and intercooler
( P. 266)

Tire inflation
pressure
( P. 282)
• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 270)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

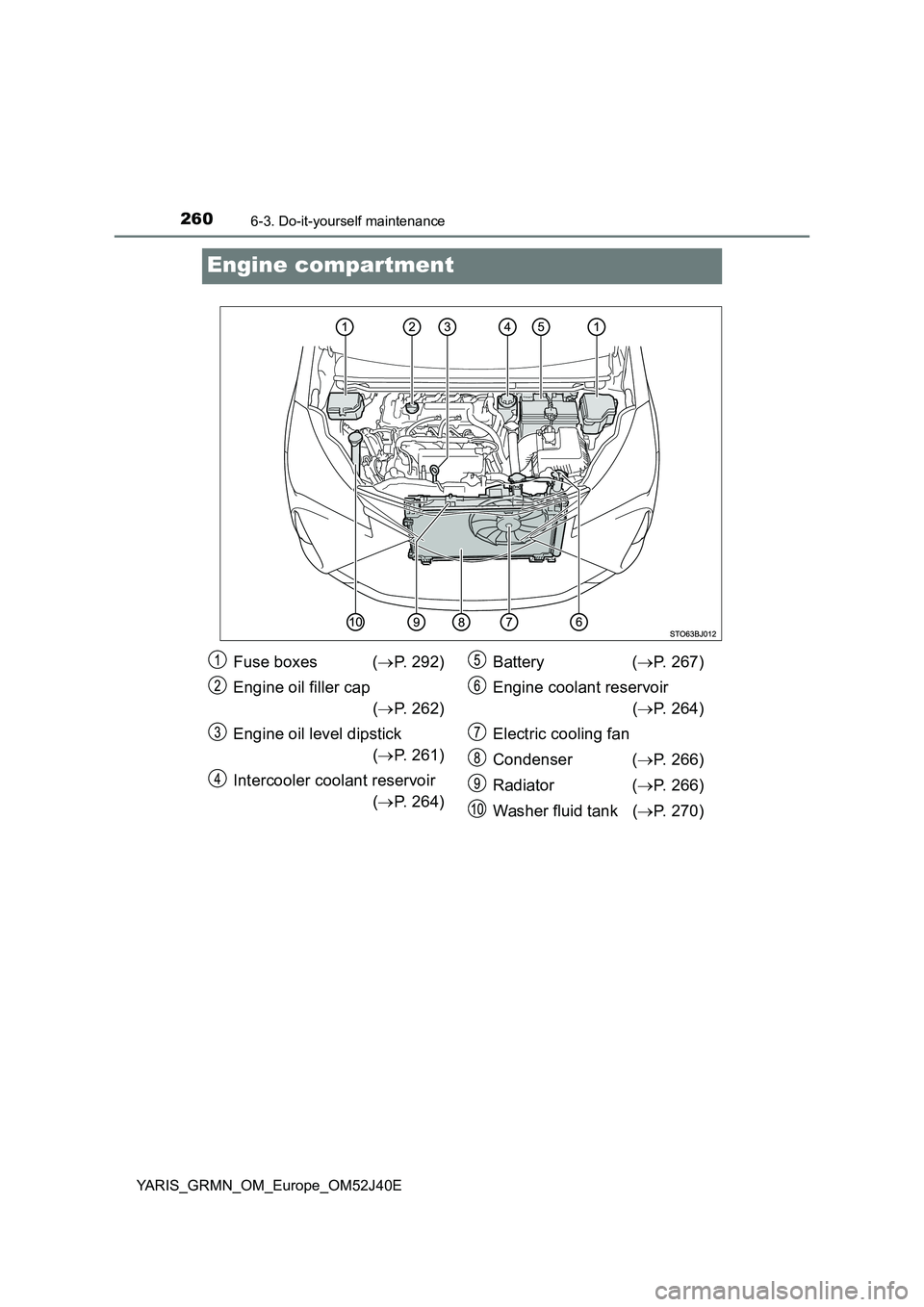

2606-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
Engine compartment
Fuse boxes (P. 292)
Engine oil filler cap
( P. 262)
Engine oil level dipstick
( P. 261)
Intercooler coolant reservoir
( P. 264)
Battery ( P. 267)
Engine coolant reservoir
( P. 264)
Electric cooling fan
Condenser ( P. 266)
Radiator ( P. 266)
Washer fluid tank ( P. 270)

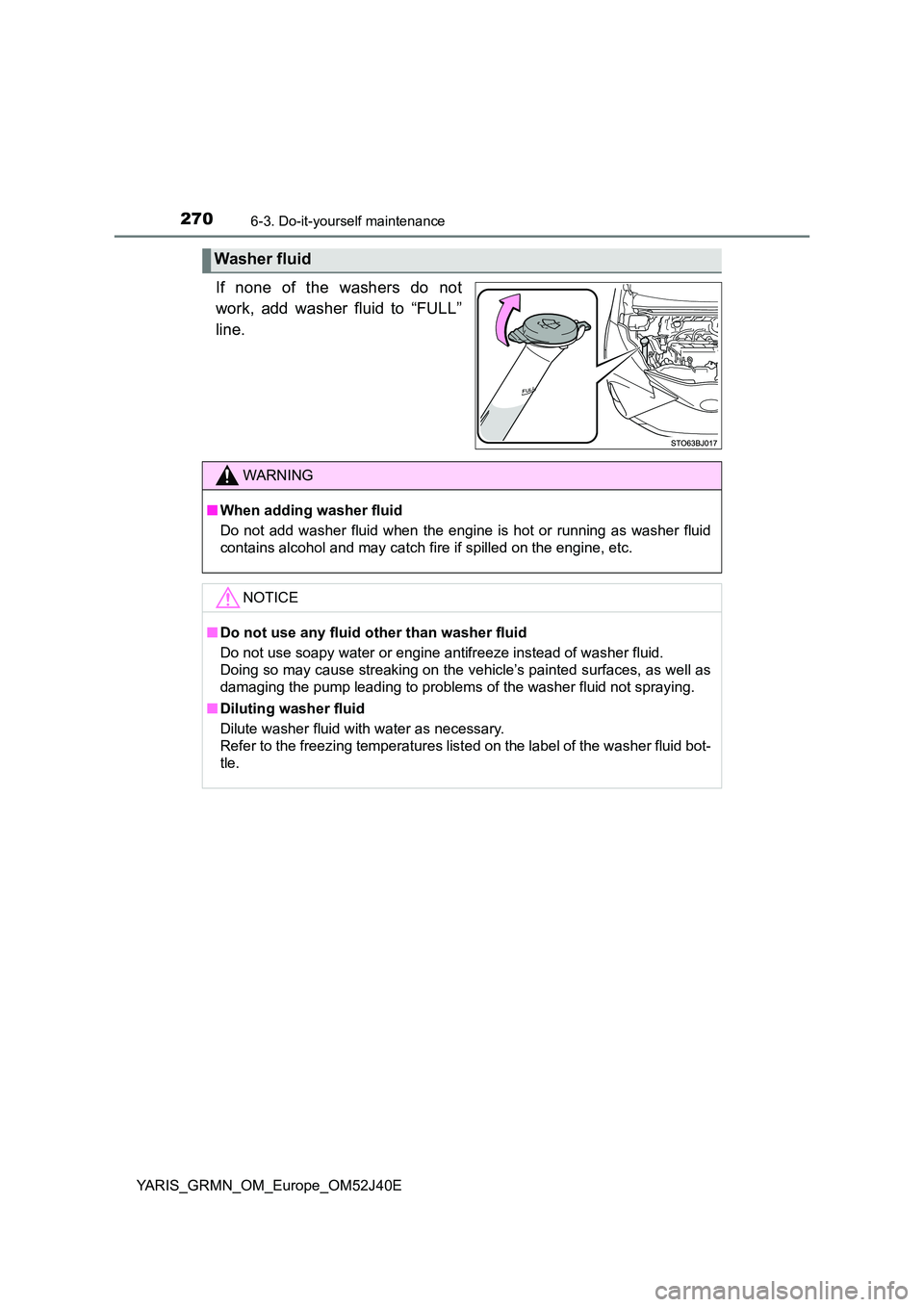

2706-3. Do-it-yourself maintenance
YARIS_GRMN_OM_Europe_OM52J40E
If none of the washers do not
work, add washer fluid to “FULL”
line.
Washer fluid
WARNING
■ When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid
contains alcohol and may catch fi re if spilled on the engine, etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures list ed on the label of the washer fluid bot-
tle.
