display TOYOTA YARIS HATCHBACK 2020 Owners Manual (in English)

368
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-3. Bluetooth®
■Android Auto™ use-related issues
SymptomCauseSolution method
The Android Auto™
mode does not launch
even though the
Android™-genuine
connector cord is
inserted into the USB
port and it is con-
nected to my Android™
Smartphone.The Android Auto™
application has not
been downloaded to
your Android™ Smart-
phone.
To use Android Auto™
with your vehicle, the
Android Auto™ appli-
cation is required on
your Android™ Smart-
phone. Download the
Android Auto™ appli-
cation from the Google
Play™.
You used the wrong
USB port.
Use the USB port dis-
playing the mark to
start the Android
Auto™ mode.
The error message,
“Mobile device error” is
displayed after con-
necting my Android™
Smartphone to the
USB port.
There is miscommuni-
cation between the
vehicle’s audio system
and your Android™
Smartphone.Disconnect the connec-
tor cord from the USB
port once and then
reconnect it.
Your Android™ Smart-
phone cannot be paired
because another
device is connected via
Bluetooth
®.
Disconnect the other
device’s Bluetooth®
connection, disconnect
the connector cord of
the Android™ Smart-
phone from the USB
terminal once, and then
reconnect it.
The icon of the applica-
tion I want to use is not
displayed on the home
screen while in Android
Auto™ mode.Only applications com-
patible with Android
Auto™ are displayed
on the screen.
Contact the applica-
tion’s supplier.
• Voice recognition ispoor or incorrect.
• Voice recognition responds slowly or it
does not work.
-
If you are having diffi-
culty using the voice
recognition, visit the
Android Auto™ sup-
port site or contact
Google™.

386
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-1. Essential Information
Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing
a tire, or doing some kind of maintenance such as car washing. In par-
ticular, wear thick work gloves such as cotton gloves when touc hing
areas that are difficult to see while inspecting or working on your vehi-
cle. Doing inspections or procedur es with your bare hands could
cause injury.
If you are unsure about any pro cedure this manual describes, we
strongly urge you to have a reliable and qualified service shop per-
form the work, preferably your Toyota dealer.
Factory-trained Toyota technicians and genuine Toyota parts are best
for your vehicle. Without this expertise and the parts that hav e been
designed and made especially for your Toyota, inadequate, incom-
plete, and insufficient servicing may result in problems. This could
lead to vehicle damage or an accident and injuries.
For expert advice and quality serv ice, consult your Toyota dealer.
To continue warranty eligibility and to protect your investment , it is
your responsibility to properly maintain your vehicle according to fac-
tory recommended schedules outli ned in this manual. Keep a copy of
the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while
your vehicle is under warranty, your Toyota dealer will promptl y take
care of it.
This evidence may consist of the following: • The Maintenance Log, found with in the Warranty and Maintenance
Guide, must be completely filled out showing mileage, repair order
number, date for each service, and signed by a qualified automo tive
service technician w ho service vehicles.
• Original copies of repair orders or other receipts that includ e the
mileage and date the vehicle was serviced. Each receipt should be
signed by a qualified automot ive service technician.
• For self maintenance, a statemen t that you completed the mainte-
nance yourself, displaying mileage and the date the work was per-
formed. Also, receipts for the replacement parts (fluid, filters, etc.)
indicating the date and mileage mu st accompany this statement.

388
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-2. Scheduled Maintenance
Maintenance Monitor
Select the icon on the home screen to display the “Applica-
tions” screen.
Select “Maintenance” to display the maintenance list screen.
Switch the tab and sel ect the setting item you want to change.
You can customize settings in the setup display as follows:
Maintenance Monitor
1
2
3
Ta bItemExplanation
Scheduled
SettingNotification can be switched on/off.
Time (months)
Displays the time or distance until main-
tenance is due.
Select this item to set the maintenance
period.
“Scheduled Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining distance is less than 250 miles
or 500 km, or the remaining number of
days is less than 15 (whichever comes
first).
Distance
(mile or km)
Reset
Resets the time and distance to the initial
values.
Once the system turns on, it needs to be
reset whenever carrying out mainte-
nance.
Tire Rotation
SettingNotification can be switched on/off.
Distance
(mile or km)
Displays the distance until tire rotation
is due.
Select this item to set the tire rotation
distance.
“Tire Rotation Due!” is displayed in red
and the wrench indicator light in the
combination meter will be illuminated
when the remaining distance is less
than 250 miles or 500 km.
Reset
Resets the remaining distance to the
initial value.
Once the system turns on, it needs to
be reset whenever r otating the tires.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3895-2. Scheduled Maintenance
5
Maintenance and Care

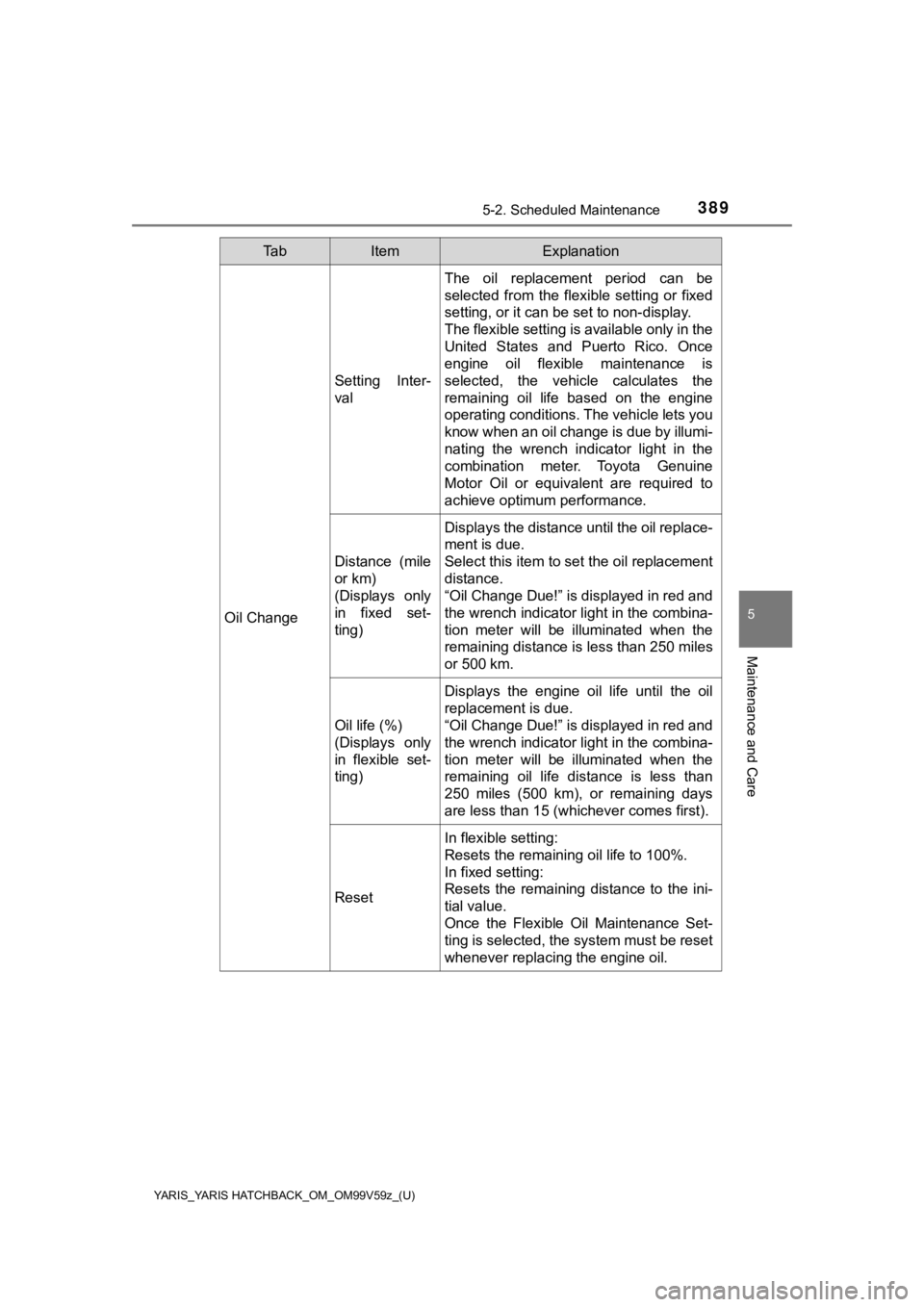

Oil Change
Setting Inter-
val
The oil replacement period can be
selected from the flexible setting or fixed
setting, or it can be set to non-display.
The flexible setting is available only in the
United States and Puerto Rico. Once
engine oil flexible maintenance is
selected, the vehicle calculates the
remaining oil life based on the engine
operating conditions. The vehicle lets you
know when an oil change is due by illumi-
nating the wrench indicator light in the
combination meter. Toyota Genuine
Motor Oil or equivalent are required to
achieve optimum performance.
Distance (mile
or km)
(Displays only
in fixed set-
ting)
Displays the distance until the oil replace-
ment is due.
Select this item to set the oil replacement
distance.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining distance is less than 250 miles
or 500 km.
Oil life (%)
(Displays only
in flexible set-
ting)
Displays the engine oil life until the oil
replacement is due.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining oil life distance is less than
250 miles (500 km), or remaining days
are less than 15 (whichever comes first).
Reset
In flexible setting:
Resets the remaining oil life to 100%.
In fixed setting:
Resets the remaining distance to the ini-
tial value.
Once the Flexible Oil Maintenance Set-
ting is selected, the system must be reset
whenever replacing the engine oil.
Ta bItemExplanation

455
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
6If Trouble Arises
6-1. Parking in an EmergencyParking in an Emergency ...................... 456
6-2. Flat Tire Spare Tire and Tool Storage ........................... 457
Changing a Flat Tire ......... 463
6-3. Battery Runs Out Jump-Starting.................... 478
6-4. Emergency Starting Starting a Flooded Engine............................. 482
Push-Starting .................... 483
6-5. Overheating Overheating ...................... 484
6-6. Emergency Towing Towing Description ........... 486
Tiedown Hooks ................. 487
6-7. Warning/Indicator Lights and Warning Sounds
If a Warning Light Turns On or Flashes ................. 489
Message Indicated on Display ............................ 500
Warning Sound is Activated ......................... 502
6-8. When Trunk Lid Cannot be Opened
When Liftgate/Trunk Lid Cannot be Opened ......... 506

489
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
If a War ning Light Turns On or Flashes
The details for some warnings can be viewed on the center displ ay.
If the warning light is turned on, select the icon on the home
screen to display the applications screen.
Select “Vehicle Status Monitor”.
Select “Warning Guidance” to d isplay the current warnings.
Select the applicable warning to view the warning details.
If any of the following warning lights turns on, the system may have a
malfunction. Stop the vehicle in a safe place immediately and c ontact
your Toyota dealer.
If any warning light turns on/flashes, take appropriate action for
each light. There is no problem if the light turns off, however if
the light does not turn off or turns on/flashes again, consult your
Toyota dealer.
Stop Vehicle in Safe Place Immediately
SignalWarning
Brake System Warning Light This warning has the following functions:
• Parking brake warning/Warning light inspection
The light illuminates when the parking brake is applied
with the ignition switched to START or ON. It turns off
when the parking brake is fully released.
• Low brake fluid level warning If the brake warning light remains illuminated even
though the parking brake is released, the brake fluid
may be low or there could be a problem with the brake
system. Park the vehicle in a safe place immediately
and contact your Toyota dealer.
1
2
3
4

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4936-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
If any of the following warning lights turns on/flashes, the system may
have a malfunction. Contact your Toyota dealer to have your veh icle
inspected.

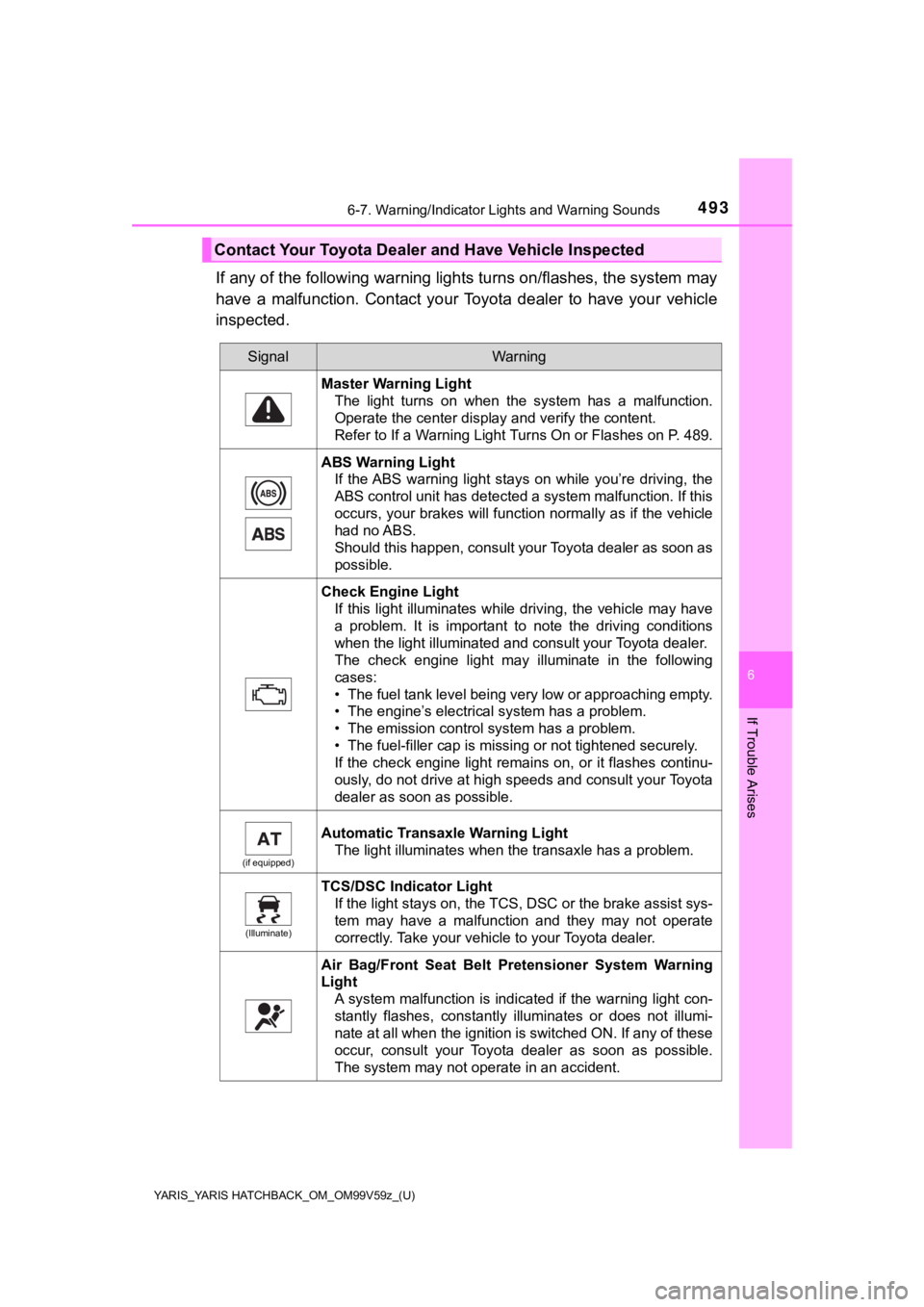

Contact Your Toyota Dealer and Have Vehicle Inspected
SignalWarning
Master Warning Light The light turns on when the system has a malfunction.
Operate the center display and verify the content.
Refer to If a Warning Light Turns On or Flashes on P. 489.
ABS Warning LightIf the ABS warning light stays on while you’re driving, the
ABS control unit has detected a system malfunction. If this
occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult your Toyota dealer as soon as
possible.
Check Engine Light
If this light illuminates while driving, the vehicle may have
a problem. It is important to note the driving conditions
when the light illuminated and consult your Toyota dealer.
The check engine light may illuminate in the following
cases:
• The fuel tank level being very low or approaching empty.
• The engine’s electrical system has a problem.
• The emission control system has a problem.
• The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continu-
ously, do not drive at high speeds and consult your Toyota
dealer as soon as possible.
(if equipped)
Automatic Transaxle Warning LightThe light illuminates when the transaxle has a problem.
(Illuminate)
TCS/DSC Indicator LightIf the light stays on, the TCS, DSC or the brake assist sys-
tem may have a malfunction and they may not operate
correctly. Take your vehicle to your Toyota dealer.
Air Bag/Front Seat Belt Pretensioner System Warning
LightA system malfunction is indicated if the warning light con-
stantly flashes, constantly illuminates or does not illumi-
nate at all when the ignition is switched ON. If any of these
occur, consult your Toyota dealer as soon as possible.
The system may not operate in an accident.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4976-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

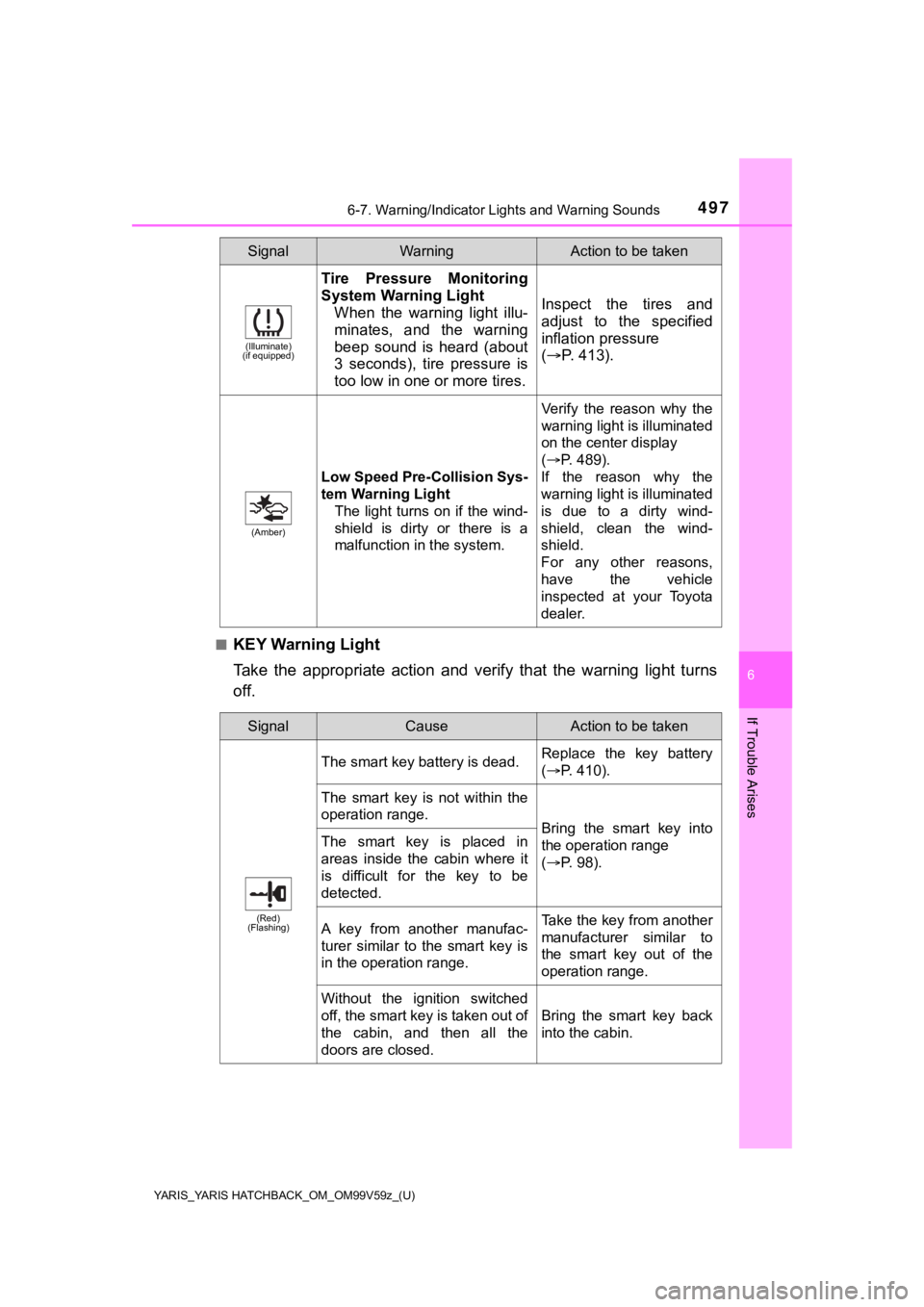

■KEY Warning Light
Take the appropriate action and verify that the warning light turns
off.
(Illuminate)
(if equipped)
Tire Pressure Monitoring
System Warning Light
When the warning light illu-
minates, and the warning
beep sound is heard (about
3 seconds), tire pressure is
too low in one or more tires.
Inspect the tires and
adjust to the specified
inflation pressure
( P. 4 1 3 ) .
(Amber)
Low Speed Pre-Collision Sys-
tem Warning Light
The light turns on if the wind-
shield is dirty or there is a
malfunction in the system.
Verify the reason why the
warning light is illuminated
on the center display
(P. 489).
If the reason why the
warning light is illuminated
is due to a dirty wind-
shield, clean the wind-
shield.
For any other reasons,
have the vehicle
inspected at your Toyota
dealer.
SignalWarningAction to be taken
SignalCauseAction to be taken
(Red)
(Flashing)
The smart key battery is dead.Replace the key battery
( P. 410).
The smart key is not within the
operation range.
Bring the smart key into
the operation range
(P. 98).The smart key is placed in
areas inside the cabin where it
is difficult for the key to be
detected.
A key from another manufac-
turer similar to the smart key is
in the operation range.Take the key from another
manufacturer similar to
the smart key out of the
operation range.
Without the ignition switched
off, the smart key is taken out of
the cabin, and then all the
doors are closed.
Bring the smart key back
into the cabin.

500
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
Message Indicated on Display
■Display example
If a message is displayed in the center display, take appropria te
action (in a calm manner) accor ding to the displayed message.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5016-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises

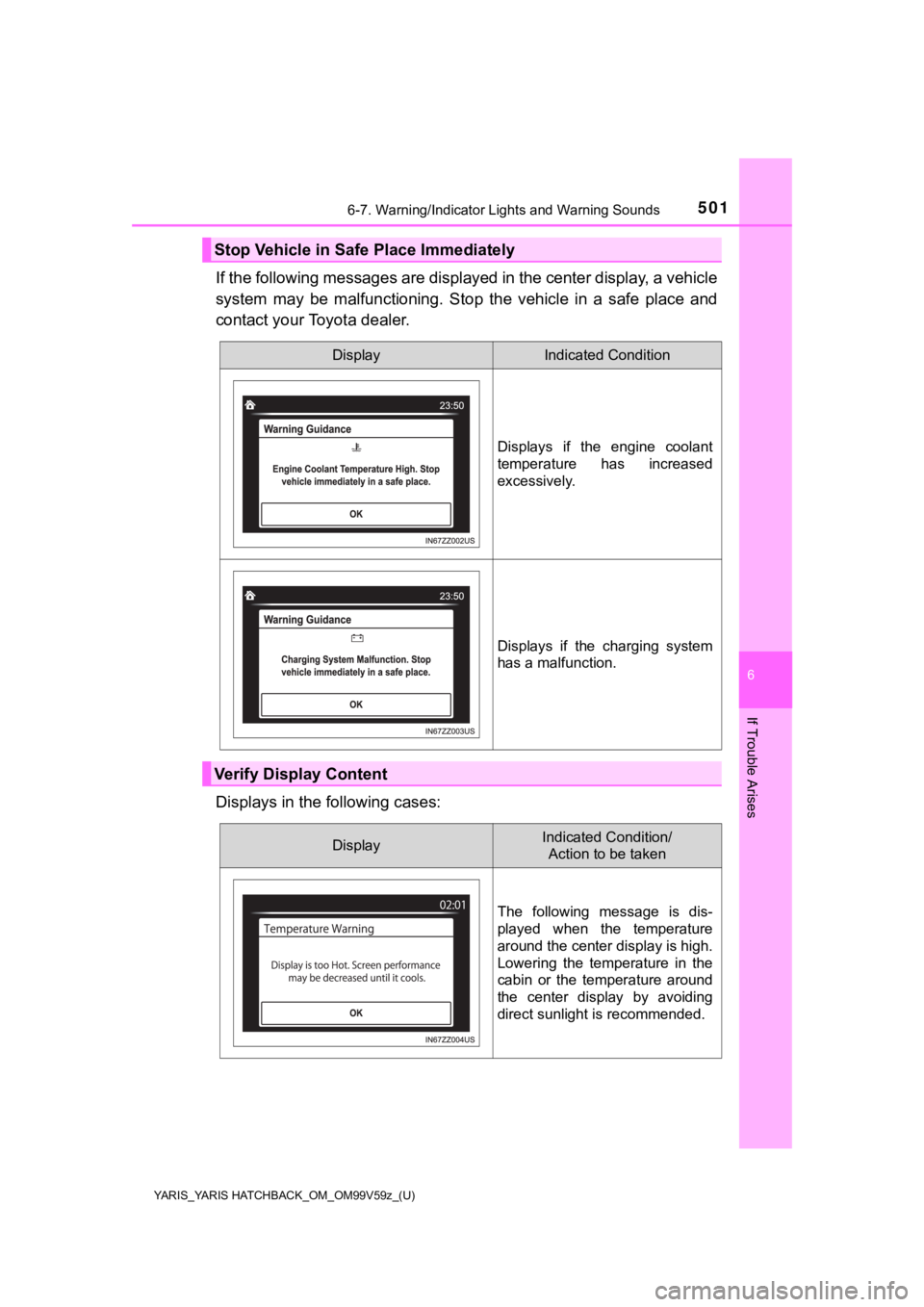

If the following messages are displayed in the center display, a vehicle
system may be malfunctioning. St op the vehicle in a safe place and
contact your Toyota dealer.
Displays in the following cases:
Stop Vehicle in Safe Place Immediately
DisplayIndicated Condition
Displays if the engine coolant
temperature has increased
excessively.
Displays if the charging system
has a malfunction.
Verify Display Content
DisplayIndicated Condition/ Action to be taken
The following message is dis-
played when the temperature
around the center display is high.
Lowering the temperature in the
cabin or the temperature around
the center display by avoiding
direct sunlight is recommended.
