android auto TOYOTA YARIS HATCHBACK 2020 (in English) User Guide

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3254-2. Audio System
4
Interior Features
■Convenient ways to use Android Auto™ mode
■To end Android Auto™
To end the Android Auto™ mode, disconnect the Android™-genu-
ine connector cord from the USB terminal or disconnect the
Android™ Smartphone from the connector cord.
If Android Auto™ cannot be connected
When the message, “Mobile Device Error”, is displayed and
Android Auto™ cannot be connected.
Make sure that the Android™
Smartphone in question is com-
patible with Android Auto™.
Before trying to reconnect your
Android™ Smartphone to the
connector cord, do the Blue-
tooth
® device pairing again.
ItemOperation method
Operation using voice rec-
ognition
Any of the following methods can be used to
start the voice recognition mode and operate
Android Auto™ by voice.
• Speak the words, “OK Google”.
• Select the icon on the Android Auto™screen.
• Press and hold the talk button on the audio
remote control switch.
To display the NowPlaying
screen
When music is playing in Android Auto™ and
a screen other than the NowPlaying screen is
being displayed, press on the commander
switch to display the NowPlaying screen.
To display the MAP screen
When using map route guidance in Android
Auto™ and a screen other than the MAP
screen is being displayed, press on
the commander switch to display the Android
Auto™ MAP screen.
To return to the Toyota
screenPress and hold on the commander switch.

326
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System
■If the Android Auto™ connection setting cannot be changed
Depending on your Android™ Smart phone, the connection setting
may have been in charging mode only when the connector cord is
connected.
In this case, switch off the Android Auto™ connection setting o nce,
and then switch it back on while connected to USB mode.
The connection setting can be changed to the Android Auto™ con-
nection in the tab on the Settings screen ( P. 3 0 0 ) .

368
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-3. Bluetooth®
■Android Auto™ use-related issues
SymptomCauseSolution method
The Android Auto™
mode does not launch
even though the
Android™-genuine
connector cord is
inserted into the USB
port and it is con-
nected to my Android™
Smartphone.The Android Auto™
application has not
been downloaded to
your Android™ Smart-
phone.
To use Android Auto™
with your vehicle, the
Android Auto™ appli-
cation is required on
your Android™ Smart-
phone. Download the
Android Auto™ appli-
cation from the Google
Play™.
You used the wrong
USB port.
Use the USB port dis-
playing the mark to
start the Android
Auto™ mode.
The error message,
“Mobile device error” is
displayed after con-
necting my Android™
Smartphone to the
USB port.
There is miscommuni-
cation between the
vehicle’s audio system
and your Android™
Smartphone.Disconnect the connec-
tor cord from the USB
port once and then
reconnect it.
Your Android™ Smart-
phone cannot be paired
because another
device is connected via
Bluetooth
®.
Disconnect the other
device’s Bluetooth®
connection, disconnect
the connector cord of
the Android™ Smart-
phone from the USB
terminal once, and then
reconnect it.
The icon of the applica-
tion I want to use is not
displayed on the home
screen while in Android
Auto™ mode.Only applications com-
patible with Android
Auto™ are displayed
on the screen.
Contact the applica-
tion’s supplier.
• Voice recognition ispoor or incorrect.
• Voice recognition responds slowly or it
does not work.
-
If you are having diffi-
culty using the voice
recognition, visit the
Android Auto™ sup-
port site or contact
Google™.

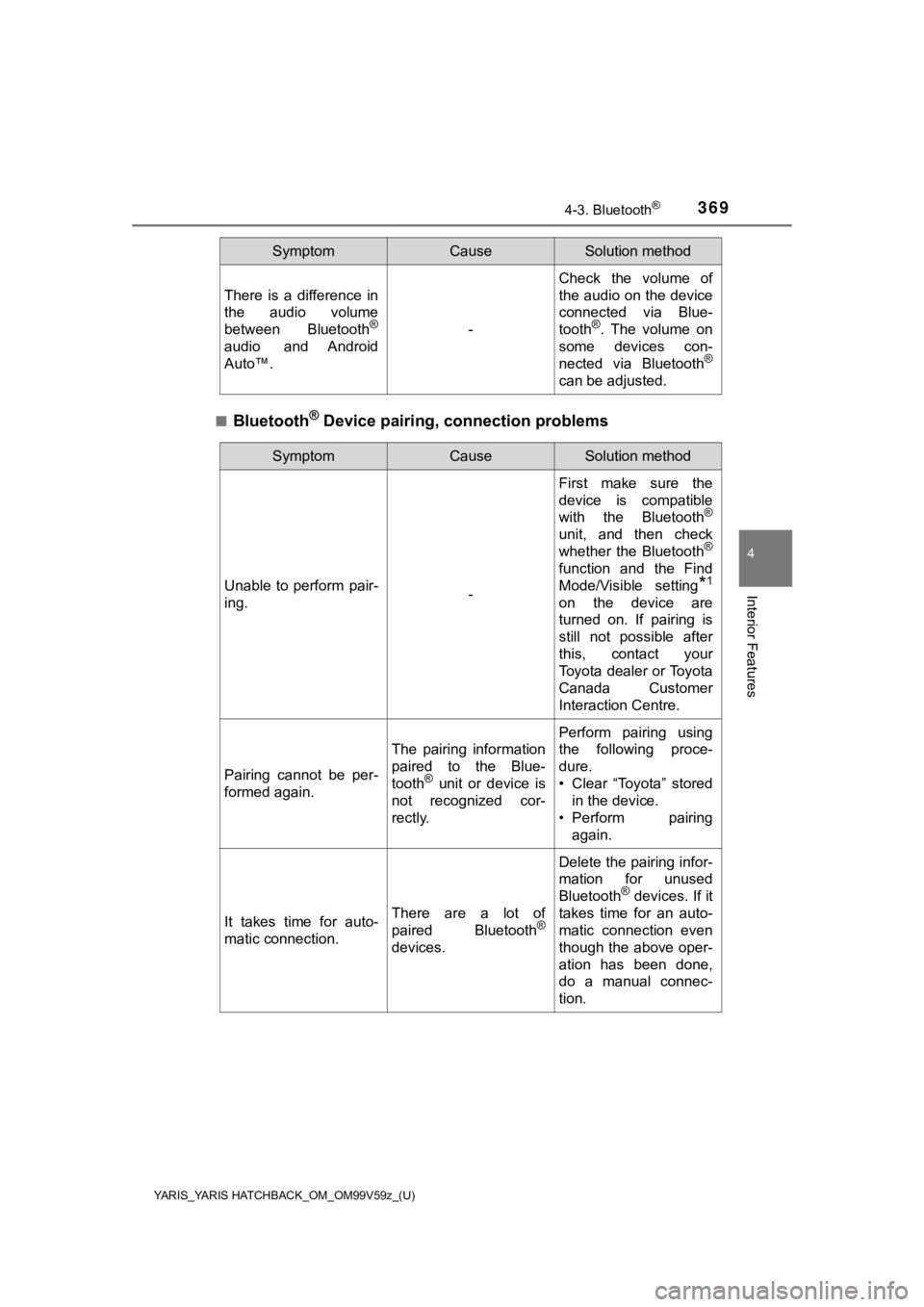

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3694-3. Bluetooth®
4
Interior Features
■Bluetooth® Device pairing, connection problems
There is a difference in
the audio volume
between Bluetooth
®
audio and Android
Auto™.
-
Check the volume of
the audio on the device
connected via Blue-
tooth
®. The volume on
some devices con-
nected via Bluetooth
®
can be adjusted.
SymptomCauseSolution method
SymptomCauseSolution method
Unable to perform pair-
ing.-
First make sure the
device is compatible
with the Bluetooth
®
unit, and then check
whether the Bluetooth®
function and the Find
Mode/Visible setting
*1
on the device are
turned on. If pairing is
still not possible after
this, contact your
Toyota dealer or Toyota
Canada Customer
Interaction Centre.
Pairing cannot be per-
formed again.
The pairing information
paired to the Blue-
tooth
® unit or device is
not recognized cor-
rectly.
Perform pairing using
the following proce-
dure.
• Clear “Toyota” stored in the device.
• Perform pairing again.
It takes time for auto-
matic connection.There are a lot of
paired Bluetooth®
devices.
Delete the pairing infor-
mation for unused
Bluetooth
® devices. If it
takes time for an auto-
matic connection even
though the above oper-
ation has been done,
do a manual connec-
tion.
