7-5. Vehicle Data Recordings
Vehicle Data Recordings
Your Toyota is equipped with several sophisticated computers that will
record certain data, such as:• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
• Shift position
The recorded data varies according to the vehicle grade level a nd
options with which it is equipped.
● Data usage
Toyota may use the data recorded in these computers to diagnose
malfunctions, conduct research and development, and improve
quality.
Toyota will not disclose the recorded data to a third party exc ept:
• With the consent of the vehicle owner or with the consent of t he
lessee if the vehicle is leased
• In response to an official request by the police, a court of l aw or a
government agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle owner

520
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
7-6. Uniform Tire Quality Grading System (UTQGS)
The temperature grades A (the highest), B, and C, represent the tire’s
resistance to the generation of heat and its ability to dissipa te heat
when tested under controlled conditions on a specified indoor l abora-
tory test wheel.
Sustained high temperature can cause the material of the tire t o
degenerate and reduce tire life, and excessive temperatures can lead
to sudden tire failure.
Grade C corresponds to a level of performance which all passenger
vehicle tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109. Grades B and A represent higher levels of perform ance
on the laboratory test wheel than the minimum r equired by law.
These grades will be added to t he sidewalls of passenger vehicl e tires
over the next several years according to a schedule established by
the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Toy-
ota vehicles may vary with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE
GRADES AND TO ALL OTHER FEDERAL TIRE-SAFETY REQUIRE-
MENTS.
Temperature-A, B, C
WARNING
■Keep your vehicle’s tires properl y inflated and not overloaded
Driving with improperly inflated or overloaded tires is dangero us. Exces-
sive speed, underinflation, or excessive loading, either separa tely or in
combination, can cause heat buildup and possible tire failure. The tem-
perature grade for this tire is established for a tire that is properly
inflated and not overloaded.

538
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
7-7. Tire Information (U.S.A.)
GCWR (Gross Combination Weight Rating) is the maximum allowable
weight of the vehicle - including all cargo and passengers - that the
vehicle can handle without risk ing damage. The GCW must never
exceed the GCWR.
WARNING
■Do not tow a trailer with this vehicle
Towing a trailer with this vehicle is dangerous because it has not been
designed to tow a trailer and do ing so will affect the drive system which
could result in vehicle damage.
■Overloaded Vehicle
Overloading a vehicle is dangerous. The results of overloading can
have serious consequences in terms of passenger safety. Too muc h
weight on a vehicle’s suspensi on system can cause spring or sho ck
absorber failure, brake failure, handling or steering problems, irregular
tire wear, tire failu re or other damage.
Overloading makes a vehicle harder to drive and control. It als o
increases the distance required for stopping. In cases of serio us over-
loading, brakes can fail completely, particularly on steep grad es. The
load a tire will carry safely is a combination of the size of t he tire, its load
range, and corresponding inflation pressure.
Never overload the vehicle and always observe the vehicle’s wei ght rat-
ings from the vehicle’s Safety C ertification and Tire and Load Informa-
tion labels.
■Never Exceed Axle Weight Rating Limits
Exceeding the Safety Certification Label axle weight rating lim its is dan-
gerous and could result in death or serious injury as a result of substan-
dard vehicle handling, performance, engine, transmission and/or
structural damage, serious damage to the vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
■Never Exceed GVWR or GAWR Specifications
Exceeding the GVWR or the GAWR specified on the certification l abel is
dangerous. Exceeding any vehicle rating limitation could result in a seri-
ous accident, injury, or damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than
the originals because they may lower the vehicle’s GVWR and GAW R
limitations. Replacement tires with a higher limit than the ori ginals do
not increase the GVWR and GAWR limitations. Never exceed the
GVWR or the GAWR specified on the certification label.

5498-2. Specifications
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
8
Specifications
Refer to Introduction on P. 386 for owner’s responsibility in protecting your
investment.

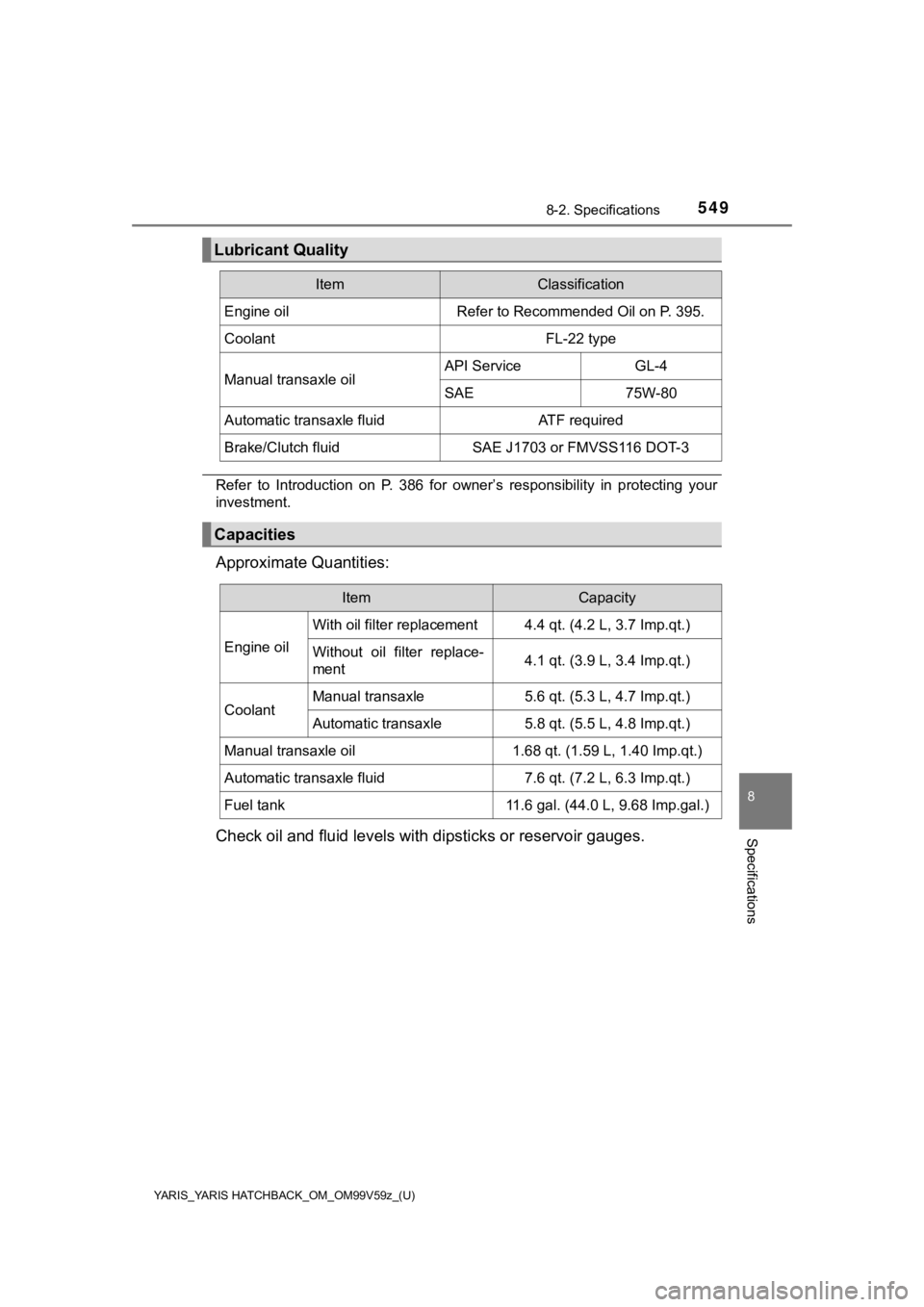

Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.
Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 395.
CoolantFL-22 type
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.6 qt. (5.3 L, 4.7 Imp.qt.)
Automatic transaxle5.8 qt. (5.5 L, 4.8 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)
