2493-13. Rear View Monitor
3
When Driving
Guide lines which indicate the width of the vehicle (yellow) are dis-
played on the screen as a reference to the approximate width of the
vehicle in comparison to the wid th of the parking space you are about
to back into.
Use this display view for parking your vehicle in a parking spa ce or
garage.
Vehicle width guide lines (yel-
low)
These guide lines serve as a
reference to the approximate
width of the vehicle.
Distance guide lines
These guide lines indicate the
approximate distance to a point
measured from the vehicle’s
rear (from the end of the
bumper).
The red and yellow lines indicate the points about 19 in. (500 mm)
for the red line and 39.3 in. (1000 mm) for the yellow lines fr om the
rear bumper (at the center p oint of each of the lines).

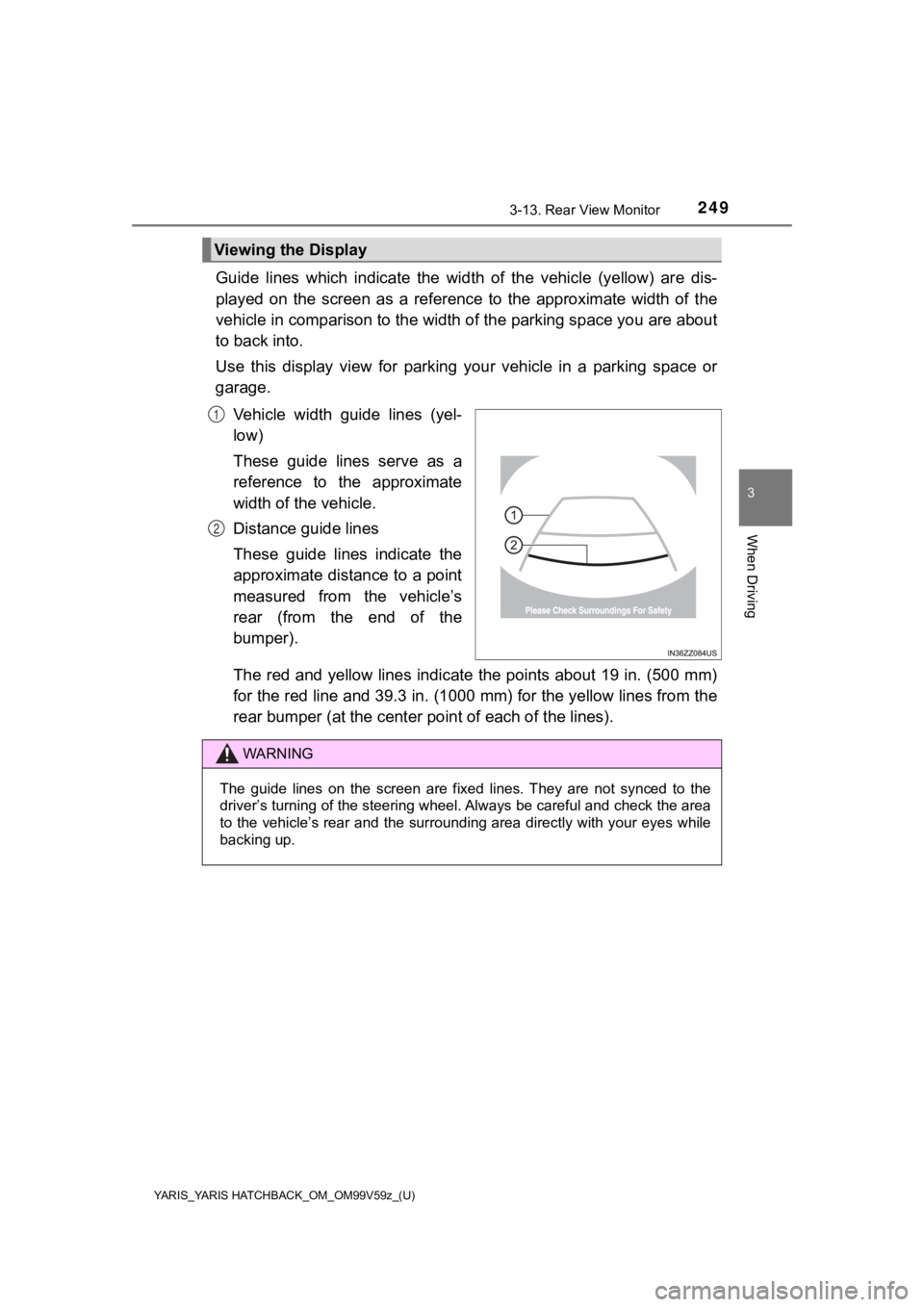

Viewing the Display
1
2
WARNING
The guide lines on the screen are fixed lines. They are not synced to the
driver’s turning of the steering wheel. Always be careful and c heck the area
to the vehicle’s rear and the surrounding area directly with your eyes while
backing up.

250
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-13. Rear View Monitor
The operation of the rear view monitor when reversing the vehicle var-
ies depending on the traffic, road, and vehicle conditions. The amount
of steering and the timing also v aries depending on conditions, so
confirm the surrounding conditions directly with your eyes and steer
the vehicle in accordance with the conditions.
Be well aware of the above caut ions prior to using the rear view moni-
tor.
Shift the shift lever to R to switch the display to the rear vi ew moni-
tor display.
Confirming the surrounding conditions, reverse the vehicle.
After your vehicle begins entering the parking space, continue
backing up slowly so that the distance between the vehicle widt h
lines and the sides of the par king space on the left and right are
roughly equal.
Continue to adjust the steering wheel until the vehicle width guide
lines are parallel to the left and right sides of the parking space.

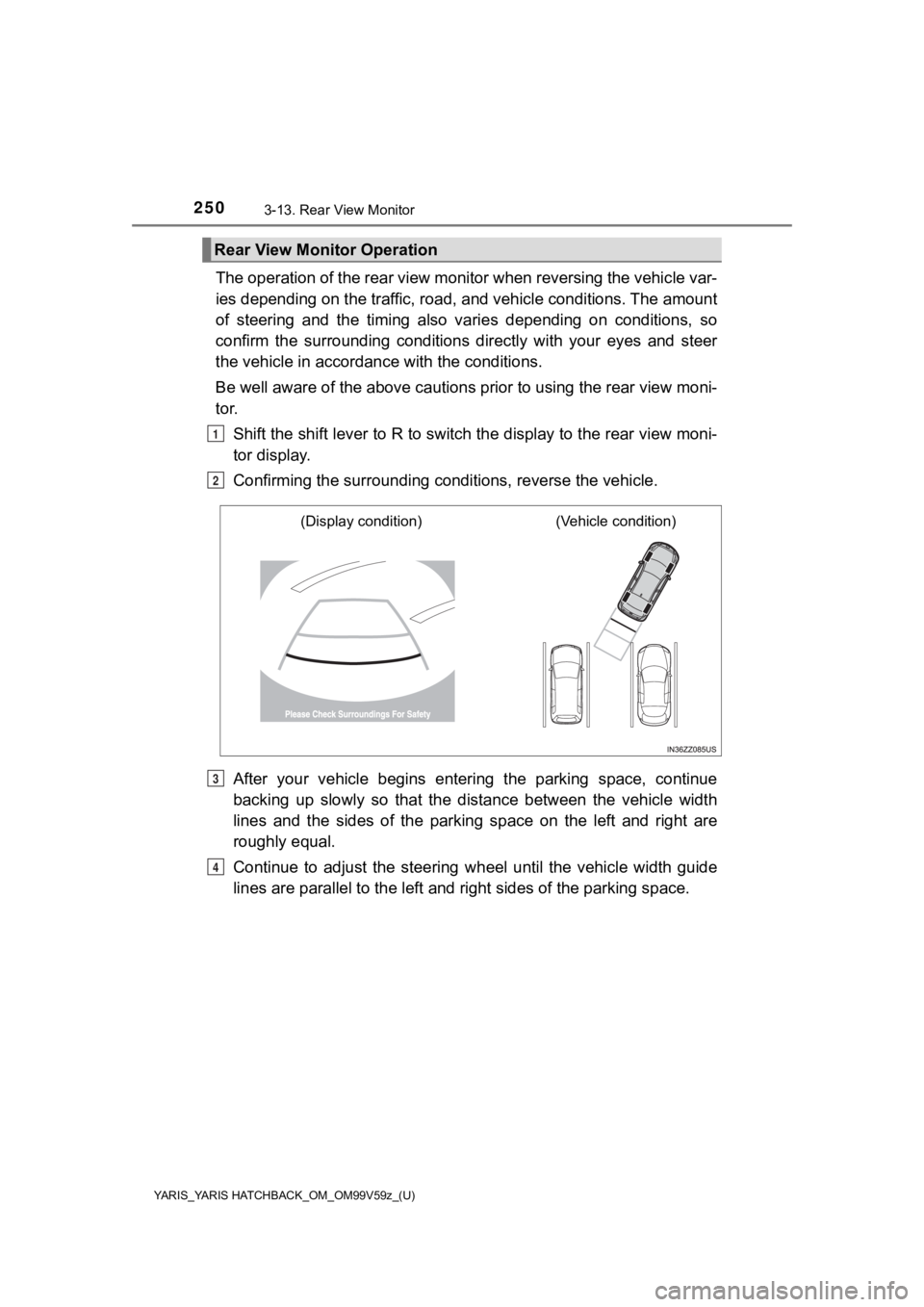

Rear View Monitor Operation
1
2
(Display condition) (Vehicle condition)
P
Q

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2513-13. Rear View Monitor
3
When Driving
Once they are parallel, straighten the wheels and back your veh icle
slowly into the parking space. Continue checking the vehicle’s sur-
roundings and then stop the vehi cle in the best possible position. (If
the parking space has division lines, check whether the vehicle
width guide lines are parallel to them.)
When the shift lever is shifted from R to another shift lever p osition,
the screen returns to t he previous display.
●Images displayed on the monitor from the rear view parking came ra are
reversed images (mirror images).
● Because there may be a difference between the displayed image, such as
indicated below, and the actual conditions when parking, always verify the
safety at the rear of the vehicle and the surrounding area dire ctly with your
eyes.
• In the image of the parking space (or garage) displayed below, even
though the back end and distance guide lines appear parallel in the mon-
itor, they may not actually be parallel on the ground.
5
(Display condition) (Vehicle condition)
S

252
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-13. Rear View Monitor
Some variance occurs between the actual road and the displayed
road. Such variance in distance perspective could lead to an ac cident.
Note the following conditions that may cause a variance in dist ance
perspective.
■When the vehicle is tilted due to the weight of passengers and
load
When the vehicle rear is lower ed, the object displayed on the
screen appears farther than the actual distance.
• When parking in a space with a divi-
sion line on only one side of the park-
ing space, the division line and the
vehicle width guide line may appear
parallel on the monitor, but they may
not actually be parallel on the ground.

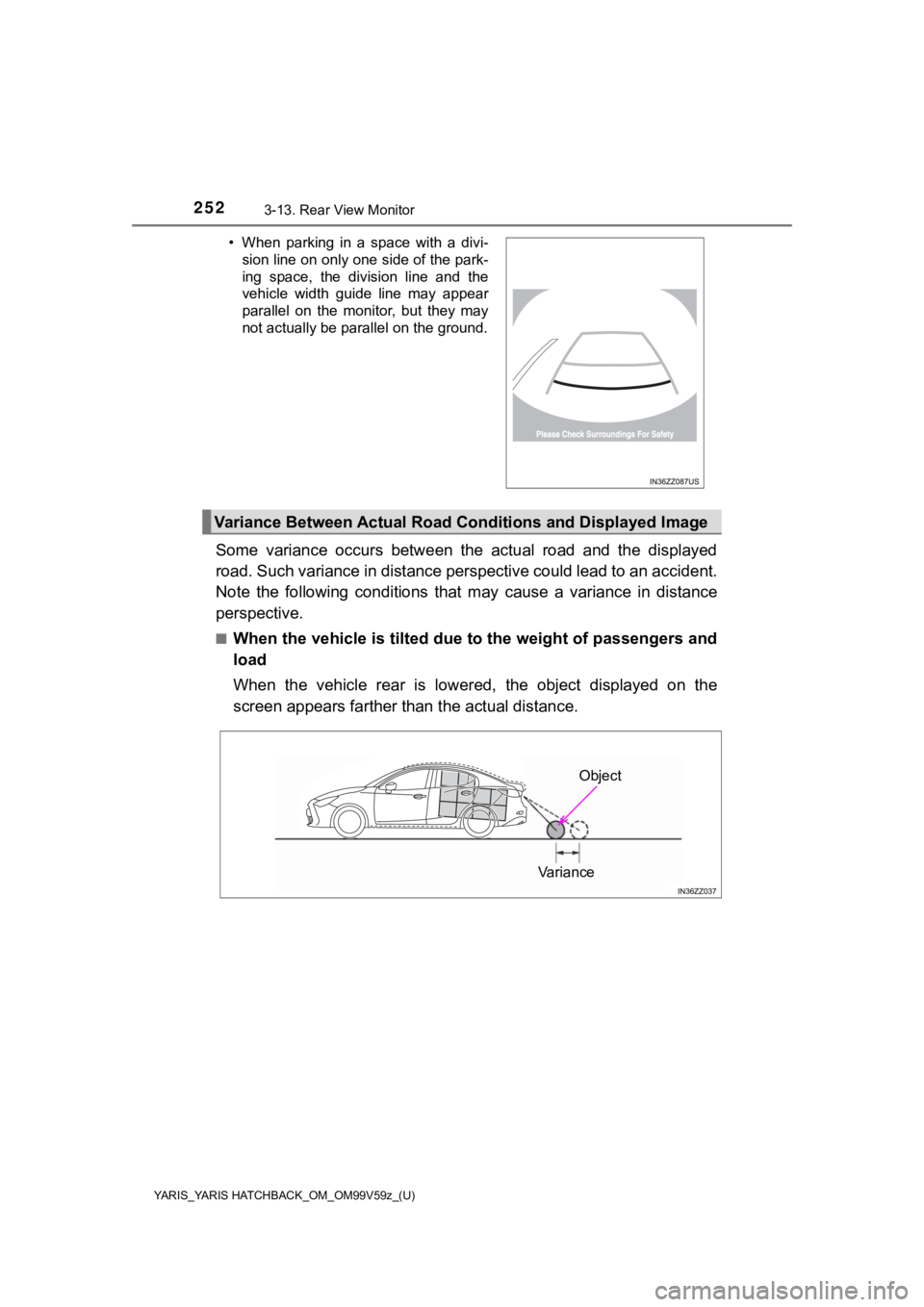

Variance Between Actual Road C onditions and Displayed Image
Object
Variance

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2533-13. Rear View Monitor
3
When Driving
■When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the
object displayed on the screen appears farther (downgrade: clos er)
than the actual distance.

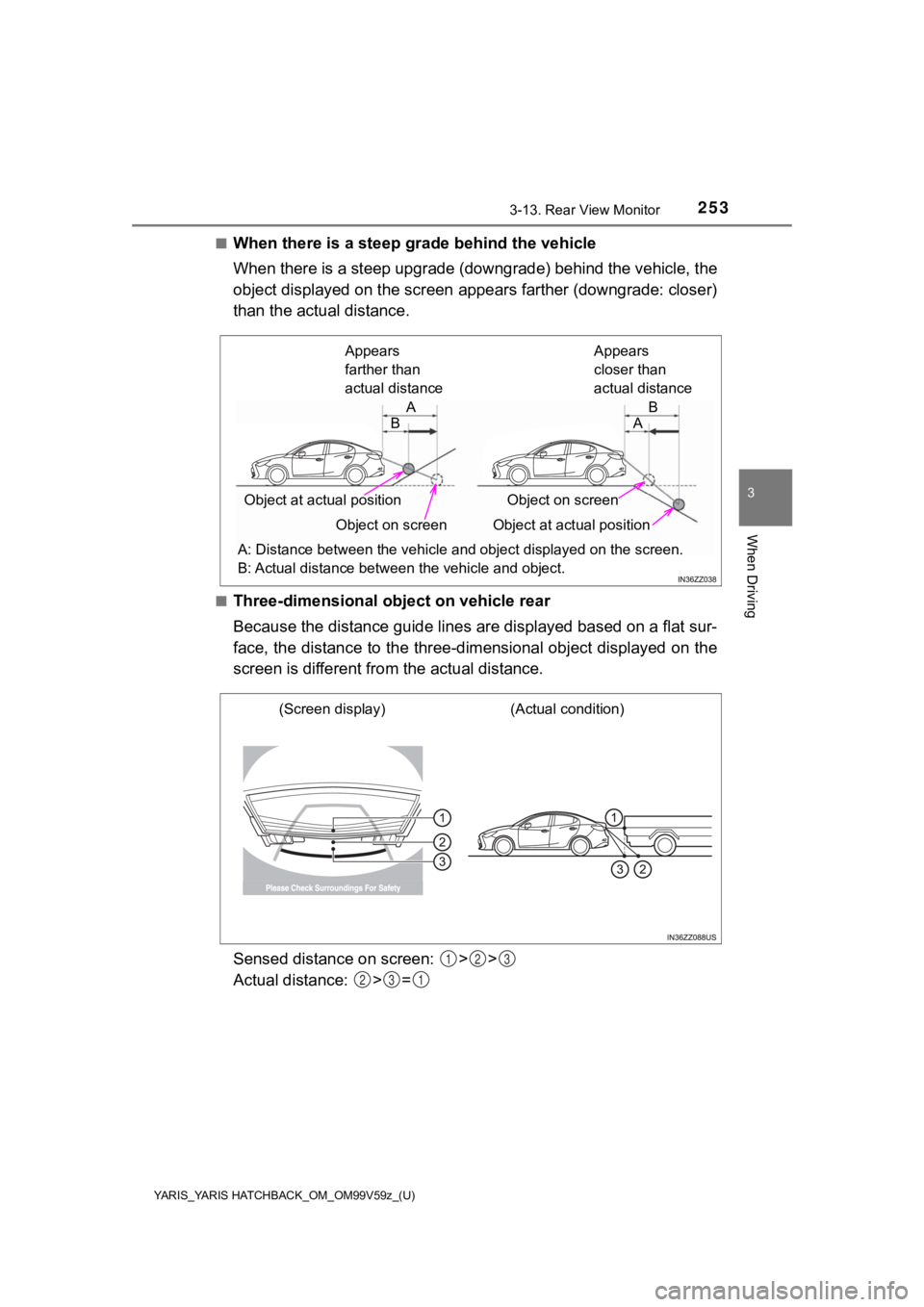

■Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat sur-
face, the distance to the three- dimensional object displayed on the
screen is different fro m the actual distance.
Sensed distance on screen: > >
Actual distance: > =
Appears
farther than
actual distance Appears
closer than
actual distance
Object at actual position Object on screen Object at actual position Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object. A
B B
A
(Actual condition)
(Screen display)
123
231

254
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
3-13. Rear View Monitor
Picture quality adjustment can be done while the shift lever is in
reverse (R).
There are four settings which c an be adjusted including, bright ness,
contrast, tint, and color. When ad justing, pay sufficient attention to the
vehicle surroundings.
Select the icon on the screen to display the tabs.
Select the desired tab item.
Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
Select the icon on the screen to close the tab.
Picture Quality Adjustment
WARNING
■ Always adjust the picture quality of the rear view monitor while the
vehicle is stopped
Do not adjust the picture quality of the rear view monitor while driving the
vehicle. Adjusting the picture quality of the rear view monitor such as bright-
ness, contrast, color, and tint while driving the vehicle is dangerous as it
could distract your attention from the vehicle operation which could lead to
an accident.
1
2
3
4

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2774-2. Audio System
4
Interior Features
●Strong signal noise
This occurs very close to a
transmitter tower. The broad-
cast signals are extremely
strong, so the result is noise
and sound breakup at the
radio receiver.
● Station drift noise
When a vehicle reaches the area o f 2 strong stations broadcast-
ing at similar frequencies, the original station may be tempora rily
lost and the second station picked up. At this time there will be
some noise from this disturbance.
Station 1
88.1 MHz
Station 2
88.3 MHz
MP3 stands for MPEG Audio Layer 3, which is standardized voice
compression establ ished by the ISO
*1 working group (MPEG).
Use of MP3 allows for audio data to be compressed to approximat ely
a tenth of the source data size.
This unit plays files with the extension (.mp3) as MP3 files.
*1: International Organization for Standardization
• When naming an MP3 file, be sure to add an MP3 file extension
(.mp3) after the file name.
• The number of characters which can be displayed is restricted.
1
2
Operating Tips for MP3

278
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System
Supply of this product only conveys a license for private, non-commercial use
and does not convey a license nor imply any right to use this p roduct in any
commercial (i.e. revenue-generating) real time broadcasting (te rrestrial, satel-
lite, cable and/or any other medi a), broadcasting/streaming via the Internet,
intranets and/or other networks or in other electronic content distribution sys-
tems, such as pay-audio or audio-on-demand applications. An ind ependent
license for such use is required.
For details, please visit http://www.mp3licensing.com.
WMA is short for Windows Media Au dio and is the audio compression
format used by Microsoft.
Audio data can be created and stored at a higher compression ra tio
than MP3.
This unit plays files with the extension (.wma) as WMA files.
*: Microsoft and Windows Media are registered trademarks of Microsoft Cor-
poration U.S. in the United States and other countries.
• WMA files written under specifications other than the indicate d
specification may not play norma lly or files or folder names may not
display correctly.
• The file extension may not be provided depending on the comput er
operating system, version, softw are, or settings. In this case, add
the file extension “.wma” to t he end of the file name, and then write
it to the memory.
NOTICE
Do not use an audio file extension on files other than audio fi les. In addition,
do not change the audio file extension. Otherwise, the unit wil l not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for WMA
NOTICE
Do not use an audio file extension on files other than audio fi les. In addition,
do not change the audio file extension. Otherwise, the unit wil l not recog-
nize the file correctly resulting in noise or a malfunction.

280
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System
OGG is the audio compression format for Xiph. Org Foundation.
Audio data can be created and stored at a higher compression ratio
than MP3.
This unit plays files with the extension (.ogg) as OGG files.
• OGG files written under specific ations other than the indicated
specification may not play norma lly or files or folder names may not
display correctly.
• The file extension may not be provided depending on the comput er
operating system, version, softw are, or settings. In this case, add
the file extension “.ogg” to th e end of the file name, and then write it
to the disc.
This unit plays audi o files as follows:
MP3/WMA/AAC/OGG
*1 files written under specifications other than
the indicated specification may not play normally or files/folder names
may not display correctly.
Operating Tips for OGG
NOTICE
Do not use an audio file extension on files other than audio fi les. In addition,
do not change the audio file extension. Otherwise, the unit wil l not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for USB device
ExtensionPlayback with this unit
.mp3MP3
.wmaWMA
.aac
AAC.m4a
.wav
.oggOGG

283
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4-2. Audio System
4
Interior Features
Audio Set
The explanation of functions described in this manual may differ from
the actual operation, and the shapes of screens and buttons and the
letters and characters displayed may also differ from the actua l
appearance.
Additionally, depending on future software updates, the content may
successively change without notice.

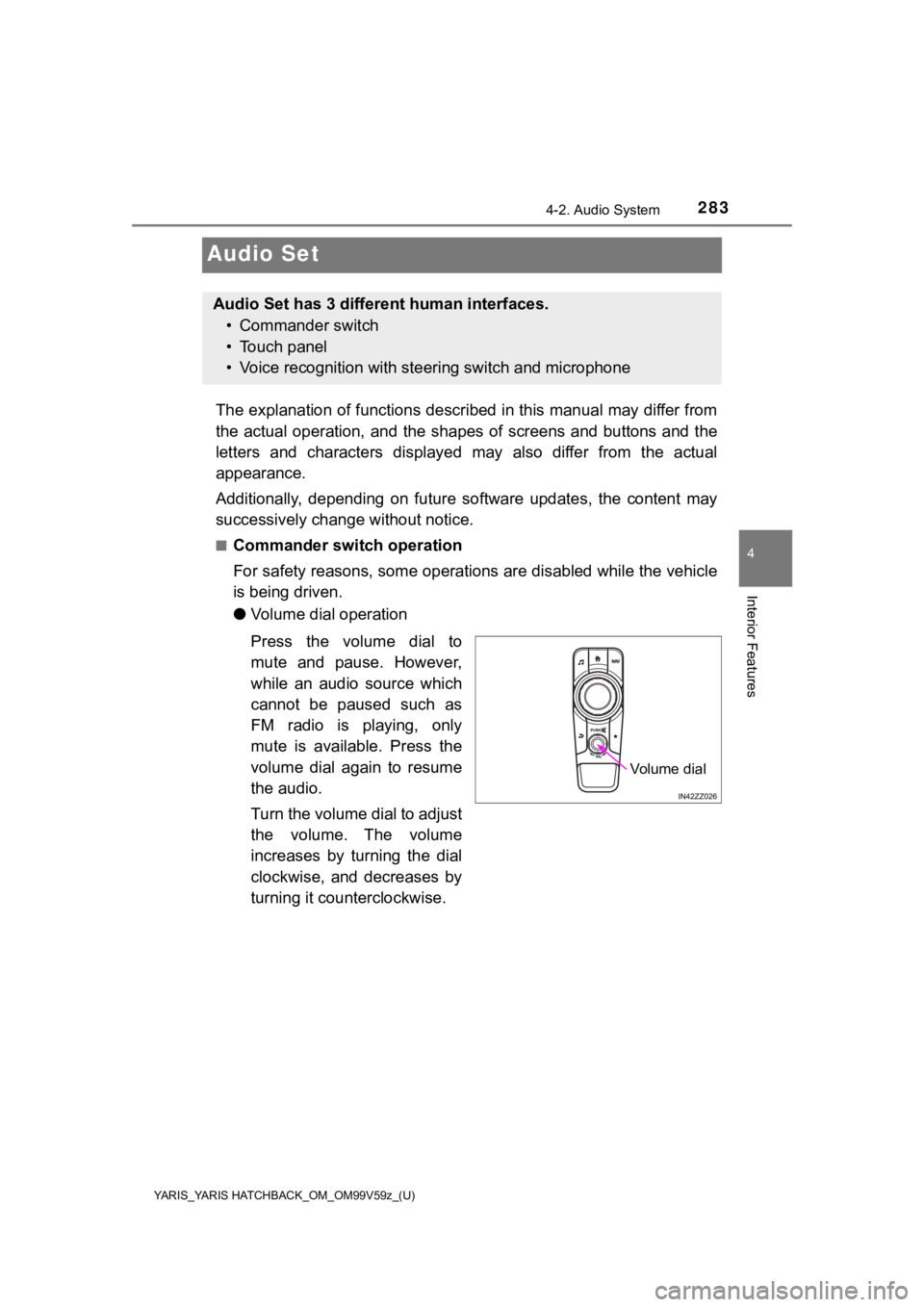

■Commander switch operation
For safety reasons, some operations are disabled while the vehi cle
is being driven.
● Volume dial operation
Press the volume dial to
mute and pause. However,
while an audio source which
cannot be paused such as
FM radio is playing, only
mute is available. Press the
volume dial again to resume
the audio.
Turn the volume dial to adjust
the volume. The volume
increases by turning the dial
clockwise, and decreases by
turning it counterclockwise.
Audio Set has 3 different human interfaces.
• Commander switch
• Touch panel
• Voice recognition with steer ing switch and microphone
Vo l u m e d i al
