TOYOTA YARIS HATCHBACK 2020 Owners Manual (in English)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4215-3. Owner Maintenance
5
Maintenance and Care
WARNING
■Never touch the glass portion of a halogen bulb with your bare hands
and always wear eye protection wh en handling or working around the
bulbs
When a halogen bulb breaks, it is dangerous. These bulbs contai n pressur-
ized gas. If one is broken, it will explode and serious injurie s could be
caused by the flying glass.
If the glass portion is touched with bare hands, body oil could cause the
bulb to overheat and explode when lit.
■ Always keep halogen bulbs out of the reach of children
Playing with a halogen bulb is dangerous. Serious injuries coul d be caused
by dropping a halogen bulb or breaking it some other way.
NOTICE
When removing the lens or lamp unit using a flathead screwdrive r, m a k e
sure that the flathead screwdriver does not contact the interio r terminal. If
the flathead screwdriver contacts the terminal, a short circuit may occur.

4225-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)

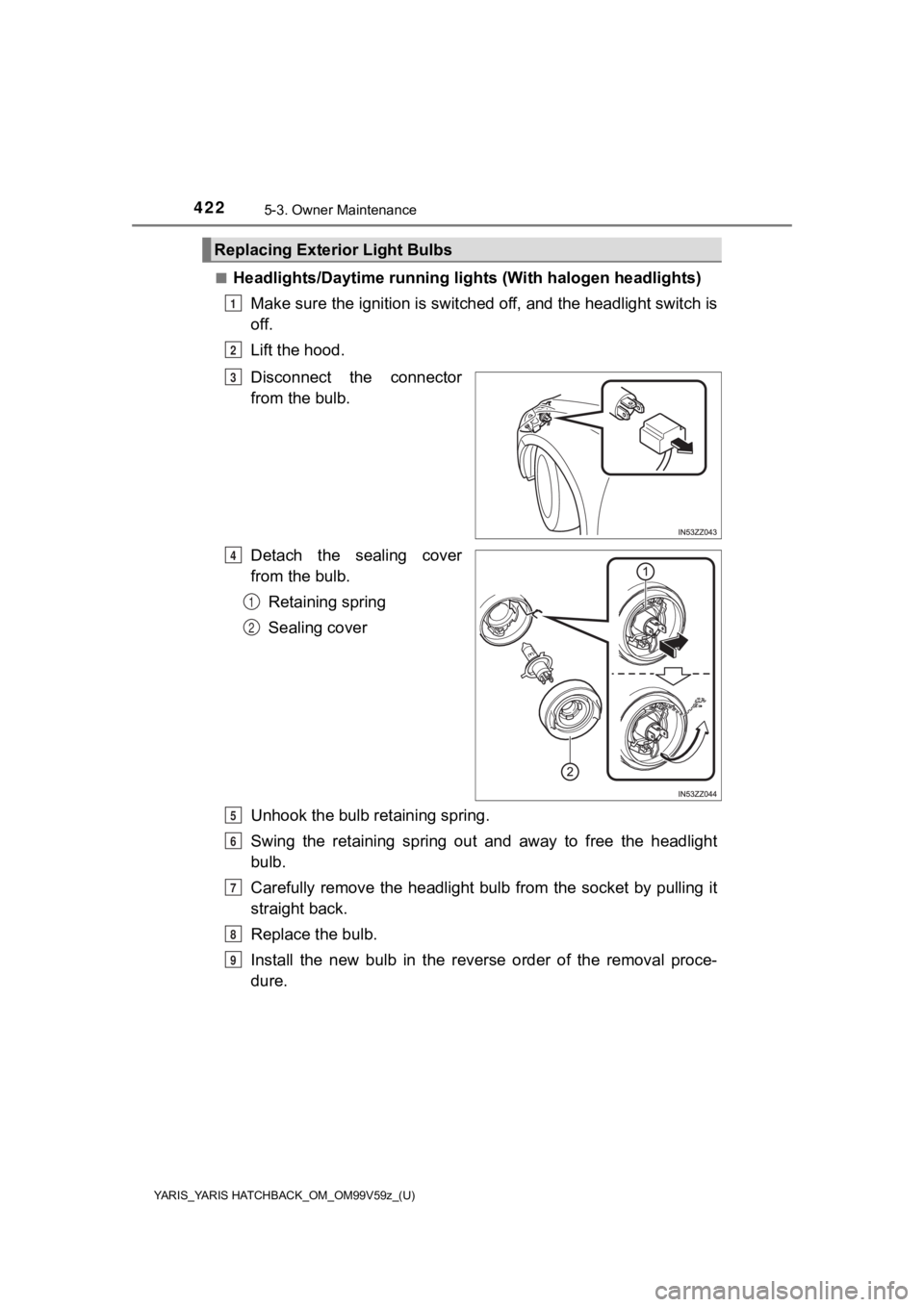

■Headlights/Daytime running lights (With halogen headlights)
Make sure the ignition is swit ched off, and the headlight switc h is
off.
Lift the hood.
Disconnect the connector
from the bulb.
Detach the sealing cover
from the bulb.
Retaining spring
Sealing cover
Unhook the bulb retaining spring.
Swing the retaining spring out and away to free the headlight
bulb.
Carefully remove the headlight bulb from the socket by pulling it
straight back.
Replace the bulb.

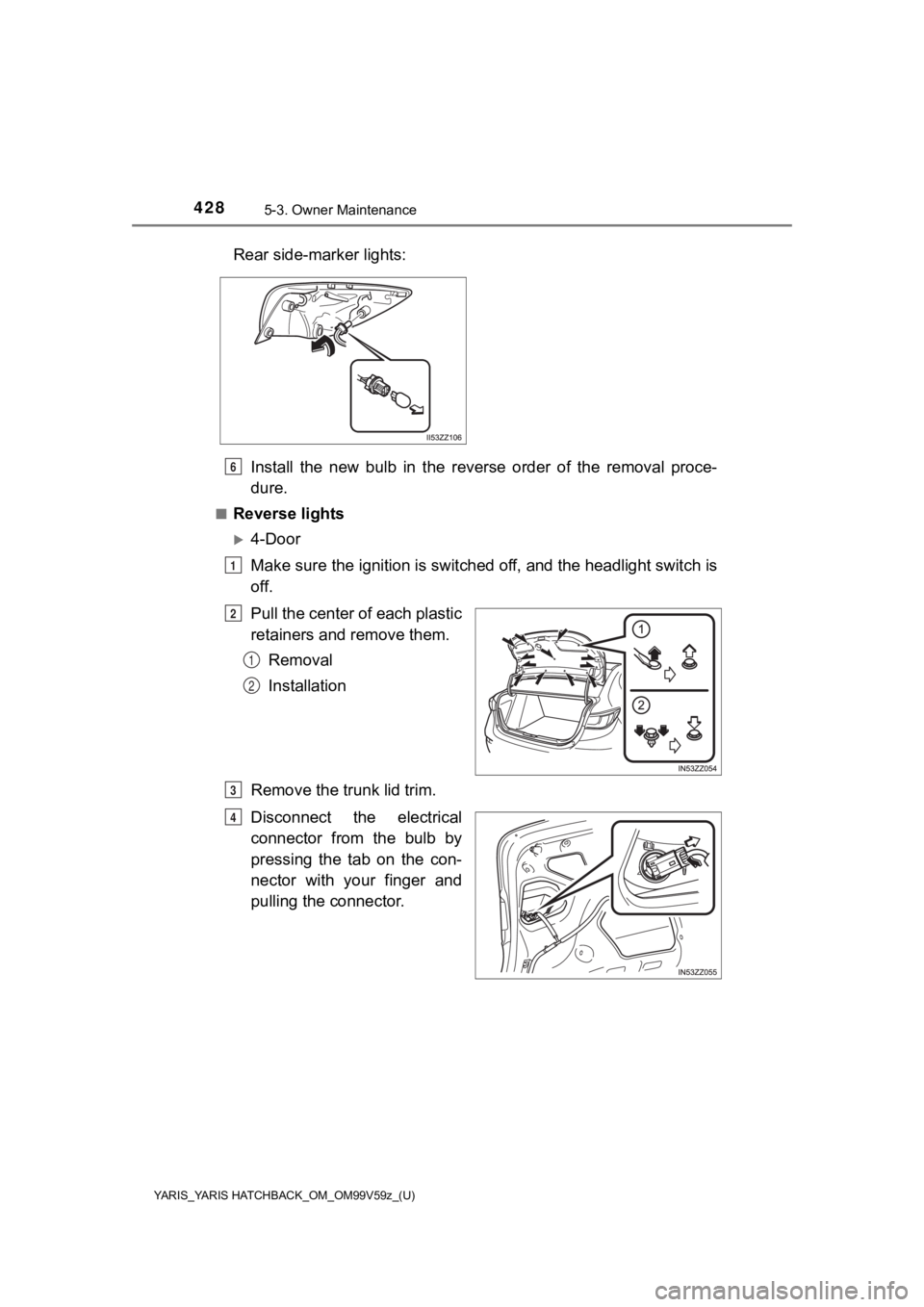

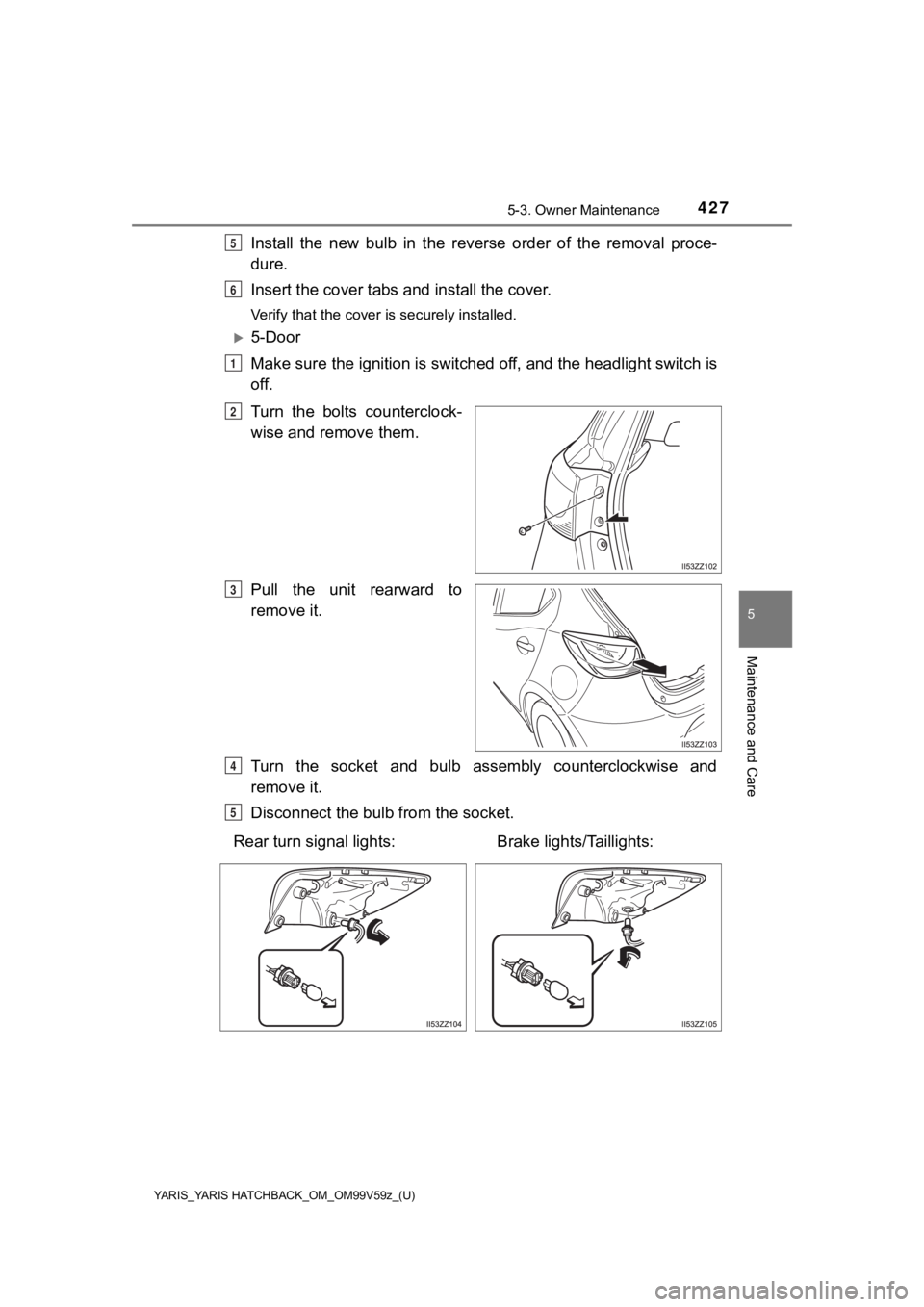

Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Exterior Light Bulbs
1
2
3
4
1
2
5
6
7
8
9

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4235-3. Owner Maintenance
5
Maintenance and Care

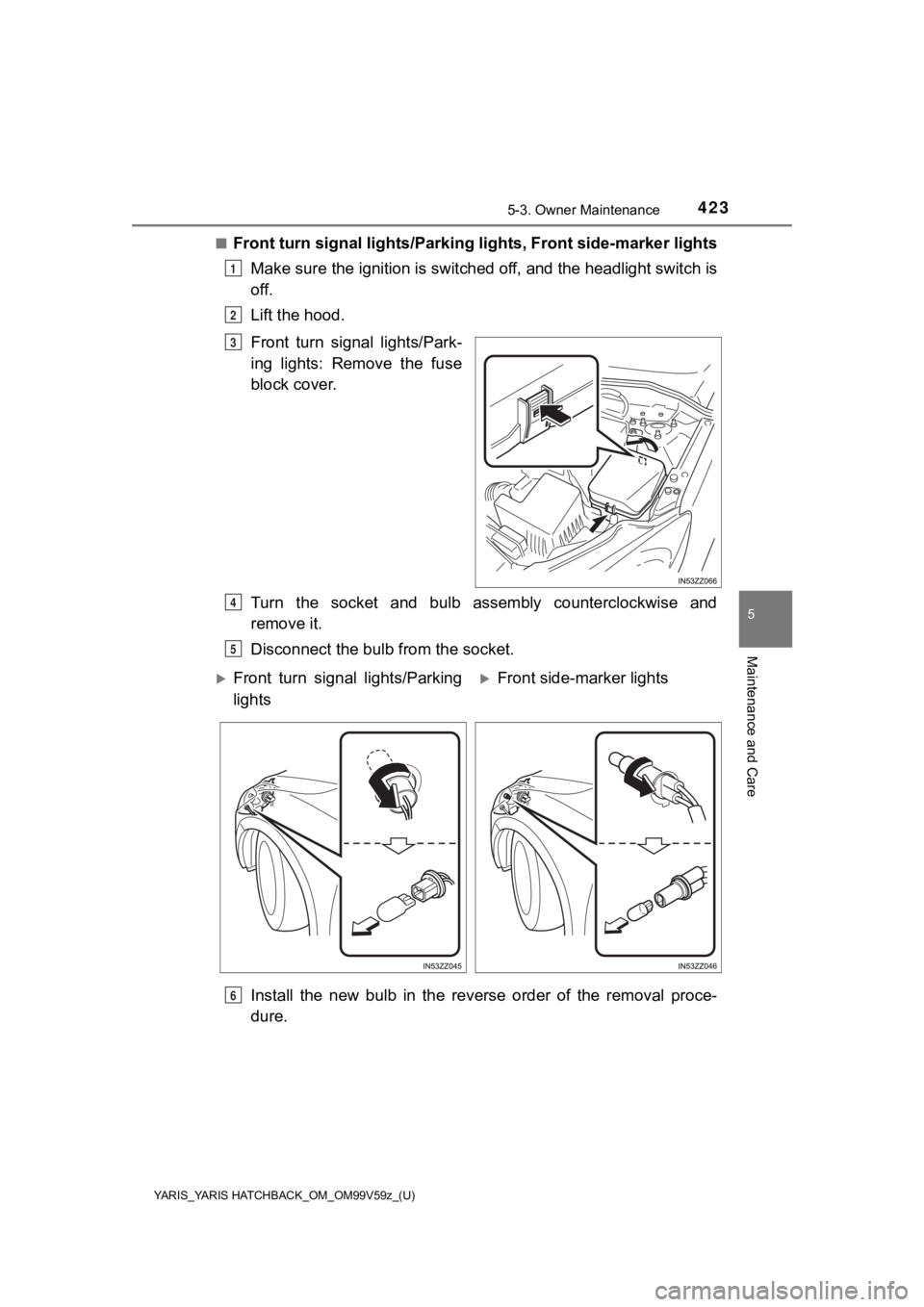

■Front turn signal lights/Parking lights, Front side-marker lights
Make sure the ignition is swit ched off, and the headlight switc h is
off.
Lift the hood.
Front turn signal lights/Park-
ing lights: Remove the fuse
block cover.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
Install the new bulb in the reverse order of the removal proce-
dure.
1
2
3
4
5
Front turn signal lights/Parking
lightsFront side-marker lights
6

4245-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)

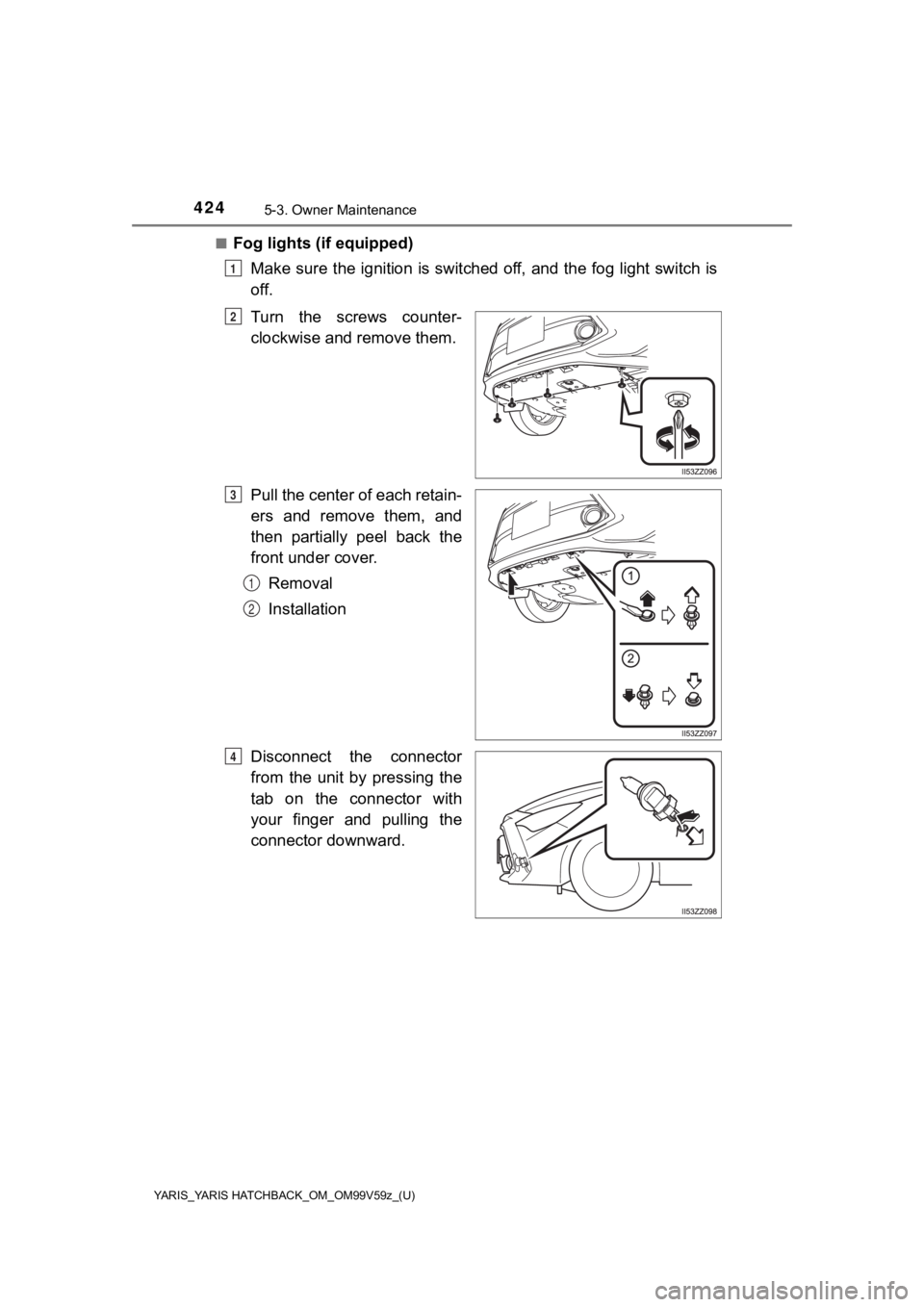

■Fog lights (if equipped)Make sure the ignition is switched off, and the fog light switc h is
off.
Turn the screws counter-
clockwise and remove them.
Pull the center of each retain-
ers and remove them, and
then partially peel back the
front under cover.
Removal
Installation
Disconnect the connector
from the unit by pressing the
tab on the connector with
your finger and pulling the
connector downward.
1
2
3
1
2
4

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4255-3. Owner Maintenance
5
Maintenance and Care

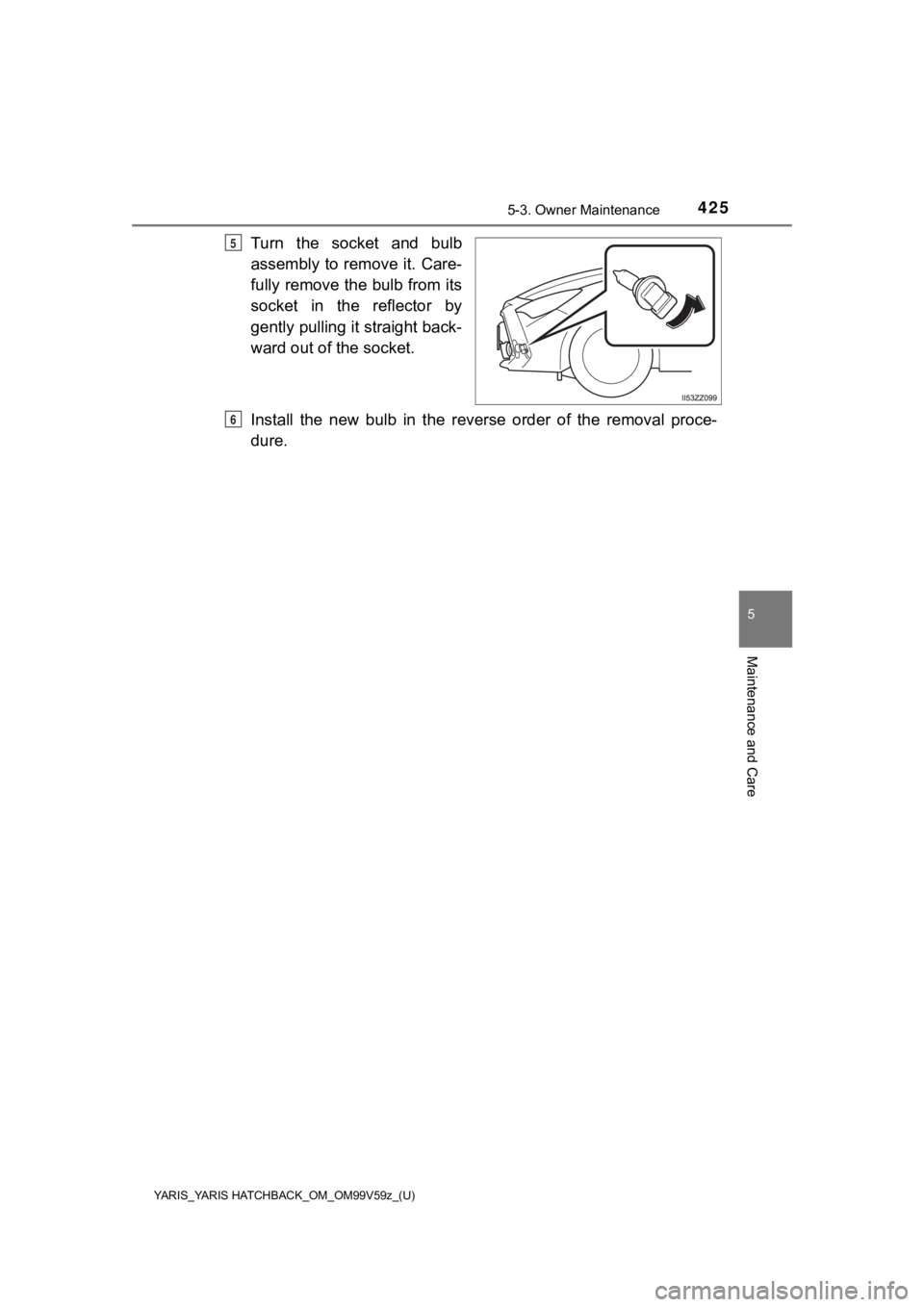

Turn the socket and bulb
assembly to remove it. Care-
fully remove the bulb from its
socket in the reflector by
gently pulling it straight back-
ward out of the socket.
Install the new bulb in the reverse order of the removal proce-
dure.5
6

4265-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)

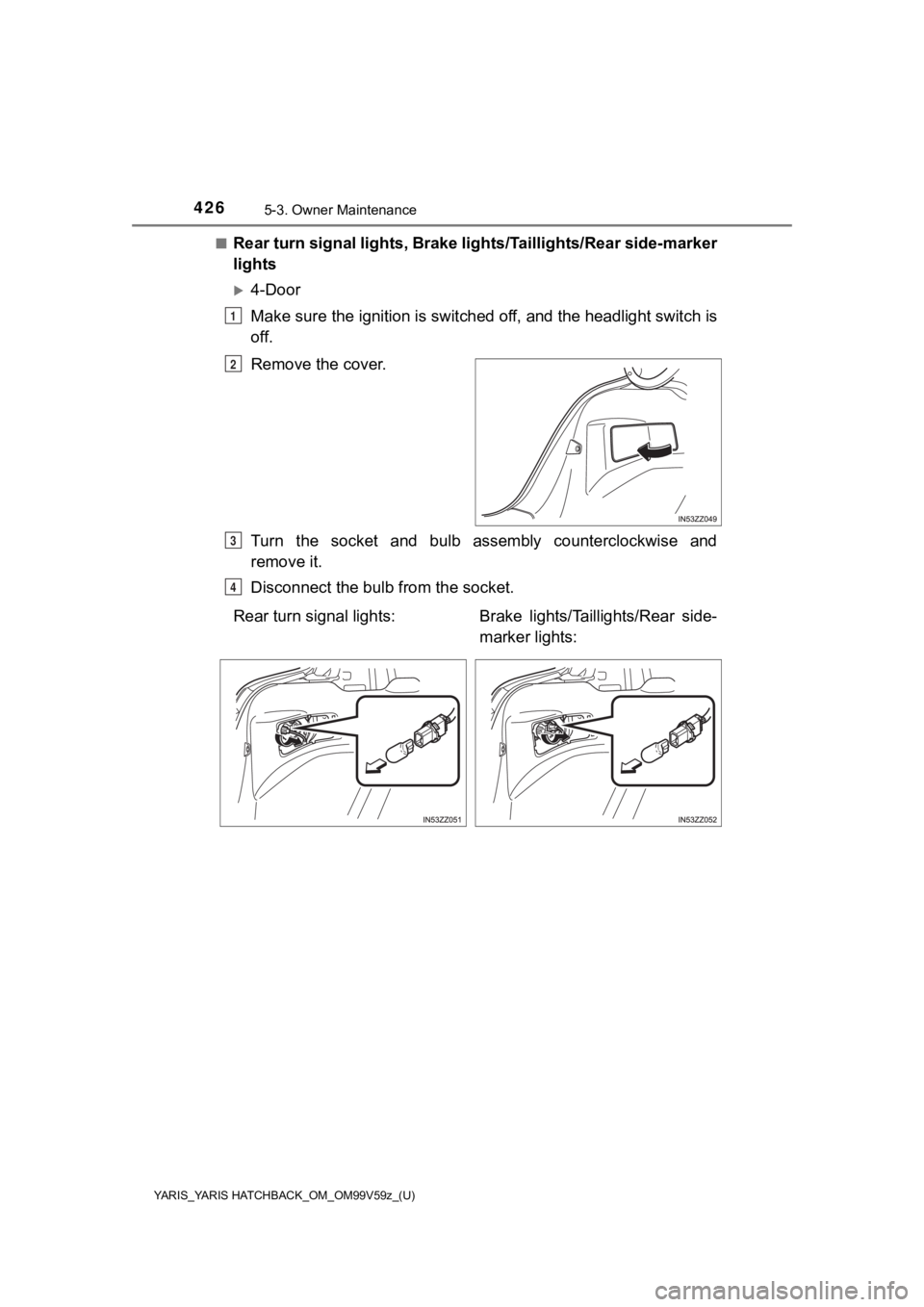

■Rear turn signal lights, Brake lights/Taillights/Rear side-marker
lights
4-Door
Make sure the ignition is swit ched off, and the headlight switc h is
off.
Remove the cover.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
1
2
3
4
Rear turn signal lights: Brake lights/Taillights/Rear side-
marker lights:

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4275-3. Owner Maintenance
5
Maintenance and Care
Install the new bulb in the reverse order of the removal proce-
dure.
Insert the cover tabs and install the cover.
Verify that the cover is securely installed.
5-Door
Make sure the ignition is swit ched off, and the headlight switc h is
off.
Turn the bolts counterclock-
wise and remove them.
Pull the unit rearward to
remove it.
Turn the socket and bulb assembly counterclockwise and
remove it.
Disconnect the bulb from the socket.
5
6
1
2
3
4
5
Rear turn signal lights: Brake lights/Taillights:

4285-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Install the new bulb in the reverse order of the removal proce-
dure.
■Reverse lights
4-Door
Make sure the ignition is switched off, and the headlight switc h is
off.
Pull the center of each plastic
retainers and remove them.
Removal
Installation
Remove the trunk lid trim.
Disconnect the electrical
connector from the bulb by
pressing the tab on the con-
nector with your finger and
pulling the connector.
Rear side-marker lights:
6
1
2
1
2
3
4

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4295-3. Owner Maintenance
5
Maintenance and Care

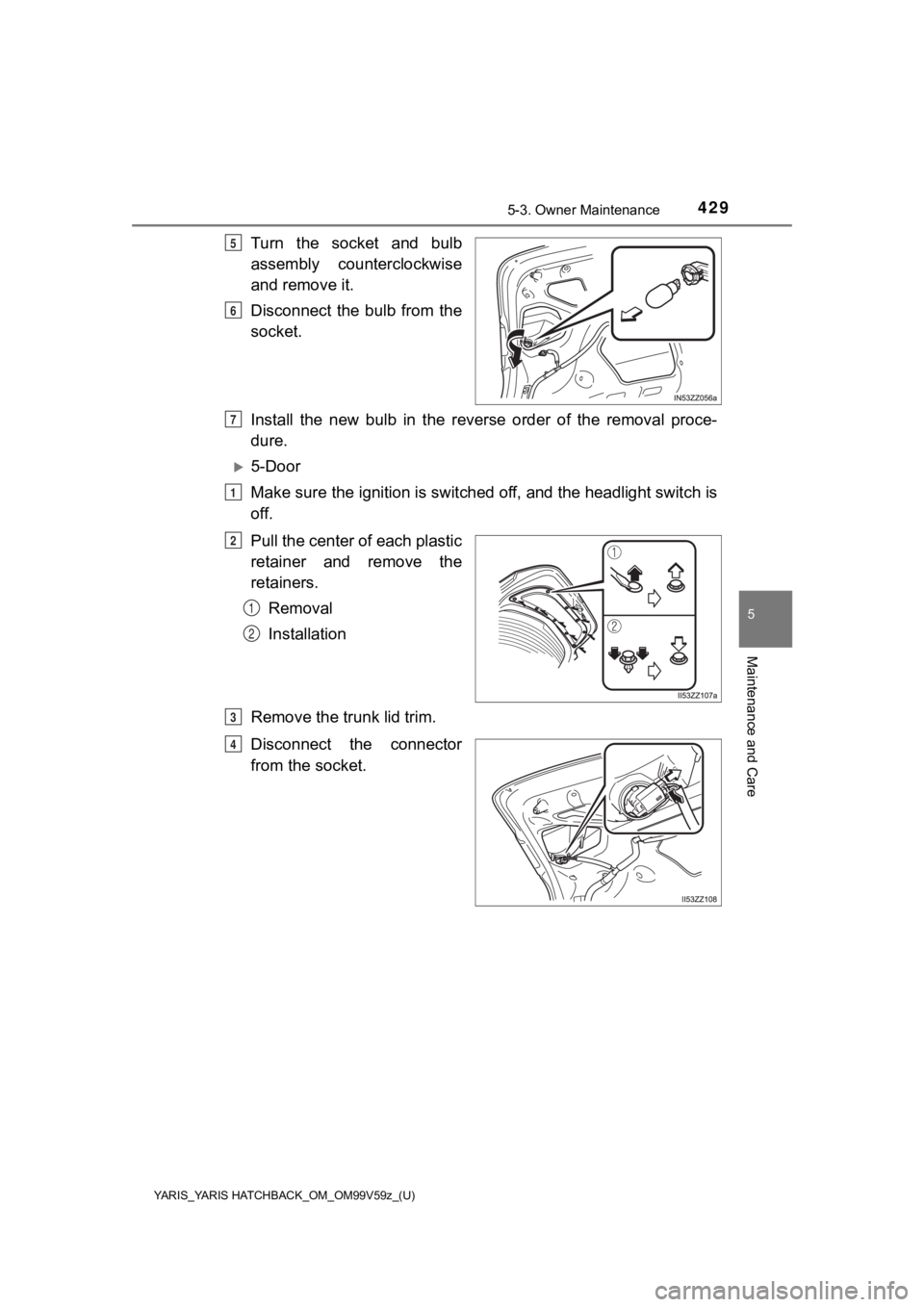

Turn the socket and bulb
assembly counterclockwise
and remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
5-Door
Make sure the ignition is switched off, and the headlight switc h is
off.
Pull the center of each plastic
retainer and remove the
retainers.
Removal
Installation
Remove the trunk lid trim.
Disconnect the connector
from the socket.
5
6
7
1
2
1
2
3
4

4305-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Turn the socket and bulb
assembly counterclockwise
and remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.5
6
7
