4916-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
(Red)

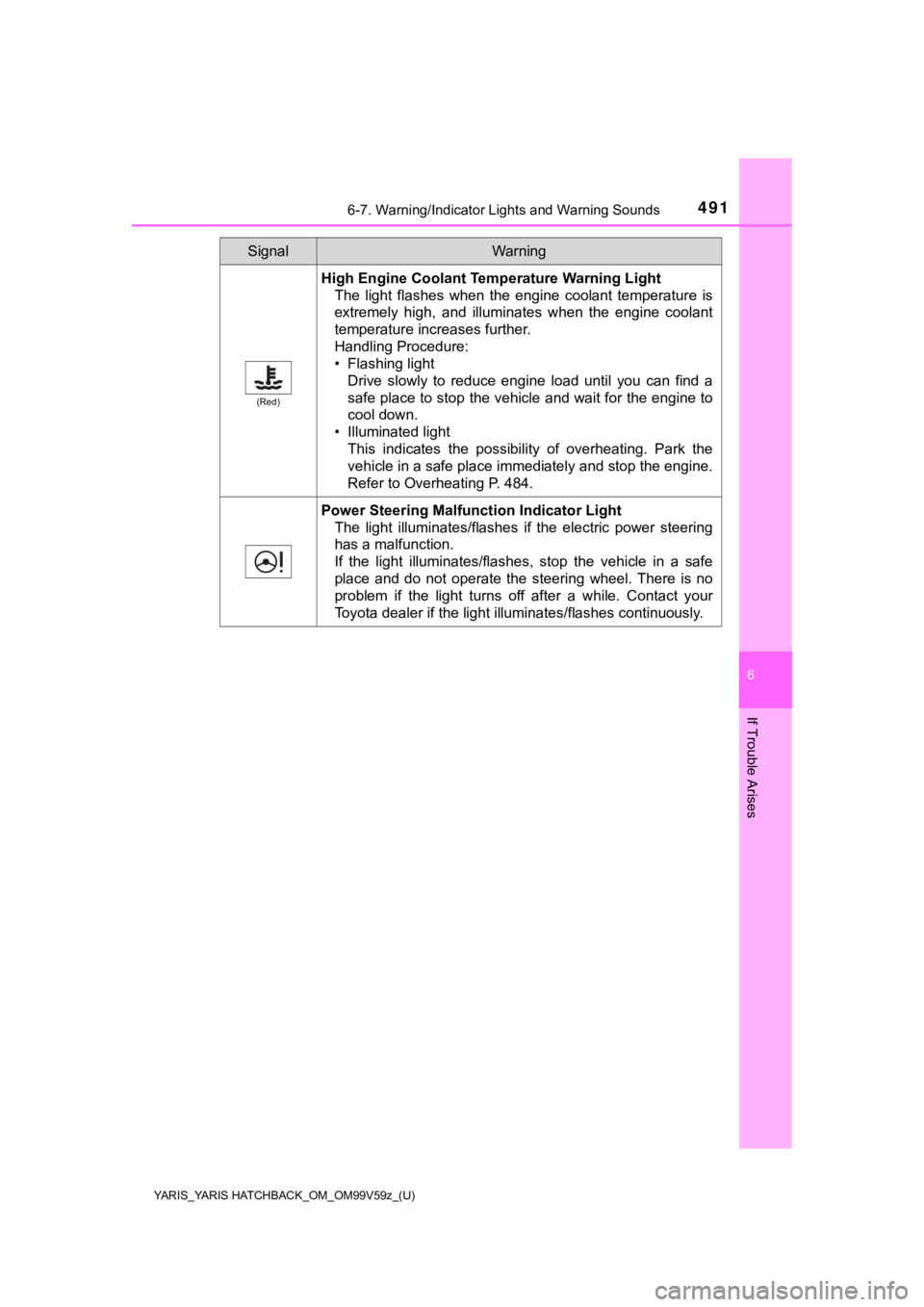

High Engine Coolant Temperature Warning LightThe light flashes when the engine coolant temperature is
extremely high, and illuminates when the engine coolant
temperature increases further.
Handling Procedure:
• Flashing light
Drive slowly to reduce engine load until you can find a
safe place to stop the vehicle and wait for the engine to
cool down.
• Illuminated light This indicates the possibility of overheating. Park the
vehicle in a safe place immediately and stop the engine.
Refer to Overheating P. 484.
Power Steering Malfunction Indicator Light
The light illuminates/flashes if the electric power steering
has a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe
place and do not operate the steering wheel. There is no
problem if the light turns off after a while. Contact your
Toyota dealer if the light illuminates/flashes continuously.
SignalWarning

4926-7. Warning/Indicator Lights and Warning Sounds
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Power Steering Malfunction Indicator Light
●If the indicator light illuminates/flashes, the power steering will not operate
normally. If this happens, the steering wheel can still be operated, however,
the operation may feel heavy compared to normal, or the steering wheel
could vibrate when turning.
● Repeatedly jerking the steering wheel left and right while the vehicle is
stopped or moving extremely slowly will cause the power steerin g system to
go into protective mode which will make the steering feel heavy , but this
does not indicate a problem. If this occurs, park the vehicle safely and wait
several minutes for the system to return to normal.
WARNING
■ Do not drive with the brake system warning light illuminated. C ontact
your Toyota dealer to have the brakes inspected as soon as poss ible
Driving with the brake system warning light illuminated is dang erous. It indi-
cates that your brakes may not work at all or that they could c ompletely fail
at any time. If this light remains illuminated, after checking that the parking
brake is fully released, have the brakes inspected immediately.
In addition, the effectiveness of the braking may diminish so y ou may need
to depress the brake pedal more strongly than normal to stop th e vehicle.
■ Do not drive with both the ABS warning light and brake warning light
illuminated. Have the vehicle towed to your Toyota dealer to have the
brakes inspected as soon as possible
Driving when the brake system warning light and ABS warning lig ht are illu-
minated simultaneously is dangerous.
When both lights are illuminated, the rear wheels could lock mo re quickly in
an emergency stop than under normal circumstances.
NOTICE
■ Charging System Warning Light
Do not continue driving when the charging system warning light is illumi-
nated because the engine could stop unexpectedly.
■ Engine Oil Warning Light
● Do not run the engine if the oil pressure is low. Otherwise, it could result in
extensive engine damage.
● Do not run the engine if the oil level is low. Otherwise, it co uld result in
extensive engine damage.
■ High Engine Coolant Temperature Warning Light
Do not drive the vehicle with the high engine coolant temperatu re warning
light illuminated. Otherwise, it could result in damage to the engine.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4936-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
If any of the following warning lights turns on/flashes, the system may
have a malfunction. Contact your Toyota dealer to have your veh icle
inspected.
Contact Your Toyota Dealer and Have Vehicle Inspected
SignalWarning
Master Warning Light The light turns on when the system has a malfunction.
Operate the center display and verify the content.
Refer to If a Warning Light Turns On or Flashes on P. 489.
ABS Warning LightIf the ABS warning light stays on while you’re driving, the
ABS control unit has detected a system malfunction. If this
occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult your Toyota dealer as soon as
possible.
Check Engine Light
If this light illuminates while driving, the vehicle may have
a problem. It is important to note the driving conditions
when the light illuminated and consult your Toyota dealer.
The check engine light may illuminate in the following
cases:
• The fuel tank level being very low or approaching empty.
• The engine’s electrical system has a problem.
• The emission control system has a problem.
• The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continu-
ously, do not drive at high speeds and consult your Toyota
dealer as soon as possible.
(if equipped)
Automatic Transaxle Warning LightThe light illuminates when the transaxle has a problem.
(Illuminate)
TCS/DSC Indicator LightIf the light stays on, the TCS, DSC or the brake assist sys-
tem may have a malfunction and they may not operate
correctly. Take your vehicle to your Toyota dealer.
Air Bag/Front Seat Belt Pretensioner System Warning
LightA system malfunction is indicated if the warning light con-
stantly flashes, constantly illuminates or does not illumi-
nate at all when the ignition is switched ON. If any of these
occur, consult your Toyota dealer as soon as possible.
The system may not operate in an accident.

4946-7. Warning/Indicator Lights and Warning Sounds
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■ABS Warning Light
●When the engine is jump-started to charge the battery, uneven r pm occurs
and the ABS warning light may illuminate. If this occurs, it is the result of the
weak battery and does not indicate an ABS malfunction.
Recharge the battery.
● The brake assist system does not operate while the ABS warning light is illu-
minated.
(Flashing)
(if equipped)
Tire Pressure Monitoring System Warning Light
If the tire pressure monito ring system has a malfunc-
tion, the tire pressure warning light flashes for about 1
minute when the ignition is switched ON and then con-
tinues illuminating. Have your vehicle checked by your
Toyota dealer as soon as possible.
(Red)
(Illuminate)
KEY Warning Light
If any malfunction occurs in the keyless entry system, it
illuminates continuously.
Refer to Emergency Operation for Starting the Engine on
P. 162.
(if equipped)
LED Headlight Warning LightThis light illuminates if there is a malfunction in the LED
headlight. Have your vehicle inspected by your Toyota
dealer.
SignalWarning

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4956-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
WARNING
■Never tamper with the air bag/pr etensioner systems and always h ave
your Toyota dealer perform all servicing and repairs
Self-servicing or tampering with the systems is dangerous. An a ir bag/pre-
tensioner could accidentally activate or become disabled causin g serious
injury or death.
■
If the tire pressure monitoring system warning light illuminate s or
flashes, or the tire pressure warning beep sound is heard, decr ease
vehicle speed immediately and avoid sudden maneuvering and
braking
If the tire pressure monitoring system warning light illuminate s or
flashes, or the tire pressure war ning beep sound is heard, it is danger-
ous to drive the vehicle at high speeds, or perform sudden mane uvering
or braking. Vehicle drivability co uld worsen and result in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position
where you can check the visual condition of the tire and determ ine if you
have enough air to proceed to a place where air may be added an d the
system monitored again by your Toyota dealer or a tire repair s tation.
■Do not ignore the TPMS Warning Light
Ignoring the TPMS warning light is dangerous, even if you know why it
is illuminated. Have the problem taken care of as soon as possi ble
before it develops into a more serious situation that could lea d to tire
failure and a dangerous accident.
NOTICE
■ Automatic Transaxle Warning Light
If the automatic transaxle warning light illuminates, the trans axle has an
electrical problem. Continuing to drive your Toyota in this condition could
cause damage to your transaxle. Consult your Toyota dealer as s oon as
possible.
■ KEY Warning Light
If the key warning indicator light illuminates or the push button start indicator
light (amber) flashes, the engine may not start. If the engine cannot be
started, try starting it using the emergency operation for star ting the engine,
and have the vehicle inspected at your Toyota dealer as soon as possible.

4966-7. Warning/Indicator Lights and Warning Sounds
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Take the appropriate action and verify that the warning light turns off.
Taking Action
SignalWarningAction to be taken
Low Fuel Warning Light The light turns on when the
remaining fuel is about 2.3
gal. (9.0 L, 1.9 Imp.gal.). Add fuel.
Check Fuel Cap Warning
Light
If the check fuel cap warning
light illuminates while driving,
the fuel-filler cap may not be
installed properly.
Stop the engine and rein-
stall the fuel-filler cap.
Refer to Refueling on
P. 125
Seat Belt Warning LightThe seat belt warning light
turns on if the driver or front
passenger’s seat is occupied
and the seat belt is not fas-
tened with the ignition
switched ON.
If the driver or front passen-
ger’s seat belt is unfastened
(only when the front passen-
ger’s seat is occupied) and
the vehicle is driven at a
speed faster than about 12
mph (20 km/h), the warning
light flashes. After a short
time, the warning light stops
flashing, but remains illumi-
nated.
Fasten the seat belts.
Door-Ajar Warning LightThe light turns on if any door/
trunk lid/liftgate is not closed
securely.
Close the door/trunk lid/
liftgate securely.
(if equipped)
Low Washer Fluid Level
Warning LightThis warning light indicates
that little washer fluid
remains.
Add washer fluid
(P. 402).

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4976-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
■KEY Warning Light
Take the appropriate action and verify that the warning light turns
off.
(Illuminate)
(if equipped)
Tire Pressure Monitoring
System Warning Light
When the warning light illu-
minates, and the warning
beep sound is heard (about
3 seconds), tire pressure is
too low in one or more tires.
Inspect the tires and
adjust to the specified
inflation pressure
( P. 4 1 3 ) .
(Amber)
Low Speed Pre-Collision Sys-
tem Warning Light
The light turns on if the wind-
shield is dirty or there is a
malfunction in the system.
Verify the reason why the
warning light is illuminated
on the center display
(P. 489).
If the reason why the
warning light is illuminated
is due to a dirty wind-
shield, clean the wind-
shield.
For any other reasons,
have the vehicle
inspected at your Toyota
dealer.
SignalWarningAction to be taken
SignalCauseAction to be taken
(Red)
(Flashing)
The smart key battery is dead.Replace the key battery
( P. 410).
The smart key is not within the
operation range.
Bring the smart key into
the operation range
(P. 98).The smart key is placed in
areas inside the cabin where it
is difficult for the key to be
detected.
A key from another manufac-
turer similar to the smart key is
in the operation range.Take the key from another
manufacturer similar to
the smart key out of the
operation range.
Without the ignition switched
off, the smart key is taken out of
the cabin, and then all the
doors are closed.
Bring the smart key back
into the cabin.

4986-7. Warning/Indicator Lights and Warning Sounds
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Low Fuel Warning Light
The light illumination timing may vary because fuel inside the fuel tank moves
around according to the driving conditions and the vehicle post ure.
■ Seat Belt Warning Light
●The warning light flashes for about 6 seconds if the driver’s s eat belt is not
fastened when the ignition is switched ON.
● To allow the front passenger occupant classification sensor to function prop-
erly, do not place and sit on an additional seat cushion on the front passen-
ger’s seat. The sensor may not function properly because the ad ditional
seat cushion could cause sensor interference.
● If a small child is seated on the front passenger’s seat, the warning light may
not operate.
■ Tire Pressure Monitoring System Warning Light
●
Perform tire pressure adjustment when the tires are cold. Tire pressure
will vary according to the tire temperature, therefore let the vehicle stand
for 1 hour or only drive it 1 mile (1.6 km) or less before adju sting the tire
pressures. When pressure is adjusted on hot tires to the cold i nflation
pressure, the TPMS warning light/beep may turn on after the tir es cool
and pressure drops below specification.
Also, an illuminated TPMS warning light, resulting from the tire air pres-
sure dropping due to cold ambient temperature will remain illum inated
even if the ambient t emperature rises. In this case, it will also be neces-
sary to adjust the tire air pressures. If the TPMS warning ligh t illuminates
due to a drop in tire air pressure, make sure to check and adju st the tire
air pressures.
●Tires lose air naturally over time and the TPMS cannot tell if the tires are
getting too soft over time or you have a flat. However, when you find one
low tire in a set of four-that is an indication of trouble; you should have
someone drive the vehicle slowly forward so you can inspect any low
tire for cuts and any metal objects sticking through tread or s idewall. Put
a few drops of water in the valve stem to see if it bubbles ind icating a
bad valve. Leaks need to be addressed by more than simply reinf lating
the tire as leaks are dangerous - take it to your Toyota dealer .

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4996-7. Warning/Indicator Lights and Warning Sounds
6
If Trouble Arises
WARNING
■If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pressure warning beep sound is heard, decr ease
vehicle speed immediately and avoid sudden maneuvering and
braking
If the tire pressure monitoring system warning light illuminate s or
flashes, or the tire pressure war ning beep sound is heard, it is danger-
ous to drive the vehicle at high speeds, or perform sudden mane uvering
or braking. Vehicle drivability co uld worsen and result in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position
where you can check the visual condition of the tire and determ ine if you
have enough air to proceed to a place where air may be added an d the
system monitored again by your Toyota dealer or a tire repair s tation.
■Do not ignore the TPMS Warning Light
Ignoring the TPMS warning light is dangerous, even if you know why it
is illuminated. Have the problem taken care of as soon as possi ble
before it develops into a more serious situation that could lea d to tire
failure and a dangerous accident.

500
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
6-7. Warning/Indicator Lights and Warning Sounds
Message Indicated on Display
■Display example
If a message is displayed in the center display, take appropria te
action (in a calm manner) accor ding to the displayed message.
