fog light bulb TOYOTA YARIS HATCHBACK 2020 Owners Manual (in English)

419
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Light Bulbs
■Front
With Halogen Headlights
Headlights (Low/High beam)/
Daytime running lights
Front side-marker lights
Overhead lights/Map lights
Side turn signal lights (if
equipped)
Front turn signal lights/Park-
ing lights
Fog lights (if equipped)
With LED Headlights
Headlights (High beam)
Headlights (Low beam)
Front side-marker lights
Overhead lights/Map lights
Side turn signal lights (if
equipped)
Front turn signal lights/Park-
ing lights
Daytime running light/Park-
ing light
Fog lights
1
2
3
4
5
6
1
2
3
4
5
6
7
8

5528-2. Specifications
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)

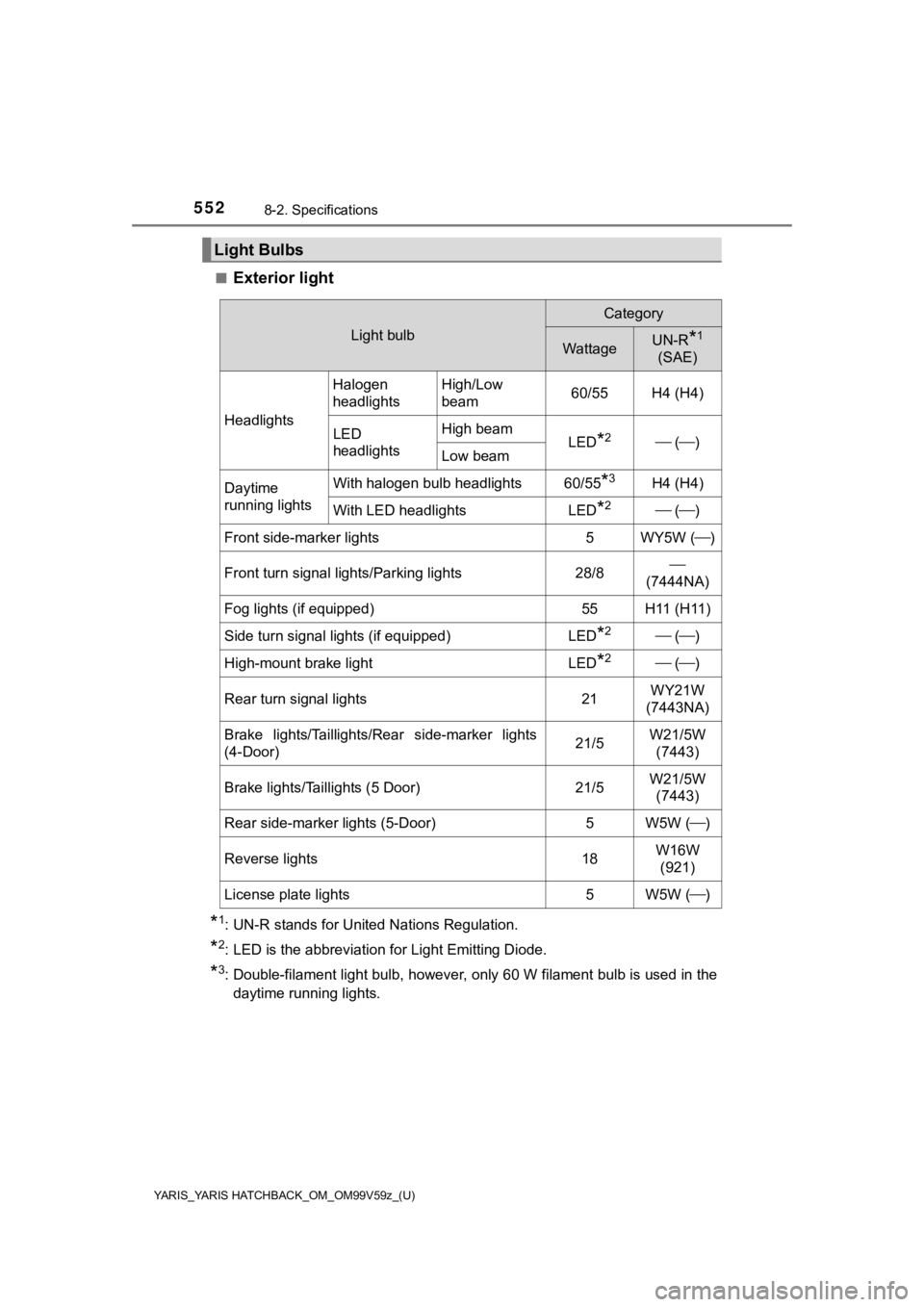

■Exterior light
*1: UN-R stands for United Nations Regulation.
*2: LED is the abbreviation for Light Emitting Diode.
*3: Double-filament light bulb, however, only 60 W filament bulb is used in the
daytime running lights.
Light Bulbs
Light bulb
Category
WattageUN-R*1
(SAE)
Headlights Halogen
headlights
High/Low
beam
60/55 H4 (H4)
LED
headlightsHigh beamLED*2 (
)Low beam
Daytime
running lightsWith halogen bulb headlights60/55*3H4 (H4)
With LED headlightsLED*2 ()
Front side-marker lights5WY5W ()
Front turn signal lights/Parking lights28/8
(7444NA)
Fog lights (if equipped)55H11 (H11)
Side turn signal lights (if equipped)LED*2 ( )
High-mount brake lightLED*2 ()
Rear turn signal lights21WY21W
(7443NA)
Brake lights/Taillights/Rear side-marker lights
(4-Door)21/5W21/5W (7443)
Brake lights/Taillights (5 Door)21/5W21/5W (7443)
Rear side-marker lights (5-Door)5W5W ( )
Reverse lights18W16W
(921)
License plate lights5W5W ( )

567Alphabetical index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Interior Care ............................. 450Cleaning the Lap/Shoulder
Belt Webbing ...................... 453
Cleaning the Upholstery and Interior Trim ........................ 451
Cleaning the Window Interiors .............................. 453
Dashboard Precautions ........ 450
Interior Lights .......................... 375 Map Lights ............................ 375
Overhead Lights ................... 375
Trunk Light ............................ 376
Jack........................................... 459
Jump-Starting .......................... 478
Key Left-in-trunk Compartment Warning Beep (With the
advanced keyless
function) ................................. 504
Key Left-in-vehicle Warning
Beep (With the advanced
keyless function) ................... 505
Key removed from vehicle warning beep ......................... 504
Key Suspend Function.............. 98
Keyless Entry System ............... 92
Keys ............................................ 90 Key suspend function ............. 98
Smart Key ............................... 93
Label Information .................... 546
Lane-Change Signals .............. 199
Laser Sensor ............................ 234
Light Bulbs Replacement......................... 419
Specifications........................ 552 Lighting Control ...................... 192
Lights-on reminder.................. 502
Low Speed Pre-Collision
System ................................... 228
Lubricant Quality ..................... 549
Maintenance
Information............................ 386
Maintenance Monitor .............. 388
Manual Transaxle Operation ............................... 177 Recommendations for shifting ................................ 179
Map Lights ............................... 375
Message Indi cated on
Display ................................... 500
Meters and Gauges ................. 164
Mirror Defogger ....................... 207
Mirrors Outside Mirrors ..................... 129
Rearview Mirror .................... 130
Odometer and Trip Meter ...................................... 165
Outside Mirrors........................ 129
Outside Te mperature
Display ................................... 170
Overhead Console................... 381
Overhead Lights ...................... 375
Overheating ............................. 484
Overloading ............................. 150
Owner Maintenance
Closing the Hood .................. 393
Engine Compartment Overview ............................ 394
Key battery replacement....... 410
Opening the Hood ................ 392
Owner Maintenance Precautions ........................ 390
J
K
L
M
O

568Alphabetical index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Parking Brake .......................... 210
Power Steering ........................ 226
Power Windows ....................... 132
Power steering warning buzzer ..................................... 505
Rear Coat Hooks...................... 383
Rear Door Child Safety Locks ...................................... 112
Rear Seat .................................... 26
Rear View Monitor ................... 245
Displayable range on the screen................................. 247
Picture quality adjustment..... 254
Rear view monitor operation ............................ 250
Rear view park ing camera
location ............................... 246
Switching to the rear view
monitor display ................... 246
Variance between actual road conditions and
displayed Image ................. 252
Viewing the display ............... 249
Rear Window Defogger ........... 207
Rearview Mirror ....................... 130
Recommended Oil ................... 395
Recreational Towing ............... 153
Replacement Fuse ...................................... 435
Key battery............................ 410
Light Bulbs ............................ 419
Tires ...................................... 416
Wheel.................................... 417
Wiper .................................... 405
Request Switch Inoperable Warning Beep (With the
advanced keyless
function) ................................. 504
Rocking the Vehicle ................ 145 Safety Defects, Reporting....... 510
Saving Fuel and Protection
of the Environment ............... 142
Seat Belt System Automatic locking ................... 36
Emergency locking ................. 36
Extender ................................. 42
Pregnant women .................... 35
Seat belt precautions .............. 33
Seat belt warning beep ........... 503
Seats Front seat ............................... 23
Head restraint ......................... 30
Rear seat ................................ 26
Seat warmer ........................... 24
Security System Immobilizer system ............... 136
Theft Deterrent
system .......... ...................... 138
Smart key ................................... 93
Spare Tire ................................. 461
Specifications .......................... 548
Speedometer............................ 164
SRS Air Bags
Front passenger occupant classification syst em ............ 82
How the SRS air bags
work...................................... 74
Limitations to SRS air bag ...... 80
Monitoring ............................... 87
SRS air bag deployment criteria .................................. 78
Supplemental restraint
system components ............. 73
P
R
S
