Pictorial IndexInterior, exterior views and part identification of
your Toyota.
1Essential Safety
EquipmentImportant information about safety equipment,
including seats, seat belt system, child-restraint
systems and SRS air bags.
2Before DrivingUse of various features, including keys, doors,
mirrors and windows.
3When DrivingInformation concerning safe driving and stopping.
4Interior FeaturesUse of various features for ride comfort, including
air-conditioning and audio system.
5Maintenance and
CareHow to keep your Toyota in top condition.
6If Trouble ArisesHelpful information on what to do if a problem
arises with the vehicle.
7
Customer Information
and Reporting Safety
DefectsImportant consumer information including
warranties and add-on equipment.
8SpecificationsTechnical information about your Toyota.
IndexSearch alphabetically

TABLE OF CONTENTS2
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
How to Use This Manual................ 9
Pictorial Index .............................. 12
1-1. SeatsSeat Precautions ................. 20
Front Seat ........................... 23
Rear Seat ............................ 26
Head Restraints .................. 30
1-2. Seat Belt Systems Seat Belt Precautions.......... 33
Seat Belt.............................. 37
Seat Belt Pretensioner and Load Limiting
Systems ............................ 39
Seat Belt Extender .............. 42
1-3. Child Restraint Child-Restraint Precautions ....................... 44
Child-Restraint System Installation ......................... 49
Installing Child-Restraint Systems ............................ 51 1-4. SRS Air Bags
Supplemental Restraint System (SRS)
Precautions ....................... 66
Supplemental Restraint System Components ......... 73
How the SRS Air Bags Work .................................. 74
SRS Air Bag Deployment Criteria ............................... 78
Limitations to SRS Air Bag ...................... 80
Front Passenger Occupant Classification
System .............................. 82
Constant Monitoring ............ 87
2-1. Keys Keys..................................... 90
Keyless Entry System.......... 92
2-2. Advanced Keyless Entry System
Advanced Keyless Entry System .............................. 99
2-3. Door and Locks Door Locks ........................ 101
Liftgate/Trunk Lid ............... 113
2-4. Fuel and Emission Fuel and Engine Exhaust Precautions ..................... 121
Fuel-Filler Lid and Cap ...... 124
1Essential Safety
Equipment
2Before Driving

14Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Interior Equipment (View B)
SRS air bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 66
Climate control system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 256
Rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . P. 207
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 271
Seat warmer switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 24
Accessory socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
External input terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 307
Drive selection switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Shift lever/Selector lever . . . . . . . . . . . . . . . . . . . . . . . . P. 177, 181
Fuse block (Left side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4351
2
3
4
5
6
7
8
9
10

15Pictorial index
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
■Interior Equipment (View C)
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 33
SRS air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 66
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Overhead lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 375
Rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382
Commander switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
Front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 23
Rear seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
The equipment and installation position varies by vehicle
1
2
3
4
5
6
7
8
9
10
11
12
13

19
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
Essential SafetyEquipment1
1-1. Seats
Seat Precautions ................. 20
Front Seat ........................... 23
Rear Seat ............................ 26
Head Restraints .................. 30
1-2. Seat Belt Systems Seat Belt Precautions ......... 33
Seat Belt ............................. 37
Seat Belt Pretensioner and Load Limiting
Systems ............................ 39
Seat Belt Extender .............. 42 1-3. Child Restraint
Child-Restraint Precautions ....................... 44
Child-Restraint System Installation......................... 49
Installing Child-Restraint Systems ............................ 51
1-4. SRS Air Bags Supplemental Restraint System (SRS)
Precautions ....................... 66
Supplemental Restraint System Components ........ 73
How the SRS Air Bags Work ................................. 74
SRS Air Bag Deployment Criteria .............................. 78
Limitations to SRS Air Bag...................... 80
Front Passenger Occupant Classification
System .............................. 82
Constant Monitoring ............ 87

39
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1-2. Seat Belt Systems
1
Essential Safety Equipment
Seat Belt Pretensioner and Load Limiting
Systems
◆Pretensioners
When a collision is detected, the pretensioners deploy simultan e-
ously with the air bags.
The pretensioners deploy simult aneously with the air bags when a
roll-over is also detected.
For deployment details, refer to the SRS Air Bag Deployment Cri te-
ria ( P. 78).
The front seat belt retractors remove slack quickly as the air bags
are expanding. Any time the air bags and seat belt pretensioners
have fired they must be replaced.
A system malfunction or operation conditions are indicated by a
warning.
Refer to Warning/Indi cator Lights on P. 173.
Refer to Air Bag/Front Seat Belt Pretensioner System Warning
Beep on P. 503.
In addition, the pretensioner system for the front passenger, l ike the
front and side passenger air bag, is designed to only deploy wh en
the front passenger occupant class ification sensor detects a pas-
senger sitting on the front passenger’s seat.
For details, refer to the front passenger occupant classificati on sen-
sor ( P. 8 2 ) .
For optimum protection, the d river and front passenger seat
belts are equipped with pretensi oner and load limiting systems.
For both these systems to work properly you must wear the seat
belt properly.

40
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1-2. Seat Belt Systems
◆Load limiter
The load limiting system releases belt webbing in a controlled man-
ner to reduce belt force on the occupant’s chest. While the mos t
severe load on a seat belt occurs in frontal collisions, the load lim-
iter has an automatic mechanical function and can activate in any
accident mode wi th sufficient occupant movement.
Even if the pretensioners have not fired, the load limiting fun ction
must be checked by your Toyota dealer.
● The pretensioner system may not operate depending on the type of the col-
lision. For details, refer to the SRS Air Bag Deployment Criter ia (P. 78)
● Some smoke (non-toxic gas) will be released when the air bags a nd preten-
sioners deploy. This does not indicate a fire. This gas normall y has no effect
on occupants, however, those with sensitive skin may experience light skin
irritation. If residue from the deployment of the air bags or the front preten-
sioner system gets on the skin or in the eyes, wash it off as s oon as possi-
ble.

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
571-3. Child Restraint
1
Essential Safety Equipment
If you cannot put all children in the rear seat, at least put the smallest
children in the rear and be sure the largest child up front use s a front-
facing child-restraint system.
NEVER put a rear-facing child-restraint system on the front pas senger
seat whether your vehicle is equ ipped with a occupant classification
sensor or not.
This seat is also not set up for tethered child-restraint syste ms, put
them in one of the rear seat posit ions set up with tether anchors.
Likewise the LATCH child-restraint system cannot be secured in the
front passenger’s se at and should be used in the rear seat.
Do not allow anyone to lean over or against the side window sin ce
your vehicle has side and curt ain air bags, it could cause serious inju-
ries to an out of position occup ant. As children more often sleep in
cars, it is better to pu t them in the rear seat.
If installing the child-restraint system on the front seat is u navoidable,
follow these instructions when using a front-facing child-restraint sys-
tem in the front passenger’s seat.
●To check if your front seats have side air bags:
The vehicle equipped with side air bag will have a “SRS AIRBAG” tag on the
outboard shoulder of the front seats.
● To check if your vehicle has curtain air bags:
The vehicle equipped with curtain air bag will have an “SRS AIR BAG” mark-
ing on the window pillars along the roof edge.
WARNING
■ Always attach the tether strap to the correct tether anchor pos ition
Attaching the tether strap to the incorrect tether anchor position is danger-
ous. In a collision, the tether strap could come off and loosen the child-
restraint system. If the child-restraint system moves it could result in death
or injury to the child.
■ Always install the head restraint and adjust it to the appropriate posi-
tion after removing the child-restraint system
Driving with the head restraint removed is dangerous as impact to the occu-
pant’s head cannot be prevented during emergency braking or in a collision,
which could result in a serious accident, injury or death.
Refer to Head Restraints on P. 30.
If You Must Use a Child-Restrai nt System in the Front Seat for
Children

66
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
1-4. SRS Air Bags
Supplemental Restraint System (SRS) Pre-
cautions
The front and side supplemental r estraint systems (SRS) include dif-
ferent types of air bags. Please verify the different types of air bags
which are equipped on your vehicl e by locating the “SRS AIRBAG”
location indicators. These indicators are visible in the area w here the
air bags are installed.
The air bags are installed in the following locations:
• The steering wheel hub (driver air bag)
• The front passenger dashboard (front passenger air bag)
• The outboard sides of the fron t seatbacks (side air bags)
• The front and rear window pilla rs, and the roof edge along both
sides (curtain air bags)
Vehicles with the Front Passenger Occupant Classification System
have a sensor which detects an impending roll-over accident.
The air bag supplemental restraint systems are designed to provide
supplemental protection in certa in situations so seat belts are always
important in the following ways:
Without seat belt usage, the ai r bags cannot provide adequate p rotec-
tion during an accident. Seat belt usag e is necessary to:
• Keep the occupant from being thr own into an inflating air bag.
• Reduce the possibility of injur ies during an accident that is not
designed for air bag inflati on, such as rear impact.
• Reduce the possibility of injuries in frontal, near frontal or side colli-
sions or roll-over accidents that are not severe enough to acti vate
the air bags.
• Reduce the possibility of being thrown from your vehicle.
• Reduce the possibility of injurie s to lower body and legs duri ng an
accident because the ai r bags provide no protection to these pa rts
of the body.
• Hold the driver in a position wh ich allows better control of the vehi-
cle.

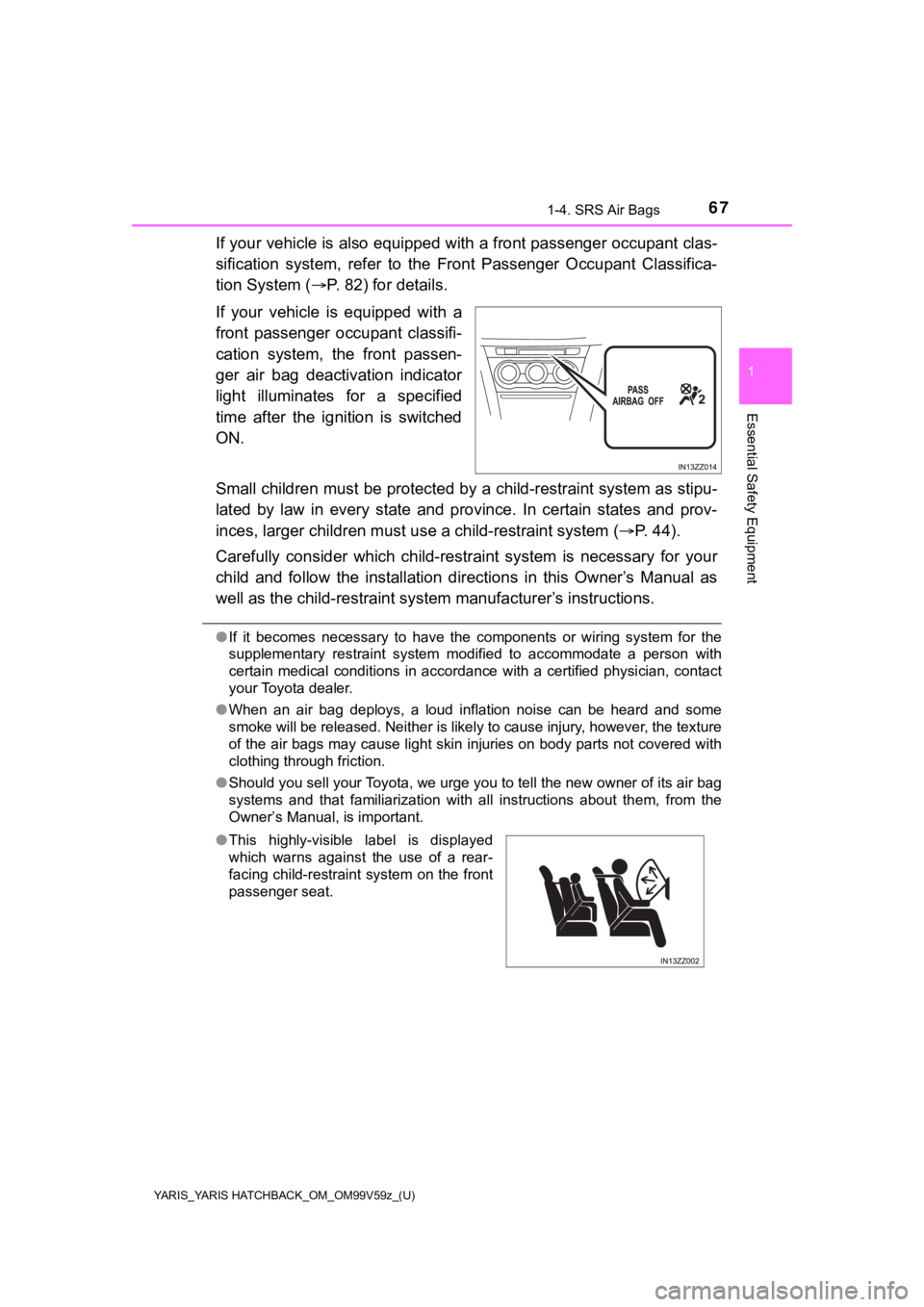

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
671-4. SRS Air Bags
1
Essential Safety Equipment
If your vehicle is also equipped with a front passenger occupant clas-
sification system, refer to the Front Passenger Occupant Classi fica-
tion System ( P. 82) for details.
If your vehicle is equipped with a
front passenger occupant classifi-
cation system, the front passen-
ger air bag deactivation indicator
light illuminates for a specified
time after the ignition is switched
ON.
Small children must be protected by a child-restraint system as stipu-
lated by law in every state and province. In certain states and prov-
inces, larger children must use a child-restraint system (P. 4 4 ) .
Carefully consider which child-re straint system is necessary for your
child and follow the installation directions in this Owner’s Manual as
well as the child-restraint syste m manufacturer’s instructions.
●If it becomes necessary to have the components or wiring system for the
supplementary restraint system modified to accommodate a person with
certain medical conditions in accordance with a certified physi cian, contact
your Toyota dealer.
● When an air bag deploys, a loud inflation noise can be heard an d some
smoke will be released. Neither is likely to cause injury, however, the texture
of the air bags may cause light skin injuries on body parts not covered with
clothing through friction.
● Should you sell your Toyota, we urge you to tell the new owner of its air bag
systems and that familiarization with all instructions about th em, from the
Owner’s Manual, is important.
● This highly-visible label is displayed
which warns against the use of a rear-
facing child-restraint system on the front
passenger seat.
