Page 1 of 568

1
6
5
4
3
2
7
YARIS(HB) Owner's Manual_Europe_MK0001_en
8
Pictorial indexSearch by illustration
For safety
and security
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicators
Reading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows, adjustment
before driving
(Main topics: Keys, doors, seats, power windows)
DrivingOperations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and care
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arises
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle
specifications
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
IndexSearch by symptom
Search alphabetically
Page 2 of 568

2
YARIS(HB) Owner's Manual_Europe_MK0001_en
TABLE OF CONTENTS
For your information ........................6
Reading this manual........................ 9
How to search ............................... 10
Pictorial index ................................ 12
1-1. For safe use
Before driving........................ 30
For safe driving ..................... 31
Seat belts .............................. 33
SRS airbags.......................... 36
Exhaust gas precautions ...... 44
1-2. Child safety
Airbag manual on-off system 45
Riding with children............... 46
Child restraint systems ......... 47
1-3. Emergency assistance
eCall...................................... 66
1-4. Theft deterrent system
Engine immobilizer system ... 76
Double locking system .......... 77
Alarm .................................... 78
2-1. Instrument cluster
Warning lights and indicators 82
Gauges and meters (vertical dis-
play) .................................... 86
Gauges and meters (horizontal
display) ............................... 90
Multi-information display (verti-
cal display).......................... 93
Multi-information display (hori-
zontal display)..................... 99
Head-up display .................. 105
Fuel consumption information
.......................................... 109
3-1. Key information
Keys .................................... 112
3-2. Opening, closing and locking
the doors
Side doors........................... 116
Back door............................ 120
Smart entry & start system . 123
3-3. Adjusting the seats
Front seats .......................... 128
Rear seats .......................... 129
Head restraints ................... 130
3-4. Adjusting the steering wheel
and mirrors
Steering wheel .................... 134
Inside rear view mirror ........ 135
Outside rear view mirrors.... 136
1For safety and security
2Vehicle status information
and indicators
3Before driving
Page 15 of 568

15
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Multi-information display ..........................................................P.93, 99
Display .........................................................................................P.93, 99
When a warning message is displayed............................................P.377
Parking brake .................................................................................P.171
Applying/releasing............................................................................P.171
Precautions against winter season ..................................................P.275
Warning buzzer/message ........................................................P.171, 377
Turn signal lever ............................................................................P.171
Headlight switch ............................................................................P.173
Headlights/front position lights/tail lights/daytime running lights ......P.173
Front fog lights
*4/rear fog light .........................................................P.180
Windshield wiper and washer switch ..........................................P.181
Rear window wiper and washer switch
*4.....................................P.184
Usage.......................................................................................P.181, 184
Adding washer fluid..........................................................................P.329
Emergency flasher switch.............................................................P.360
Hood lock release lever .................................................................P.317
Tilt and telescopic steering lock release lever............................P.134
Audio system
*4, 5
Air conditioning system ........................................................P.278, 283
Usage.......................................................................................P.278, 283
Rear window defogger .............................................................P.280, 285
Fuel filler door opener ...................................................................P.187
*1: Vehicles without a smart entry & start system
*2: Vehicles with a smart entry & start system
*3: Vehicles with a Multidrive
*4: If equipped
*5: Refer to “Navigation and multimedia system Owner’s manual”.
Page 22 of 568

22
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Multi-information display ..........................................................P.93, 99
Display .........................................................................................P.93, 99
When a warning message is displayed............................................P.377
Parking brake .................................................................................P.171
Applying/releasing............................................................................P.171
Precautions against winter season ..................................................P.275
Warning buzzer/message ........................................................P.171, 377
Windshield wiper and washer switch ..........................................P.181
Rear window wiper and washer switch
*4.....................................P.184
Usage.......................................................................................P.181, 184
Adding washer fluid..........................................................................P.329
Turn signal lever ............................................................................P.171
Headlight switch ............................................................................P.173
Headlights/front position lights/tail lights/daytime running lights ......P.173
Front fog lights
*4/rear fog light .........................................................P.180
Emergency flasher switch.............................................................P.360
Hood lock release lever .................................................................P.317
Tilt and telescopic steering lock release lever............................P.134
Air conditioning system ........................................................P.278, 283
Usage.......................................................................................P.278, 283
Rear window defogger .............................................................P.280, 285
Audio system
*4, 5
Fuel filler door opener ...................................................................P.187
*1: Vehicles without a smart entry & start system
*2: Vehicles with a smart entry & start system
*3: Vehicles with a Multidrive
*4: If equipped
*5: Refer to “Navigation and multimedia system Owner’s manual”.

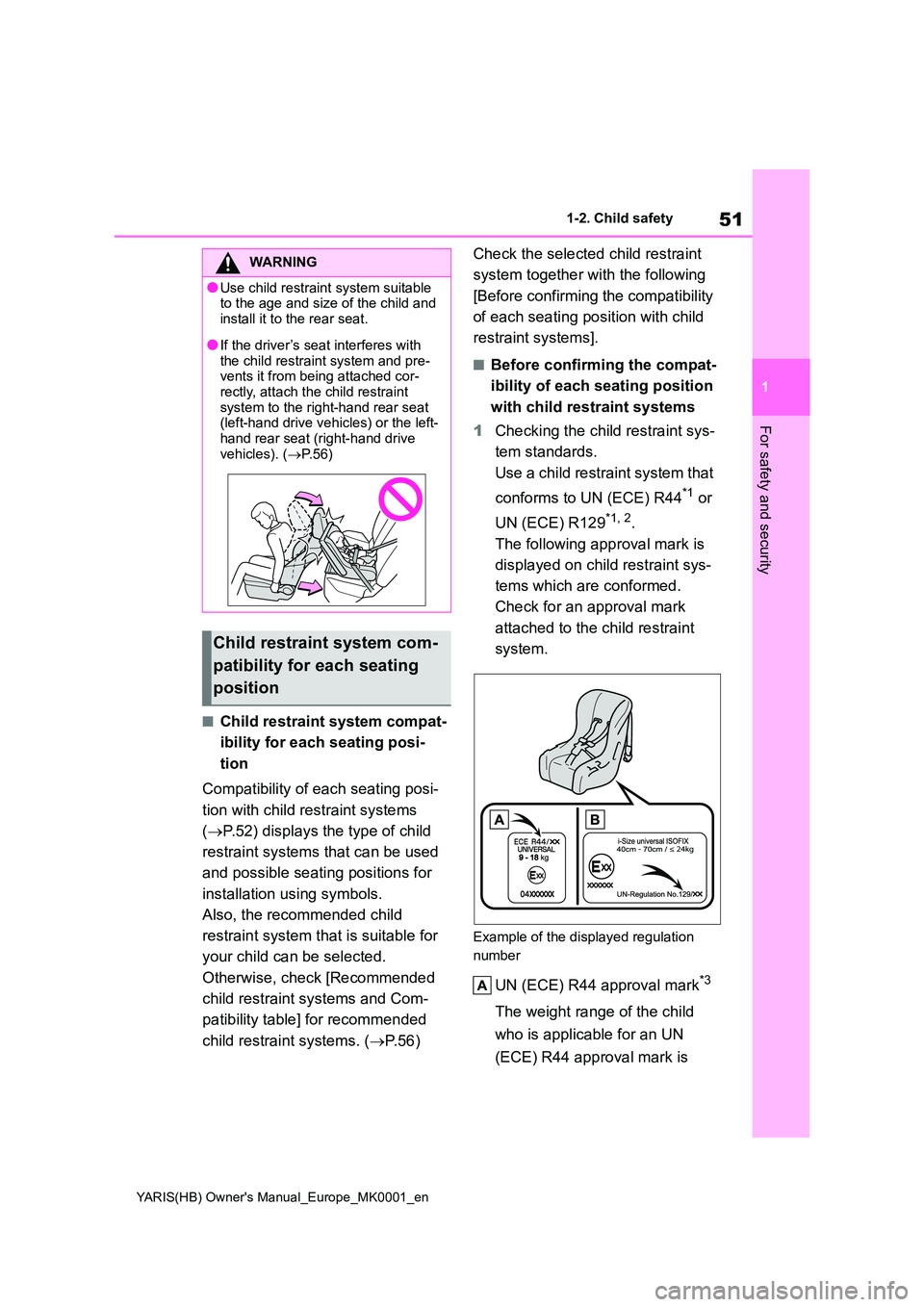

Page 51 of 568

51
1
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-2. Child safety
For safety and security
■Child restraint system compat-
ibility for each seating posi-
tion
Compatibility of each seating posi-
tion with child restraint systems
( →P.52) displays the type of child
restraint systems that can be used
and possible seating positions for
installation using symbols.
Also, the recommended child
restraint system that is suitable for
your child can be selected.
Otherwise, check [Recommended
child restraint systems and Com-
patibility table] for recommended
child restraint systems. ( →P. 5 6 )
Check the selected child restraint
system together with the following
[Before confirming the compatibility
of each seating position with child
restraint systems].
■Before confirming the compat-
ibility of each seating position
with child restraint systems
1 Checking the child restraint sys-
tem standards.
Use a child restraint system that
conforms to UN (ECE) R44*1 or
UN (ECE) R129*1, 2.
The following approval mark is
displayed on child restraint sys-
tems which are conformed.
Check for an approval mark
attached to the child restraint
system.
Example of the displayed regulation
number
UN (ECE) R44 approval mark*3
The weight range of the child
who is applicable for an UN
(ECE) R44 approval mark is
WARNING
●Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
●If the driver’s seat interferes with
the child restraint system and pre- vents it from being attached cor-rectly, attach the child restraint
system to the right-hand rear seat (left-hand drive vehicles) or the left-hand rear seat (right-hand drive
vehicles). ( →P. 5 6 )
Child restraint system com-
patibility for each seating
position

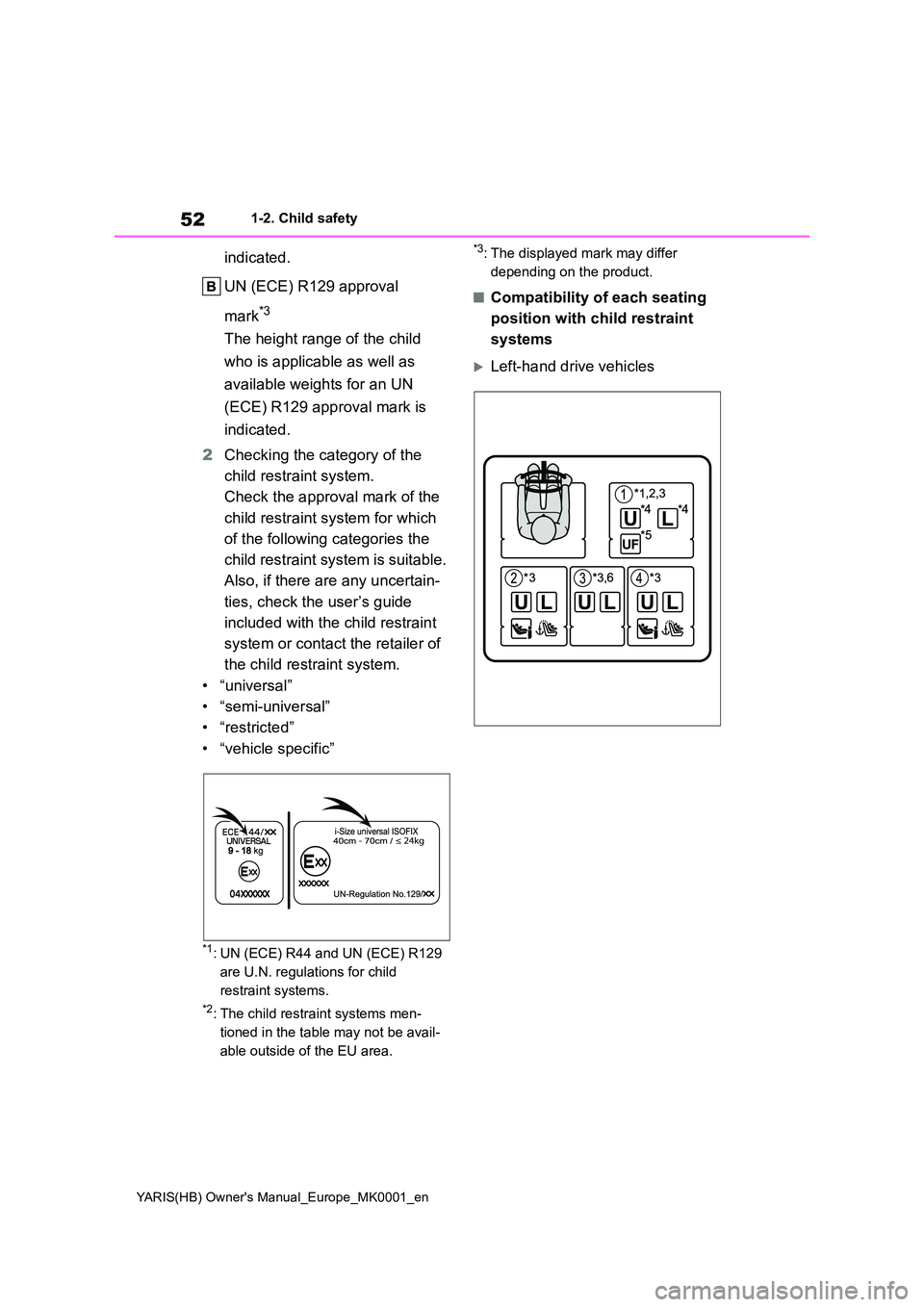

Page 52 of 568

52
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-2. Child safety
indicated.
UN (ECE) R129 approval
mark*3
The height range of the child
who is applicable as well as
available weights for an UN
(ECE) R129 approval mark is
indicated.
2 Checking the category of the
child restraint system.
Check the approval mark of the
child restraint system for which
of the following categories the
child restraint system is suitable.
Also, if there are any uncertain-
ties, check the user’s guide
included with the child restraint
system or contact the retailer of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
*1: UN (ECE) R44 and UN (ECE) R129
are U.N. regulations for child
restraint systems.
*2: The child restraint systems men-
tioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ
depending on the product.
■Compatibility of each seating
position with child restraint
systems
Left-hand drive vehicles
Page 81 of 568

2
81
YARIS(HB) Owner's Manual_Europe_MK0001_en
2
Vehicle status information and indicators
Vehicle status informa-
tion and indicators
2-1. Instrument cluster
Warning lights and indicators
......................................... 82
Gauges and meters (vertical
display) ............................. 86
Gauges and meters (horizontal
display) ............................. 90
Multi-information display (verti-
cal display)........................ 93
Multi-information display (hori-
zontal display)................... 99
Head-up display................ 105
Fuel consumption information
....................................... 109
Page 82 of 568

82
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
2-1.In strument clu ste r
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
Vertical display
Horizontal display
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
Warning lights and indicators displayed on the instrument
cluster
Page 83 of 568

83
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
Warning lights inform the driver of
malfunctions in the indicated vehi-
cle’s systems.
*1: These lights come on when the
engine switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if the lights do not come
on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: This light illuminates on the multi-
information display.
Warning lights
Brake system warning light*1
(→P.368)
High coolant temperature
warning light
*2 (→P.368)
Charging system warning
light
*2 (→P.368)
Low engine oil pressure
warning light
*2 (→P.369)
Malfunction indicator lamp
*1
(→P.369)
SRS warning light
*1
(→P.369)
ABS warning light
*1
(→P.369)
Brake Override System
warning light/Drive-Start
Control warning light
*2
(→P.370)
(Red)
Electric power steering sys-
tem warning light
*1 (→P.370)
(Yellow)
Electric power steering sys-
tem warning light
*1 (→P.370)
Low fuel level warning light
(→P.371)
Driver’s and front passen-
ger’s seat belt reminder light
(→P.371)
Rear passengers’ seat
belt reminder lights
*2
(→P.371)
Tire pressure warning light
*1
(→P.372)
(Orange)
LTA i n d i c a t o r*2 (if equipped)
(→P.372)
(Flashes)
Stop & Start cancel indica-
tor
*1 (if equipped) (→P.372)
(Flashes)
Toyota parking assist-sensor
OFF indicator
*1 (if equipped)
(→P.373)
(Flashes)
“RCTA OFF” indicator*1 (if
equipped) (→P.373)
PKSB OFF indicator
*1 (if
equipped) (→P.373)
(Flashes or
illuminates)
PCS warning light*1 (if
equipped) (→P.374)
Slip indicator
*1 (→P. 3 7 4 )
Page 85 of 568

85
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
*1: These lights come on when the
engine switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if the lights do not come
on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: This light comes on when the system
is turned off.
*3: This light illuminates on the multi-
information display.
*4: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*5: This light illuminates on the outside
rear view mirrors.
*6: For vehicles with vertical display, this
light illuminates on the multi-informa-
tion display.
*7: When the outside temperature is
approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.
*8: This light illuminates on the center
panel.“PASSENGER AIR
BAG” indicator
*1, 8
(→P.45)
Eco drive mode indicator
*3
(if equipped) (→P.266)
Power mode indicator
*3 (if
equipped) (→P.266)
