TOYOTA YARIS HYBRID 2012 Owners Manual

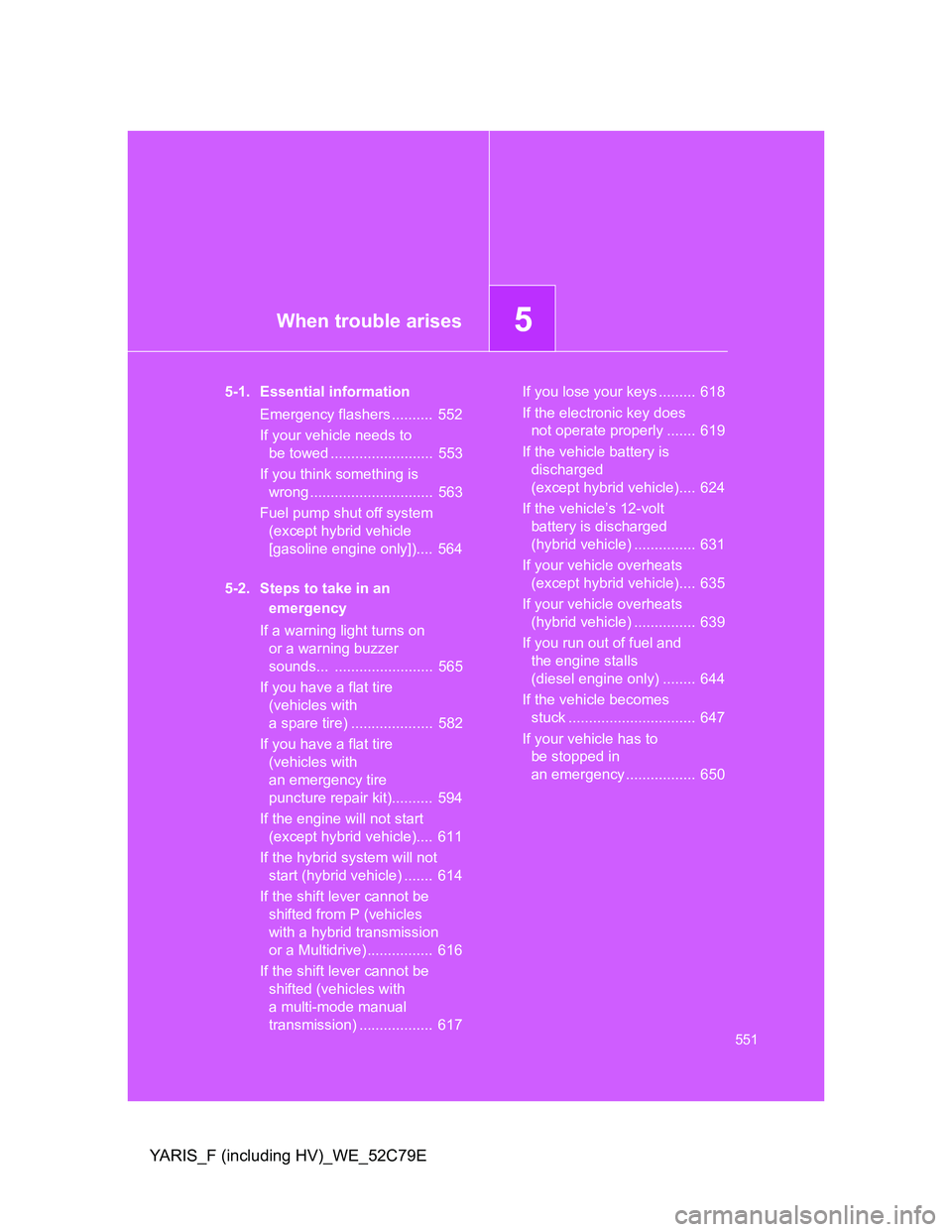

5When trouble arises
551
YARIS_F (including HV)_WE_52C79E
5-1. Essential information
Emergency flashers .......... 552
If your vehicle needs to
be towed ......................... 553
If you think something is
wrong .............................. 563
Fuel pump shut off system
(except hybrid vehicle
[gasoline engine only]).... 564
5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... ........................ 565
If you have a flat tire
(vehicles with
a spare tire) .................... 582
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit).......... 594
If the engine will not start
(except hybrid vehicle).... 611
If the hybrid system will not
start (hybrid vehicle) ....... 614
If the shift lever cannot be
shifted from P (vehicles
with a hybrid transmission
or a Multidrive) ................ 616
If the shift lever cannot be
shifted (vehicles with
a multi-mode manual
transmission) .................. 617If you lose your keys ......... 618
If the electronic key does
not operate properly ....... 619
If the vehicle battery is
discharged
(except hybrid vehicle).... 624
If the vehicle’s 12-volt
battery is discharged
(hybrid vehicle) ............... 631
If your vehicle overheats
(except hybrid vehicle).... 635
If your vehicle overheats
(hybrid vehicle) ............... 639
If you run out of fuel and
the engine stalls
(diesel engine only) ........ 644
If the vehicle becomes
stuck ............................... 647
If your vehicle has to
be stopped in
an emergency ................. 650

552
YARIS_F (including HV)_WE_52C79E
5-1. Essential information

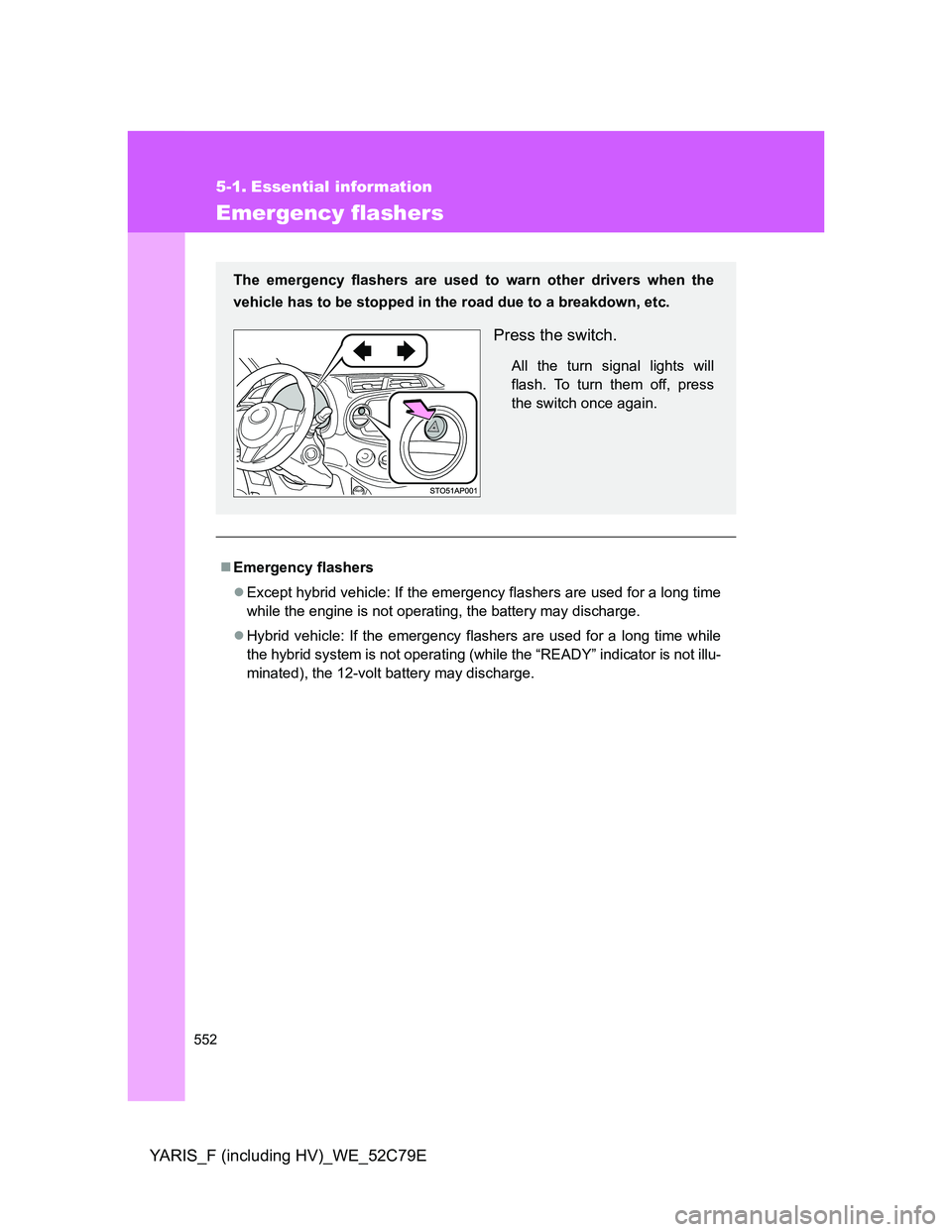

Emergency flashers
Emergency flashers
Except hybrid vehicle: If the emergency flashers are used for a long time
while the engine is not operating, the battery may discharge.
Hybrid vehicle: If the emergency flashers are used for a long time while
the hybrid system is not operating (while the “READY” indicator is not illu-
minated), the 12-volt battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash. To turn them off, press
the switch once again.

5
553
5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52C79E

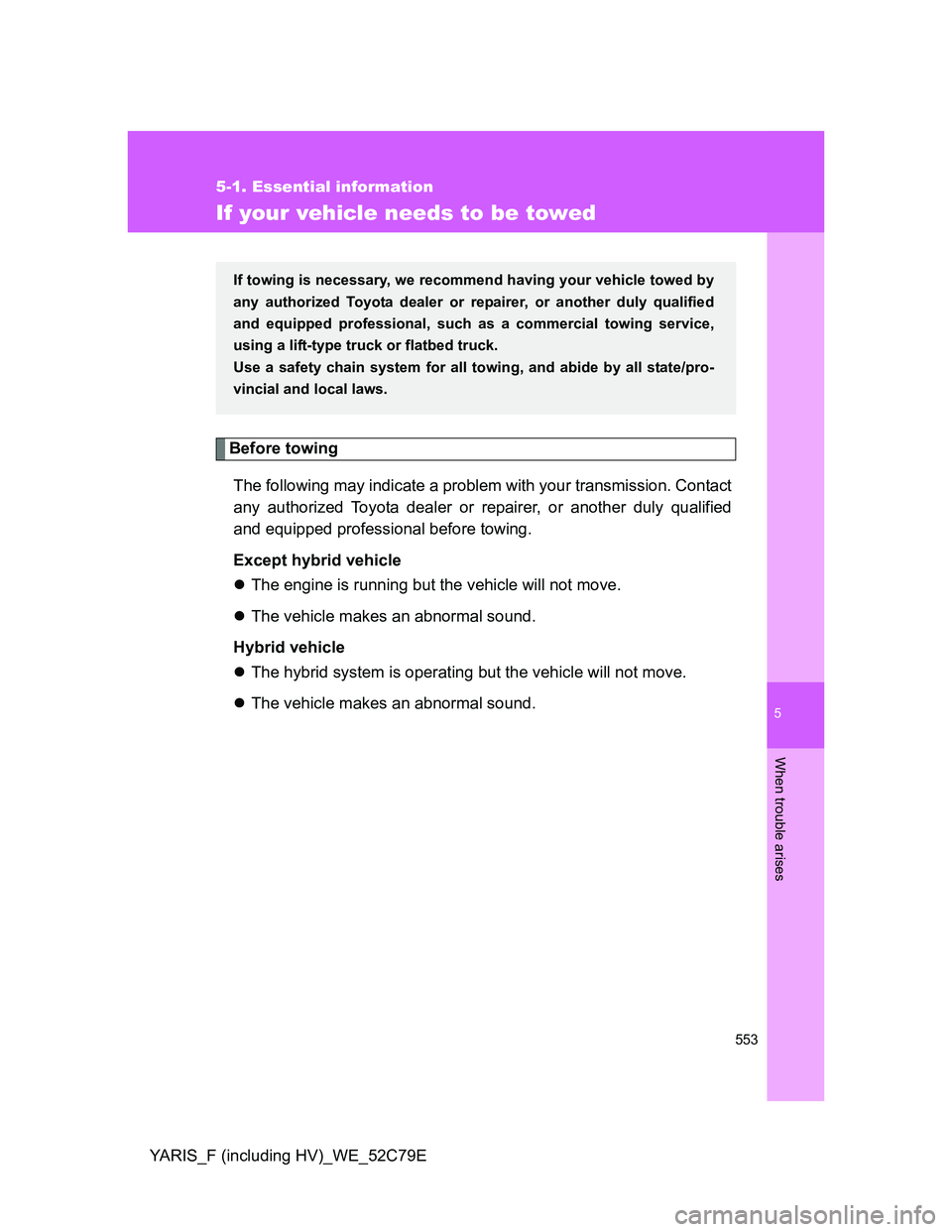

If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional before towing.
Except hybrid vehicle
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
Hybrid vehicle
The hybrid system is operating but the vehicle will not move.
The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as a commercial towing service,
using a lift-type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.

554 5-1. Essential information
YARIS_F (including HV)_WE_52C79E

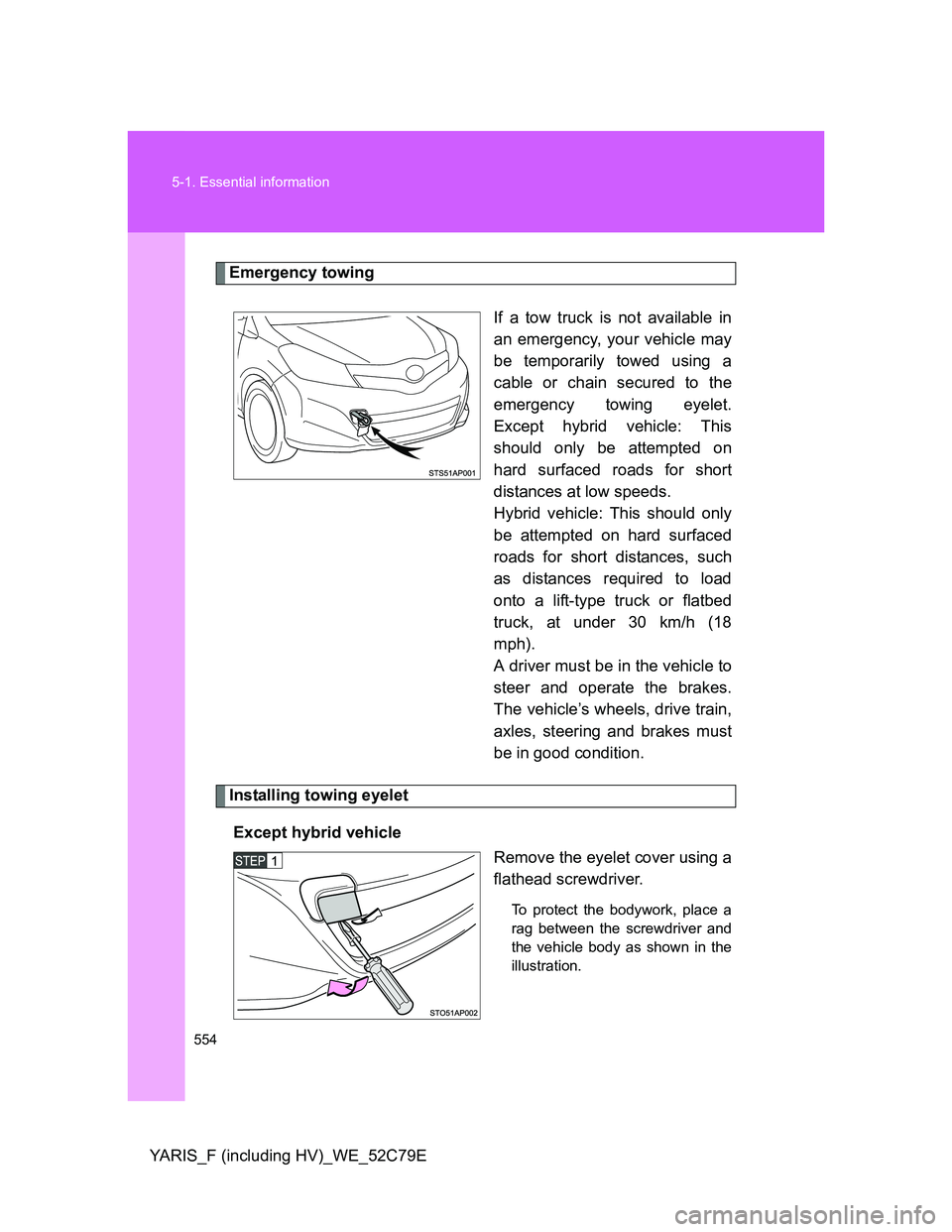

Emergency towing
If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet.
Except hybrid vehicle: This
should only be attempted on
hard surfaced roads for short
distances at low speeds.
Hybrid vehicle: This should only
be attempted on hard surfaced
roads for short distances, such
as distances required to load
onto a lift-type truck or flatbed
truck, at under 30 km/h (18
mph).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
Installing towing eyelet
Except hybrid vehicle
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.

5
555 5-1. Essential information
When trouble arises

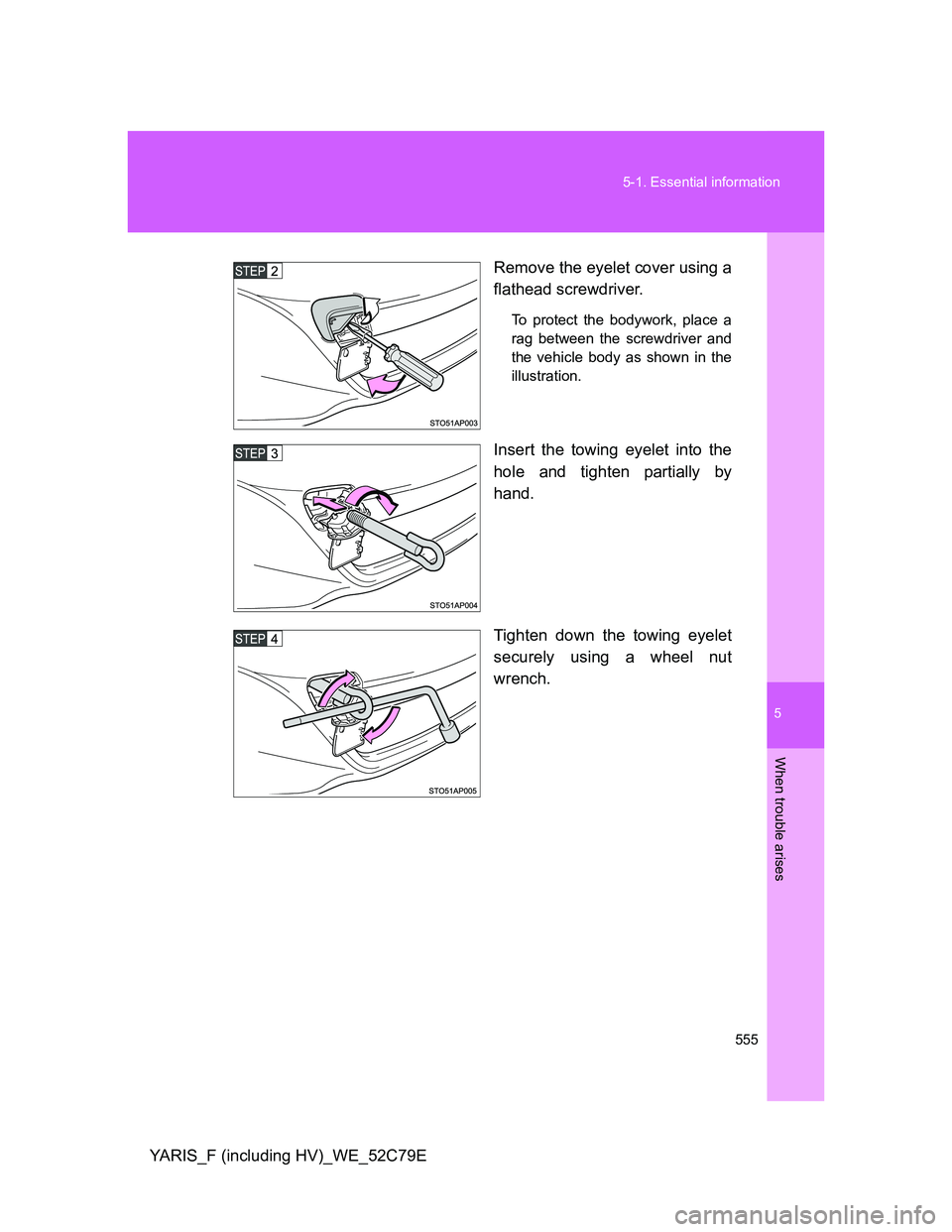

YARIS_F (including HV)_WE_52C79ERemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.

556 5-1. Essential information

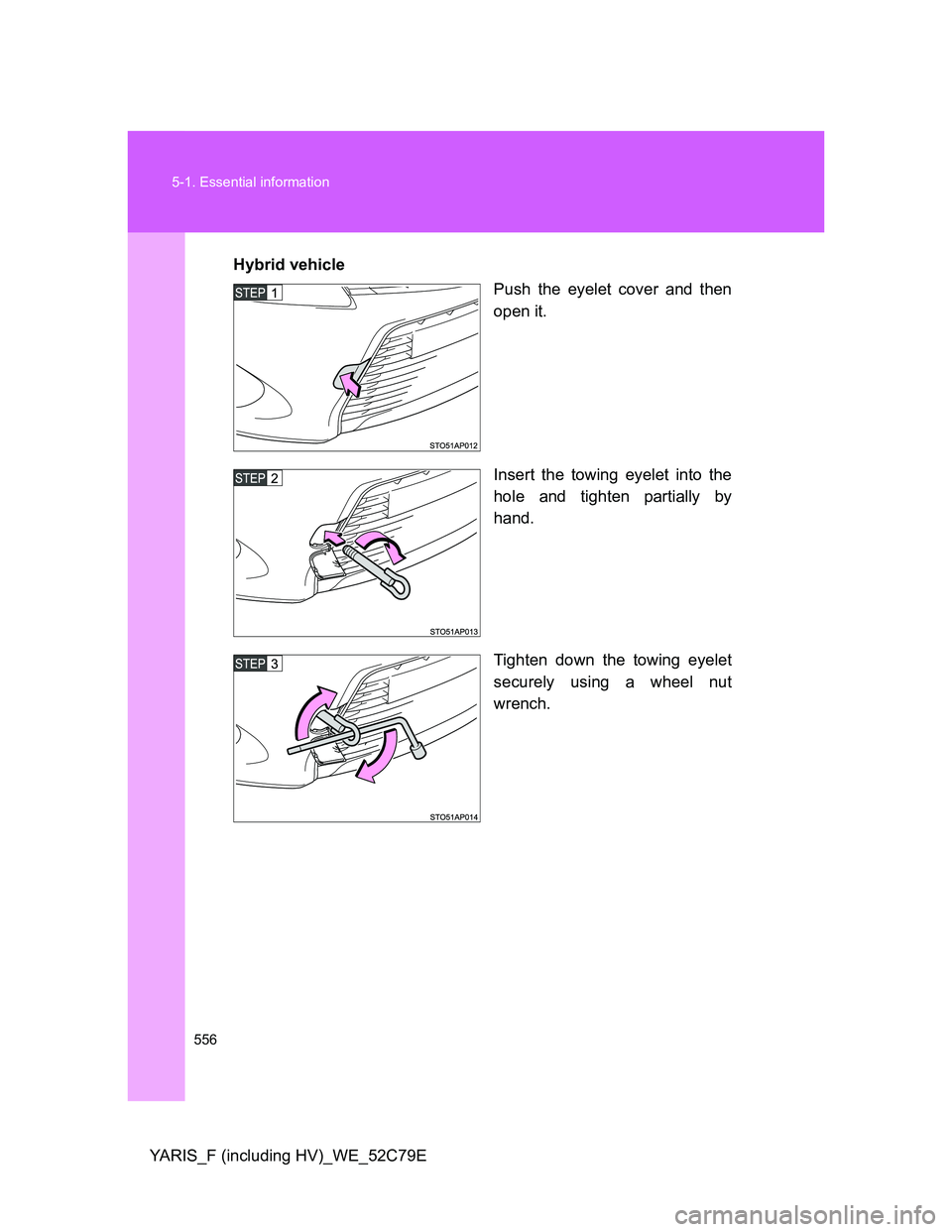

YARIS_F (including HV)_WE_52C79EHybrid vehicle
Push the eyelet cover and then
open it.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench.

5
557 5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52C79E

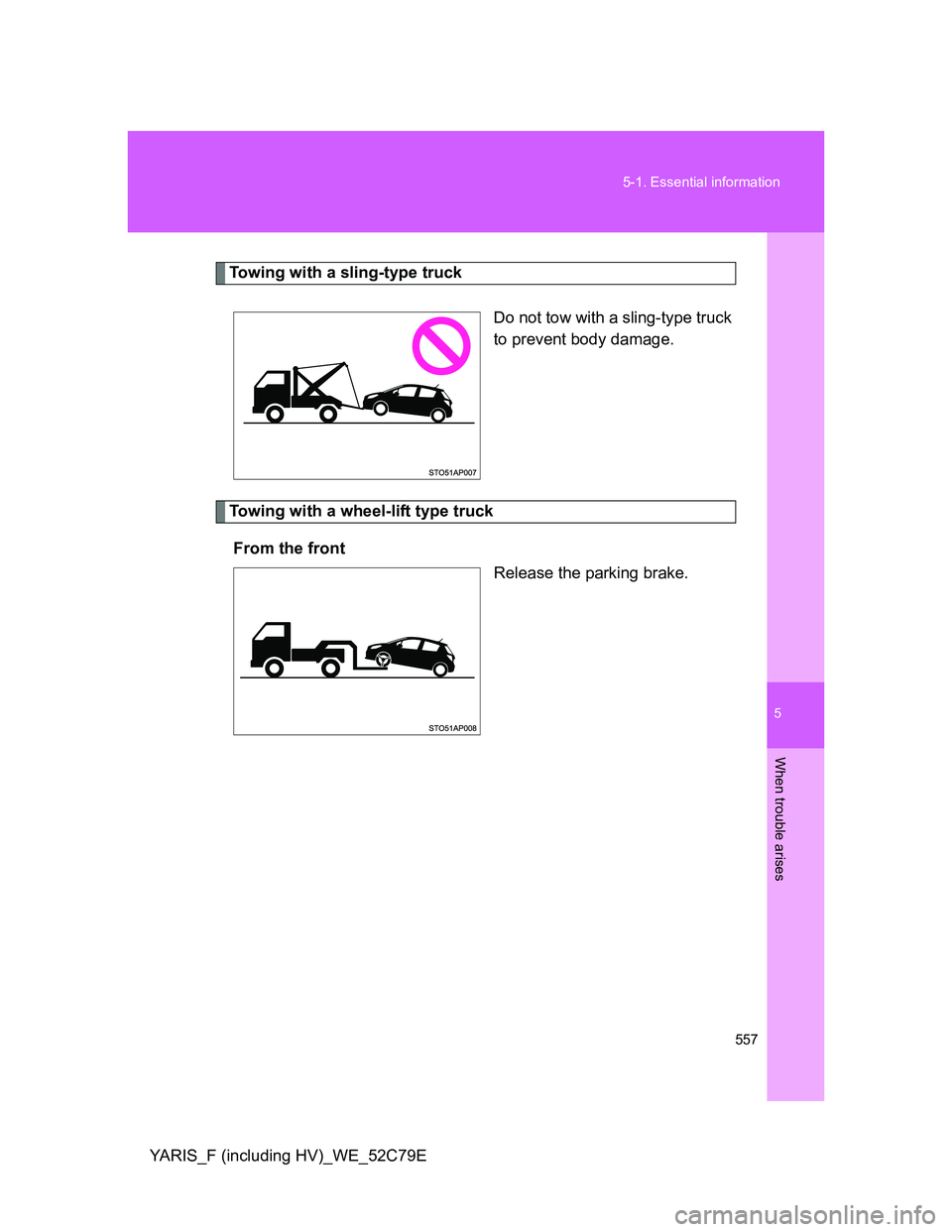

Towing with a sling-type truck
Do not tow with a sling-type truck
to prevent body damage.
Towing with a wheel-lift type truck
From the front
Release the parking brake.

558 5-1. Essential information

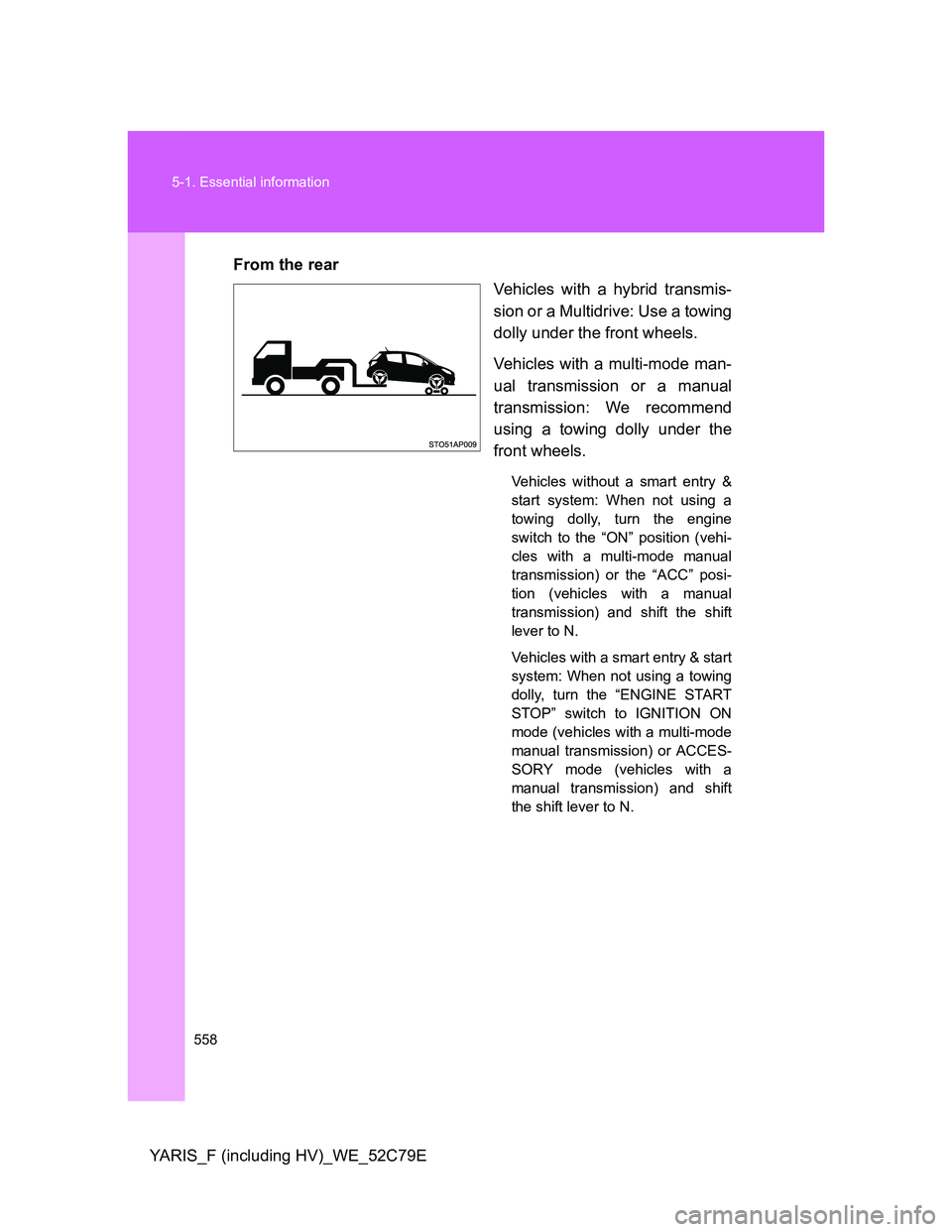

YARIS_F (including HV)_WE_52C79EFrom the rear
Vehicles with a hybrid transmis-
sion or a Multidrive: Use a towing
dolly under the front wheels.
Vehicles with a multi-mode man-
ual transmission or a manual
transmission: We recommend
using a towing dolly under the
front wheels.
Vehicles without a smart entry &
start system: When not using a
towing dolly, turn the engine
switch to the “ON” position (vehi-
cles with a multi-mode manual
transmission) or the “ACC” posi-
tion (vehicles with a manual
transmission) and shift the shift
lever to N.
Vehicles with a smart entry & start
system: When not using a towing
dolly, turn the “ENGINE START
STOP” switch to IGNITION ON
mode (vehicles with a multi-mode
manual transmission) or ACCES-
SORY mode (vehicles with a
manual transmission) and shift
the shift lever to N.

5
559 5-1. Essential information
When trouble arises
YARIS_F (including HV)_WE_52C79E

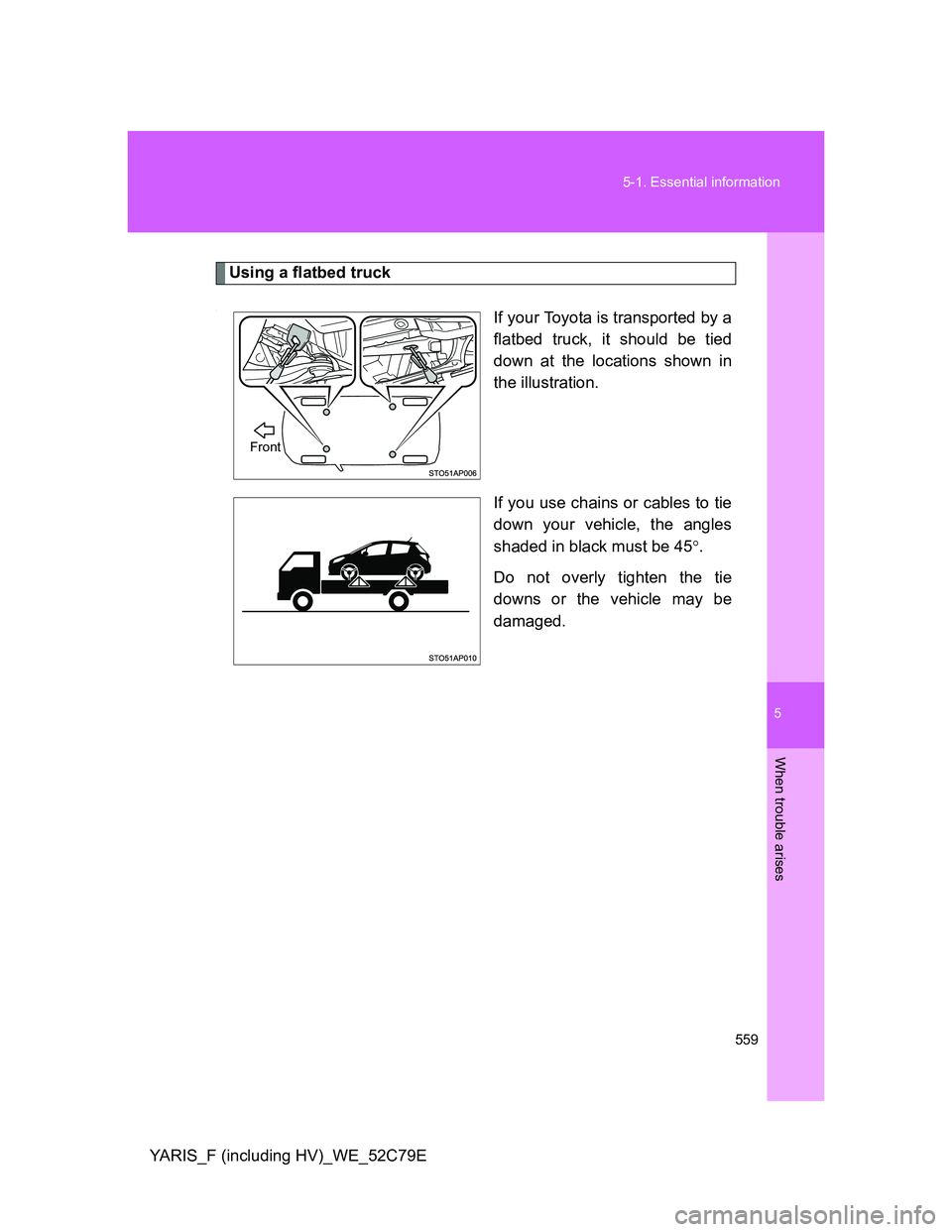

Using a flatbed truck
.If your Toyota is transported by a
flatbed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Front

560 5-1. Essential information
YARIS_F (including HV)_WE_52C79E

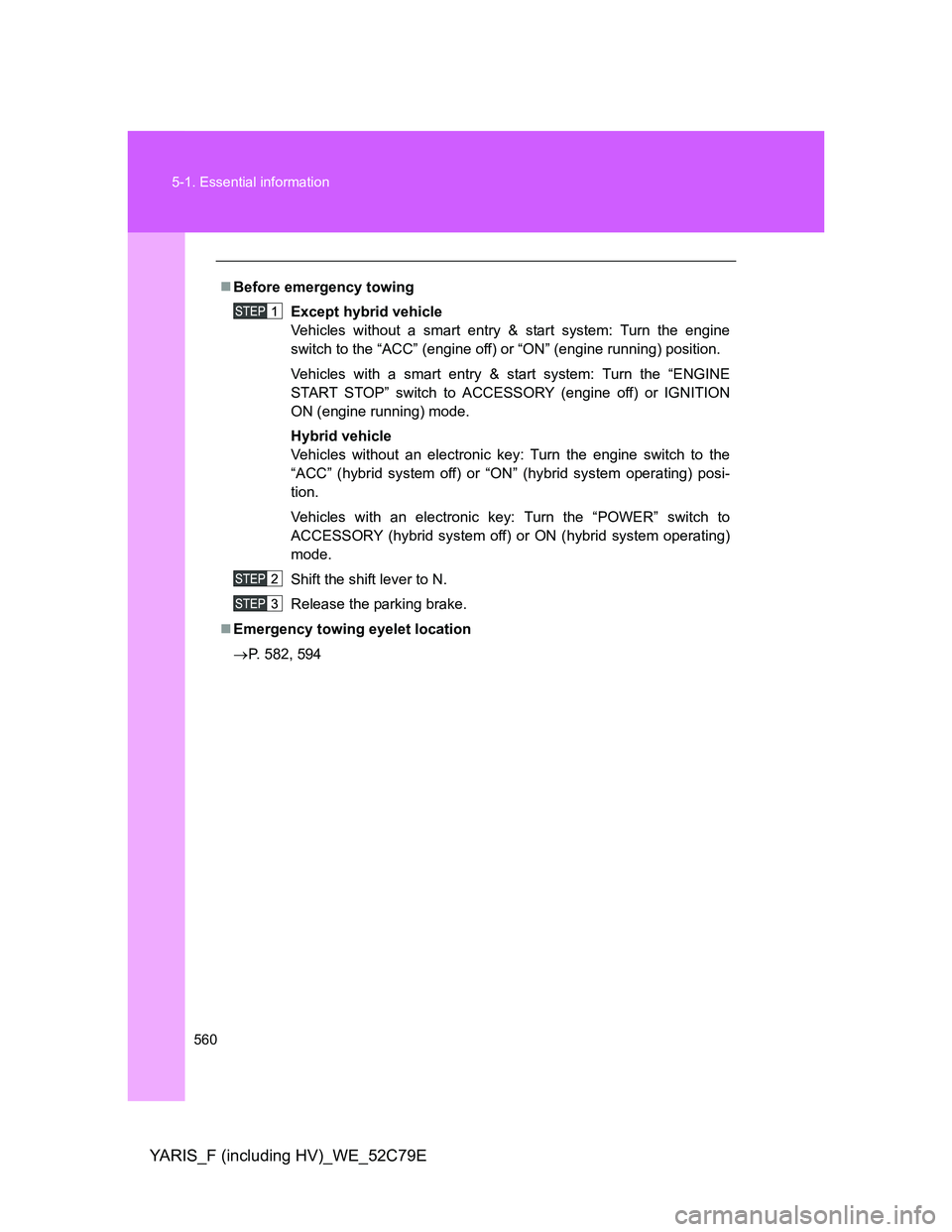

Before emergency towing
Except hybrid vehicle
Vehicles without a smart entry & start system: Turn the engine
switch to the “ACC” (engine off) or “ON” (engine running) position.
Vehicles with a smart entry & start system: Turn the “ENGINE
START STOP” switch to ACCESSORY (engine off) or IGNITION
ON (engine running) mode.
Hybrid vehicle
Vehicles without an electronic key: Turn the engine switch to the
“ACC” (hybrid system off) or “ON” (hybrid system operating) posi-
tion.
Vehicles with an electronic key: Turn the “POWER” switch to
ACCESSORY (hybrid system off) or ON (hybrid system operating)
mode.
Shift the shift lever to N.
Release the parking brake.
Emergency towing eyelet location
P. 582, 594
