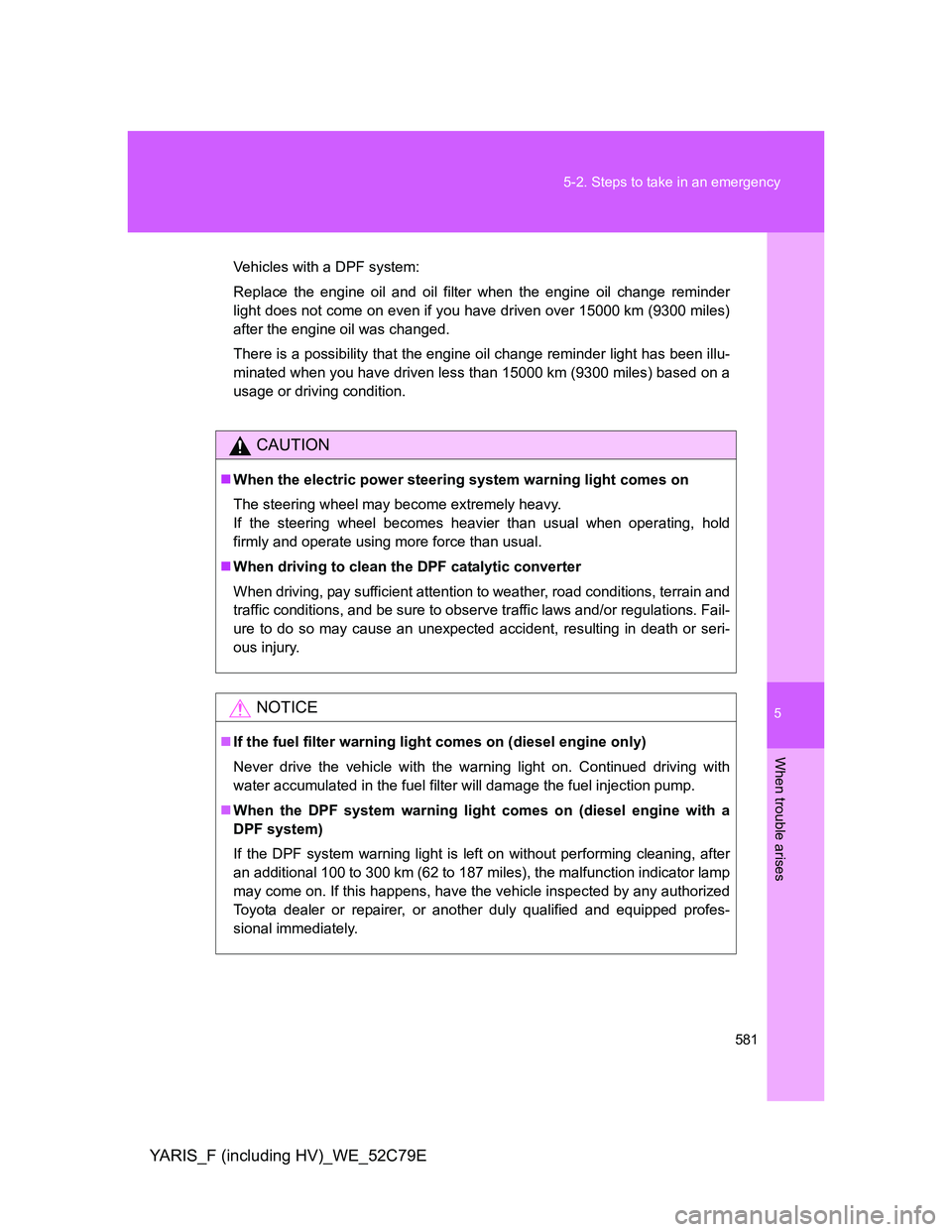

Page 581 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
581 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Vehicles with a DPF system:
Replace the engine oil and oil filter when the engine oil change reminder
ligh

Page 582 of 704

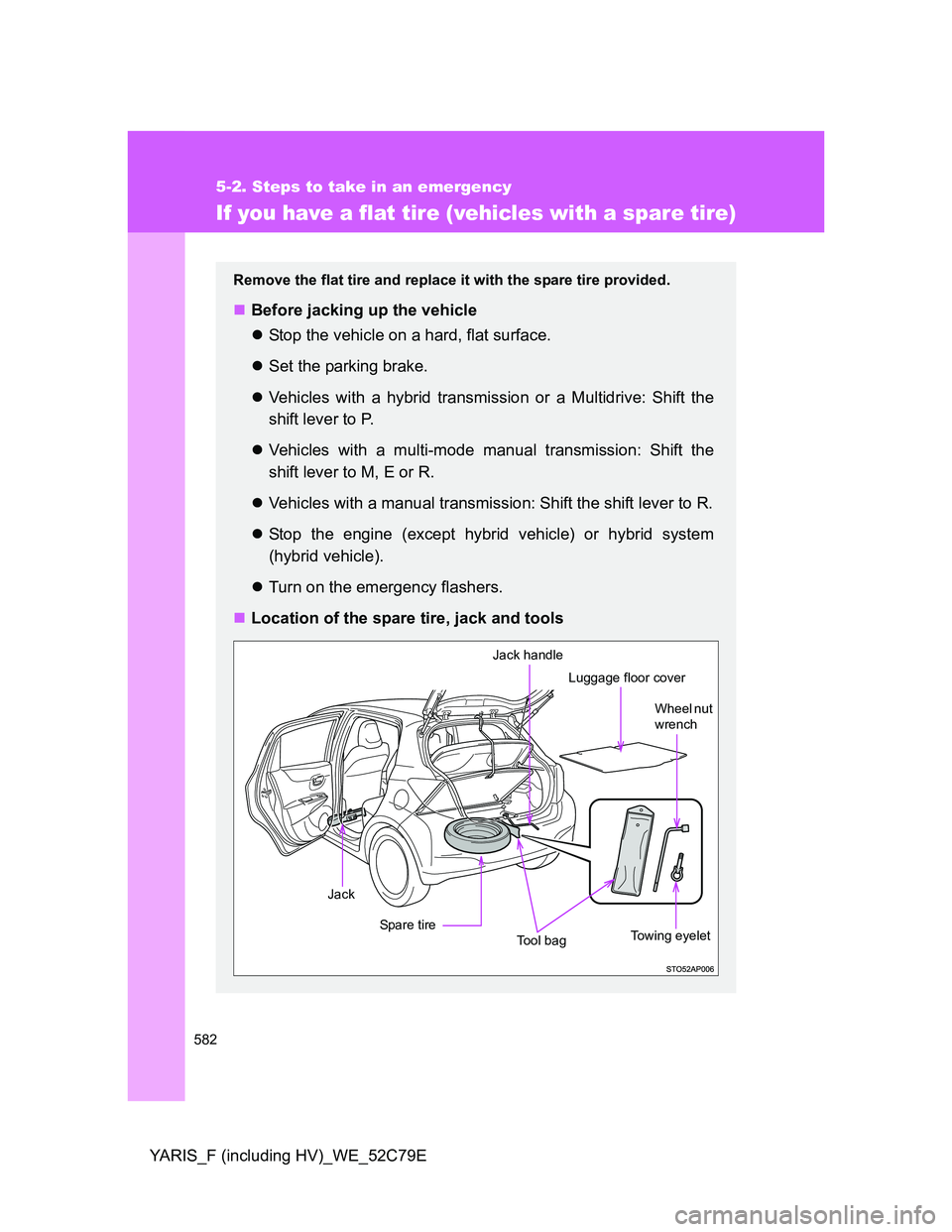

TOYOTA YARIS HYBRID 2012  Owners Manual 582
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
If you have a flat tire (vehicles with a spare tire)
Remove the flat tire and replace it with the spare tire provided.
Before

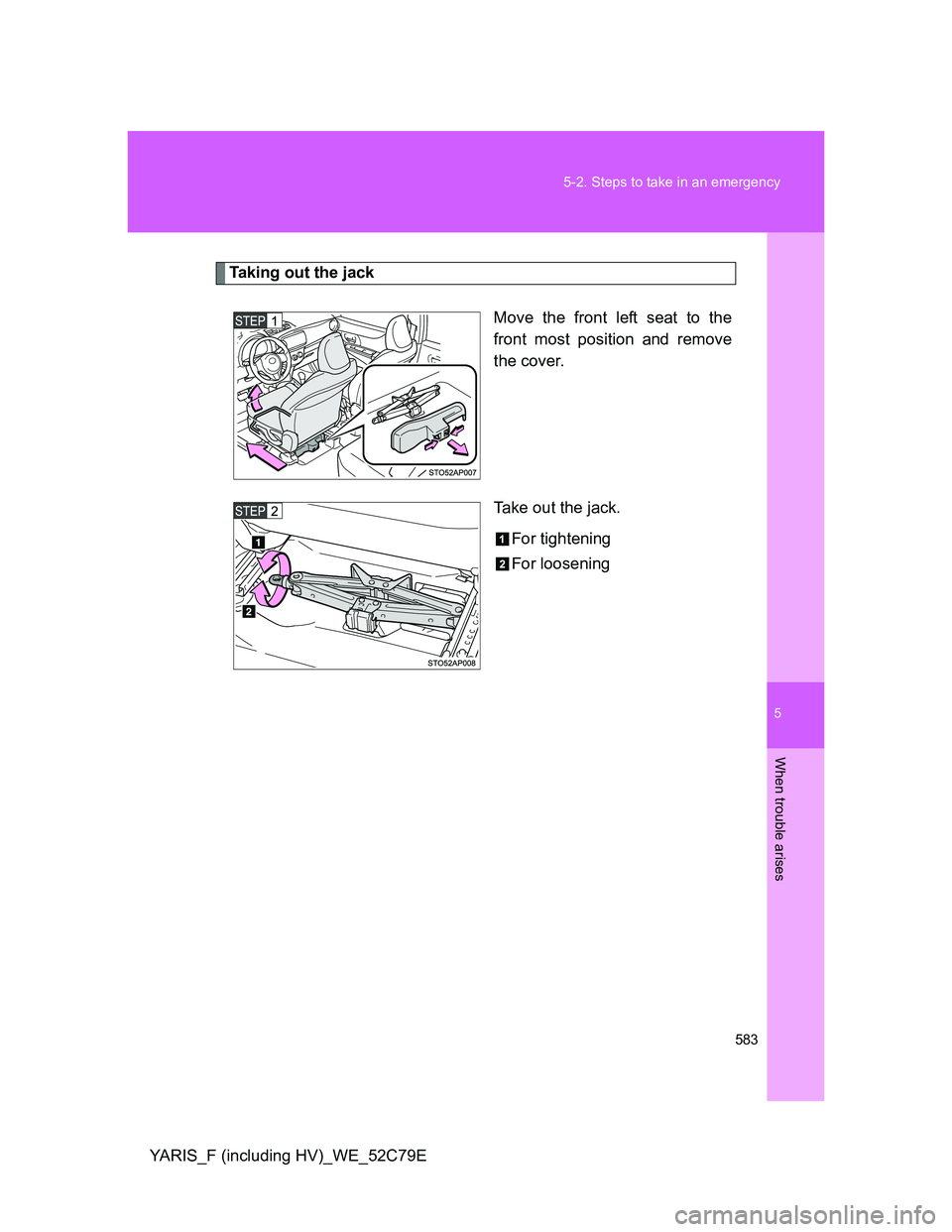

Page 583 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
583 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Taking out the jack
Move the front left seat to the
front most position and remove
the cover.
Take out the

Page 584 of 704

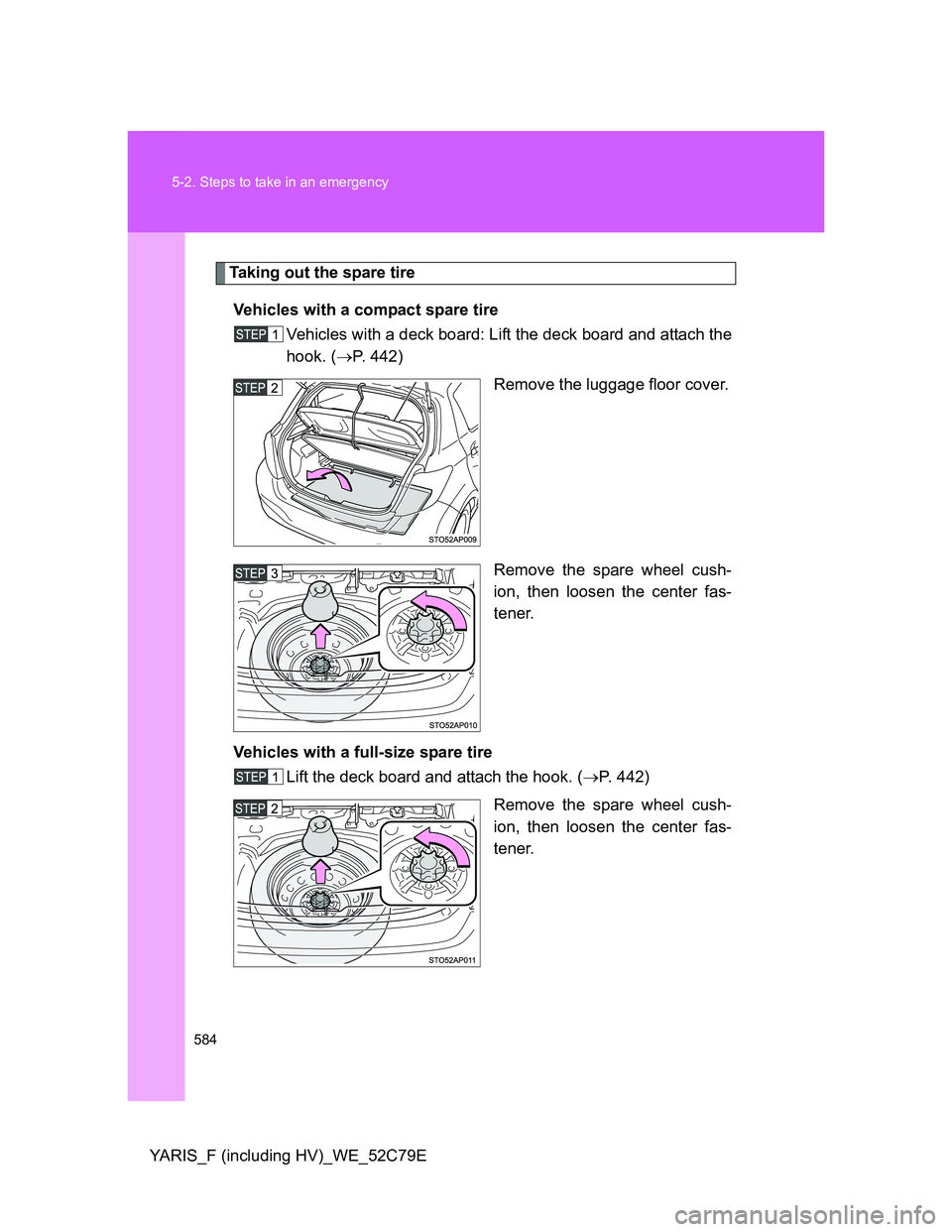

TOYOTA YARIS HYBRID 2012  Owners Manual 584 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Taking out the spare tire
Vehicles with a compact spare tire
Vehicles with a deck board: Lift the deck board and attach the
hook

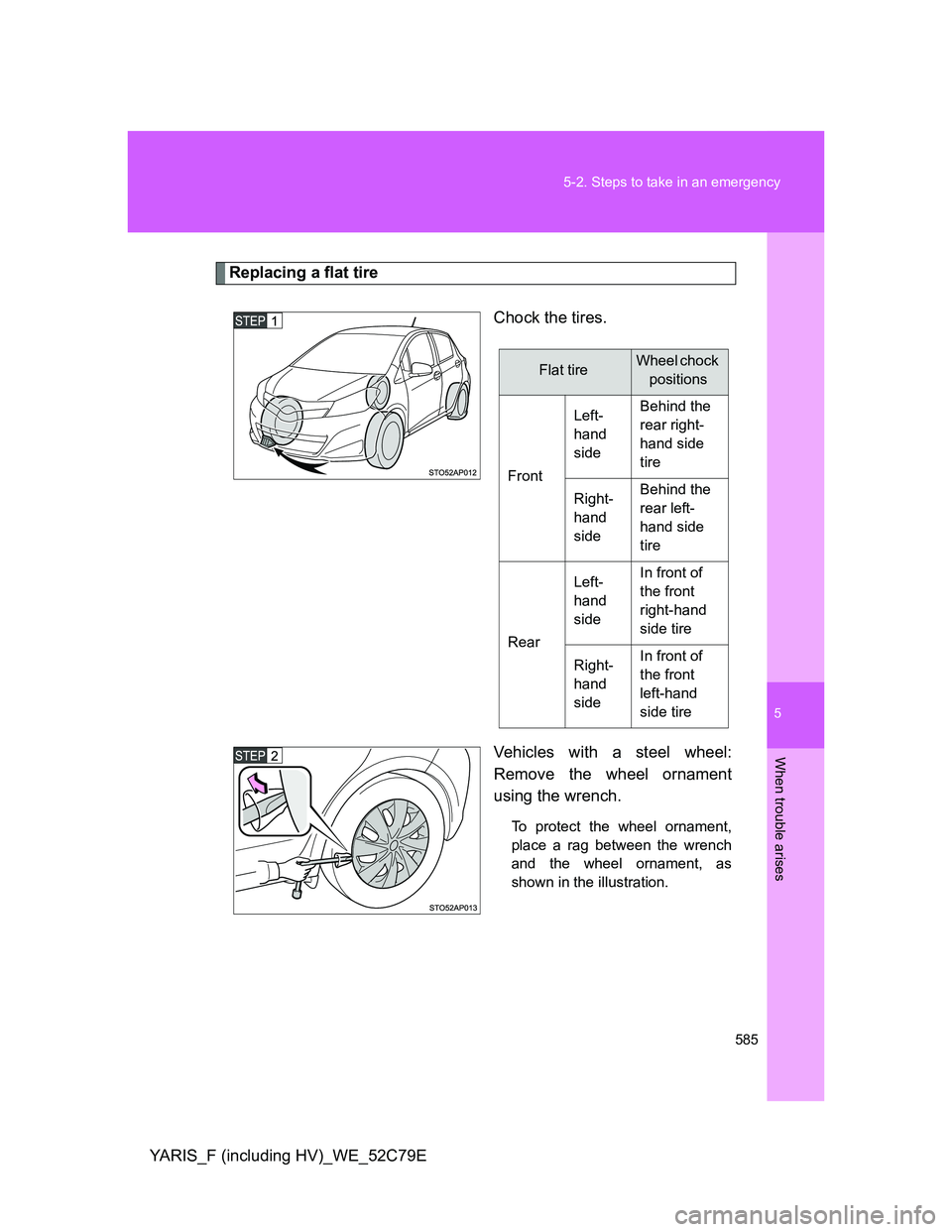

Page 585 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
585 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Replacing a flat tire
Chock the tires.
Vehicles with a steel wheel:
Remove the wheel ornament
using the wr

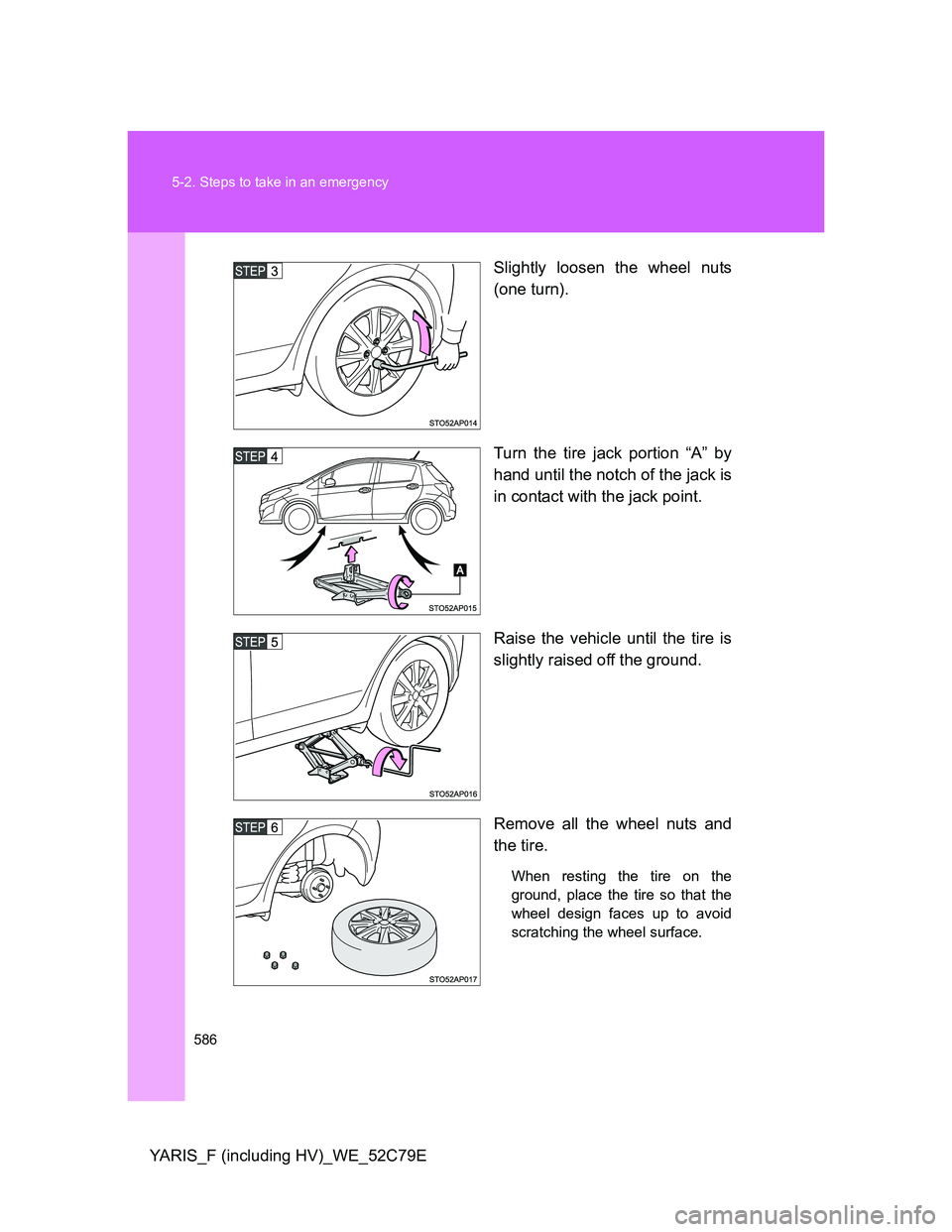

Page 586 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 586 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79ESlightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact w

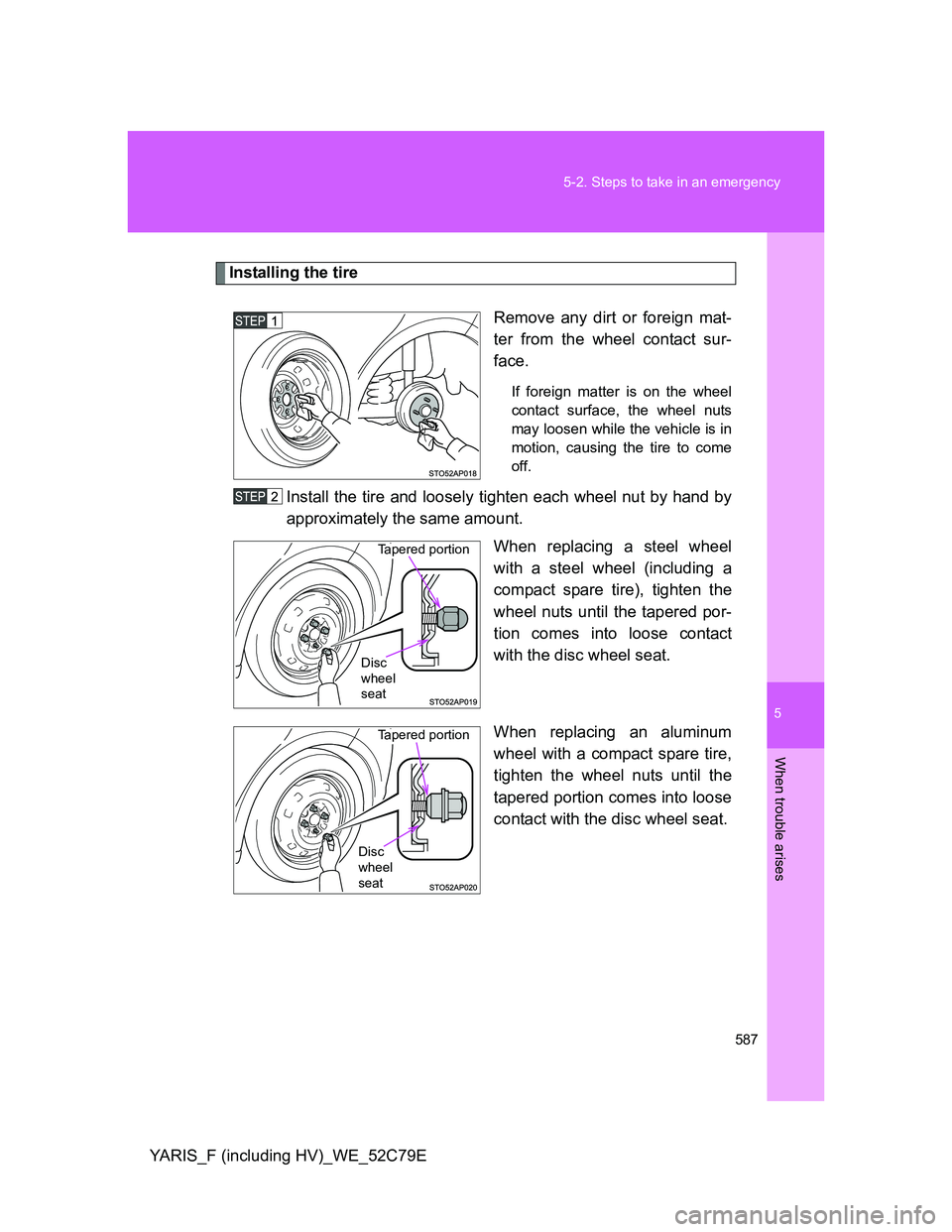

Page 587 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
587 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Installing the tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matte

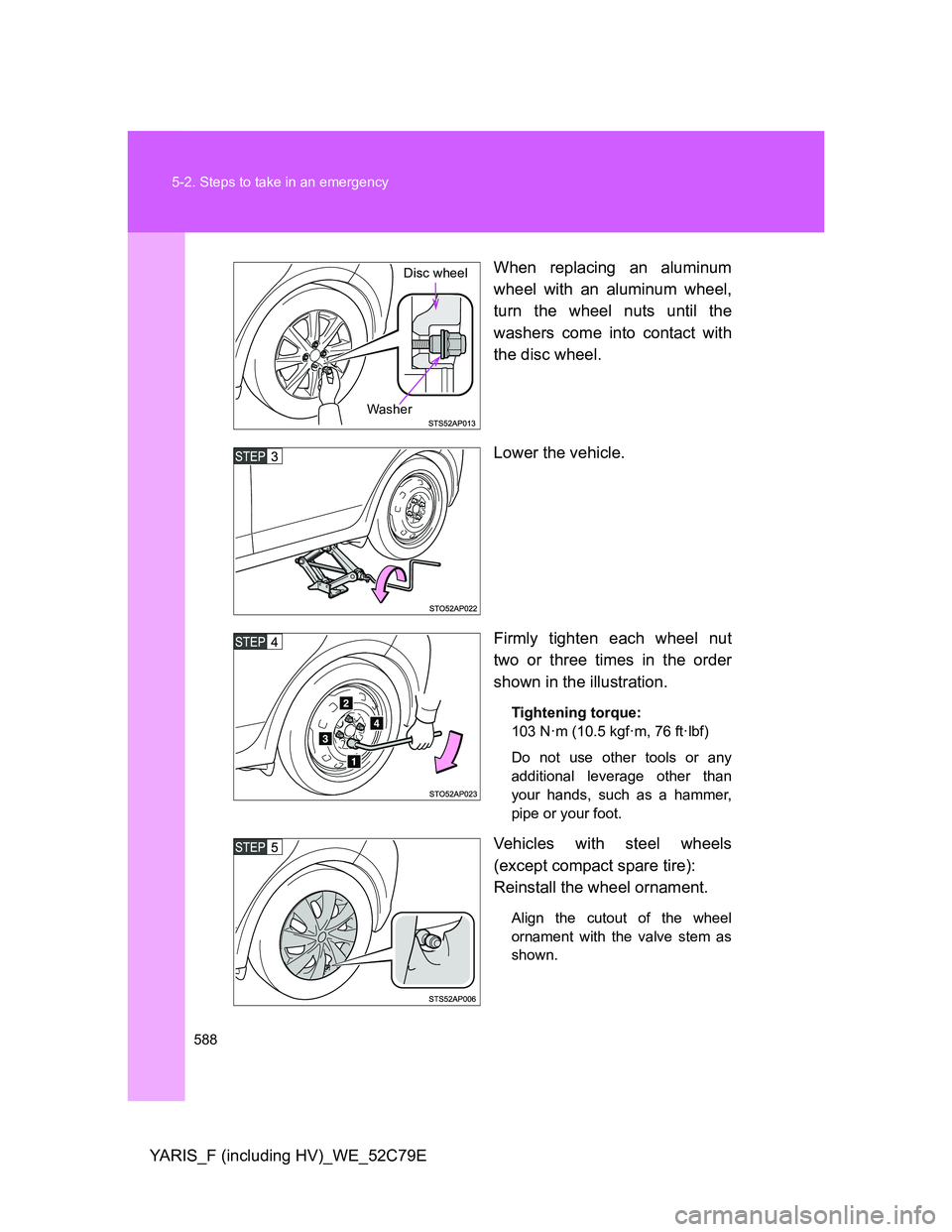

Page 588 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 588 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79EWhen replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wh

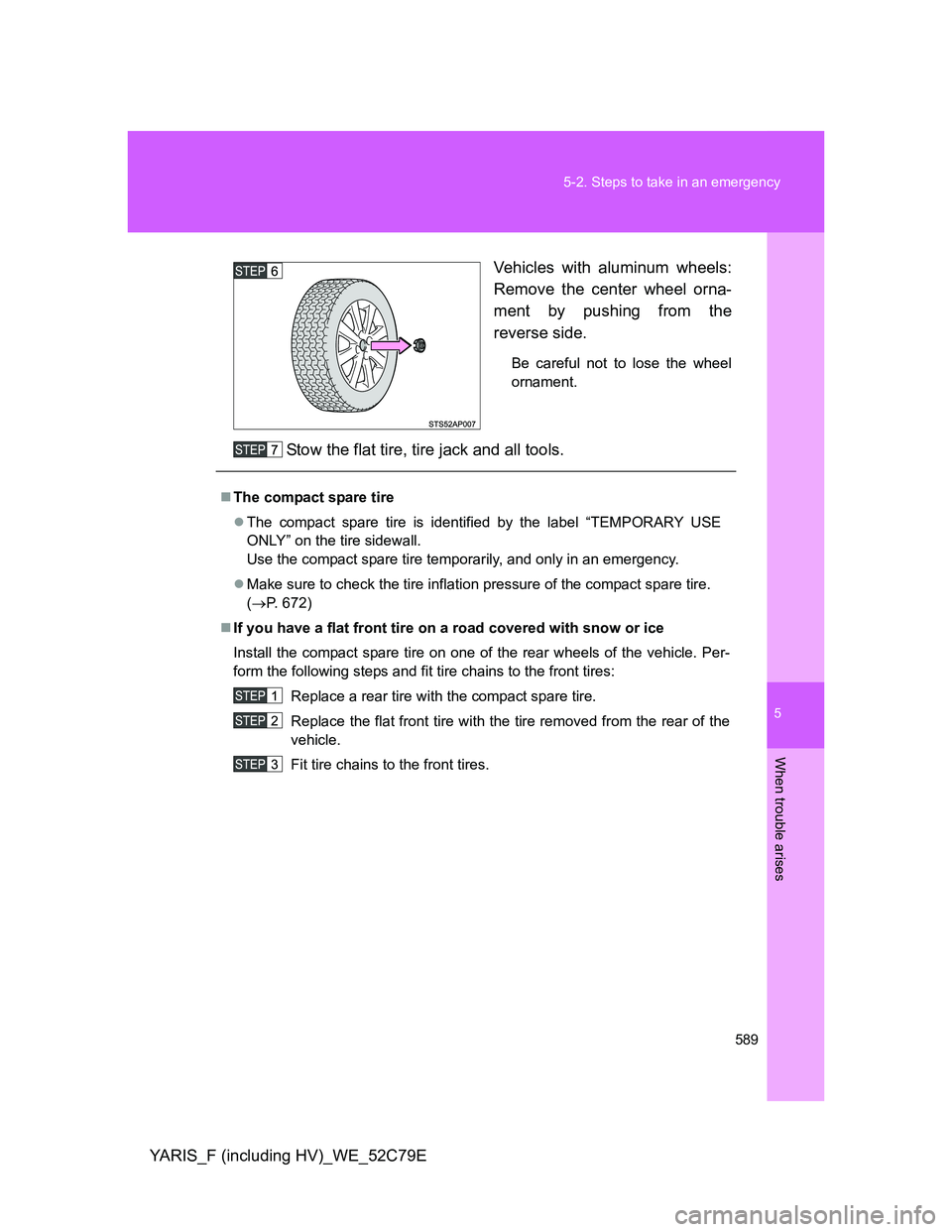

Page 589 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
589 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79EVehicles with aluminum wheels:
Remove the center wheel orna-
ment by pushing from the
reverse side.
Be care

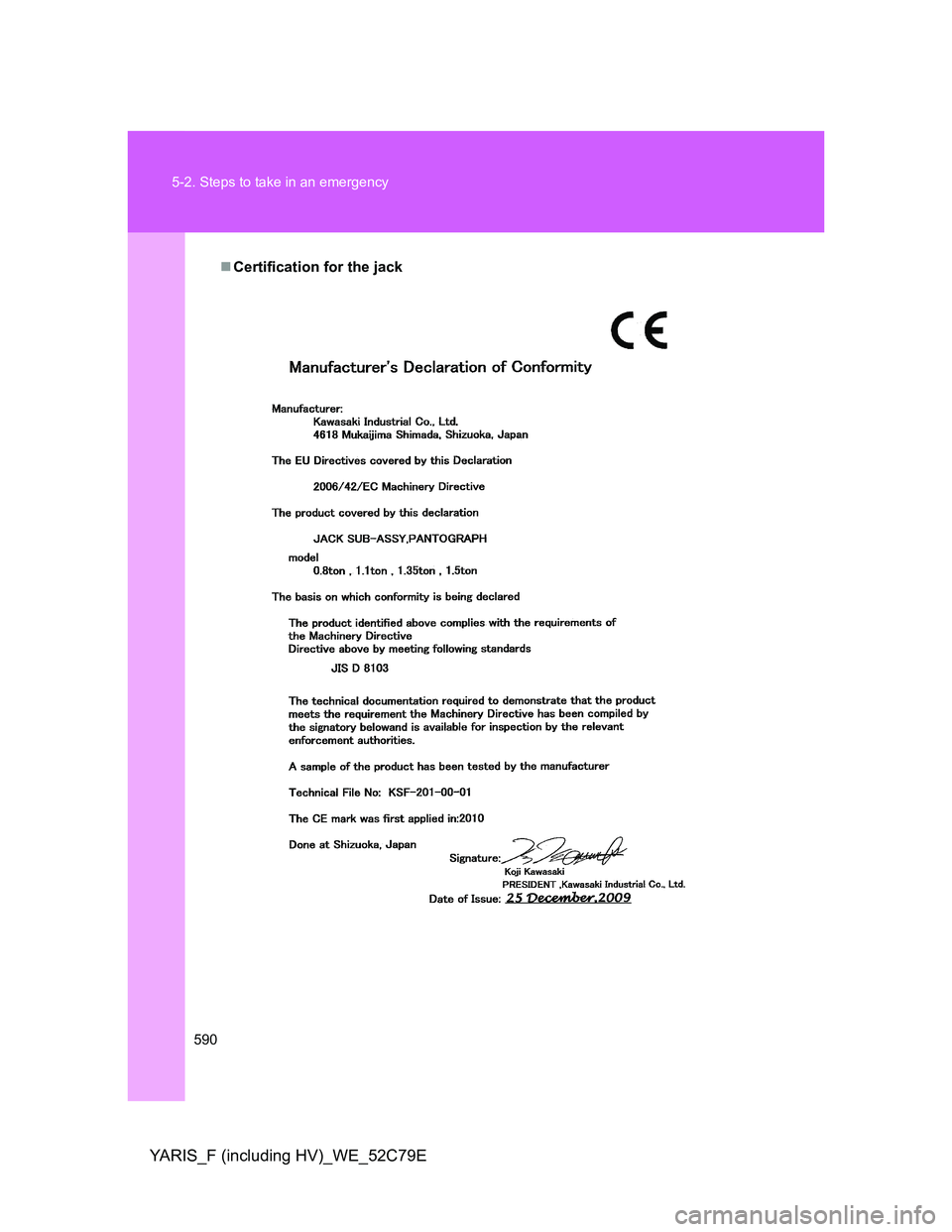

Page 590 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 590 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Certification for the jack
