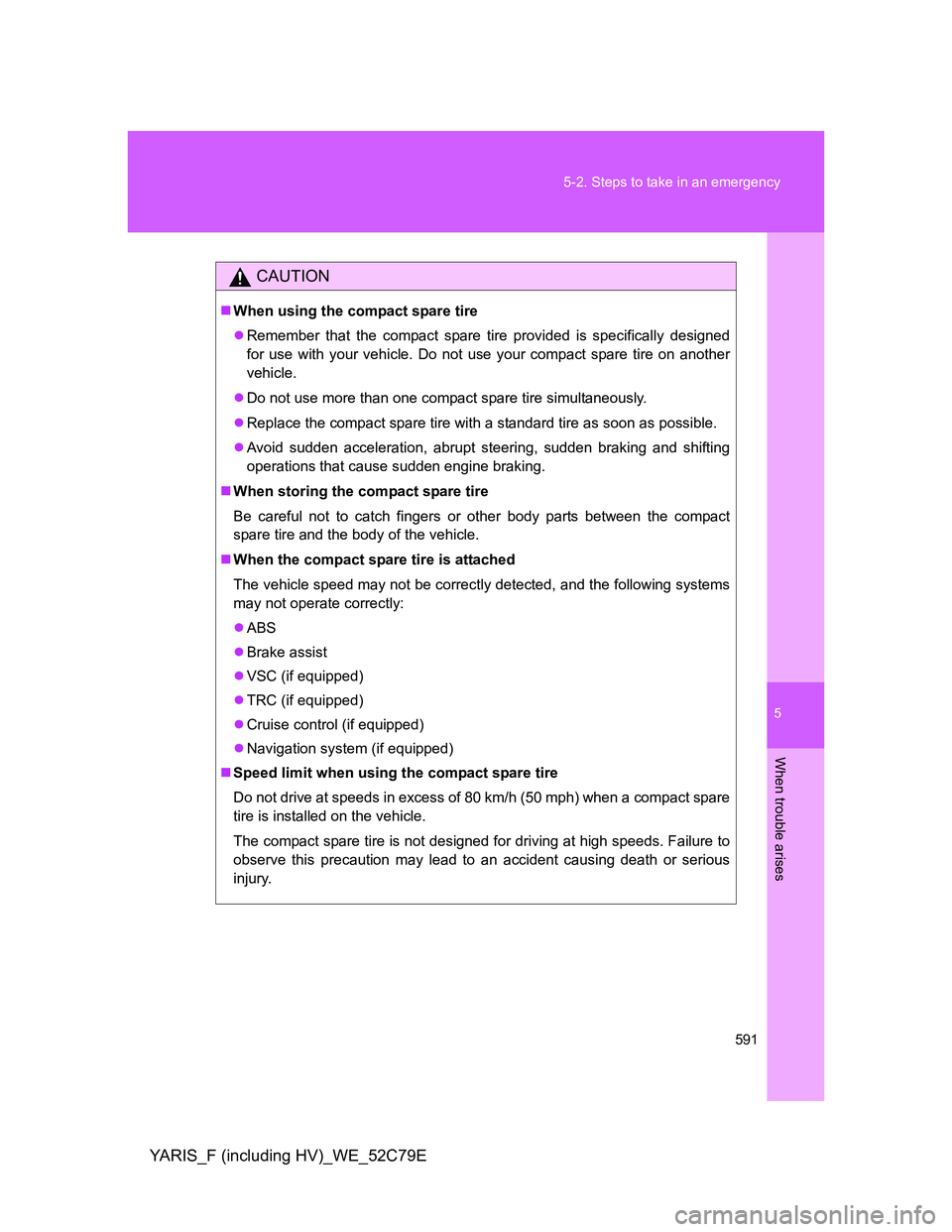

Page 591 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
591 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
CAUTION
When using the compact spare tire
Remember that the compact spare tire provided is specifica

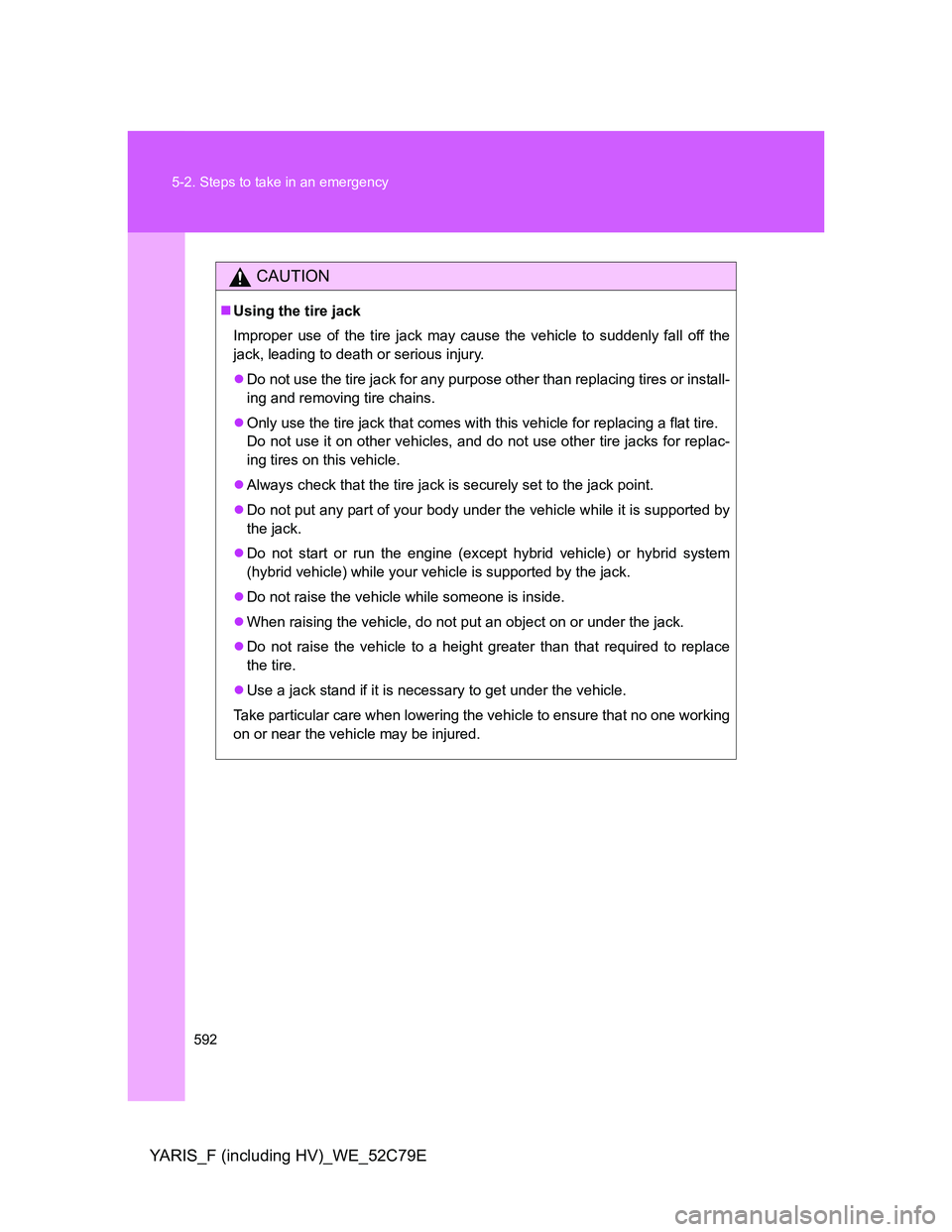

Page 592 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 592 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
CAUTION
Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to dea

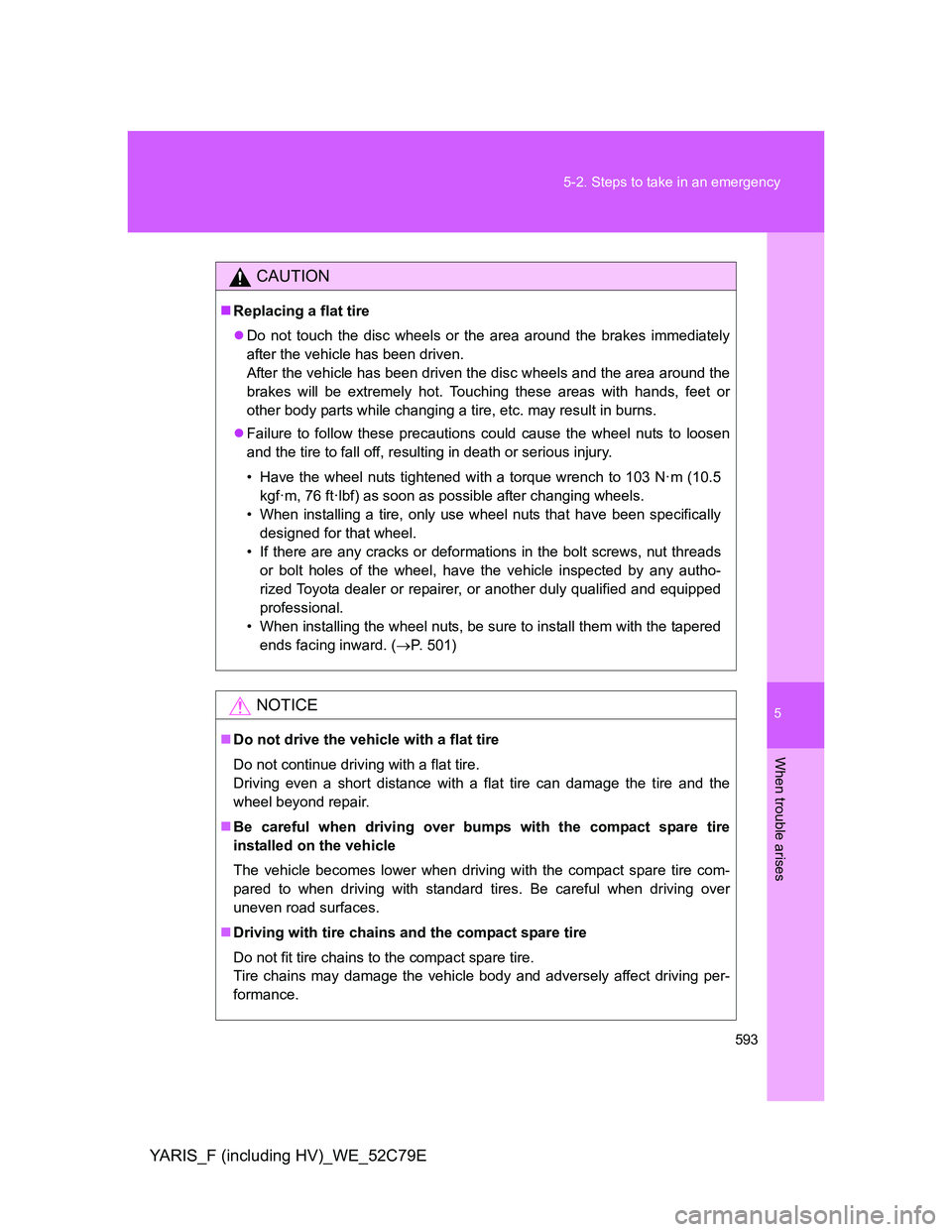

Page 593 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
593 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
CAUTION
Replacing a flat tire
Do not touch the disc wheels or the area around the brakes immediately

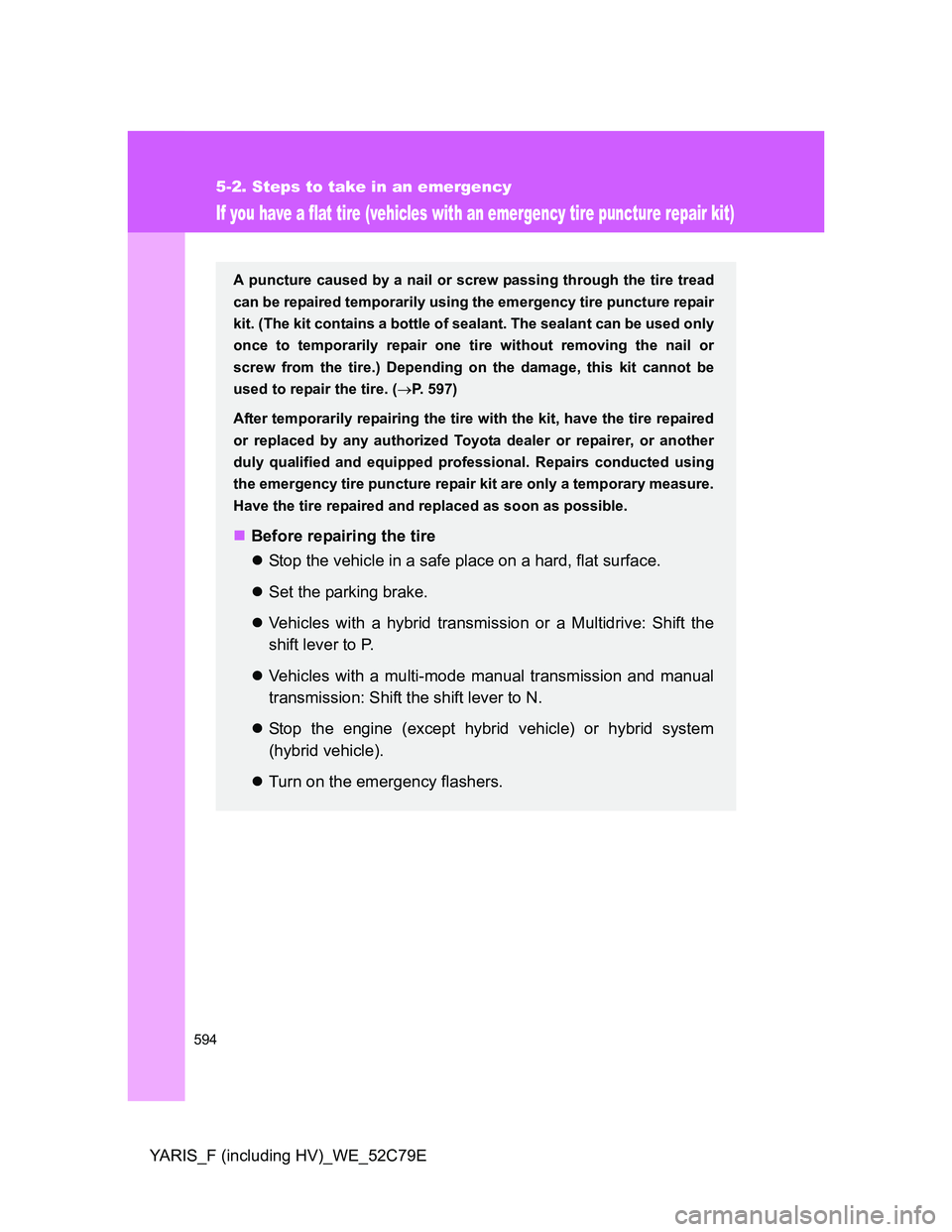

Page 594 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 594
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing throu

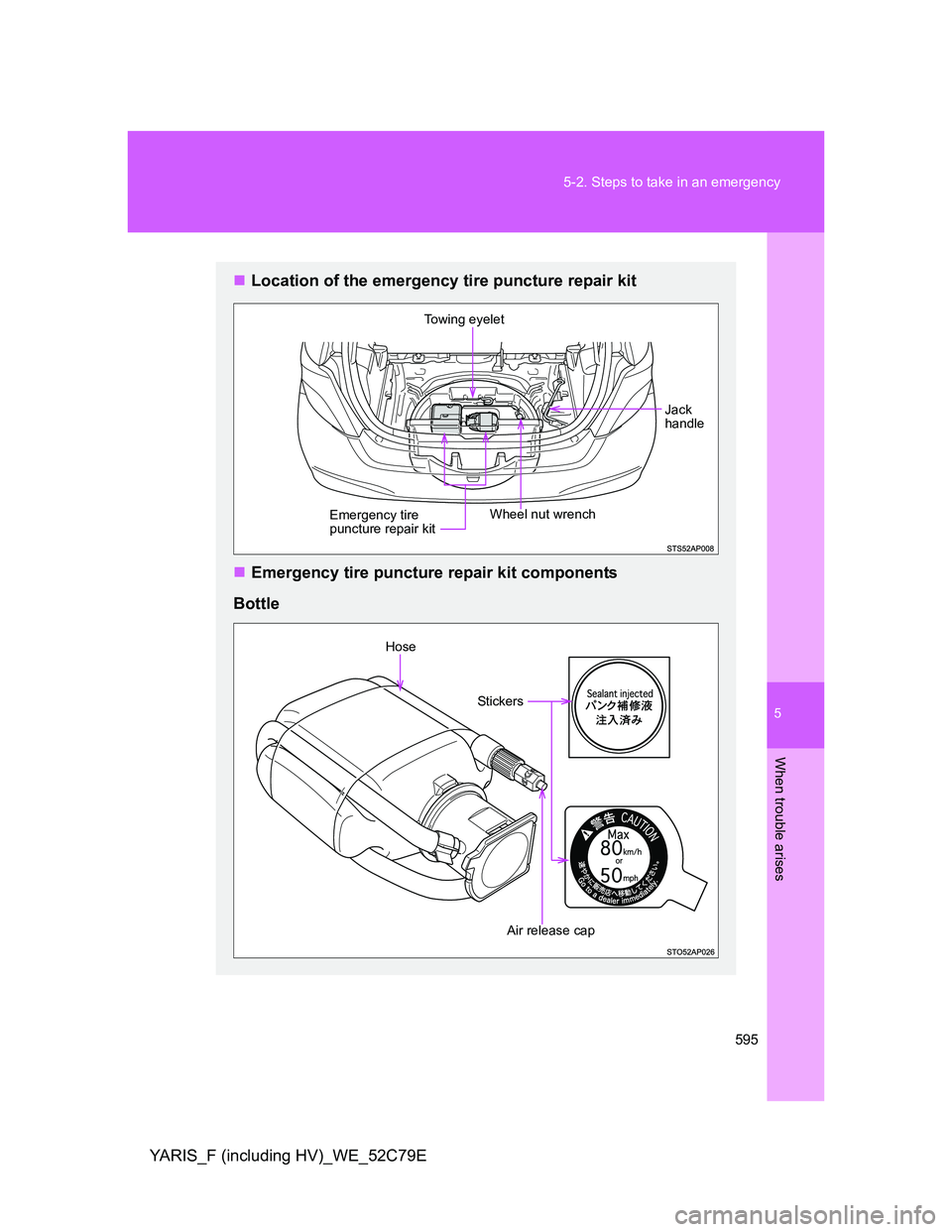

Page 595 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
595 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Location of the emergency tire puncture repair kit
Emergency tire puncture repair kit components
Bot

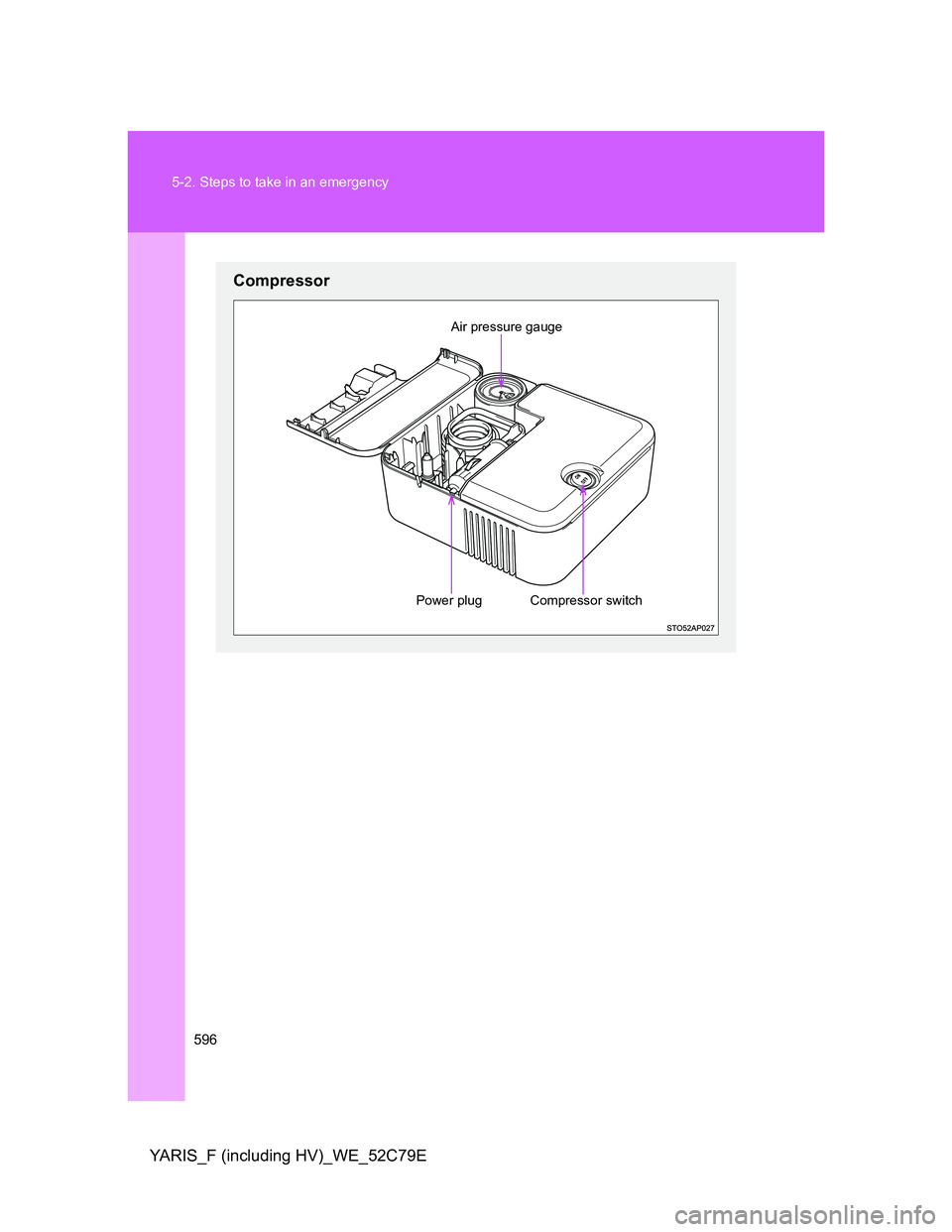

Page 596 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 596 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Compressor
Power plugCompressor switch
Air pressure gauge

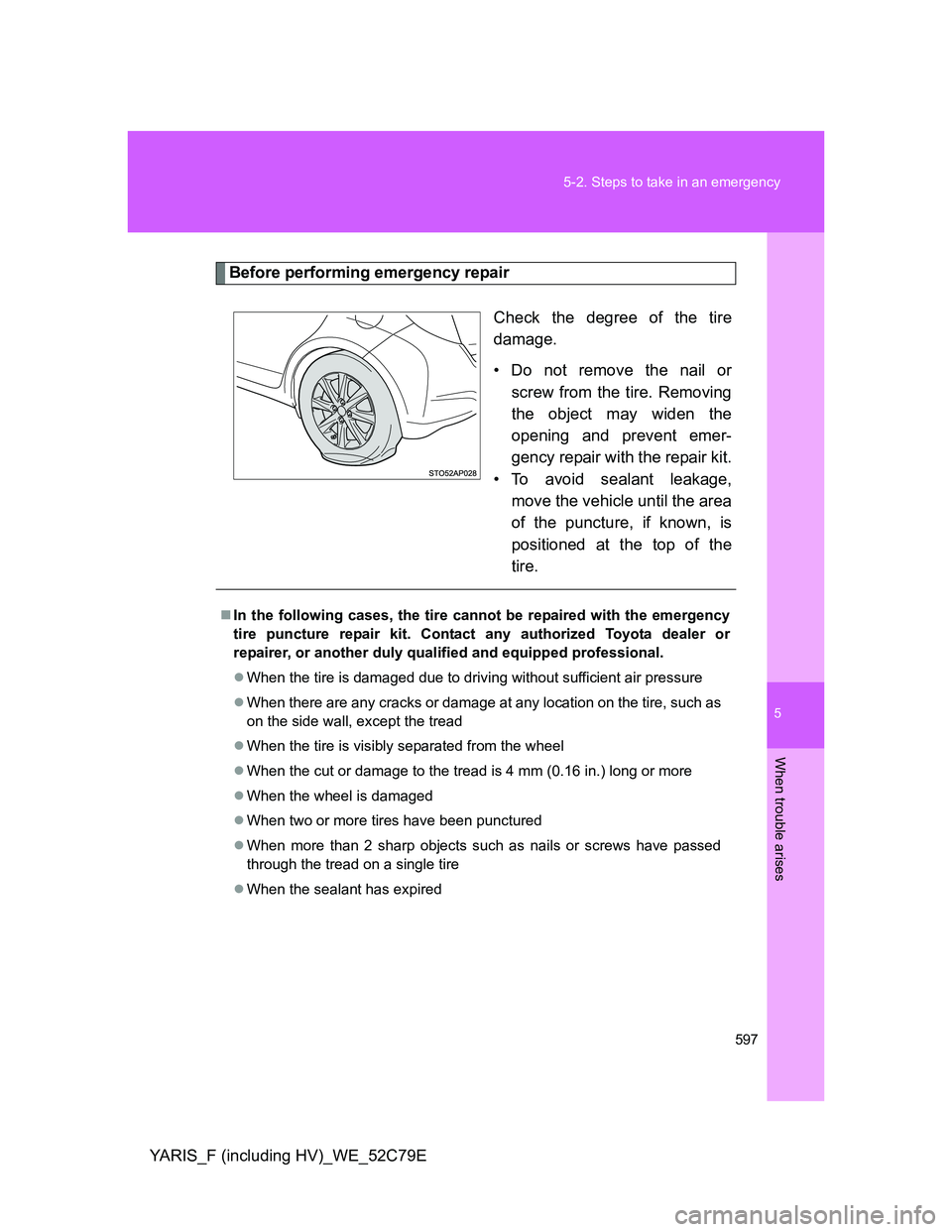

Page 597 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
597 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Before performing emergency repair
Check the degree of the tire
damage.
• Do not remove the nail or
scre

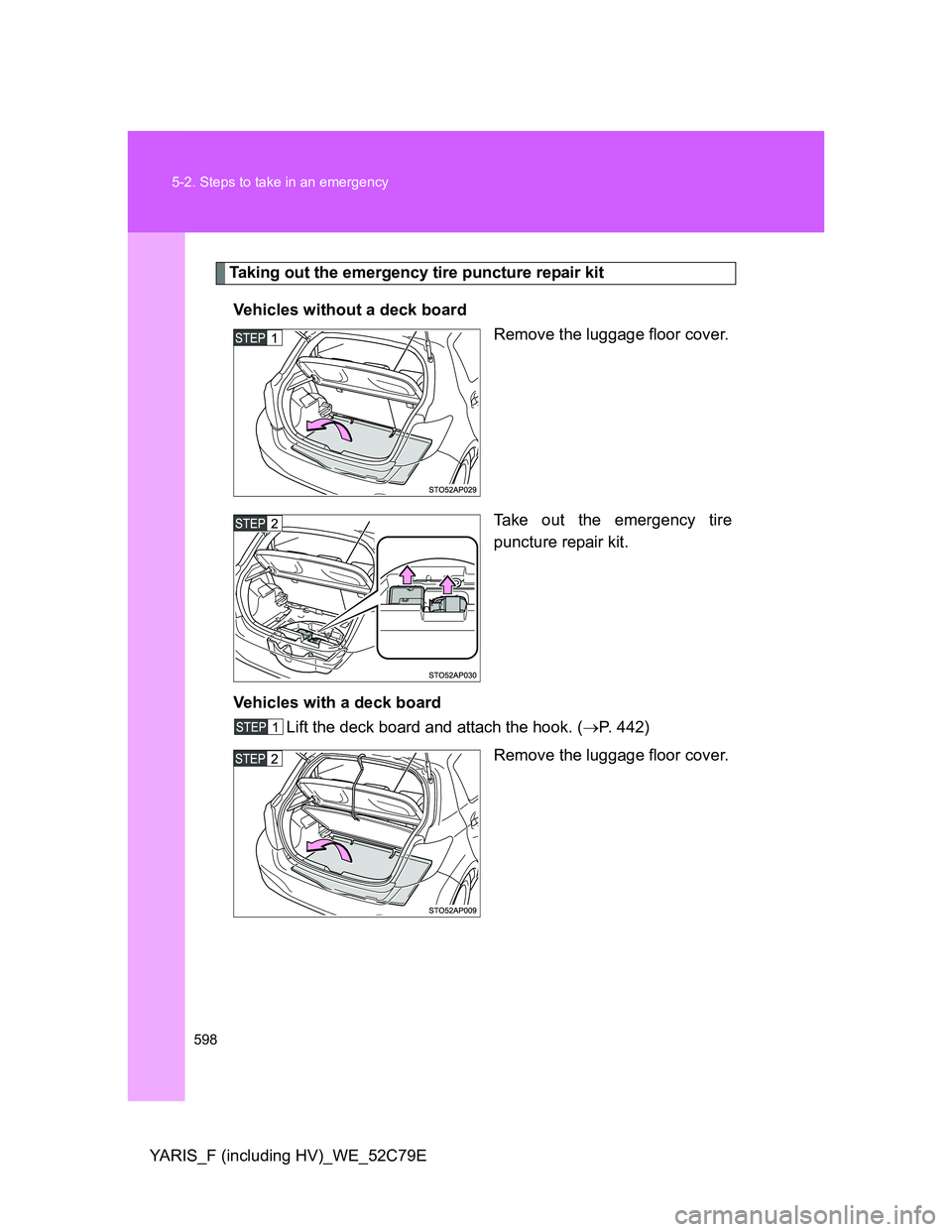

Page 598 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 598 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Taking out the emergency tire puncture repair kit
Vehicles without a deck board
Remove the luggage floor cover.
Take out the eme

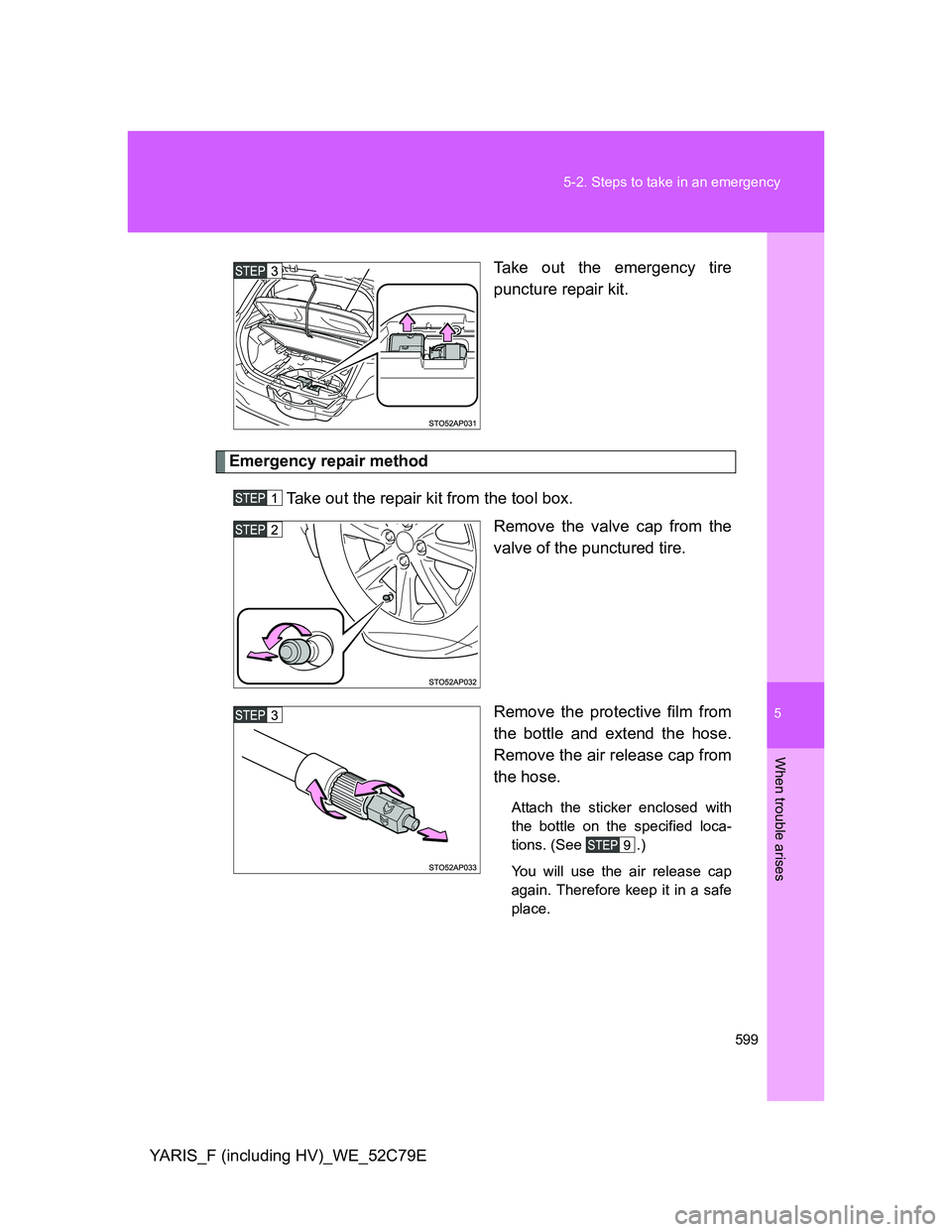

Page 599 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 5
599 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79ETake out the emergency tire
puncture repair kit.
Emergency repair method
Take out the repair kit from the t

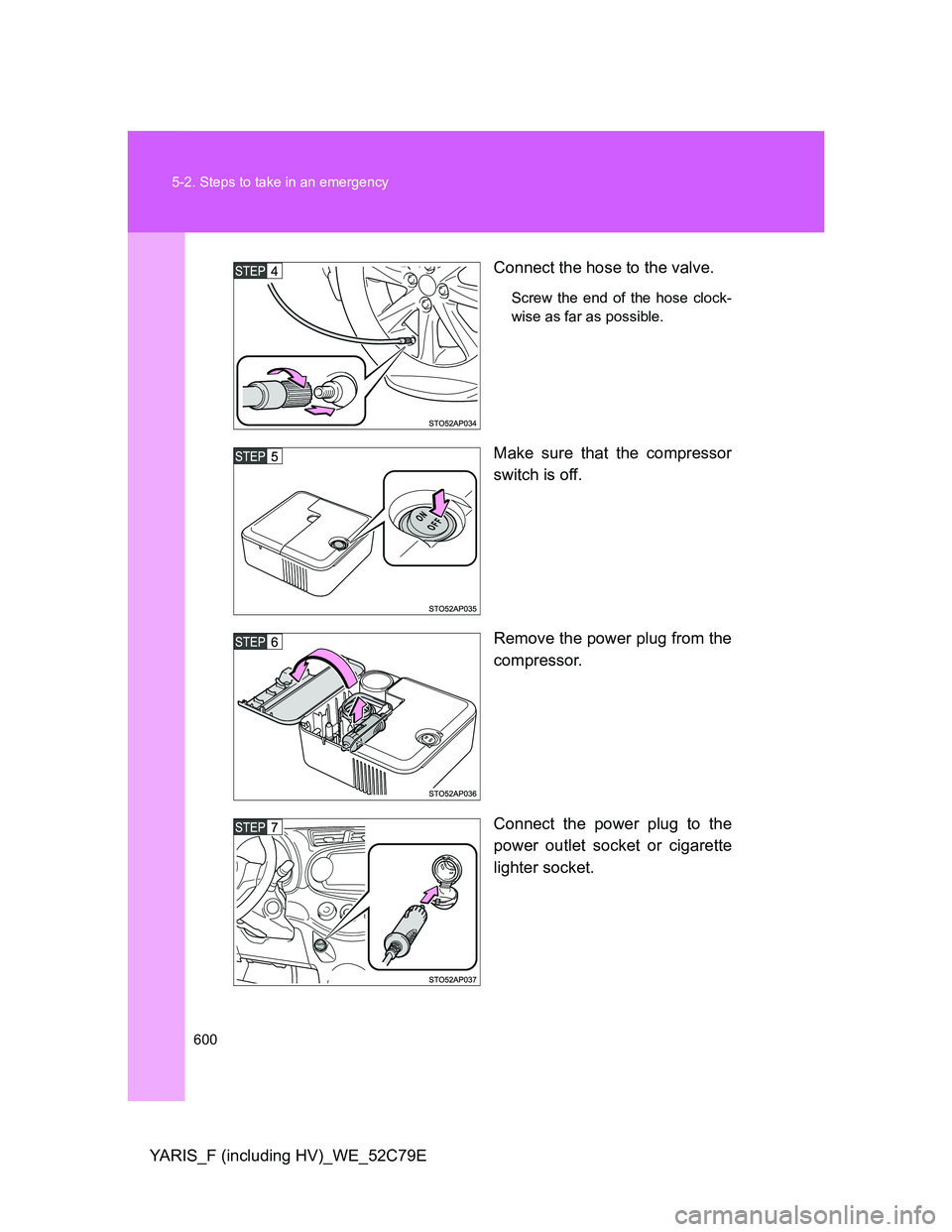

Page 600 of 704

TOYOTA YARIS HYBRID 2012  Owners Manual 600 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79EConnect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.
Make sure that the compressor
switch is
