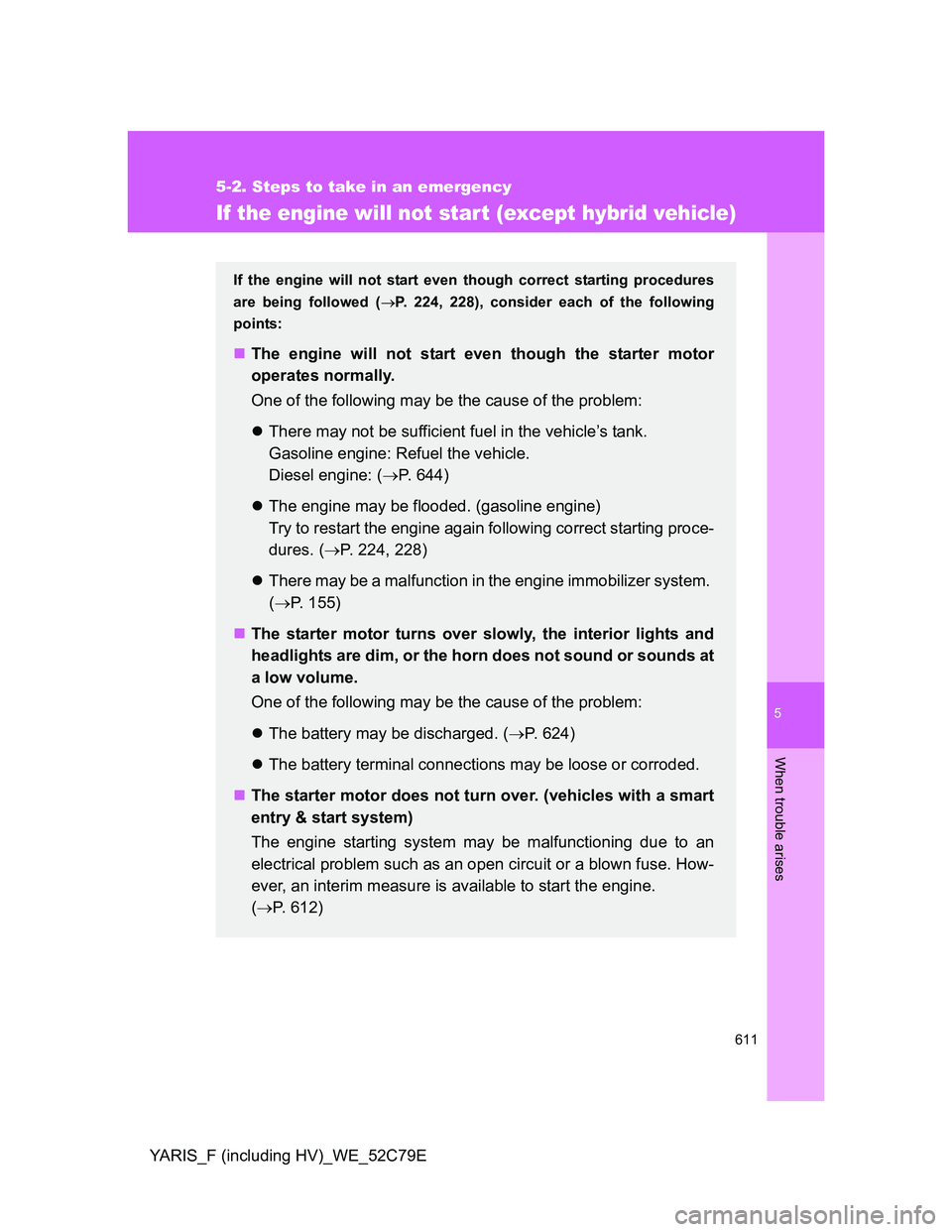

611
5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
If the engine will not start (except hybrid vehicle)
If the engine will not start even though correct starting procedures
are being followed (P. 224, 228), consider each of the following
points:
The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 644)
The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting proce-
dures. (P. 224, 228)
There may be a malfunction in the engine immobilizer system.
(P. 155)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
The battery may be discharged. (P. 624)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over. (vehicles with a smart
entry & start system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 612)
Page 612 of 704

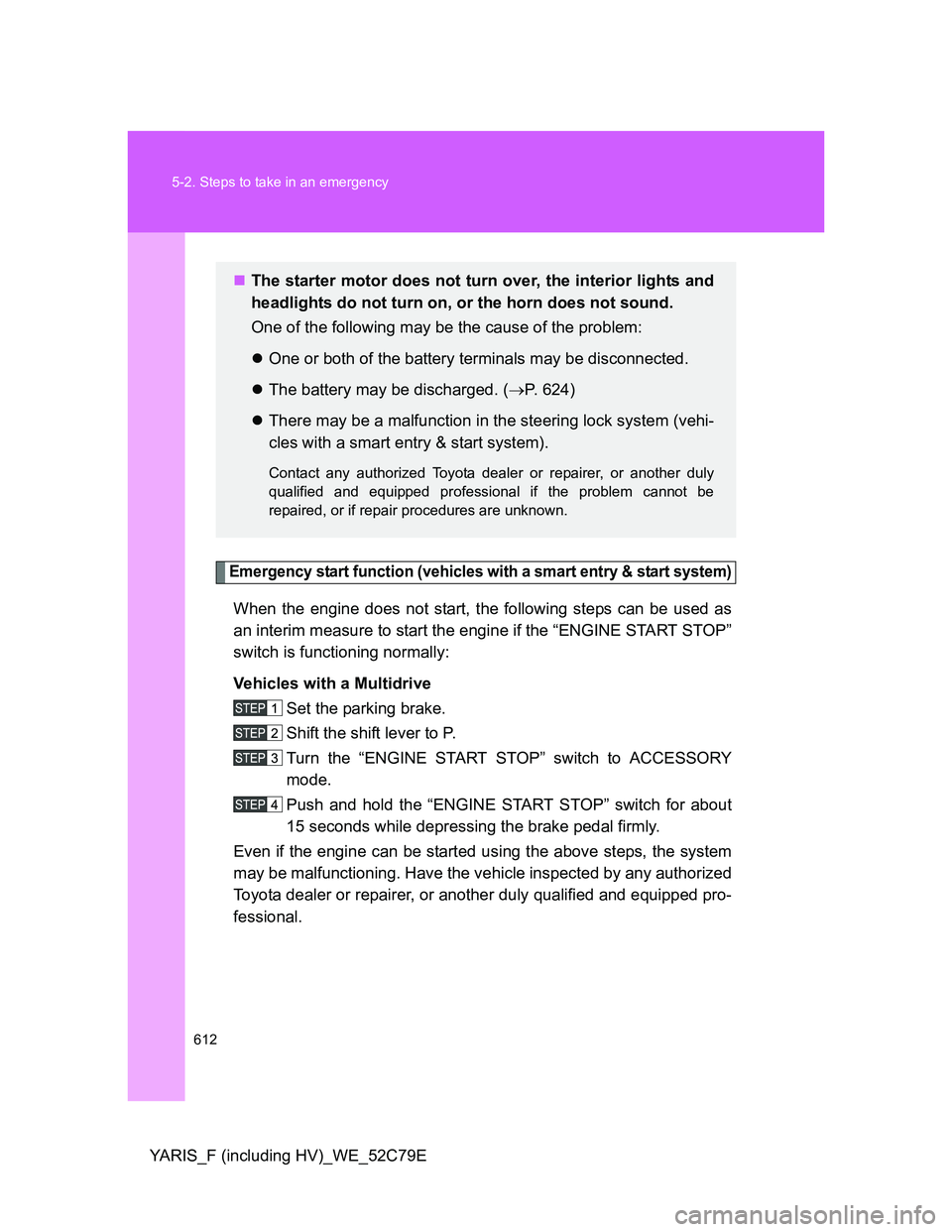

612 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Emergency start function (vehicles with a smart entry & start system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally:
Vehicles with a Multidrive
Set the parking brake.
Shift the shift lever to P.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Push and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 624)
There may be a malfunction in the steering lock system (vehi-
cles with a smart entry & start system).
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional if the problem cannot be
repaired, or if repair procedures are unknown.
Page 613 of 704

5
613 5-2. Steps to take in an emergency
When trouble arises

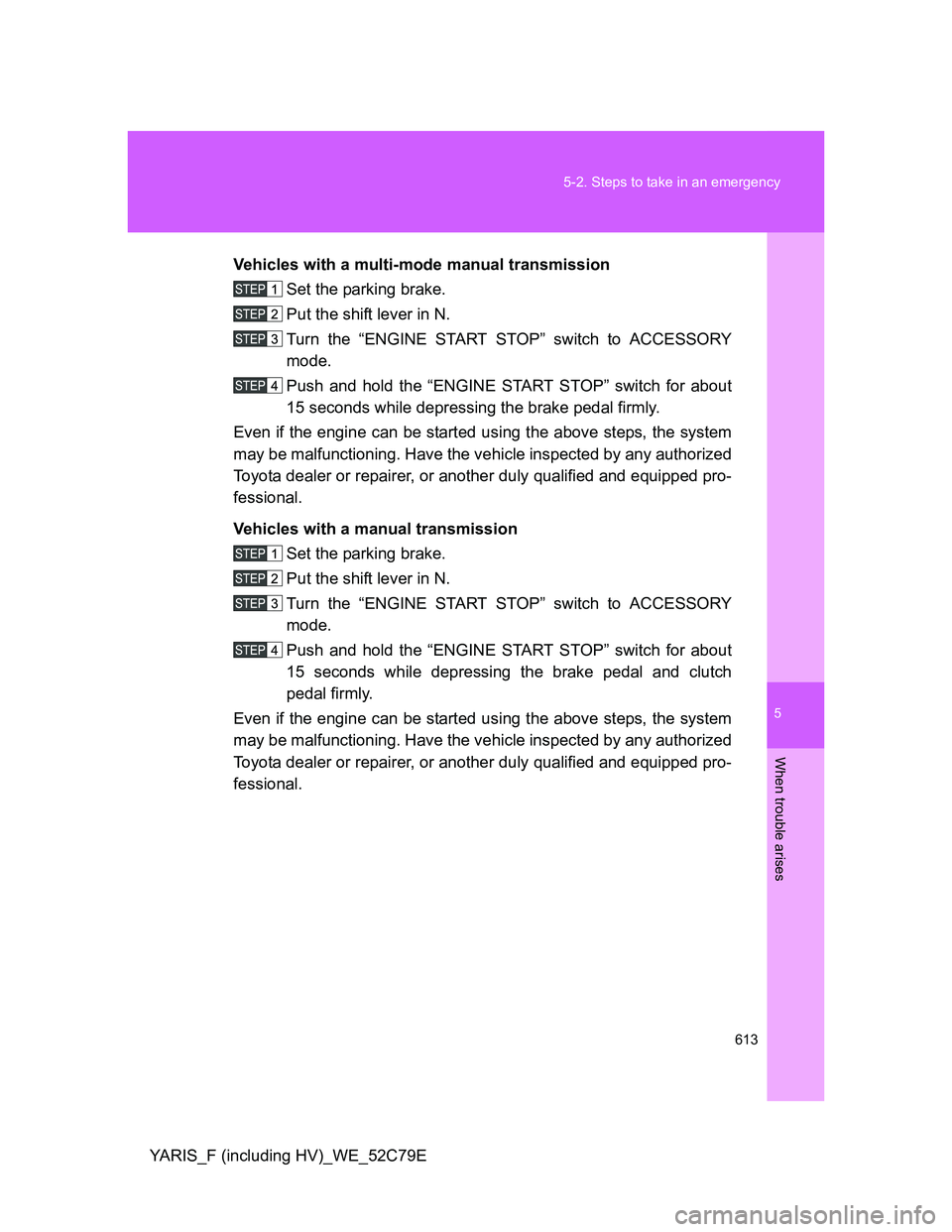

YARIS_F (including HV)_WE_52C79EVehicles with a multi-mode manual transmission
Set the parking brake.
Put the shift lever in N.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Push and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Vehicles with a manual transmission
Set the parking brake.
Put the shift lever in N.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Push and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal and clutch
pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
Page 614 of 704

614
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

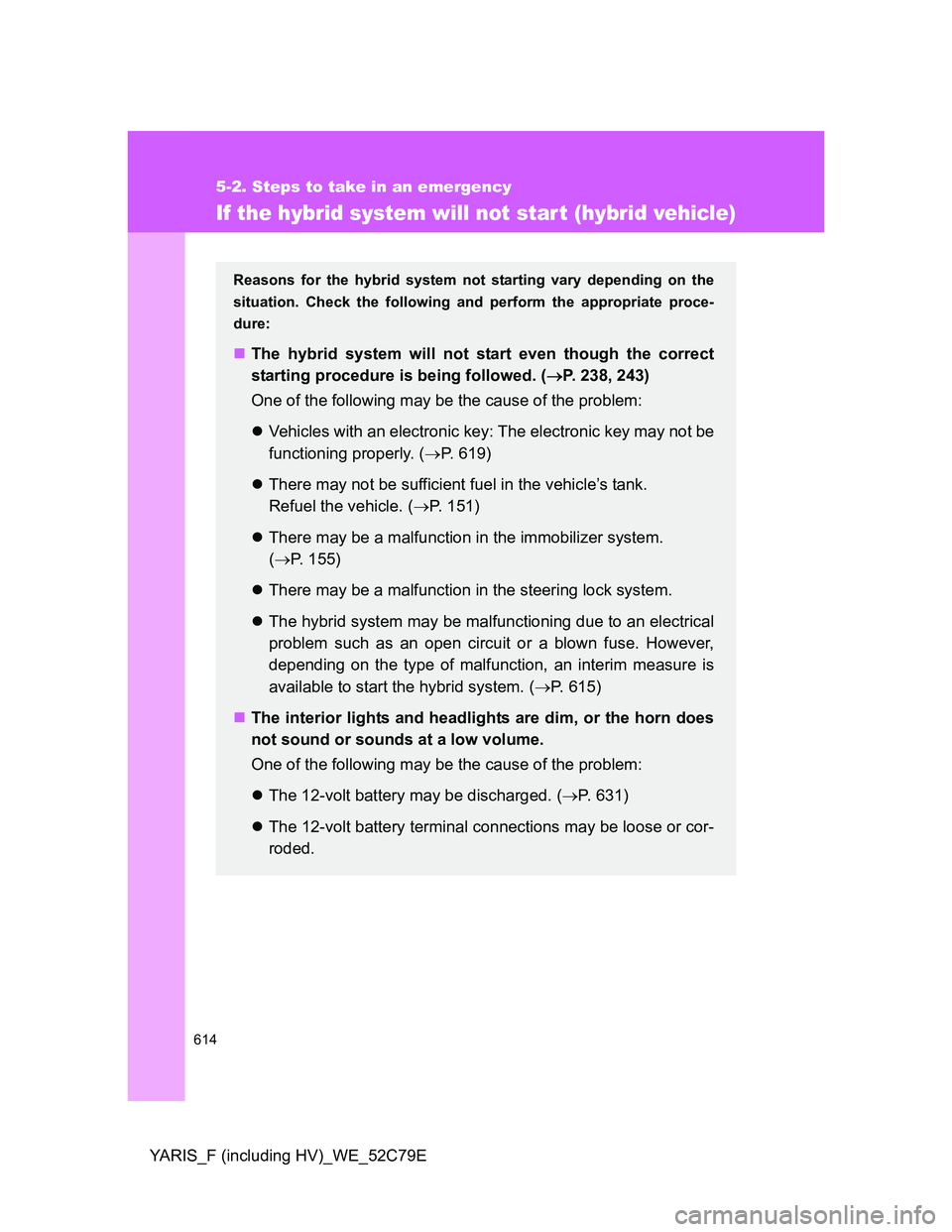

If the hybrid system will not start (hybrid vehicle)
Reasons for the hybrid system not starting vary depending on the
situation. Check the following and perform the appropriate proce-
dure:
The hybrid system will not start even though the correct
starting procedure is being followed. (P. 238, 243)
One of the following may be the cause of the problem:
Vehicles with an electronic key: The electronic key may not be
functioning properly. (P. 619)
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. (P. 151)
There may be a malfunction in the immobilizer system.
(P. 155)
There may be a malfunction in the steering lock system.
The hybrid system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However,
depending on the type of malfunction, an interim measure is
available to start the hybrid system. (P. 615)
The interior lights and headlights are dim, or the horn does
not sound or sounds at a low volume.
One of the following may be the cause of the problem:
The 12-volt battery may be discharged. (P. 631)
The 12-volt battery terminal connections may be loose or cor-
roded.
Page 615 of 704

5
615 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E

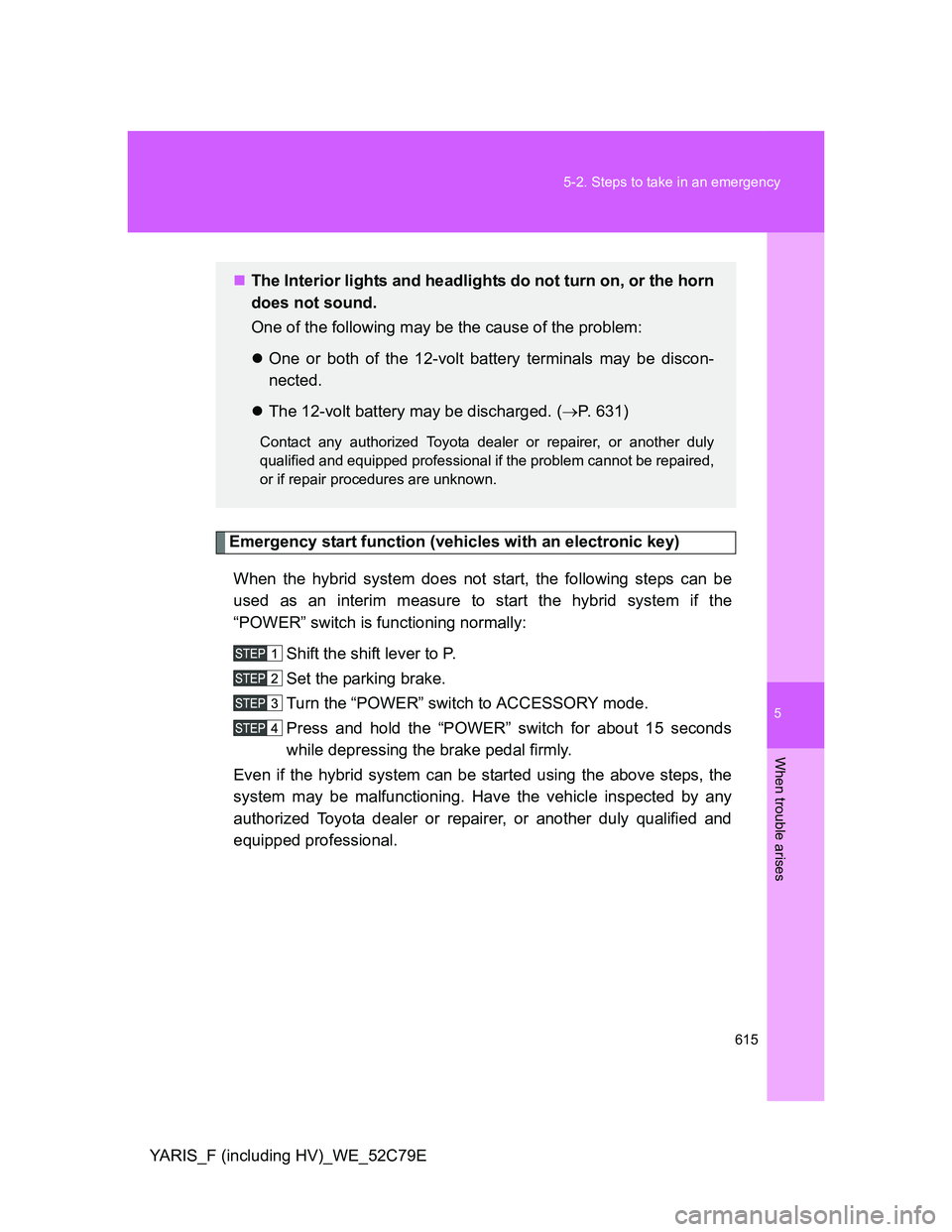

Emergency start function (vehicles with an electronic key)
When the hybrid system does not start, the following steps can be
used as an interim measure to start the hybrid system if the
“POWER” switch is functioning normally:
Shift the shift lever to P.
Set the parking brake.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” switch for about 15 seconds
while depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the
system may be malfunctioning. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
The Interior lights and headlights do not turn on, or the horn
does not sound.
One of the following may be the cause of the problem:
One or both of the 12-volt battery terminals may be discon-
nected.
The 12-volt battery may be discharged. (P. 631)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional if the problem cannot be repaired,
or if repair procedures are unknown.
Page 616 of 704

616
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

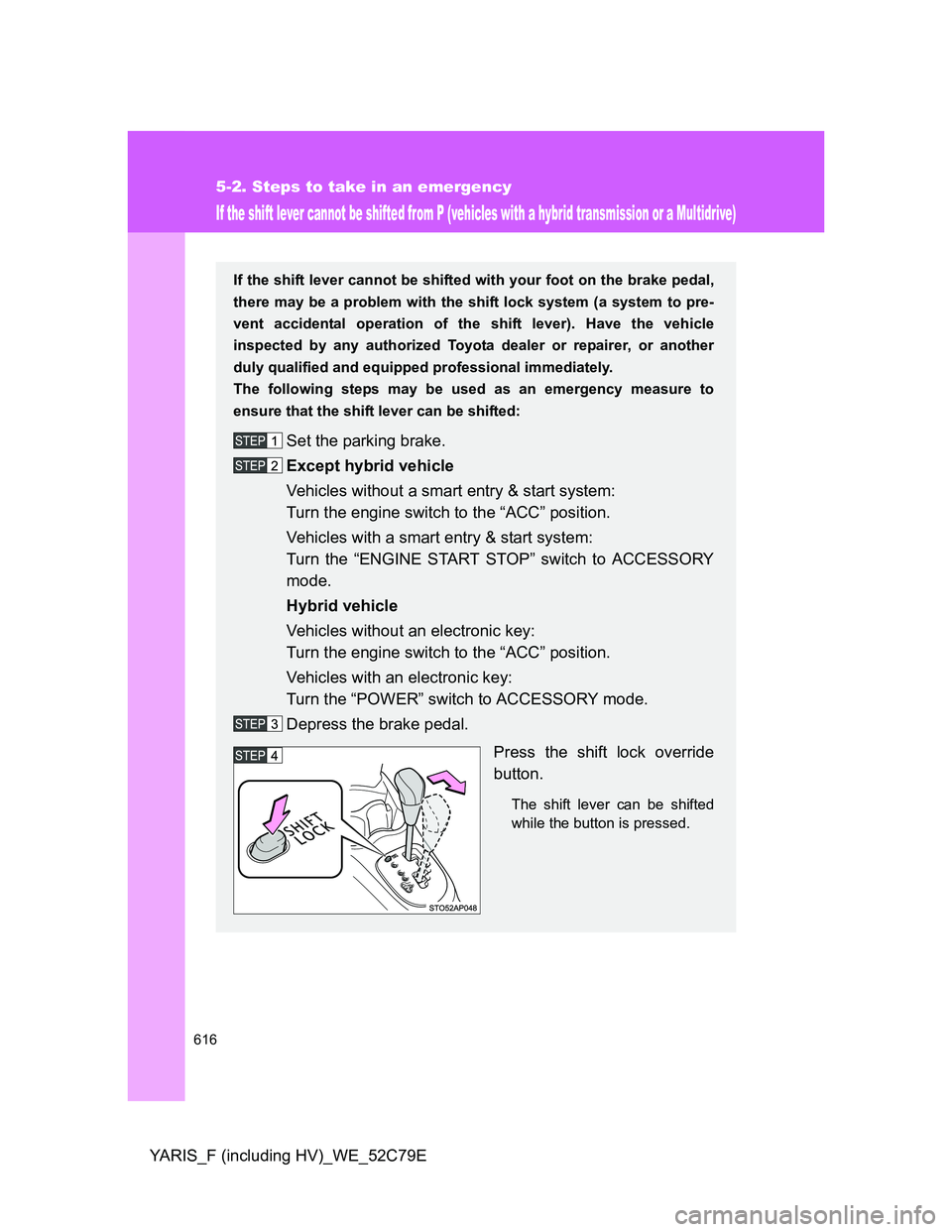

If the shift lever cannot be shifted from P (vehicles with a hybrid transmission or a Multidrive)
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Except hybrid vehicle
Vehicles without a smart entry & start system:
Turn the engine switch to the “ACC” position.
Vehicles with a smart entry & start system:
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Hybrid vehicle
Vehicles without an electronic key:
Turn the engine switch to the “ACC” position.
Vehicles with an electronic key:
Turn the “POWER” switch to ACCESSORY mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
Page 617 of 704

5
617
5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E

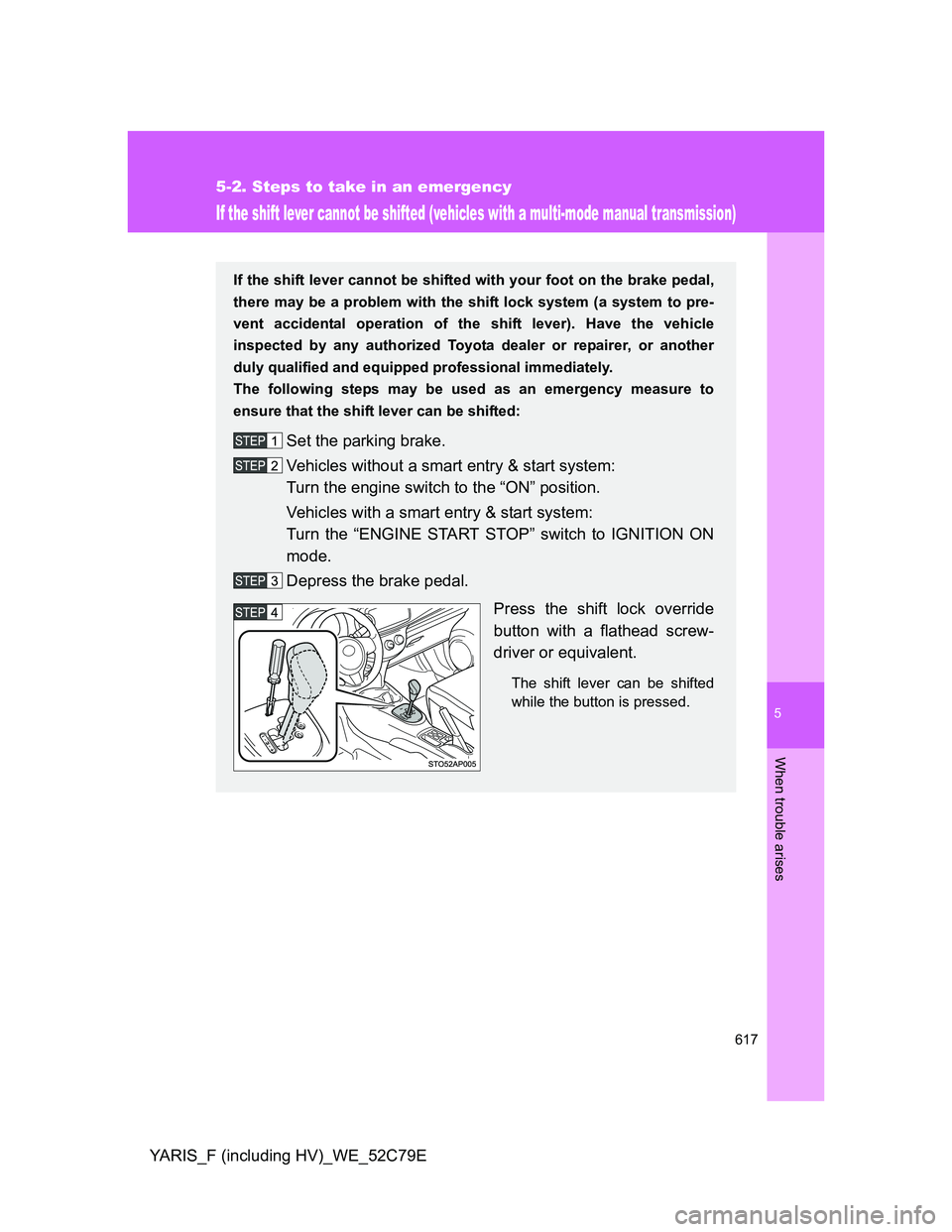

If the shift lever cannot be shifted (vehicles with a multi-mode manual transmission)
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the shift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Vehicles without a smart entry & start system:
Turn the engine switch to the “ON” position.
Vehicles with a smart entry & start system:
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Depress the brake pedal.
Press the shift lock override
button with a flathead screw-
driver or equivalent.
The shift lever can be shifted
while the button is pressed.
Page 618 of 704

618
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

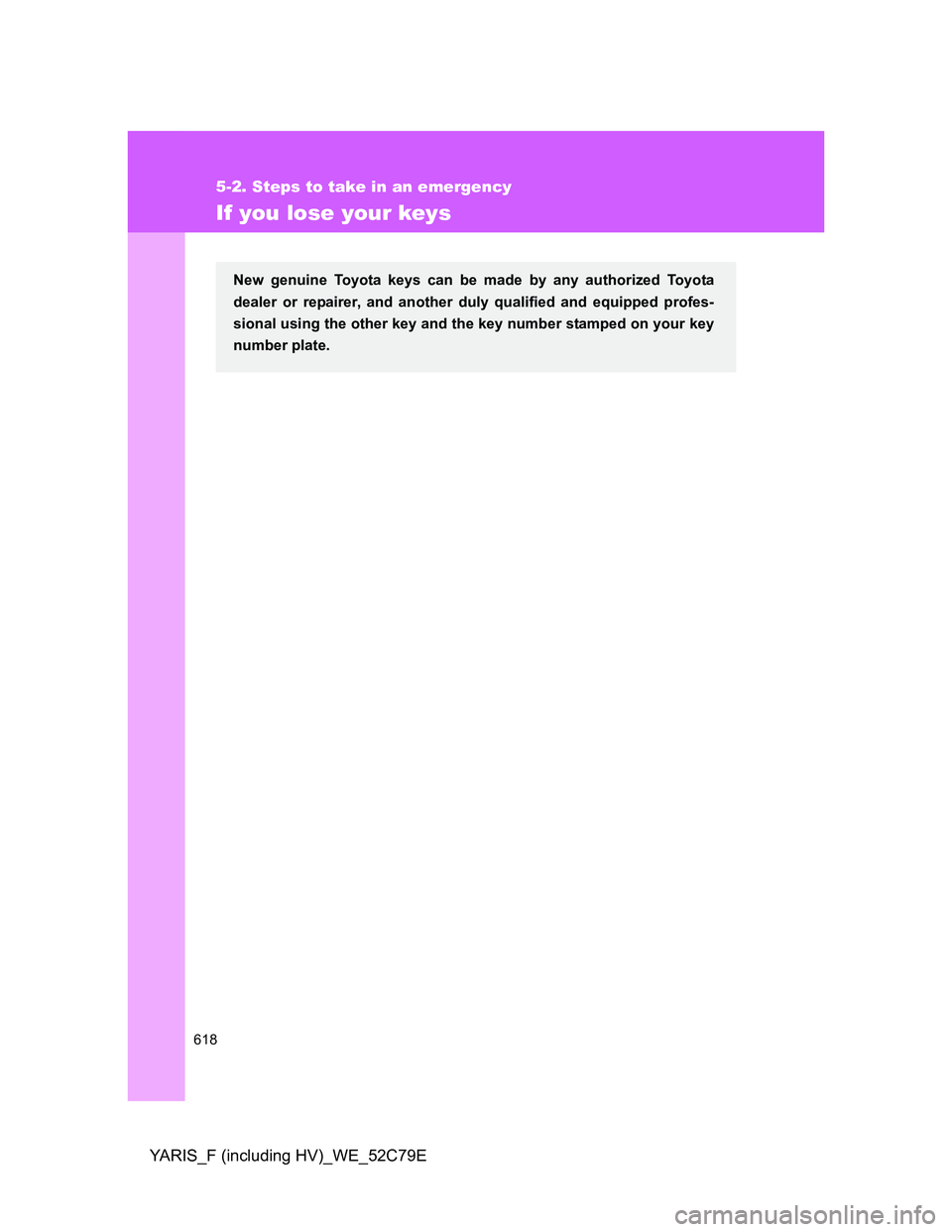

If you lose your keys
New genuine Toyota keys can be made by any authorized Toyota
dealer or repairer, and another duly qualified and equipped profes-
sional using the other key and the key number stamped on your key
number plate.
Page 619 of 704

5
619
5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E

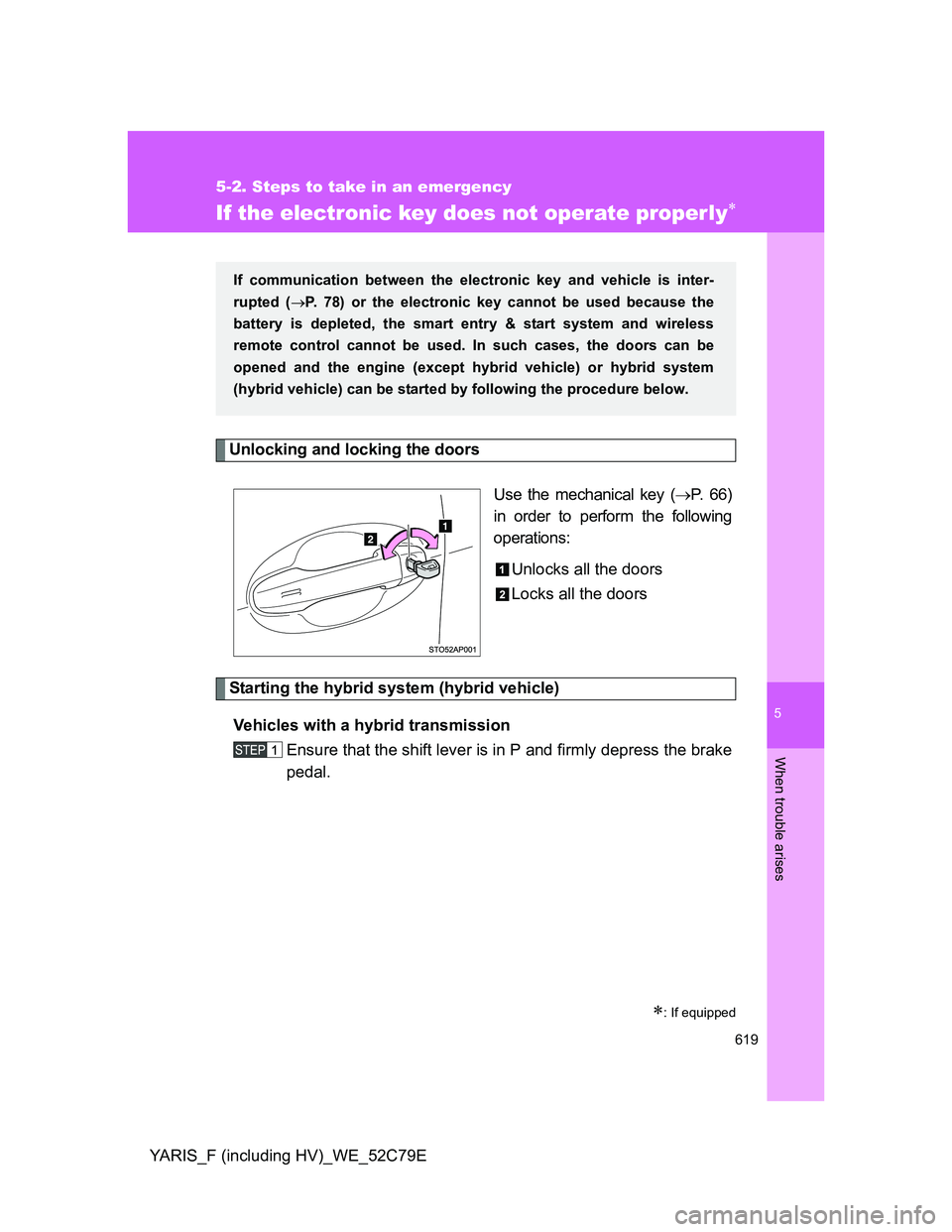

If the electronic key does not operate properly
Unlocking and locking the doors
Use the mechanical key (P. 66)
in order to perform the following
operations:
Unlocks all the doors
Locks all the doors
Starting the hybrid system (hybrid vehicle)
Vehicles with a hybrid transmission
Ensure that the shift lever is in P and firmly depress the brake
pedal.
: If equipped
If communication between the electronic key and vehicle is inter-
rupted (P. 78) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless
remote control cannot be used. In such cases, the doors can be
opened and the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle) can be started by following the procedure below.
Page 620 of 704

620 5-2. Steps to take in an emergency

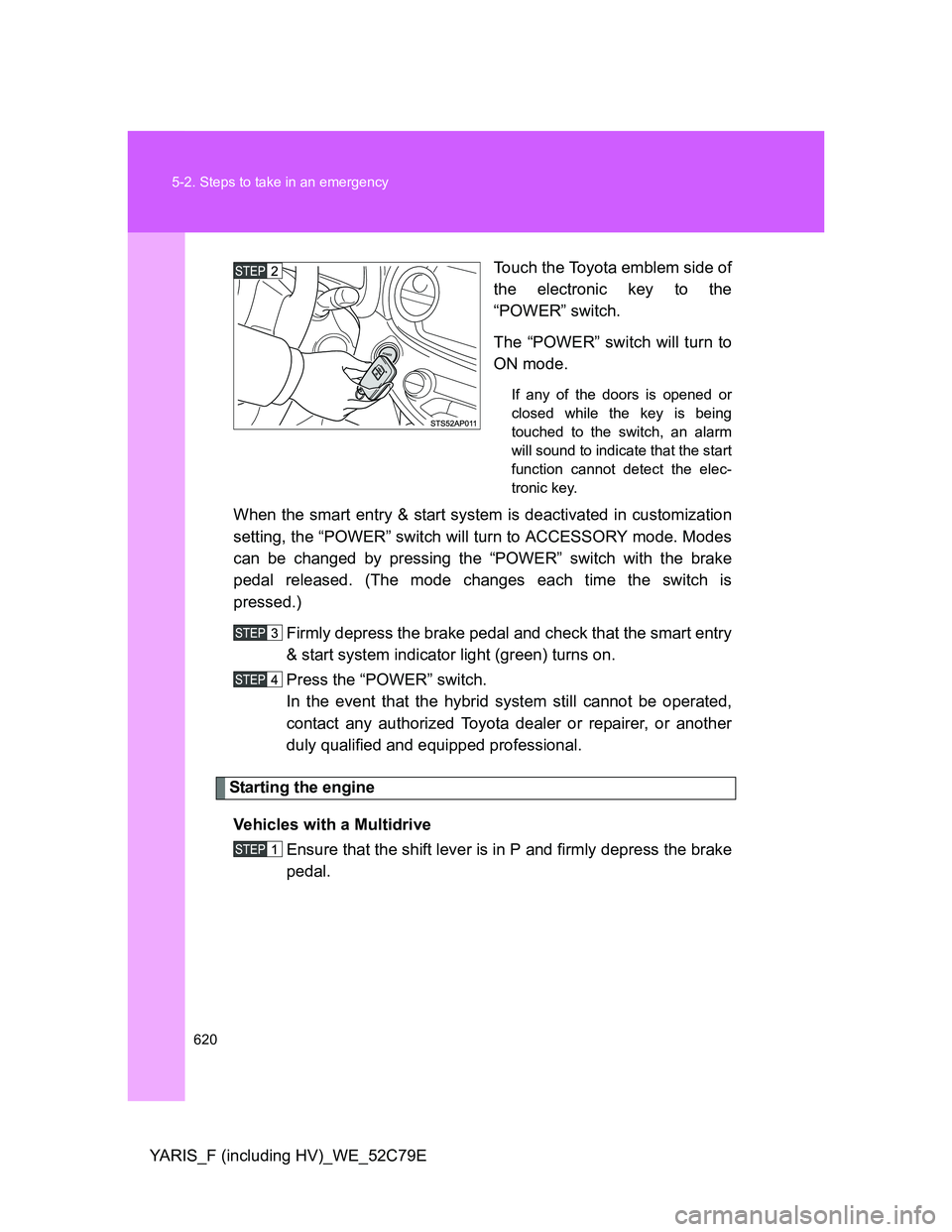

YARIS_F (including HV)_WE_52C79ETouch the Toyota emblem side of
the electronic key to the
“POWER” switch.
The “POWER” switch will turn to
ON mode.
If any of the doors is opened or
closed while the key is being
touched to the switch, an alarm
will sound to indicate that the start
function cannot detect the elec-
tronic key.
When the smart entry & start system is deactivated in customization
setting, the “POWER” switch will turn to ACCESSORY mode. Modes
can be changed by pressing the “POWER” switch with the brake
pedal released. (The mode changes each time the switch is
pressed.)
Firmly depress the brake pedal and check that the smart entry
& start system indicator light (green) turns on.
Press the “POWER” switch.
In the event that the hybrid system still cannot be operated,
contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Starting the engine
Vehicles with a Multidrive
Ensure that the shift lever is in P and firmly depress the brake
pedal.
