TOYOTA YARIS HYBRID 2014 Owners Manual

4218-2. Steps to take in an emergency
8
When trouble arises
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL”
“LOW”
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to
check that the radiator cooling fan operates and to check for
coolant leaks from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the
fan sound and air flow. If it is difficult to check these, turn the air condi-
tioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the hybrid system immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
4
1
2
3
5
6
7

4228-2. Steps to take in an emergency
If the hybrid system overheat warning light comes on
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the
hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
The coolant level is satisfac-
tory if it is between the “F”
and “L” lines on the reservoir.
Reservoir
“F” line
“L” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

4238-2. Steps to take in an emergency
8
When trouble arises
Start the hybrid system and check for the hybrid system overheat
warning light.
If the warning light does not go off:
Stop the hybrid system and contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If the warning light goes off:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
WARNING
To prevent an accident or injury when inspecting under the hood of
your vehicle
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injuries such as burns.
Check that the “READY” indicator is off.
On hybrid vehicles, the gasoline engine may automatically start, or the
cooling fan may suddenly operate even if the gasoline engine stops. Do
not touch or approach rotating parts such as the fan, which may lead to fin-
gers or clothing (especially a tie, a scarf or a muffler) getting caught,
resulting in serious injury.
Do not loosen the coolant reservoir cap while the hybrid system and radia-
tor are hot.
Serious injuries, such as burns, may result from hot coolant and steam
released under pressure.
6

4248-2. Steps to take in an emergency
NOTICE
When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power
control unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys-
tem too quickly can cause damage to the hybrid system.
To prevent damage to the cooling system
Observe the following precautions.
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use any coolant additives.

4258-2. Steps to take in an emergency
8
When trouble arises

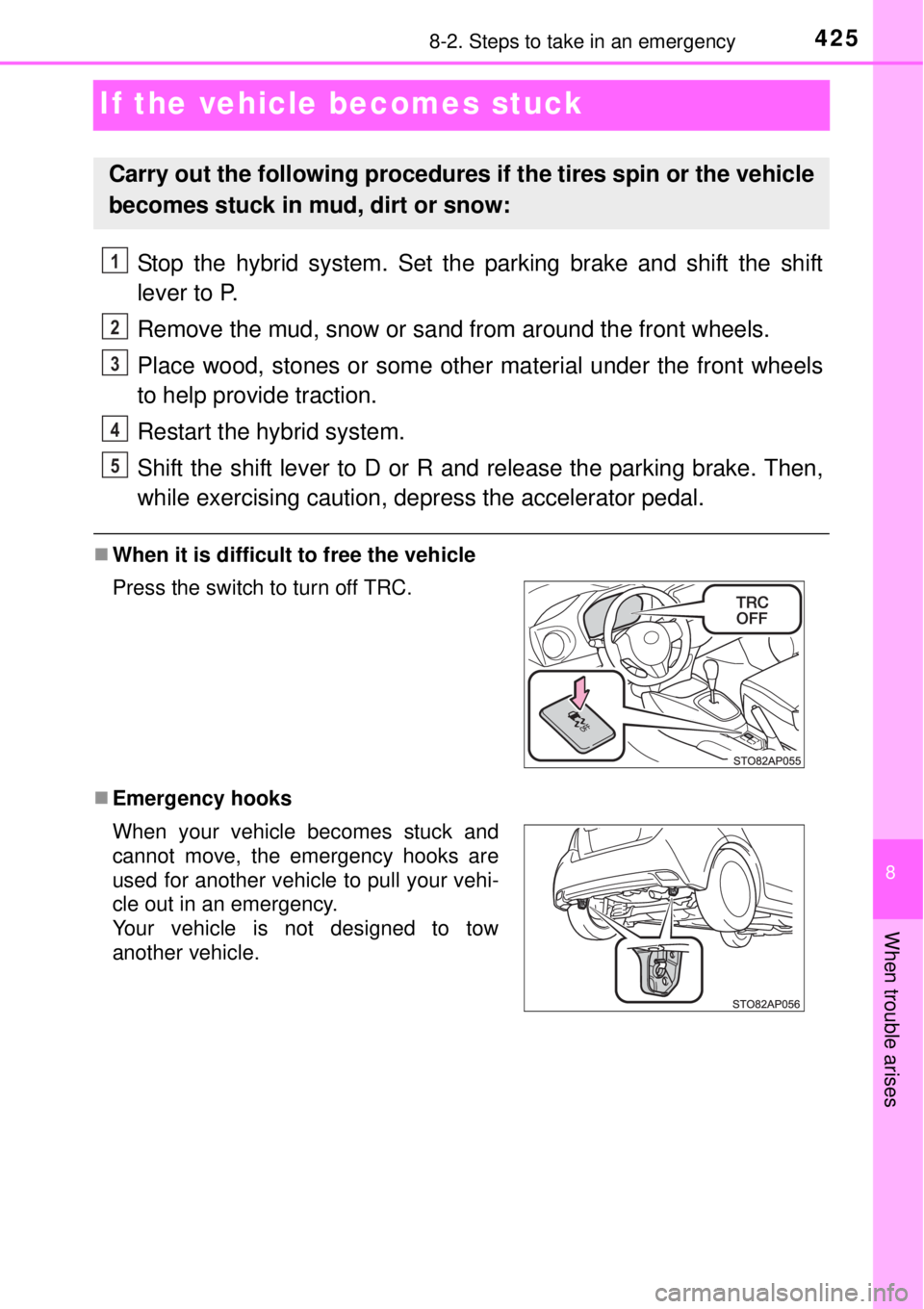

If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift
lever to P.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then,
while exercising caution, depress the accelerator pedal.
When it is difficult to free the vehicle
Emergency hooks
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press the switch to turn off TRC.
When your vehicle becomes stuck and
cannot move, the emergency hooks are
used for another vehicle to pull your vehi-
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
1
2
3
4
5

4268-2. Steps to take in an emergency
WARNING
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damage to the transmission and other components
Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

427
9Vehicle specifications
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 428
Fuel information ................. 438
9-2. Customization
Customizable features ....... 439
9-3. Items to initialize
Items to initialize ................ 443

4289-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R15 tires
*4: 185/60R15 tires
*5: 195/50R16 tires
Dimensions and weights
Overall length 3950 mm (155.5 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)
*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front1485 mm (58.4 in.)
*3
1470 mm (57.8 in.)*4
1460 mm (57.4 in.)*5
Rear1470 mm (57.8 in.)
*3
1460 mm (57.4 in.)*4
1445 mm (56.8 in.)*5
Gross vehicle mass 1565 kg (3450 lb.)
Maximum
permissible
axle capacityFront 895 kg (1973 lb.)
Rear 825 kg (1819 lb.)

4299-1. Specifications
9
Vehicle specifications

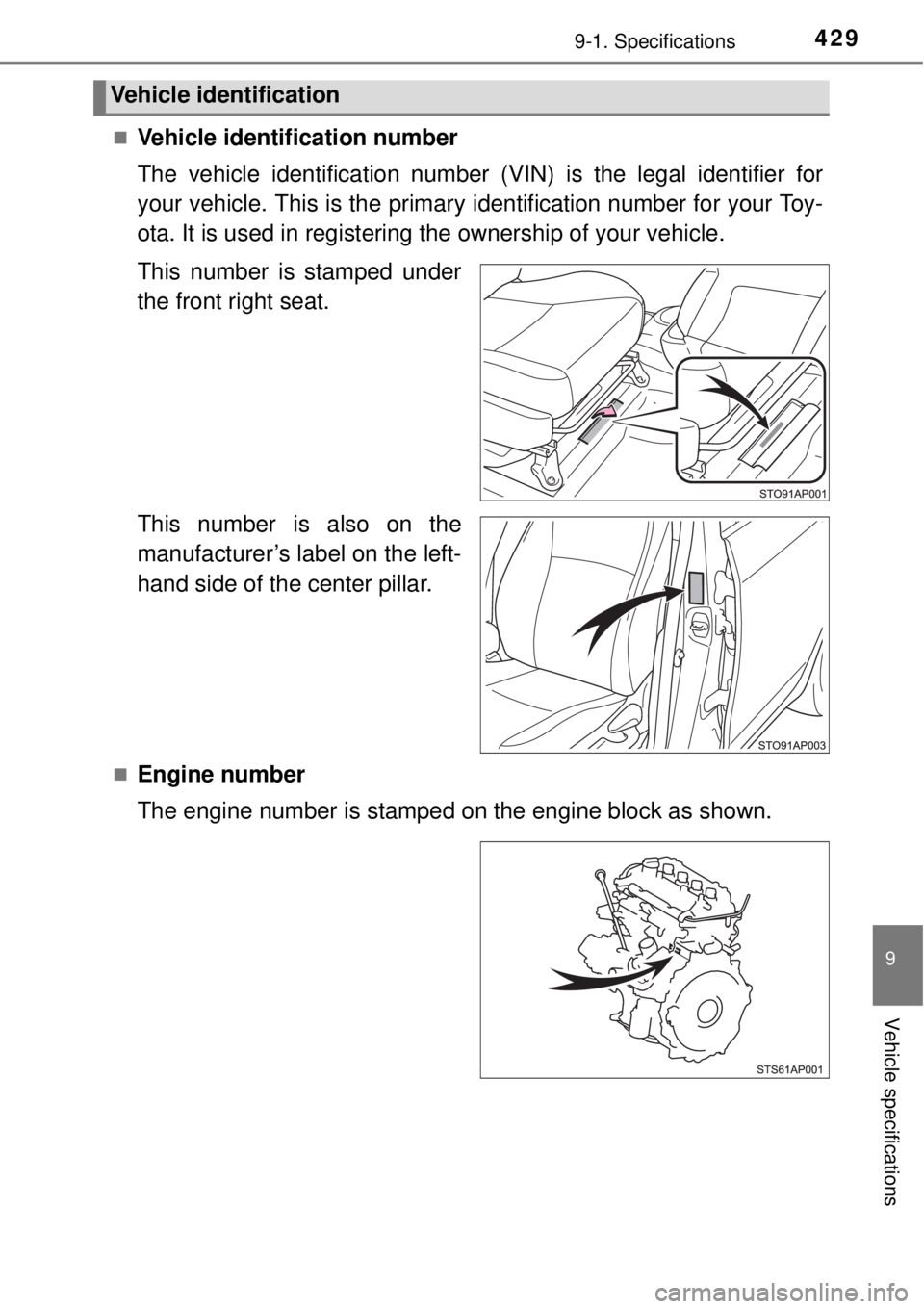

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your Toy-
ota. It is used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
This number is also on the
manufacturer’s label on the left-
hand side of the center pillar.
Engine number
The engine number is stamped on the engine block as shown.
Vehicle identification

4309-1. Specifications

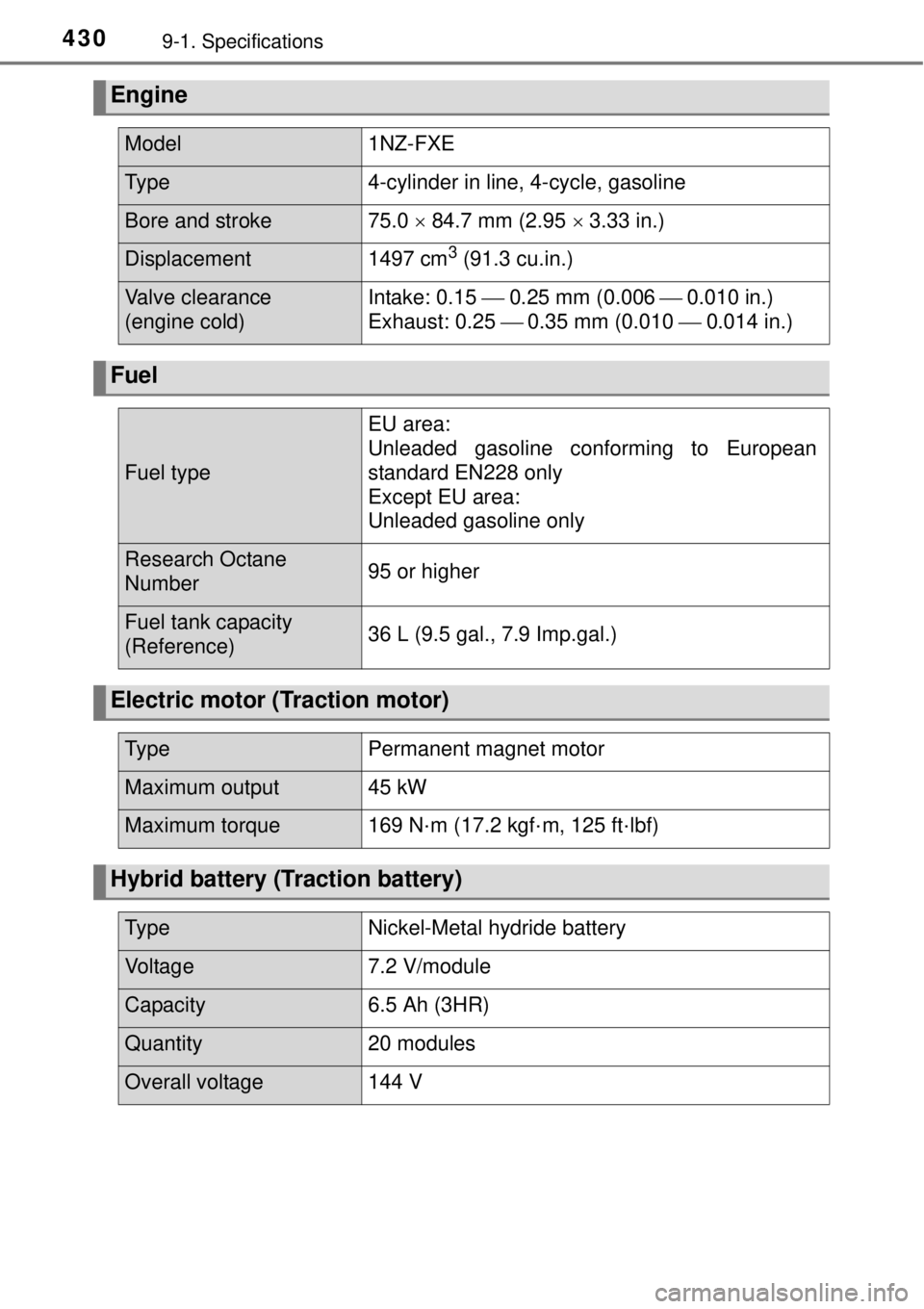

Engine
Model1NZ-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke75.0  84.7 mm (2.95  3.33 in.)
Displacement1497 cm3 (91.3 cu.in.)
Valve clearance
(engine cold)Intake: 0.15  0.25 mm (0.0060.010 in.)
Exhaust: 0.25 0.35 mm (0.010  0.014 in.)
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)36 L (9.5 gal., 7.9 Imp.gal.)
Electric motor (Traction motor)
Ty p ePermanent magnet motor
Maximum output45 kW
Maximum torque169 N·m (17.2 kgf·m, 125 ft·lbf)
Hybrid battery (Traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity20 modules
Overall voltage144 V
