2514-2. Audio System
4
Interior Features
• A new CD may have roughedges on its inner and outer
perimeters. If a disc with
rough edges is used, proper
setting will not be possible
and the CD player will not
play the CD. In addition, the
disc may not eject resulting
in a malfunction. Remove the
rough edges in advance by
using a ball-point pen or pen-
cil as shown below. To
remove the rough edges, rub
the side of the pen or pencil
against the inner and outer
perimeter of the CD.
• When driving over uneven surfaces, the sound may
jump.
• CDs bearing the logo shown in the illustration can be
played. No other discs can
be played.
• Use discs that have been legiti mately produced. If illegally-cop-
ied discs such as pirated discs are used, the system may not
operate properly.

252
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
• Be sure never to touch thesignal surface when handling
the CDs. Pick up a CD by
grasping the outer edge or
the edge of the hole and the
outer edge.
• Do not stick paper or tape on the CD. Avoid scratching the
reverse side (the side without a label). The disc may not eject
resulting in a malfunction.
• Dust, finger smudges, and dirt can decrease the amount of light
reflected from the signal surface, thus affecting sound quality. If
the CD should become soiled, gently wipe it with a soft cloth from
the center of the CD to the edge.
• Do not use record sprays, antist atic agents, or household spray
cleaners. Volatile chemicals such as benzine and thinner can
also damage the surface of the CD and must not be used. Any-
thing that can damage, warp, or fog plastic should never be used
to clean CDs.
• The CD player ejects the CD if the CD is inserted upside down. Also dirty and/or defe ctive CDs may be ejected.
• Do not insert cleaning discs in the CD player.
• Do not insert any disc with a peel-off seal affixed to it.
• This unit may not be able to play certain CD-R/CD-RWs made using a computer or music CD recorder due to disc characteris-
tics, scratches, smudges, dirt, et c., or due to dust or condensa-
tion on the lens inside the unit.
• Storing CDs in the vehicle exposed to direct sunlight or high tem- perature may damage the CD-R/CD-RWs, and make them
unplayable.
• CD-R/CD-RW exceeding 700 MB cannot be played.

YARIS iA_OM_OM99N89z_(U)
2534-2. Audio System
4
Interior Features
• This unit may not be able to play certain discs made using acomputer due to the application (writing software) setting used.
(For details, consult the store where the application was pur-
chased.)
• It is possible that ce rtain text data, such as titles, recorded on a
CD-R/CD-RW may not be displayed when musical data (CD-DA)
is playing.
• The period from when a CD-RW is inserted to when it begins
playing is longer than a normal CD or CD-R.
• Completely read the instruction manual and cautions for CD-R/ CD-RWs.
• Do not use discs with cellophane tape adhering, partially peeled
off labels, or adhesive material exuding from the edges of the CD
label. Also, do not use discs with a commercially-available CD-R
label affixed. The disc may not eject resulting in a malfunction.
MP3 stands for MPEG Audio Layer 3, which is standardized voice
compression established by the ISO
*1 working group (MPEG).
Use of MP3 allows for audio data to be compressed to approximately
a tenth of the source data size.
This unit plays files with the extension (.mp3) as MP3 files.
*1: International Organization for Standardization
• This audio system handles MP3 files that have been recorded on
CD-R/CD-RW/CD-ROMs.
• When naming an MP3 file, be sure to add an MP3 file extension (.mp3) after the file name.
• The number of characters which can be displayed is restricted.
Supply of this product only conveys a license for private, non-commercia\
l use
and does not convey a license nor imply any right to use this product in\
any
commercial (i.e. revenue-generating) real time broadcasting (terrestrial, satel-
lite, cable and/or any other media), br oadcasting/streaming via the Internet,
intranets and/or other networks or in other electronic content distribution sys-
tems, such as pay-audio or audio-on-demand applications. An independent
license for such use is required.
For details, please visit http://www.mp3licensing.com.
Operating Tips for MP3

254
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
WMA is short for Windows Media Audio and is the audio compression
format used by Microsoft.
Audio data can be created and stored at a higher compression ratio
than MP3.
This unit plays files with the extension (.wma) as WMA files.
*: Microsoft and Windows Media are registered trademarks of Microsoft Cor-
poration U.S. in the United States and other countries.
• WMA files written under specific ations other than the indicated
specification may not play normally or files or folder names may not
display correctly.
• The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.wma” to the end of the file name, and then write
it to the disc.
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for WMA
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.

YARIS iA_OM_OM99N89z_(U)
2554-2. Audio System
4
Interior Features
AAC stands for Advanced Audio Coding, which is standardized voice
compression established by the ISO
*1 working group (MPEG). Audio
data can be created and stored at a higher compression ratio than
MP3.
This unit plays files with the extensions (.aac/.m4a/.wav
*2) as the
AAC files.
• AAC files written under specificati ons other than the indicated spec-
ification may not play normally or files or folder names may not dis-
play correctly.
• The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.aac”, “.m4a”, or “.wav
*2” to the end of the file
name, and then write it to the memory.
*1: International Organization for Standardization
*2: Type B
Operating Tips for AAC
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.

256
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
OGG is the audio compression format for Xiph. Org Foundation.
Audio data can be created and stor ed at a higher compression ratio
than MP3.
This unit plays files with th e extension (.ogg) as OGG files.
• OGG files written under specific ations other than the indicated
specification may not play normally or files or folder names may not
display correctly.
• The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.ogg” to the end of the file name, and then write it
to the disc.
This unit plays audio files as follows:
MP3/WMA/AAC/OGG
*1 files written under specifications other than
the indicated specification may not pl ay normally or files/folder names
may not display correctly.
*1: Type B
Operating Tips for OGG
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for USB device
ExtensionPlayback with this unit
.mp3MP3
.wmaWMA
.aac
AAC.m4a
.wav*1
.ogg*1OGG

YARIS iA_OM_OM99N89z_(U)
2574-2. Audio System
4
Interior Features
●Playback may not be possible depending on the type and condition of the
USB flash memory even if the audio file complies with the standard above.
● A copyright protected WMA/AAC file cannot be played in this unit.
● The order of the music data stored in the device may differ from the play-
back order.
● To prevent loss or damage of stored data, we recommend that you always
back up your data.
● If a device exceeds the maximum electric current value of 1,000 mA, it may
not operate or recharge when connected.
● Do not pull out the USB device while in the USB mode (only pull it out while
in FM/AM radio or CD mode).
● The device will not operate if the data is password protected.
This unit supports playback of music files recorded to an iPod.
*: iPod is a trademark of Apple Inc., registered in the U.S. and other coun-
tries.
The iPod may not be compatible depending on the model or OS ver-
sion. In this case, an error message is displayed.
The audio unit cannot display images or videos stored in an iPod. NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for iPod
NOTICE
●
Remove the iPod when it is not in use. Because the iPod is not designed
to withstand excessive changes in temperature inside the cabin, it could
be damaged or the battery may deteriorate due to the excessive tempera-
ture or humidity inside the cabin if it is left in the vehicle.
● If data in the iPod is lost while it is connected to the unit, Toyota cannot
guarantee recovery of any lost data.
● If the iPod battery is deteriorated, the iPod may not recharge and playback
may not be possible when it is connected to the unit.
● For details on using the iPod, refer to the iPod instruction manual.
● When connecting the iPod to a USB port, all commands are made from
the audio unit. iPod control is not possible.

258
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
Audio Set (Type A [non-touchscreen])∗
●Power/Volume/Sound Controls ( →P. 259)
● Clock ( →P. 262)
● Operating the Radio ( →P. 263)
● Operating the Compact Disc (CD) Player ( →P. 266)
● How to use Auxiliary jack/USB port ( →P. 273)
● Error Indications ( →P. 273)
∗: If equipped

YARIS iA_OM_OM99N89z_(U)
2594-2. Audio System
4
Interior Features
Audio display
Menu button
Power/Volume/Audio control dial
■Power ON/OFF
Switch the ignition to ACC or ON. Press the power/volume dial to
turn the audio system on. Press the power/volume dial again to turn
the audio system off.
■Volume adjustment
To adjust the volume, turn the power/volume dial. Turn the power/
volume dial clockwise to increase volume, counterclockwise to
decrease it.
Power/Volume/Sound Controls
1
2
3

260
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System

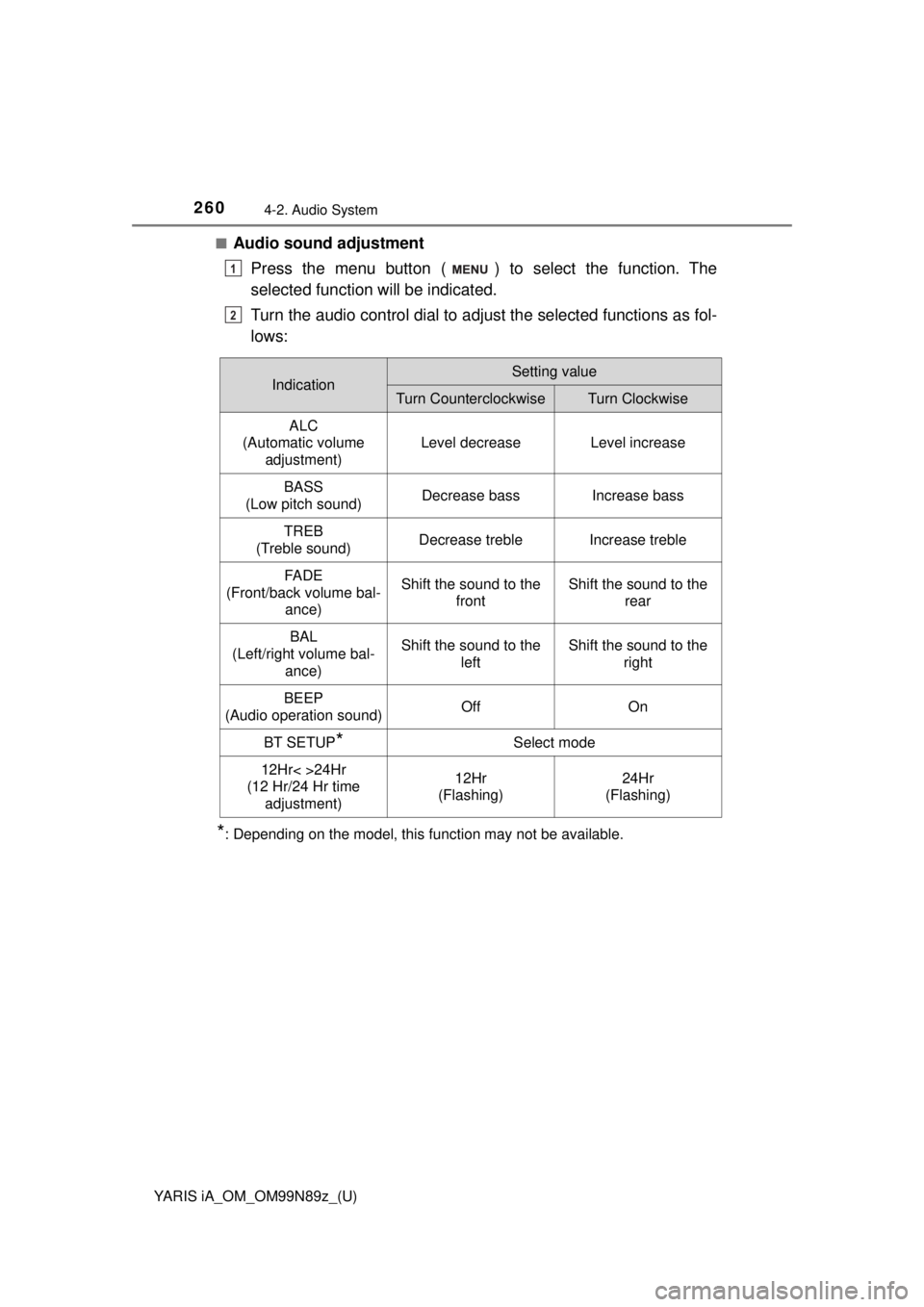

■Audio sound adjustmentPress the menu button ( ) to select the function. The
selected function will be indicated.
Turn the audio control dial to adjust the selected functions as fol-
lows:
*: Depending on the model, this function may not be available.
1
2
IndicationSetting value
Turn CounterclockwiseTurn Clockwise
ALC
(Automatic volume
adjustment)
Level decreaseLevel increase
BASS
(Low pitch sound)Decrease bassIncrease bass
TREB
(Treble sound)Decrease trebleIncrease treble
FA D E
(Front/back volume bal- ance)Shift the sound to the frontShift the sound to the rear
BAL
(Left/right volume bal- ance)Shift the sound to the
leftShift the sound to the right
BEEP
(Audio operation sound)OffOn
BT SETUP*Select mode
12Hr< >24Hr
(12 Hr/24 Hr time
adjustment)12Hr
(Flashing)24Hr
(Flashing)
