Picture Quality Adjustment
WARNING
■ Always adjust the picture quality of the rear view monitor while the
vehicle is stopped
Do not adjust the picture quality of the rear view monitor while driving the
vehicle. Adjusting the picture quality of the rear view monitor such as bright-
ness, contrast, color, and tint while driving the vehicle is dangerous as it
could distract your attention from the vehicle operation which could lead to
an accident.
1
2
3
4

232
YARIS iA_OM_OM99N89z_(U)
3-13. Rear View Monitor

233
YARIS iA_OM_OM99N89z_(U)
4Interior Features
4-1. Climate Control SystemOperating Tips .................. 234
Vent Operation .................. 235
Manual Type ..................... 237
4-2. Audio System Antenna ............................. 244
Operating Tips for Audio System ............................ 245
Audio Set (Type A [non-touchscreen]) .......... 258
Audio Set (Type B [touchscreen]) ................. 274
Audio Control Switch Operation ........................ 295
AUX/USB mode ................ 298 4-3. Bluetooth®
Bluetooth®......................... 319
Bluetooth® Hands-Free
(Type A) .......................... 354
Bluetooth
® Hands-Free
(Type B) .......................... 365
Bluetooth
® Audio
(Type A) .......................... 378
Bluetooth
® Audio
(Type B) .......................... 382
Troubleshooting ................ 395
4-4. Interior Equipment Sunvisors .......................... 400
Interior Lights .................... 401
Accessory Sockets............ 404
Cup Holder ........................ 405
Bottle Holder ..................... 406
Storage Compartments ..... 407

234
YARIS iA_OM_OM99N89z_(U)
4-1. Climate Control System
Operating Tips
• Operate the climate control system with the engine running.
• To prevent the battery from being discharged, do not leave the fan
control dial on for a long period of time with the ignition switched
ON when the engine is not running.
• Clear all obstructions such as leaves, snow and ice from the hood and the air inlet in the cowl grille to improve the system efficiency.
• Use the climate control system to defog the windows and dehumid- ify the air.
• The recirculate mode should be used when driving through tunnels or while in a traffic jam, or when you would like to shut off outside
air for quick cooling of the interior.
• Use the outside air position for v entilation or windshield defrosting.
• If the vehicle has been parked in di rect sunlight during hot weather,
open the windows to let warm air escape, then run the climate con-
trol system.
• Run the air conditioner about 10 mi nutes at least once a month to
keep internal parts lubricated.
• Have the air conditioner checked before the weather gets hot. Lack of refrigerant may make the air conditioner less efficient.
The refrigerant specifications
are indicated on a label
attached to the inside of the
engine compartment. Check
the label before refilling the
refrigerant. If the wrong type of
refrigerant is used, it could
result in a serious malfunction
of the air conditioner.
For details, consult your Toyota
dealer.
Label

235
YARIS iA_OM_OM99N89z_(U)
4-1. Climate Control System
4
Interior Features
Vent Operation
■Air vent open/close
The air vents can be fully opened and closed by operating the knob.
■Directing airflow
To adjust the direction of airflow, move the adjustment knob.
When using the air conditioner under hum id ambient temperature conditions,
the system may blow fog from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
Adjusting the Vents
Center vents (driver) and Side
ventsCenter vents (front passenger)
Open
Close Open
Close
Knob
Knob
1
2
1
2
Center vents (driver) and Side
ventsCenter vents (front passenger)
KnobKnob

236
YARIS iA_OM_OM99N89z_(U)
4-1. Climate Control System

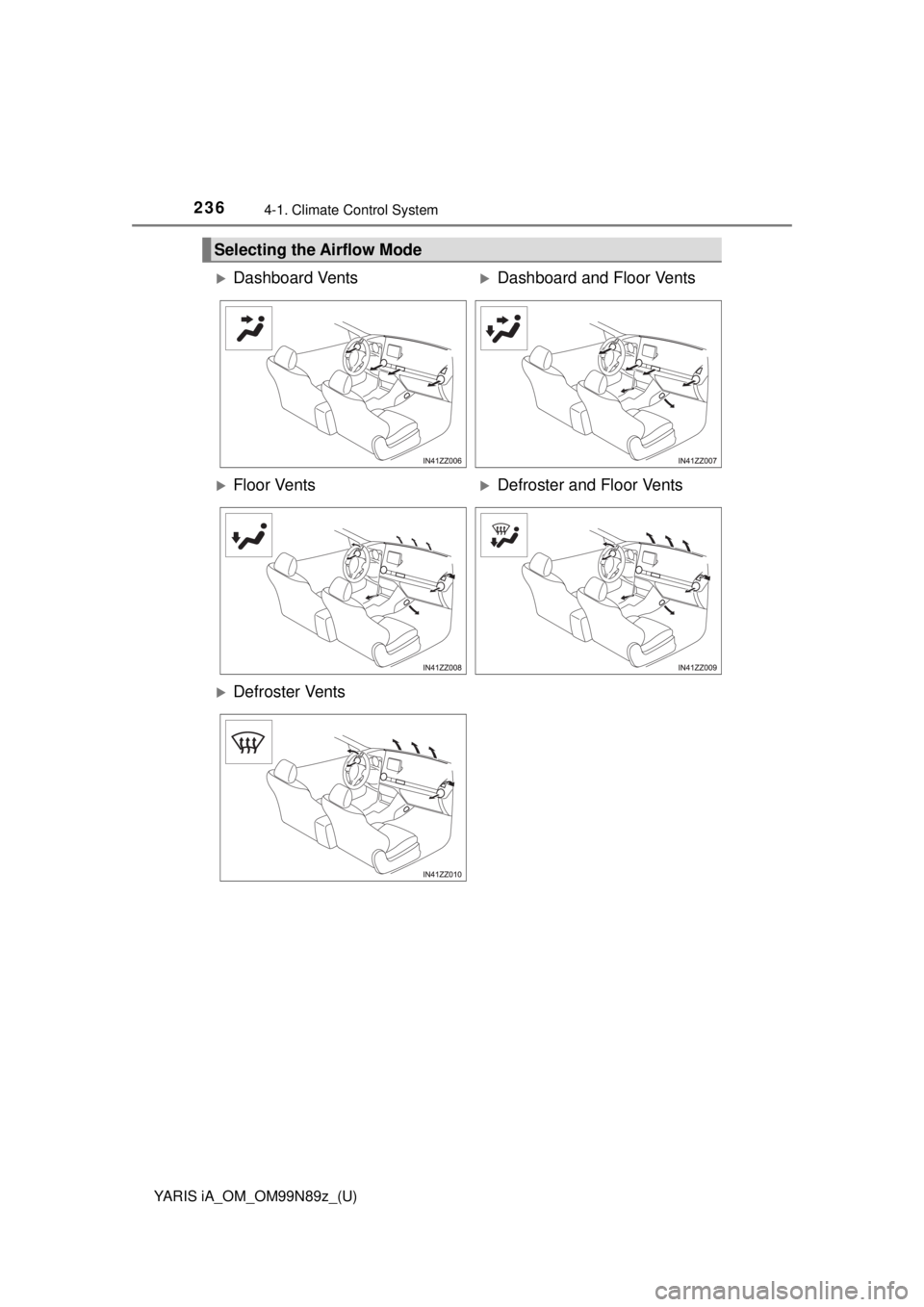

Selecting the Airflow Mode
Dashboard VentsDashboard and Floor Vents
Floor VentsDefroster and Floor Vents
Defroster Vents

237
YARIS iA_OM_OM99N89z_(U)
4-1. Climate Control System
4
Interior Features

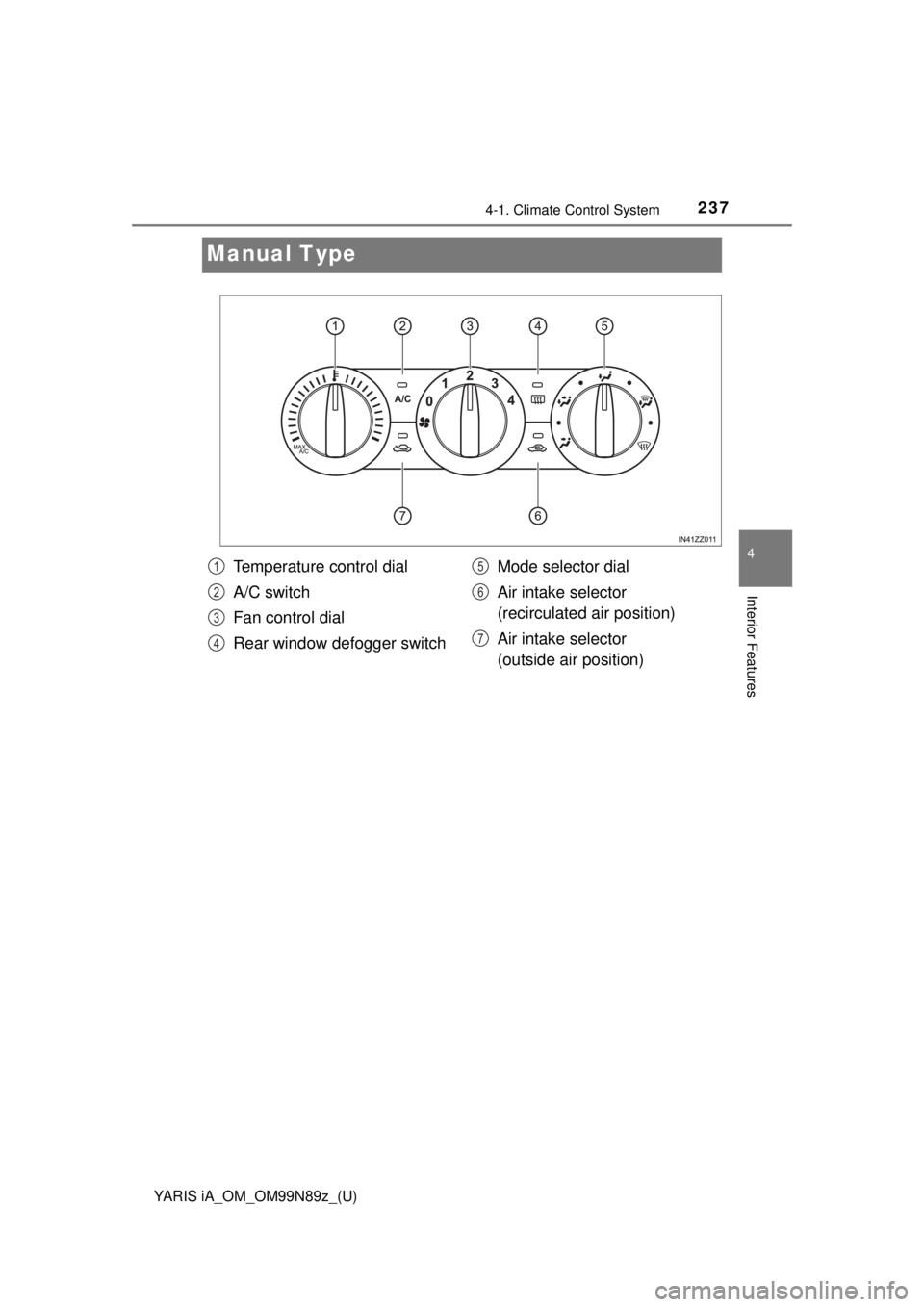

Manual Type
Temperature control dial
A/C switch
Fan control dial
Rear window defogger switchMode selector dial
Air intake selector
(recirculated air position)
Air intake selector
(outside air position)1
2
3
4
5
6
7

238
YARIS iA_OM_OM99N89z_(U)
4-1. Climate Control System
■Temperature control dial
This dial controls temperature. Turn it clockwise for hot and coun-
terclockwise for cold.
■Fan control dial
This dial allows variable fan speeds.
■Mode selector dial
Turn the mode selector dial to select airflow mode ( →P. 236).
■A/C switch
Press the A/C switch to turn the air conditioner on. The indicator
light on the switch will illuminate when the fan control dial is set at
position 1, 2, 3, or 4.
Press the switch once again to turn the air conditioner off.
■Air intake selector
This switch controls the source of air entering the vehicle.
Press the air intake selector switch to alternate between the outside
air and recirculated air positions.
● Recirculated air position ( )
Outside air is shut off. Air with in the vehicle is recirculated.
● Outside air position ( )
Outside air is allowed to enter th e cabin. Use this mode for venti-
lation or windshield defrosting.

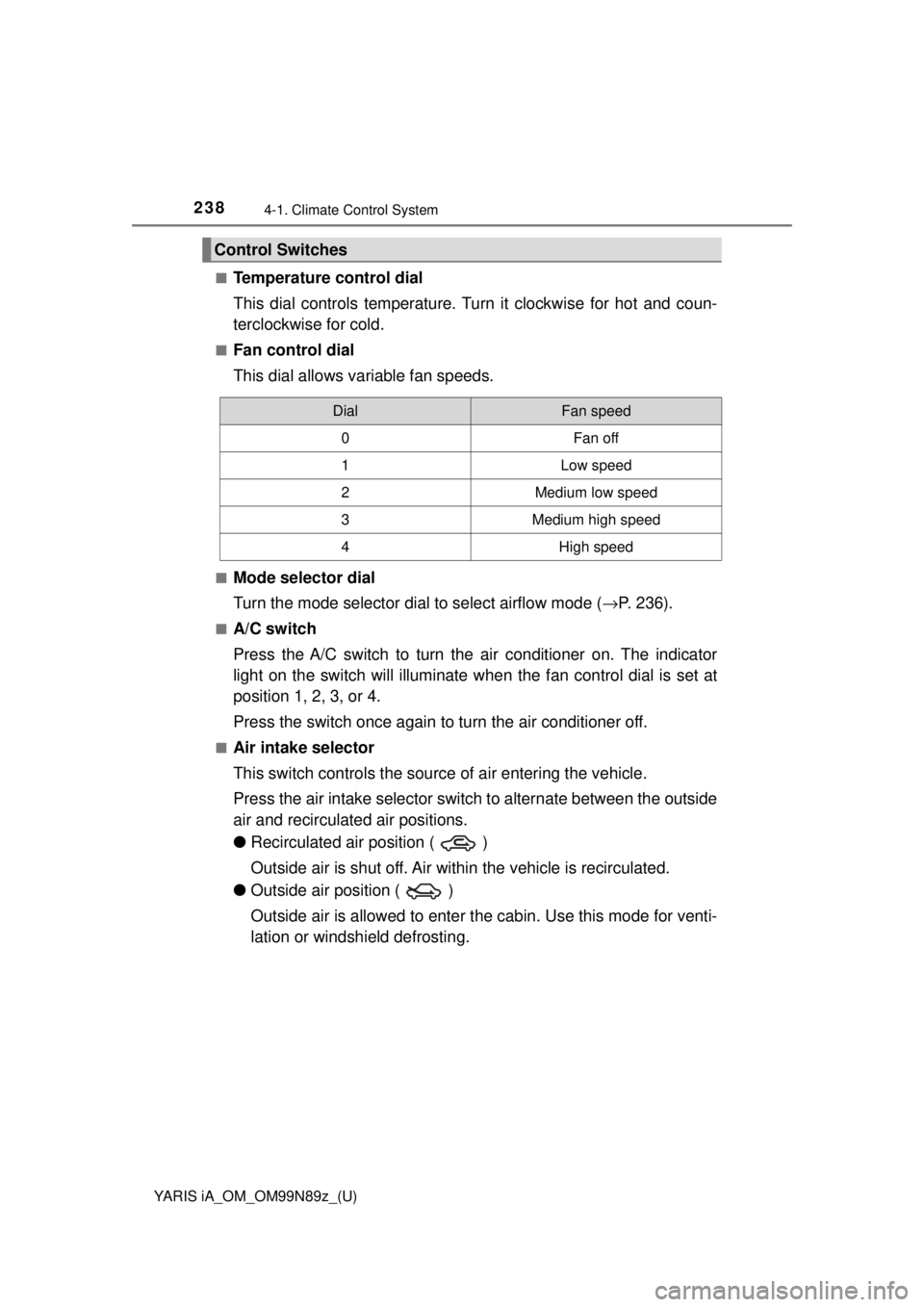

Control Switches
DialFan speed
0Fan off
1Low speed
2Medium low speed
3Medium high speed
4High speed

YARIS iA_OM_OM99N89z_(U)
2394-1. Climate Control System
4
Interior Features
■Temperature control dial
When the mode is set to or with the fan control dial in a position
other than 0 and the temperature control dial in the maximum cold position,
the air intake selector switches to the recirculated air position and the A/C
turns on automatically. If A/C is not desired, press the A/C switch to turn it off.
■ Mode selector dial
●The mode selector dial can be set at the intermediate positions ( )
between each mode. Set the dial to an intermediate position if you want to
split the airflow between the two modes.
● For example, when the mode selector dial is at the position between
the and positions, airflow from the floor vent is less than that of
the position.
■ A/C switch
The air conditioner may not function when the outside temperature
approaches 32 °F (0 °C).
WARNING
■Do not use the recirculated air position in cold or rainy weather
Using the recirculated air position in cold or rainy weather is dangerous as it
will cause the windows to fog up. Your vision will be hampered, which could
lead to a serious accident.

240
YARIS iA_OM_OM99N89z_(U)
4-1. Climate Control System
Set the mode selector dial to the position.
Set the air intake selector to the outside air position.
Set the temperature control dial to the hot position.
Set the fan control dial to the desired speed.
If dehumidified heating is desired, turn on the air conditioner.
● If the windshield fogs up easily, set the mode selector dial to the posi-
tion.
● If cooler air is desired at face level, set the mode selector dial to the
position and adjust the temperature control dial to maintain maximum com-
fort.
● The air to the floor is warmer than air to the face (except when the tempera-
ture control dial is set at the extreme hot or cold position).
Heating
1
2
3
4
5
