alternator TOYOTA YARIS iA 2017 Owners Manual (in English)

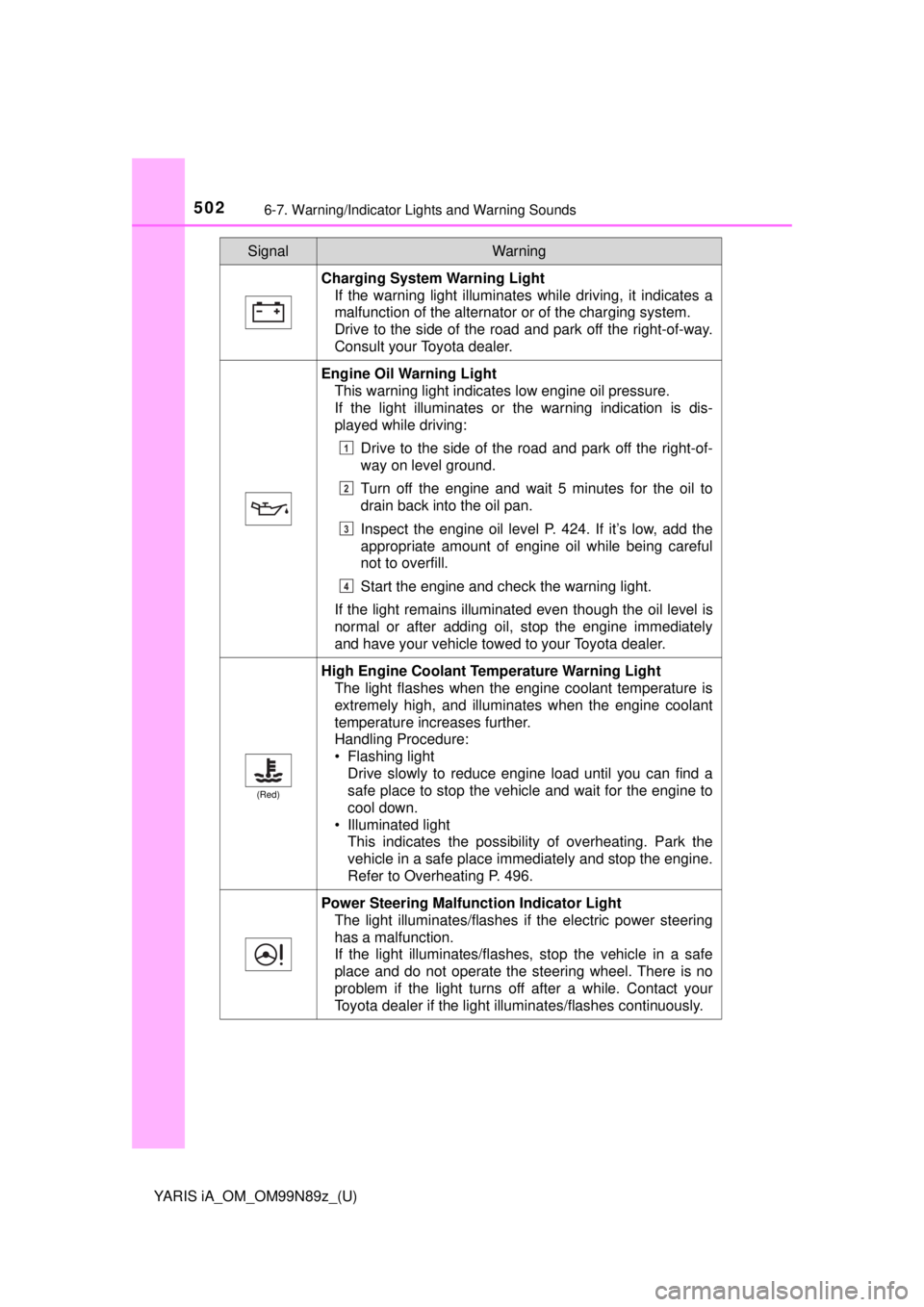

5026-7. Warning/Indicator Lights and Warning Sounds
YARIS iA_OM_OM99N89z_(U)
Charging System Warning LightIf the warning light illuminates while driving, it indicates a
malfunction of the alternator or of the charging system.
Drive to the side of the road and park off the right-of-way.
Consult your Toyota dealer.
Engine Oil Warning LightThis warning light indicates low engine oil pressure.
If the light illuminates or the warning indication is dis-
played while driving:
Drive to the side of the road and park off the right-of-
way on level ground.
Turn off the engine and wait 5 minutes for the oil to
drain back into the oil pan.
Inspect the engine oil level P. 424. If it’s low, add the
appropriate amount of engine oil while being careful
not to overfill.
Start the engine and check the warning light.
If the light remains illuminated even though the oil level is
normal or after adding oil, stop the engine immediately
and have your vehicle towed to your Toyota dealer.
(Red)
High Engine Coolant Temperature Warning Light The light flashes when the engine coolant temperature is
extremely high, and illuminates when the engine coolant
temperature increases further.
Handling Procedure:
• Flashing lightDrive slowly to reduce engine load until you can find a
safe place to stop the vehicle and wait for the engine to
cool down.
• Illuminated light This indicates the possibility of overheating. Park the
vehicle in a safe place immediately and stop the engine.
Refer to Overheating P. 496.
Power Steering Malfunction Indicator Light
The light illuminates/flashes if the electric power steering
has a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe
place and do not operate the steering wheel. There is no
problem if the light turns off after a while. Contact your
Toyota dealer if the light illuminates/flashes continuously.
SignalWarning
1
2
3
4
