Vehicle care159
2. Rotate bulb holder anticlockwiseto disengage.
Withdraw bulb holder from
reflector.
3. Push bulb into socket slightly, rotate anti-clockwise and remove.
4. Insert new bulb by slightly pressing and rotating.
5. Insert bulb holder in reflector and engage by turning clockwise.
6. Put on protective cover and engage wire clip.
Fog lights
The bulbs are accessible from the
underside of the vehicle.
1. Turn the bulb holder anticlockwise
and remove it from the reflector.
2. Disengage the bulb holder from the plug connector by pressing
the retaining lug.
3. Remove and replace the bulb holder with bulb.
4. Attach the plug connector.
5. Insert the bulb holder into the reflector.
6. Turn the bulb holder clockwise and engage.

160Vehicle careTail lights5-door passenger vehicle

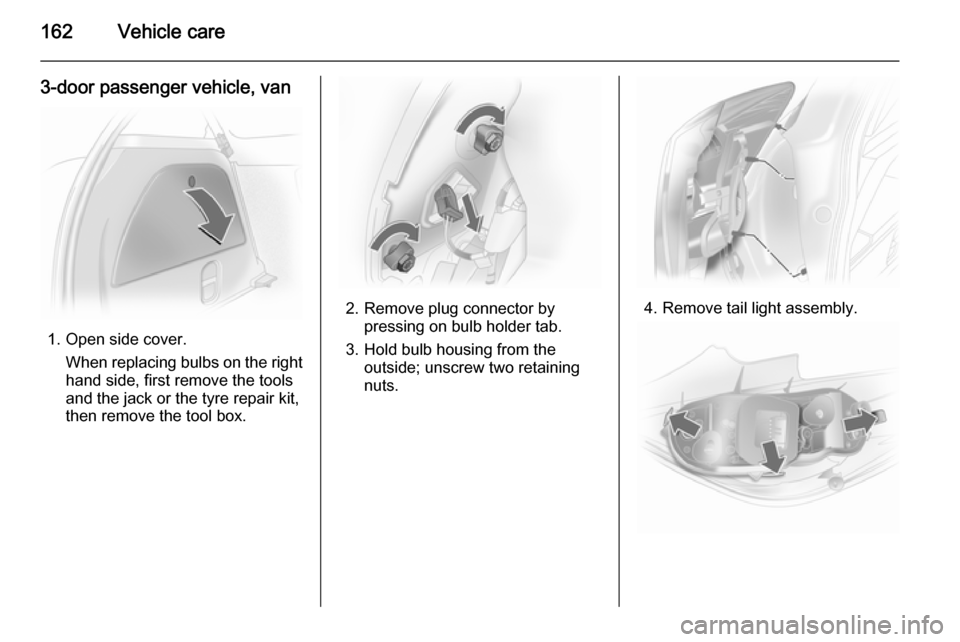

1. Open side cover. When replacing bulbs on the righthand side, first remove the tools
and the jack or the tyre repair kit,
then remove the tool box.
2. Remove plug connector by pressing on bulb holder tab.
3. Hold bulb housing from the outside; unscrew two retaining
nuts.4. Detach bulb housing towards the rear.

Vehicle care161
5. Gently press the three lockinglugs on the outside of the bulb
holder outwards and remove bulb
holder.
6. Push bulb into socket slightly, rotate anti-clockwise, remove and
renew bulb.
Rear fog light, may be only on one side ( 1)
Reverse light ( 2)
Turn signal light ( 3)
Tail light/side light ( 4)
Tail light/brake light ( 5)
7. Engage bulb holder in bulb
housing, ensuring that it properly
engages.
8. Ensure that the bulb holder seal is
positioned as illustrated.
9. Insert bulb housing in vehicle body, tighten securing nuts by
hand. Engage plug connector.
Close cover.
After bulb replacement, check the tail lights for proper functionality: switch
on the ignition, operate the brake,
switch on the sidelights.

162Vehicle care
3-door passenger vehicle, van
1. Open side cover.When replacing bulbs on the righthand side, first remove the tools
and the jack or the tyre repair kit,
then remove the tool box.
2. Remove plug connector by pressing on bulb holder tab.
3. Hold bulb housing from the outside; unscrew two retaining
nuts.4. Remove tail light assembly.

Vehicle care163
5. Gently press the three lockinglugs on the outside of the bulb
holder outwards and remove bulb
holder.
6. Push bulb into socket slightly, rotate anti-clockwise, remove and
renew bulb.
Reverse light (right side), rear fog
light (left side) ( 1)
Tail light ( 2)
Turn signal light ( 3)
Tail light/brake light ( 4)
Tail light ( 5)
7. Engage bulb holder in bulb
housing, ensuring that it properly
engages.
8. Ensure that the bulb holder seal is
positioned as illustrated. Fit the
round seal on the fastening bolt.
9. Insert bulb housing in vehicle body, and tighten securing nuts byhand. Engage plug connector.
Close and lock cover.
After bulb replacement, check the tail
lights for proper functionality: switch
on the ignition, operate the brake,
switch on the sidelights.
Side turn signal lights
To replace bulb, remove lamp
housing:
1. On left vehicle side, slide lamp to the front and remove it out of the
front wing with the rear end.
On right vehicle side, slide lamp to
the rear and remove it out of the front wing with the front end.

164Vehicle care
2. Turn bulb holder anticlockwiseand remove from housing.
3. Pull bulb from bulb holder andreplace it.
4. Insert bulb holder and turnclockwise.
5. On left side: insert front end into front wing, slide forward and insert
rear end.
On right side: insert rear end into
front wing, slide rearward and
insert front end.

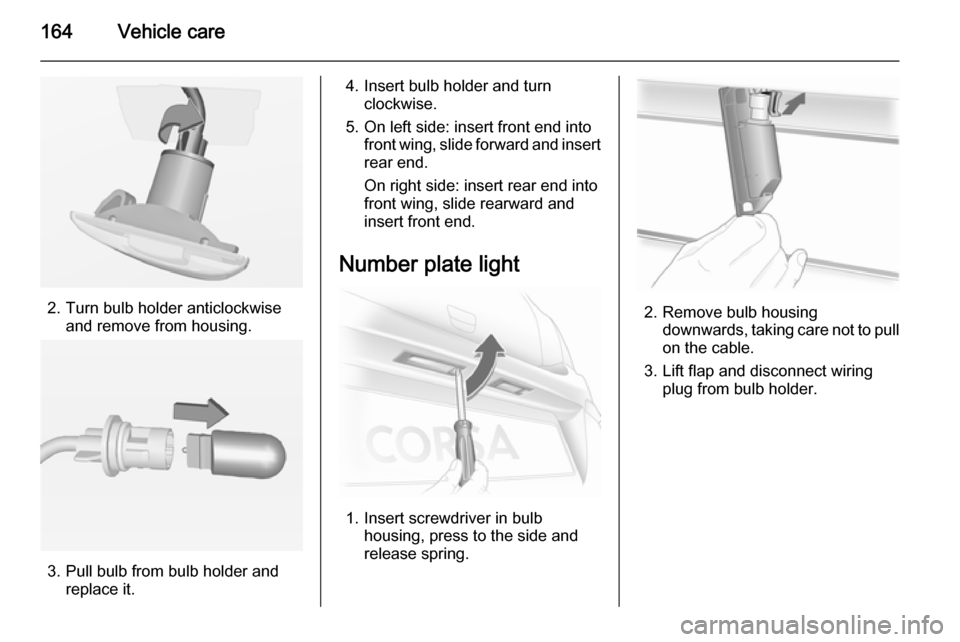

Number plate light
1. Insert screwdriver in bulb housing, press to the side and
release spring.
2. Remove bulb housing downwards, taking care not to pull
on the cable.
3. Lift flap and disconnect wiring plug from bulb holder.

Vehicle care165
4. Rotate bulb holder anti-clockwiseto disengage.
5. Remove bulb from holder and renew bulb.
6. Insert bulb holder in bulb housing and rotate clockwise.
7. Connect wiring plug to bulb holder.
8. Insert and engage bulb housing.
Interior lights
Front courtesy light
1. Disengage and remove lens at the
position located in the illustration
using a screwdriver.
2. Remove bulb from socket. 3. Insert new bulb.
4. Mount lens and engage in position.
Front courtesy light, reading
lights
1. Disengage lens, press it downward slightly and remove at
a downward angle.
2. Remove bulb and renew.
3. Engage lens.
Rear courtesy light and reading
lights
Have bulbs replaced by a workshop.

166Vehicle care
Glovebox light, foot well light
1. Prise the lamp out with ascrewdriver.
2.Press bulb slightly towards spring
clip and remove.
3. Insert new bulb.
4. Install lamp.Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
■ in the front left of the engine compartment,
■ in left-hand drive vehicles: in the interior behind the light switch, or,
in right-hand drive vehicles: behind
the glovebox,
■ behind a cover on the left side of the
load compartment.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.

Vehicle care167Engine compartment fuse
box
The fuse box is in the front left of the
engine compartment.
Disengage the cover, lift it upwards
and remove.

168Vehicle care
No.Circuit1Starter2Air conditioning system3Diesel fuel filter heater4Horn5Manual transmission auto‐
mated, automatic transmission6Engine control unit7Fog lights8Engine cooling9Engine cooling10Manual transmission auto‐
mated11Glow plugs, ignition system12Headlight range adjustment,
Adaptive forward lighting13Air conditioning system14Manual transmission auto‐
mated15High beam (right)No.Circuit16High beam (left)17Main relay18Engine control unit19Airbags20Main relay21Main relay22Central control unit23Tyre repair kit24Fuel pump25ABS26Heated rear window27ABS28Interior fan29Cigarette lighter30Air conditioning system31Power window (left)32Power window (right)No.Circuit33Heated exterior mirrors34–35–
Instrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the light switch. Pull the top edge of the panel and fold down.
