VAUXHALL MOVANO_B 2015.5 Infotainment system

Introduction11
1m - Press: Switch on/off ........22
Turn: Adjust volume ..............22
2 SETUP - Short press:
Settings menu ....................... 22
3 3 - Radio, Short press:
Search for next radio
frequency .............................. 41
Long press: Automatic
station search ........................ 41
Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 51
Long press: Fast forward ......51
4 RADIO - Change audio
source, waveband .................39
5 MEDIA - Change audio
source ................................... 51
6 Rotary knob ........................... 22
Short press: Confirm an
action .................................... 22
Turn: Access display
menu options ........................ 22
7 TEL - Telephone menu .......1138Station buttons 1...6 ..............41
Short press: Select station ....41
Long press: Save station ......41
9 USB port ............................... 56
10 / - Return to previous
menu, cancel an action .........22
11 d - CD ejection .....................51
12 AUX input .............................. 54
13 2 - Radio, Short press:
Search for previous radio
frequency .............................. 41
Long press: Automatic
station search ........................ 41
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 51
Long press: Fast rewind .......51

12Introduction

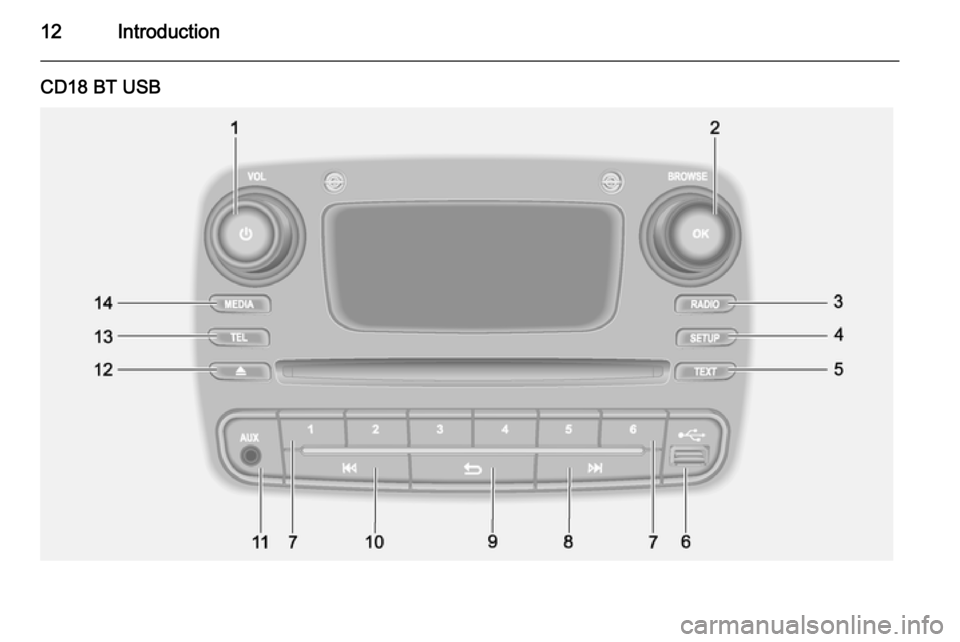

CD18 BT USB

Introduction13
1m - Press: Switch on/off ........22
Turn: Adjust volume ..............22
2 OK rotary knob ...................... 22
Short press: Confirm an
action .................................... 22
Turn: Access display
menu options ........................ 22
3 RADIO - Change audio
source, waveband .................39
4 SETUP - Short press:
Settings menu ....................... 22
5 TEXT - Display radio text
information ............................ 45
6 USB port ............................... 56
7 Station buttons 1...6 ..............41
Short press: Select station ....41
Long press: Save station ......41
8 3 - Radio, Short press:
Search for next radio
frequency .............................. 41
Long press: Automatic
station search ........................ 41Audio/MP3/WMA CD,
Short press: Skip track
forwards ................................ 51
Long press: Fast forward ......51
9 / - Return to previous
menu, cancel an action .........22
10 2 - Radio, Short press:
Search for previous radio
frequency .............................. 41
Long press: Automatic
station search ........................ 41
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 51
Long press: Fast rewind .......51
11 AUX input .............................. 54
12 d - CD ejection .....................51
13 TEL - Telephone menu .......113
14 MEDIA - Change audio
source ................................... 51

14Introduction

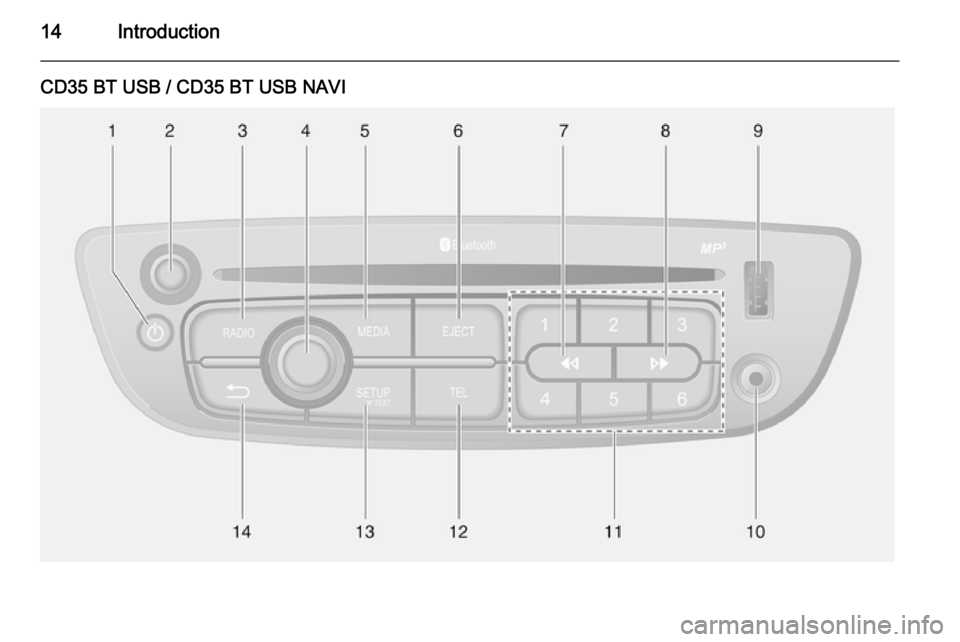

CD35 BT USB / CD35 BT USB NAVI

Introduction15
1m - Press: Switch on/off ........22
2 Volume rotary knob -
Press: Mute/unmute ..............22
Turn: Adjust volume ..............22
3 RADIO - Change audio
source, waveband .................39
4 Central rotary knob ...............22
Press: Confirm an action ....... 22
Turn: Access display
menu options ........................ 22
Turn: Access the stored
radio station list .....................39
Turn: Select next/previous
station ................................... 41
Turn: Change CD/MP3
track ...................................... 51
5 MEDIA - Change audio
source ................................... 51
6 EJECT - CD ejection .............5172 - Radio, Short press:
Search for previous radio
frequency .............................. 41
Long press: Automatic
station search ........................ 41
Audio/MP3/WMA CD,
Short press: Skip track
backwards ............................. 51
Long press: Fast rewind .......51
8 3 - Radio, Short press:
Search for next radio
frequency .............................. 41
Long press: Automatic
station search ........................ 41
Audio/MP3 CD, Short
press: Skip track forwards ..... 51
Long press: Fast forward ......51
9 USB port ............................... 56
10 AUX input .............................. 54
11 Station buttons 1...6 ..............41
Short press: Select station ....41
Long press: Save station ......41
12 TEL - Telephone menu .......11313 SETUP / TEXT - Short
press: Settings menu ............22
Long press: Display radio
text information .....................45
Long press: Display CD
text information .....................51
14 / - Return to previous
menu, cancel an action .........22

16Introduction

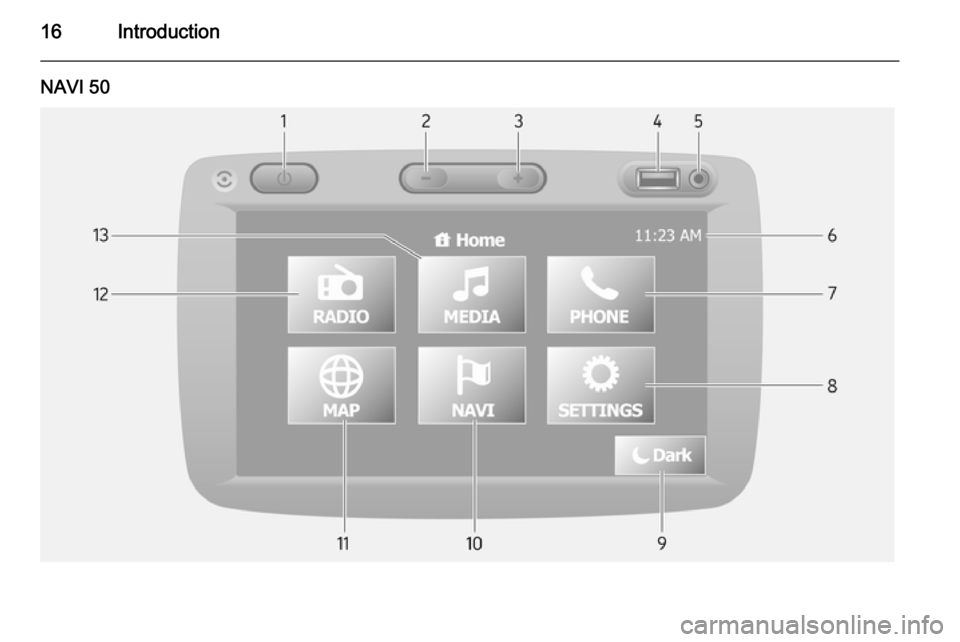

NAVI 50

Introduction17
1m - Press: Switch on/off ........22
2 ]: Decrease volume .............22
3 <: Increase volume ............... 22
4 USB port ............................... 56
5 AUX input .............................. 54
6 Clock ..................................... 22
7 PHONE : Telephone menu ..113
8 SETTINGS : Audio
settings, e.g. "Tone
settings" ................................ 31
"Volume settings" ..................33
Bluetooth settings .................22
Display settings .....................22
System settings ..................... 34
9 ☾Dark : Darken screen
(only clock and audio
system information are
displayed) .............................. 22
10 NAVI : Navigation menu ........69
11 MAP : View map .................... 69
12 RADIO : Change audio
source to radio ......................3913 MEDIA: Change audio
source - USB, iPod ...............56
BT (Bluetooth) .......................60
AUX ....................................... 54

18Introduction

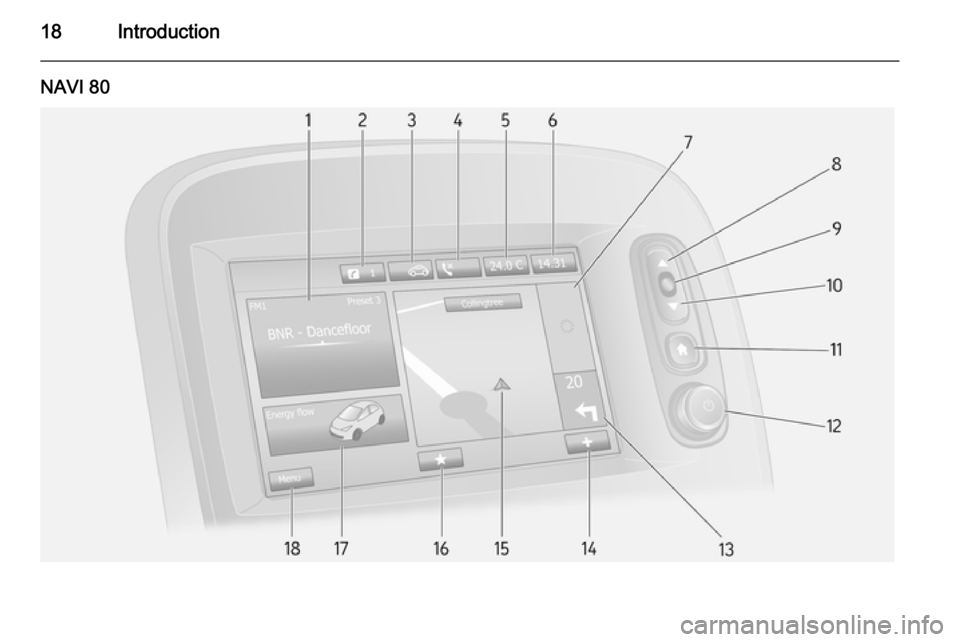

NAVI 80

Introduction19
1Audio information, e.g.
Radio ..................................... 39
Auxiliary devices ...................54
M USB devices ...................... 56
Bluetooth music ....................60
2 H: System notifications ..........22
3 r: Outside air quality .........22
Eco Function ......................... 22
4 y: Telephone status ...........113
Call log ................................ 122
5 Outside temperature .............22
6 Clock ..................................... 22
7 Traffic information .................98
8 R: Display lists - Scroll up ....22
Map: Change scale ...............98
9 Enter menus, confirm
actions ................................... 22
10 S: Display lists - Scroll
down ..................................... 22
Map: Change scale ...............98
11 ;: Home page ...................... 2212 m - Press: Switch on/off ........22
Turn: Change volume ...........22
13 Navigation: Direction and
distance to next change of
direction ................................ 69
14 <: Pop-up menu ...................22
15 Navigation display .................69
Map ....................................... 98
16 f: Favourites, e.g. for
Navigation ............................ 69
Media (e.g. Radio) ................39
Phone .................................. 113
Services ................................ 73
17 Driving economy ...................22
18 Menu : Access Main menu ..... 22Steering column controls -
Type A

20Introduction
1 AUDIO/SOURCE -
Change audio source ............22
2 6TEL - Telephone menu ....113
NAVI - Navigation menu .......73
3 ! - Increase volume .............22
4 @ - Mute/unmute ...................22
5 78 - Take/end phone call ..122
6 # - Decrease volume ............22
7 5 - Voice recognition ........... 111
8 OK - Confirm actions ............. 39
Turn: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ........................... 41
9 _ / 6 - Move left/right
within display text, move
around display screen ...........51Steering column controls -
Type B1 RADIO/CD - Change
audio source ......................... 39
MEDIA - Change audio
source ................................... 39
2 ! - Increase volume .............22
3 @ - Mute/unmute ...................22
4 # - Decrease volume ............22
5 Short press: Change radio
source/waveband ..................39
Long press: Automatic
station storing ........................ 44
6 Turn: Change radio
frequency .............................. 41
Short press: Select audio
track (CD player mode) .........51
Long press: Fast forward/
rewind an audio track (CD
player mode) ......................... 51
