Seats, restraints69Crew van - rear seatsWeight and age class2nd row seatsOuterCentreGroup 0: up to 10 kg
Group 0+: up to 13 kgUXGroup I: 9 to 18 kgUXGroup II: 15 to 25 kg
Group III: 22 to 36 kgUX

70Seats, restraintsCombi - rear seatsWeight and age class2nd row seats3rd row seatsDriver side
outer seat
Centre seat
Passenger side
outer seatGroup 0: up to 10 kg
Group 0+: up to 13 kgU 3)
, , , Group III: 22 to 36 kgU 4)UF 4)UF 4)X3)
Move the front seat as far forward as possible to install a rear facing child seat, then move back the seat in front in accordance with
the child seat instructions.
4) Forward facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the height
of the headrest or remove it if necessary; do not push the seat in front of the child more than halfway back on its runners and do not recline the seatback more than 25°.
Bus - rear seats
Weight and age classRear seatsGroup 0: up to 10 kg
Group 0+: up to 13 kgXGroup I: 9 to 18 kgXGroup II: 15 to 25 kg
Group III: 22 to 36 kgX

Seats, restraints71Crew cab - rear seatsWeight and age class2nd row seatsOuterCentreGroup 0: up to 10 kg
Group 0+: up to 13 kgUXGroup I: 9 to 18 kgUXGroup II: 15 to 25 kg
Group III: 22 to 36 kgUXU:suitable for universal category restraint systems for use in this weight and age class, in conjunction with three-point
seat belt.UF:suitable for universal category forward-facing restraint systems for use in this weight and age class, in conjunction
with three-point seat belt.<:suitable for ISOFIX child restraint system with mounting brackets and anchorage points, where fitted. When mounting
an ISOFIX child restraint system, only systems that have been approved for the vehicle may be used. Refer to
" Permissible options for fitting an ISOFIX child restraint system ".X:seat position not suitable for children in this weight and age class.

72Seats, restraintsPermissible options for fitting an ISOFIX child restraint systemCombiWeight classSize classFixtureFront seats2nd row seats3rd row seatsDriver side
outer seat
Centre seat
Passenger side
outer seatGroup 0: up to 10 kgEISO/R1XILXXXGroup 0+: up to 13 kgEISO/R1XILXXXDISO/R2XILXXXCISO/R3XILXXXGroup I: 9 to 18 kgDISO/R2XILXXXCISO/R3XILXXXBISO/F2XIL, IUFIL, IUFXXB1ISO/F2XXIL, IUFIL, IUFXXAISO/F3XIL, IUFIL, IUFXXIL:suitable for particular ISOFIX restraint systems of the "specific-vehicle", "restricted" or "semi-universal" categories.
The ISOFIX restraint system must be approved for the specific vehicle type.IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.X:no ISOFIX child restraint system approved in this weight class.

Seats, restraints73ISOFIX size class and seat deviceA - ISO/F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B - ISO/F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 - ISO/F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C - ISO/R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D - ISO/R2:rear-facing child restraint system for smaller children in the weight class up to 18 kg.E - ISO/R1:rear-facing child restraint system for young children in the weight class up to 13 kg.

74StorageStorageStorage compartments................74
Instrument panel storage ...........74
Glovebox ................................... 75
Cupholders ................................ 75
Front storage ............................. 75
Overhead console .....................76
Underseat storage .....................76
Overcab storage ........................77
Load compartment .......................77
Lashing eyes ............................. 77
Cargo management system ......78
Safety net .................................. 81
Load compartment grille ............81
Warning triangle ........................81
First aid kit ................................. 82
Fire extinguisher ........................82
Roof rack system .........................83
Roof rack ................................... 83
Loading information .....................83Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.
Instrument panel storage
Storage compartments, pockets and
trays are located in the instrument
panel.
A phone holder and / or a coin holder
with a clip for holding tickets is located on the top of the instrument panel.
The tray located centrally on top of the instrument panel has a lid.
Document holder
Withdraw the document holder from
the instrument panel by pulling the
base towards you and then swivelling it downwards.

Storage75To fold away, raise the base until the
document holder is horizontal, then push fully in.
Glovebox
The glovebox should be closed whilst driving.
Glovebox cooler 3 132.
Cupholders Cupholders are located at either end
of the instrument panel and centrally
in the lower instrument panel.
The cupholders can also be used to
hold the portable ashtray unit 3 91.
Additionally, cupholders may be
located in the rear side of the front
centre passenger seat.
Folding passenger seatback 3 75.
Depending on model, cupholders
may also be located in the lower front
part of the rear seats.
Front storage Depending on model, coat hooks orstorage nets may be located on the
cabin bulkhead.
The front door pockets contain bottle
holders.Folding front centre passenger
seatback
Pull backrest release lever on the
front centre passenger seat towards
front of vehicle before folding down
the backrest to the horizontal
position.
The rear side of the backrest features storage compartments, cupholders
and a swivelling shelf, which can be
used for writing or documents.
Return the swivelling shelf to its
original position before pulling
backrest release lever and raising the
backrest.

76StorageOverhead console
The total weight in these
compartments must not exceed 5 kg.
Underseat storage
Using the two loops on the passenger
seat cushion, pull the cushion
forwards to gain access to the storage
under the seat.
Rear bench seat
Raise seat base at front and remove
to gain access to storage
compartment under the bench seat.
Depending on model, bench seats
may also contain storage
compartments at the lower front part
of the seat and a storage net on the
outboard side of the seat.

Storage77Overcab storage
The total weight in this compartment
must not exceed 35 kg.
Rear storage
Combi, Bus
Objects can be stored in the overhead
storage compartments above the rear passenger seats.
The total weight must not exceed
20 kg evenly distributed.
Load compartment9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
Use the grab handles, located beside
the rear and sliding side door(s), to
assist during entry and exit of the load compartment.
Lashing eyes
Lashing eyes are mounted in the load
compartment to enable cargo to be secured in position using lashing
straps or a luggage floor net.

78Storage

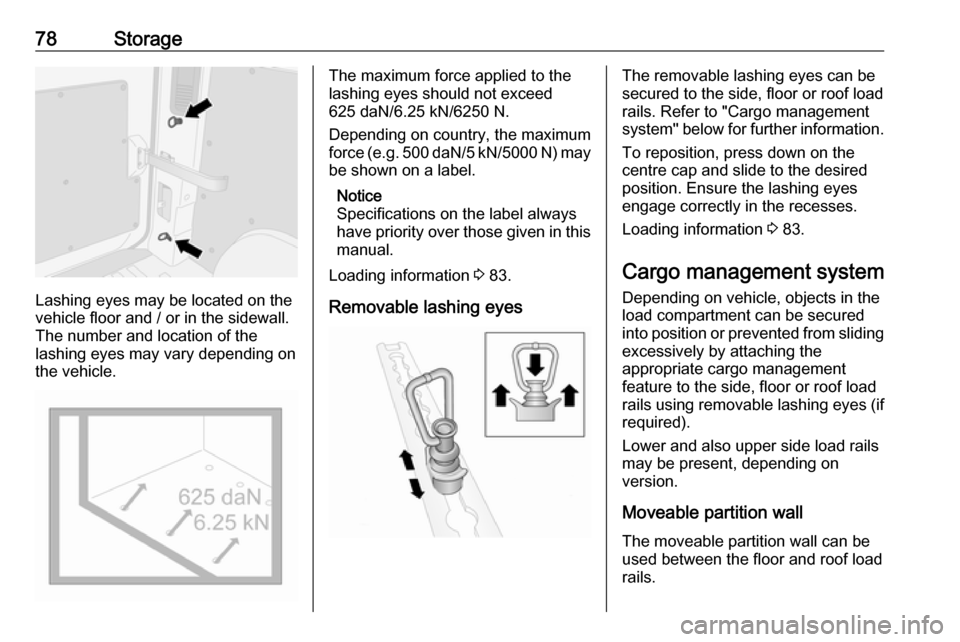

Lashing eyes may be located on the
vehicle floor and / or in the sidewall.
The number and location of the
lashing eyes may vary depending on the vehicle.
The maximum force applied to the
lashing eyes should not exceed
625 daN/6.25 kN/6250 N.
Depending on country, the maximum
force (e.g. 500 daN /5 kN /5000 N) may
be shown on a label.
Notice
Specifications on the label always
have priority over those given in this manual.
Loading information 3 83.
Removable lashing eyesThe removable lashing eyes can be
secured to the side, floor or roof load rails. Refer to "Cargo management
system" below for further information.
To reposition, press down on the
centre cap and slide to the desired
position. Ensure the lashing eyes
engage correctly in the recesses.
Loading information 3 83.
Cargo management system
Depending on vehicle, objects in the load compartment can be secured
into position or prevented from sliding
excessively by attaching the
appropriate cargo management
feature to the side, floor or roof load
rails using removable lashing eyes (if
required).
Lower and also upper side load rails
may be present, depending on
version.
Moveable partition wall
The moveable partition wall can be
used between the floor and roof load
rails.
