VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
180 Vehicle Care
Tyre Pressure Monitor
System
The tyre pressure monitoring
system (TPMS) checks the pressure
of all four wheels once a minute
when vehicle speed exceeds a
certain limit.
Caution
Tyre pressure monitoring system
warns only about low tyre
pressure condition and does not
replace regular tyre maintenance
by the driver.
All wheels must be equipped with
pressure sensors and the tyres
must have the prescribed pressure.
Note: In countries where the tyre
pressure monitoring system is
legally required, the use of wheels
without pressure sensors will
invalidate the vehicle type approval.
The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre (DIC). The menu can be selected by the
buttons on the indicator lever.
Press the
MENUto select the
Vehicle Information MENU
g.
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure
warnings are displayed by a
message with the corresponding
tyre flashing in the DIC.
The system considers the tyre
temperature for the warnings.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 181
A detected low tyre pressure
condition is indicated by the control
indicator
70Tyre Pressure
Monitoring System Light 073.
If
7illuminates, stop as soon as
possible and inflate the tyres as
recommended
0Tyre
Pressure 0209.
If
7flashes for 60-90 seconds and
then illuminates continuously, there
is a fault in the system. Consult a
workshop. After inflating, driving may be
required to update the tyre pressure
values in the DIC. During this time
7may illuminate.
If
7illuminates at lower
temperatures and extinguishes after
some driving, this could be an
indicator for getting low pressure.
Check tyre pressure.
Vehicle messages
0Vehicle
Messages 080.
If the tyre pressure shall be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and
7
illuminates continuously.
A temporary spare wheel is not
equipped with pressure sensors.
The tyre pressure monitoring
system is not operational for these
wheels. Control indicator
7
illuminates. For the further three
wheels the system remains
operational. The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory
approved repair kits can be used.
External high-power radio
equipment could disrupt the tyre
pressure monitoring system.
Each time the tyres are replaced
tyre pressure monitoring system
sensors must be dismounted and
serviced. For the screwed sensor :
Replace valve core and sealing ring.
For clipped sensor : Replace
complete valve stem.
Vehicle loading status
Adjust tyre pressure to load
condition according to tyre
information label or tyre pressure
chart
0Tyre Pressure
0209, and
select the relevant setting in the
menu Tyre Load in the Driver
Information Centre, Vehicle
Information Menu
0Driver
Information Centre (DIC) 075.
This setting is the reference for the
tyre pressure warnings.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
182 Vehicle Care
The menu Tyre Load only appears if
the vehicle is in a standstill and the
parking brake is applied.
Select :
.Lofor comfort pressure up to
3 people
. Eco for Eco pressure up to
3 people
. Hifor full loading
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identification code. The identification
code must be matched to a new tyre/ wheel position after rotating the
tyres or exchanging the complete
wheel set and if one or more TPMS
sensors were replaced. The TPMS
sensor matching process should
also be performed after replacing a
spare tyre with a road tyre
containing the TPMS sensor.
The malfunction light and the
warning message or code should go
off at the next ignition cycle. The
sensors are matched to the tyre/
wheel positions, using a TPMS
relearn tool, in the following order :
Left side front tyre, right side front
tyre, right side rear tyre and left side
rear tyre. The turn light at the
current active position is illuminated
until sensor is matched.
Consult your workshop for service
or to purchase a relearn tool. You
have two minutes to match the first
tyre/ wheel position, and
five minutes overall to match all four
tyre/wheel positions. If it takes
longer, the matching process stops
and must be restarted.
The TPMS sensor matching process
is outlined below:
1. Apply the parking brake.
2. Turn the ignition on.
3. Move selector lever to neutral.
4. Use MENUon the indicator
lever to select the Vehicle
Information Men u in the
Driver Information
Centre (DIC).
5. Turn the adjuster wheel to scroll to the tyre
pressure menu.
6. Press SET/CLR to begin the
sensor matching process.
A message requesting
acceptance of the process
should display.
7. Press SET/CLR again to
confirm the selection. The horn
sounds twice to signal the
receiver is in relearn mode.
8. Start with the left side front tyre.
9. Place the relearn tool against the tyre sidewall, near the
valve stem. Then press the

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 183
button to activate the TPMS
sensor. A horn chirp confirms
that the sensor identification
code has been matched to this
tyre and wheel position.
10. Proceed to the right side front tyre, and repeat the procedure
in Step 9.
11. Proceed to the right side rear tyre, and repeat the procedure
in Step 9.
12. Proceed to the left side rear tyre, and repeat the procedure
in Step 9. The horn sounds
twice to indicate the sensor
identification code has been
matched to the left side rear
tyre, and the TPMS sensor
matching process is no longer
active.
13. Turn off the ignition.
14. Set all four tyres to the recommended air pressure
level as indicated on the tyre
pressure label. 15. Ensure the tyre loading status
is set according selected
pressure
0Driver Information
Centre (DIC) 075.
Temperature dependency
The tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase. Tyre pressure
values provided on the tyre
information label and tyre pressure
chart are valid for cold tyres, which
means at 20 °C. The pressure
increases by nearly 10 kPa for a 10
°C temperature increase. This must
be considered when warm tyres are
checked.
The tyre pressure value displayed in
the DIC shows the real tyre
pressure. A cooled down tyre will
show a decreased value, which
does not indicate an air leak.
Tread Depth
Check tread depth at regular
intervals. Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is
recommended that the tread depth
of the tyres on one axle should not
vary by more than 2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread
wear indicators (TWI). Their position
is indicated by markings on the
sidewall.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
184 Vehicle Care
Tyres age, even if they are not
used. We recommend tyre
replacement every 6 years.
Changing tyre and wheel size
If tyres of a different size than those
fitted at the factory are used, it may
be necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and to make other
vehicle modifications
After converting to a different tyre
size, have the label with tyre
pressures replaced.
{Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
Wheel Covers
Wheel covers and tyres that are
factory approved for the respective
vehicle and comply with all of the
relevant wheel and tyre combination
requirements must be used.If the wheel covers and tyres used
are not factory approved, the tyres
must not have a rim protection
ridge.
Wheel covers must not impair brake
cooling.
{Warning
Use of unsuitable tyres or wheel
covers could lead to sudden
pressure loss and thereby
accidents.
Tyre Chains
Tyre chains are only permitted on
the front wheels.
Always use fine mesh chains that
add no more than 10 mm to the tyre
tread and the inboard sides
(including chain lock).
{Warning
Damage may lead to tyre
blowout.
Tyre chains are only permitted on
tyres of size 165/65 R14.
Tyre chains are not permitted on
tyres of size 185/55 R15 and
195/45 R16.
The use of tyre chains is not
permitted on the temporary spare
wheel.
Tyre Repair Kit
Minor damage to the tyre tread can
be repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 185
Tyre damage exceeding 4 mm or
that is at tyre's side wall near the
rim cannot be repaired with the tyre
repair kit.
{Warning
Do not drive faster than 50 mph.
Do not use for a lengthy period.
Steering and handling may be
affected.
If you have a flat tyre :
Apply the parking brake.
For manual gearbox, engage first
gear or reverse gear.
The tyre repair kit is in the tool box
under the floor cover in the load
compartment. 1. Open the storage.
2. Remove the compressor and the sealant bottle.
3. Remove the electricalconnection cable (1) and air
hose (2) from the stowage
compartments on the
underside of the compressor.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
186 Vehicle Care
4. The switch on the compressormust be set to
9.
5. Screw the compressor air hose to the connection on the
sealant bottle.
6. Connect the compressor plug to the accessory socket (power
socket or cigarette lighter.)
To avoid discharging the
battery, we recommend running
the engine.
7. Fit the sealant bottle into the retainer on the compressor.
Set the compressor near the
tyre in such a way that the
sealant bottle is upright.

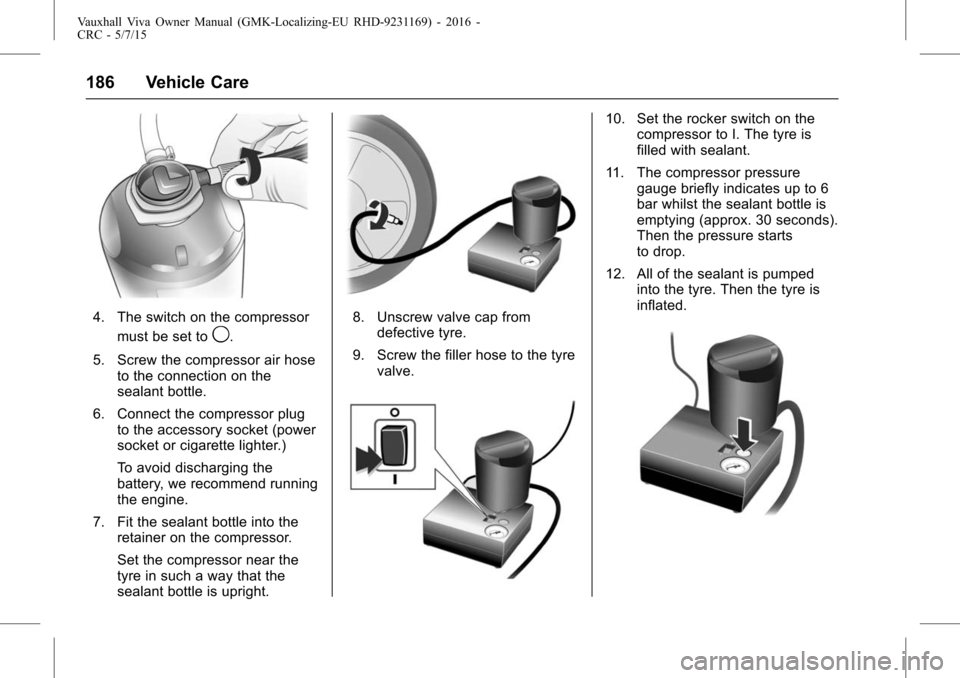

8. Unscrew valve cap from
defective tyre.
9. Screw the filler hose to the tyre valve.
10. Set the rocker switch on the compressor to I. The tyre is
filled with sealant.
11. The compressor pressure gauge briefly indicates up to 6
bar whilst the sealant bottle is
emptying (approx. 30 seconds).
Then the pressure starts
to drop.
12. All of the sealant is pumped into the tyre. Then the tyre is
inflated.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 187
13. The prescribed tyre pressure(approx. 2.4 bar) should be
obtained within 10 minutes.
When the correct pressure is
obtained, switch off the
compressor.
If the prescribed tyre pressure
is not obtained within
10 minutes, remove the tyre
repair kit. Move the vehicle one
tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure
for 10 minutes. If the
prescribed tyre pressure is still
not obtained, the tyre is too
badly damaged. Seek the
assistance of a workshop.
Drain excess tyre pressure with
the button over the pressure
indicator.
Do not run the compressor
longer than 10 minutes. 14. Detach the tyre repair kit. Push
catch on bracket to remove
sealant bottle from bracket.
Screw tyre inflation hose to
free connection of sealant
bottle. This prevents sealant
from escaping.
Stow tyre repair kit in tailgate.
15. Remove any excess sealant using a cloth.
16. Take the label indicating maximum permitted speed
(approx. 50 mph) from the
sealant bottle and affix in the
driver's field of view.17. Continue driving immediatelyso that sealant is evenly
distributed in the tyre. After
driving approx. 6 miles (but no
more than 10 minutes), stop
and check tyre pressure.
Screw compressor air hose
directly onto tyre valve and
compressor when doing this.
If tyre pressure is more than
1.3 bar, set it to the correct
value (approx.2.4 bar).
Repeat the procedure until
there is no more loss of
pressure.
If the tyre pressure has fallen
below 1.3 bar, the vehicle must
not be used. Seek the
assistance of a workshop.
18. Stow away tyre repair kit in tailgate.
Note: The driving characteristics of
the repaired tyre is severely
affected, therefore have this tyre
replaced.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
188 Vehicle Care
If unusual noise is heard or the
compressor becomes hot, turn
compressor off for at least
30 minutes.
Note the expiry date of the kit. After
this date its sealing capability is no
longer guaranteed. Pay attention to
storage information on sealant
bottle.
Replace the used sealant bottle.
Dispose of the bottle as prescribed
by applicable laws.
The compressor and sealant can be
used from approx. -30°C ~ 70°C
(-22 ~ 158°F).
Tyre Changing
Some vehicles are equipped with a
tyre repair kit instead of a spare
wheel.
Make the following preparations and
observe the following information :
.Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the
straight-ahead position. .
Apply the parking brake.
For manual gearbox, engage
first gear or reverse gear.
. Remove the spare wheel.
See "Temporary spare wheel"
under Compact Spare
Tyre 0191.
. Never change more than one
wheel at once.
. Use the jack only to change
wheels in case of puncture, not
for seasonal winter or summer
tyre change. The jack is
maintenance-free.
. If the ground on which the
vehicle is standing is soft, a solid
board (max. 1cm (0.4 inches)
thick) should be placed under
the jack. Take heavy objects out
of the vehicle before jacking up.
. No people or animals may be in
the vehicle when it is jacked-up.
. Never crawl under a jacked-up
vehicle.
. Do not start the vehicle when it
is raised on the jack. .
Clean wheel nuts and thread
before mounting the wheel.
Do not grease wheel bolt, wheel
nut and wheel nut cone.
Wheel changing
Make the following preparations and
observe the following information:
.Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the
straight-ahead position.
. Apply the parking brake and
engage first gear, reverse gear
or P.
. Never change more than one
wheel at once.
. Use the jack only to change
wheels in case of puncture, not
for seasonal winter or summer
tyre change.
. The jack is maintenance-free.
. If the ground on which the
vehicle is standing is soft, a solid
board (max. 1 cm thick) should
be placed under the jack.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 189
.Take heavy objects out of the
vehicle before jacking up.
. No people or animals may be in
the vehicle when it is jacked-up.
. Never crawl under a jacked-up
vehicle.
. Do not start the vehicle when it
is raised on the jack.
. Clean wheel nuts and thread
with a clean cloth before
mounting the wheel.
{Warning
Do not grease wheel bolt, wheel
nut and wheel nut cone. 1.
Steel wheels:
Pull off the wheel cover.
Alloy wheels with bolt caps:
Disengage wheel bolt caps
with a screwdriver and remove.
To protect the wheel, place a
soft cloth between the
screwdriver and the alloy
wheel.
Alloy wheels with centre cap:
Insert extractor in the open slot
of the centre cap and withdraw
the cap from the wheel. Vehicle
tools0Tools 0177.
2. Install the wheel wrench
ensuring that it locates
securely and loosen each
wheel bolt by half a turn.
The wheels might be protected
by locking wheel bolts. To
loosen these specific bolts, first
attach the adapter for the
locking wheel bolts onto the
head of the bolt before
installing the wheel wrench.
The adapter is located in the
glovebox.
3. Ensure the jack is correctlypositioned under the relevant
vehicle jacking point.
