54 Storage
2. Pull the strap under the seatcushion and turn down the seat
cushion.
3. Pull the release lever on top ofthe rear backrest.
4. Fold the backrest forward
and down.
5. Put the seat belts for theoutboard seats into the belt
guides. To return the backrest to the original
position, pull out the seat belt from
the belt guides and lift backrest up.
Push backrest firmly into place.
{Warning
When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal
injury or damage to the load or
vehicle in the event of hard
braking or a collision.
Make sure the seat belts are not
pinched by the latch.
The centre rear seat belt may lock
when you raise the backrest. If this
happens, allow the belt to go back
all the way and repeat operation.
If the seat belt is still locked, turn
down the seat cushion and try
again.
To return the rear seat cushion, put
the rear part of the seat cushion in
its original position ensuring that the
seat belt buckle straps are not

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Storage 55
twisted or caught under the seat
cushion, then push the front part of
the seat cushion firmly down until it
latches.
Caution
When returning rear seat backrest
to the upright position, place the
rear seat belt and buckles
between the rear seat backrest
and one cushion. Make sure the
rear seat belt and buckles do not
get pinched under the rear seat
cushion.
Make sure the seat belts are not
twisted or caught in the seat
backrest and are arranged in their
proper position.
Notice: The luggage
compartment shall contain all
fittings installed in production by
the car manufacturer (spare
wheel, jack, etc.). Other features,
either not installed or only
optional, such as first-aid-kit or
fire extinguisher, shall not be
considered. Where special features such as a
folding or removable rear seat of
backrest have been provided by
the manufacturer to obtain
maximum loading volume, the
measurements shall be made with
the following loading limits.
Front loading limit: the rear side of
the backrest of the seats situated
immediately in front of the luggage
compartment set at the normal
driving or riding position as defined
by the manufacturer, and/or the
folded rear seats; the rear seats
and/or backrest folded or removed,
with the front loading limit above the
backrest being a vertical plane
tangential to the rear side of the
front seat backrest and the load
height limited by the roof headlining.
To remove the rear seat cushion,
push the hinges in direction of
arrow.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15

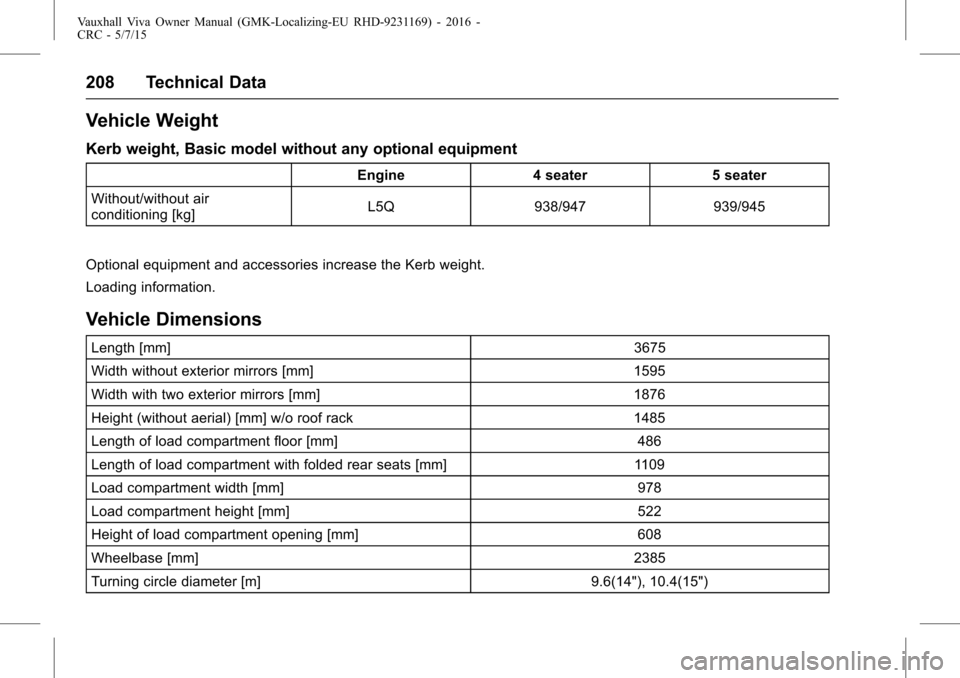

208 Technical Data
Vehicle Weight
Kerb weight, Basic model without any optional equipment
Engine4 seater 5 seater
Without/without air
conditioning [kg] L5Q
938/947 939/945
Optional equipment and accessories increase the Kerb weight.
Loading information.
Vehicle Dimensions
Length [mm] 3675
Width without exterior mirrors [mm] 1595
Width with two exterior mirrors [mm] 1876
Height (without aerial) [mm] w/o roof rack 1485
Length of load compartment floor [mm] 486
Length of load compartment with folded rear seats [mm] 1109
Load compartment width [mm] 978
Load compartment height [mm] 522
Height of load compartment opening [mm] 608
Wheelbase [mm] 2385
Turning circle diameter [m] 9.6(14"), 10.4(15")

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Index 215
D
Danger, Warning, and Caution . . . . 4
Data Recorders, Event . . . . . . . . . 211
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . 86
Declaration of Conformity . . . . . . . 210
Devices Auxiliary . . . . . . . . . . . . . . . . . . . . . . 108
Dimensions Vehicle . . . . . . . . . . . . . . . . . . . . . . . 208
Displays Service . . . . . . . . . . . . . . . . . . . . . . . . . 68
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . 74
Central Locking System . . . . . . . . 21
Driver Assistance Systems . . . . . 152
Driver Information Centre (DIC) . . . . . . . . . . . . . . . . . . . 75
E
Electrical SystemEngine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 174
Fuses . . . . . . . . . . . . . . . . . . . . . . . . 173 Electrical System (cont'd)
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 176
Electronic Climate Control
System . . . . . . . . . . . . . . . . . . . . . . . . 132
Electronic Stability Control . . . . . . 148
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . . 72
Electronic Stability Control
Indicator Light . . . . . . . . . . . . . . . . . . 72
Emissions - CO2 Fuel Consumption . . . . . . . . . . . . 158
End-of-Life Vehicle Recovery . . . 161
Engine Automatic Start/StopFeature . . . . . . . . . . . . . . . . . . . . . 141
Check and Service Engine Soon Light . . . . . . . . . . . . . . . . . . . . 70
Coolant . . . . . . . . . . . . . . . . . . . . . . . 163
Coolant Temperature Gauge . . . . 68
Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . 73
Exhaust . . . . . . . . . . . . . . . . . . . . . . 144
Pressure Light . . . . . . . . . . . . . . . . . . 73
Reduced Power Light . . . . . . . . . . . 74
Starting . . . . . . . . . . . . . . . . . . . .15, 140
Engine Data . . . . . . . . . . . . . . . . . . . . 207
Engine Identification . . . . . . . . . . . . 205 Entry Lighting . . . . . . . . . . . . . . . . . . . . 90
Event Data Recorders . . . . . . . . . . 211
Exit Lighting . . . . . . . . . . . . . . . . . . . . . 90
Exterior Lamp Controls . . . . . . . . . . 85
F
First Aid Kit . . . . . . . . . . . . . . . . . . . . . . 57
Fixed Air Vents . . . . . . . . . . . . . . . . . 136
Flat Tyre
Changing . . . . . . . . . . . . . . . . . . . . . 188
Fluid Brakes . . . . . . . . . . . . . . . . . . . . . . . . 164
Washer . . . . . . . . . . . . . . . . . . . . . . . 164
Fog Lamp Light, Rear . . . . . . . . . . . 74
Fog Lamps Bulb Replacement . . . . . . . . . . . . 169
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Folding Mirrors . . . . . . . . . . . . . . . . . . 26
Front Airbag System . . . . . . . . . . . . . 41
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Front Indicator Lamps . . . . . . . . . . 169
Front Seat Position Seats Adjustment . . . . . . . . . . . . . . . . . . . . . 33
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 33
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
