A/C COMPRESSOR SERVICING
Article Text (p. 15)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
Removal
Remove compressor from vehicle and place on work bench.
Holding clutch with Clutch Holder (00007-10331), remove shaft nut.
Install Clutch Disc Remover (4992-02-020) and remove clutch disk and
shims. Remove pulley snap ring and tap pulley (with bearing) off of
compressor with plastic hammer. See Fig. 11.
Installation
To install, reverse removal procedure. Ensure pulley-to-
clutch disc clearance is .016-.024" (.4-.6 mm). Adjust (if necessary)

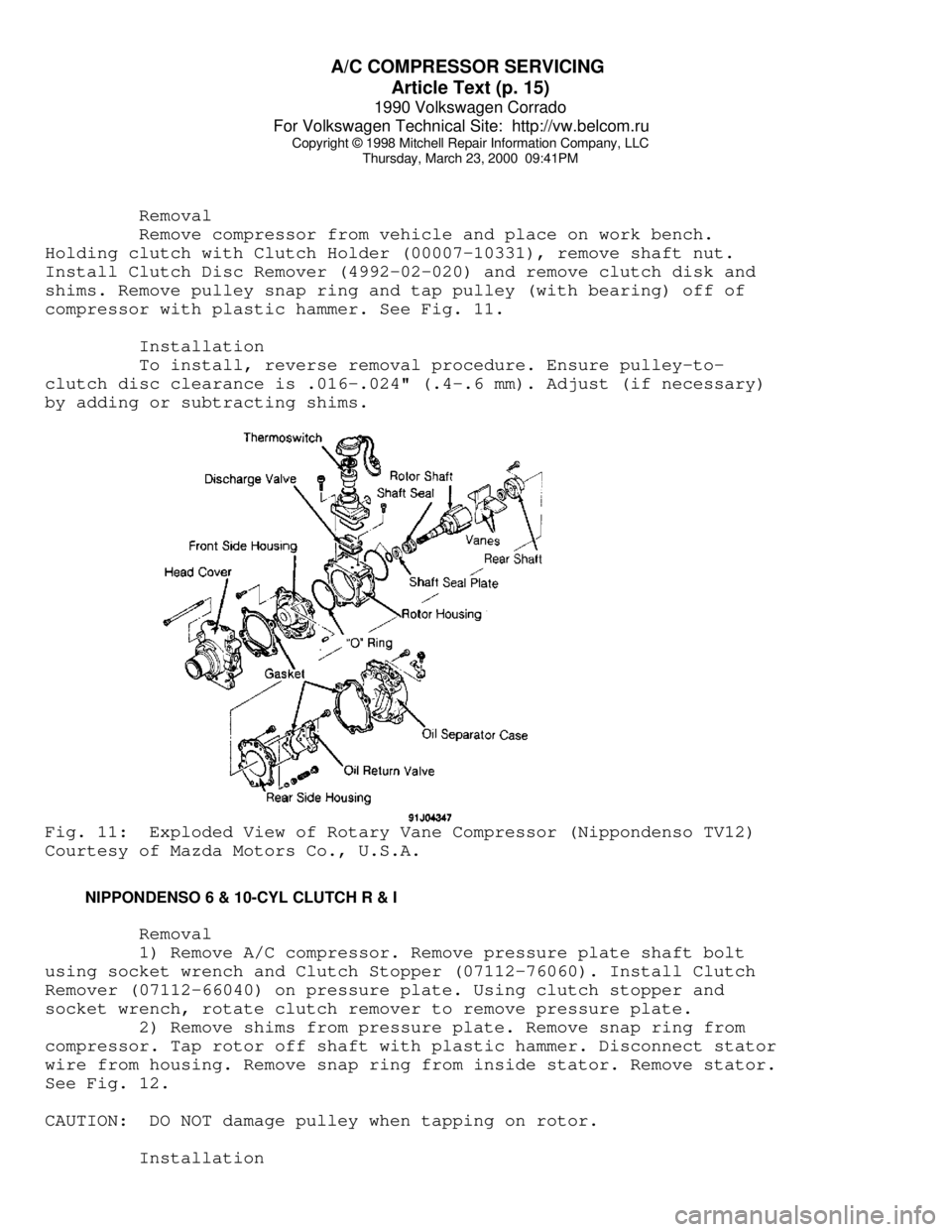

by adding or subtracting shims.Fig. 11: Exploded View of Rotary Vane Compressor (Nippondenso TV12)
Courtesy of Mazda Motors Co., U.S.A.
NIPPONDENSO 6 & 10-CYL CLUTCH R & I
Removal
1) Remove A/C compressor. Remove pressure plate shaft bolt
using socket wrench and Clutch Stopper (07112-76060). Install Clutch
Remover (07112-66040) on pressure plate. Using clutch stopper and
socket wrench, rotate clutch remover to remove pressure plate.
2) Remove shims from pressure plate. Remove snap ring from
compressor. Tap rotor off shaft with plastic hammer. Disconnect stator
wire from housing. Remove snap ring from inside stator. Remove stator.
See Fig. 12.
CAUTION: DO NOT damage pulley when tapping on rotor.
Installation
Page 342 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 16)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
To install, reverse removal procedure. Ensure snap rings are
installed with beveled side up. tighten shaft bolt to 10 ft. lbs.
(14 N.m). Ensure clutch clearance is .014-.026" (.36-66 mm). adjust
clearance by adding or subtracting shims as necessary.
NIPPONDENSO 6 & 10-CYL SHAFT SEAL R & I
NOTE: Check compressor refrigerant oil level when replacing seals.
See COMPRESSOR OIL CHECKING article in the AIR CONDITIONING &
HEAT section.
Removal
1) Hold clutch hub stationary and remove center nut. Screw
remover into center of hub. Turn center bolt to remove pressure plate.
2) Remove shims from shaft. Remove snap ring from inside of
pulley. Tap pulley off of shaft with plastic mallet. Be careful not to
distort pulley while removing.
3) Disconnect clutch coil wires from compressor housing.
remove snap ring inside coil and lift coil off compressor. Pry dust
seal out from around compressor shaft (if equipped).
4) Place shaft key remover on shaft and turn to remove key.
Remove drain plug (if equipped). Remove service valves-to-compressor
body bolts. Remove valves. Discard "O" rings. Drain oil out of
compressor.
5) Remove 6 through bolts from front head of compressor and
discard washers. Tap head loose from compressor; be careful not to
scratch sealing surfaces. remove snap ring (if equipped) from front
housing. Press seal plate out. Remove seal from shaft. See Fig. 12.
Installation
1) Lubricate shaft seal with clean refrigerant oil and place
on compressor shaft. Lubricate seal plate and "O" ring (if equipped)
and install in front housing. Install snap ring (if equipped).
2) Place front housing on compressor body. Install through
bolts with new washers. Tighten bolts evenly and alternately to
18 ft. lbs. (24 N.m). Install shaft key using installer and plastic
mallet. Insert dust seal into front of compressor.
3) Install drain plug with new gasket. Add correct amount of
refrigerant oil to compressor. If service valves were removed, coat
new "O" rings with refrigerant oil and install service valves.
4) Place clutch coil on compressor and install snap ring.
Install shims on shaft to adjust pressure plate-to-rotor clearance to
.016-.028" (.41-.71 mm). Tighten shaft nut to 12 ft. lbs. (16 N.m).
Page 343 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 17)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

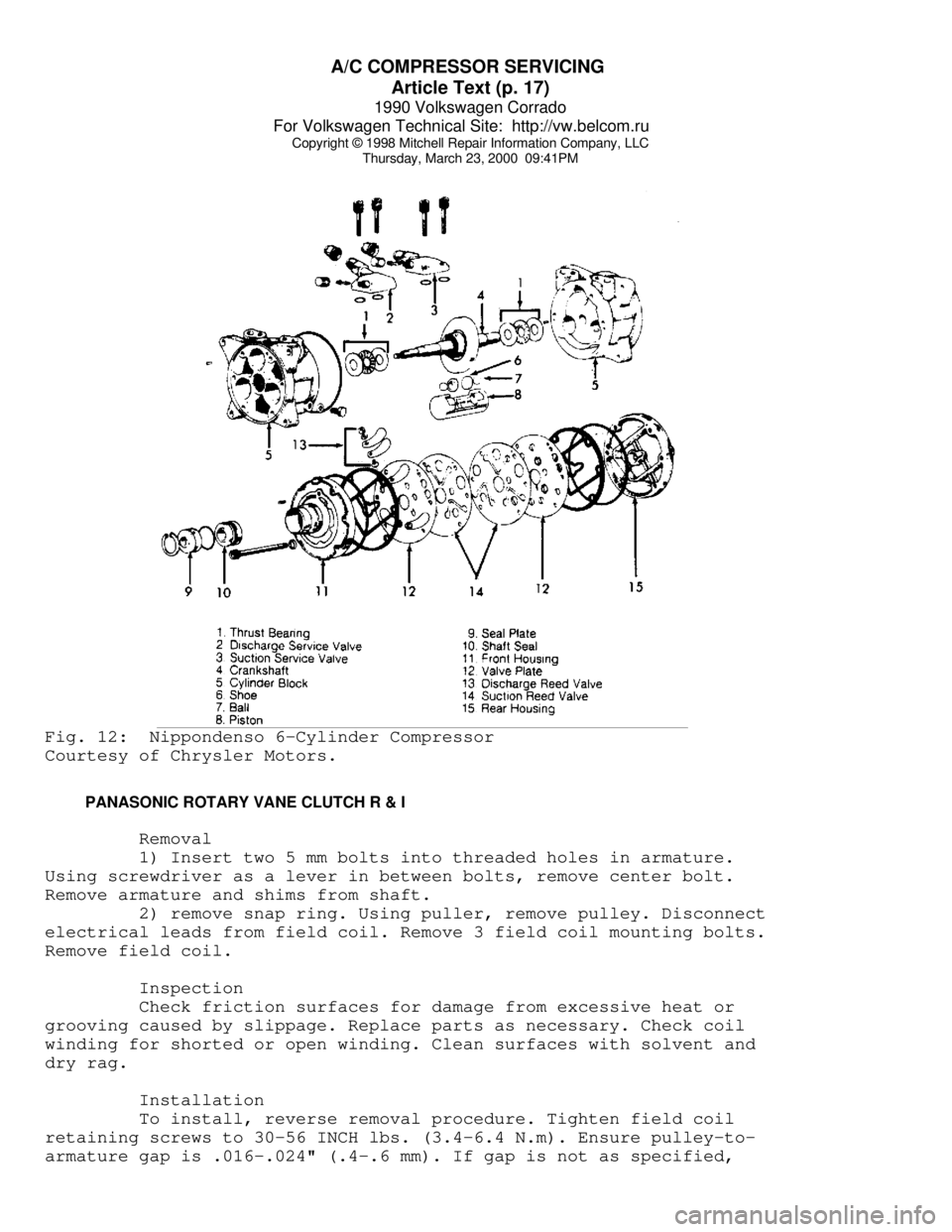

Thursday, March 23, 2000 09:41PMFig. 12: Nippondenso 6-Cylinder Compressor
Courtesy of Chrysler Motors.
PANASONIC ROTARY VANE CLUTCH R & I
Removal
1) Insert two 5 mm bolts into threaded holes in armature.
Using screwdriver as a lever in between bolts, remove center bolt.
Remove armature and shims from shaft.
2) remove snap ring. Using puller, remove pulley. Disconnect
electrical leads from field coil. Remove 3 field coil mounting bolts.
Remove field coil.
Inspection
Check friction surfaces for damage from excessive heat or
grooving caused by slippage. Replace parts as necessary. Check coil
winding for shorted or open winding. Clean surfaces with solvent and
dry rag.
Installation
To install, reverse removal procedure. Tighten field coil
retaining screws to 30-56 INCH lbs. (3.4-6.4 N.m). Ensure pulley-to-
armature gap is .016-.024" (.4-.6 mm). If gap is not as specified,
Page 344 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 18)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
adjust by adding or removing shims. Tighten center bolt to

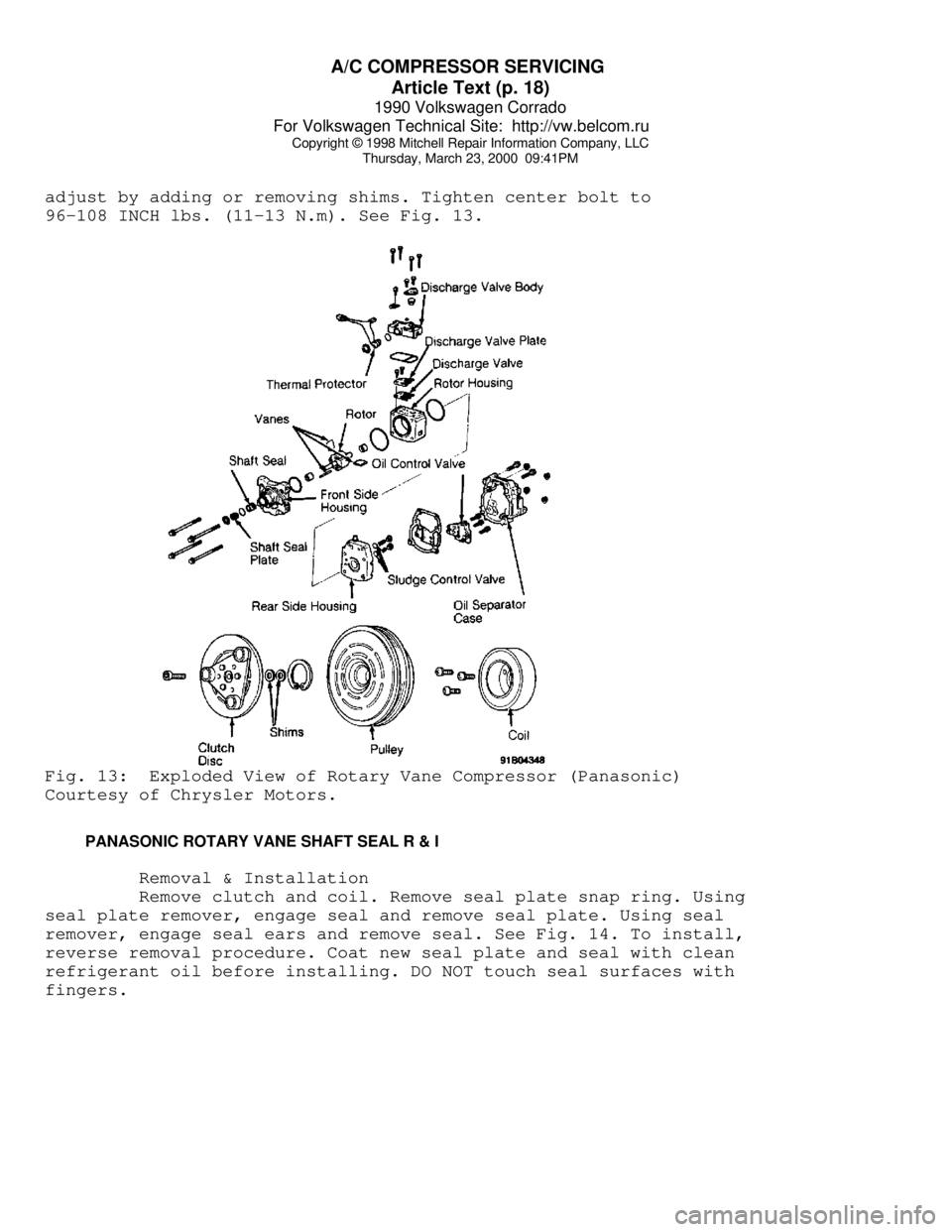

96-108 INCH lbs. (11-13 N.m). See Fig. 13.Fig. 13: Exploded View of Rotary Vane Compressor (Panasonic)
Courtesy of Chrysler Motors.
PANASONIC ROTARY VANE SHAFT SEAL R & I
Removal & Installation
Remove clutch and coil. Remove seal plate snap ring. Using
seal plate remover, engage seal and remove seal plate. Using seal
remover, engage seal ears and remove seal. See Fig. 14. To install,
reverse removal procedure. Coat new seal plate and seal with clean
refrigerant oil before installing. DO NOT touch seal surfaces with
fingers.
Page 345 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 19)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

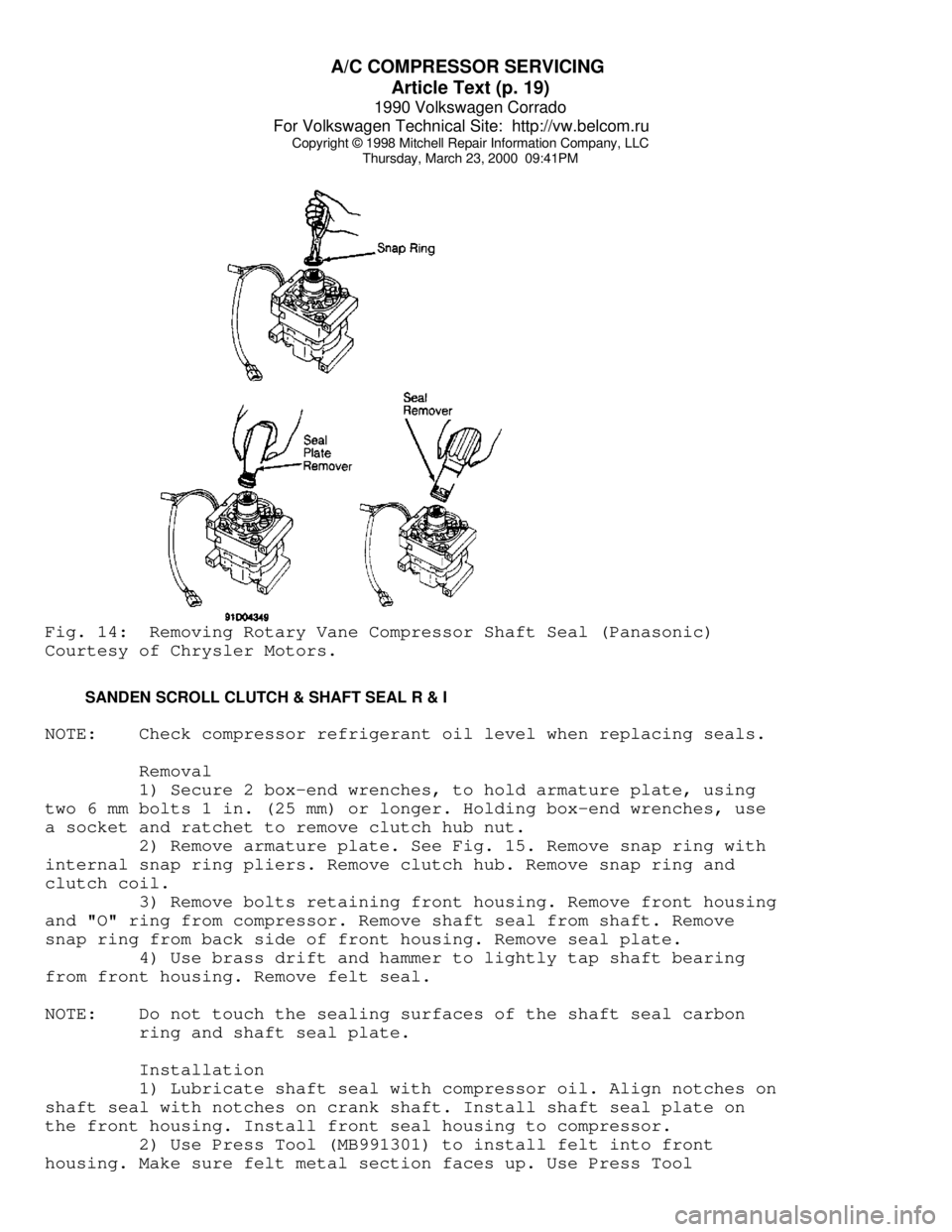

Thursday, March 23, 2000 09:41PMFig. 14: Removing Rotary Vane Compressor Shaft Seal (Panasonic)
Courtesy of Chrysler Motors.
SANDEN SCROLL CLUTCH & SHAFT SEAL R & I
NOTE: Check compressor refrigerant oil level when replacing seals.
Removal
1) Secure 2 box-end wrenches, to hold armature plate, using
two 6 mm bolts 1 in. (25 mm) or longer. Holding box-end wrenches, use
a socket and ratchet to remove clutch hub nut.
2) Remove armature plate. See Fig. 15. Remove snap ring with
internal snap ring pliers. Remove clutch hub. Remove snap ring and
clutch coil.
3) Remove bolts retaining front housing. Remove front housing
and "O" ring from compressor. Remove shaft seal from shaft. Remove
snap ring from back side of front housing. Remove seal plate.
4) Use brass drift and hammer to lightly tap shaft bearing
from front housing. Remove felt seal.
NOTE: Do not touch the sealing surfaces of the shaft seal carbon
ring and shaft seal plate.
Installation
1) Lubricate shaft seal with compressor oil. Align notches on
shaft seal with notches on crank shaft. Install shaft seal plate on
the front housing. Install front seal housing to compressor.
2) Use Press Tool (MB991301) to install felt into front
housing. Make sure felt metal section faces up. Use Press Tool
Page 346 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 20)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
(MB991301) to press bearing into front housing.
3) Align and install clutch coil. Install snap ring so that
the tapered surface is facing outward. Install clutch hub. Install
snap ring. Install armature plate, aligning raised area to notch.
4) Secure 2 box-end wrenches, to hold armature plate, using
two 6 mm bolts 1 in. (25 mm) or longer. Holding box-end wrenches, use
a socket and ratchet to tighten clutch hub nut to 12 ft. lbs. (16 N.
m).
5) Use feeler gauge to measure distance between armature and
clutch hub. If gap is not .01-.02" (.25-.51 mm), remove clutch

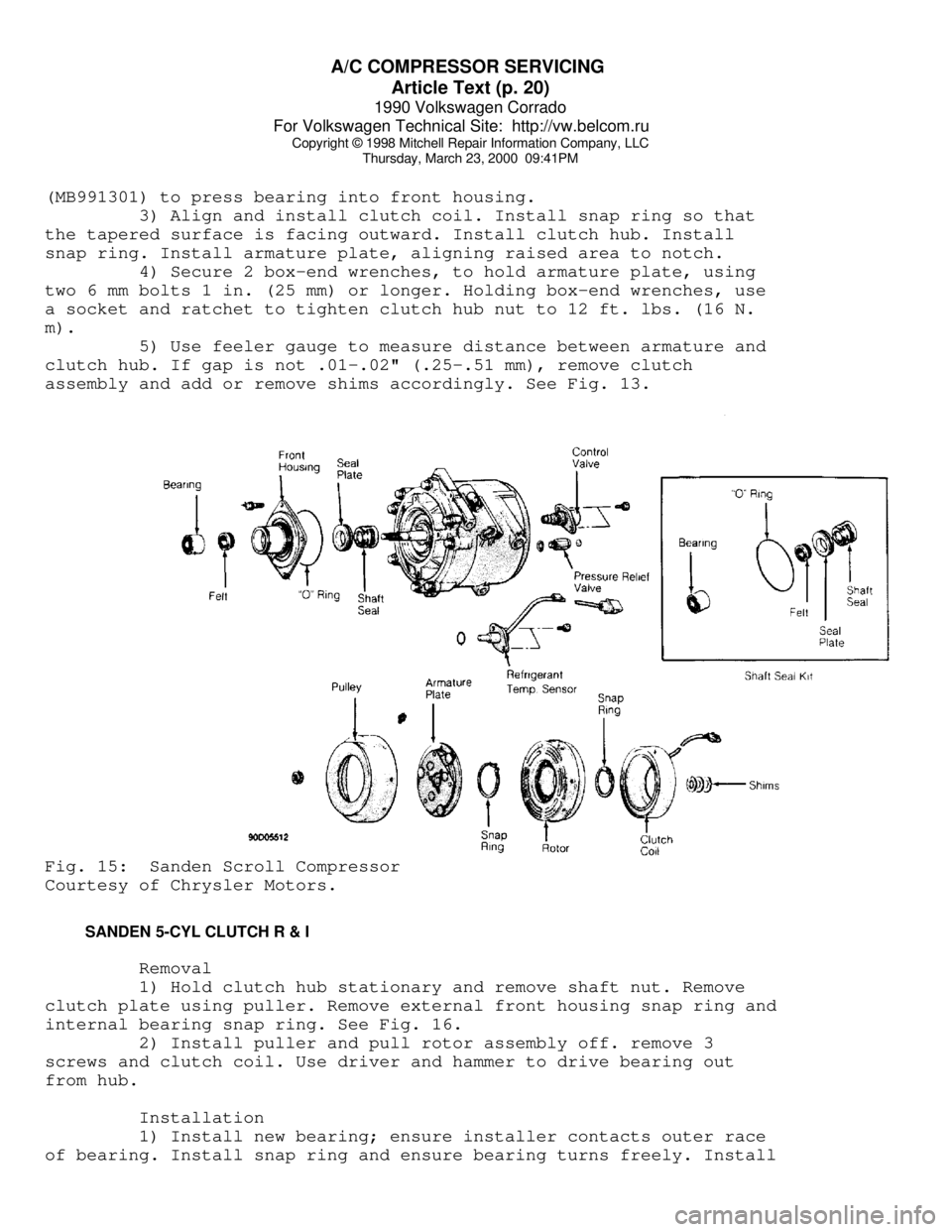

assembly and add or remove shims accordingly. See Fig. 13.Fig. 15: Sanden Scroll Compressor
Courtesy of Chrysler Motors.
SANDEN 5-CYL CLUTCH R & I
Removal
1) Hold clutch hub stationary and remove shaft nut. Remove
clutch plate using puller. Remove external front housing snap ring and
internal bearing snap ring. See Fig. 16.
2) Install puller and pull rotor assembly off. remove 3
screws and clutch coil. Use driver and hammer to drive bearing out
from hub.
Installation
1) Install new bearing; ensure installer contacts outer race
of bearing. Install snap ring and ensure bearing turns freely. Install
Page 347 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 21)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
clutch coil on compressor.
2) Support compressor on rear mounting ears. Align rotor on
front housing hub. Use adapter and press to install rotor (or drive
into place with soft mallet). After rotor is seated, install front
snap ring.
SANDEN 5-CYL SHAFT SEAL R & I
NOTE: Check compressor refrigerant oil level when replacing seals.
Removal
1) Hold clutch hub stationary and remove shaft nut with thin
wall socket. Use clutch plate puller to remove clutch plate. Tap key
out of slot in crankshaft.
2) Remove seal retainer with seal remover and 3/4" socket
wrench. Use seal seat remover tongs to pull seal seat off compressor
shaft. Insert seal remover into front housing and turn to engage tangs
on seal. Lift seal out. Remove seal "O" ring from front housing, being
careful not to scratch shaft.
Installation
1) Coat "O" ring with refrigerant oil and install into
groove. Load a new seal onto installer, being careful not to touch
carbon sealing surface with fingers. Install shaft protector. Dip seal
in refrigerant oil and install on shaft. Rotate seal clockwise until
seal fits into flats on shaft. Remove seal installer by turning
counterclockwise.
2) Coat seal seat with refrigerant oil and install with
tongs. Reinstall seal seat retainer (with flat side down). Install
shims and shaft key. Rotate shaft several times to help break in seal.
3) Use a press to install clutch plate. Make sure that air
gap is .016-.031" (.41-.79 mm). Hold plate stationary and install
shaft nut.
Page 348 of 906
A/C COMPRESSOR SERVICING
Article Text (p. 22)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

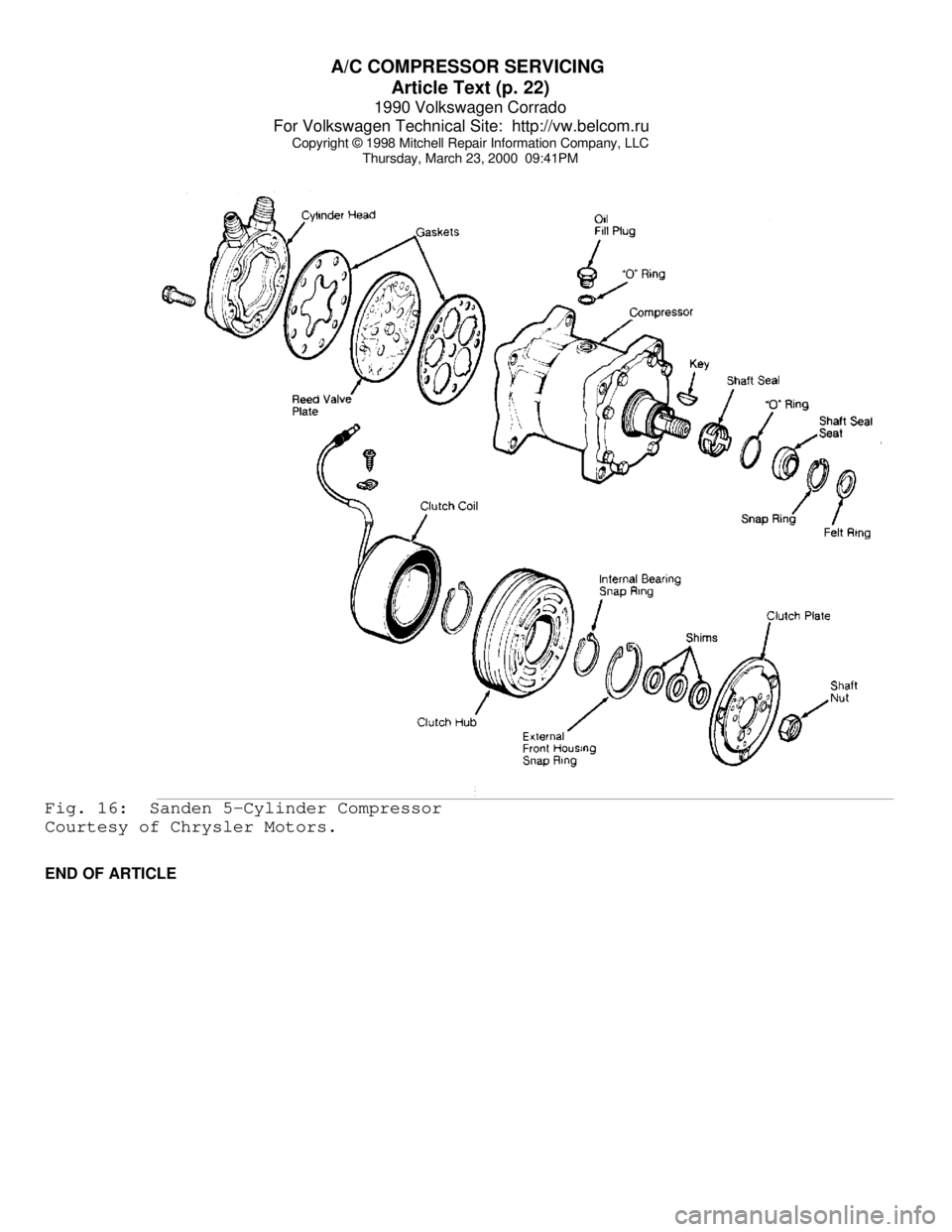

Thursday, March 23, 2000 09:41PMFig. 16: Sanden 5-Cylinder Compressor
Courtesy of Chrysler Motors.
END OF ARTICLE
Page 349 of 906
A/C SYSTEM GENERAL DIAGNOSTIC PROCEDURES
Article Text
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
ARTICLE BEGINNING
1983-90 AIR CONDITIONING & HEAT
General Servicing Diagnostic Procedures
All Import Makes & Models
Diagnosis is an important first step in A/C system servicing.
To save time and effort, systems should be carefully checked to
identify the causes of poor performance. By using the following
diagnostic charts, defective components or system damage can be
quickly located. To identify problems that are specific to one system,
refer to the repair section of this manual. The charts in this section
apply to all systems.
ALTITUDE PRESSURE VARIATIONS
ALTITUDE PRESSURE VARIATIONS TABLEÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄAltitude Absolute Gauge Altitude
(Ft. Above Pressure of Correction
Sea Level) Atmosphere (psi) (1) (psi)
0 ........................... 14.7 ............................. 0
1000 ........................ 14.2 .......................... -0.5
2000 ........................ 13.7 .......................... -1.0
3000 ........................ 13.2 .......................... -1.5
4000 ........................ 12.7 .......................... -2.0
5000 ........................ 12.2 .......................... -2.5
6000 ........................ 11.7 .......................... -3.0
7000 ........................ 11.3 .......................... -3.4
8000 ........................ 10.9 .......................... -3.8
9000 ........................ 10.5 .......................... -4.2
10,000 ...................... 10.1 .......................... -4.6
(1) - Subtract correction shown from gauge readings.
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ ALTITUDE VACUUM VARIATIONS
ALTITUDE VACUUM VARIATIONS TABLE
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄAltitude Absolute Gauge Altitude
(Ft. Above Pressure of Correction
Sea Level) Atmosphere (psi) (1) (psi)
0 ........................... 29.92 ............................ 0
1000 ........................ 28.92 ......................... +1.0
2000 ........................ 27.82 ......................... +2.1
3000 ........................ 26.82 ......................... +3.1
4000 ........................ 25.82 ......................... +4.1
Page 350 of 906
A/C SYSTEM GENERAL DIAGNOSTIC PROCEDURES
Article Text (p. 2)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:41PM
5000 ........................ 24.92 ......................... +5.0
6000 ........................ 23.92 ......................... +6.0
7000 ........................ 23.02 ......................... +6.9
8000 ........................ 22.22 ......................... +7.7
9000 ........................ 21.32 ......................... +8.6
10,000 ...................... 20.52 ......................... +9.4
(1) - Add correction shown to gauge readings.ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ PREPARATION FOR TESTING
1) Attach Low and High pressure gauges.
2) Start engine and allow to warm up.
3) Set system to "COOL" and blower to "HIGH".
4) Open car doors and hood.
5) Run engine at fast idle for 2-3 minutes.
AIR CONDITIONING SYSTEM PERFORMANCE CHECK TABLE
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄPERFORM TESTS: SHOULD BE: IF:
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄTemperature Check Temperature Check Is
* Switch to "LOW" blower.
* Close doors.
* Check outlet temperature. 35-45
ø F Too warm - Check control
lever operation, heater
water valve, cooling
system and gauge
readings.
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄVisual Check Visual Check Shows:
* Compressor Quiet, No Leaks Noisy - Check belts, oil
level, seals, gaskets,
reed valves.
* Condenser Free of Obstructions Blocked - Clean off.
Plugged - Flush or
replace.
* Receiver-Drier Dry & warm to touch Frosty - Check for
restriction, replace
desiccant.
* Sight Glass Clear or few bubbles Bubbly, foamy or streaks
- Check gauge readings.
* High Side Lines Dry & warm to touch Frosty or very hot -
Check for restriction or
overcharge.
* Low Side Lines Dry & cool to touch Frosty or warm - Check
for restriction, low
charge or bad valve.
* Expansion Valve Dry Frosty - Check for
