Page 901 of 906
WIRING DIAGRAMS
Article Text (p. 6)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:53PMFig. 4: Fuse/Relay Panel (Cont) (Grid 12-15)
Page 902 of 906
WIRING DIAGRAMS
Article Text (p. 7)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:53PMFig. 5: Fuse/Relay Panel (Cont) (Grid 16-19)
Page 903 of 906
WIRING DIAGRAMS
Article Text (p. 8)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:53PMFig. 6: Fuse/Relay Panel (Cont) (Grid 20-23)
Page 904 of 906
WIRING DIAGRAMS
Article Text (p. 9)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:53PMFig. 7: Instrument Panel, Seat Belts (Grid 24-27)
Page 905 of 906
WIRING DIAGRAMS
Article Text (p. 10)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

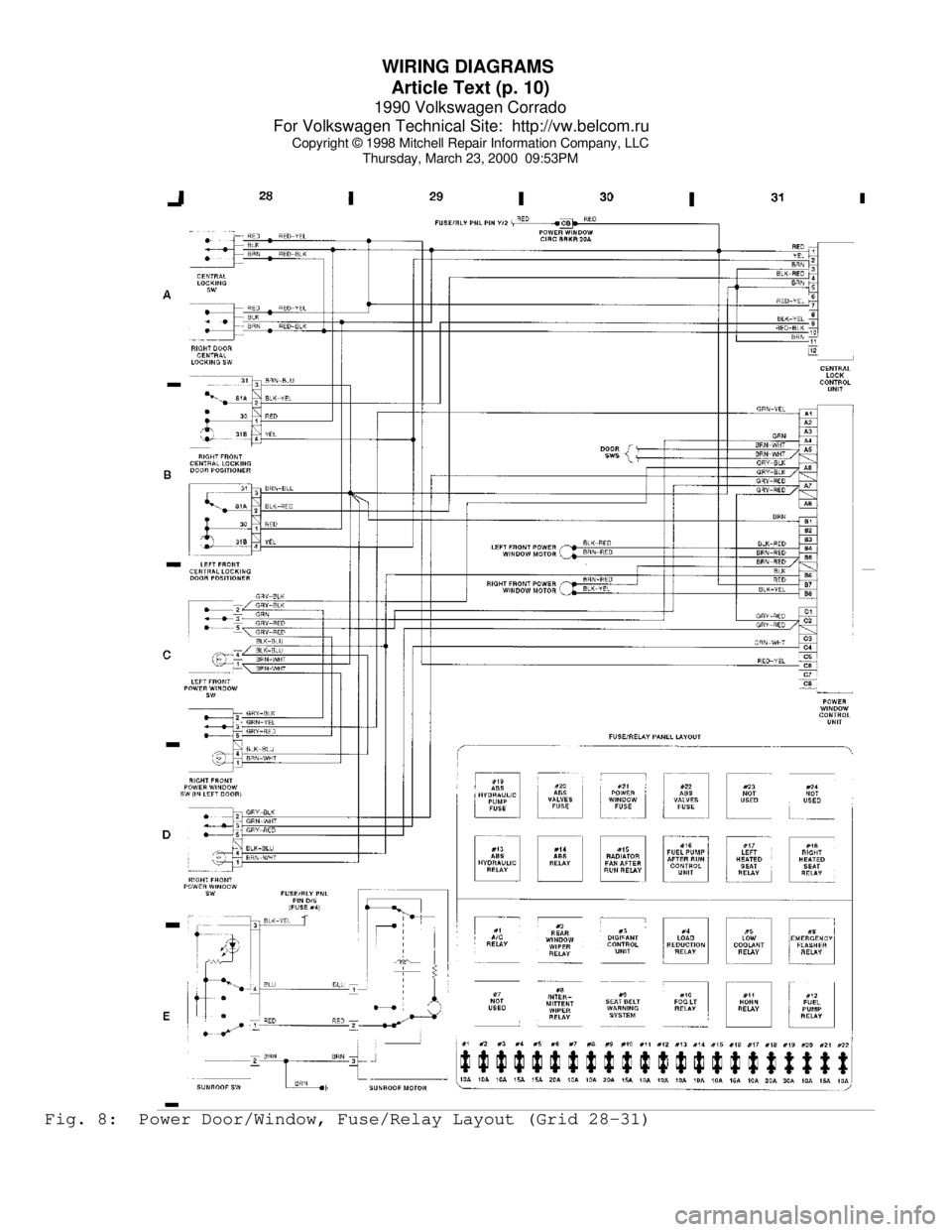

Thursday, March 23, 2000 09:53PMFig. 8: Power Door/Window, Fuse/Relay Layout (Grid 28-31)
Page 906 of 906
WIRING DIAGRAMS
Article Text (p. 11)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:53PMFig. 9: Heated Seat, Power Mirror, Taillights (Grid 32-35)
END OF ARTICLE
