VOLKSWAGEN CORRADO 1990 Repair Manual

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 12)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PM Driver's Seat In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 13)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PM Passenger's Seat In fuse/relay panel, below

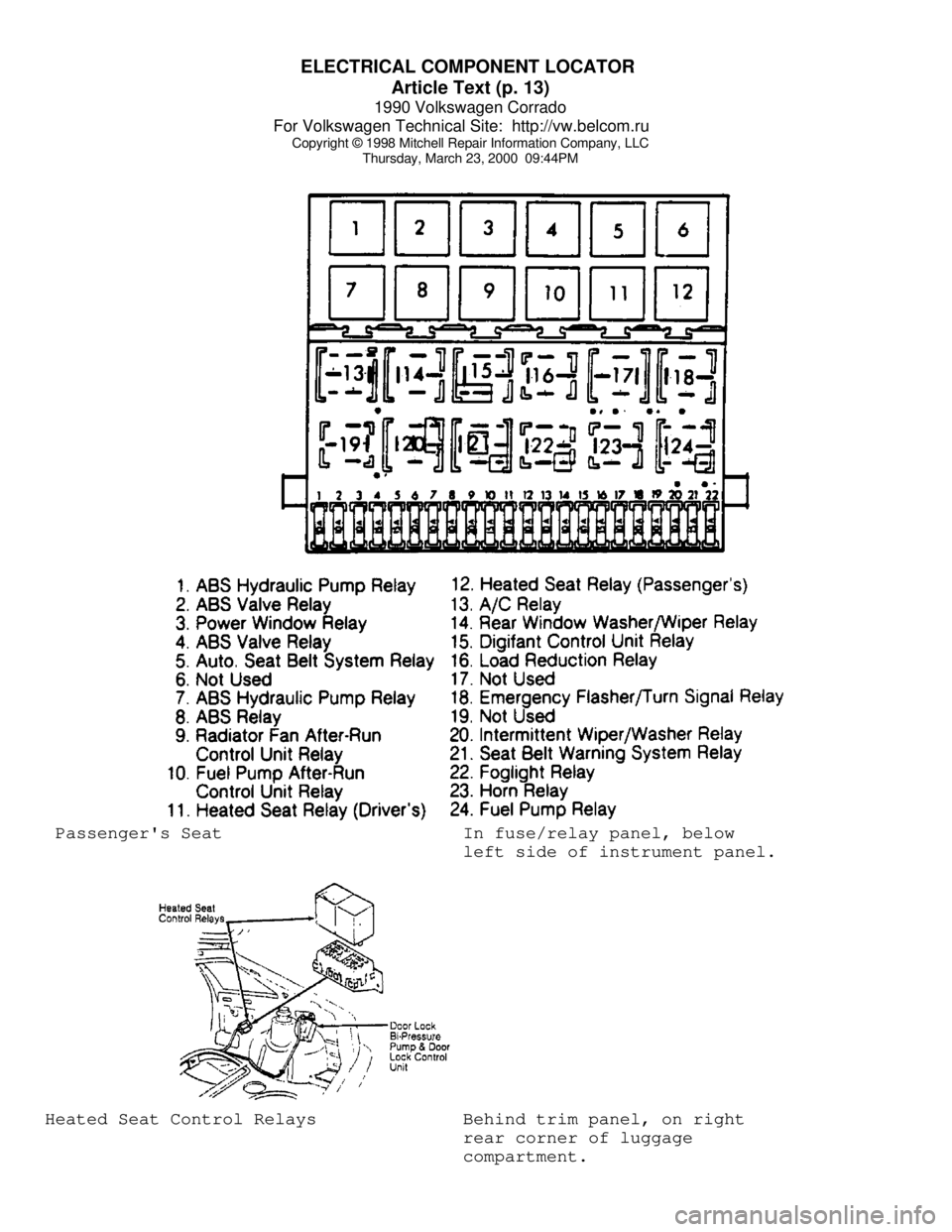

left side of instrument panel.Heated Seat Control Relays Behind trim panel, on right
rear corner of luggage
compartment.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 14)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMHorn Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 15)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMIntermittent Wiper Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 16)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMLoad Reduction Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 17)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMLow Coolant Level Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 18)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMPower Window Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 19)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMRadiator Fan After-Run Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 20)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMRear Window Wiper Relay In fuse/relay panel, below
left side of instrument panel.

ELECTRICAL COMPONENT LOCATOR
Article Text (p. 21)
1990 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 23, 2000 09:44PMSeat Belt Warning
System Relay In fuse/relay panel, below
left side of instrument panel.
