J - PIN VOLTAGE CHARTS
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
(23 & 26) ................. Ignition Off ........ 15-21.5 Ohms
Fuel Injector No. 4
(4 & 24) .................. Ignition Off ........ 15-21.5 Ohms
Fuel Injector No. 5
(23 & 25) ................. Ignition Off ........ 15-21.5 Ohms
Fuel Injector No. 6
(2 & 23) .................. Ignition Off ........ 15-21.5 Ohms
EVAP Solenoid Valve I
(23 & 31) ................. Ignition Off .......... 40-80 Ohms
Coolant Temp.
Sensor (14 & 33) ........ (3) Ignition Off ............... (3)
Wiring To White DLC
(4) (1 & 21) .............. Ignition Off .... 1.5 Ohms Maximum
Wiring To White DLC
(4) (2 & 43) .............. Ignition Off .... 1.5 Ohms Maximum
Wiring To Oxygen (O2)
Sensor (20 & 42) ....... Disconnect Sensor
Connector & Jumper
Terminals No. 3 & 4 ... 1.5 Ohms Max.
Reconnect Sensor
Connector ......... Infinity (Open)
Throttle Potentiometer
(33 & 41) ................. Ignition Off ........... 1750 Ohms
Throttle Potentiometer
(33 & 40) ............. Throttle Valve Closed ...... 1150 Ohms
Throttle Potentiometer
(33 & 40) ............. Throttle Valve Opened ..... Resistance
Must Increase
Throttle Potentiometer
(40 & 41) ............. Throttle Valve Closed ...... 2700 Ohms
Throttle Potentiometer
(40 & 41) ............. Throttle Valve Opened ..... Resistance
Must Decrease
Wiring To Hall Effect
Sensor (7 & 44) ........ Disconnect Sensor
Connector & Jumper
Terminals No. 1 & 2 ... 1.5 Ohms Max.
Wiring To Hall Effect
Sensor (7 & 23) ........ Disconnect Sensor
Connector & Jumper
Terminals No. 1 & 3 ... 1.5 Ohms Max.
Wiring To Ignition
Coil Power Output
Stage (8 & 55) ....... Disconnect Output
Stage Connector & Jumper
Terminals No. 1 & 2 ... 1.5 Ohms Max.
Wiring To Ignition
Coil Power Output
Stage (8 & 38) ....... Disconnect Output
Stage Connector & Jumper
Terminals No. 2 & 3 ... 1.5 Ohms Max.
Wiring To Knock Sensor I
Page 632 of 920
J - PIN VOLTAGE CHARTS
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
(33 & 34) (5) .......... Disconnect Sensor
Connector ....... Infinity (Open)
Wiring To Knock Sensor I
(33 & 34) (5) .......... Disconnect Sensor
Connector ....... Infinity (Open)
Wiring To Knock Sensor I
(7 & 34) (5) ........... Jumper Terminals
No. 1 & 2 ......... 1.5 Ohms Max.
Intake Air Temperature
Sensor (33 & 36) ....... Jumper Terminals
No. 1 & 2 ......... 1.5 Ohms Max.
Intake Air Control
Valve (27 & 53) ........ Jumper Terminals
No. 1 & 2 ......... 1.5 Ohms Max.
Wiring To Knock Sensor II
(7 & 33) (6) ........... Disconnect Sensor
Connector ....... Infinity (Open)
Wiring To Knock Sensor II
(7 & 33) (6) ........... Disconnect Sensor
Connector ....... Infinity (Open)
Wiring To Knock Sensor II
(56 & 57) (6) .......... Jumper Terminals
No. 1 & 2 ......... 1.5 Ohms Max.
Wiring To MAF Sensor
(1 & 16) ............... Disconnect Sensor
Connector & Jumper
Terminals No. 1 & 2 ... 1.5 Ohms Max.
Wiring To MAF Sensor
(1 & 17) ............... Disconnect Sensor
Connector & Jumper
Terminals No. 1 & 3 ... 1.5 Ohms Max.
Wiring To MAF Sensor
(56 & 59) .............. Disconnect Sensor
Connector & Jumper
Terminals No. 1 & 4 ... 1.5 Ohms Max.
Wiring To MAF Sensor
(1 & 23) ............... Disconnect Sensor
Connector & Jumper
Terminals No. 1 & 5 ... 1.5 Ohms Max.
Engine Speed Sensor
(67 & 68) (7) ............ Ignition Off ......... 500-700 Ohms
Engine Speed Sensor
(56 & 67) (7) ............ Ignition Off ......... 500-700 Ohms
Engine Speed Sensor
(56 & 68) (7) ............ Ignition Off ......... 500-700 Ohms
EGR Frequency Valve
(9 & 56 - Jumper) ...... Jumper Terminals No.
30 & 55 of Test Box ...... Valve Must
Briefly Click
Wiring To EGR Frequency
Valve (23 & 30) ........ Disconnect Valve
Page 633 of 920
J - PIN VOLTAGE CHARTS
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
Connector & Jumper
Terminals No 1 & 2. ... 1.5 Ohms Max.
EGR Temperature
Sensor (15 & 33) ....... Disconnect Sensor
Connector & Jumper
Terminals No 1 & 2. ... 1.5 Ohms Max.
(1) - TESTING CONDITIONS: Disconnect harness connector from ECM.
Connect Test Box (VAG 1598/18) to ECM harness connector, leaving
the ECM disconnected.
(2) - With ignition off, jumper terminals No. 9 and No. 55 of the
test box.
(3) - Refer to the I - SYS/COMP TESTS article.
(4) - These are terminal connectors at data link connector.
(5) - 3-pin connector is located at rear of engine mount.
(6) - 3-pin Black connector is located next to starter.
(7) - 3-pin White connector is located next to starter.ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄEND OF ARTICLE
Page 634 of 920
L - WIRING DIAGRAMS
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
ARTICLE BEGINNING
1993 ENGINE PERFORMANCE
Volkswagen Wiring Diagrams
Cabriolet, Corrado, EuroVan, Fox, Golf, GTI, Jetta, Passat

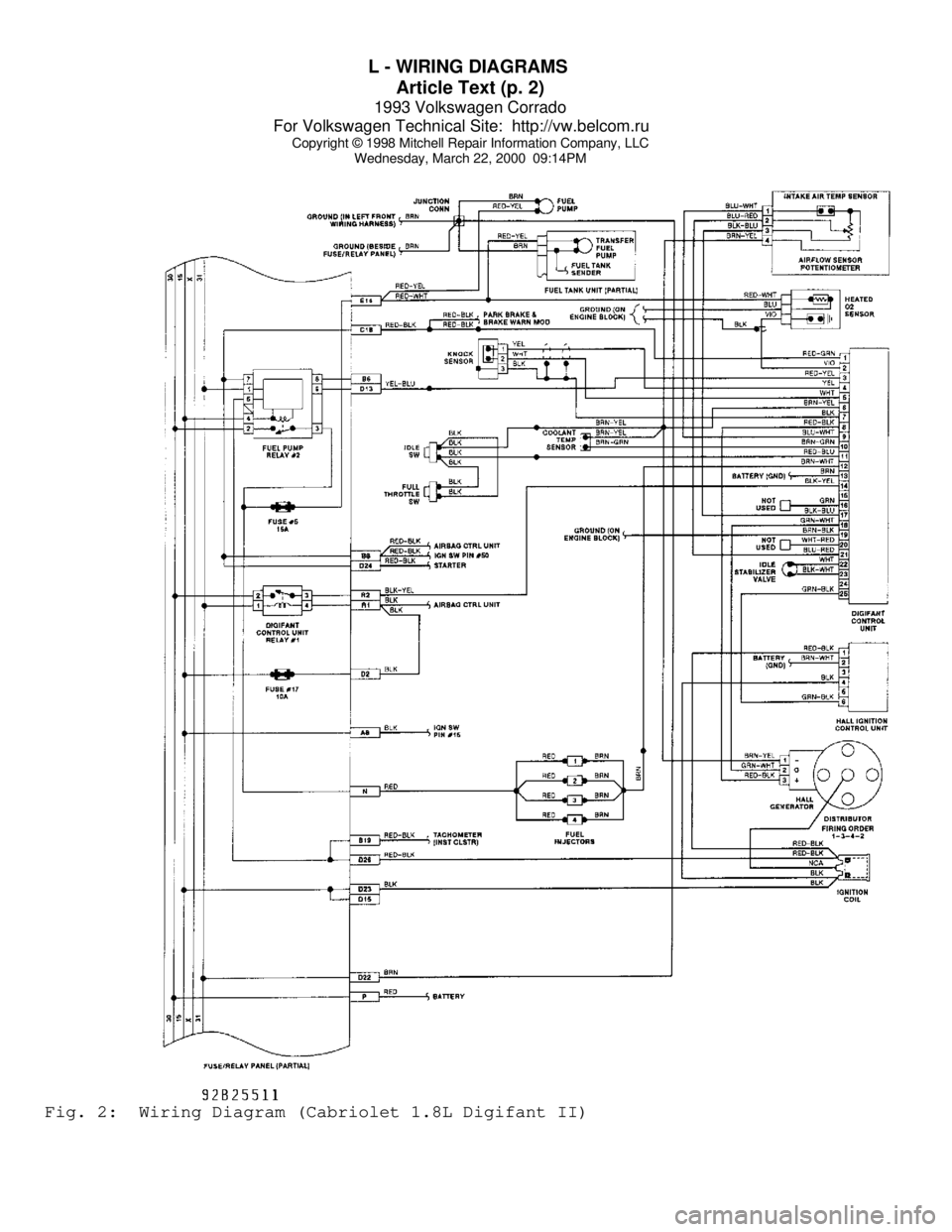

WIRING DIAGRAMSFig. 1: Wiring Diagram (Cabriolet 1.8L Digifant I - California)
Page 635 of 920
L - WIRING DIAGRAMS
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

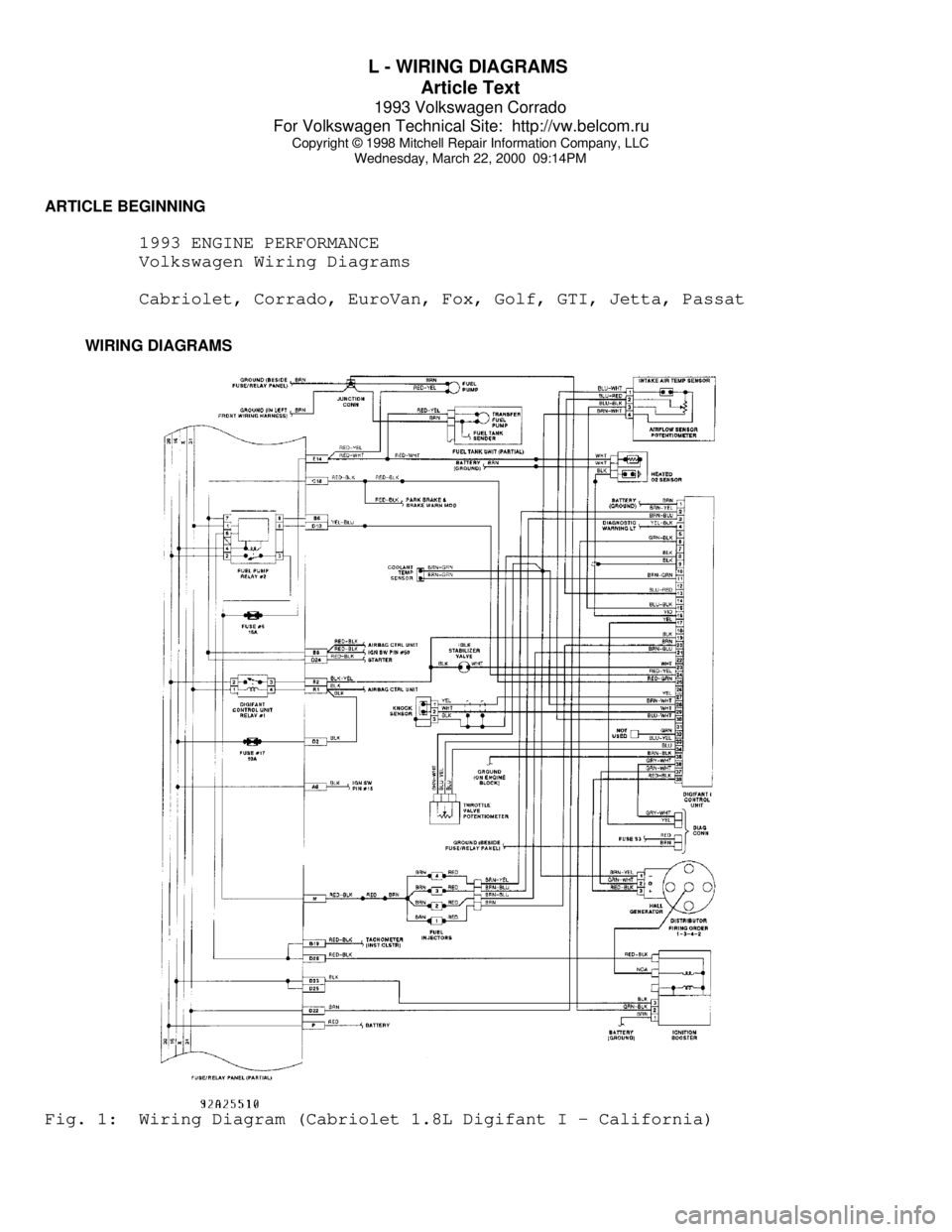

Wednesday, March 22, 2000 09:14PMFig. 2: Wiring Diagram (Cabriolet 1.8L Digifant II)
Page 636 of 920
L - WIRING DIAGRAMS
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PMFig. 3: Wiring Diagram (Corrado SLC 2.8L)
Page 637 of 920
L - WIRING DIAGRAMS
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

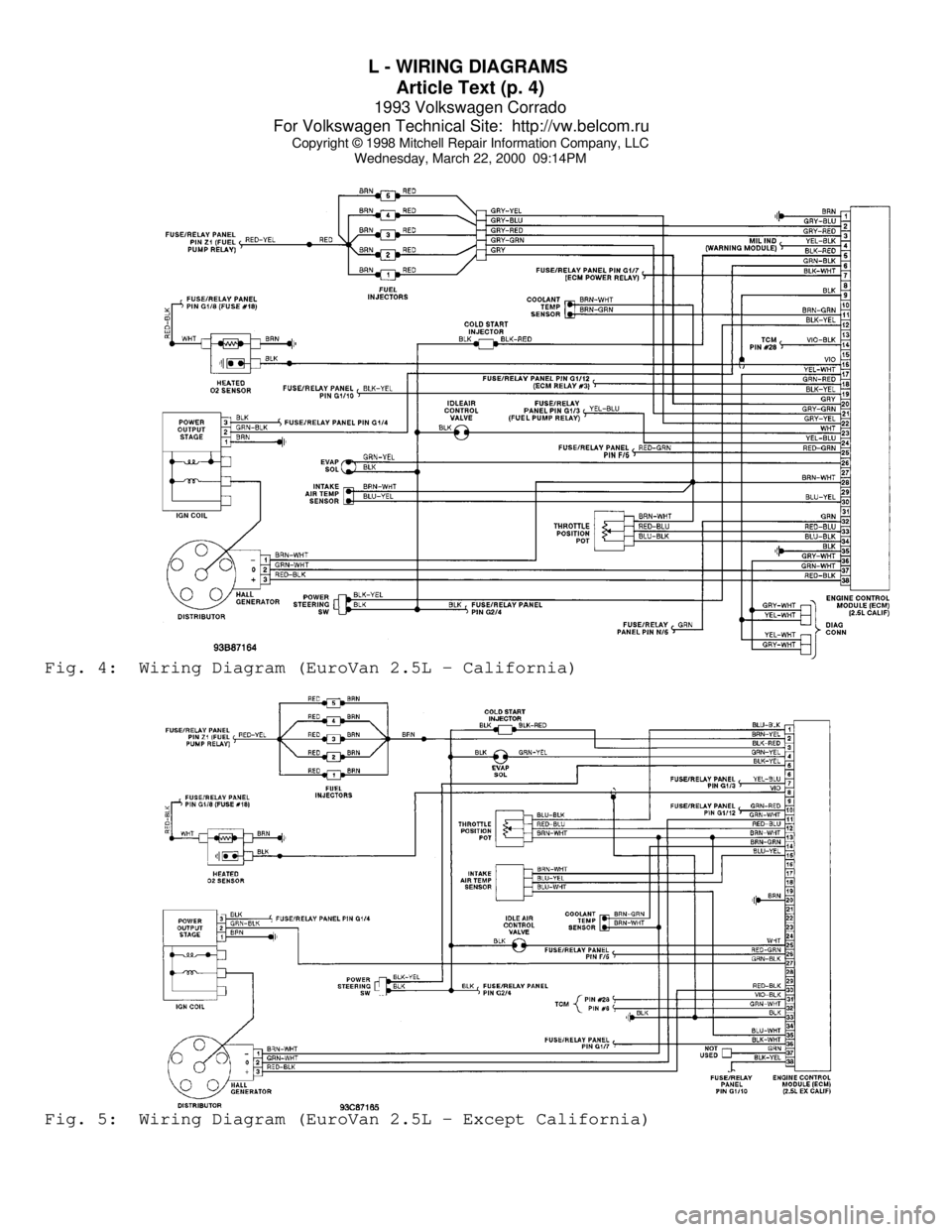

Wednesday, March 22, 2000 09:14PMFig. 4: Wiring Diagram (EuroVan 2.5L - California)Fig. 5: Wiring Diagram (EuroVan 2.5L - Except California)
Page 638 of 920
L - WIRING DIAGRAMS
Article Text (p. 5)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

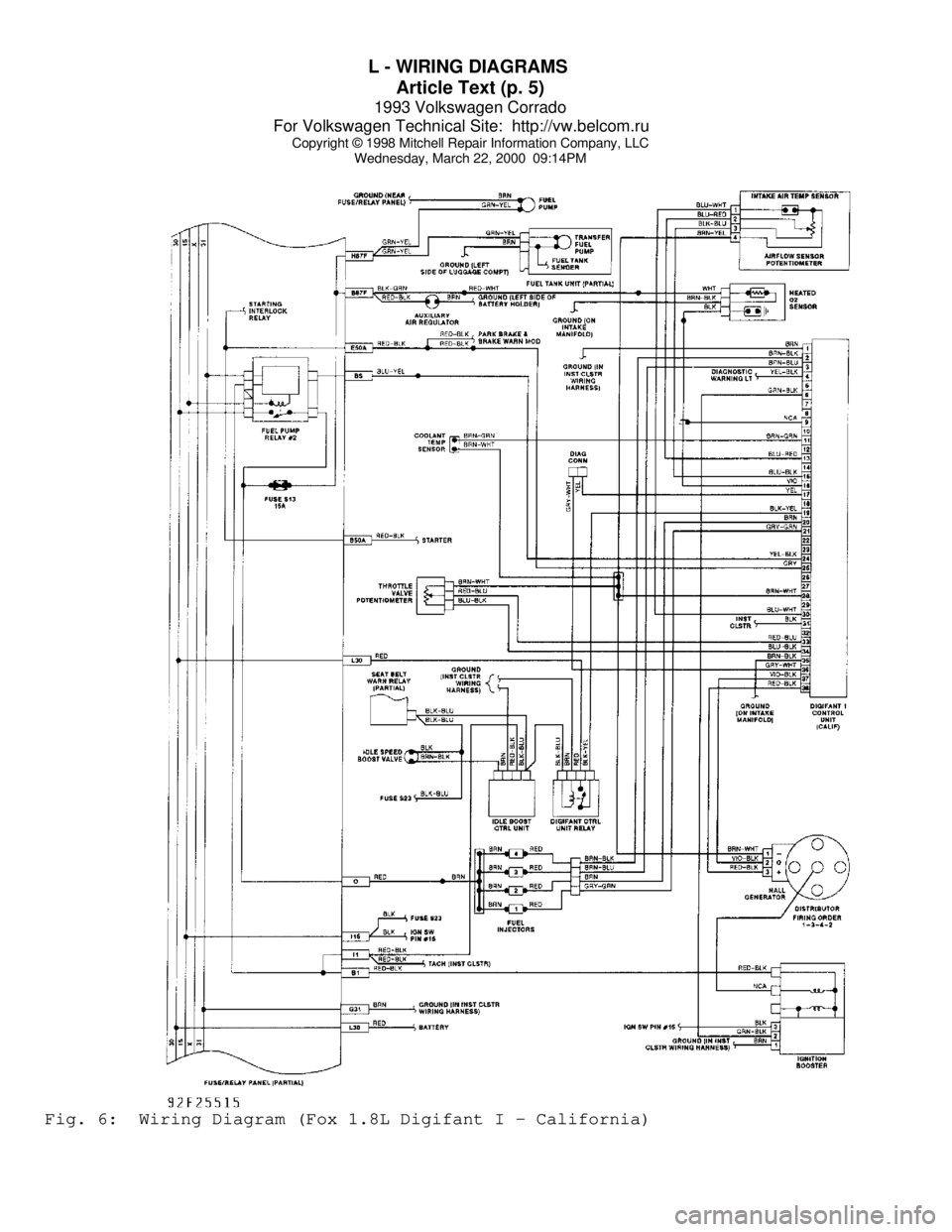

Wednesday, March 22, 2000 09:14PMFig. 6: Wiring Diagram (Fox 1.8L Digifant I - California)
Page 639 of 920
L - WIRING DIAGRAMS
Article Text (p. 6)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

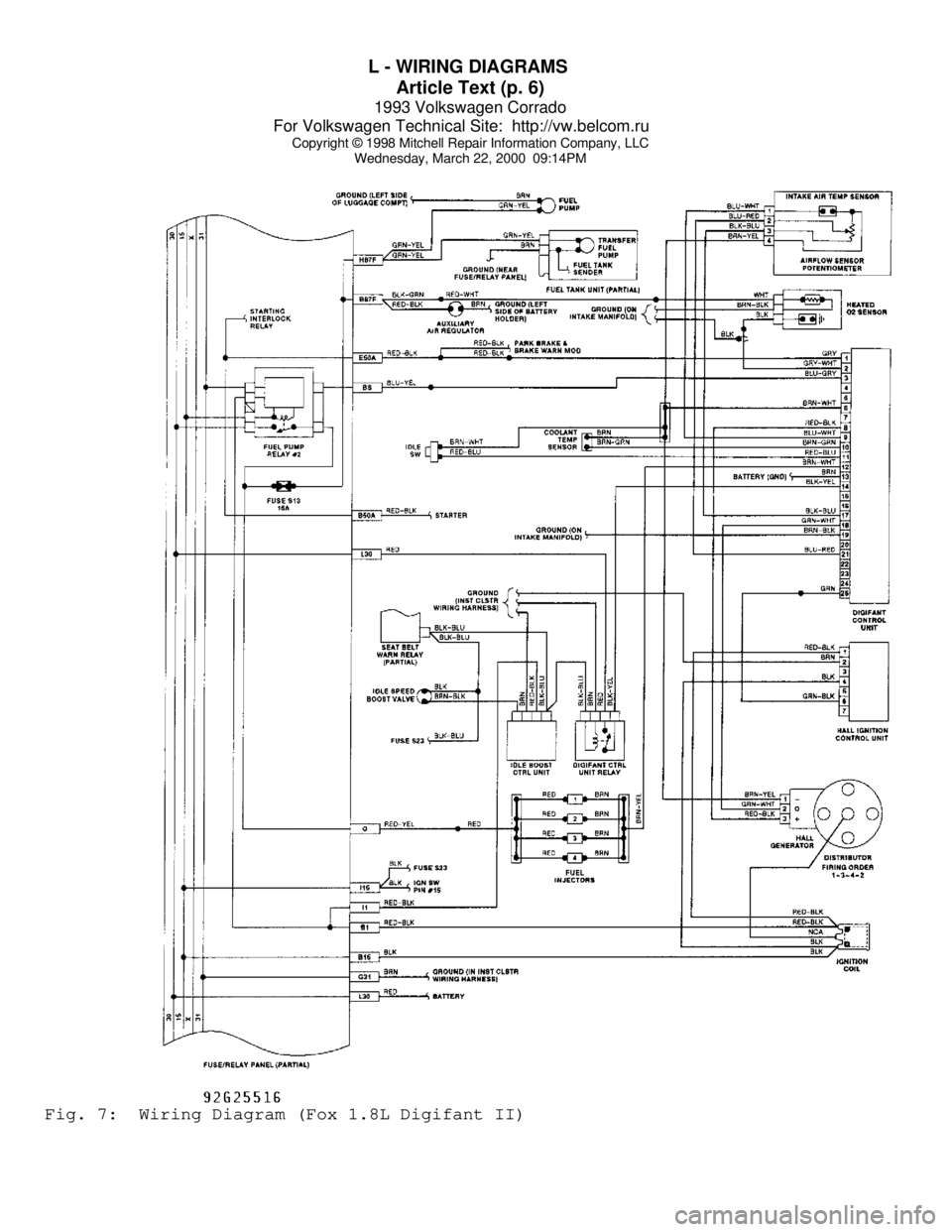

Wednesday, March 22, 2000 09:14PMFig. 7: Wiring Diagram (Fox 1.8L Digifant II)
Page 640 of 920
L - WIRING DIAGRAMS
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PMFig. 8: Wiring Diagram (Golf, GTI & Jetta - 2.0L)
