VOLKSWAGEN GOLF 1993 1H / 3.G Repair Manual

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

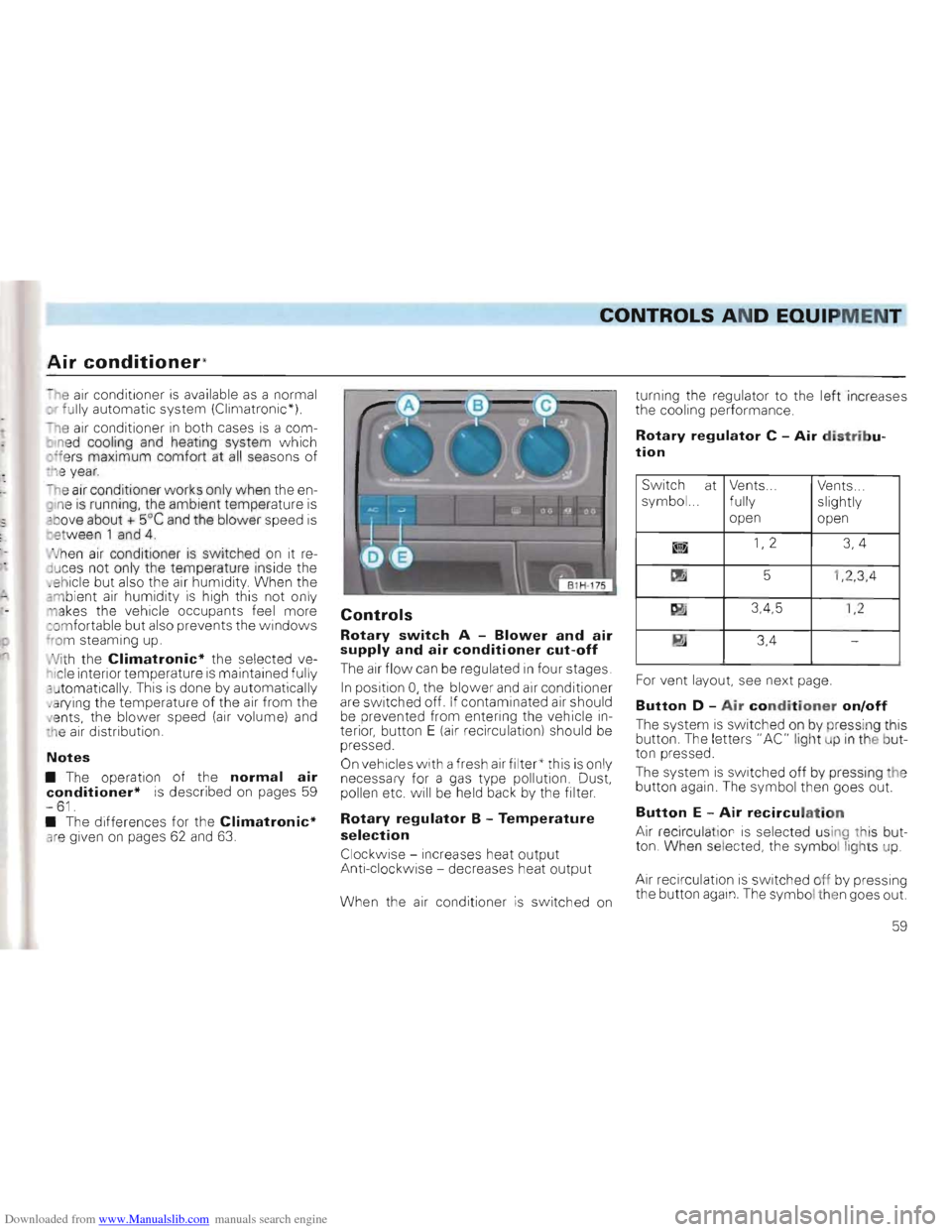

Air conditioner*
-'le air conditioner is available as a normal :r fu lly automatic system (Climatronic*)
'le air conditioner in both cases is a com­
u ne d cooling and heating system which
c " ers maximum comfort at all seasons of "18 year.

h e air conditioner
works only when the en­
gine is running, the ambient temperature is
,:move about + 5°C and the blower speed is
cetween 1 and 4.

. 'hen air conditione r is switched on it re­
d uc es not only the temperature inside the
. e hicle but also the air humidity When the .ambient air humidity is high this not only
a kes the vehicle occupants feel more
_ o m fortable but also prevents the
windows
c ~rom steaming up.
Ni th
the Climatronic* the selected ve­Icle interior temperature is maintained fully
a u tomatically. This is done by automatically
. I a rying the temperature of the air from the "e nts, the blower speed (air volume) and meair distribution.
Notes
• The operation of the normal air conditioner* is described on pages 59 -61. • The differences for the Climatronic* are given on pages 62 and 63.
Controls
Rotary switch A -Blower and air supply and air conditioner cut-off
The air flow can be regulated in four stages.
In position 0, the blower and air conditioner
are switched off. If contaminated air should
be prevented from entering the vehicle in­
terior, button E (air recirculation) should be
pressed.
On vehicles
with a fresh airfilter' this is only
necessary for a gas type pollution. Dust,
pollen etc. will be held back by the filter.
Rotary regulator B -Temperature
selection
Clockwise -increases heat output Anti-clockwise -decreases heat output
When the air conditioner is switched on turning
the regulator to the l
eft increases the cooling performance.
Rotary regulator C -Air distribu­
tion
Switch
at
symbol. Vents..
fully
open V
ents ..
slig htly
open
~ 1,2 3,4
m 5 1 ,2,3,4
~ 3,4, 5
1,2
81 3,4 -
For vent layout, see next page.
Button D -Air conditioner on/off
The syste m is switched on by pressing this
button. The letters" AC" ligh t up i n t he but­
ton pressed.
The system
is switched off by pre ss ing th e
button again. The symbol then goes out.
Button E -Air recirculation
Air rec ircula tion is selected usin g this but­ton. When se le cted, the symbol lights up .
Air recir cu lation
is switched off b y pressing
the button ag ain , T he symbo l th e n goes out.
59

Downloaded from www.Manualslib.com manuals search engine • •
CONTROLS AND EQUIPMEN.-=T-""------__________________

Air recirculation should only be se­lected for short periods of time as no fresh air is taken in in this mode and the windows can steam up if the air conditioner is switched off.
Note
Buttons D and E can be pressed In conjunc­
tion w ith one another .

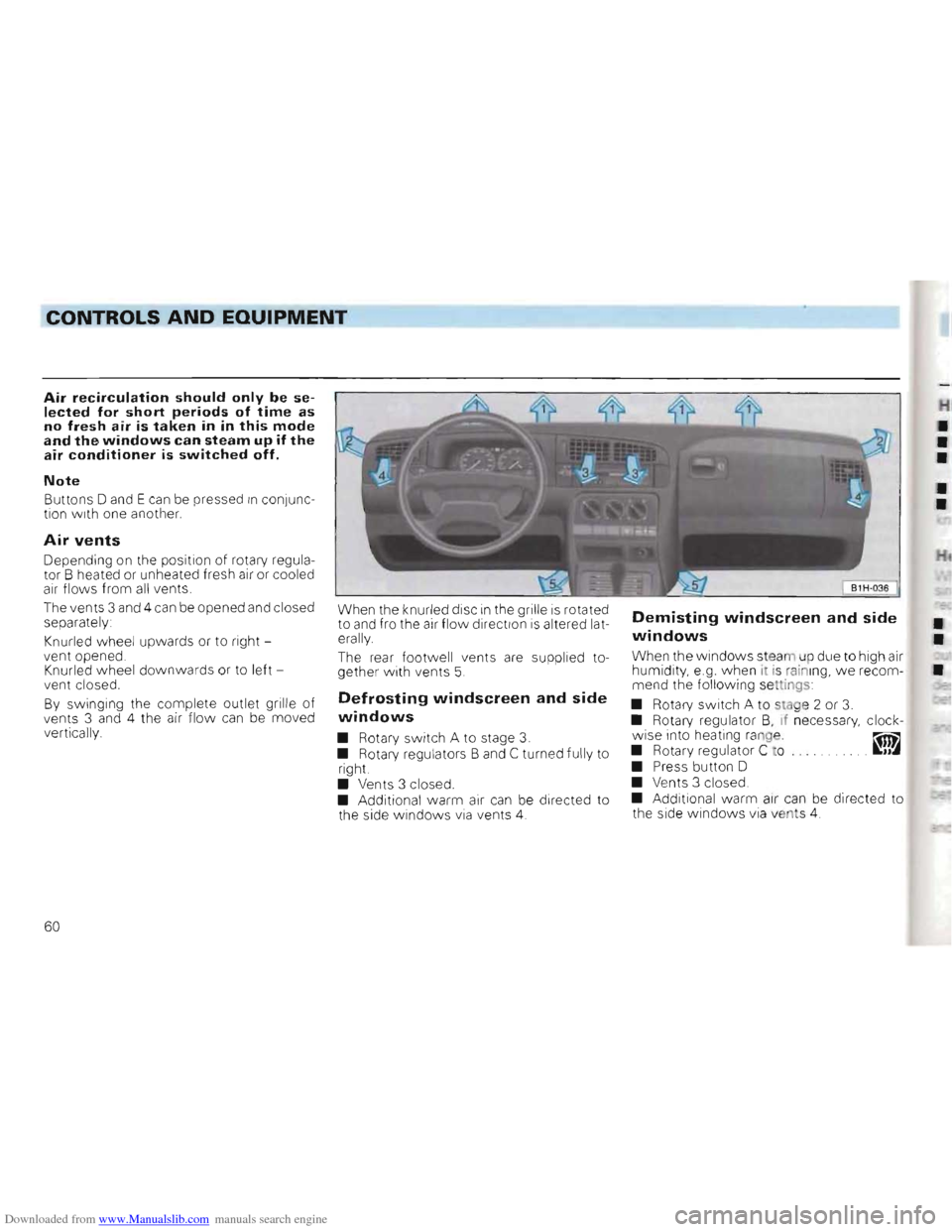

Air vents
Depending on the position of rotary regula­
tor B heated or unhea ted fresh air or coo led
air flows from all vents.
The vents 3 and 4 can be opened and closed
separately :

Knurled wheel upwards
or to right ­
vent opened .

Knurled
wheel downwards or to left ­
ven t closed.
By swinging the complete outlet grille of
vents 3 and 4 the air flow ca n be moved
vertically.
W hen the knurled disc in the grille is rota ted
to and fro the air flow direction is altered lat­
erally
The
rear footwell vents are supplied to­
gether with vents 5.
Defrosting windscreen and side
windows
• Rotary switch A to stage 3.
• Rotary regu lators Band C turn ed fully to
right.
• Vents 3 closed .
• Additional warm a
ir can be directed to
the side windows via vents 4.
Demisting windscreen and side
windows ••When the windows steam up due to high air
humidity, e.g. when it is rain ing, we recom­•mend the following settings
• Rotary switch A to stag e 2 or
3. • Rotary regulator B, if necessary, clock­
wise into heating range. ~
• Rotary regu lator C to . JJ~
• Press button D
• Ve nts 3 closed.
• Additiona l warm air can be directed to
th e sid e windows via vents 4.
60

Downloaded from www.Manualslib.com manuals search engine __C_ONTROLS AND EQUIPMENT

Heating interior quickly
• Rotary switch A to stage 3.
• Rotary regulator B fully to right. PWll
• Rotary regulator C
to .. ~
• Vents 3 closed .
• Vents 4 fully or partially opened w ith
1 u rled discs
as required
Heating interior comfortably
hen the w indows are clear and the de­
s red tempera ture has been reached we rec ommend the following settings
Rotary
switch A at stage 1 or 2.
• Rotary regulator B at the desired heat
Jt put.
Depending on air distribution
esir ed , turn rotary regulator C
re ween .. .. ~
'ld ~
, the windscreen mists over again,

e regulator can also be turned

etw een
•
Vents 3 closed.
•
With vents 4 the desired amount of
warm air and the air flow direction can be
set.
Ventilation (fresh air operation)
With the following settings, unheated fresh
air flows from vents 3 and 4:
• Switch air conditioner off with button D
• Rotary switch A to desired stage.
• Rotary regulator B anti-clockwise to the
stop D.1
• Rotary regulator C to . .. ~
• Vents 3 and 4 open.

If required, regulator C can be turned to

another position.

Maximum cooling
• All windows and sliding/tilting roof*
closed.

• Rotary s
witch A to stage 4.
• Rotary regulator B to left.

• Rotary regulator C to

• Right-hand button 0 (max) pressed.

• Select air recirculation by pressing but­

ton E

• Vents 3 and 4 open.

In this mod e, air is drawn from inside the ve­

hicle and cooled (air recircu lation) The air
recirculation mode should not be se­lected for long periods of time as no fresh air is then supplied.
Note
Smoking should be avoided w hen air recir­
culation is selected , as the smoke drawn in from the vehicle interior deposits on the
evaporator of the air conditioner. This leads
to permanent odours when the air condi­
tioner is i n operation. These can only be
eliminated by exchanging the evaporator,
which is time-consuming and expensive.
Normal cooling
• Switch air condit ioner on by pressing
button 0
• Rotary
switch A to stage 1 -4 as re­
quired.
• Rotary regula
tor B to the desired air tem­perature (so that heating is also possible)
• Rotary regulator C to desired position
• Vents 3 and 4 set
as required.
I n this operating mode air is drawn in from
outside and cooled (fresh air operation)
To operate the Climatronic*, see pages 62 and 63.
61

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

•
Climatronic*
1 - Display for blower speed
2 - Display for ambient temperature
3 - Display for defrosting windscreen
4 - Display for
air recirculation
5 - Dis play for air flow direction
6 - Displa y for selected interior tempera­
ture
7 -
Display AUTO (automatic operation or OF F (system off)
8 - Button for automatic operation
9 - Button for "Blo
wer faster" 10 -Button for "Blower slower" 11 - Button for defrosting windscreen
12 -Button for air recirculation 13 -Button for "Air flow to upper part of body" 14 -Button for " Ai r flow to footwell " 15 -Button for Celsius or Fahrenheit read­ing (best operated with ball pen)
16 -Button for "Warmer" 17 -Button for "Colder" 18 -Button for" System off" When the appropriat e buttons are pressed
the disp lays 1, 6 and 7 change or the dis­plays 3, 4 and 5 appear.
The automatic regulation of the sys­tem can be influenced by the but­tons 9 -14.
Recommended standard setting for

all times of the year:

Temperature about 22 degrees C (72
degrees F) and AUTO button.

With this setting a pleasant climate in the
vehicle is reached most quickly
This setting should therefore only be alt ered
when required for personal comfort.
Using the system
When ignition has been swi tc hed on the
system normally works in the Automatic
mode. Items 1, 2, 6 and 7 appear in the dis­play.
The Clim atronic maintains the selected ve­hicle interior temperature fully automati­
cally.
To do this temperature of the air flow as well as the blower speed (air volume) and air dis­
tribution are altered automat ically.
If the settings deviate d fr om Automatic
operation before the ignition is switched off
the selected functions are stored for one hour. If ignition is switched on again later the
system works in the Automatic mode.
The layout of the air vents is show n on page 60.
62

Downloaded from www.Manualslib.com manuals search engine 2
CONTROLS AND EQUIPMENT

r Notes on Automatic mode
• The interior temperature can be freely
s e lected w ith buttons 16 and 17 and is S ored alw ays until another temperature is selected , -he interior temperature can be set be­
-we an + 18°C (64°F) and + 29°C (86°F) In th iS range it is automatically regulated,
f tempe ratures below 18°C are selected
LO" appears in the display , With tempera­
-res abo ve 29 °C (86 ° Fl. "HI " is displayed ,
., these two end positions the system
N or ks continuous ly at ma ximum cooling or
n eating output. The temperatu re is not
r egulated
•
In certain operating con ditions it may be fo und that the syste m temporarily carries
o ut functions which are not quite as ex­
5-pe cted, This includes, for examp le, that for
a few seconds after sta rting from cold, air is directed mainly into the fo ot wel l. This is ntentional so that damp air in the sys tem
d oes not cause the windo ws to mist up ,
Deviating from Automatic mode
In nearly all cases the Automatic mode
offers the best conditions for the comfort of
the vehicle occupants all the year round,
I n isolated cases however it might
be necessary to deviate from some functions
of Automatic mode by pressing certain but­
tons, The Climatronic still works fu lly auto­
matically
• With buttons 9 and 10 the blo w er speed
and thus the air vo lume can be increased or
r educed, Th is is sho wn by a change in the
number of lin es in display field 1
• With
bu tton 11 the de-humidifying and defrosting effect for the windsc reen can be
increased if, for example persons w ith
damp clothing
are picked-up shortly after
moving off,
• W ith button
12 air recircu lation can be
se lected to pre vent for examp le dust or
st rong smells
from entering the vehicle in­
terio
r. At ambient temperatures below 5cC the sy ste m auto mat icall y sw itches off, This can lead to the window misting u p as t he air is no longer de-humidi­fied.
Note
Smoking should be avoided when air recir­culation is selected as t h e smoke drawn in from the vehicle interior deposits on the
evaporator of the air conditioner, This leads
to permanent odours when the air condition
is in operation These can only be efiminated b
y e xchanging the evaporator, which is
time-consuming
and expensive.
• With buttons
13 and 14 the air flow can
be to the upper part of the body or into the
footwe ll,
The air distribution buttons 11, 13 and 14
can be used in combination ,

• With button
18 (OFF) the complete sys­

tem is sw itched off, This button should only

be pre ssed in isol ated cases eg when

the re is a fault in the system .

Wh en th e sp ecial functions are no longer re­
quired the Automatic mode should be

s w itch ed on again without delay by pres­

sin g the AUTO button,

63

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

Operating instructions
• Ensure that the sensor betvveen the
windscreen defrost outlets in the centre of
the instrument panel and the air grille next
to the radio is not covered.
• If, after switching on the ignition,
all sym­
bols in the display area flash for about 15
seconds, there is a fault in the system -con­
tact a Volkswagen dealer.
Notes for both air conditioning
systems
• To ensure that the heating, ventilation
and air conditioner can work properly, the air
inlet in front of the windscreen should be
kept free of ice, snow and leaves.
• The heat output depends
on the coolant
temperature -the full heat output is there­
fore available when the engine IS warm.
• The stale air escapes through openings
in the luggage compartment side panels.
Therefore when loading the luggage com­
partment ensure that the openings are not
covered .
• When the ambient temperature
is high
and the air very humid, condensed water can drip off the evaporator and form a
puddle under the vehicle. This is quite nor­
mal and does not indicate a leak.
Notes for the normal air condi­
tioner
• All controls except the rotar y switch A and buttons 0 and E can be set to any inter­
mediate position.
•
To prevent the windows from misting up
the blower should be running slowly when driving at low speeds.
Using air conditioners economi­
cally
In cooling operation the air conditioner com­
pressor places demands on the engine and
therefo re influences the fuel consumption.
To keep the period switched on as short as possible, the following points should be
noted:
• If the
in side temperature is very high
after the car has been parked in the sun, it is recommended to open doors or windows briefly to enable the hot air to escape
• The air conditioner should not be
switched on during a Journey if the
windows or sliding/tilting roof* are open.
• If the desired interior temperature
can be attained w ithout switching on the air
cond itioner the fresh air operation should
be selected (does not apply to Climatronicl.
Operating faults
• Should the air cond i:ioner not work at
any time, either .
- the ambient temperatu re IS below about +5 °C,
-or the fuse has blown.

Check fuse and if necessary r
enew it - see

page 119. If the troub le is n ot due to a defec­

tive fuse, SWitch the system off and have It
checked.

- the air conditioner
has svvitched off due

to coolant temperature being too high -see
page 45.
• If the cooling output drops off, switch
the AlC
off and have the system checked.
64

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

Sliding/tilting roof*
lh ignition sWit ched on, the glass roof
cl' be opened and closed with the switch.
T o
open
'de switch to rear.
o close
- de sw itc h to front.
To lift at rear
Ih ro of closed, press up rear of switch.
o
lower

lJe swi tc h to fro nt.

Notes
• When opening the glass roof the screen to prevent sun rays shining in w ill also open
automatical ly. I f req u ired it can be closed by hand whe n th e roof is closed .
• The glass roof can also be closedon ve­
hicle s with central locking or electric win­
dows if w he n loc king the vehicle with a key in the driv er' s door (with central locking al so in passeng er's door) the key is held in the
locking position.
Attention
Be careful when closing the roof!
Careless or uncontrolled closing
of the roof could cause injuries.
Therefore, when leaving the ve­
hicle always take the ignition key
with you.

Emergency operation
If the system should develop a fault the roof
can also be c losed by hand .
• Pu
ll cover dow n at rear (arrow 1) and
take out to rear (arrow 2).
65

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

Sun visors
• Turn crank opening protective cap to the
right.
•
Take crank out of retainer, insert in the
opening and close sliding roof.
• Replace crank
in the retainer and turn
protective cap over the crank opening.
•
Insert cover lugs in the roof trim. Then
using a sc rewdriver (out of the vehicle tools)
s
lide headlining trim over the cover retain­
ing strip . Slide cover to rear slight ly.
Sun visors
The sun visors can be pulled out of the
centre mountings and swung towards the
doors.
Also there
is a make-up mirror fitted in the
rear of the passenger sun visor.
66

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

Interior lights
nterior lig h t A
Switch pr essed on leh -Light on all the "TIe SWitc h in centre position -Light off/door
:O'1t acts ]) Sw itch pressed on right -Door contacts/ 9"t out 1) ter io r lights with time delayed switch off"' E'TIain on for about 10 seconds after doors co e closed.
On veh ic le s with electric sliding roof
Reading light front * B
• Switch press ed on left -Light off/light
per manently on 1 )
• Switch in centre position -Light off 1)
• SWitch pressed on right -Light perma­
n e ntly on
Glove box light*
The ligh t in the glove box in the instrument
pane l o nly com es on when the ignition is on and the lid I S open.
L uggage compartment light*
The light comes on when tailgate is opened
(ev en w hen li g hti ng and ignition is switched off) It is there for e essential to ensure that
the tailgate is always closed INhen vehicle is parked.
67

Downloaded from www.Manualslib.com manuals search engine CONTROLS AND EQUIPMENT

Cigarette lighter
The cigarette lighter is switched on by
pushing in the element. When the heating
element glows, the lighter springs out auto­
matically -pull it out immediately and use it.
The
cigarette lighter socket can be
used for other electrical accessories with a
capacity of up to 120 watts. However, when the engine is not running this will discharge
the battery. For further information see
chapter Accessories on page
111 .
•
Attention • Be careful when using the cigarette lighter! Careless or uncontrolled use of the cigarette lighter can cause burns. The cigarette lighter and the socket also work when the igni­tion is switched off and the key removed. For this reason children should never be left in the vehicle on their own.
Ashtray
Front
To empty: Open ashtray, press but­
ton
on ashtray and pull
ashtray out.
To replace Push ashtray into the
guides.
Attention Never use the ashtrays as paper containers. Danger of fire!
Rear
To empty
To replace: O
pen ashtra y and pull it
out ver ticall y u
pwards
P re ss ashtray
down ve rti ­cally and close flap.
Attention Never use the ashtrays as pape r containers. Danger of fire!
68
