Switch to measuring range:
Resistance measurement (200 /20 M )
Test
step V.A.G
1598
sockets Item tested Test conditions
- Additional
operations Specification
Measures for
deviations from
specification
20 -
Longitudinal
acceleration
sensor -
G251- wiring
Ignition switched
off
Select 200
measuring range
- Disconnect
connector for
longitudinal
acceleration sensor -
G251-
- Disconnect multi-pin
connector T25 from
ABS control module
(w/EDL) -J104-
- Connect test box
V.A.G 1598/21

- Check wiring
between multi-pin
connector for
longitudinal
acceleration sensor -
G251- and multi-pin
connector for ABS
control module
(w/EDL) -J104- for
open circuit max. 1.5
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring
using wiring
diagram
Test step 20: Continued on next
page.
Стр. 27из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-129

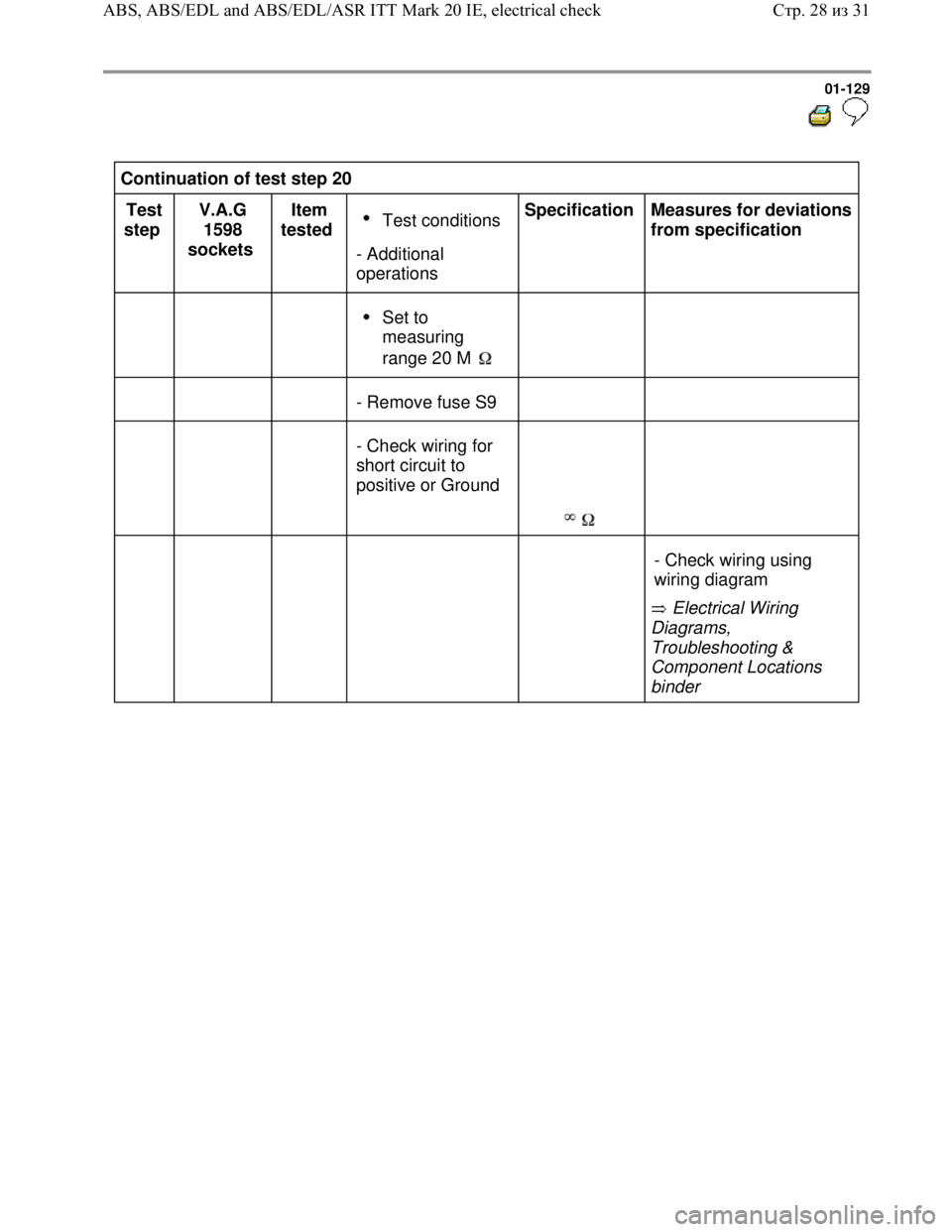

Continuation of test step 20
Test
step V.A.G
1598
sockets Item
tested
Test conditions
- Additional
operations Specification
Measures for deviations
from specification


Set to
measuring
range 20 M

- Remove fuse S9

- Check wiring for
short circuit to
positive or Ground




Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder - Check wiring using
wiring diagram
Стр. 28из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-130

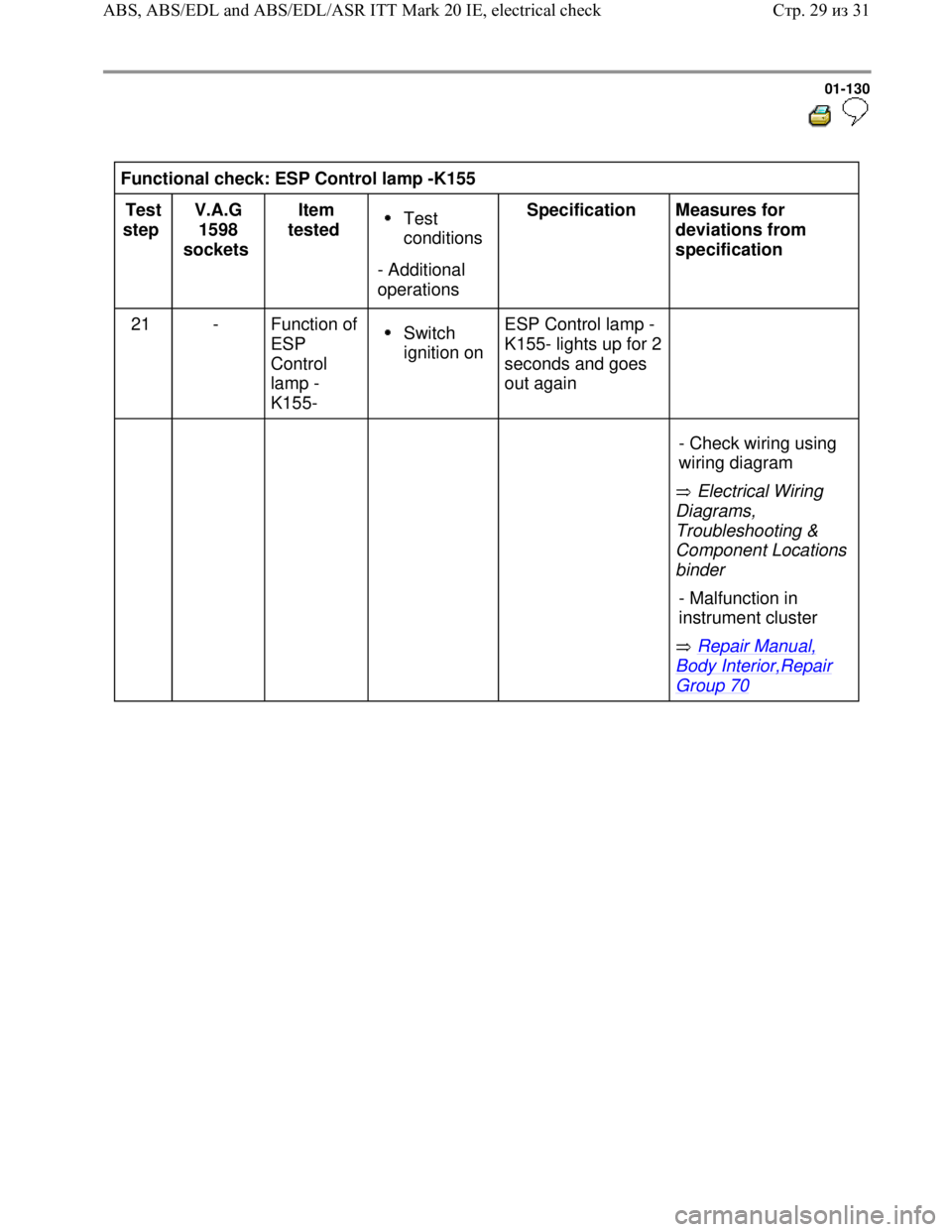

Functional check: ESP Control lamp -K155
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
21 - Function of
ESP
Control
lamp -
K155-
Switch
ignition on ESP Control lamp -
K155- lights up for 2
seconds and goes
out again

Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
Repair Manual,
Body Interior,Repair
Group 70 - Check wiring using
wiring diagram
- Malfunction in
instrument cluster
Стр. 29из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-131

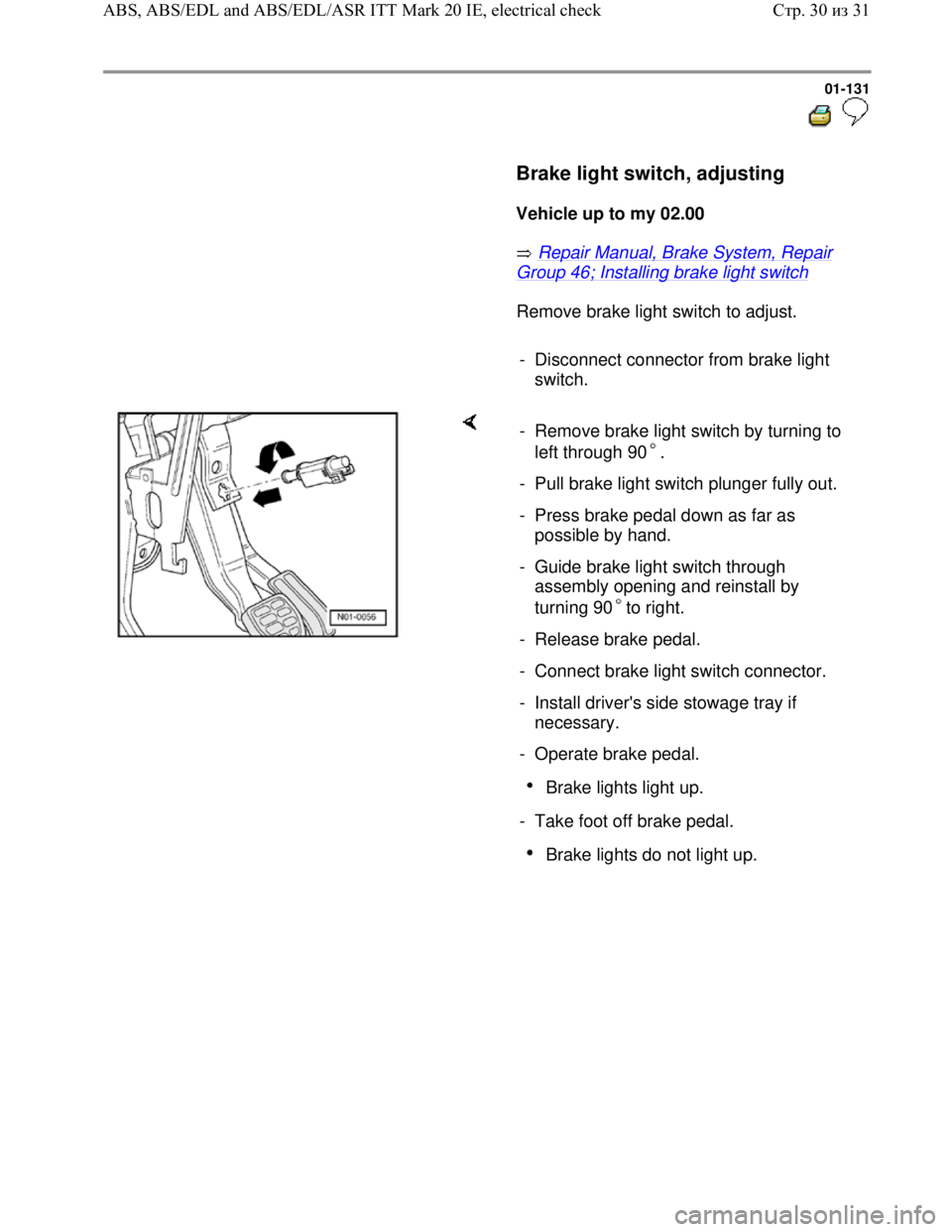

Brake light switch, adjusting

Vehicle up to my 02.00
Repair Manual, Brake System, Repair
Group 46; Installing brake light switch
Remove brake light switch to adjust.

- Disconnect connector from brake light
switch.
- Remove brake light switch by turning to
left through 90 .
- Pull brake light switch plunger fully out.
- Press brake pedal down as far as
possible by hand.
- Guide brake light switch through
assembly opening and reinstall by
turning 90 to right.
- Release brake pedal.
- Connect brake light switch connector.
- Install driver's side stowage tray if
necessary.
- Operate brake pedal.
Brake lights light up.
- Take foot off brake pedal.
Brake lights do not light up.
Стр. 30из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-132



Vehicle from my 03.00

- Pull out brake light switch plunger to full
extension.

- Keep brake pedal in up position (IMPORTANT!
hold pedal up if necessary while installing
switch).

- Guide switch through mounting hole (only fits in
one position).

- Seat switch fully into opening (pressing plunger
against pedal to adjust.

-
Seat switch by turning it 45 clockwise. This
action also turns the plunger shoe into the
correct orientation to make electrical contracts in
switch operate as well as locks in plunger
adjustment.

- Connect brake light switch connector.

- Operate brake pedal to verify proper function.

- Reinstall lower cover panel.
Стр. 31из 31 ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE, electrical check

Downloaded from www.Manualslib.com manuals search engine 01-133

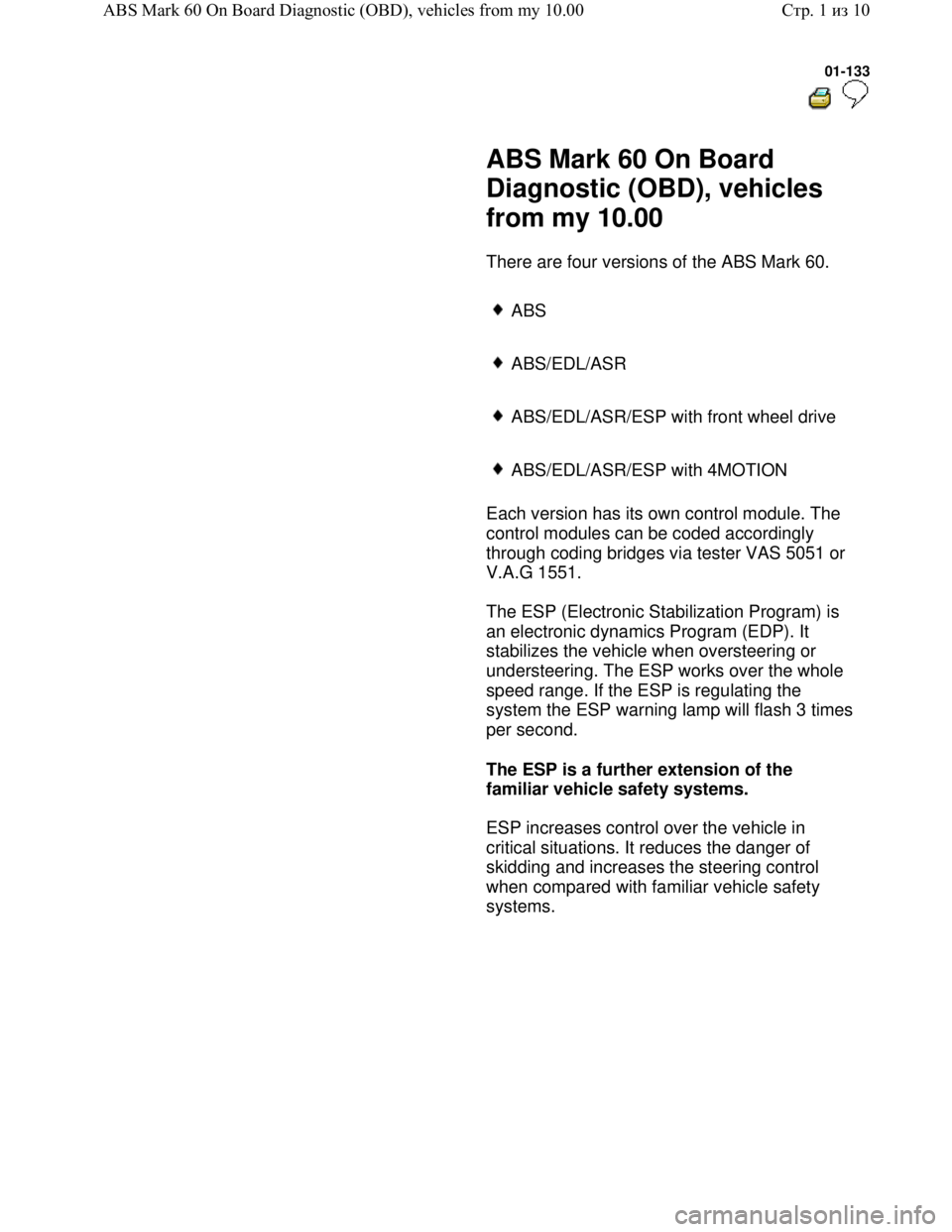

ABS Mark 60 On Board
Diagnostic (OBD), vehicles
from my 10.00
There are four versions of the ABS Mark 60.

ABS

ABS/EDL/ASR

ABS/EDL/ASR/ESP with front wheel drive

ABS/EDL/ASR/ESP with 4MOTION
Each version has its own control module. The
control modules can be coded accordingly
through coding bridges via tester VAS 5051 or
V.A.G 1551.
The ESP (Electronic Stabilization Program) is
an electronic dynamics Program (EDP). It
stabilizes the vehicle when oversteering or
understeering. The ESP works over the whole
speed range. If the ESP is regulating the
system the ESP warning lamp will flash 3 times
per second.

The ESP is a further extension of the
familiar vehicle safety systems.
ESP increases control over the vehicle in
critical situations. It reduces the danger of
skidding and increases the steering control
when compared with familiar vehicle safety
systems.
Стр. 1из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-134


Function
As the control modules are interconnected with
a data bus wire, always start troubleshooting by
the Diagnostic Trouble Code (DTC) memories
of all the control modules in the vehicle.
This occurs in "Automatic test sequence" and is
activated with key function 00.
When doing this, check to see if there are
DTCs stored which may influence the ABS.
The On Board Diagnostic (OBD) relates to the
electrical/electronic part of the ABS, in other
words only malfunctions via the electrical
connection to the control module are
recognized (e.g. speed sensor open circuit).
The 47 pin ABS Control Module (w/EDL) -J104-
forms with the hydraulic unit a compact unit.
The unit is located on the left of the engine
compartment. The control module is equipped
with a DTC memory. The Data Link Connector
(DLC) is located in the center console below
the heating/air conditioning controls.
The control module recognizes malfunctions
during vehicle operation and stores them in a
permanent memory, the contents of which
remain even during periods of no battery
voltage.
Стр. 2из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-135


Sporadic (irregular) malfunctions will also be
recognized and stored. But if malfunctions
affecting the data bus system do not occur again
within the next 15 vehicle start and driving off
sequences, or other malfunctions within the next
50 vehicle start and driving off sequences, they
will be erased from DTC memory except for the
malfunction "Control module faulty" (forget-
malfunction counter).
After switching on the ignition and/or starting the
engine, the ABS warning light -K47- and the ESP
control lamp -K155- will light up for approx. 2
seconds.
During this period a test sequence (self-check) is
run in the control module for the following
functions:

To check if the supply voltage is at least 10.0
Volt,

To check control module including the valve
windings,

To check the coding of the control module,

A static check of the speed sensor (no speed
signal),

If the wheel speed signal is not OK after the car
has been driven and a speed of approx. 20
km/h (approx. 13 mph) has been exceeded, the
ABS warning light -K47- will light up again.
Стр. 3из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-136



Features of 4MOTION
In order to utilize the engine's maximum
performance for a test, e.g. on a rolling road
test bed, the longitudinal acceleration sensor -
G251- must be switched off Page 01
-264 ,
Initiating basic setting, Display group number
040.
Switch ignition off and on again to reactivate
the longitudinal acceleration sensor -G251-.
All-wheel drive vehicles with a Haldex coupling
are equipped with EDL (Electronic Differential
Lock).

Special detail for bleeding brake systems
with ABS/EDL
If a chamber in the brake fluid reservoir has run
empty, basic setting must be performed for
bleeding the brakes Page 01
-264 .

V.A.G 1551 scan tool or tester VAS 5051
The On Board Diagnostic must be initiated at
the commencement of troubleshooting.
Electrical malfunctions which influence the
braking characteristics will be stored.
They can be checked with the V.A.G 1551
Scan Tool, Vehicles system tester V.A.G 1552
or Vehicle Diagnosis, Testing and Information
System VAS 5051.
The program card in the V.A.G 1551 must be at
least version 9.0 and in vehicle system tester
V.A.G 1552, at least version 6.0.
Стр. 4из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-137

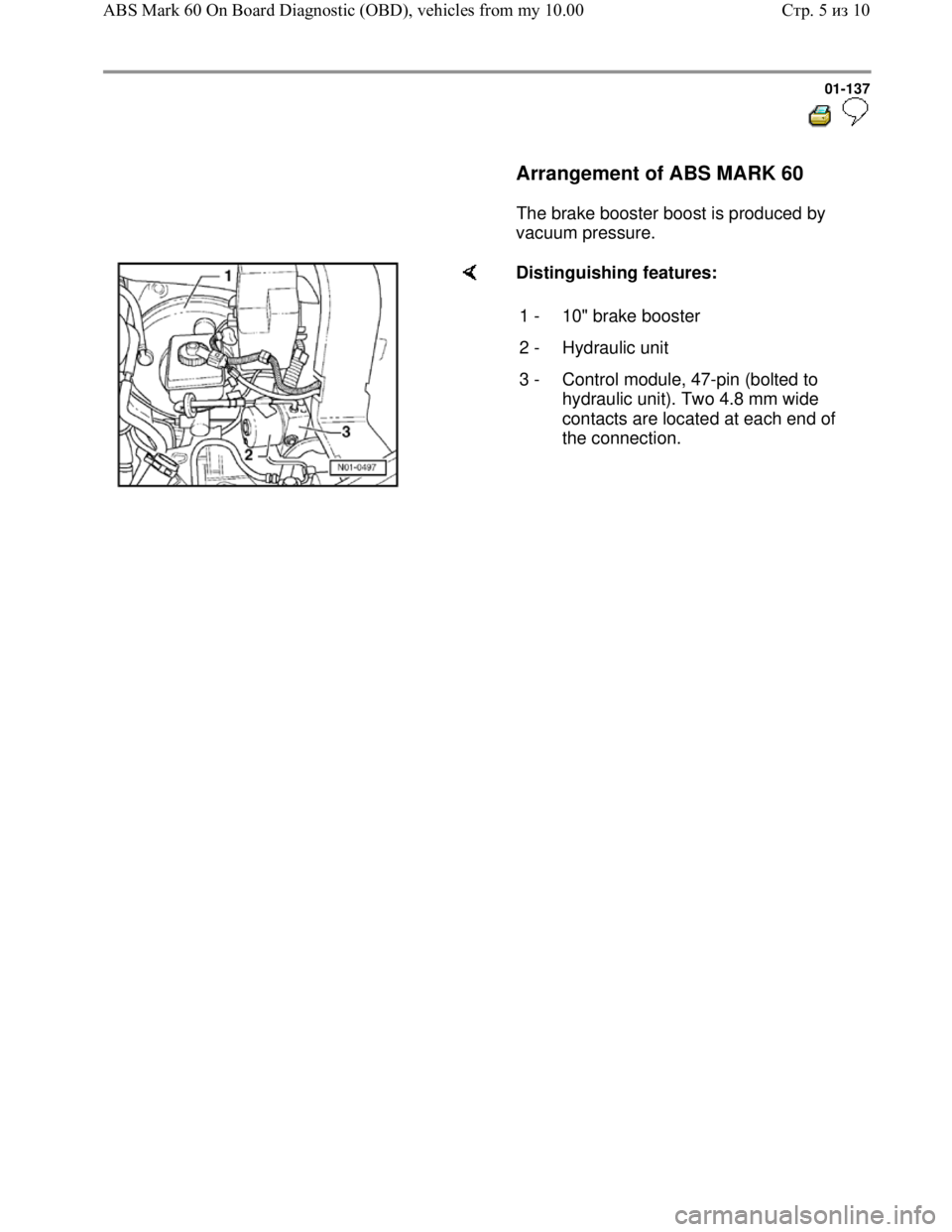

Arrangement of ABS MARK 60
The brake booster boost is produced by
vacuum pressure.
Distinguishing features:
1 - 10" brake booster
2 - Hydraulic unit
3 - Control module, 47-pin (bolted to
hydraulic unit). Two 4.8 mm wide
contacts are located at each end of
