Technical data

Control module identification
The version of the control module is displayed
after the V.A.G 1551 scan tool or the tester VAS
5051 has been connected and the control
module for brake electronics has been selected
Page 01
-163 .

1C0 907 379 C /
J ABS
1C0 907 379 D /
K ABS/EDL/ASR
1C0 907 379 E /
G ABS/EDL/ASR/ESP
1C0 907 379 F /
H ABS/EDL/ASR/ESP
4MOTION

Diagnostic Trouble Code (DTC) memory
A non-volatile memory ensures that the contents
of the DTC memory are retained even without
voltage.
Data output takes place on V.A.G 1551 scan tool
in operating mode 1 (rapid data transfer), and on
tester VAS 5051 in operating mode "vehicle
OBD".
Стр. 6из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-139

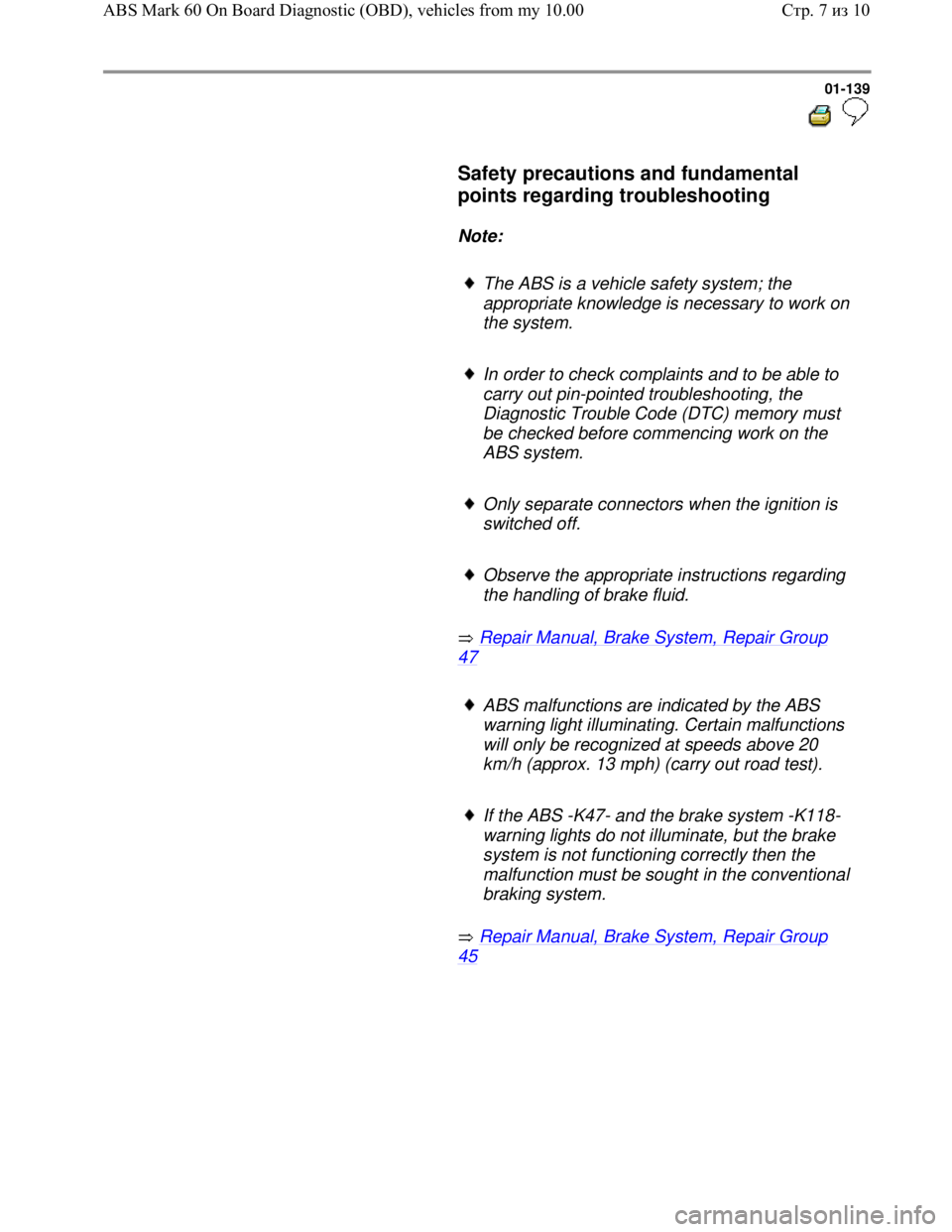

Safety precautions and fundamental
points regarding troubleshooting


Note:

The ABS is a vehicle safety system; the
appropriate knowledge is necessary to work on
the system.

In order to check complaints and to be able to
carry out pin-pointed troubleshooting, the
Diagnostic Trouble Code (DTC) memory must
be checked before commencing work on the
ABS system.

Only separate connectors when the ignition is
switched off.

Observe the appropriate instructions regarding
the handling of brake fluid.
Repair Manual, Brake System, Repair Group
47
ABS malfunctions are indicated by the ABS
warning light illuminating. Certain malfunctions
will only be recognized at speeds above 20
km/h (approx. 13 mph) (carry out road test).

If the ABS -K47- and the brake system -K118-
warning lights do not illuminate, but the brake
system is not functioning correctly then the
malfunction must be sought in the conventional
braking system.
Repair Manual, Brake System, Repair Group
45
Стр. 7из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-140

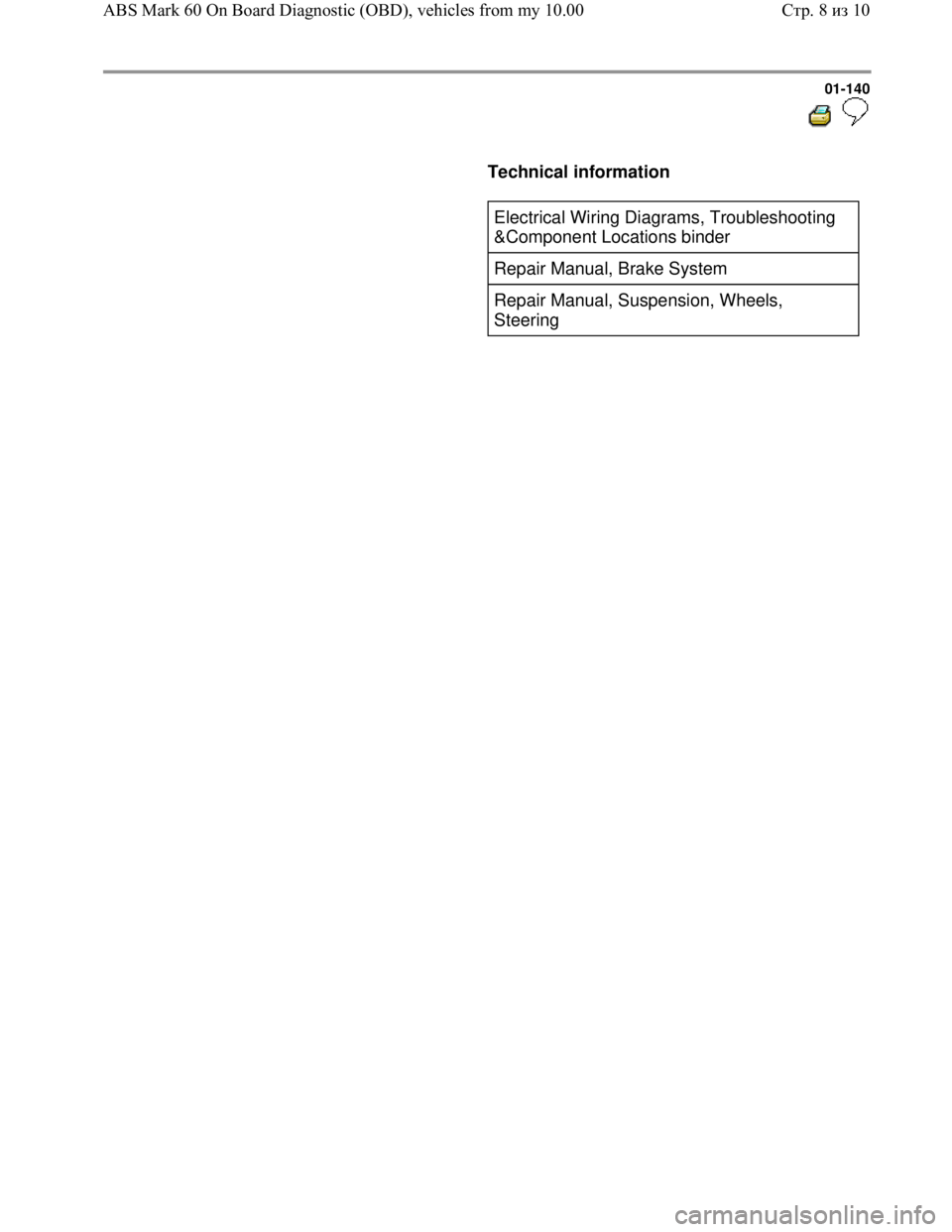

Technical information

Electrical Wiring Diagrams, Troubleshooting
&Component Locations binder
Repair Manual, Brake System
Repair Manual, Suspension, Wheels,
Steering
Стр. 8из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-141

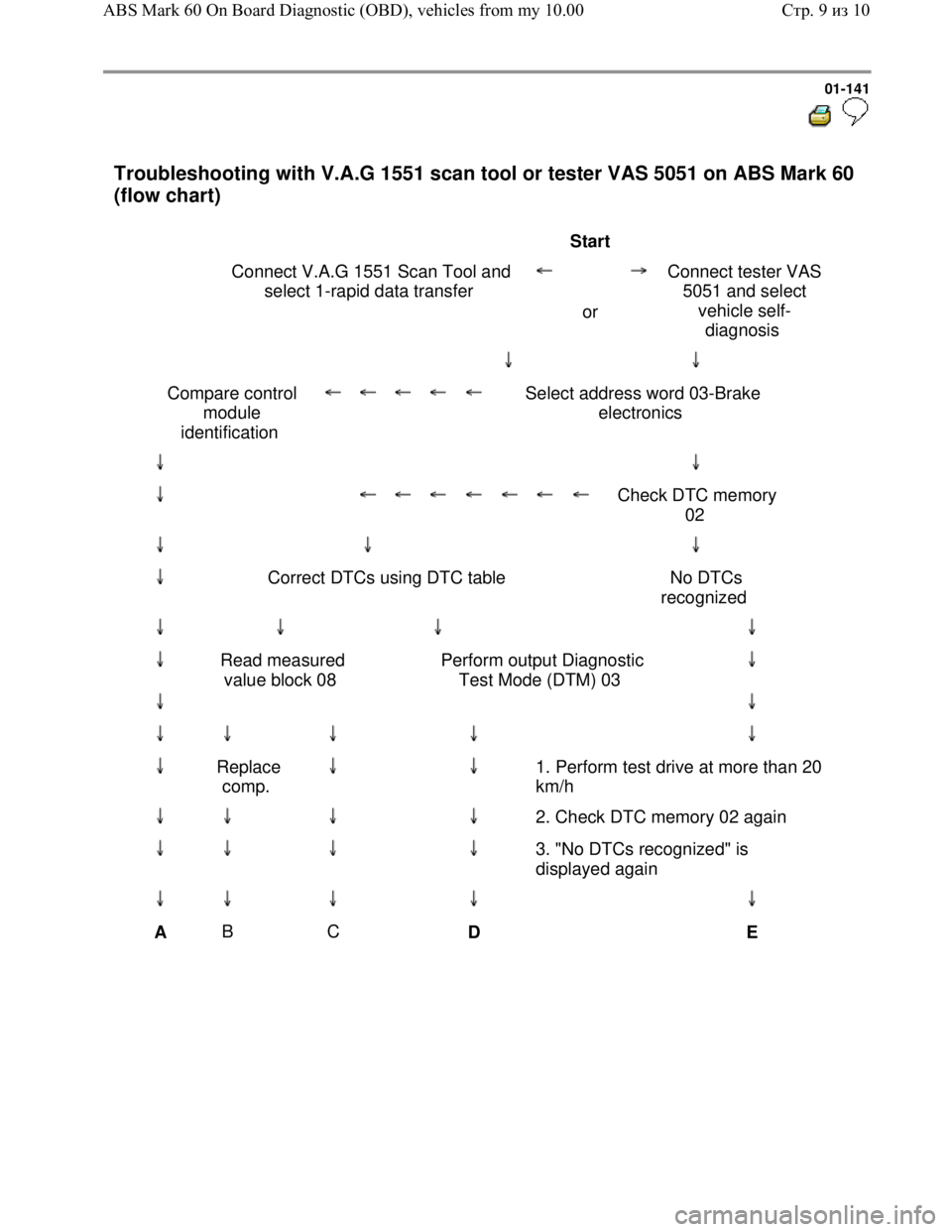

Troubleshooting with V.A.G 1551 scan tool or tester VAS 5051 on ABS Mark 60
(flow chart)




Start
Connect V.A.G 1551 Scan Tool and
select 1-rapid data transfer

or Connect tester VAS
5051 and select
vehicle self-
diagnosis




Compare control
module
identification
Select address word 03-Brake
electronics







Check DTC memory
02







Correct DTCs using DTC table No DTCs
recognized









Read measured
value block 08 Perform output Diagnostic
Test Mode (DTM) 03












Replace
comp.

1. Perform test drive at more than 20
km/h





2. Check DTC memory 02 again





3. "No DTCs recognized" is
displayed again








A B
C
D
E
Стр. 9из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-142

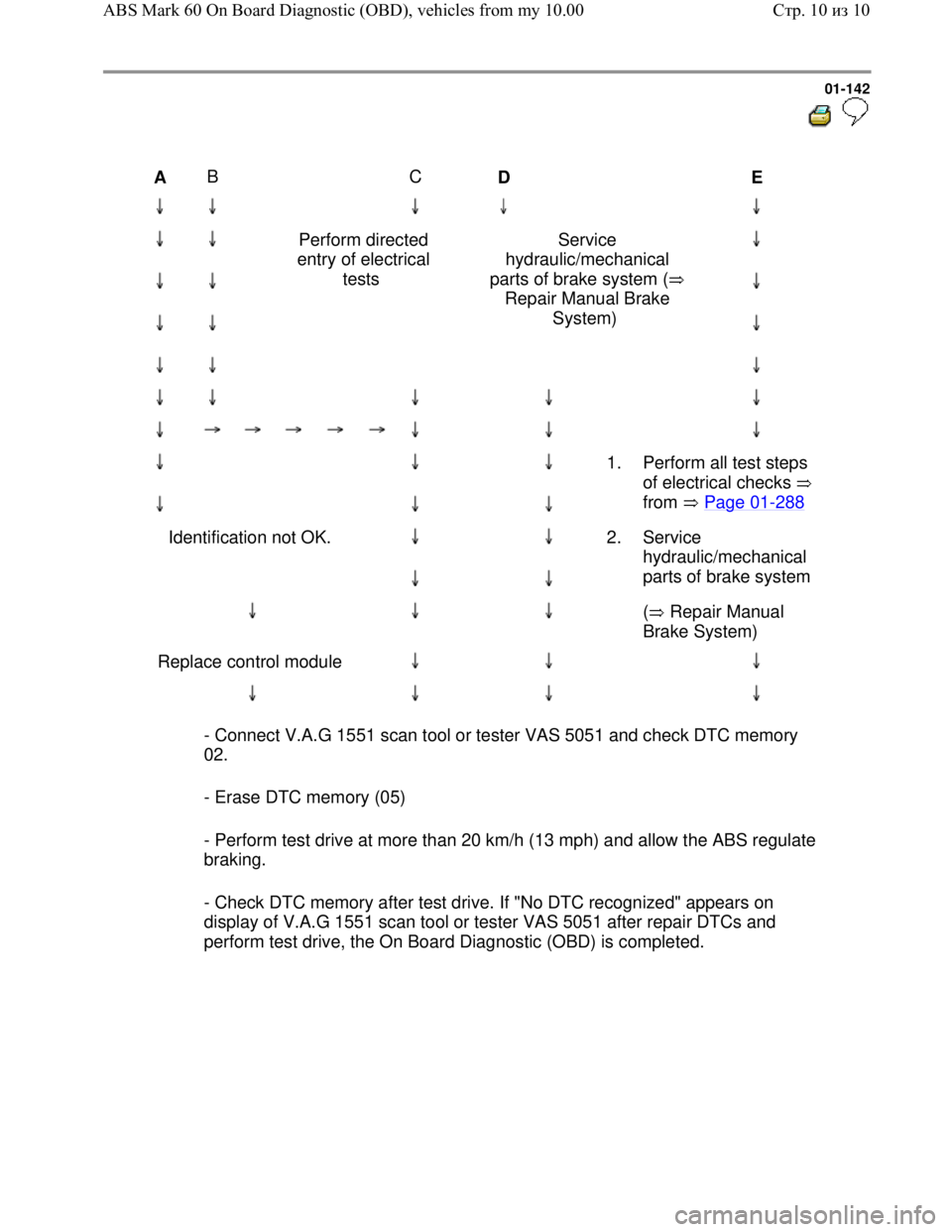

A B
C
D

E
















Perform directed
entry of electrical
tests Service
hydraulic/mechanical
parts of brake system (
Repair Manual Brake
System)

























1.
Perform all test steps
of electrical checks
from Page 01
-288

Identification not OK.




2. Service
hydraulic/mechanical
parts of brake system




( Repair Manual
Brake System)
Replace control module











- Connect V.A.G 1551 scan tool or tester VAS 5051 and check DTC memory
02.

- Erase DTC memory (05)

- Perform test drive at more than 20 km/h (13 mph) and allow the ABS regulate
braking.

- Check DTC memory after test drive. If "No DTC recognized" appears on
display of V.A.G 1551 scan tool or tester VAS 5051 after repair DTCs and
perform test drive, the On Board Diagnostic (OBD) is completed.







Стр. 10из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-143

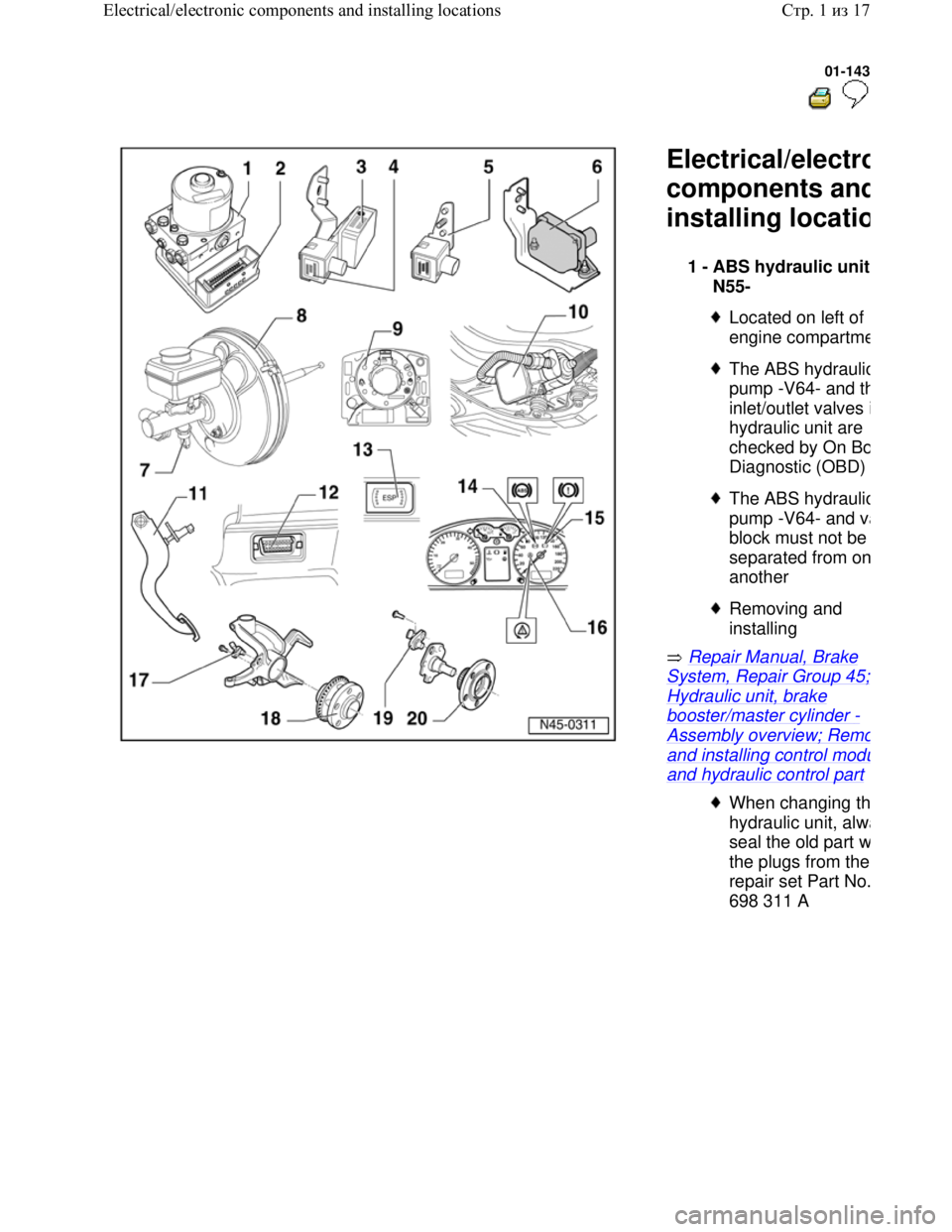

Electrical/electro
components and
installing locatio
Repair Manual, Brake
System, Repair Group 45;
Hydraulic unit, brake
booster/master cylinder -
Assembly overview; Rem
o
and installing control modu
and hydraulic control part 1 -
ABS hydraulic unit
N55-

Located on left of
engine compartm
e
The ABS hydraulic
pump -V64- and th
inlet/outlet valves i
hydraulic unit are
checked by On B
o
Diagnostic (OBD)

The ABS hydraulic
pump -V64- and va
block must not be
separated from o
n
another

Removing and
installing
When changing th
hydraulic unit, alw
a
seal the old part w
the plugs from the
repair set Part No.
698 311 A
Стр. 1из 17 Electrical/electronic components and installing locations

Downloaded from www.Manualslib.com manuals search engine 01-144

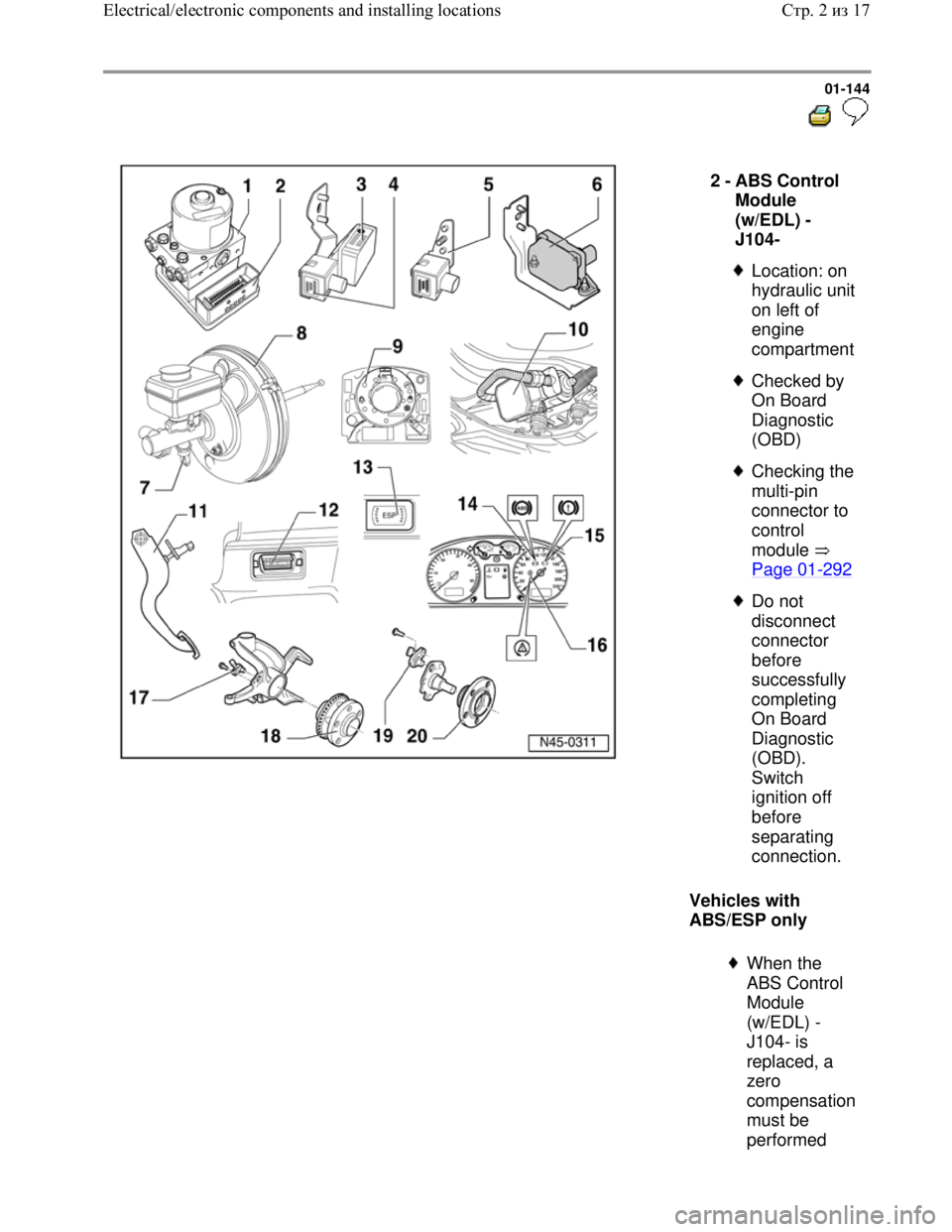

Vehicles with
ABS/ESP only 2 -
ABS Control
Module
(w/EDL) -
J104-

Location: on
hydraulic unit
on left of
engine
compartment

Checked by
On Board
Diagnostic
(OBD)

Checking the
multi-pin
connector to
control
module
Page 01
-292
Do not
disconnect
connector
before
successfully
completing
On Board
Diagnostic
(OBD).
Switch
ignition off
before
separating
connection.

When the
ABS Control
Module
(w/EDL) -
J104- is
replaced, a
zero
compensation
must be
performed
Стр. 2из 17 Electrical/electronic components and installing locations

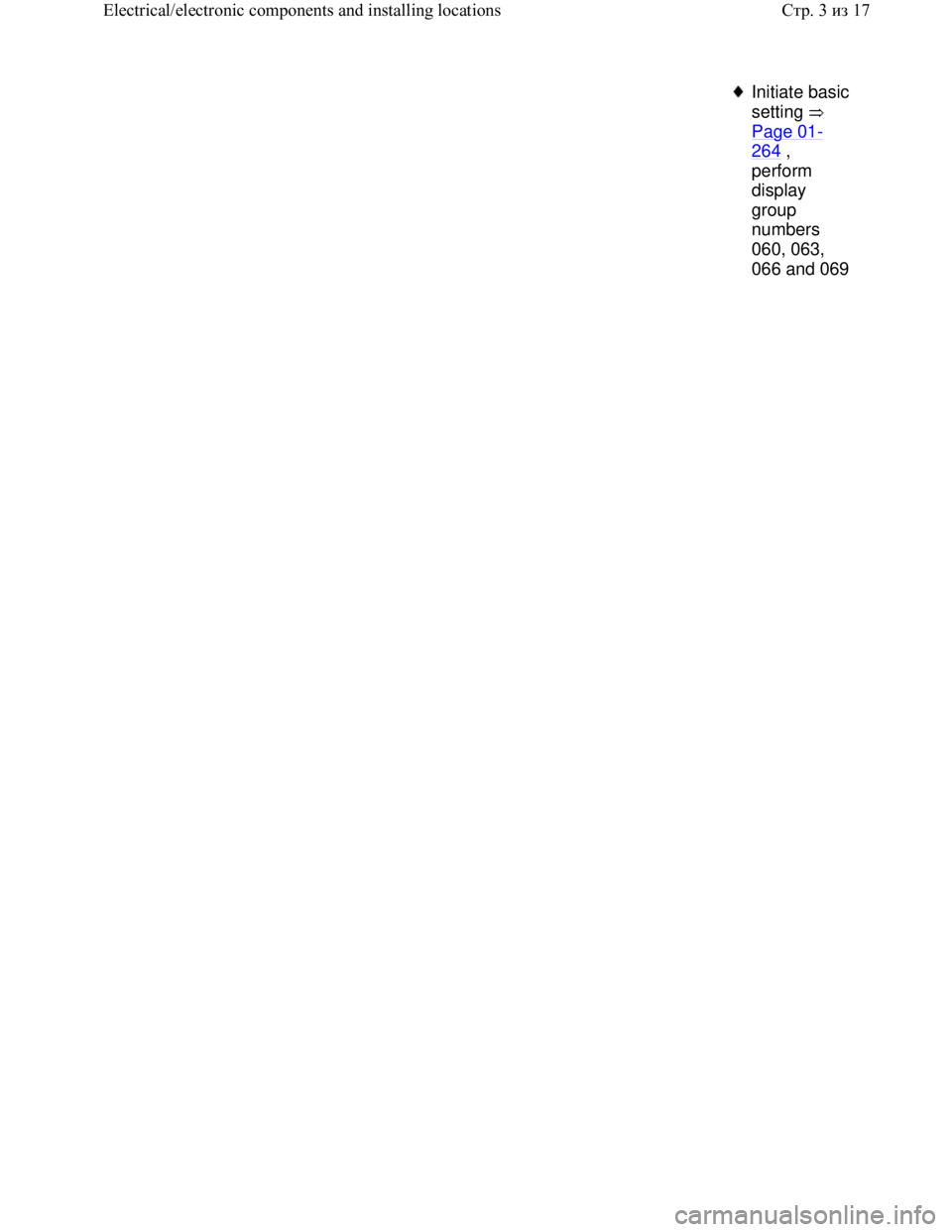

Downloaded from www.Manualslib.com manuals search engine Initiate basic
setting
Page 01
-
264 ,
perform
display
group
numbers
060, 063,
066 and 069
Стр. 3из 17 Electrical/electronic components and installing locations

Downloaded from www.Manualslib.com manuals search engine 01-145

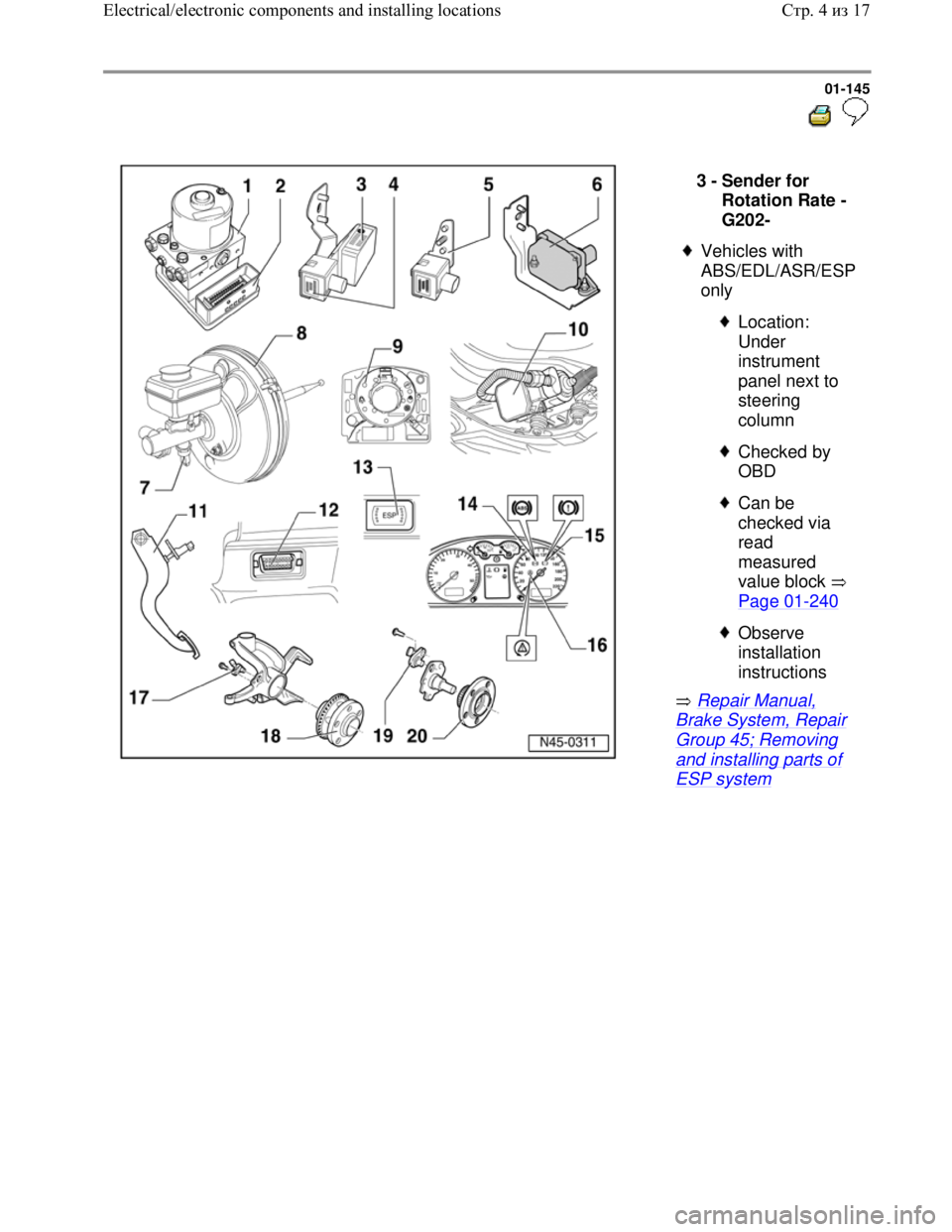

Repair Manual,
Brake System, Repair
Group 45; Removing
and installing parts of
ESP system 3 -
Sender for
Rotation Rate -
G202-

Vehicles with
ABS/EDL/ASR/ESP
only

Location:
Under
instrument
panel next to
steering
column

Checked by
OBD

Can be
checked via
read
measured
value block
Page 01
-240
Observe
installation
instructions
Стр. 4из 17 Electrical/electronic components and installing locations

Downloaded from www.Manualslib.com manuals search engine 01-146



Repair Manual,
Brake System, Repair
Group 45; Removing
and installing parts of
ESP system 4 -
Sensor for
transverse
acceleration -
G200-

Vehicles with
ABS/EDL/ASR/ESP
only

Location:
Under
instrument
panel next to
steering
column

Checked by
OBD

Can be
checked via
read
measured
value block
Page 01
-240
Observe
installation
instructions
When the
sensor for
transverse
acceleration -
G200- is
replaced, a
zero
compensation
must be
performed

Initiate basic
setting
Page 01
-264 ,
perform
display group
number 063
Стр. 5из 17 Electrical/electronic components and installing locations
