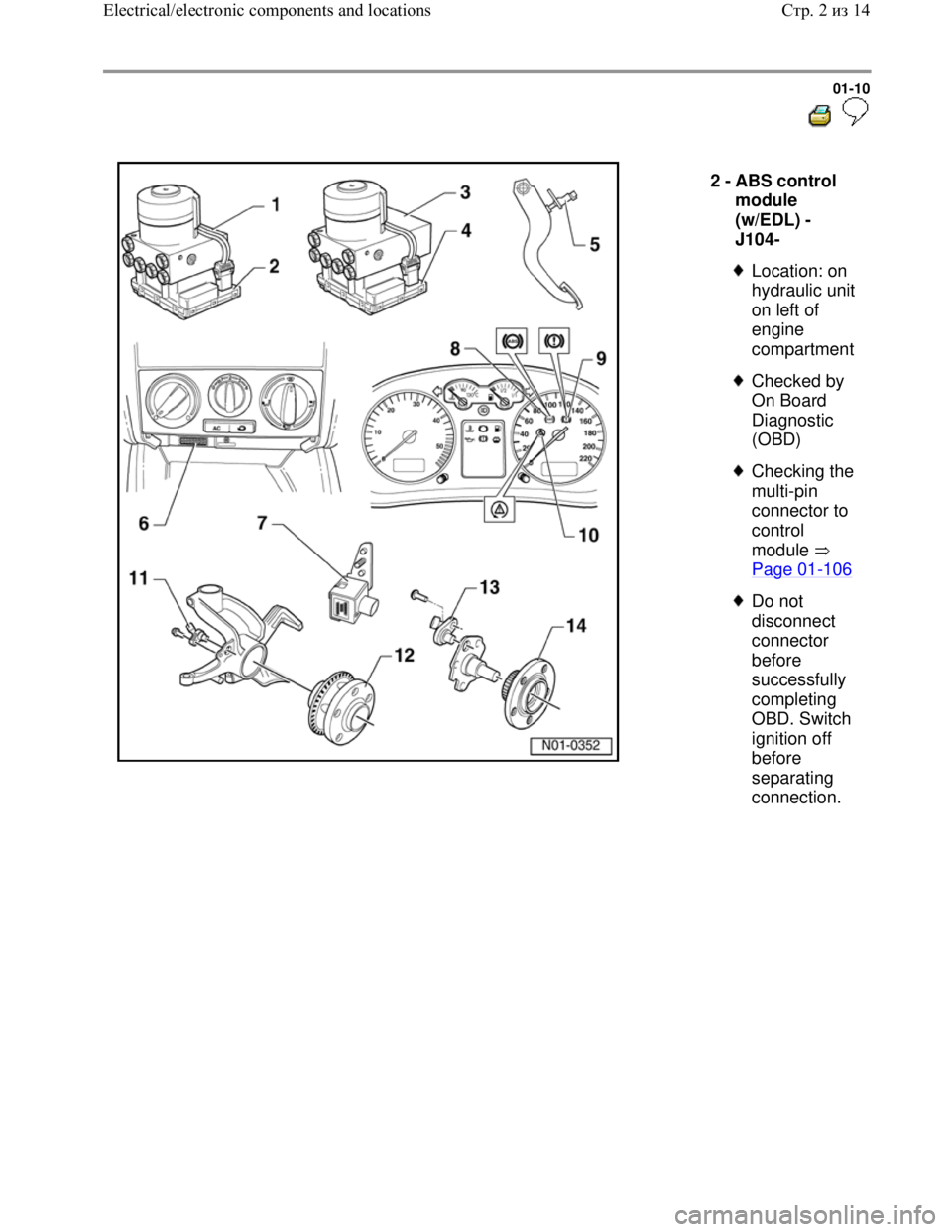

VOLKSWAGEN JETTA 1998 User Guide

Downloaded from www.Manualslib.com manuals search engine 01-10



2 -
ABS control
module
(w/EDL) -
J104-

Location: on
hydraulic unit
on left of
engine
compartment

Checked by
On Board
Diagnostic
(OBD)

Checking the
multi-pin
connector to
control
module
Page 01
-106
Do not
disconnect
connector
before
successfully
completing
OBD. Switch
ignition off
before
separating
connection.
Стр. 2из 14 Electrical/electronic components and locations

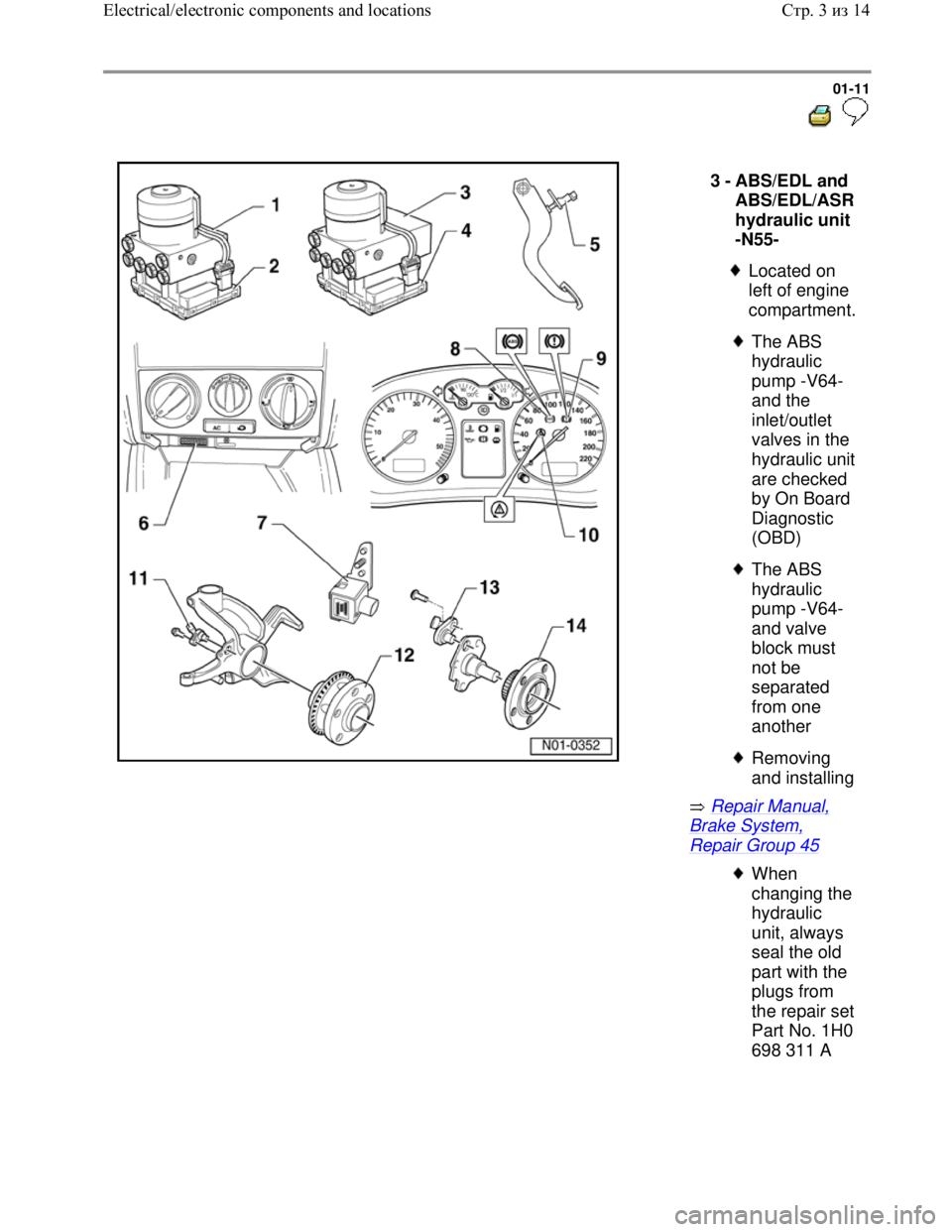

Downloaded from www.Manualslib.com manuals search engine 01-11



Repair Manual,
Brake System,
Repair Group 45 3 -
ABS/EDL and
ABS/EDL/ASR
hydraulic unit
-N55-

Located on
left of engine
compartment.

The ABS
hydraulic
pump -V64-
and the
inlet/outlet
valves in the
hydraulic unit
are checked
by On Board
Diagnostic
(OBD)

The ABS
hydraulic
pump -V64-
and valve
block must
not be
separated
from one
another

Removing
and installing
When
changing the
hydraulic
unit, always
seal the old
part with the
plugs from
the repair set
Part No. 1H0
698 311 A
Стр. 3из 14 Electrical/electronic components and locations

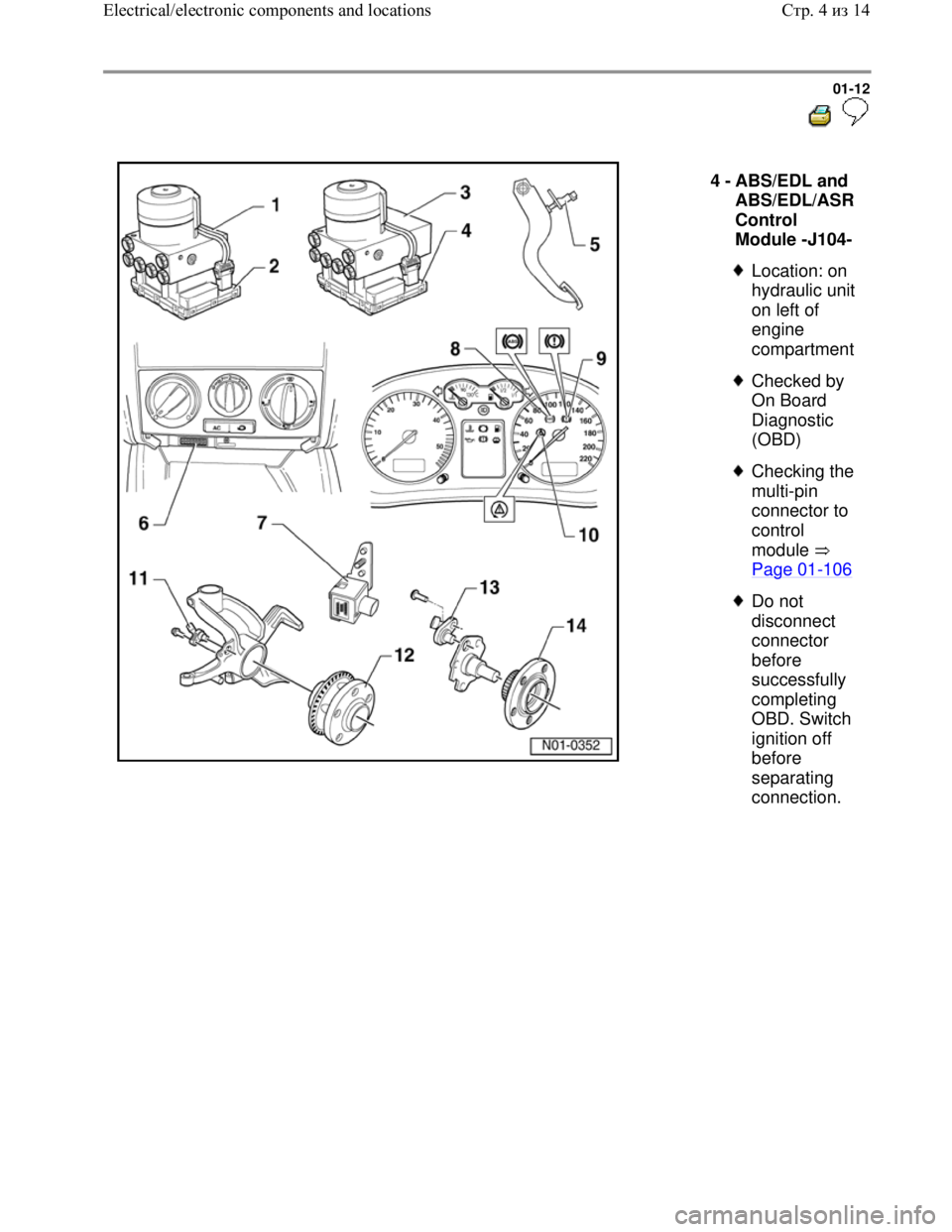

Downloaded from www.Manualslib.com manuals search engine 01-12



4 -
ABS/EDL and
ABS/EDL/ASR
Control
Module -J104-

Location: on
hydraulic unit
on left of
engine
compartment

Checked by
On Board
Diagnostic
(OBD)

Checking the
multi-pin
connector to
control
module
Page 01
-106
Do not
disconnect
connector
before
successfully
completing
OBD. Switch
ignition off
before
separating
connection.
Стр. 4из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-13



5 -
Brake light
switch -F-

The brake
light switch is
open in the
rest position;

Adjusting
Page 01
-131
Can be
checked via
read
measured
value block
Page 01
-
61
6 -
Data Link
Connector
(DLC)

Installation
position: in
center
console
below
heating/air
conditioning
controls
7 -
Longitudinal
acceleration
sensor -G251-

All-wheel
drive
vehicles with
Haldex
coupling only
Стр. 5из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-14



8 -
ABS warning
light -K47-

Location:
instrument
cluster
Function:
Page 01
-17
9 -
Warning light
for brake
system -K118-

Location:
instrument
cluster
Function:
Page 01
-17
10 -
ESP control
lamp -K155-

Location:
instrument
cluster
Стр. 6из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-15



11 -
Right/left
front ABS
wheel speed
sensor -G45-/-
G47-

Checked by
On Board
Diagnostic
(OBD)

Before
inserting the
sensor clean
the inner
surface of
the sensor
mounting
and coat with
lubricating
paste G 000
650

When
connecting
the speed
sensor wire
ensure it is
not twisted in
the wheel
housing

Bolt
tightening
torque - 10
Nm
12 -
Wheel hub
with impulse
rotor for
right/left front
speed
sensors

Rotor and
speed
sensors for
front left and
right-hand
sides are
identical
Стр. 7из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine Repair Manual,
Suspension, Wheels,
Steering, Repair
Group 40
Removing
and installing
Стр. 8из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-16



13 -
Right/left rear
ABS wheel
speed sensor
-G44-/-G46-

Checked by
On Board
Diagnostic
(OBD)

Before
inserting the
sensor clean
the inner
surface of
the sensor
mounting
and coat with
lubricating
paste G 000
650

When
connecting
the speed
sensor wire
ensure it is
not twisted in
the wheel
housing

Bolt
tightening
torque - 10
Nm
14 -
Wheel hub
with impulse
rotor for
right/left rear
speed
sensors

Rotor and
speed
sensors for
left and right-
hand sides
are identical

Removing
and installing
Стр. 9из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine Repair Manual,
Suspension, Wheels,
Steering, Repair
Group 42
Стр. 10из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-17


Diagnostic Trouble Codes (DTC)
displayed by warning lights -K14-, -
K47- and -K118-

Warning lights
For vehicles with ABS/EDL/ASR and/or a
radio/navigation system, the warning
light for brake system -K118- is at
position -3-.
The function of the parking brake
warning light -K14- is then taken on by
the warning light for brake system -
K118-.
Item
Designation
1 Warning light for brake system -
K118-
2 ABS warning light -K47-
3 Parking brake indicator light -K14-
Стр. 11из 14 Electrical/electronic components and locations
