engine VOLKSWAGEN JETTA 1998 Service Manual

Downloaded from www.Manualslib.com manuals search engine 01-303


Switch to measuring range:
Resistance measurement (2 k )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
6 45 + 46 Resistance of
left front ABS
wheel speed
sensor -G47-
Ignition
switched
off 1.0 - 1.3 k
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
If no malfunction can be
located in the wiring:
Repair Manual, Brake
System, Repair Group
45; Removing and
installing parts of ABS
system on front and rear
axles - Check wiring using
wiring diagram
- Wiggle wiring during
test
- Replace left front ABS
wheel speed sensor -
G47-
Стр. 16из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-304


Switch to measuring range:
Resistance measurement (2 k )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
7 42 + 43 Resistance of
right rear ABS
wheel speed
sensor -G44-
Ignition
switched
off 1.0 - 1.3 k
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
If no malfunction can be
located in the wiring:
Repair Manual, Brake
System, Repair Group
45; Removing and
installing parts of ABS
system on front and rear
axles - Check wiring using
wiring diagram
- Wiggle wiring during
test
- Replace right rear ABS
wheel speed sensor -
G44-
Стр. 17из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-305


Switch to measuring range:
Resistance measurement (2 k )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
8 37 + 36 Resistance of
left rear ABS
wheel speed
sensor -G46-
Ignition
switched
off 1.0 - 1.3 k
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
If no malfunction can be
located in the wiring:
Repair Manual, Brake
System, Repair Group
45; Removing and
installing parts of ABS
system on front and rear
axles - Check wiring using
wiring diagram
- Wiggle wiring during
test
- Replace left rear ABS
wheel speed sensor -
G46-
Стр. 18из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-306


Switch to measuring range:
Voltage measurement (2 V )
Test
step V.A.G
1598
sockets Item
tested Test
conditions
- Additional
operations Specification
Measures for deviations
from specification
9 33 + 34 Right front
ABS wheel
speed
sensor -
G45-
voltage
signal
Vehicle
raised
- Check installation of
right front ABS wheel
speed sensor -G45- and
rotor.


Ignition
switched off

- Rotate front
right wheel at
approx. 1
rev./sec. Min. 65 mV
alternating
voltage - Check whether right
front ABS wheel speed
sensor -G45- has been
interchanged and read
measured value block
Page 01
-240 , Display
group number 001
10 45 + 46 Left front
ABS wheel
speed
sensor -
G47-
voltage
signal Vehicle
raised
- Check installation of left
front ABS wheel speed
sensor -G47- and rotor.


Ignition
switched off

- Rotate front
left wheel at
approx. 1
rev./sec. Min. 65 mV
alternating
voltage - Check whether left front
ABS wheel speed sensor
-G47- has been
interchanged and read
measured value block
Page 01
-240 , display
group number 001
Стр. 19из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-307

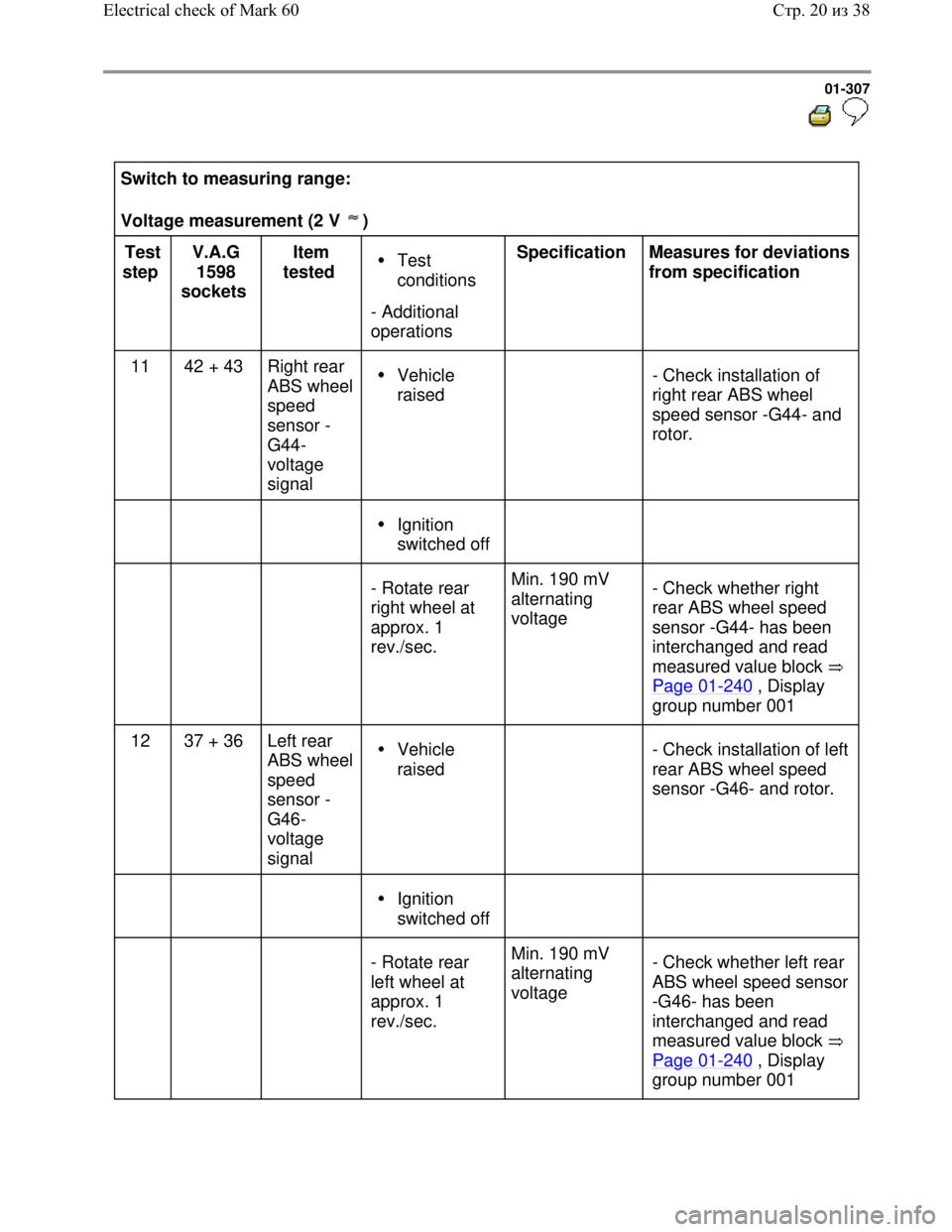

Switch to measuring range:
Voltage measurement (2 V )
Test
step V.A.G
1598
sockets Item
tested Test
conditions
- Additional
operations Specification
Measures for deviations
from specification
11 42 + 43 Right rear
ABS wheel
speed
sensor -
G44-
voltage
signal
Vehicle
raised
- Check installation of
right rear ABS wheel
speed sensor -G44- and
rotor.


Ignition
switched off

- Rotate rear
right wheel at
approx. 1
rev./sec. Min. 190 mV
alternating
voltage - Check whether right
rear ABS wheel speed
sensor -G44- has been
interchanged and read
measured value block
Page 01
-240 , Display
group number 001
12 37 + 36 Left rear
ABS wheel
speed
sensor -
G46-
voltage
signal Vehicle
raised
- Check installation of left
rear ABS wheel speed
sensor -G46- and rotor.


Ignition
switched off

- Rotate rear
left wheel at
approx. 1
rev./sec. Min. 190 mV
alternating
voltage - Check whether left rear
ABS wheel speed sensor
-G46- has been
interchanged and read
measured value block
Page 01
-240 , Display
group number 001
Стр. 20из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-308

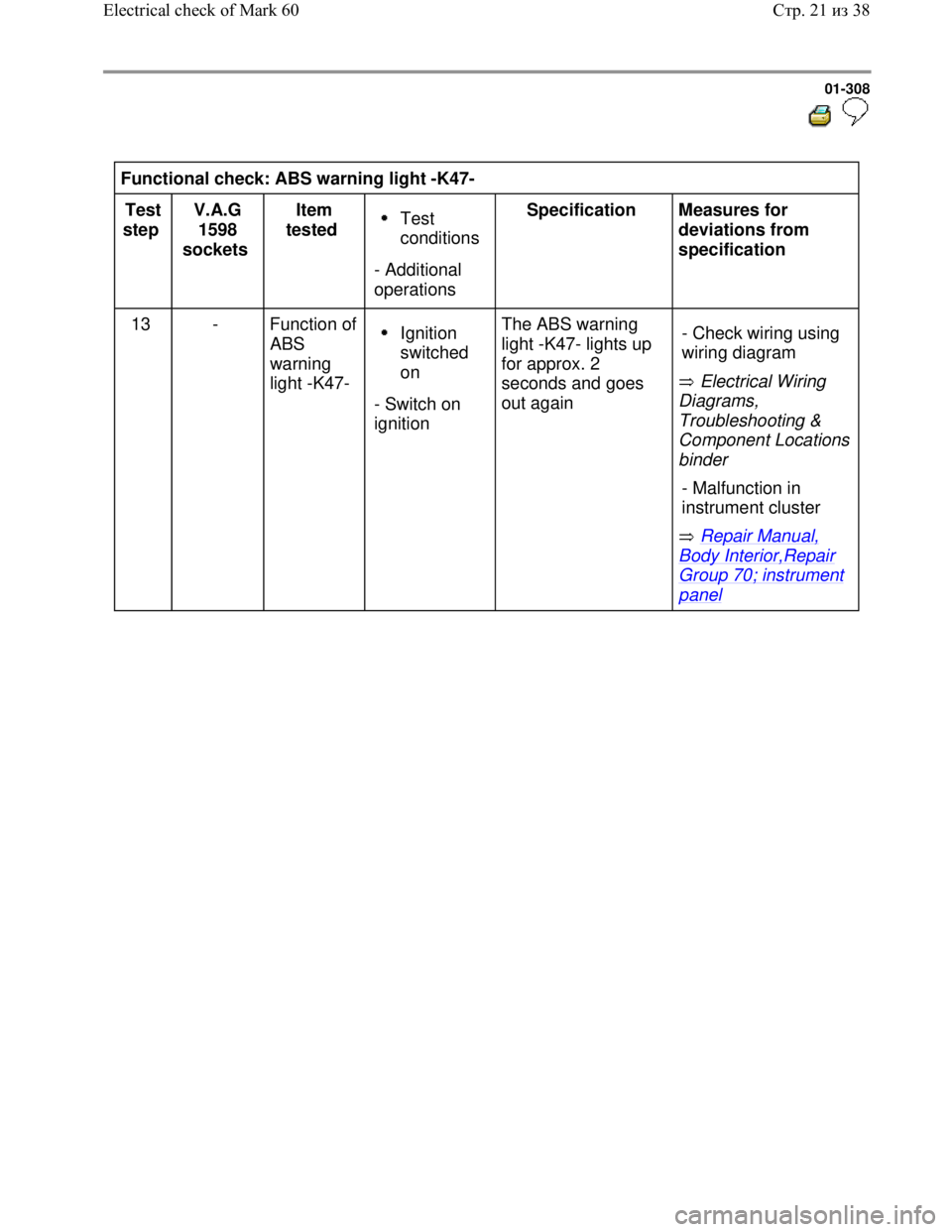

Functional check: ABS warning light -K47-
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
13 - Function of
ABS
warning
light -K47-
Ignition
switched
on
- Switch on
ignition The ABS warning
light -K47- lights up
for approx. 2
seconds and goes
out again Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
Repair Manual,
Body Interior,Repair
Group 70; instrument
panel - Check wiring using
wiring diagram
- Malfunction in
instrument cluster
Стр. 21из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-309

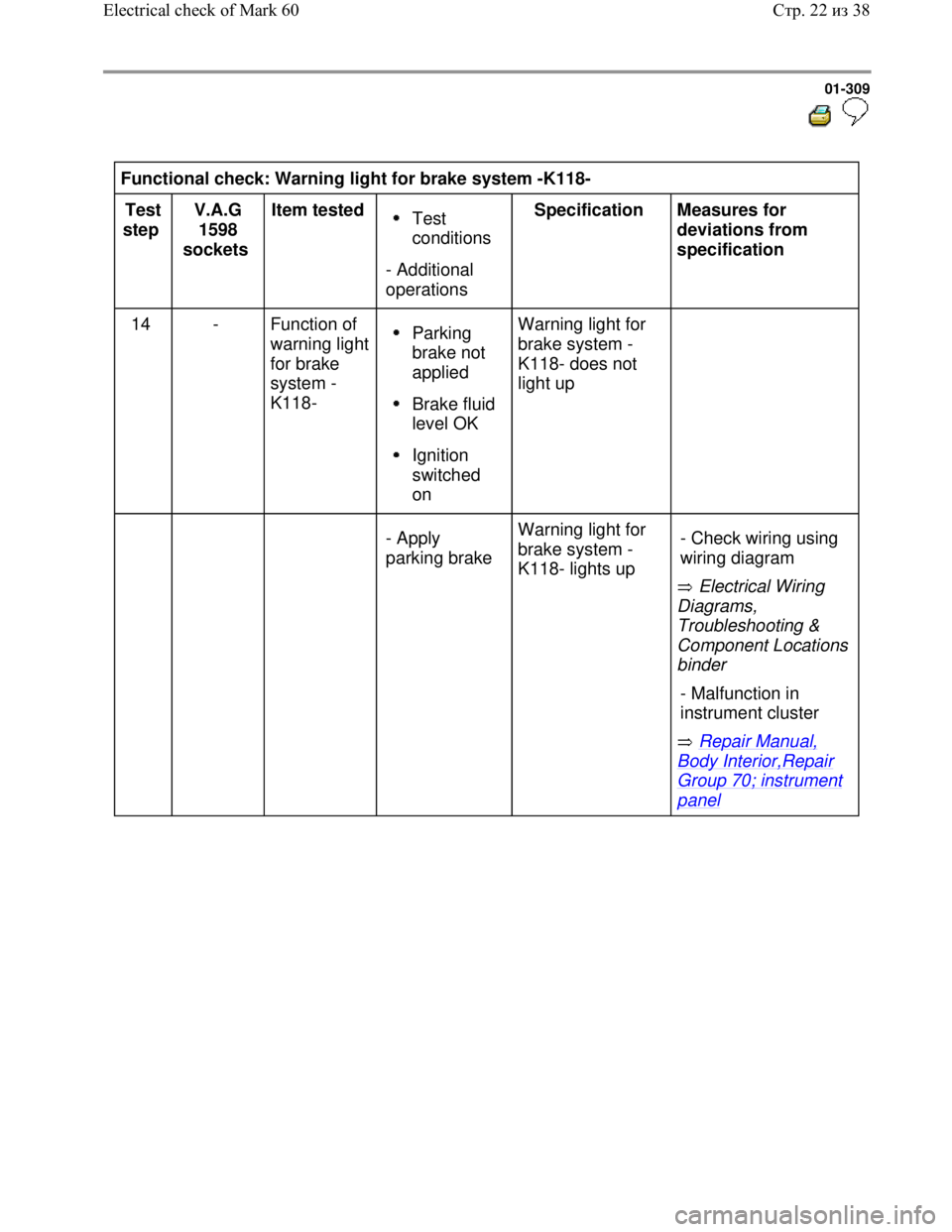

Functional check: Warning light for brake system -K118-
Test
step V.A.G
1598
sockets Item tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
14 - Function of
warning light
for brake
system -
K118-
Parking
brake not
applied
Brake fluid
level OK
Ignition
switched
on Warning light for
brake system -
K118- does not
light up

- Apply
parking brake Warning light for
brake system -
K118- lights up
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
Repair Manual,
Body Interior,Repair
Group 70; instrument
panel - Check wiring using
wiring diagram
- Malfunction in
instrument cluster
Стр. 22из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-310

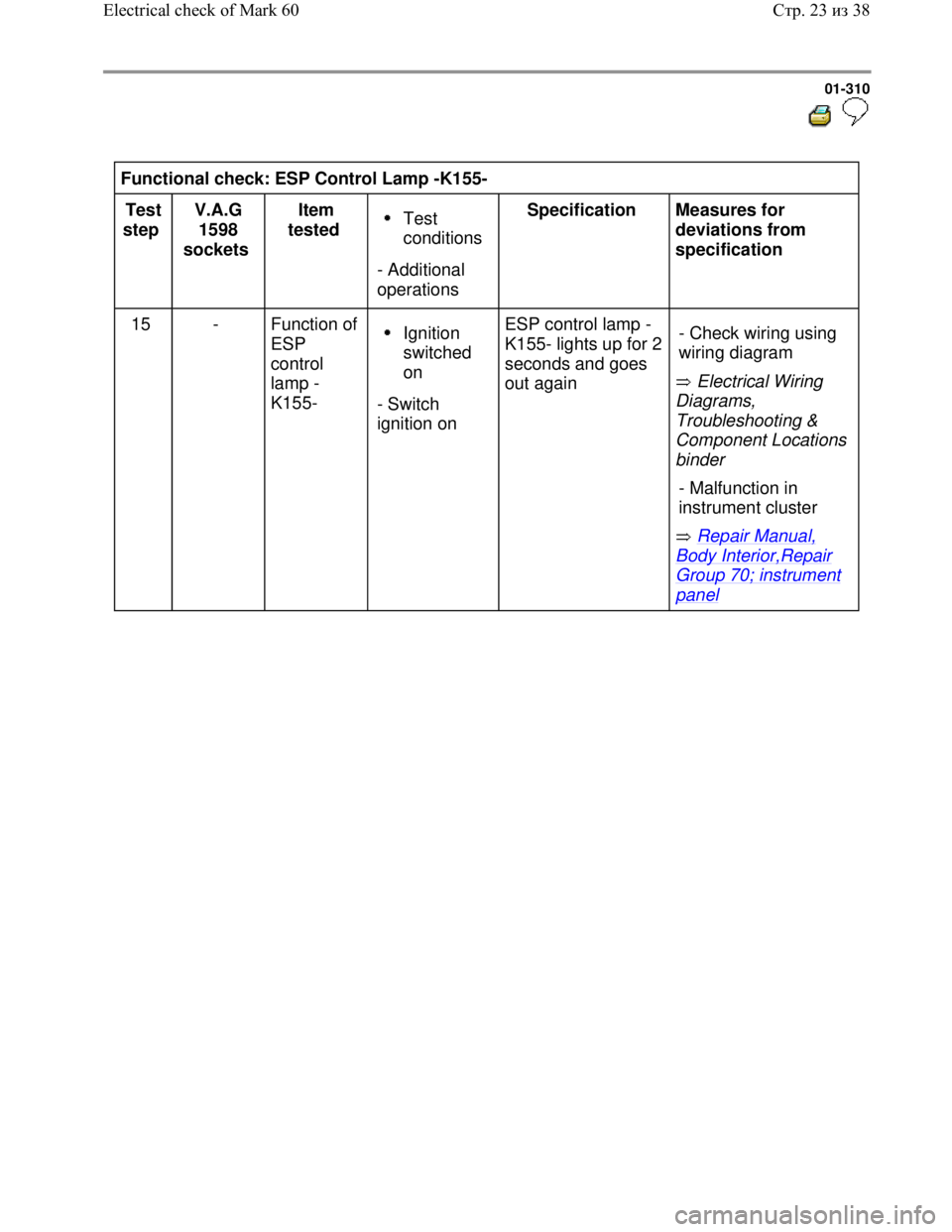

Functional check: ESP Control Lamp -K155-
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
15 - Function of
ESP
control
lamp -
K155-
Ignition
switched
on
- Switch
ignition on ESP control lamp -
K155- lights up for 2
seconds and goes
out again Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
Repair Manual,
Body Interior,Repair
Group 70; instrument
panel - Check wiring using
wiring diagram
- Malfunction in
instrument cluster
Стр. 23из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-311


Functional check: warning lamp for ASR/ESP button -E256-
Test
step V.A.G
1598
sockets Item
tested
Test conditions
- Additional
operations Specification
Measures for
deviations from
specification
16 - Function of
ASR/ESP
button -
E256-
Ignition
switched on
The function of
the ESP Control
Lamp -K155-
was checked in
test step 15. ESP control lamp -
K155- lights up for
2 seconds and
goes out again

- Operate
ASR/ESP button -
E256- ESP control lamp -
K155- lights up

- Operate
ASR/ESP button -
E256- again ESP control lamp -
K155- goes out
Test step 16: Continued on next page.
Стр. 24из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-312

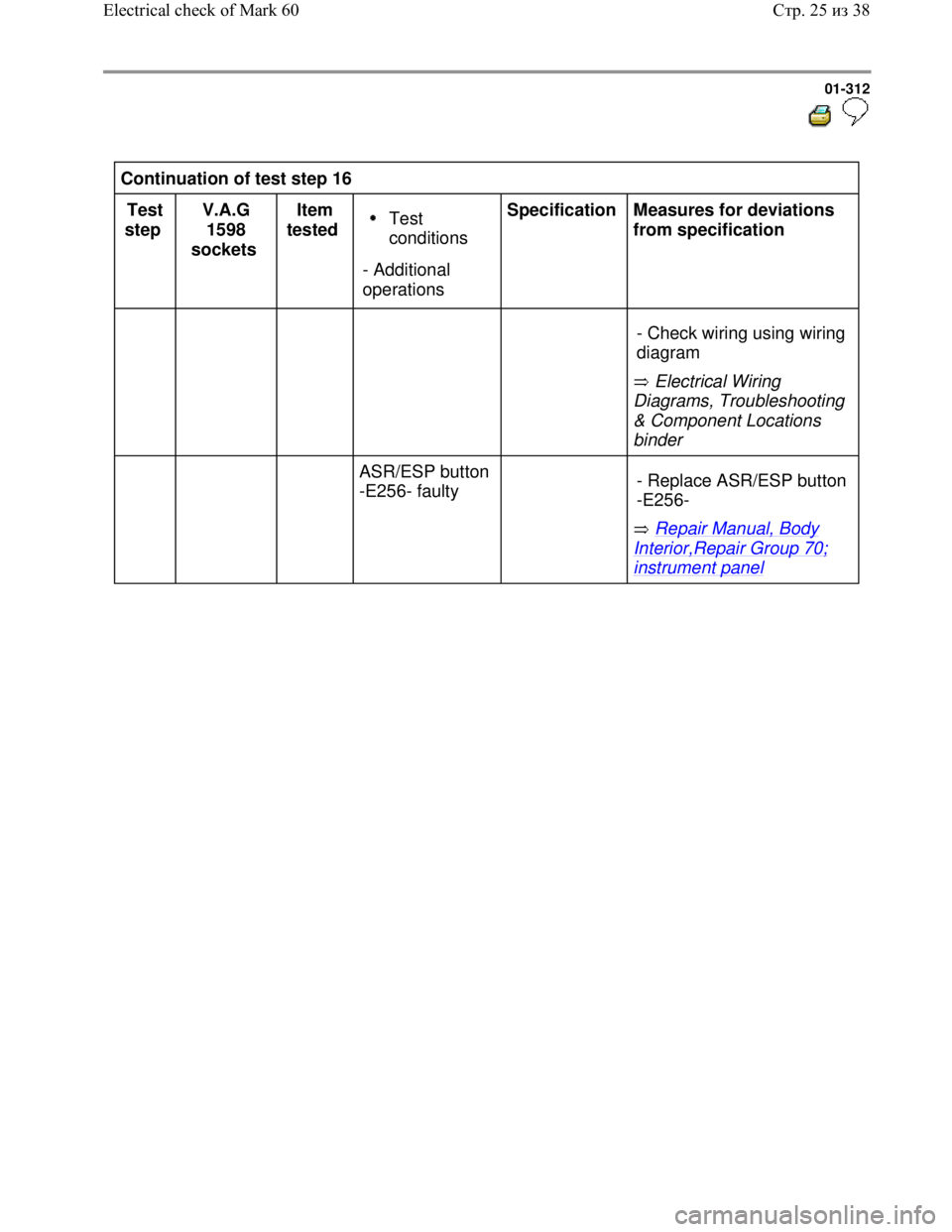

Continuation of test step 16
Test
step V.A.G
1598
sockets Item
tested
Test
conditions
- Additional
operations Specification
Measures for deviations
from specification

Electrical Wiring
Diagrams, Troubleshooting
& Component Locations
binder - Check wiring using wiring
diagram
ASR/ESP button
-E256- faulty
Repair Manual, Body
Interior,Repair Group 70;
instrument panel - Replace ASR/ESP button
-E256-
Стр. 25из 38 Electrical check of Mark 60
