VOLKSWAGEN POLO 2015 Owner´s Manual

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
26/136
Before closing the tailgate, check that the vehicle key is not in the luggage compartment.
 Introduction
This chapter contains information on the following subjects:
 → Opening or closing the windows electrically  
 → Electric windows – functions  
 → Roll-back function for the electric windows  
Additional information and warnings:
Volkswagen information system  → Volkswagen information system  
Infotainment system  → Infotainment system 
Central locking system  → Central locking system  
Cleaning and caring for the vehicle exterior  → Caring for and cleaning the vehicle exterior  
Opening or closing the windows electrically

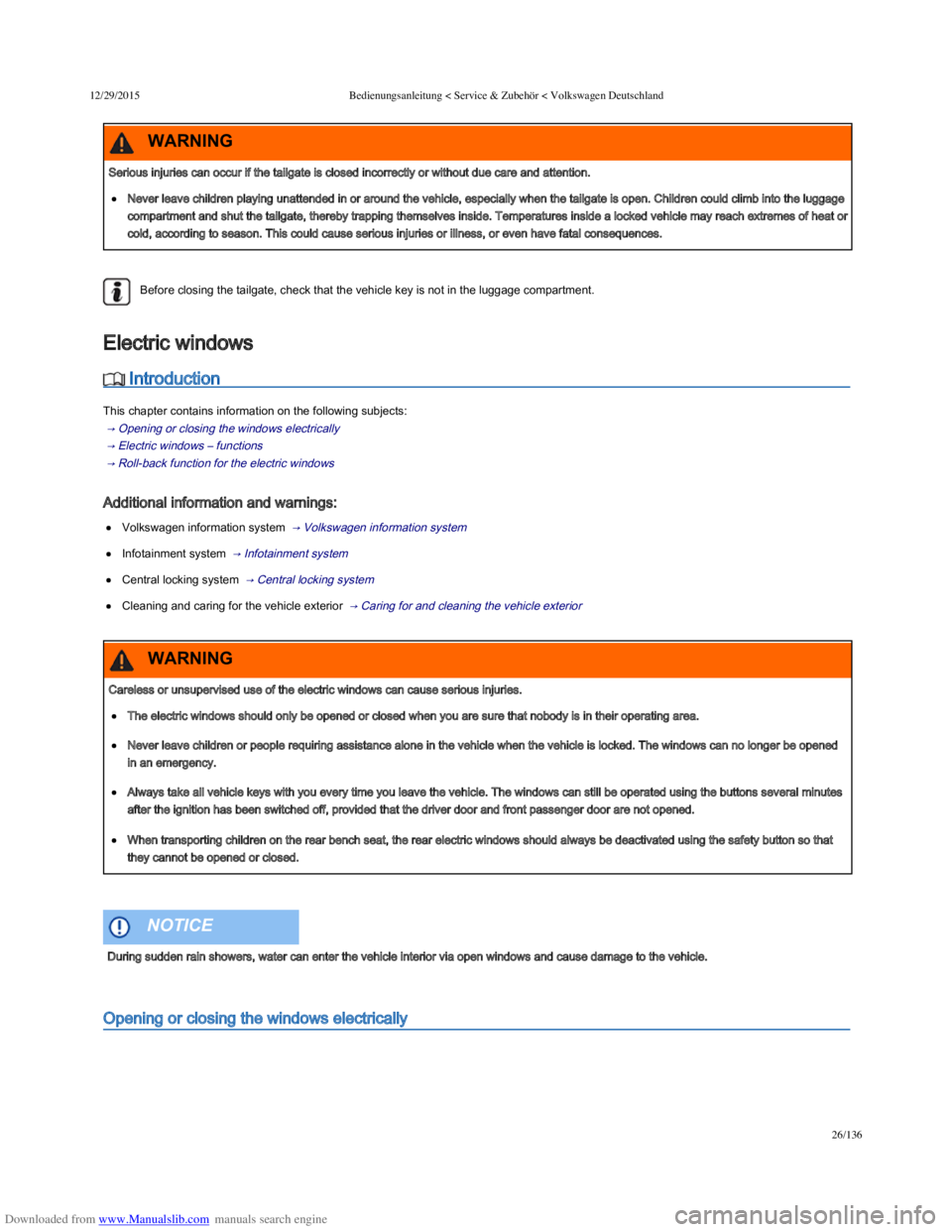

Serious injuries can occur if the tailgate is closed incorrectly or without due care and attention.
Never leave children playing unattended in or around the vehicle, especially when the tailgate is open. Children could climb into the luggage
compartment and shut the tailgate, thereby trapping themselves inside. Temperatures inside a locked vehicle may reach extremes of heat or
cold, according to season. This could cause serious injuries or illness, or even have fatal consequences.
WARNING
Electric windows
Careless or unsupervised use of the electric windows can cause serious injuries.
The electric windows should only be opened or closed when you are sure that nobody is in their operating area.
Never leave children or people requiring assistance alone in the vehicle when the vehicle is locked. The windows can no longer be opened
in an emergency.
Always take all vehicle keys with you every time you leave the vehicle. The windows can still be operated using the buttons several minutes
after the ignition has been switched off, provided that the driver door and front passenger door are not opened.
When transporting children on the rear bench seat, the rear electric windows should always be deactivated using the safety button so that
they cannot be opened or closed.
WARNING
During sudden rain showers, water can enter the vehicle interior via open windows and cause damage to the vehicle.
NOTICE

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
27/136

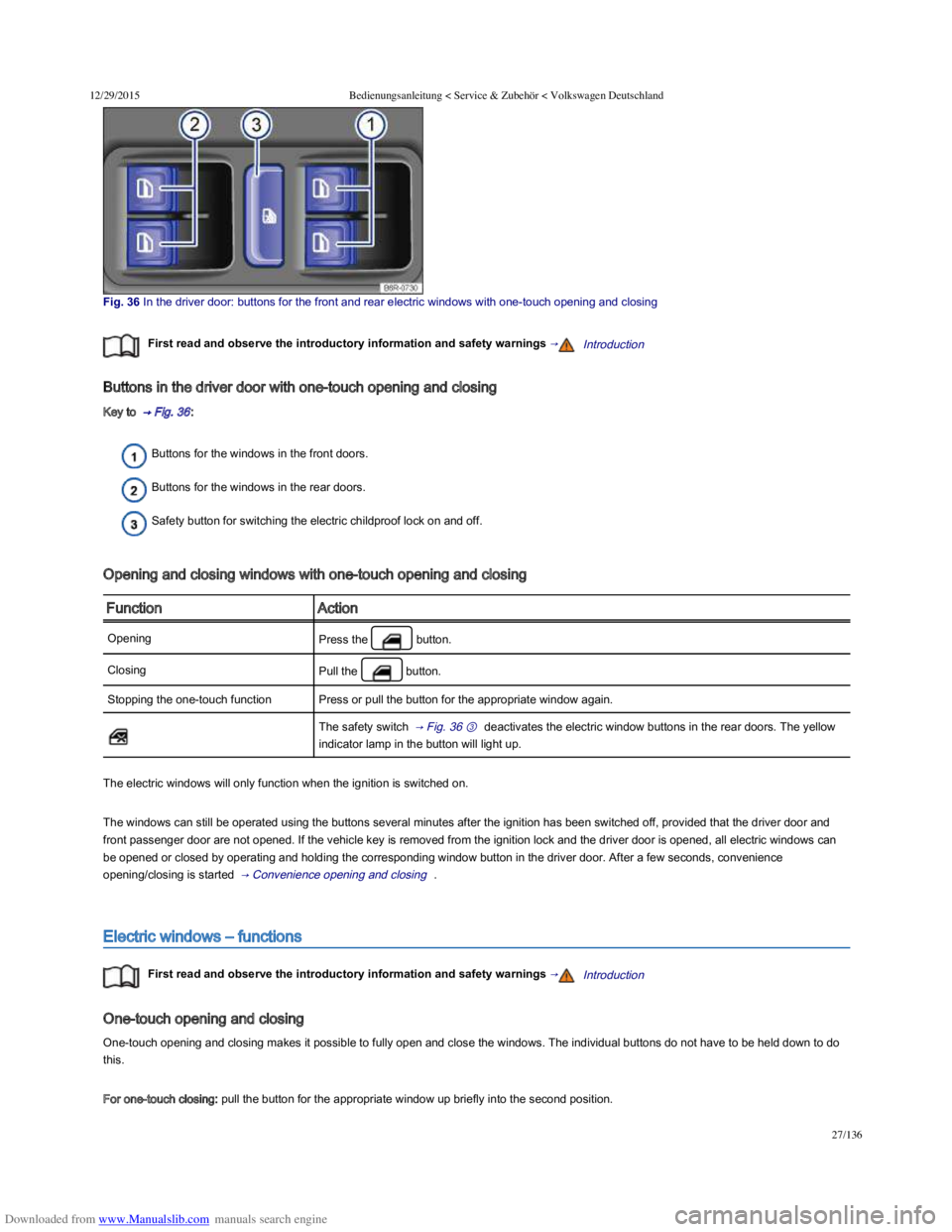

Fig. 36 In the driver door: buttons for the front and rear electric windows with one­touch opening and closing
First read and observe the introductory information and safety warnings →Introduction 
Buttons in the driver door with one-touch opening and closing
Key to  → Fig. 36 :
Buttons for the windows in the front doors.
Buttons for the windows in the rear doors.
Safety button for switching the electric childproof lock on and off.
Opening and closing windows with one-touch opening and closing
FunctionAction
OpeningPress the  button.
ClosingPull the  button.
Stopping the one-touch functionPress or pull the button for the appropriate window again.
The safety switch  → Fig. 36 ③   deactivates the electric window buttons in the rear doors. The yellow
indicator lamp in the button will light up.
The electric windows will only function when the ignition is switched on.
The windows can still be operated using the buttons several minutes after the ignition has been switched off, provided that the driver door and
front passenger door are not opened. If the vehicle key is removed from the ignition lock and the driver door is opened, all electric windows can
be opened or closed by operating and holding the corresponding window button in the driver door. After a few seconds, convenience
opening/closing is started  → Convenience opening and closing   .
Electric windows – functions
First read and observe the introductory information and safety warnings →Introduction 
One-touch opening and closing
One-touch opening and closing makes it possible to fully open and close the windows. The individual buttons do not have to be held down to do
this.
For one-touch closing: pull the button for the appropriate window up briefly into the second position.

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
28/136

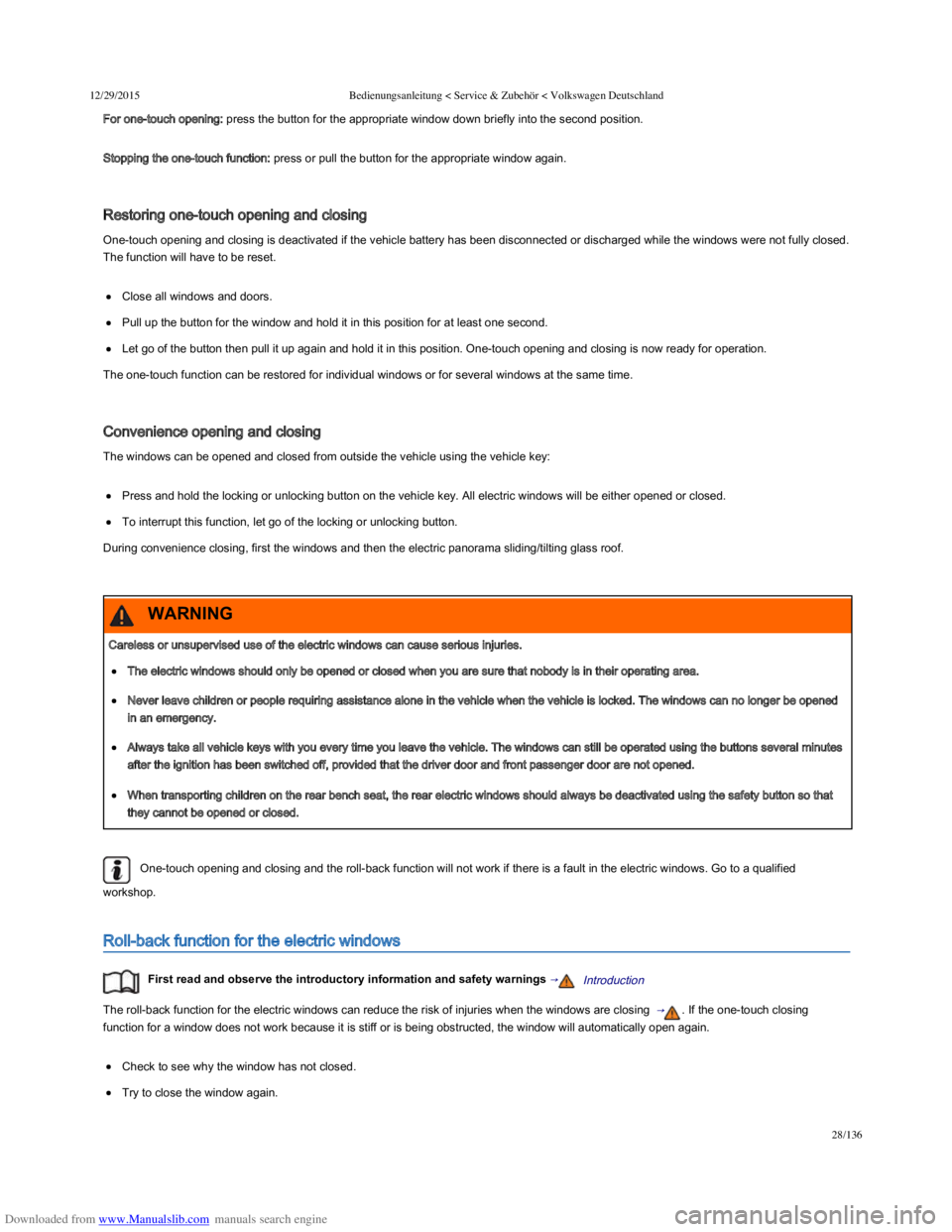

For one-touch opening: press the button for the appropriate window down briefly into the second position.
Stopping the one-touch function: press or pull the button for the appropriate window again.
Restoring one-touch opening and closing
One-touch opening and closing is deactivated if the vehicle battery has been disconnected or discharged while the windows were not fully closed.
The function will have to be reset.
Close all windows and doors.
Pull up the button for the window and hold it in this position for at least one second.
Let go of the button then pull it up again and hold it in this position. One-touch opening and closing is now ready for operation.
The one-touch function can be restored for individual windows or for several windows at the same time.
Convenience opening and closing
The windows can be opened and closed from outside the vehicle using the vehicle key:
Press and hold the locking or unlocking button on the vehicle key. All electric windows will be either opened or closed.
To interrupt this function, let go of the locking or unlocking button.
During convenience closing, first the windows and then the electric panorama sliding/tilting glass roof.
One-touch opening and closing and the roll-back function will not work if there is a fault in the electric windows. Go to a qualified
workshop.
Roll-back function for the electric windows
First read and observe the introductory information and safety warnings →Introduction 
The roll-back function for the electric windows can reduce the risk of injuries when the windows are closing  → . If the one-touch closing
function for a window does not work because it is stiff or is being obstructed, the window will automatically open again.
Check to see why the window has not closed.
Try to close the window again.
Careless or unsupervised use of the electric windows can cause serious injuries.
The electric windows should only be opened or closed when you are sure that nobody is in their operating area.
Never leave children or people requiring assistance alone in the vehicle when the vehicle is locked. The windows can no longer be opened
in an emergency.
Always take all vehicle keys with you every time you leave the vehicle. The windows can still be operated using the buttons several minutes
after the ignition has been switched off, provided that the driver door and front passenger door are not opened.
When transporting children on the rear bench seat, the rear electric windows should always be deactivated using the safety button so that
they cannot be opened or closed.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
29/136

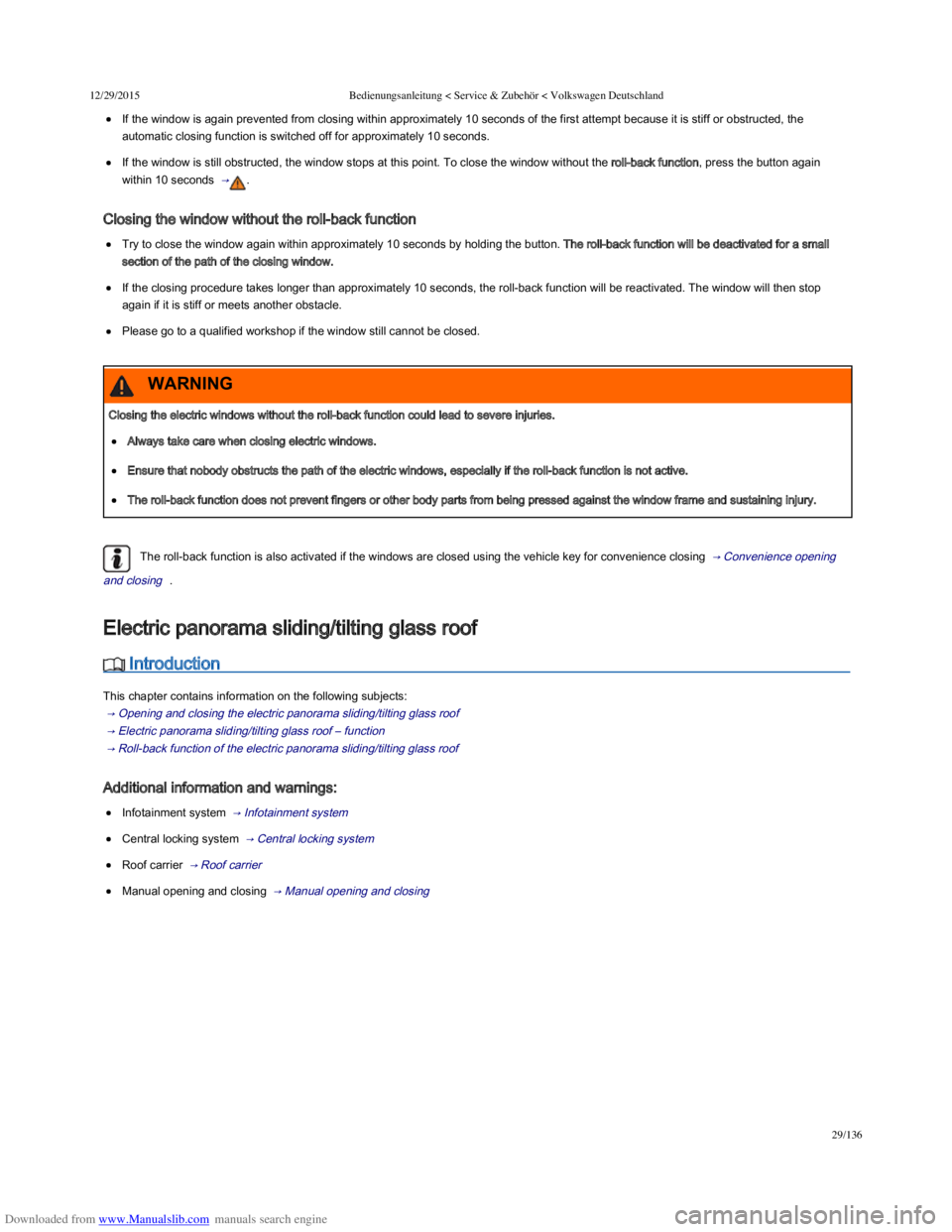

If the window is again prevented from closing within approximately 10 seconds of the first attempt because it is stiff or obstructed, the
automatic closing function is switched off for approximately 10 seconds.
If the window is still obstructed, the window stops at this point. To close the window without the roll-back function, press the button again
within 10 seconds  → .
Closing the window without the roll-back function
Try to close the window again within approximately 10 seconds by holding the button. The roll-back function will be deactivated for a small
section of the path of the closing window.
If the closing procedure takes longer than approximately 10 seconds, the roll-back function will be reactivated. The window will then stop
again if it is stiff or meets another obstacle.
Please go to a qualified workshop if the window still cannot be closed.
The roll-back function is also activated if the windows are closed using the vehicle key for convenience closing  → Convenience opening
and closing   .
 Introduction
This chapter contains information on the following subjects:
 → Opening and closing the electric panorama sliding/tilting glass roof  
 → Electric panorama sliding/tilting glass roof – function  
 → Roll-back function of the electric panorama sliding/tilting glass roof  
Additional information and warnings:
Infotainment system  → Infotainment system 
Central locking system  → Central locking system  
Roof carrier  → Roof carrier  
Manual opening and closing  → Manual opening and closing  
Closing the electric windows without the roll-back function could lead to severe injuries.
Always take care when closing electric windows.
Ensure that nobody obstructs the path of the electric windows, especially if the roll-back function is not active.
The roll-back function does not prevent fingers or other body parts from being pressed against the window frame and sustaining injury.
WARNING
Electric panorama sliding/tilting glass roof

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
30/136
If there is a fault in the electric panorama sliding/tilting roof, the roll-back function will not work properly. Go to a qualified workshop
Leaves and other loose objects must be removed from the guide rails of the electric panorama sliding/tilting glass roof at regular intervals,
using a vacuum cleaner or by hand.
Opening and closing the electric panorama sliding/tilting glass roof

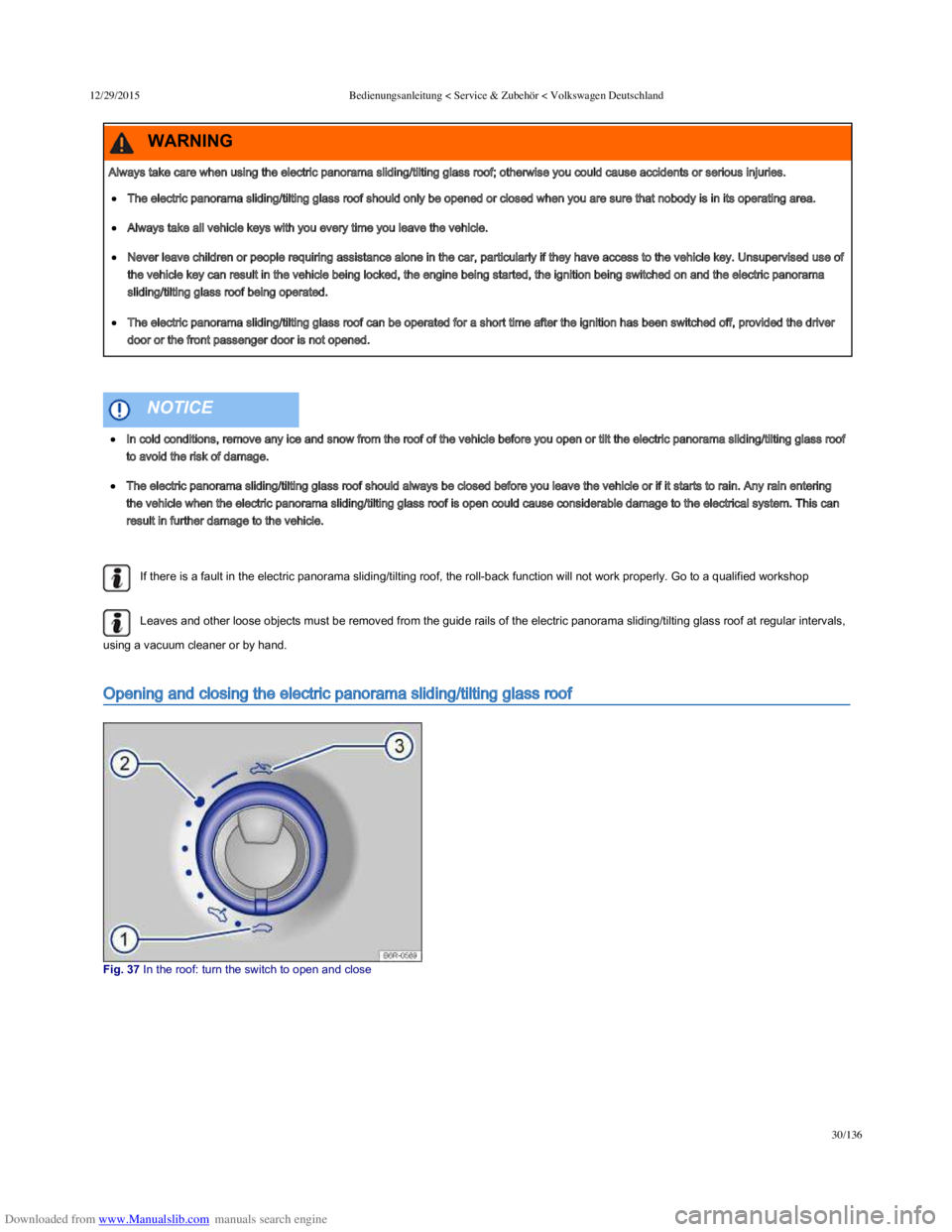

Fig. 37 In the roof: turn the switch to open and close
Always take care when using the electric panorama sliding/tilting glass roof; otherwise you could cause accidents or serious injuries.
The electric panorama sliding/tilting glass roof should only be opened or closed when you are sure that nobody is in its operating area.
Always take all vehicle keys with you every time you leave the vehicle.
Never leave children or people requiring assistance alone in the car, particularly if they have access to the vehicle key. Unsupervised use of
the vehicle key can result in the vehicle being locked, the engine being started, the ignition being switched on and the electric panorama
sliding/tilting glass roof being operated.
The electric panorama sliding/tilting glass roof can be operated for a short time after the ignition has been switched off, provided the driver
door or the front passenger door is not opened.
WARNING
In cold conditions, remove any ice and snow from the roof of the vehicle before you open or tilt the electric panorama sliding/tilting glass roof
to avoid the risk of damage.
The electric panorama sliding/tilting glass roof should always be closed before you leave the vehicle or if it starts to rain. Any rain entering
the vehicle when the electric panorama sliding/tilting glass roof is open could cause considerable damage to the electrical system. This can
result in further damage to the vehicle.
NOTICE

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
31/136

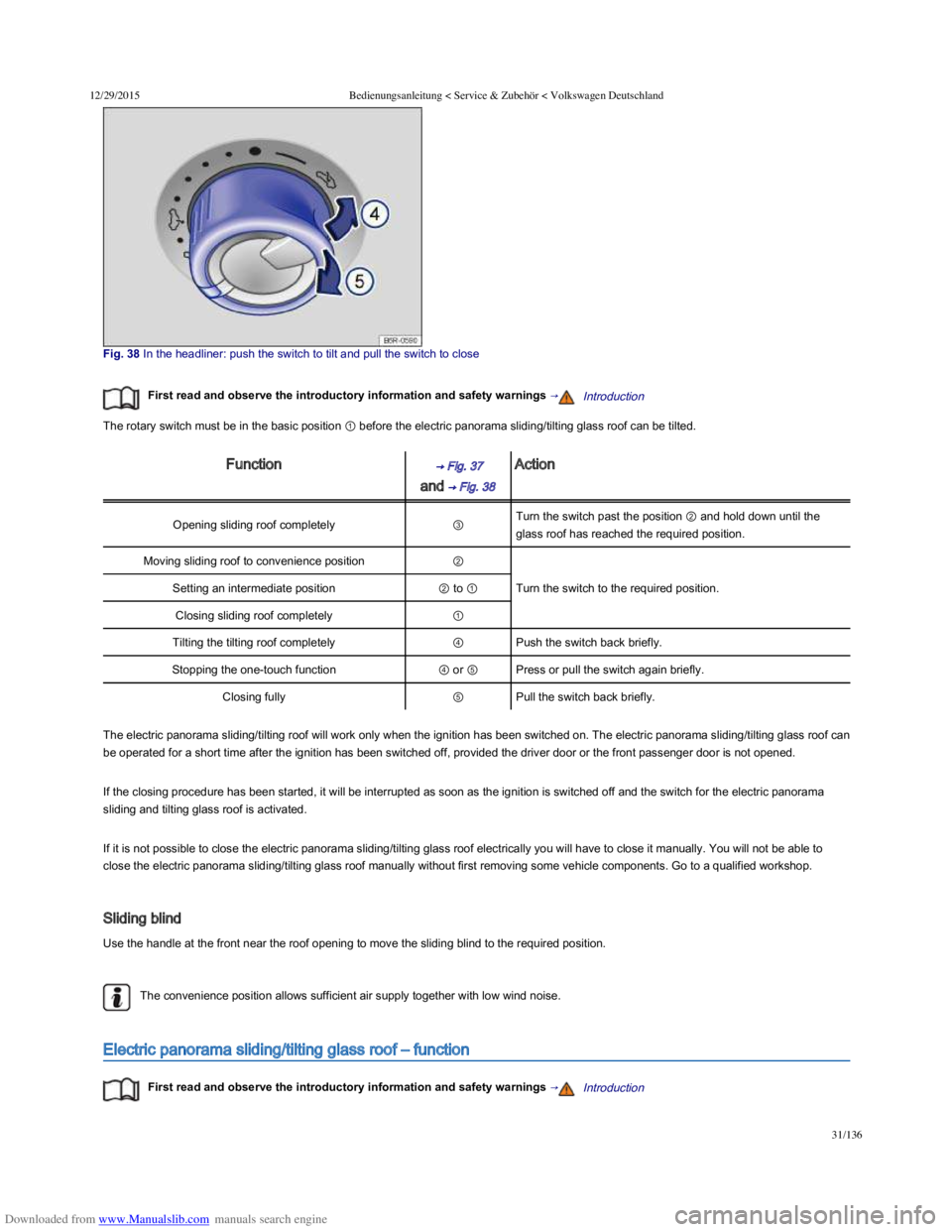

Fig. 38 In the headliner: push the switch to tilt and pull the switch to close
First read and observe the introductory information and safety warnings →Introduction 
The rotary switch must be in the basic position â‘  before the electric panorama sliding/tilting glass roof can be tilted.
Function → Fig. 37 
and → Fig. 38 
Action
Opening sliding roof completelyâ‘¢Turn the switch past the position â‘¡ and hold down until the
glass roof has reached the required position.
Moving sliding roof to convenience positionâ‘¡
Turn the switch to the required position.Setting an intermediate positionâ‘¡ to â‘
Closing sliding roof completelyâ‘
Tilting the tilting roof completelyâ‘£Push the switch back briefly.
Stopping the one-touch function④ or ⑤Press or pull the switch again briefly.
Closing fully⑤Pull the switch back briefly.
The electric panorama sliding/tilting roof will work only when the ignition has been switched on. The electric panorama sliding/tilting glass roof can
be operated for a short time after the ignition has been switched off, provided the driver door or the front passenger door is not opened.
If the closing procedure has been started, it will be interrupted as soon as the ignition is switched off and the switch for the electric panorama
sliding and tilting glass roof is activated.
If it is not possible to close the electric panorama sliding/tilting glass roof electrically you will have to close it manually. You will not be able to
close the electric panorama sliding/tilting glass roof manually without first removing some vehicle components. Go to a qualified workshop.
Sliding blind
Use the handle at the front near the roof opening to move the sliding blind to the required position.
The convenience position allows sufficient air supply together with low wind noise.
Electric panorama sliding/tilting glass roof – function
First read and observe the introductory information and safety warnings →Introduction 
Convenience opening and closing

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
32/136

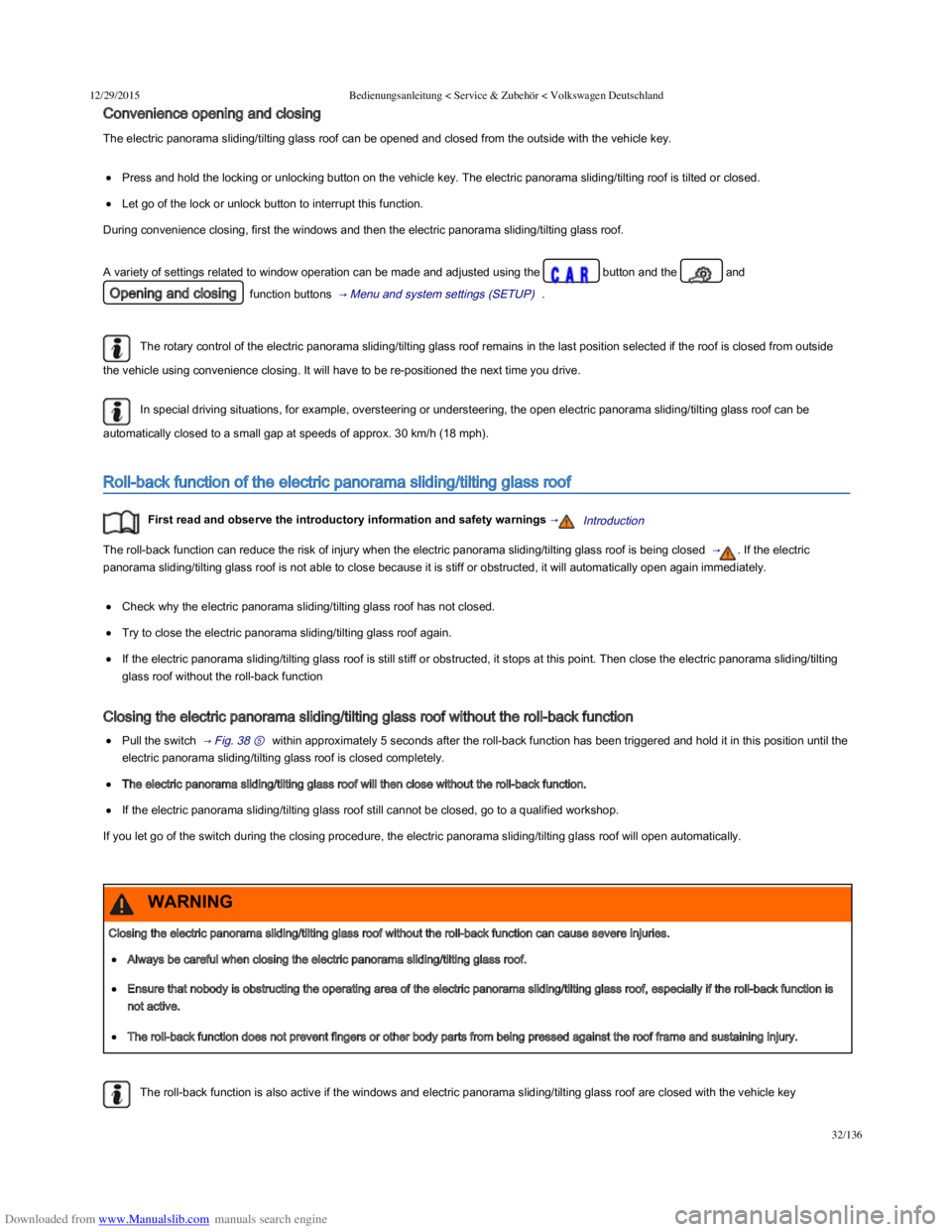

Convenience opening and closing
The electric panorama sliding/tilting glass roof can be opened and closed from the outside with the vehicle key.
Press and hold the locking or unlocking button on the vehicle key. The electric panorama sliding/tilting roof is tilted or closed.
Let go of the lock or unlock button to interrupt this function.
During convenience closing, first the windows and then the electric panorama sliding/tilting glass roof.
A variety of settings related to window operation can be made and adjusted using the button and the and
Opening and closing function buttons  → Menu and system settings (SETUP)   .
The rotary control of the electric panorama sliding/tilting glass roof remains in the last position selected if the roof is closed from outside
the vehicle using convenience closing. It will have to be re-positioned the next time you drive.
In special driving situations, for example, oversteering or understeering, the open electric panorama sliding/tilting glass roof can be
automatically closed to a small gap at speeds of approx. 30 km/h (18 mph).
Roll-back function of the electric panorama sliding/tilting glass roof
First read and observe the introductory information and safety warnings →Introduction 
The roll-back function can reduce the risk of injury when the electric panorama sliding/tilting glass roof is being closed  → . If the electric
panorama sliding/tilting glass roof is not able to close because it is stiff or obstructed, it will automatically open again immediately.
Check why the electric panorama sliding/tilting glass roof has not closed.
Try to close the electric panorama sliding/tilting glass roof again.
If the electric panorama sliding/tilting glass roof is still stiff or obstructed, it stops at this point. Then close the electric panorama sliding/tilting
glass roof without the roll-back function
Closing the electric panorama sliding/tilting glass roof without the roll-back function
Pull the switch  → Fig. 38 ⑤   within approximately 5 seconds after the roll-back function has been triggered and hold it in this position until the
electric panorama sliding/tilting glass roof is closed completely.
The electric panorama sliding/tilting glass roof will then close without the roll-back function.
If the electric panorama sliding/tilting glass roof still cannot be closed, go to a qualified workshop.
If you let go of the switch during the closing procedure, the electric panorama sliding/tilting glass roof will open automatically.
The roll-back function is also active if the windows and electric panorama sliding/tilting glass roof are closed with the vehicle key
 → Convenience opening and closing   .
Closing the electric panorama sliding/tilting glass roof without the roll-back function can cause severe injuries.
Always be careful when closing the electric panorama sliding/tilting glass roof.
Ensure that nobody is obstructing the operating area of the electric panorama sliding/tilting glass roof, especially if the roll-back function is
not active.
The roll-back function does not prevent fingers or other body parts from being pressed against the roof frame and sustaining injury.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
33/136
 → Convenience opening and closing   .
 Introduction
This chapter contains information on the following subjects:
 → The dangers of assuming an incorrect sitting position  
 → Correct sitting position  
 → Mechanical controls on the front seats  
 → Adjusting the head restraints  
 → Removing and fitting head restraints  
 → Adjusting the steering wheel position  
 → Centre armrest  
Number of seats
The vehicle has a total of 5 seats: 2 at the front and 3 at the rear. Each seat is equipped with a seat belt.
Additional information and warnings:
Seat functions  → Seat functions  
Seat belts  → Seat belts  
Airbag system  → Airbag system  
Child seats  → Child seats  
Cleaning and caring for the interior  → Cleaning and caring for the interior  

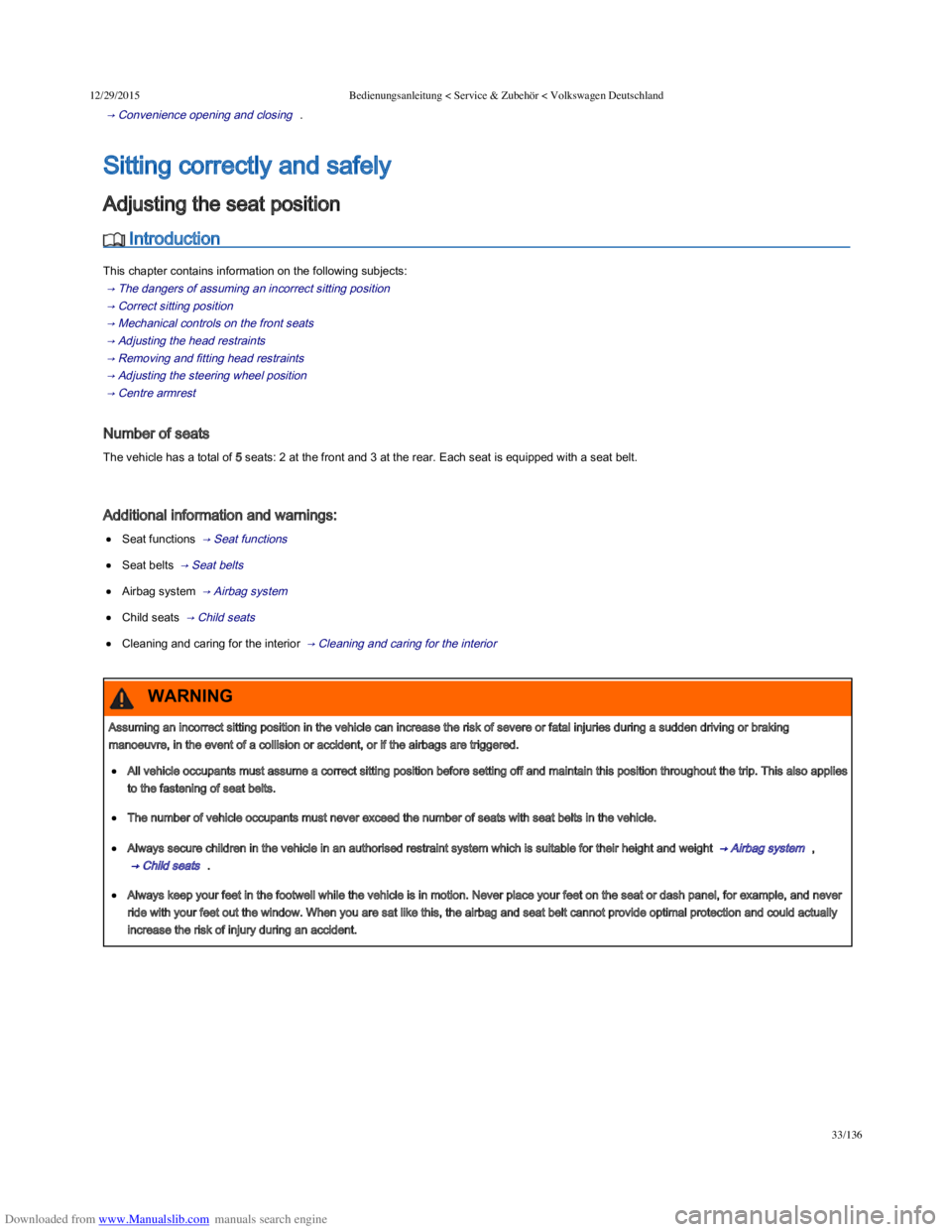

Sitting correctly and safely
Adjusting the seat position
Assuming an incorrect sitting position in the vehicle can increase the risk of severe or fatal injuries during a sudden driving or braking
manoeuvre, in the event of a collision or accident, or if the airbags are triggered.
All vehicle occupants must assume a correct sitting position before setting off and maintain this position throughout the trip. This also applies
to the fastening of seat belts.
The number of vehicle occupants must never exceed the number of seats with seat belts in the vehicle.
Always secure children in the vehicle in an authorised restraint system which is suitable for their height and weight  → Airbag system   ,
 → Child seats   .
Always keep your feet in the footwell while the vehicle is in motion. Never place your feet on the seat or dash panel, for example, and never
ride with your feet out the window. When you are sat like this, the airbag and seat belt cannot provide optimal protection and could actually
increase the risk of injury during an accident.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
34/136

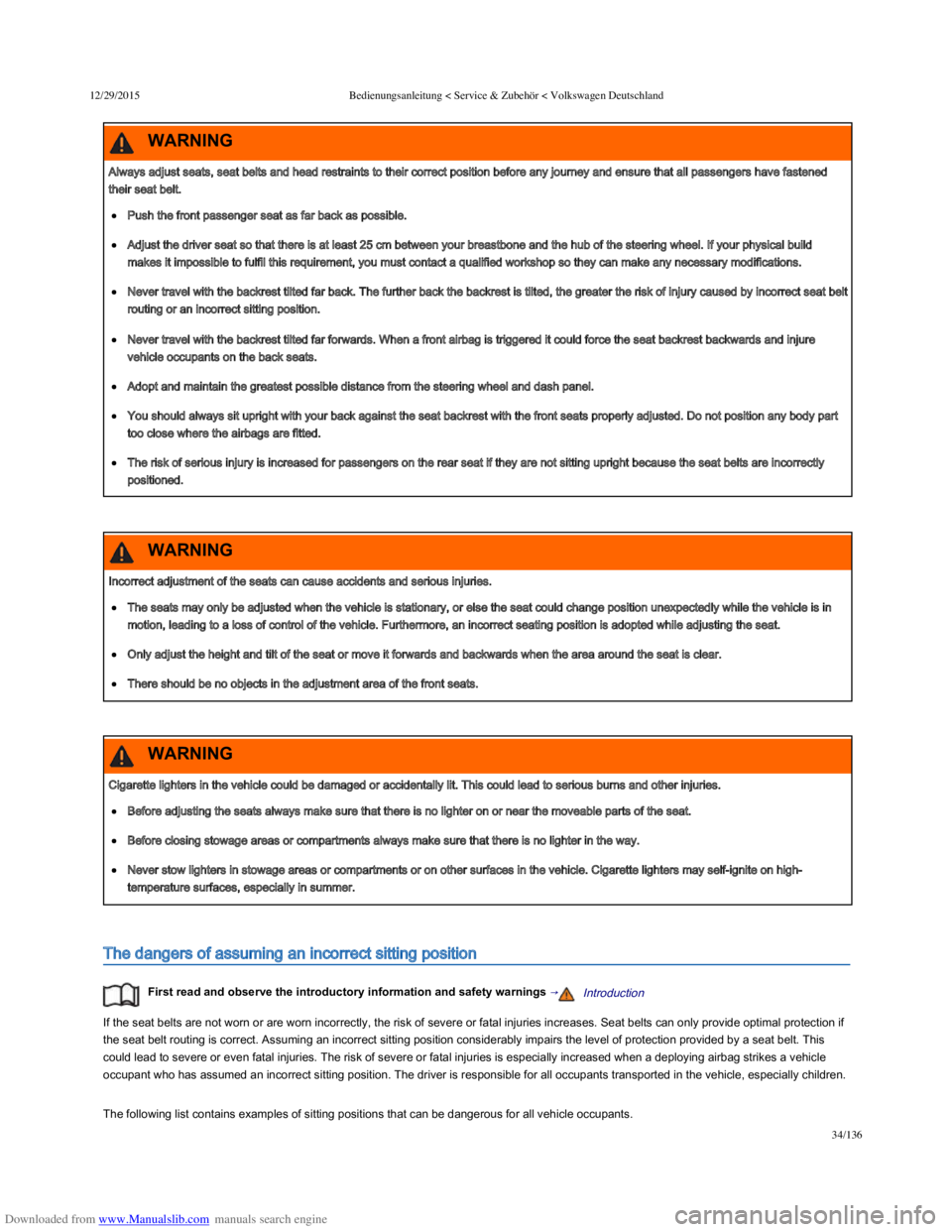

The dangers of assuming an incorrect sitting position
First read and observe the introductory information and safety warnings →Introduction 
If the seat belts are not worn or are worn incorrectly, the risk of severe or fatal injuries increases. Seat belts can only provide optimal protection if
the seat belt routing is correct. Assuming an incorrect sitting position considerably impairs the level of protection provided by a seat belt. This
could lead to severe or even fatal injuries. The risk of severe or fatal injuries is especially increased when a deploying airbag strikes a vehicle
occupant who has assumed an incorrect sitting position. The driver is responsible for all occupants transported in the vehicle, especially children.
The following list contains examples of sitting positions that can be dangerous for all vehicle occupants.
Always adjust seats, seat belts and head restraints to their correct position before any journey and ensure that all passengers have fastened
their seat belt.
Push the front passenger seat as far back as possible.
Adjust the driver seat so that there is at least 25 cm between your breastbone and the hub of the steering wheel. If your physical build
makes it impossible to fulfil this requirement, you must contact a qualified workshop so they can make any necessary modifications.
Never travel with the backrest tilted far back. The further back the backrest is tilted, the greater the risk of injury caused by incorrect seat belt
routing or an incorrect sitting position.
Never travel with the backrest tilted far forwards. When a front airbag is triggered it could force the seat backrest backwards and injure
vehicle occupants on the back seats.
Adopt and maintain the greatest possible distance from the steering wheel and dash panel.
You should always sit upright with your back against the seat backrest with the front seats properly adjusted. Do not position any body part
too close where the airbags are fitted.
The risk of serious injury is increased for passengers on the rear seat if they are not sitting upright because the seat belts are incorrectly
positioned.
WARNING
Incorrect adjustment of the seats can cause accidents and serious injuries.
The seats may only be adjusted when the vehicle is stationary, or else the seat could change position unexpectedly while the vehicle is in
motion, leading to a loss of control of the vehicle. Furthermore, an incorrect seating position is adopted while adjusting the seat.
Only adjust the height and tilt of the seat or move it forwards and backwards when the area around the seat is clear.
There should be no objects in the adjustment area of the front seats.
WARNING
Cigarette lighters in the vehicle could be damaged or accidentally lit. This could lead to serious burns and other injuries.
Before adjusting the seats always make sure that there is no lighter on or near the moveable parts of the seat.
Before closing stowage areas or compartments always make sure that there is no lighter in the way.
Never stow lighters in stowage areas or compartments or on other surfaces in the vehicle. Cigarette lighters may self-ignite on high-
temperature surfaces, especially in summer.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
35/136
Whenever the vehicle is in motion:
Never stand in the vehicle.
Never stand on the seats.
Never kneel on the seats.
Never tilt the backrest too far to the rear.
Never lean against the dash panel.
Never lie on the rear bench seat.
Never sit on the front edge of a seat.
Never sit sideways.
Never lean out of a window.
Never put your feet out of a window.
Never put your feet on the dash panel.
Never place your feet on the seat cushion or seat backrest.
Never travel in a footwell.
Never sit on the front armrest.
Never travel on a seat without wearing the seat belt.
Never travel in the luggage compartment.
Correct sitting position
Fig. 39 There must be a distance  of at least 25 cm between the driver and the steering wheel
Every incorrect sitting position in the vehicle increases the risk of severe or fatal injuries in the event of an accident or sudden driving or braking
manoeuvre.
All vehicle occupants must maintain a correct sitting position and wear their seat belt properly while the vehicle is in motion.
Sitting in an incorrect position, not fastening the seat belt, or being too close to the airbag exposes the occupants to the risk of sustaining
critical or fatal injuries, especially if the airbags are triggered and strike an occupant who has assumed an incorrect sitting position.
WARNING
