VOLVO S40 2009 Owner´s Manual

09 Maintenance and servicing
Fuses
09``231 Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.•
Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•
Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicingFuses
09232

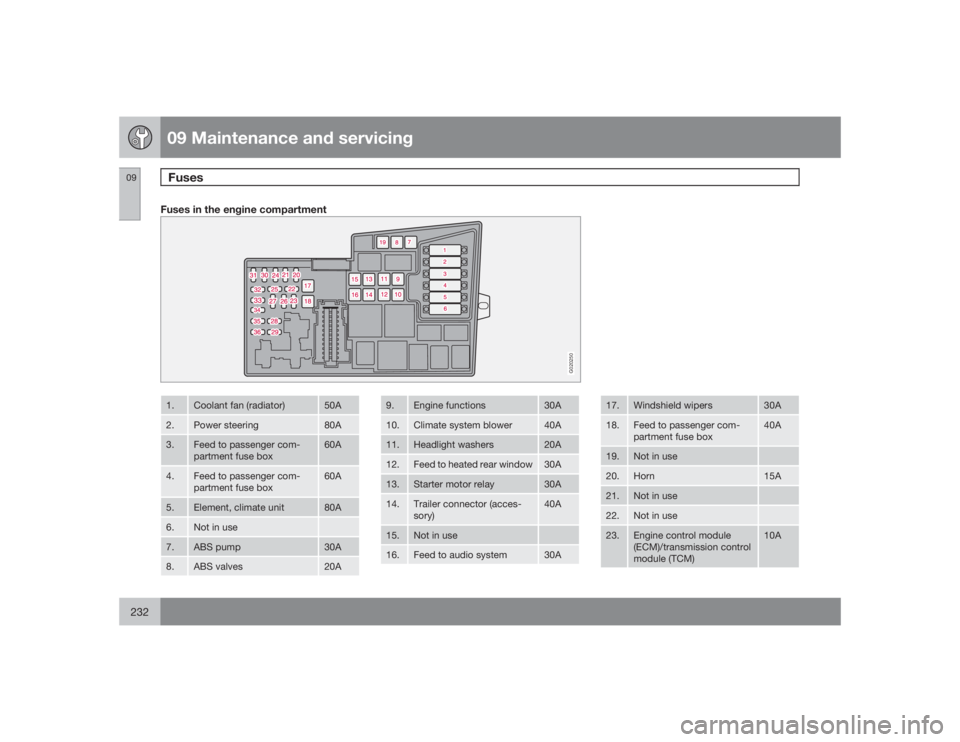

Fuses in the engine compartment
G020250
1.
Coolant fan (radiator)
50A
2.
Power steering
80A
3.
Feed to passenger com-
partment fuse box
60A
4.
Feed to passenger com-
partment fuse box
60A
5.
Element, climate unit
80A
6.
Not in use
7.
ABS pump
30A
8.
ABS valves
20A
9.
Engine functions
30A
10.
Climate system blower
40A
11.
Headlight washers
20A
12.
Feed to heated rear window
30A
13.
Starter motor relay
30A
14.
Trailer connector (acces-
sory)
40A
15.
Not in use
16.
Feed to audio system
30A
17.
Windshield wipers
30A
18.
Feed to passenger com-
partment fuse box
40A
19.
Not in use
20.
Horn
15A
21.
Not in use
22.
Not in use
23.
Engine control module
(ECM)/transmission control
module (TCM)
10A

09 Maintenance and servicing
Fuses
09``233

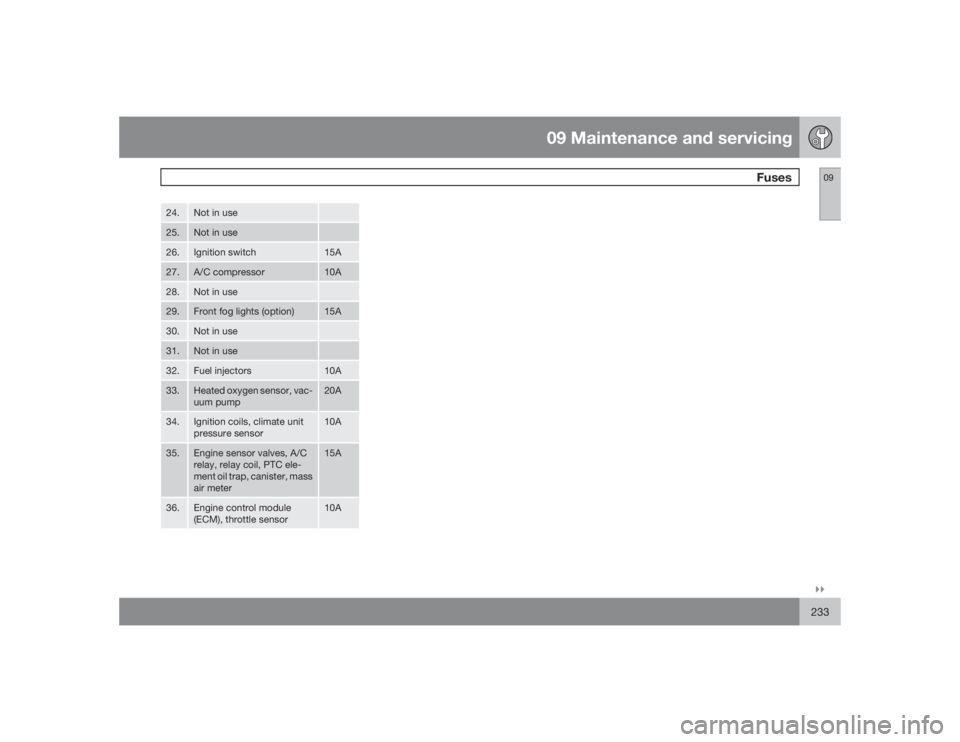

24.
Not in use
25.
Not in use
26.
Ignition switch
15A
27.
A/C compressor
10A
28.
Not in use
29.
Front fog lights (option)
15A
30.
Not in use
31.
Not in use
32.
Fuel injectors
10A
33.
Heated oxygen sensor, vac-
uum pump
20A
34.
Ignition coils, climate unit
pressure sensor
10A
35.
Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter
15A
36.
Engine control module
(ECM), throttle sensor
10A

09 Maintenance and servicingFuses
09234
Fuse box in the passenger compartment
G020601
The fuse box in the passenger compartment is
located under the glove compartment.
To access the fuses:
1. Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the pins out.
2. Turn both retaining screws (2) counter-
clockwise until they release.
3. Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.
4. Replace the blown fuse.
5. Close the fuse box in reverse order.6. Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.

09 Maintenance and servicing
Fuses
09``235

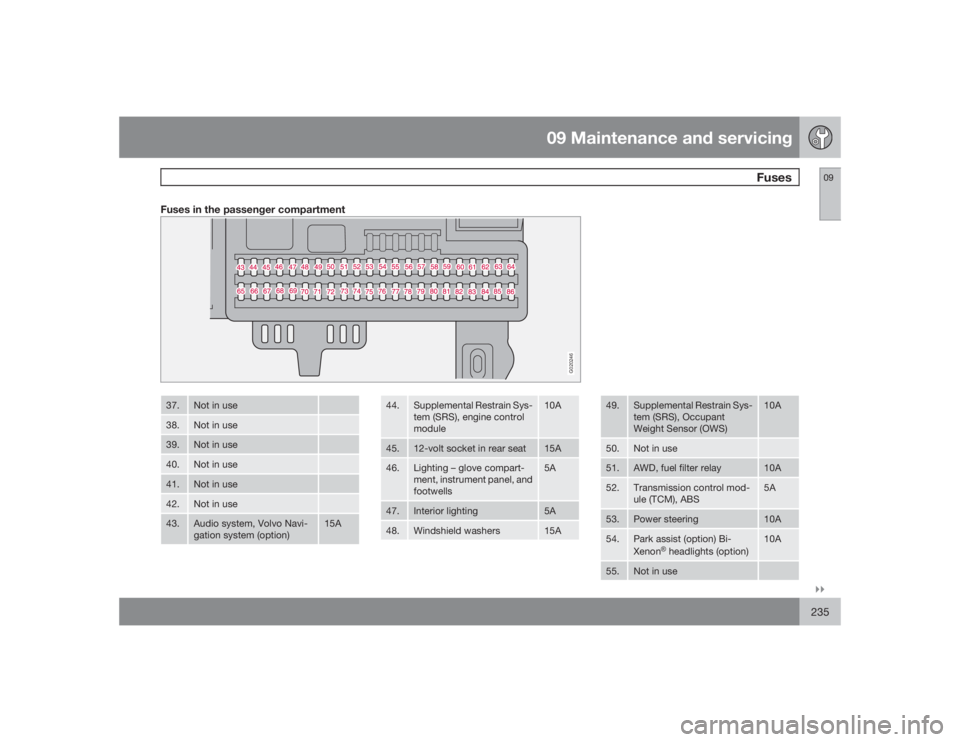

Fuses in the passenger compartment
G020246
37.
Not in use
38.
Not in use
39.
Not in use
40.
Not in use
41.
Not in use
42.
Not in use
43.
Audio system, Volvo Navi-
gation system (option)
15A
44.
Supplemental Restrain Sys-
tem (SRS), engine control
module
10A
45.
12-volt socket in rear seat
15A
46.
Lighting – glove compart-
ment, instrument panel, and
footwells
5A
47.
Interior lighting
5A
48.
Windshield washers
15A
49.
Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)
10A
50.
Not in use
51.
AWD, fuel filter relay
10A
52.
Transmission control mod-
ule (TCM), ABS
5A
53.
Power steering
10A
54.
Park assist (option) Bi-
Xenon
Ÿ headlights (option)
10A
55.
Not in use

09 Maintenance and servicingFuses
09236
56.
Volvo Navigation System
remote control module
(option), alarm siren control
module
10A
57.
On-board diagnostic
socket, brake light switch
15A
58.
Right high beam, auxiliary
lights relay
7.5A
59.
Left high beam
7.5A
60.
Heated driver's seat
(option)
15A
61.
Heated passenger's seat
(option)
15A
62.
Moonroof (option)
20A
63.
Power window and door
lock – rear passenger's side
door
20A
64.
Audio system, Volvo Navi-
gation system (option)
5A
65.
Audio system
5A
66.
Audio system control mod-
ule (ICM), climate system
10A
67.
Not in use
68.
Cruise control
5A
69.
Climate system, rain sensor
(option), BLIS button
(option)
5A
70.
Not in use
71.
Not in use
72.
Not in use
73.
Moonroof, front ceiling
lighting, auto-dim mirror,
(option) seat belt reminder
5A
74.
Fuel pump relay
15A
75.
Not in use
76.
Not in use
77.
Auxiliary equipment control
module (AEM)
15A
78.
Not in use
79.
Back-up lights
5A
80.
Not in use
81.
Power window and door
lock – rear driver's side door
20A
82.
Power window – front pas-
senger's side door
25A
83.
Power window and door
lock – front driver's side
door
25A
84.
Power passenger's seat
25A
85.
Power driver's seat
25A
86.
Interior lighting relay, trunk
lighting, power seats
5A

09 Maintenance and servicing
09
237

G020924
238
Audio functions..................................................................................... 240
Radio functions..................................................................................... 244
CD player/CD changer.......................................................................... 249
Audio menu........................................................................................... 253
BluetoothŸ hands-free connection....................................................... 254

10
AUDIO

10 AudioAudio functions
10240
Audio system controls
G026347
VOLUME dialAM/FM – select a radio bandMODE – select a sound sourceTUNING dialSOUND button
G021296
Auxiliary connectorSelecting a sound source•
PressAM/FM (2) repeatedly to toggle
between FM1, FM2, and AM.
•
PressMODE (3) repeatedly to toggle
between the CD player and the optional
external sound source AUX or the optional
Sirius satellite radio.
The currently selected sound source will be
shown in the display.
AUXThe AUX (auxiliary) port, located under the cen-
ter armrest, can be used to connect for exam-
ple, an mp3 player.If the player is being charged through a 12-volt
socket while it is connect to the AUX port,
sound quality may be impaired.
The volume of the external sound source AUX
may be different from the volume of the internal
sound sources such as the CD player or the
radio. If the external sound source's volume is
too high, the quality of the sound may be
impaired.
This can be prevented by adjusting the external
sound source's input volume.
1. While playing the radio or a CD, lower the
audio volume to about one-quarter.
2.
Switch to
AUX
mode on the audio system
by pressing the MODE button.
3. Connect the headphone output from your
music player to the AUX input using a cable
with a stereo 3.5 mm miniplug at both
ends.
4. Set your music player's headphone vol-
ume to three-quarters using the player's
volume controls.
5.
PressMENU on the audio system, and
navigate to
AUX Volume
orAUX Input
Volume
.
6. Turn the volume knob to raise or lower the
AUX Input Volume
until you hear music at
a comfortable level.
