VOLVO S60 2008 Owners Manual

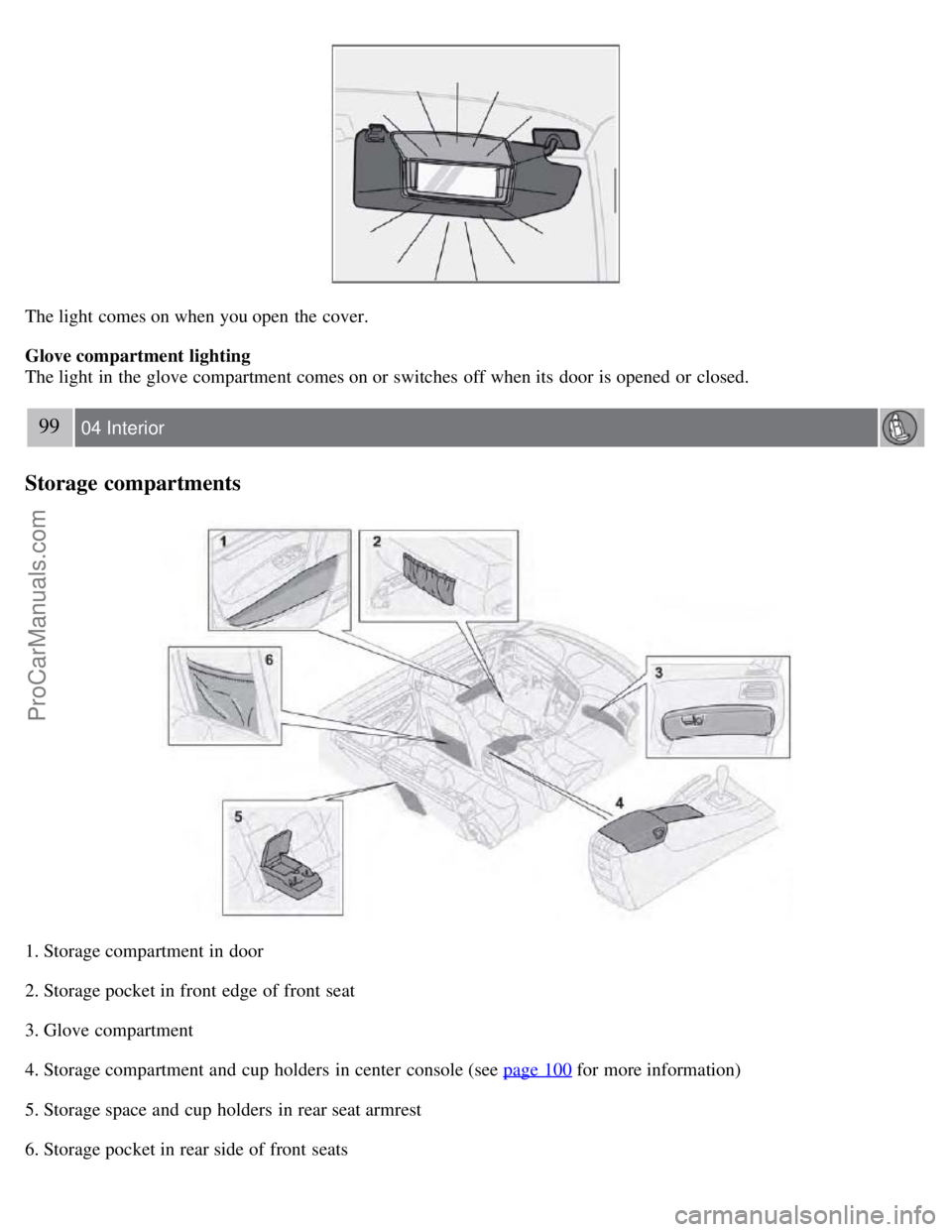

The light comes on when you open the cover.
Glove compartment lighting
The light in the glove compartment comes on or switches off when its door is opened or closed.
99 04 Interior
Storage compartments
1. Storage compartment in door
2. Storage pocket in front edge of front seat
3. Glove compartment
4. Storage compartment and cup holders in center console (see page 100
for more information)
5. Storage space and cup holders in rear seat armrest
6. Storage pocket in rear side of front seats
ProCarManuals.com

100 04 Interior

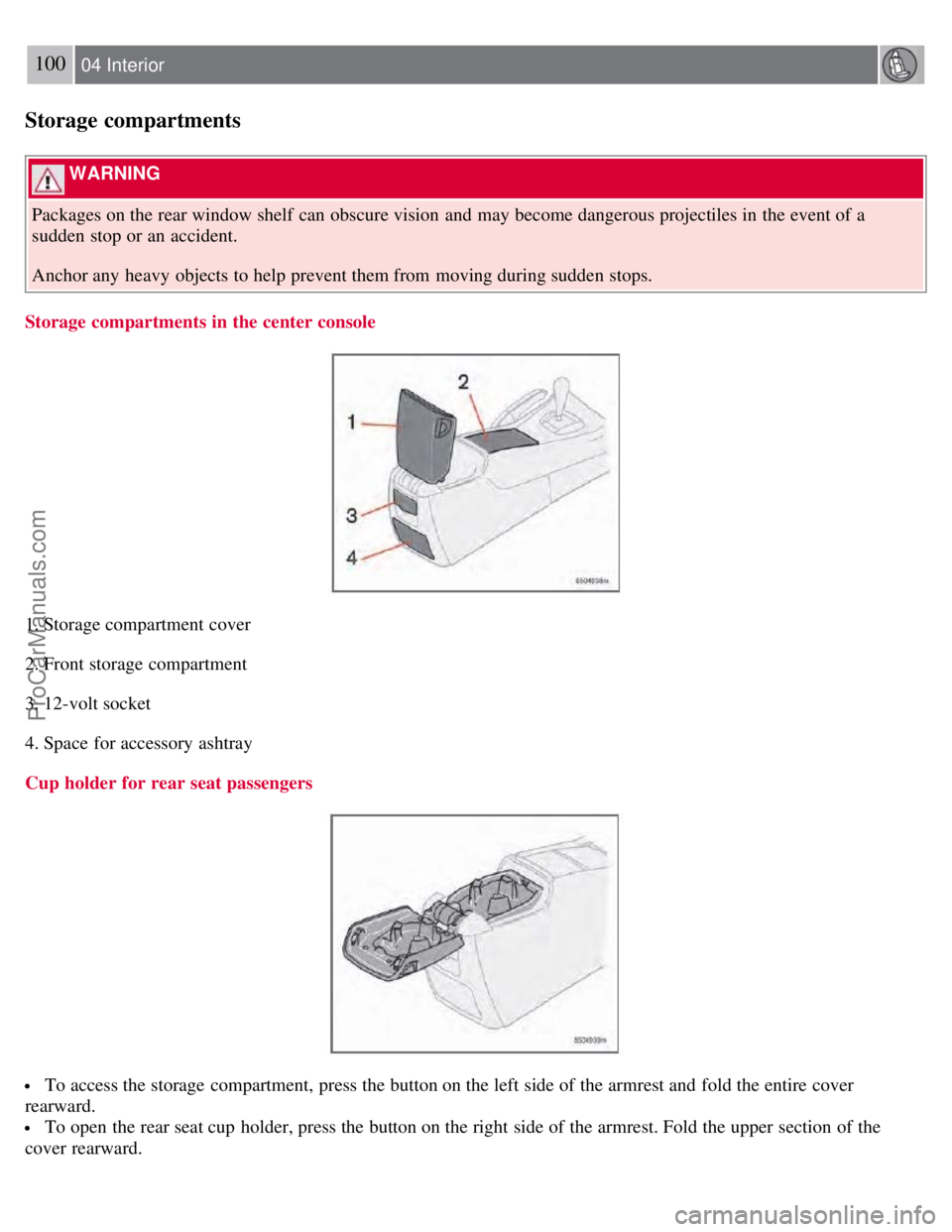

Storage compartments
WARNING
Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a
sudden stop or an accident.
Anchor any heavy objects to help prevent them from moving during sudden stops.
Storage compartments in the center console
1. Storage compartment cover
2. Front storage compartment
3. 12-volt socket
4. Space for accessory ashtray
Cup holder for rear seat passengers
To access the storage compartment, press the button on the left side of the armrest and fold the entire cover
rearward.
To open the rear seat cup holder, press the button on the right side of the armrest. Fold the upper section of the
cover rearward.
ProCarManuals.com

The two sections of the cover can be closed separately.
101 04 Interior
Storage compartments

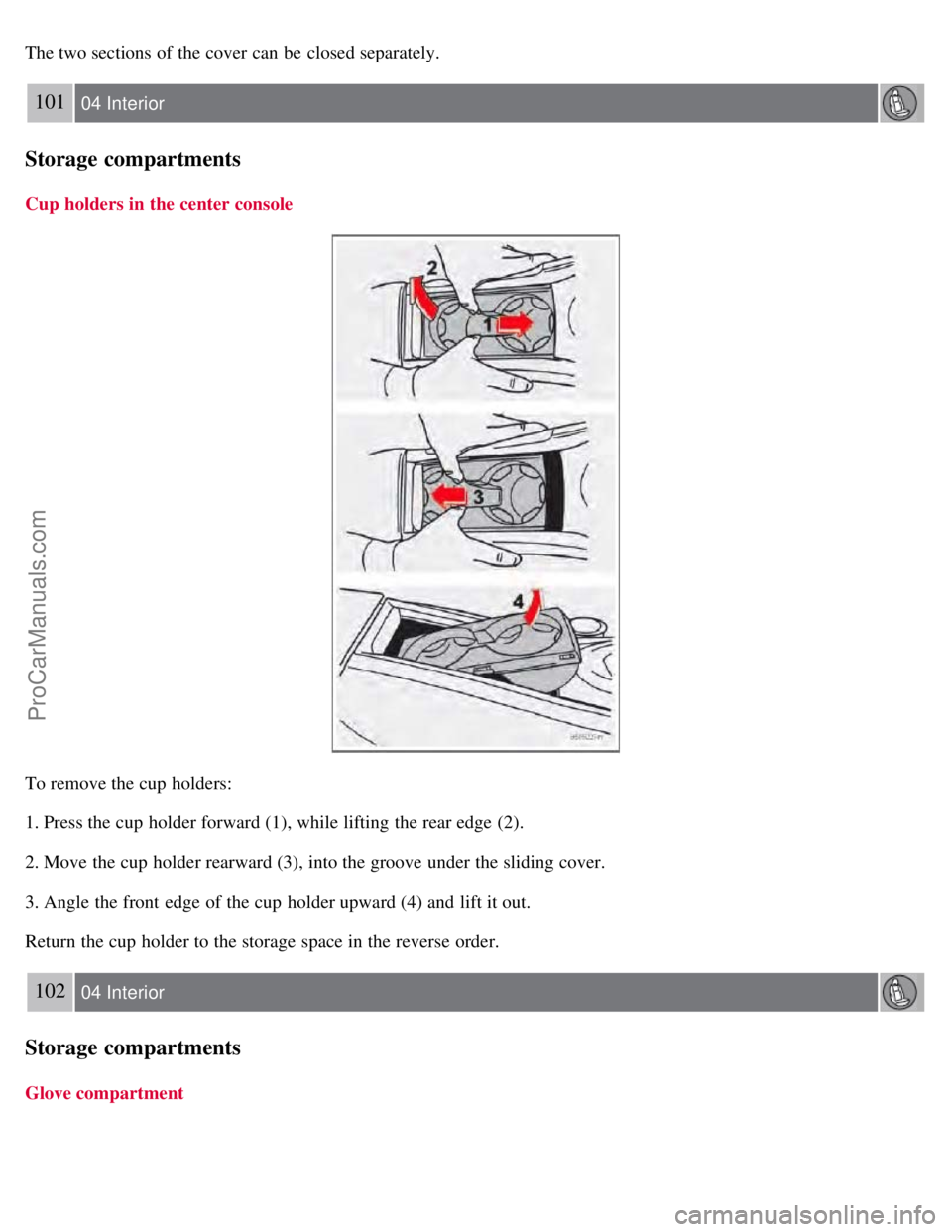

Cup holders in the center console
To remove the cup holders:
1. Press the cup holder forward (1), while lifting the rear edge (2).
2. Move the cup holder rearward (3), into the groove under the sliding cover.
3. Angle the front edge of the cup holder upward (4) and lift it out.
Return the cup holder to the storage space in the reverse order.
102 04 Interior
Storage compartments
Glove compartment
ProCarManuals.com

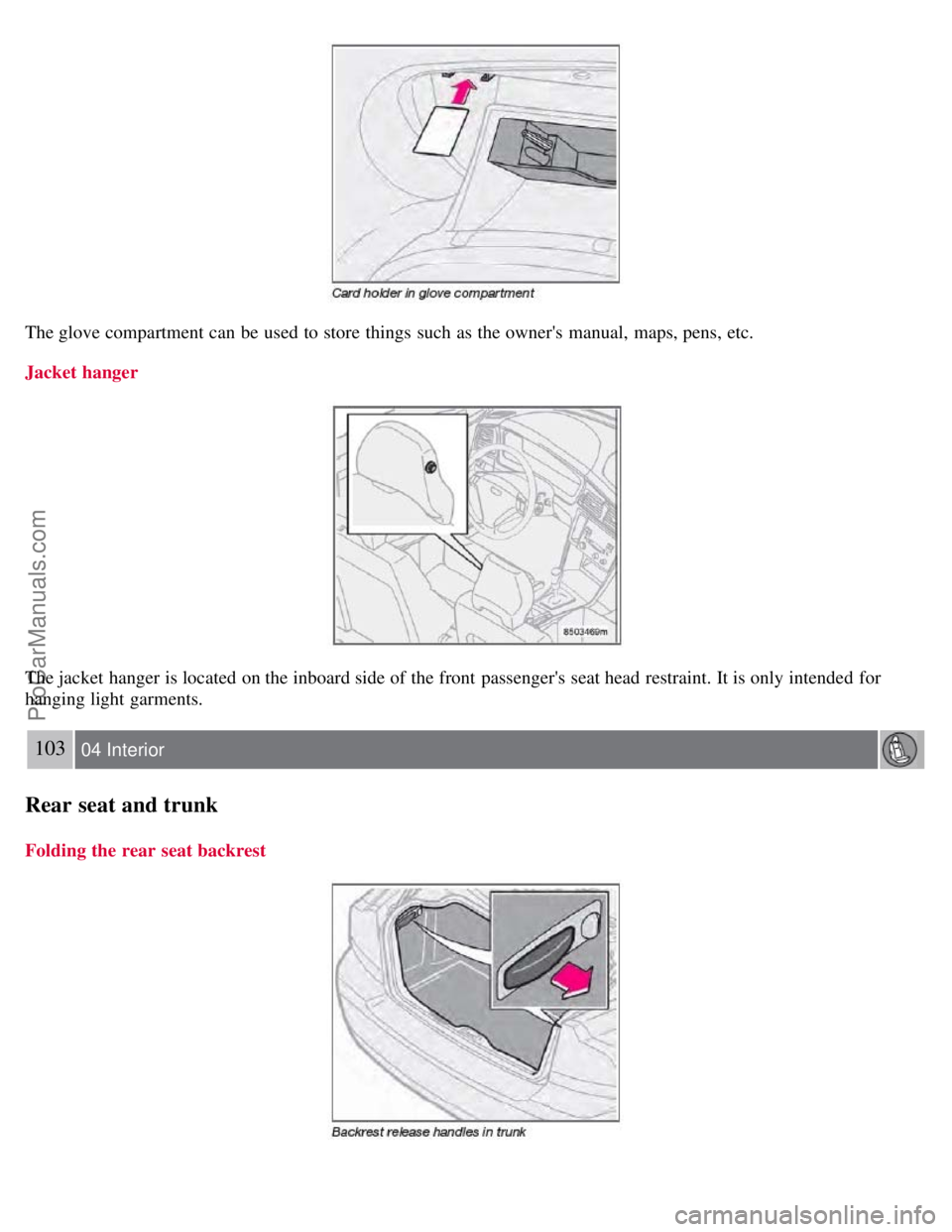

The glove compartment can be used to store things such as the owner's manual, maps, pens, etc.
Jacket hanger
The jacket hanger is located on the inboard side of the front passenger's seat head restraint. It is only intended for
hanging light garments.
103 04 Interior
Rear seat and trunk
Folding the rear seat backrest
ProCarManuals.com

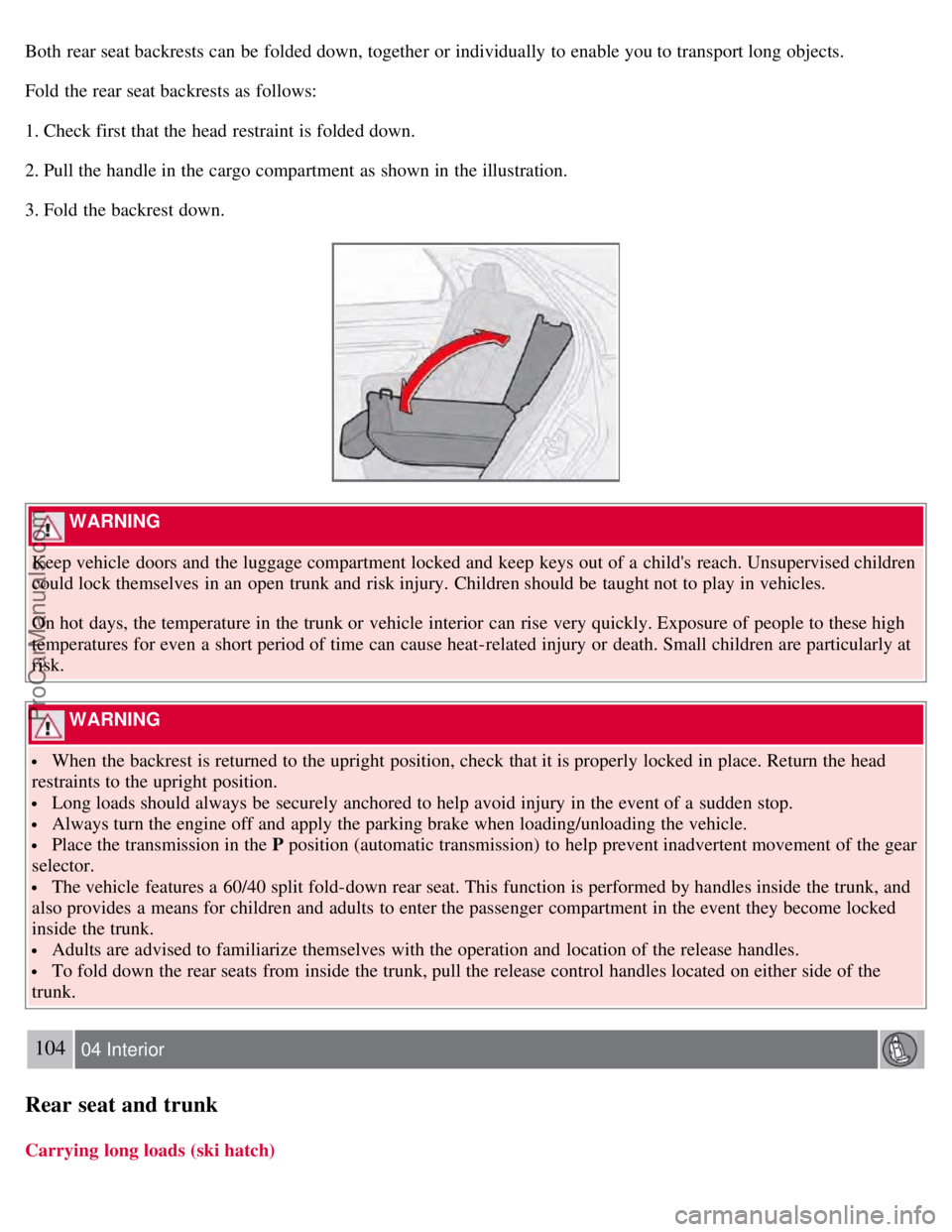

Both rear seat backrests can be folded down, together or individually to enable you to transport long objects.
Fold the rear seat backrests as follows:
1. Check first that the head restraint is folded down.
2. Pull the handle in the cargo compartment as shown in the illustration.
3. Fold the backrest down.
WARNING
Keep vehicle doors and the luggage compartment locked and keep keys out of a child's reach. Unsupervised children
could lock themselves in an open trunk and risk injury. Children should be taught not to play in vehicles.
On hot days, the temperature in the trunk or vehicle interior can rise very quickly. Exposure of people to these high
temperatures for even a short period of time can cause heat-related injury or death. Small children are particularly at
risk.
WARNING
When the backrest is returned to the upright position, check that it is properly locked in place. Return the head
restraints to the upright position.
Long loads should always be securely anchored to help avoid injury in the event of a sudden stop.
Always turn the engine off and apply the parking brake when loading/unloading the vehicle.
Place the transmission in the P position (automatic transmission) to help prevent inadvertent movement of the gear
selector.
The vehicle features a 60/40 split fold-down rear seat. This function is performed by handles inside the trunk, and
also provides a means for children and adults to enter the passenger compartment in the event they become locked
inside the trunk.
Adults are advised to familiarize themselves with the operation and location of the release handles.
To fold down the rear seats from inside the trunk, pull the release control handles located on either side of the
trunk.
104 04 Interior
Rear seat and trunk
Carrying long loads (ski hatch)
ProCarManuals.com

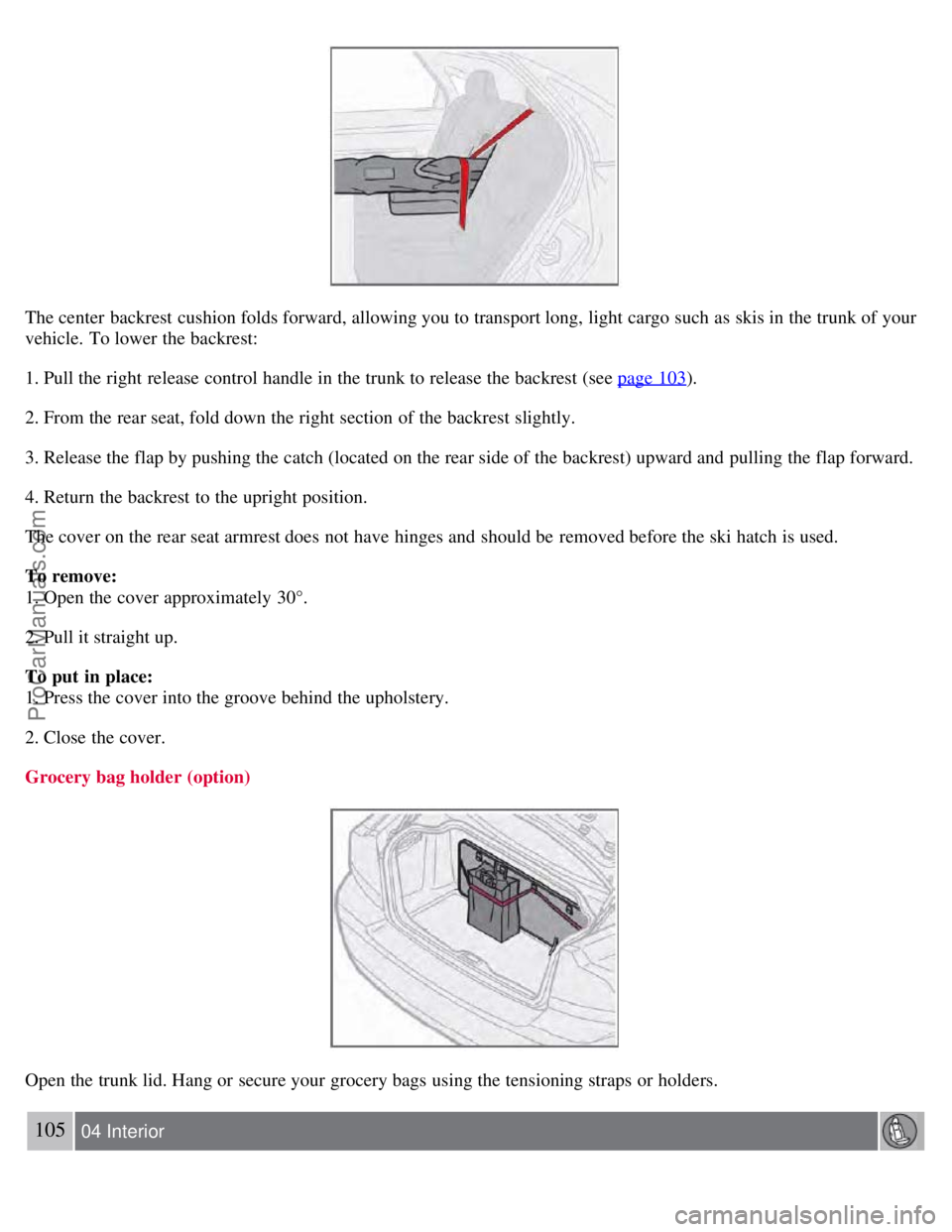

The center backrest cushion folds forward, allowing you to transport long, light cargo such as skis in the trunk of your
vehicle. To lower the backrest:
1. Pull the right release control handle in the trunk to release the backrest (see page 103
).
2. From the rear seat, fold down the right section of the backrest slightly.
3. Release the flap by pushing the catch (located on the rear side of the backrest) upward and pulling the flap forward.
4. Return the backrest to the upright position.
The cover on the rear seat armrest does not have hinges and should be removed before the ski hatch is used.
To remove:
1. Open the cover approximately 30°.
2. Pull it straight up.
To put in place:
1. Press the cover into the groove behind the upholstery.
2. Close the cover.
Grocery bag holder (option)
Open the trunk lid. Hang or secure your grocery bags using the tensioning straps or holders.
105 04 Interior
ProCarManuals.com

Rear seat and trunk

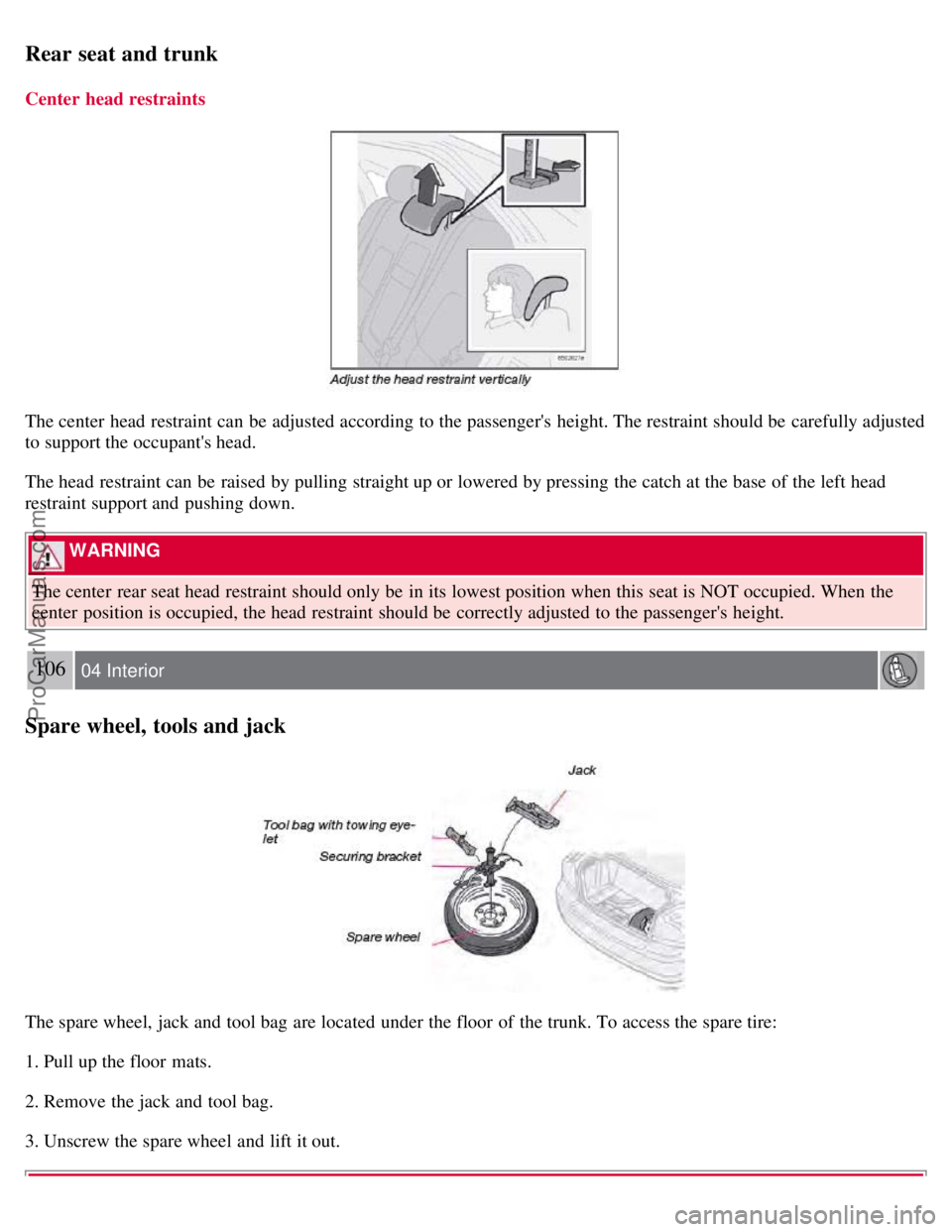

Center head restraints
The center head restraint can be adjusted according to the passenger's height. The restraint should be carefully adjusted
to support the occupant's head.
The head restraint can be raised by pulling straight up or lowered by pressing the catch at the base of the left head
restraint support and pushing down.
WARNING
The center rear seat head restraint should only be in its lowest position when this seat is NOT occupied. When the
center position is occupied, the head restraint should be correctly adjusted to the passenger's height.
106 04 Interior
Spare wheel, tools and jack
The spare wheel, jack and tool bag are located under the floor of the trunk. To access the spare tire:
1. Pull up the floor mats.
2. Remove the jack and tool bag.
3. Unscrew the spare wheel and lift it out.
ProCarManuals.com

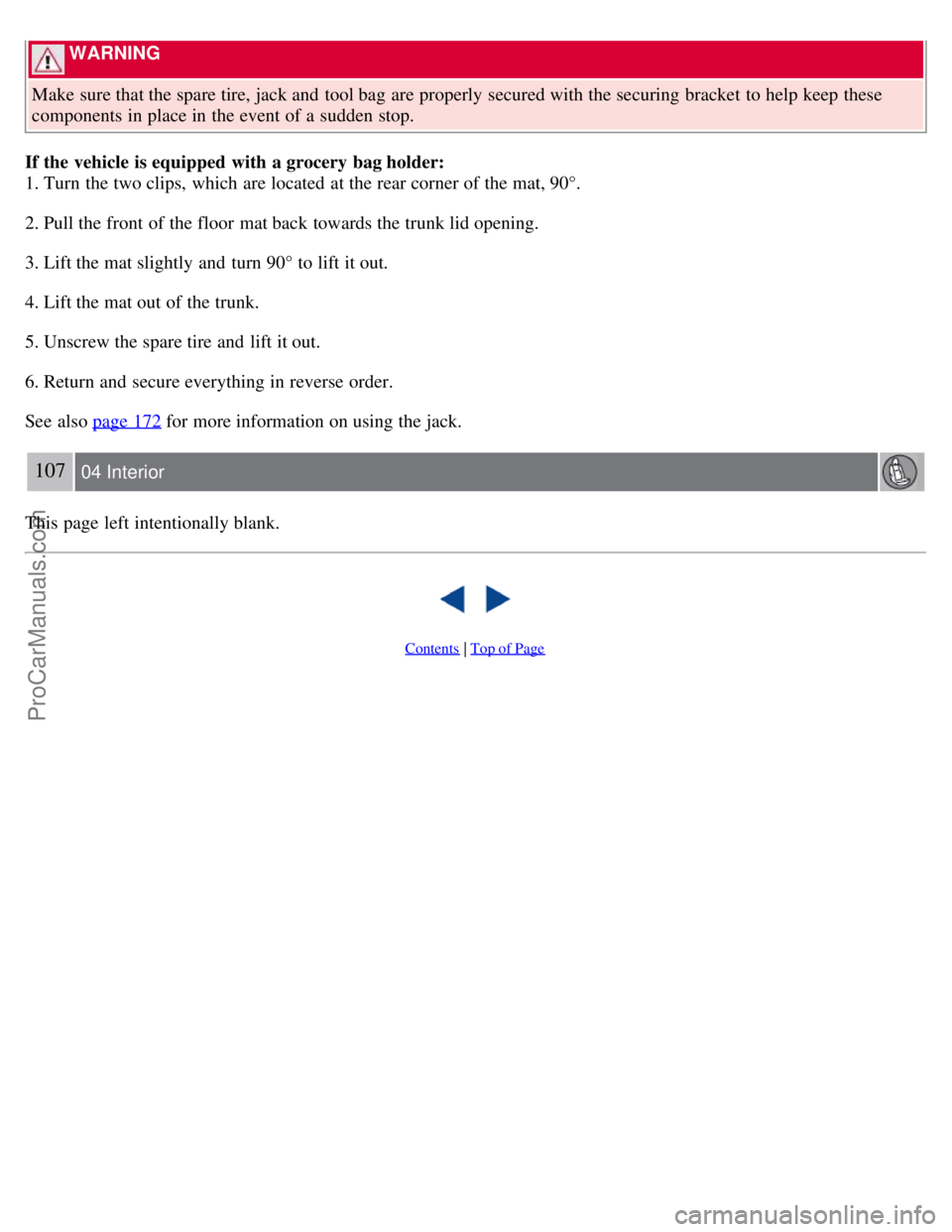

WARNING
Make sure that the spare tire, jack and tool bag are properly secured with the securing bracket to help keep these
components in place in the event of a sudden stop.
If the vehicle is equipped with a grocery bag holder:
1. Turn the two clips, which are located at the rear corner of the mat, 90°.
2. Pull the front of the floor mat back towards the trunk lid opening.
3. Lift the mat slightly and turn 90° to lift it out.
4. Lift the mat out of the trunk.
5. Unscrew the spare tire and lift it out.
6. Return and secure everything in reverse order.
See also page 172
for more information on using the jack.
107 04 Interior
This page left intentionally blank.

Contents | Top of Page
ProCarManuals.com

2 0 0 8
VOLVO S60

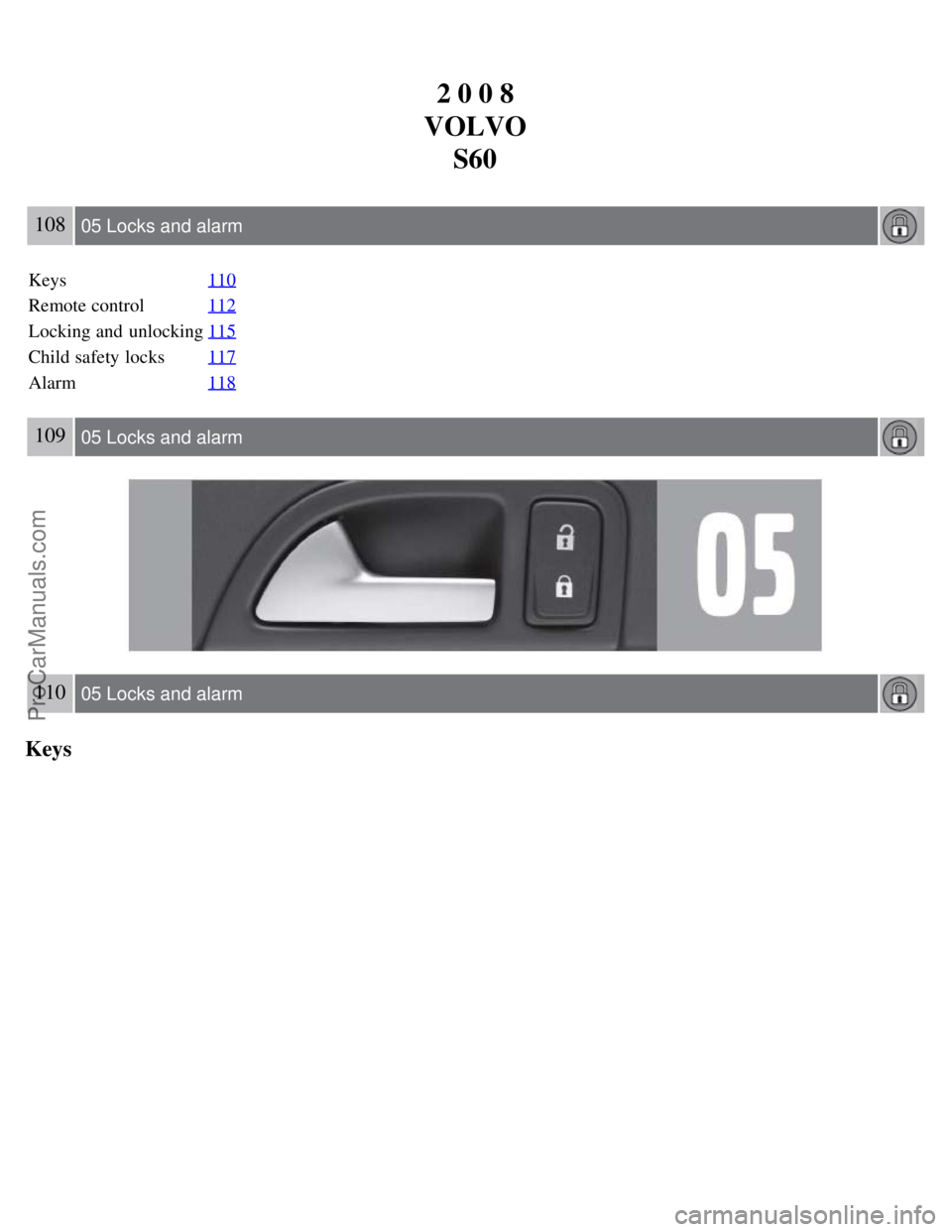

108 05 Locks and alarm
Keys 110
Remote control112
Locking and unlocking115
Child safety locks117
Alarm118
109 05 Locks and alarm
110 05 Locks and alarm
Keys
ProCarManuals.com

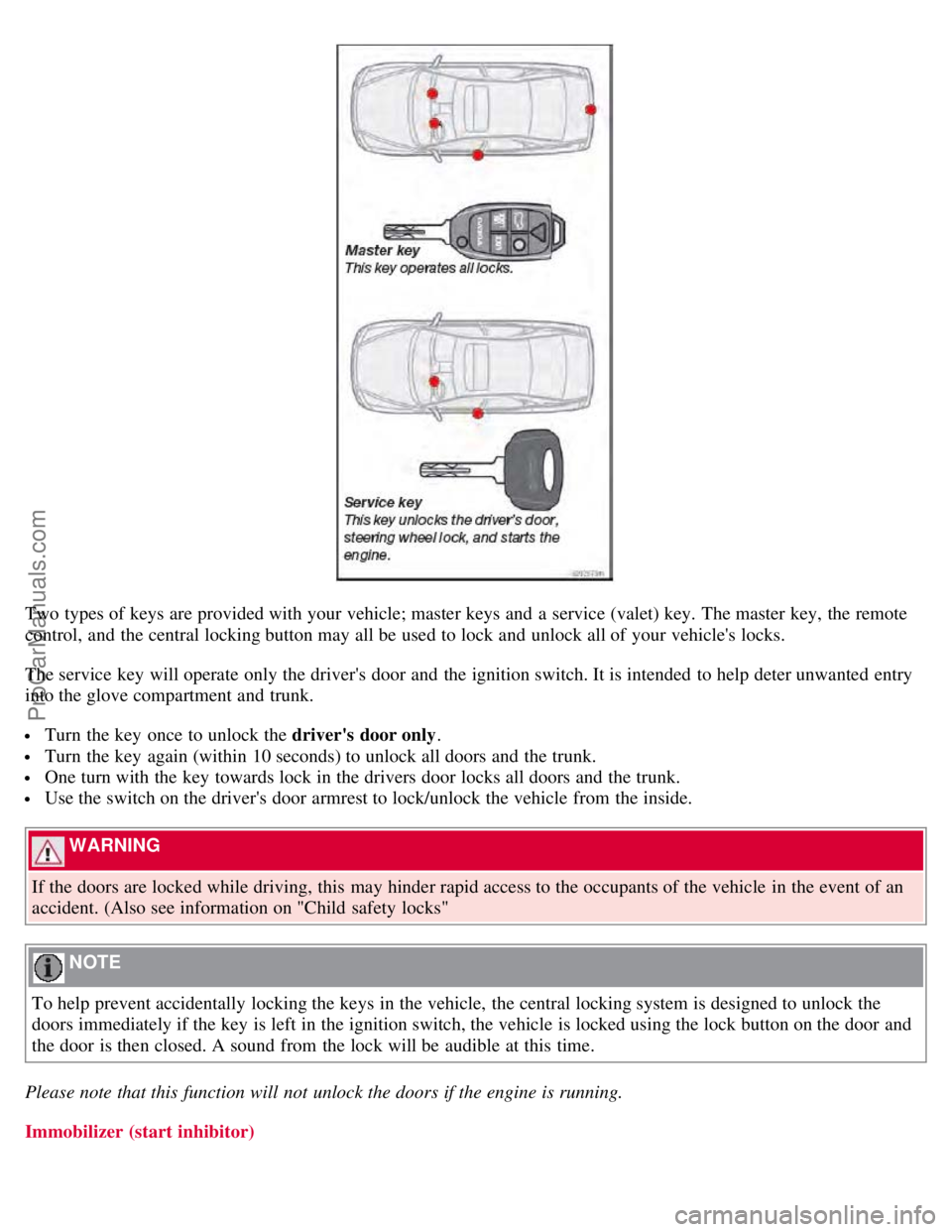

Two types of keys are provided with your vehicle; master keys and a service (valet) key. The master key, the remote
control, and the central locking button may all be used to lock and unlock all of your vehicle's locks.
The service key will operate only the driver's door and the ignition switch. It is intended to help deter unwanted entry
into the glove compartment and trunk.
Turn the key once to unlock the driver's door only.
Turn the key again (within 10 seconds) to unlock all doors and the trunk.
One turn with the key towards lock in the drivers door locks all doors and the trunk.
Use the switch on the driver's door armrest to lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this may hinder rapid access to the occupants of the vehicle in the event of an
accident. (Also see information on "Child safety locks"
NOTE
To help prevent accidentally locking the keys in the vehicle, the central locking system is designed to unlock the
doors immediately if the key is left in the ignition switch, the vehicle is locked using the lock button on the door and
the door is then closed. A sound from the lock will be audible at this time.
Please note that this function will not unlock the doors if the engine is running.
Immobilizer (start inhibitor)
