04 Comfort and driving pleasure
Adaptive Cruise Control (ACC)*
04

* Option/accessory, for more information, see Introduction.151

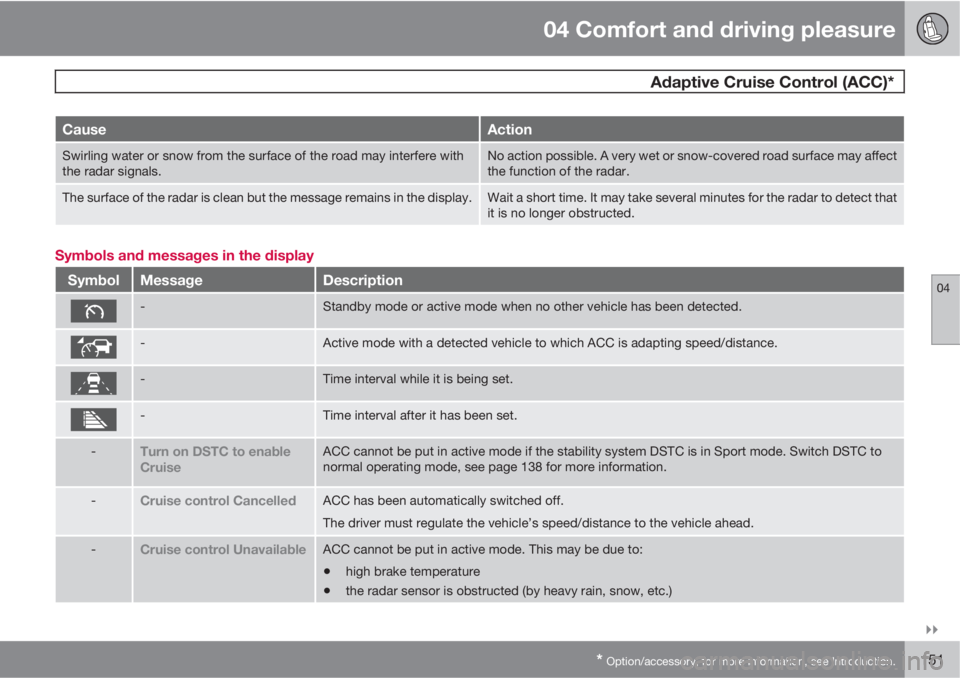

CauseAction
Swirling water or snow from the surface of the road may interfere with
the radar signals.No action possible. A very wet or snow-covered road surface may affect
the function of the radar.
The surface of the radar is clean but the message remains in the display.Wait a short time. It may take several minutes for the radar to detect that
it is no longer obstructed.
Symbols and messages in the display
SymbolMessageDescription
-Standby mode or active mode when no other vehicle has been detected.
-Active mode with a detected vehicle to which ACC is adapting speed/distance.
-Time interval while it is being set.
-Time interval after it has been set.
-Turn on DSTC to enable
CruiseACC cannot be put in active mode if the stability system DSTC is in Sport mode. Switch DSTC to
normal operating mode, see page 138 for more information.
-Cruise control CancelledACC has been automatically switched off.
The driver must regulate the vehicle’s speed/distance to the vehicle ahead.
-Cruise control UnavailableACC cannot be put in active mode. This may be due to:
•high brake temperature
•the radar sensor is obstructed (by heavy rain, snow, etc.)

04 Comfort and driving pleasure
Adaptive Cruise Control (ACC)*
04
152* Option/accessory, for more information, see Introduction.

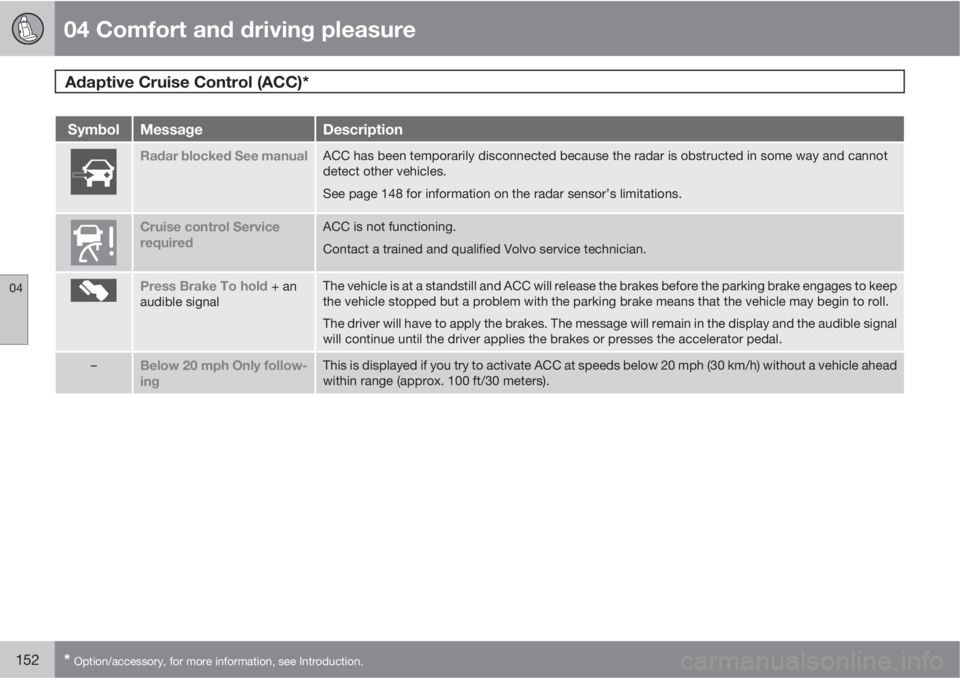

SymbolMessageDescription
Radar blocked See manualACC has been temporarily disconnected because the radar is obstructed in some way and cannot
detect other vehicles.
See page 148 for information on the radar sensor’s limitations.
Cruise control Service
requiredACC is not functioning.
Contact a trained and qualified Volvo service technician.
Press Brake To hold + an
audible signalThe vehicle is at a standstill and ACC will release the brakes before the parking brake engages to keep
the vehicle stopped but a problem with the parking brake means that the vehicle may begin to roll.
The driver will have to apply the brakes. The message will remain in the display and the audible signal
will continue until the driver applies the brakes or presses the accelerator pedal.
–Below 20 mph Only follow-
ingThis is displayed if you try to activate ACC at speeds below 20 mph (30 km/h) without a vehicle ahead
within range (approx. 100 ft/30 meters).

04 Comfort and driving pleasure
Distance Alert*
04

* Option/accessory, for more information, see Introduction.153 Introduction

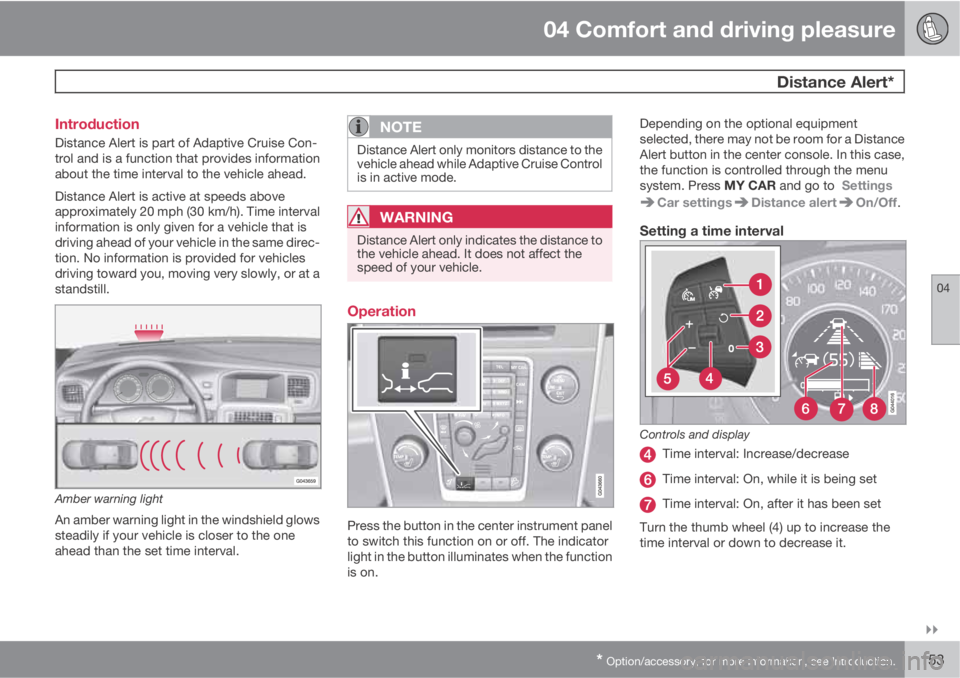

Distance Alert is part of Adaptive Cruise Con-
trol and is a function that provides information
about the time interval to the vehicle ahead.
Distance Alert is active at speeds above
approximately 20 mph (30 km/h). Time interval
information is only given for a vehicle that is
driving ahead of your vehicle in the same direc-
tion. No information is provided for vehicles
driving toward you, moving very slowly, or at a
standstill.
Amber warning light
An amber warning light in the windshield glows
steadily if your vehicle is closer to the one
ahead than the set time interval.
NOTE
Distance Alert only monitors distance to the
vehicle ahead while Adaptive Cruise Control
is in active mode.
WARNING
Distance Alert only indicates the distance to
the vehicle ahead. It does not affect the
speed of your vehicle.
Operation
Press the button in the center instrument panel
to switch this function on or off. The indicator
light in the button illuminates when the function
is on.Depending on the optional equipment
selected, there may not be room for a Distance
Alert button in the center console. In this case,
the function is controlled through the menu
system. Press MY CAR and go to Settings
Car settingsDistance alertOn/Off.
Setting a time interval
Controls and display
Time interval: Increase/decrease
Time interval: On, while it is being set
Time interval: On, after it has been set
Turn the thumb wheel (4) up to increase the
time interval or down to decrease it.

04 Comfort and driving pleasure
Distance Alert*
04
154* Option/accessory, for more information, see Introduction.

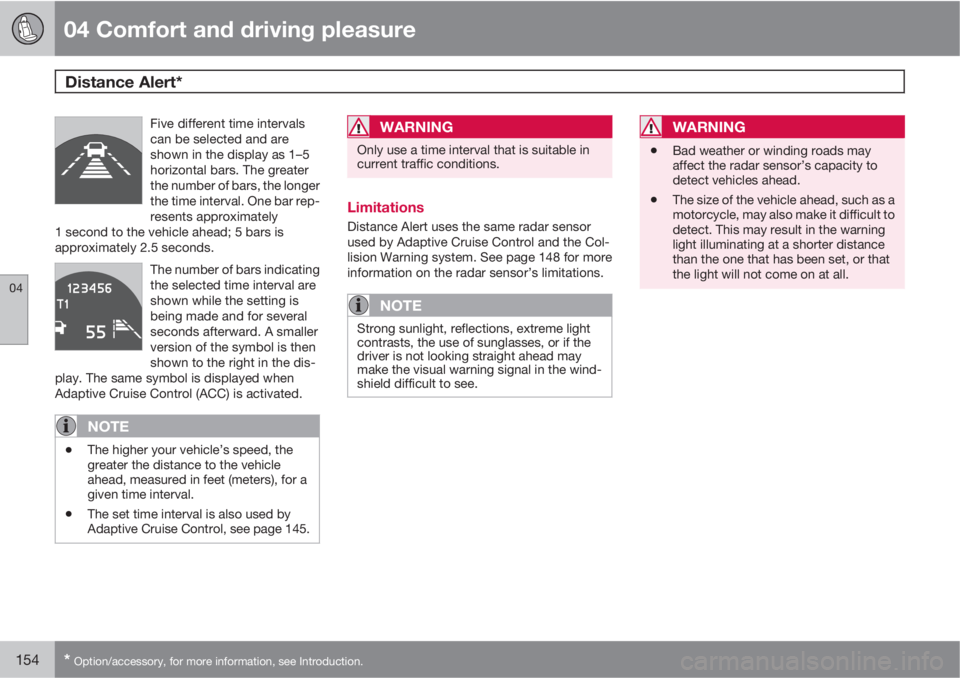

Five different time intervals
can be selected and are
shown in the display as 1–5
horizontal bars. The greater
the number of bars, the longer
the time interval. One bar rep-
resents approximately
1 second to the vehicle ahead; 5 bars is
approximately 2.5 seconds.
The number of bars indicating
the selected time interval are
shown while the setting is
being made and for several
seconds afterward. A smaller
version of the symbol is then
shown to the right in the dis-
play. The same symbol is displayed when
Adaptive Cruise Control (ACC) is activated.
NOTE
•The higher your vehicle’s speed, the
greater the distance to the vehicle
ahead, measured in feet (meters), for a
given time interval.
•The set time interval is also used by
Adaptive Cruise Control, see page 145.
WARNING
Only use a time interval that is suitable in
current traffic conditions.
Limitations
Distance Alert uses the same radar sensor
used by Adaptive Cruise Control and the Col-
lision Warning system. See page 148 for more
information on the radar sensor’s limitations.
NOTE
Strong sunlight, reflections, extreme light
contrasts, the use of sunglasses, or if the
driver is not looking straight ahead may
make the visual warning signal in the wind-
shield difficult to see.
WARNING
•Bad weather or winding roads may
affect the radar sensor’s capacity to
detect vehicles ahead.
•The size of the vehicle ahead, such as a
motorcycle, may also make it difficult to
detect. This may result in the warning
light illuminating at a shorter distance
than the one that has been set, or that
the light will not come on at all.

04 Comfort and driving pleasure
Distance Alert*
04
* Option/accessory, for more information, see Introduction.155 Symbols and messages in the display

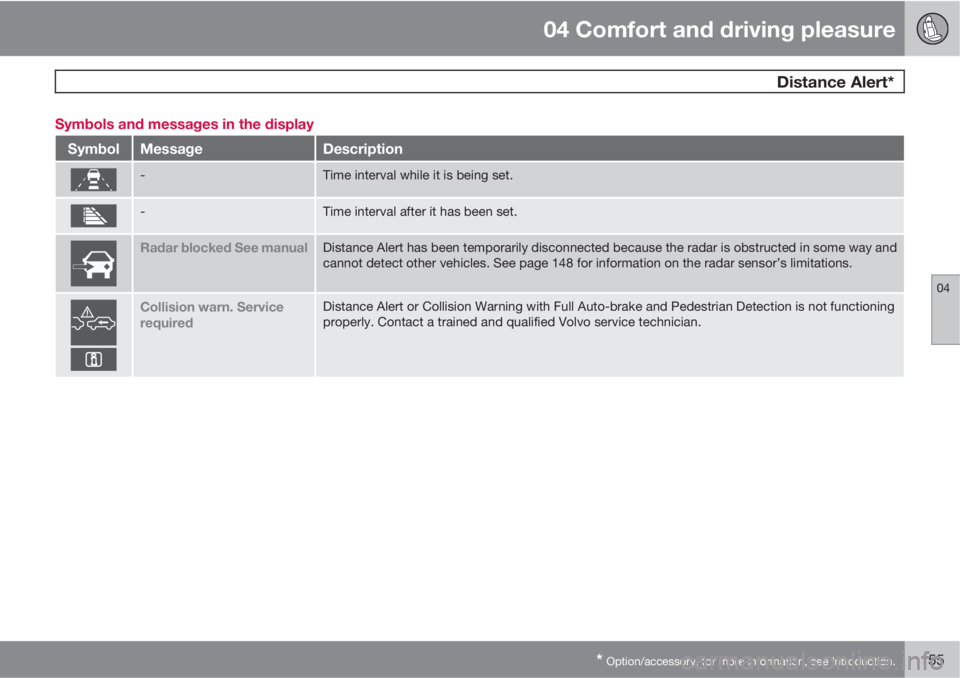

SymbolMessageDescription
-Time interval while it is being set.
-Time interval after it has been set.
Radar blocked See manualDistance Alert has been temporarily disconnected because the radar is obstructed in some way and
cannot detect other vehicles. See page 148 for information on the radar sensor’s limitations.
Collision warn. Service
requiredDistance Alert or Collision Warning with Full Auto-brake and Pedestrian Detection is not functioning
properly. Contact a trained and qualified Volvo service technician.

04 Comfort and driving pleasure
City Safety™
04
156

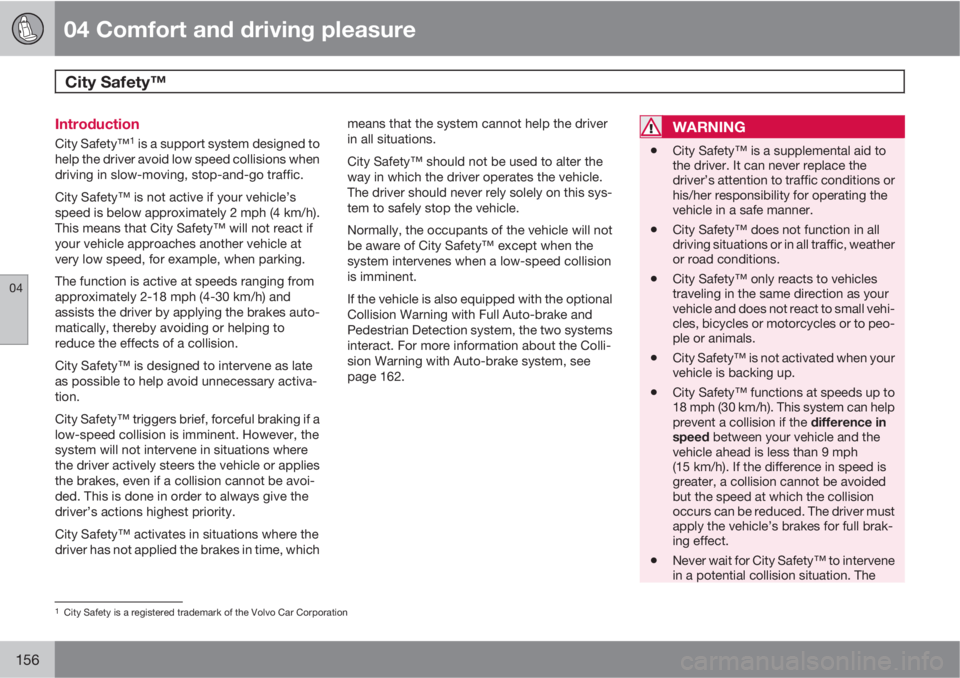

Introduction
City Safety™1 is a support system designed to
help the driver avoid low speed collisions when
driving in slow-moving, stop-and-go traffic.
City Safety™ is not active if your vehicle’s
speed is below approximately 2 mph (4 km/h).
This means that City Safety™ will not react if
your vehicle approaches another vehicle at
very low speed, for example, when parking.
The function is active at speeds ranging from
approximately 2-18 mph (4-30 km/h) and
assists the driver by applying the brakes auto-
matically, thereby avoiding or helping to
reduce the effects of a collision.
City Safety™ is designed to intervene as late
as possible to help avoid unnecessary activa-
tion.
City Safety™ triggers brief, forceful braking if a
low-speed collision is imminent. However, the
system will not intervene in situations where
the driver actively steers the vehicle or applies
the brakes, even if a collision cannot be avoi-
ded. This is done in order to always give the
driver’s actions highest priority.
City Safety™ activates in situations where the
driver has not applied the brakes in time, whichmeans that the system cannot help the driver
in all situations.
City Safety™ should not be used to alter the
way in which the driver operates the vehicle.
The driver should never rely solely on this sys-
tem to safely stop the vehicle.
Normally, the occupants of the vehicle will not
be aware of City Safety™ except when the
system intervenes when a low-speed collision
is imminent.
If the vehicle is also equipped with the optional
Collision Warning with Full Auto-brake and
Pedestrian Detection system, the two systems
interact. For more information about the Colli-
sion Warning with Auto-brake system, see
page 162.WARNING
•City Safety™ is a supplemental aid to
the driver. It can never replace the
driver’s attention to traffic conditions or
his/her responsibility for operating the
vehicle in a safe manner.
•City Safety™ does not function in all
driving situations or in all traffic, weather
or road conditions.
•City Safety™ only reacts to vehicles
traveling in the same direction as your
vehicle and does not react to small vehi-
cles, bicycles or motorcycles or to peo-
ple or animals.
•City Safety™ is not activated when your
vehicle is backing up.
•City Safety™ functions at speeds up to
18 mph (30 km/h). This system can help
prevent a collision if the difference in
speed between your vehicle and the
vehicle ahead is less than 9 mph
(15 km/h). If the difference in speed is
greater, a collision cannot be avoided
but the speed at which the collision
occurs can be reduced. The driver must
apply the vehicle’s brakes for full brak-
ing effect.
•Never wait for City Safety™ to intervene
in a potential collision situation. The
1City Safety is a registered trademark of the Volvo Car Corporation

04 Comfort and driving pleasure
City Safety™
04

157
driver is always responsible for main-
taining a safe distance to the vehicle
ahead.
Function
Location of the laser sensor in the windshield
City Safety™ monitors traffic ahead of you
using a laser sensor mounted in the upper sec-
tion of the windshield. If a collision is imminent,
City Safety™ will automatically apply the
brakes at approximately 50% of the vehicle’s
full braking effect if you are traveling at speeds
between 2-18 mph (4-30 km/h).
•If the difference in speed between your
vehicle and the vehicle ahead is less than
approximately 9 mph (15 km/h), CitySafety™ can help prevent a collision from
taking place.
•If the difference in speed is between
approximately 10-18 mph (16-30 km/h),
City Safety™ alone cannot avoid a colli-
sion. The driver must apply the brakes for
full braking effect.
When the function activates and applies the
brakes, a message will appear in the informa-
tion display to indicate that the system is/has
been active.
NOTE
•When City Safety™ applies the brakes,
the brake lights will illuminate.
•In cases where City Safety™ has stop-
ped the vehicle, the system will then
release the brakes. The driver must
apply the brakes to keep the vehicle at
a standstill.
Using City Safety™
NOTE
The City Safety™ function is activated auto-
matically each time the engine has been
switched off and restarted.
On and OffIn certain situations, it may be desirable to
switch City Safety™ off, such as when driving
in close quarters where leaves, branches, etc.
may obscure the hood and windshield.
When the engine is running, City Safety™ can
be switched off as follows:
Press My Car in the center console control
panel and go to Settings
Car settings
Driver support systemsCity safety.
Select
Off.
WARNING
The laser sensor emits light when the igni-
tion is in mode II or higher, even if City
Safety™ has been switched off.
To switch City Safety™ on again:
•Follow the same procedure as for switch-
ing City Safety™ off but select ON by
pressing RESET.

04 Comfort and driving pleasure
City Safety™
04
158
or
•Vehicles not equipped with keyless
drive: Press lightly on the remote key to
release it partially from the ignition slot.
Press the remote key into the ignition slot
again. Depress the brake pedal and press
the START/STOP ENGINE button to start
the engine. This restarts City Safety™.
•Vehicles equipped with the optional
keyless drive: Press the START/STOP
ENGINE button to switch off the engine.
Depress the brake pedal and press the
START/STOP ENGINE button to start the
engine. This restarts City Safety™.
See page 81 for information on ignition modes.
City Safety™ will be automatically switched on
the next time the engine is started, even if it was
off when the engine was switched off.
Limitations
The sensor used by City Safety™ is designed
to detect cars and other larger motor vehicles
ahead of your vehicle in both daylight and dark-
ness.
However, there are certain limitations and the
laser sensor’s function may be reduced by, for
example, heavy rain or snowfall, or by dense
fog or thick, blowing dust or snow. Condensa-tion, dirt, ice or snow on the windshield may
also interfere with the sensor’s function.
Objects such as warning flags hanging from
long objects on the roof or accessories such as
auxiliary lights or protective arches on the front
of the vehicle that are higher than the hood may
also impede the sensor’s function.
Braking distance to the vehicle ahead increa-
ses on slippery road surfaces, which may
reduce City Safety’s capacity to avoid a colli-
sion. In situations like this, the DSTC system
(see page 138) will help provide the best pos-
sible braking capacity and stability.
City Safety™ emits infrared light and measures
the way in which the light is reflected. There-
fore, vehicles or objects with low-reflective sur-
faces may not be detected. Normally, the
license plate and taillight reflectors give the
rear section of a vehicle ahead sufficient reflec-
tive surfaces to be detected.
NOTE
•Keep the windshield in front of the laser
sensor free of ice, snow, dirt, etc. See
page 157.
•Snow or ice on the hood deeper than
2 inches (5 cm) may obstruct the sen-
sor. Keep the hood free of ice and snow.
•Do not mount or in any way attach any-
thing on the windshield that could
obstruct the laser sensor.
Troubleshooting
If Windscreen Sensors blocked appears in
the information display, this indicates that the
City Safety™ laser sensor is obstructed in
some way and cannot detect vehicles ahead of
you, which means that the system is not func-
tioning.
However, this message will not be displayed in
all situations in which the sensor is obstructed.
For this reason, the driver must ensure that the
area of the windshield in front of the sensor is
always kept clean.
The following table shows some of the situa-
tions that can cause the message to be dis-
played and suggested actions.

04 Comfort and driving pleasure
City Safety™
04

159
CauseAction
The area of the
windshield in front of
the sensor is dirty or
covered by ice or
snow.Clean the wind-
shield or remove the
ice/snow.
The laser sensor's
field of view is
obstructed.Remove the
obstruction.
CAUTION
If a crack, scratch or stone chip should
occur in the section of the windshield in
front the laser sensor and covers an area of
approximately 1/50 x 1/10 in. (0.5 x 3 mm)
or larger, contact a trained and qualified
Volvo service technician to repair or replace
the windshield (see the illustration showing
the location of the sensor on page 157).
Failing to do so may result in reduced City
Safety™ functionality.
To help prevent reduced functionality,
please also observe the following:
•If the windshield is replaced, use the
same type or a windshield approved by
Volvo.
•When replacing windshield wipers, use
the same type or ones approved by
Volvo.
The laser sensor
The upper decal describes the laser beam's
classification and contains the following text:
Invisible Laser radiation – Do not view directly
with optical instruments (magnifiers) – Class
1M laser product.
The lower decal describes the laser beam's
physical data and contains the text:
IEC 60825-1:1993 + A2:2001. Complies with
FDA performance standards for laser products
except for deviations pursuant to Laser Notice
No. 50, dated July 26th, 2001
The laser beam's physical data is listed in the
following table:
Maximum pulse energy2.64 μJ
Maximum average output45 mW
Pulse length33 ns
Divergence (horizontal × verti-
cal)28° × 12°
NOTE
The function of aftermarket laser detectors
may be affected by City Safety's laser sen-
sor.
WARNING
The laser sensor emits light when the igni-
tion is in mode II or higher, even if City
Safety™ has been switched off.

04 Comfort and driving pleasure
City Safety™
04
160

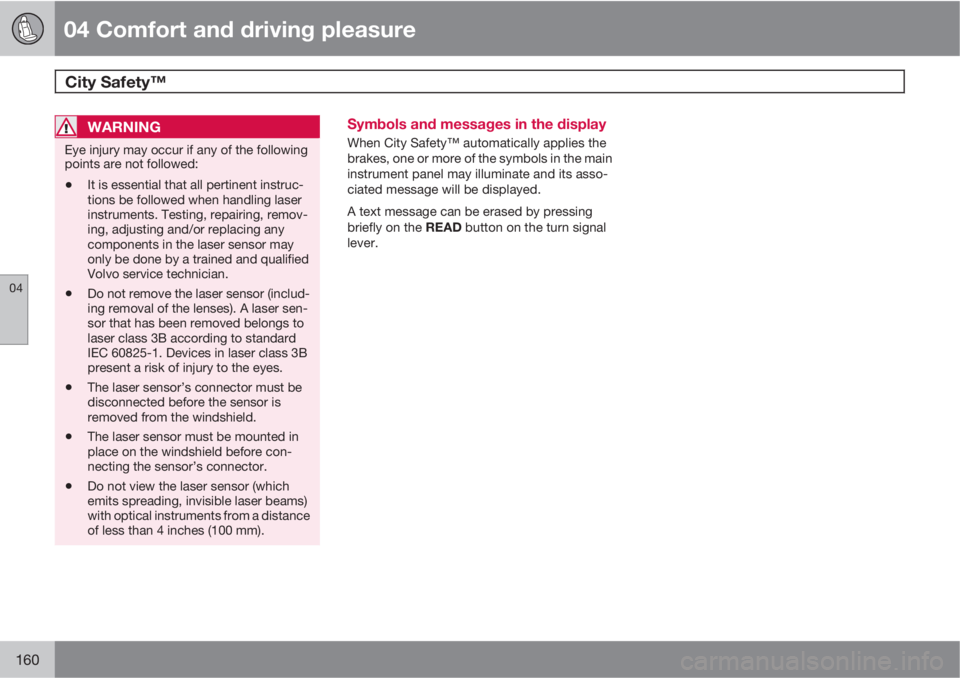

WARNING
Eye injury may occur if any of the following
points are not followed:
•It is essential that all pertinent instruc-
tions be followed when handling laser
instruments. Testing, repairing, remov-
ing, adjusting and/or replacing any
components in the laser sensor may
only be done by a trained and qualified
Volvo service technician.
•Do not remove the laser sensor (includ-
ing removal of the lenses). A laser sen-
sor that has been removed belongs to
laser class 3B according to standard
IEC 60825-1. Devices in laser class 3B
present a risk of injury to the eyes.
•The laser sensor’s connector must be
disconnected before the sensor is
removed from the windshield.
•The laser sensor must be mounted in
place on the windshield before con-
necting the sensor’s connector.
•Do not view the laser sensor (which
emits spreading, invisible laser beams)
with optical instruments from a distance
of less than 4 inches (100 mm).
Symbols and messages in the display
When City Safety™ automatically applies the
brakes, one or more of the symbols in the main
instrument panel may illuminate and its asso-
ciated message will be displayed.
A text message can be erased by pressing
briefly on the READ button on the turn signal
lever.
