display VOLVO S60 TWIN ENGINE 2019 Owners Manual

||
CLIMATE CONTROL
212

Related information
Climate system controls (p. 207)
Activating and deactivating the recirculationtimer setting (p. 212)

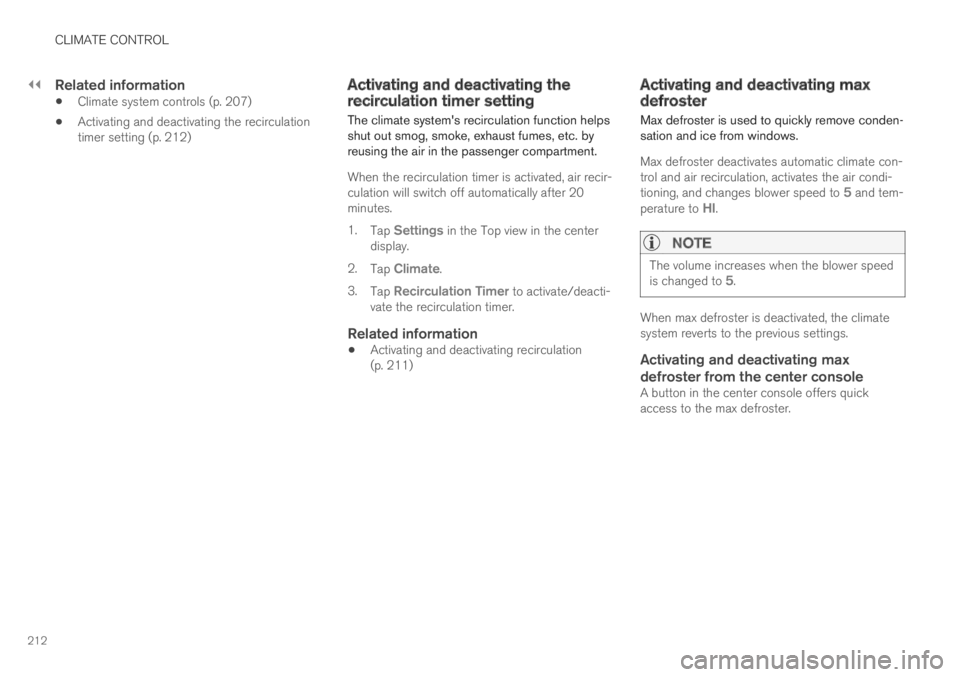

Activating and deactivating therecirculation timer setting
The climate system's recirculation function helpsshut out smog, smoke, exhaust fumes, etc. byreusing the air in the passenger compartment.
When the recirculation timer is activated, air recir-culation will switch off automatically after 20minutes.
1.Tap Settings in the Top view in the centerdisplay.
2.Tap Climate.
3.Tap Recirculation Timer to activate/deacti-vate the recirculation timer.

Related information
Activating and deactivating recirculation(p. 211)
Activating and deactivating maxdefroster
Max defroster is used to quickly remove conden-sation and ice from windows.
Max defroster deactivates automatic climate con-trol and air recirculation, activates the air condi-tioning, and changes blower speed to 5 and tem-perature to HI.
NOTE
The volume increases when the blower speedis changed to 5.
When max defroster is deactivated, the climatesystem reverts to the previous settings.

Activating and deactivating max
defroster from the center console
A button in the center console offers quickaccess to the max defroster.

CLIMATE CONTROL
}}
213

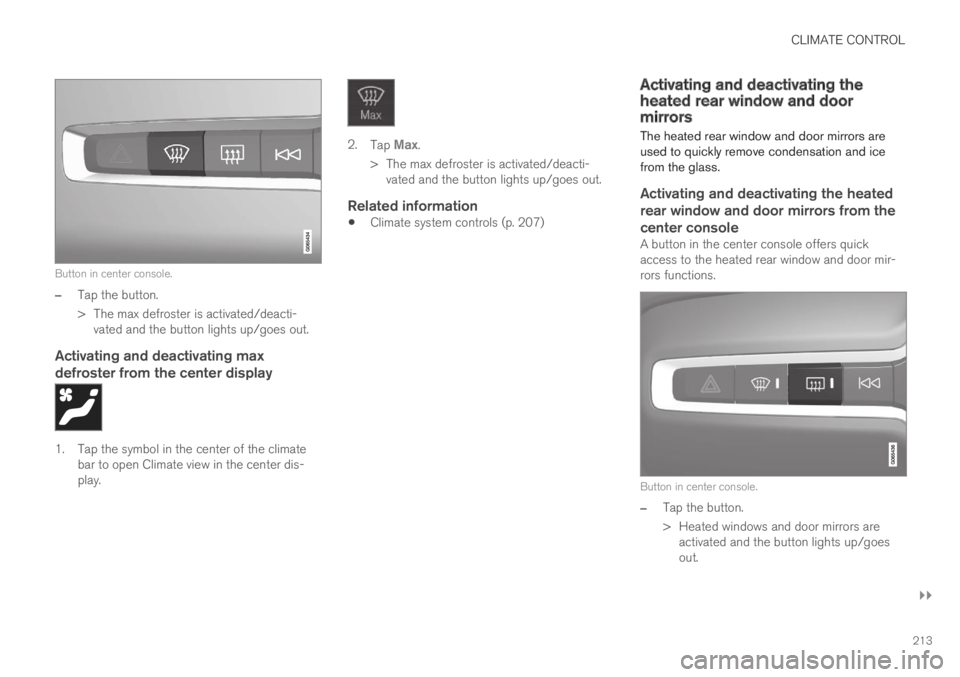

Button in center console.
–Tap the button.
>The max defroster is activated/deacti-vated and the button lights up/goes out.

Activating and deactivating max
defroster from the center display
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Tap Max.
>The max defroster is activated/deacti-vated and the button lights up/goes out.
Related information
Climate system controls (p. 207)
Activating and deactivating theheated rear window and doormirrors
The heated rear window and door mirrors areused to quickly remove condensation and icefrom the glass.
Activating and deactivating the heated
rear window and door mirrors from the
center console
A button in the center console offers quickaccess to the heated rear window and door mir-rors functions.
Button in center console.
–Tap the button.
>Heated windows and door mirrors areactivated and the button lights up/goesout.

||
CLIMATE CONTROL
214

Activating and deactivating the heated
rear window and door mirrors from the
center display
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Tap Rear.
>Heated windows and door mirrors areactivated and the button lights up/goesout.

Related information
Climate system controls (p. 207)
Automatically activating and deactivating theheated rear window and door mirrors(p. 214)
Automatically activating anddeactivating the heated rear windowand door mirrors
The heated rear window and door mirrors areused to quickly remove condensation and icefrom the glass.
It is possible to select whether rear window anddoor mirror heating should be automatically acti-vated or deactivated when the engine is started.With automatic start activated, heating will beactivated when there is a risk of ice or condensa-tion on the windows or mirrors. Heating is auto-matically switched off when the window or doormirror is sufficiently warm and the condensationor ice is gone.
1.Tap Settings in the Top view in the centerdisplay.
2.Tap Climate.
3.Select Auto Rear Defroster to activate/deactivate automatic rear window and doorheating.

Related information
Activating and deactivating the heated rearwindow and door mirrors (p. 213)
Setting the blower speed for the
front seats2
The blower can be set to several different auto-matically controlled speeds for the front seat.
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
Blower control buttons in Climate view.
2.Tap the desired blower speed: Off, 1-5 orMax.
>The blower speed will be changed and thebuttons for the set speed will light up.
2The same setting applies to the rear seats with the 2-zone climate system.

CLIMATE CONTROL
215

CAUTION
The air conditioning will not engage if theblower is turned off completely, which maycause fogging on the inside of the windows.

NOTE
The climate system automatically adapts air-flow as needed within the set blower speed,which means that airflow speed may varyslightly within the same blower speed.

Related information
Climate system controls (p. 207)
Setting the temperature for the
front seats3
The temperature can be set to the desired num-ber of degrees for the front seat climate zones.
Temperature buttons in the climate bar.
1. Tap the left- or right-side temperature but-tons in the center display's climate bar toopen the control.
Temperature control.
2. Set the temperature by doing one of the fol-lowing:
dragging the control to the desired tem-perature, or
tapping +− to raise/lower the tempera-ture.
> The temperature will be set and the but-ton will display the new temperature.

NOTE
Heating/cooling cannot be accelerated bychoosing a higher/lower temperature thanthe desired temperature.

Related information
Climate system controls (p. 207)
3The same setting applies to the rear seats with the 2-zone climate system.

CLIMATE CONTROL
* Option/accessory.216

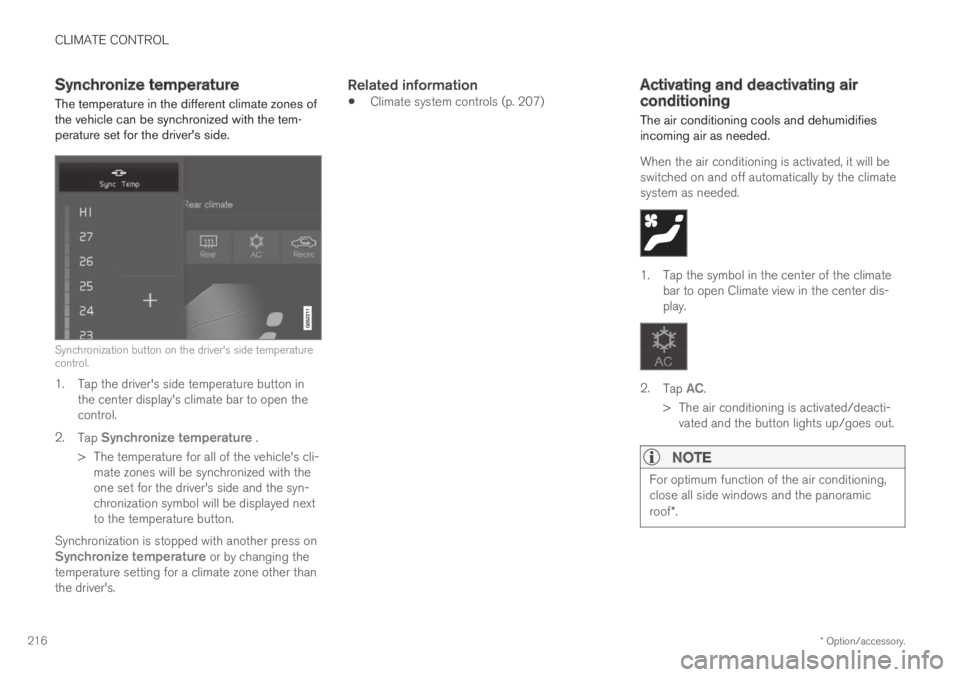

Synchronize temperature
The temperature in the different climate zones ofthe vehicle can be synchronized with the tem-perature set for the driver's side.
Synchronization button on the driver's side temperaturecontrol.
1. Tap the driver's side temperature button inthe center display's climate bar to open thecontrol.
2.Tap Synchronize temperature .
>The temperature for all of the vehicle's cli-mate zones will be synchronized with theone set for the driver's side and the syn-chronization symbol will be displayed nextto the temperature button.
Synchronization is stopped with another press onSynchronize temperature or by changing thetemperature setting for a climate zone other thanthe driver's.

Related information
Climate system controls (p. 207)Activating and deactivating airconditioning
The air conditioning cools and dehumidifiesincoming air as needed.
When the air conditioning is activated, it will beswitched on and off automatically by the climatesystem as needed.
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Tap AC.
>The air conditioning is activated/deacti-vated and the button lights up/goes out.

NOTE
For optimum function of the air conditioning,close all side windows and the panoramicroof*.

CLIMATE CONTROL
}}
* Option/accessory.217

NOTE
The air conditioning cannot be activated whenthe fan speed is set to Off.

Related information
Climate system controls (p. 207)

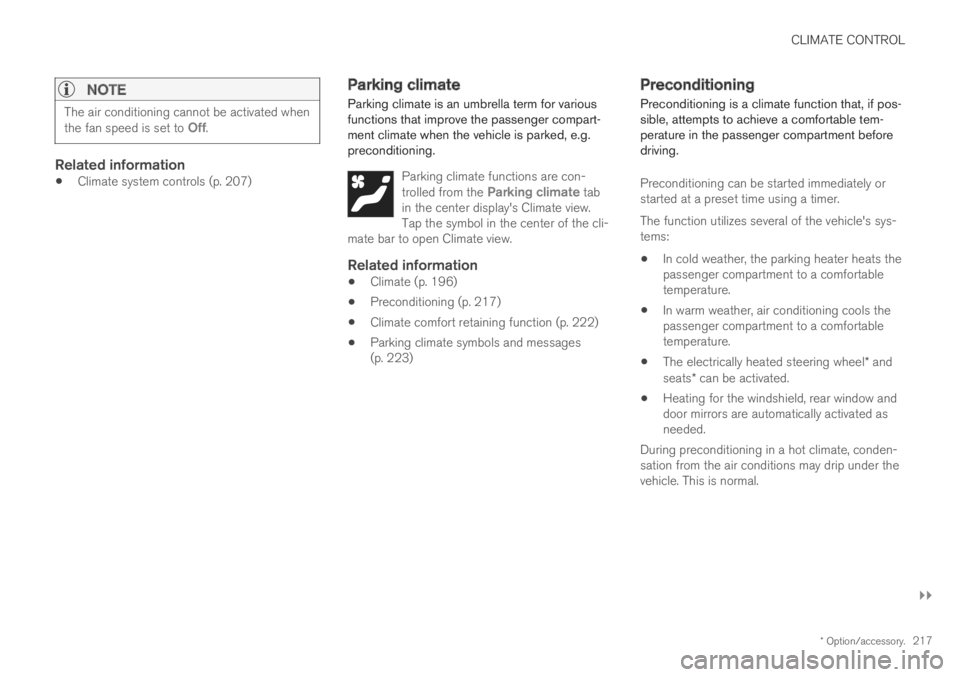

Parking climate
Parking climate is an umbrella term for variousfunctions that improve the passenger compart-ment climate when the vehicle is parked, e.g.preconditioning.
Parking climate functions are con-trolled from the Parking climate tabin the center display's Climate view.Tap the symbol in the center of the cli-mate bar to open Climate view.

Related information
Climate (p. 196)
Preconditioning (p. 217)
Climate comfort retaining function (p. 222)
Parking climate symbols and messages(p. 223)
Preconditioning
Preconditioning is a climate function that, if pos-sible, attempts to achieve a comfortable tem-perature in the passenger compartment beforedriving.
Preconditioning can be started immediately orstarted at a preset time using a timer.
The function utilizes several of the vehicle's sys-tems:
In cold weather, the parking heater heats thepassenger compartment to a comfortabletemperature.
In warm weather, air conditioning cools thepassenger compartment to a comfortabletemperature.
The electrically heated steering wheel* andseats* can be activated.
Heating for the windshield, rear window anddoor mirrors are automatically activated asneeded.
During preconditioning in a hot climate, conden-sation from the air conditions may drip under thevehicle. This is normal.

||
CLIMATE CONTROL
* Option/accessory.218

NOTE
Preconditioning is only available when the caris connected to an electrical outlet. A charg-ing post that is not always active, for examplebecause of a timer, can cause loss of functionfor preconditioning.
If the vehicle is not connected to an electricalsocket it is still possible in a warm climate toachieve brief cooling of the passenger com-partment by direct starting preconditioning.

NOTE
During preconditioning of the passengercompartment, the vehicle works to reach acomfortable temperature and not the tem-perature set in the climate system.

Related information
Parking climate (p. 217)
Starting and stopping preconditioning(p. 218)
Preconditioning timer (p. 219)
Starting and stoppingpreconditioning
Preconditioning heats or cools the passengercompartment, if possible, before driving. Thefunction can be started in the center display orfrom a cellular phone.
Starting and stopping from the vehicle
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Select the Parking climate tab.
3.Tap the boxes to select if seat/steeringwheel heating should be activated along withpreconditioning for each function.
4.Tap Preconditioning.
>Preconditioning starts/stops and the but-ton lights up/goes out.
NOTE
Preconditioning is only available when the caris connected to an electrical outlet. A charg-ing post that is not always active, for examplebecause of a timer, can cause loss of functionfor preconditioning.
If the vehicle is not connected to an electricalsocket it is still possible in a warm climate toachieve brief cooling of the passenger com-partment by direct starting preconditioning.

NOTE
The vehicle doors and windows should beclosed during preconditioning of the passen-ger compartment.

Starting from app *
A device with the Volvo On Call* app can be usedto start preconditioning or check settings. Pre-conditioning heats or cools the passenger com-partment (using the vehicle's air conditioning) toa comfortable temperature.
The passenger compartment can also be precon-
ditioned using the Engine Remote Start (ERS)4
function using the Volvo On Call* app.
4Certain markets only.

CLIMATE CONTROL
}}
219

Related information
Parking climate (p. 217)
Preconditioning (p. 217)
Preconditioning timer (p. 219)

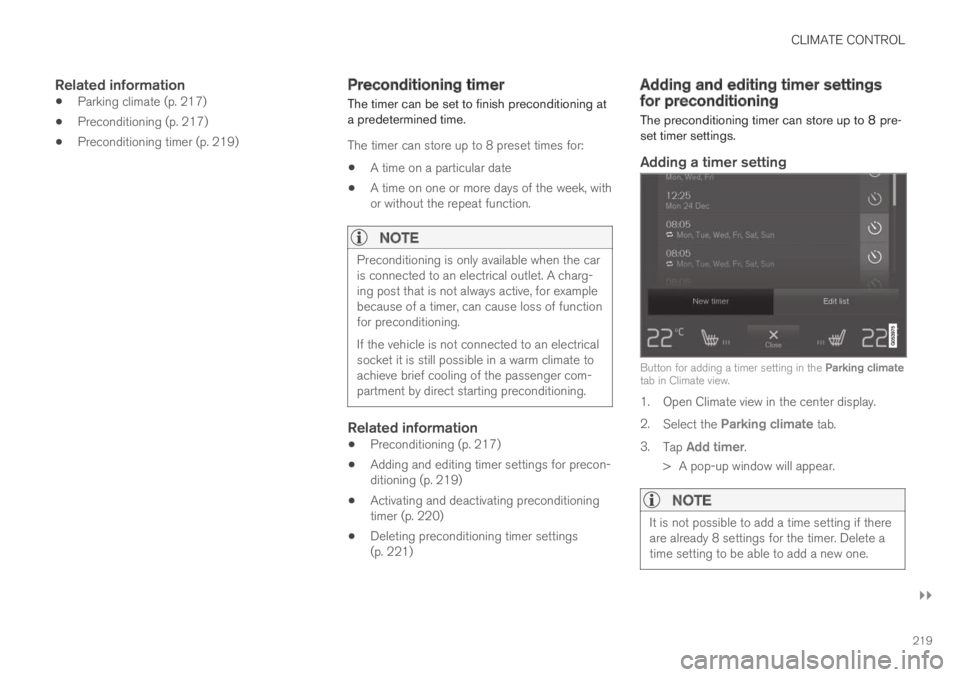

Preconditioning timer
The timer can be set to finish preconditioning ata predetermined time.
The timer can store up to 8 preset times for:
A time on a particular date
A time on one or more days of the week, withor without the repeat function.

NOTE
Preconditioning is only available when the caris connected to an electrical outlet. A charg-ing post that is not always active, for examplebecause of a timer, can cause loss of functionfor preconditioning.
If the vehicle is not connected to an electricalsocket it is still possible in a warm climate toachieve brief cooling of the passenger com-partment by direct starting preconditioning.

Related information
Preconditioning (p. 217)
Adding and editing timer settings for precon-ditioning (p. 219)
Activating and deactivating preconditioningtimer (p. 220)
Deleting preconditioning timer settings(p. 221)
Adding and editing timer settingsfor preconditioning
The preconditioning timer can store up to 8 pre-set timer settings.
Adding a timer setting
Button for adding a timer setting in the Parking climatetab in Climate view.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap Add timer.
>A pop-up window will appear.

NOTE
It is not possible to add a time setting if thereare already 8 settings for the timer. Delete atime setting to be able to add a new one.

||
CLIMATE CONTROL
220
4.Tap Date to set a time for a specific date.
Tap Days to set a time for one or more daysof the week.
With Days: Activate/deactivate the repeatfunction by selecting/deselecting theRepeat weekly checkbox.
5.With Date: Select a date for preconditioningby scrolling in the date list using the arrows.
With Days: Select days of the week for pre-conditioning by tapping the buttons for thedays.
6.Set the time at which preconditioning shouldbe completed by scrolling using the arrows inthe clock.
7.Tap Confirm to add a timer setting.
>The timer setting will be added to the listand activated.

Editing a timer setting
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap the timer setting you would like tochange.
> A pop-up window will appear.
4. To edit a timer setting, follow the proceduresdescribed under the heading "Adding a timersetting" above.
Related information
Preconditioning (p. 217)
Preconditioning timer (p. 219)
Activating and deactivating preconditioningtimer (p. 220)
Deleting preconditioning timer settings(p. 221)
Activating and deactivatingpreconditioning timer
Timer settings in the preconditioning timer canbe activated or deactivated as needed.
Timer buttons in the Parking climate tab in Climateview.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Activate/deactivate a timer setting by tap-ping the timer button to the right of the set-ting.
> The timer setting is activated/deactivatedand the button lights up/goes out.

Related information
Preconditioning (p. 217)
Preconditioning timer (p. 219)

CLIMATE CONTROL
221
Adding and editing timer settings for precon-ditioning (p. 219)
Deleting preconditioning timer settings(p. 221)

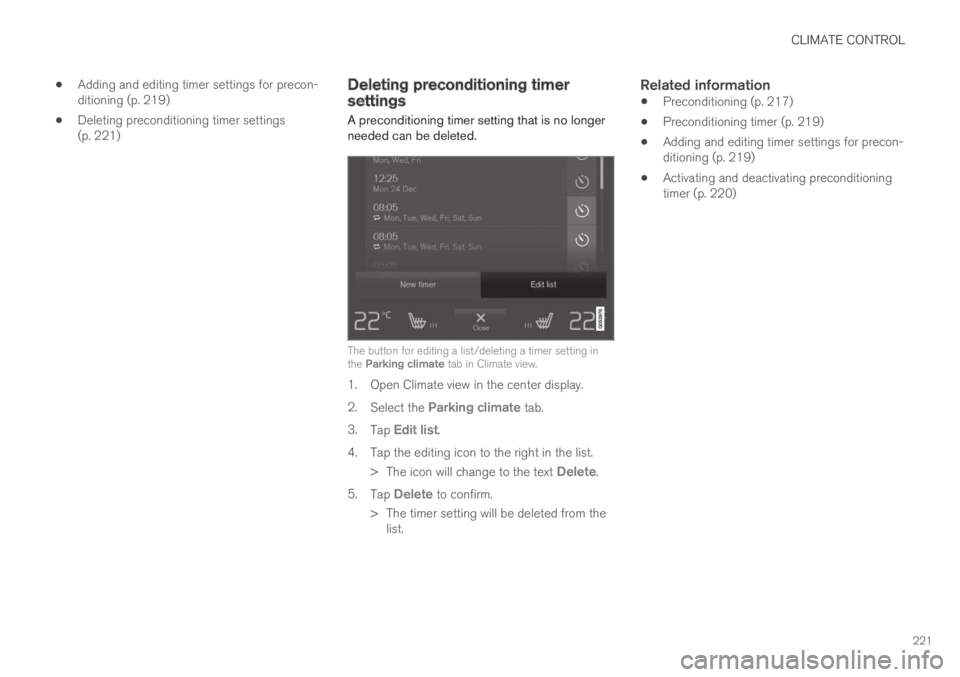

Deleting preconditioning timersettings
A preconditioning timer setting that is no longerneeded can be deleted.
The button for editing a list/deleting a timer setting inthe Parking climate tab in Climate view.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap Edit list.
4.Tap the editing icon to the right in the list.
>The icon will change to the text Delete.
5.Tap Delete to confirm.
>The timer setting will be deleted from thelist.

Related information
Preconditioning (p. 217)
Preconditioning timer (p. 219)
Adding and editing timer settings for precon-ditioning (p. 219)
Activating and deactivating preconditioningtimer (p. 220)
