load capacity VOLVO S60 TWIN ENGINE 2019 User Guide

WHEELS AND TIRES
541

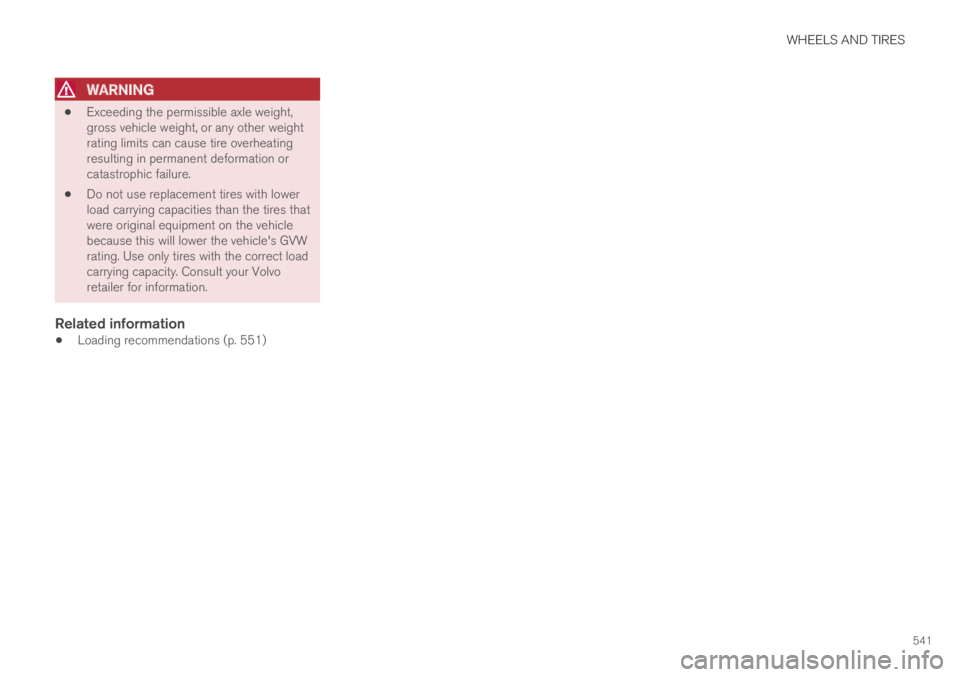

WARNING
Exceeding the permissible axle weight,gross vehicle weight, or any other weightrating limits can cause tire overheatingresulting in permanent deformation orcatastrophic failure.
Do not use replacement tires with lowerload carrying capacities than the tires thatwere original equipment on the vehiclebecause this will lower the vehicle's GVWrating. Use only tires with the correct loadcarrying capacity. Consult your Volvoretailer for information.

Related information
Loading recommendations (p. 551)

LOADING, STORAGE AND PASSENGER COMPARTMENT
}}
* Option/accessory.551
Cargo compartment
Loads can be secured in the trunk to keep themin place while driving.
The folding* rear seat backrests can helpincrease the cargo capacity of the trunk. Loadanchoring eyelets and grocery bag holders areprovided to help secure objects in place.
If the vehicle is equipped with a temporary sparetire, this is secured to the cargo compartmentfloor under the cover. The towing eyelet and tiresealing system are located under the cargo com-partment floor.

Related information
Loading recommendations (p. 551)
Grocery bag holders (p. 553)
Load anchoring eyelets (p. 553)
Loading recommendations
There are a number of things that are importantto consider when carrying loads in or on thevehicle.
Load-carrying capacity is determined by the vehi-cle's curb weight. The total weight of all passen-gers and any installed accessories reduces thevehicle's load-carrying capacity by the corres-ponding amount.
WARNING
The vehicle's driving characteristics changedepending on the weight and position of theload.

Loading the cargo compartment/trunk
Keep the following in mind when loading:
Position objects so they are pressing againstthe rear seat backrests.
Heavy objects should be positioned as lowas possible. Avoid placing heavy objects onfolded-down seat backrests.
Cover sharp corners with a soft cloth or simi-lar to help prevent damage to the upholstery.
Use the load anchoring eyelets and tension-ing straps or similar to secure all objects.
WARNING
In a head-on collision at a speed of 50 km/h(30 mph), an unsecured object weighing20 kg (44 pounds) can reach a projectileweight equivalent to 1000 kg (2200 pounds).

WARNING
If objects are loaded higher than the upperedge of the side windows, leave a 10 cm(4 in.) space between the objects and thewindow. Objects placed closer to this couldimpede the function of the inflatable curtainconcealed inside the headlining.

WARNING
Always secure the load. Otherwise, it may shiftduring heavy braking and injure people in thevehicle.
Cover sharp edges and sharp corners withsomething soft.
Turn off the engine and apply the parkingbrake when loading/unloading long objects.Otherwise, it is possible for the load to reachthe gear lever or gear selector and move it toa drive position – which could cause the vehi-cle to begin rolling.

SPECIFICATIONS
617
Weights
The following table lists important weight datafor your vehicle.
CategoryUSA
(lbs)
Canada
(kg)
Gross vehicle weight54902490
Capacity weight890405
Permissible axle weights, front27751260
Permissible axle weights, rear27751260
Curb weight3670–44801660–2020
Max. roof load16575

CAUTION
When loading the vehicle, the maximumgross vehicle weight and permissible axleweights may not be exceeded.

Related information
Type designations (p. 612)
Towing capacity and tongue weight(p. 618)

INDEX
629
Drive systems 410
Driving
cooling system 431
with a trailer 434
Driving economy 420
Driving through standing water 425
driving with a trailer
towball load 618
towing capacity 618
E
Economical driving420
Electrical outlet546
use548
Electrical system 574
Electric drive motor
specifications 619
electric motor 410
Range 421
Electric parking brake 400
Electronic immobilizer 243
emergency brake lights 159
Emission inspection readiness 556
Energy distribution
using map data 417
Engine
automatic start and stop of combustion
engine411
overheating431
start392
turn off394
Engine braking 397, 406
Engine compartment
coolant 571
engine oil 569
overview 568
Engine drag control 261
Engine oil 569
filling 570
filter 569
grade and volume 620
Engine shutdown 394
Engine specifications 619
Engine temperature
high 431
Environment 27
Ethanol content
max. 10% by volume 428
Exterior dimensions 615
Extra heater (Auxiliary heater) 224
F
Federal Clean Air Act556
Ferry transport418
Flooded road425
Fluids, volumes609, 622
Fluids and oils621, 622
Fog lights
front157
rear158
Four-C418
Front seat
blower214
climate207
heating208, 209
temperature215
ventilation209
Front seat manual180
Front seats, power181
adjusting passenger seat from driver's
seat188
adjusting seat181
Lumbar support187
massage184, 185
multifunction control 184, 185, 186, 187
Side bolsters186
store position182, 183
FSC, environmental labeling23

INDEX
637
Sun visor 550
mirror lighting 161
Switching target vehicles
with Adaptive Cruise Control 291
with Pilot Assist 291
Symbols
dynamic 82
indicator symbols 92
warning symbols 95
Symbols and messages
center display's status bar 122
hybrid-related 387
parking climate 223
system updates 559
T
Technician certification38
Temperature
adjusting215, 216
perceived197
Temperature monitoring 380
Temporary Spare 531
Temporary tire sealing system 534
execution, checking 535
Inflating tires 539
Terms and conditions
services35
users500
Tire dimensions 516
when changing wheels 526
Tires 512
direction of rotation 514
glossary of terms 515
inflation pressure table 623
mounting 530
pressure 623
removal 528
rotation when changing 512
specifications 516, 623
storage 512
tread wear indicator 515
winter tires 533
Tire sealing system
Inflating tires 539
use 535
Tire tread 515
Tools 526
Top tether anchors (child restraint sys-
tems)72
Top view 130
Total airing function 230
Towing 438
Towing capacity and towball load 618
Towing eyelet439
TPMS - Tire Pressure Monitoring System521
Traction control 261
Traffic information 456
Trailer
driving with a trailer 434
Lamps 437
swaying 436
Trailer Stability Assist 262
trailer 436
Trailer stabilizer 262, 436
Transmission 406
automatic 406
Transmission fluid
grade 621
Travel Link 464
Notifications 467
Sports 469
weather 466
Tread depth 515
winter tires 533
Tread wear indicator 515
Trip computer 87
display in instrument panel 89
Trip odometer 87
Trip odometer resetting 90
