VOLVO S80 1999 Manual Online

1 9 9 9
VOLVO S80
Chapter 10 - Audio systems
pg.125 Audio systems
HU-611 overview126
HU-801 overview127
Functions128
Specifications139
General information140
NOTE: The text on the face of the radio, describing the button functions, may vary slightly depending on which audio
system you have in your car.
pg.126 Audio system HU-611 - overview
1. On/off - press
Volume - turn
2. Selector knob for:
Stored radio frequencies
CD changer - selecting disc
3. Selector knob:
Radio
Cassette
CD
CD changer
4. Fader - press and turn
ProCarManuals.com

Balance - press, pull and turn
5. Radio - Station seek up/down
Cassette - selecting next/previous track
CD - Selecting next/previous track
6. Radio - Manual station selection
Cassette - Fast winding forward/backward
CD - Fast forwards/backward
7. CD eject
8. CD slot
9. CD random play
10. Active Sound Control (ON or OFF)
11. Scan function
12. Dolby B Noise Reduction
13. Automatic presetting of radio stations
14. Bass - press and turn
Treble - press, pull and turn
15. Tape direction selector
16. Cassette opening
17. Cassette eject
18. Display

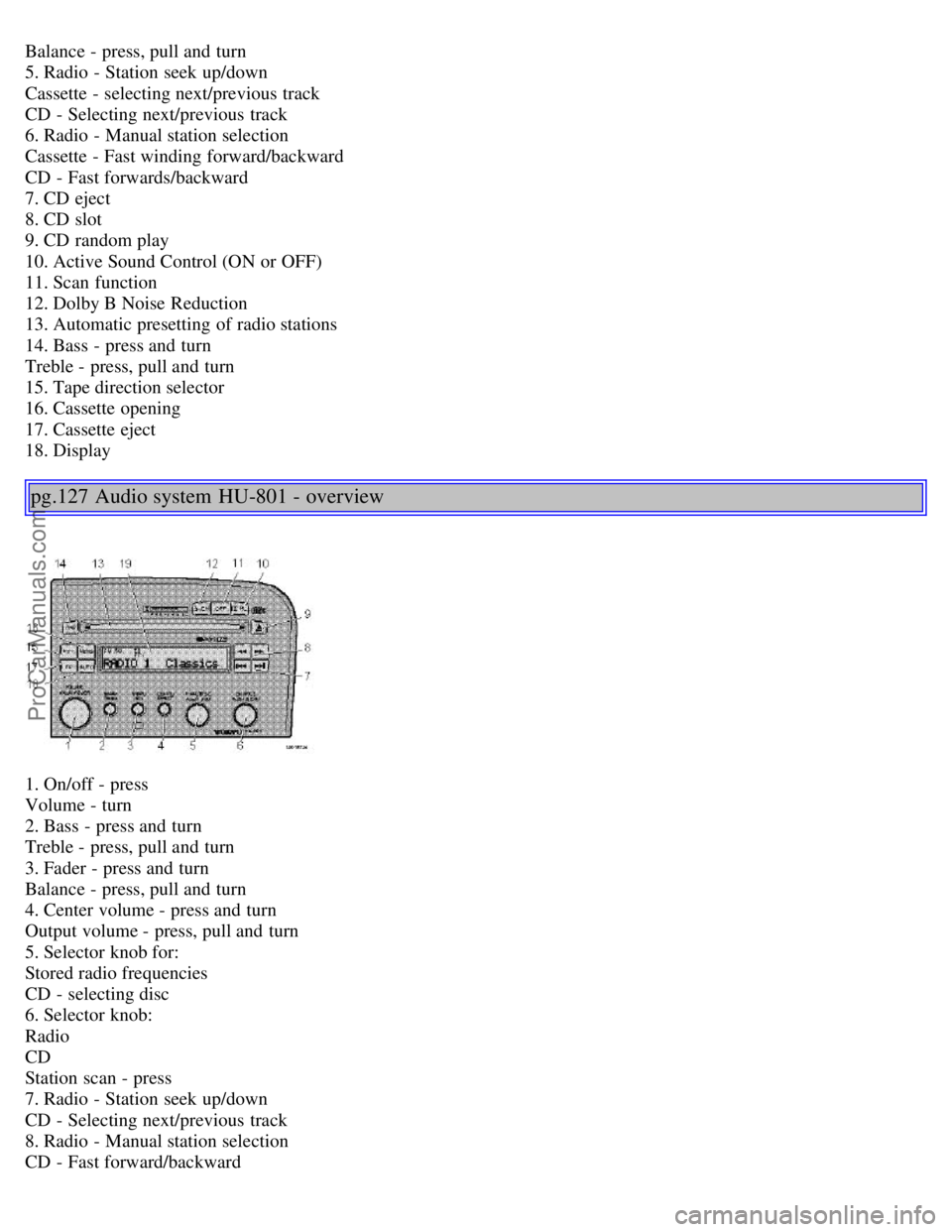

pg.127 Audio system HU-801 - overview
1. On/off - press
Volume - turn
2. Bass - press and turn
Treble - press, pull and turn
3. Fader - press and turn
Balance - press, pull and turn
4. Center volume - press and turn
Output volume - press, pull and turn
5. Selector knob for:
Stored radio frequencies
CD - selecting disc
6. Selector knob:
Radio
CD
Station scan - press
7. Radio - Station seek up/down
CD - Selecting next/previous track
8. Radio - Manual station selection
CD - Fast forward/backward
ProCarManuals.com

9. CD eject
10. Dolby Pro Logic
11. Dolby Pro Logic - switching off
12 3 channel stereo
13. CD slot
14. CD random play
15. Program type
Active Sound Control (ON or OFF)
16. News
17. Traffic information
18. Automatic presetting of radio
stations
19. Display

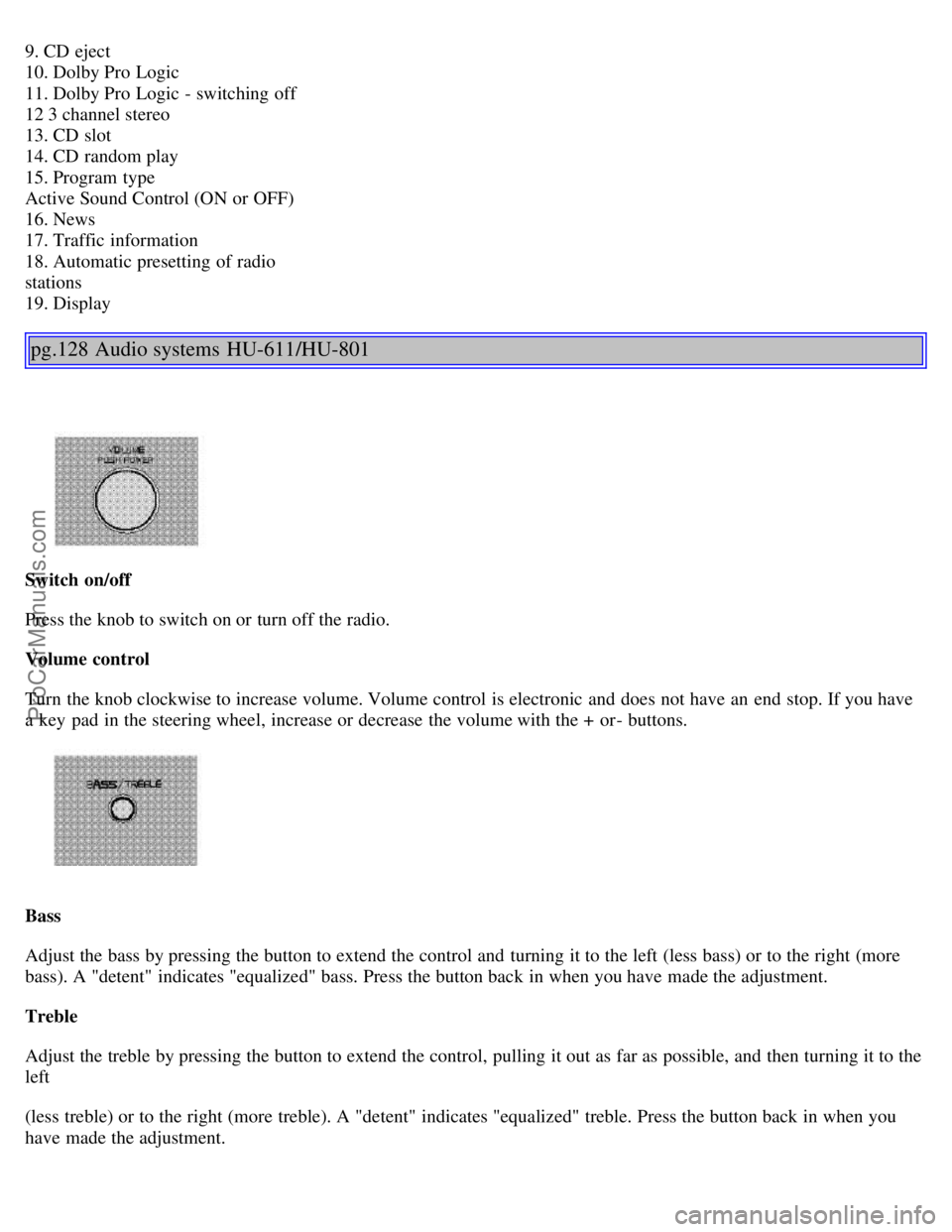

pg.128 Audio systems HU-611/HU-801
Switch on/off
Press the knob to switch on or turn off the radio.
Volume control
Turn the knob clockwise to increase volume. Volume control is electronic and does not have an end stop. If you have
a key pad in the steering wheel, increase or decrease the volume with the + or- buttons.
Bass
Adjust the bass by pressing the button to extend the control and turning it to the left (less bass) or to the right (more
bass). A "detent" indicates "equalized" bass. Press the button back in when you have made the adjustment.
Treble
Adjust the treble by pressing the button to extend the control, pulling it out as far as possible, and then turning it to the
left
(less treble) or to the right (more treble). A "detent" indicates "equalized" treble. Press the button back in when you
have made the adjustment.
ProCarManuals.com

Wavelength selector
Turn "SOURCE" knob to select FM or AM. The station and wavelength are displayed. You can also select cassette
deck, CD or CD changer, if connected, with this knob.
Active sound control (ASC)
The ASC (Active Sound Control) automatically adapts volume to vehicle speed.
Press the ASC button (HU-611) or the PTY button (HU-801) for several seconds to switch this function ON or OFF.
"ASC ON" or "ASC OFF" will be shown in the display for several seconds.
pg.129 Audio systems HU-611/HU-801
Fader - Balance front/rear
Adjust front/rear speaker balance by pressing the button to extend the control and turning it to the left (more sound
from the rear speakers) or to the right (more sound from the front speakers). A "detent" indicates "equalized" balance.
Press the button back in when you have made the adjustment.
Balance right/left
Adjust left/right speaker balance by pressing the button to extend the control, pulling it out as far as possible and then
turning it to the left (more sound from the left speakers) or to the right (more sound from the right speakers). A
"detent" indicates "equalized" balance. Press the button back in when you have made the adjustment.
A - Setting station
Press the left side of the button to select lower frequencies and the right side for higher frequencies. Set frequencies are
displayed.
ProCarManuals.com

B - Station seek up/down
Press the left side (lower frequency) or right side (higher frequency) of the button to start the seek function. The radio
seeks the next audible station and tunes it in. Repeat the procedure to continue the seek function.
Audio system controls on the steering wheel
Station seek up/down
If you have a key pad in the steering wheel press the right or left arrow to switch between preset stations.
Scan function
Press the SCAN button (HU-611) or the SOURCE button (HU-801) to start the station scan function. When a station
is found, scanning stops for several seconds, after which scanning will continue.
Press the SCAN or SOURCE button when a station has been found if you would like to listen to that station and to
discontinue the scan function.
pg.130 Audio systems HU-611/HU-801 - radio
A - Automatic station preset
This function seeks and stores up to 10 strong AM or FM stations in a separate memory. This function is especially
useful in areas where you are not familiar with the radio stations.
1. Press in the "AUTO" button. A number of strong signal stations (max. 10) from the currently selected waveband are
now stored automatically in the memory. An "A" and "AUTO" is displayed. If there is no station with sufficient signal
strength "NO STATION" is displayed.
2. Turn "1-20/DISC" button if you wish to change to another of the auto-stored stations.
Another auto-stored station is selected with each turn.
ProCarManuals.com

Programming stations
1. Tune in the desired frequency.
2. Press the "1-20/DISC" button. Select a number by turning forwards or backwards. Press again to store the selected
frequency and station.
Preset
To choose a pre-set station, turn "1-20/DISC" button to the stored number. The currently selected station is displayed.
Radio Data System (RDS, also referred to as RBDS) - HU -801 only
The HU -801 radio in your car is equipped with an advanced system allowing information from broadcasters to be
transmitted visually, as text, together with the audio signal. This information is then decoded by the radio and made
available for several new and unique features. The RDS or Radio Data System operates in the FM band only, and
the information transmitted is supplied exclusively by participating broadcasters. Volvo has no control over the
accuracy of the data or information. Please refer to the following pages regarding specific descriptions and operation
of these functions.
Volvo was among the first to pioneer this technology throughout Europe and it is slowly making its way to North
America. Coverage by local broadcasters may be limited at this time, but as the technology and benefits grow, you will
find the radio in your car is equipped to take advantage of this system.
pg.131 Audio systems HU-801 - radio
Traffic information (TP) - HU-801 only
This feature may not be apply in your area and only functions with FM broadcasts.
A short push on the "TP" button (less than 1 second) gives the traffic information from RDS stations. "TP" is displayed
when the function is connected.
When the unit is in Cassette or CD mode, the FM radio function will seek in the background for a station with a strong
signal broadcasting traffic information. If a cassette or CD are playing when the radio receives a traffic bulletin, that
function is interrupted and the bulletin is broadcast with the volume pre-selected for traffic information.
When the bulletin is finished the unit immediately returns to the previously set volume and continues playing the
cassette or CD.
ProCarManuals.com

· Traffic information can only be heard when is displayed.
· If only TP is displayed, this indicates that no traffic information is being received at the time.
· If you do not wish to listen to an ongoing traffic bulletin, press the "TP" button. The TP function will remain active
and the radio will continue to monitor traffic information.
News on/off - HU-801 only
This feature may not be apply in your area and only functions with FM broadcasts.
Press the "NEWS" button to activate the news function. The text NEWS is displayed. Press the "NEWS" button again
if you want to switch off the function.
As soon as a news broadcast begins, the news program will interrupt the Cassette, CD or CD changer.
If you do not wish to listen to the news program, press the "NEWS" button again. The news function will remain active
and the radio will continue to monitor news programs.
pg.132 Audio systems HU-801 - radio
Program types (HU-801 only)Program type Text displayed
1 News News
2 Information Inform
3 Sports Sports
4 Talk Talk
5 Rock Rock
6 Classic rock Cls_Rock
7 Adult hits Adlt_Hit
8 Soft rock Soft_Rck
9 Top 40 Top_40
10 Country Country
11 Oldies Oldies
12 Soft Soft
13 Nostalgia Nostalga
14 Jazz Jazz
15 Classical Classicl
16 Rhythm and Blues R_&_B
17Soft Rhythm and Blues Soft_R&B
ProCarManuals.com

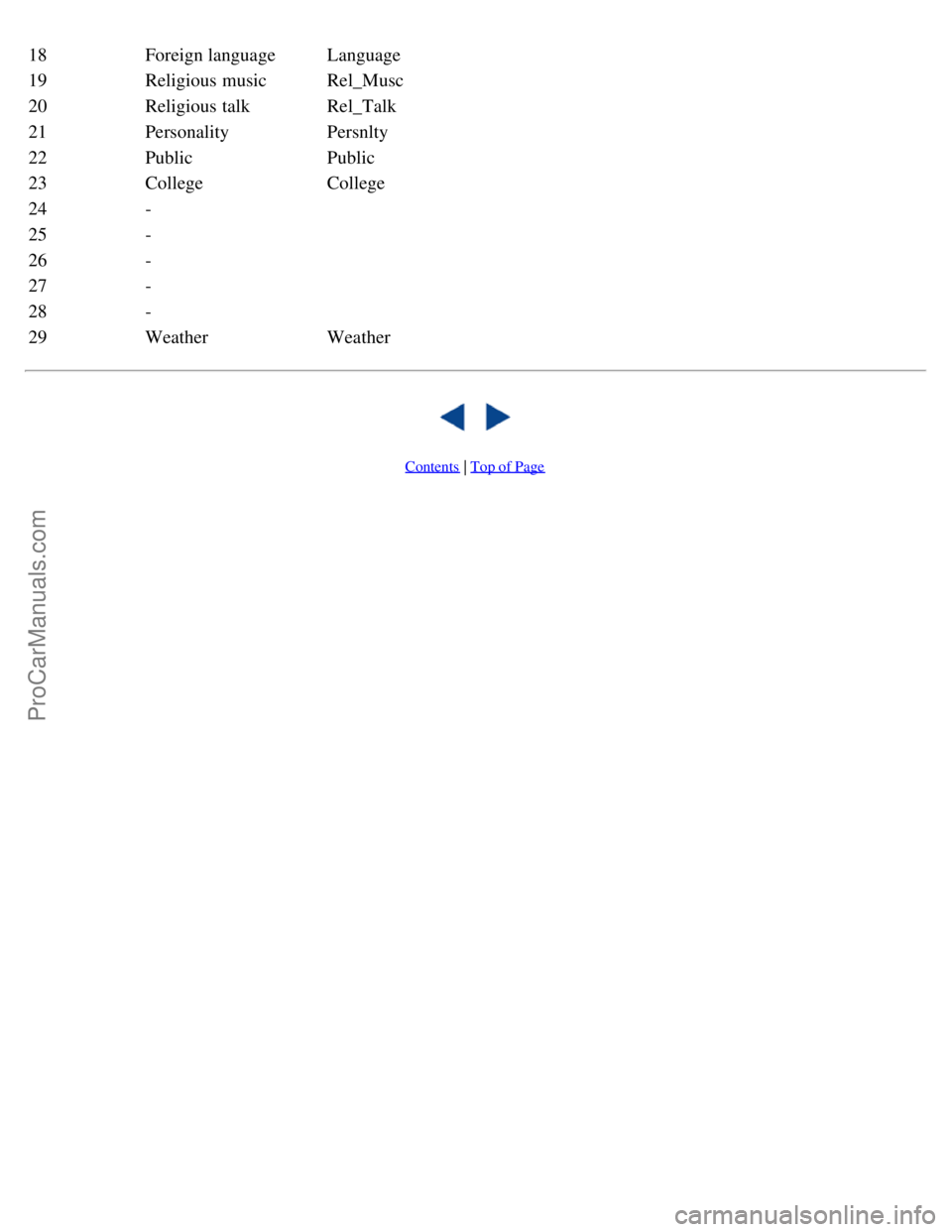

18Foreign language Language
19Religious music Rel_Musc
20 Religious talk Rel_Talk
21 Personality Persnlty
22 Public Public
23 College College
24 -
25 -
26 -
27 -
28 -
29 Weather Weather

Contents | Top of Page
ProCarManuals.com

1 9 9 9
VOLVO S80

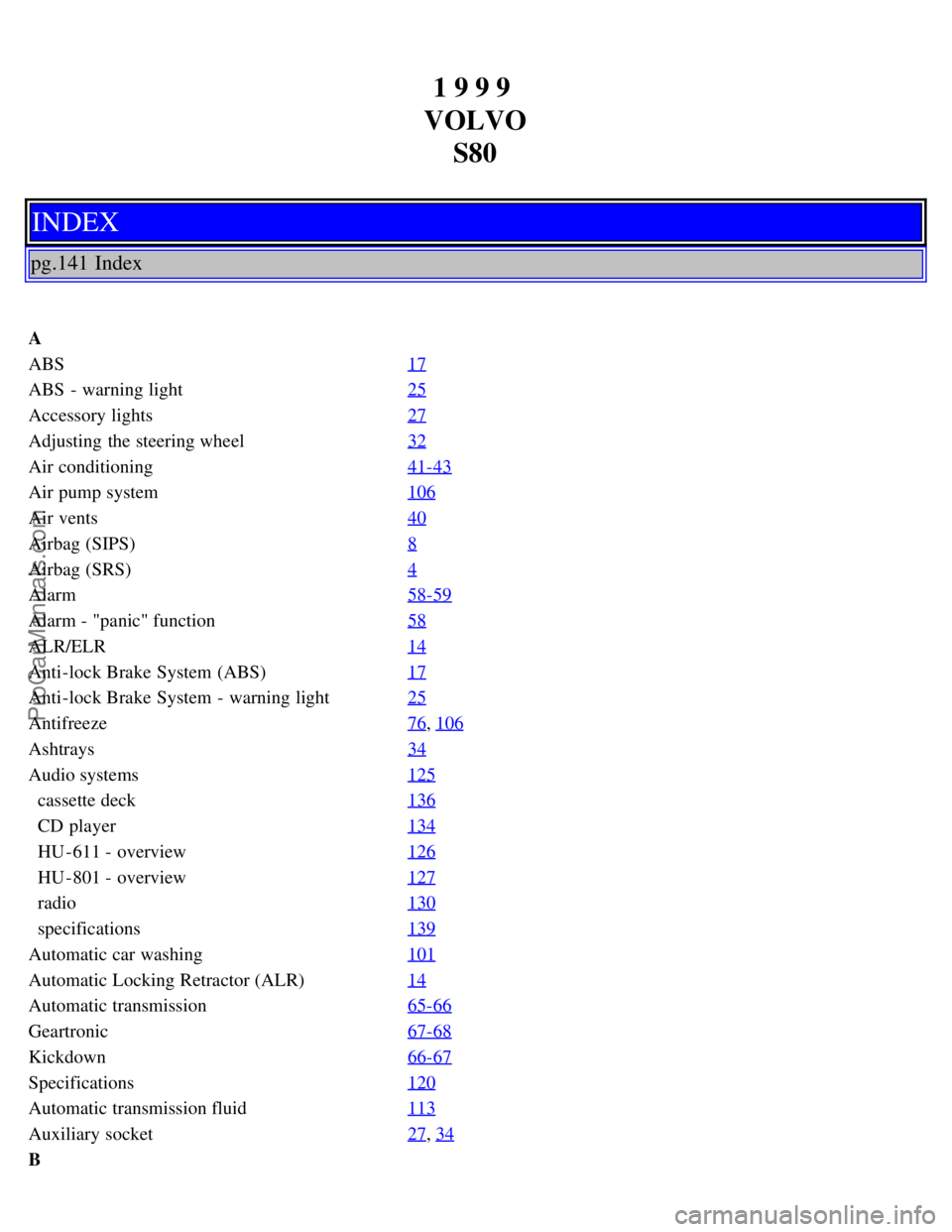

INDEX
pg.141 Index
A
ABS 17
ABS - warning light25
Accessory lights27
Adjusting the steering wheel32
Air conditioning41-43
Air pump system106
Air vents40
Airbag (SIPS)8
Airbag (SRS)4
Alarm58-59
Alarm - "panic" function58
ALR/ELR14
Anti-lock Brake System (ABS)17
Anti-lock Brake System - warning light25
Antifreeze76, 106
Ashtrays34
Audio systems125
cassette deck136
CD player134
HU -611 - overview126
HU -801 - overview127
radio130
specifications139
Automatic car washing101
Automatic Locking Retractor (ALR)14
Automatic transmission65-66
Geartronic67-68
Kickdown66-67
Specifications120
Automatic transmission fluid113
Auxiliary socket27, 34
B
ProCarManuals.com

Backrests, rear seat - folding52
Battery75-76, 123
Battery maintenance114-115
Replacing the battery115
Ventilation hose115
Booster cushion13, 15
Booster cushion - integrated13
Brake failure warning light24
Brake fluid112, 121
Brake system16
Break-in period62
Bulbs (list)123
Bulbs - replacing92-98
C
Capacities (oils and fluids)117
, 121
Cargo net in trunk51
Catalytic converters - three-way78
Center console - switches27
Center head restraint - rear seat3
Central locking buttons55
Chains - winter driving81
Changing wheels84-85
Child booster cushion13, 15
Child restraint anchorages12
Child safety12-15
Child safety locks - rear doors60
Climate controls41-43
Climate system - general information44
Clock23
Cold weather driving76
Coolant76, 106, 121
Cooling system121
Cooling system - general information71
Courtesy light48
Courtesy lights (front) - replacing98
Courtesy lights - exterior54
Cruise control29
Cup holder - opening50
D
Dimensions119
Direction indicator bulbs (front)93
Direction indicators31
Distributor ignition system122
Door step courtesy lights - replacing96
